Railway applications - Braking - Wheel slide protection

This document specifies the criteria for system acceptance and type approval of a wheel slide protection (WSP) system. It also specifies criteria for the implementation of WSP to specific vehicle applications and specific operating conditions, as well as requirements for wheel rotation monitoring (WRM). This includes the design, testing and quality assessment of the WSP and WRM systems and their components.
This European Standard does not apply to vehicles on rubber tyred wheels or vehicles equipped with hydraulic brakes.

Bahnanwendungen - Bremse - Gleitschutz

Dieses Dokument legt die Kriterien für die Systemzulassung und die Typprüfung eines Gleitschutzsystems (GS-Systems) fest. Es legt auch die Kriterien für die Implementierung eines GS bei spezifischen Fahrzeug¬anwendungen und spezifischen Betriebsbedingungen sowie die Anforderungen an eine Rollüberwachung (RÜ) fest. Dies beinhaltet Ausführung, Erprobung und den Qualitätsnachweis der GS  und RÜ-Systeme und ihrer Komponenten.
Diese Europäische Norm gilt nicht für Fahrzeuge mit Gummibereifung oder mit hydraulischen Bremsen ausgerüstete Fahrzeuge.

Applications ferroviaires - Freinage - Anti-enrayeur

Le présent document spécifie les critères pour l’acceptation du système et la qualification de type d’un système anti-enrayeur (AE). Elle définit également les critères d’intégration d’un système anti-enrayeur pour des applications véhicules spécifiques et des conditions d’exploitation spécifiques, ainsi que les exigences applicables au dispositif de surveillance de la rotation d'essieu (DNRE). Cela comprend les exigences relatives à la conception, aux essais et à l’assurance qualité des systèmes anti-enrayeur, des dispositifs de surveillance de la rotation d'essieu, et de leurs composants.
La présente Norme européenne n’est pas applicable aux véhicules montés sur pneus ou aux véhicules dotés de freins hydrauliques.

Železniške naprave - Zavore - Preprečevanje zdrsa koles

Ta evropski standard določa merila za sistemsko sprejemljivost in tipsko odobritev sistema za preprečevanje zdrsa koles (WSP). Določa tudi merila za izvajanje preprečevanja zdrsa koles za posebne železniške naprave in posebne obratovalne pogoje ter zahteve za nadzor vrtenja koles (WRM). To vključuje načrtovanje, preskušanje in oceno kakovosti sistemov za preprečevanje zdrsa koles in za nadzor vrtenja koles ter njihovih sestavnih delov.
Ta evropski standard se ne uporablja za določanje zmogljivosti zaviranja vlaka, opremljenega s sistemom za preprečevanje zdrsa koles, pri vseh okoljskih pogojih.

General Information

Status
Published
Publication Date
11-Dec-2018
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
12-Dec-2018
Completion Date
12-Dec-2018

RELATIONS

Buy Standard

Standard
EN 15595:2019 - BARVE na PDF-str 101
English language
105 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 15595:2019
01-februar-2019
1DGRPHãþD
SIST EN 15595:2009+A1:2011
äHOH]QLãNHQDSUDYH=DYRUH3UHSUHþHYDQMH]GUVDNROHV
Railway applications - Braking - Wheel slide protection
Bahnanwendungen - Bremse - Gleitschutz
Applications ferroviaires - Freinage - Anti-enrayeur
Ta slovenski standard je istoveten z: EN 15595:2018
ICS:
45.040 Materiali in deli za železniško Materials and components
tehniko for railway engineering
SIST EN 15595:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 15595:2019
---------------------- Page: 2 ----------------------
SIST EN 15595:2019
EN 15595
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2018
EUROPÄISCHE NORM
ICS 45.040 Supersedes EN 15595:2009+A1:2011
English Version
Railway applications - Braking - Wheel slide protection

Applications ferroviaires - Freinage - Anti-enrayeur Bahnanwendungen - Bremse - Gleitschutz

This European Standard was approved by CEN on 3 August 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15595:2018 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 15595:2019
EN 15595:2018 (E)

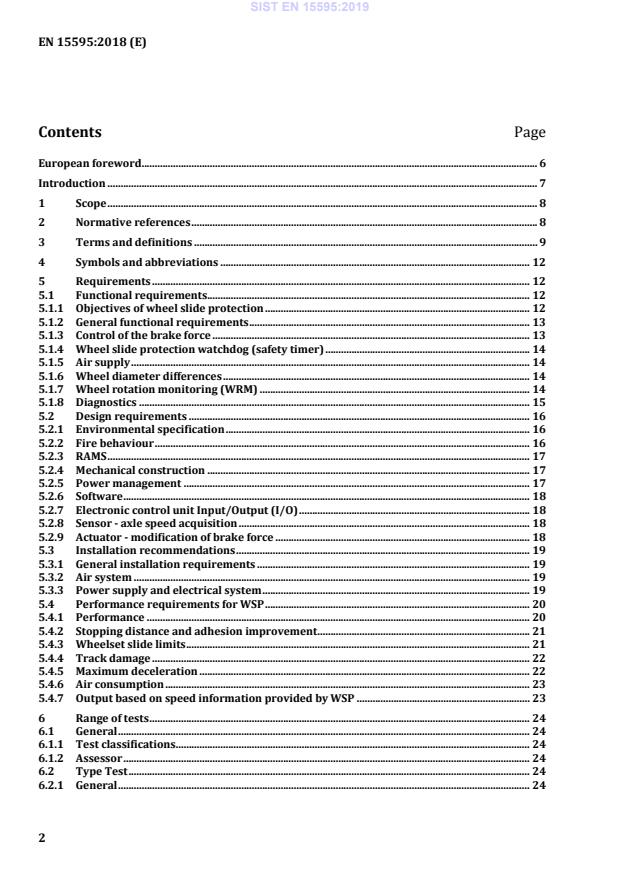

Contents Page

European foreword ....................................................................................................................................................... 6

Introduction .................................................................................................................................................................... 7

1 Scope .................................................................................................................................................................... 8

2 Normative references .................................................................................................................................... 8

3 Terms and definitions ................................................................................................................................... 9

4 Symbols and abbreviations ...................................................................................................................... 12

5 Requirements ................................................................................................................................................ 12

5.1 Functional requirements........................................................................................................................... 12

5.1.1 Objectives of wheel slide protection ..................................................................................................... 12

5.1.2 General functional requirements ........................................................................................................... 13

5.1.3 Control of the brake force ......................................................................................................................... 13

5.1.4 Wheel slide protection watchdog (safety timer) .............................................................................. 14

5.1.5 Air supply ........................................................................................................................................................ 14

5.1.6 Wheel diameter differences ..................................................................................................................... 14

5.1.7 Wheel rotation monitoring (WRM) ....................................................................................................... 14

5.1.8 Diagnostics ..................................................................................................................................................... 15

5.2 Design requirements .................................................................................................................................. 16

5.2.1 Environmental specification .................................................................................................................... 16

5.2.2 Fire behaviour ............................................................................................................................................... 16

5.2.3 RAMS ................................................................................................................................................................. 17

5.2.4 Mechanical construction ........................................................................................................................... 17

5.2.5 Power management .................................................................................................................................... 17

5.2.6 Software ........................................................................................................................................................... 18

5.2.7 Electronic control unit Input/Output (I/O) ........................................................................................ 18

5.2.8 Sensor - axle speed acquisition ............................................................................................................... 18

5.2.9 Actuator - modification of brake force ................................................................................................. 18

5.3 Installation recommendations ................................................................................................................ 19

5.3.1 General installation requirements ........................................................................................................ 19

5.3.2 Air system ....................................................................................................................................................... 19

5.3.3 Power supply and electrical system ...................................................................................................... 19

5.4 Performance requirements for WSP ..................................................................................................... 20

5.4.1 Performance .................................................................................................................................................. 20

5.4.2 Stopping distance and adhesion improvement ................................................................................. 21

5.4.3 Wheelset slide limits ................................................................................................................................... 21

5.4.4 Track damage ................................................................................................................................................ 22

5.4.5 Maximum deceleration .............................................................................................................................. 22

5.4.6 Air consumption ........................................................................................................................................... 23

5.4.7 Output based on speed information provided by WSP .................................................................. 23

6 Range of tests ................................................................................................................................................. 24

6.1 General ............................................................................................................................................................. 24

6.1.1 Test classifications ....................................................................................................................................... 24

6.1.2 Assessor ........................................................................................................................................................... 24

6.2 Type Test ......................................................................................................................................................... 24

6.2.1 General ............................................................................................................................................................. 24

---------------------- Page: 4 ----------------------
SIST EN 15595:2019
EN 15595:2018 (E)

6.2.2 Test requirements ........................................................................................................................................ 24

6.2.3 Individual component Type Test ............................................................................................................ 24

6.3 Vehicle Implementation Test ................................................................................................................... 25

6.3.1 General ............................................................................................................................................................. 25

6.3.2 Test requirements ........................................................................................................................................ 26

6.3.3 Conformity of previous vehicle tests ..................................................................................................... 26

6.4 List of tests ...................................................................................................................................................... 26

6.4.1 Standard tests ................................................................................................................................................ 26

6.4.2 Drag tests ......................................................................................................................................................... 26

6.4.3 Test methods for speeds from 160 up to 200 km/h ......................................................................... 27

6.4.4 Test methods for speeds > 200 km/h .................................................................................................... 27

6.4.5 Supplementary higher deceleration tests ........................................................................................... 27

6.4.6 Supplementary approval tests for WSP acting in vehicles with brakes that are

independent of adhesion ........................................................................................................................... 27

6.4.7 Supplementary approval tests involving tractive units and trainsets having dynamic

brakes ............................................................................................................................................................... 27

6.4.8 Testing of wheel rotation monitoring (WRM) .................................................................................... 28

6.5 Re-testing ......................................................................................................................................................... 34

6.5.1 General ............................................................................................................................................................. 34

6.5.2 Hardware ......................................................................................................................................................... 34

6.5.3 Software ........................................................................................................................................................... 35

7 Test methods .................................................................................................................................................. 35

7.1 General ............................................................................................................................................................. 35

7.2 Measurement ................................................................................................................................................. 36

7.3 Tests on vehicle ............................................................................................................................................. 37

7.3.1 General ............................................................................................................................................................. 37

7.3.2 Generation of degraded adhesion .......................................................................................................... 38

7.3.3 Environmental conditions ......................................................................................................................... 38

7.4 Test in simulation environment .............................................................................................................. 39

7.4.1 General ............................................................................................................................................................. 39

7.4.2 Tests on simulation rig ............................................................................................................................... 39

7.4.3 Additional specific simulator tests ......................................................................................................... 40

7.4.4 Optional tests ................................................................................................................................................. 40

8 Evaluation of test .......................................................................................................................................... 40

8.1 Correcting the stopping distances .......................................................................................................... 40

8.2 Number and validity of dry tests ............................................................................................................. 40

8.3 Evaluation of slide test ................................................................................................................................ 40

8.3.1 General ............................................................................................................................................................. 40

8.3.2 Evaluation of stopping performance ..................................................................................................... 41

8.3.3 Evaluation of test validity .......................................................................................................................... 42

8.3.4 Evaluation of relative air consumption ................................................................................................ 51

9 Documentation of tests ............................................................................................................................... 52

9.1 Test Specification .......................................................................................................................................... 52

9.2 Test report ...................................................................................................................................................... 53

10 Routine test and inspection ...................................................................................................................... 54

11 Designation, identification and marking ............................................................................................. 54

Annex A (normative) Tables linking the WSP / WRM Requirements to Tests and Test

Criteria .............................................................................................................................................................. 55

Annex B (normative) Minimum requirements for a WSP simulator ....................................................... 75

B.1 General ............................................................................................................................................................. 75

---------------------- Page: 5 ----------------------
SIST EN 15595:2019
EN 15595:2018 (E)

B.1.1 General ............................................................................................................................................................. 75

B.1.2 Use of the simulator model ....................................................................................................................... 75

B.2 Adhesion model ............................................................................................................................................ 81

B.2.1 General ............................................................................................................................................................. 81

B.2.2 Constant adhesion condition ................................................................................................................... 81

B.2.3 Variable adhesion condition .................................................................................................................... 81

B.2.4 Adhesion conditioning factors ................................................................................................................ 82

B.3 Test and performance model ................................................................................................................... 82

B.3.1 General ............................................................................................................................................................. 82

B.3.2 Simulator performance .............................................................................................................................. 82

B.3.3 Test requirements ....................................................................................................................................... 82

B.3.4 Stopping performance ................................................................................................................................ 82

B.3.5 Wheel damage ............................................................................................................................................... 83

B.3.6 Air system ....................................................................................................................................................... 83

B.3.7 Pass/fail limits .............................................................................................................................................. 83

B.3.8 Fault conditions ............................................................................................................................................ 83

B.3.9 WSP outputs ................................................................................................................................................... 84

B.4 Vehicle performance model ..................................................................................................................... 84

B.4.1 General ............................................................................................................................................................. 84

B.4.2 Friction material........................................................................................................................................... 84

B.4.3 Pneumatic actuator/brake demand ...................................................................................................... 84

B.4.4 Body/Bogie/wheel dynamics .................................................................................................................. 84

B.5 Vehicle functional model ........................................................................................................................... 85

B.5.1 General ............................................................................................................................................................. 85

B.5.2 Functional inputs ......................................................................................................................................... 85

B.6 Simulator validation ................................................................................................................................... 85

B.6.1 General ............................................................................................................................................................. 85

B.6.2 Validation of test benches ......................................................................................................................... 85

B.6.3 Management ................................................................................................................................................... 88

Annex C (informative) Example of customer specific simulator tests ................................................... 89

C.1 Naturally occurring variable adhesion tests ...................................................................................... 89

C.1.1 General ............................................................................................................................................................. 89

C.1.2 Sequence .......................................................................................................................................................... 89

C.1.3 Measurement and pass/fail criteria ...................................................................................................... 91

C.2 Sustained low adhesion track condition (SLAC) Tests ................................................................... 92

C.2.1 Sequence .......................................................................................................................................................... 92

C.2.2 Measurement/pass fail criteria .............................................................................................................. 93

C.2.3 WSP speed reference (v ) ...................................................................................................................... 93

ref

C.3 Operating speeds above 160 km/h ........................................................................................................ 93

C.3.1 Criteria ............................................................................................................................................................. 93

C.3.2 Sequence .......................................................................................................................................................... 94

C.3.3 Measurement and pass/fail criteria ...................................................................................................... 94

Annex D (informative) Optional tests ................................................................................................................ 95

D.1 Sander system tests — Criteria ............................................................................................................... 95

D.2 Dynamic braking system tests — Criteria ........................................................................................... 96

D.3 Peripheral output tests — Criteria ........................................................................................................ 96

Annex E (informative) Typical diagram of a real WSP test ........................................................................ 98

Annex F (informative) In-service monitoring ............................................................................................... 100

Annex G (informative) Braking configurations ............................................................................................ 101

G.1 Per bogie control ........................................................................................................................................ 101

---------------------- Page: 6 ----------------------
SIST EN 15595:2019
EN 15595:2018 (E)

G.2 Per wagon control ..................................................................................................................................... 101

Annex H (informative) Changes between Revision 1 and Revision 2 of EN 15595 ......................... 102

Annex ZA (informative) Relationship between this European Standard and the Essential

Requirements of EU Directive 2008/57/EC aimed to be covered............................................ 103

Bibliography .............................................................................................................................................................. 105

---------------------- Page: 7 ----------------------
SIST EN 15595:2019
EN 15595:2018 (E)
European foreword

This document (EN 15595:2018) has been prepared by Technical Committee CEN/TC 256 “Railway

applications”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by June 2019, and conflicting national standards shall be

withdrawn at the latest by June 2019.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 15595:2009+A1:2011.

This document has been prepared under a standardization request given to CEN by the European

Commission and the European Free Trade Association, and supports essential requirements of

EU Directive 2008/57/EC.

For relationship with EU Directive 2008/57/EC, see informative Annex ZA, which is an integral part of

this document.

The rationale behind the changes between Revision 1 and this Revision of this standard is given in

Annex H.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 8 ----------------------
SIST EN 15595:2019
EN 15595:2018 (E)
Introduction

A Wheel Slide Protection (WSP) system is designed to make the best use of available adhesion and to

improve adhesion by a controlled reduction and restoration of the brake force to prevent wheel sets

from locking and uncontrolled sliding due to low adhesion. Thus the braking performance is optimized

and the occurrence of wheelset damage is minimized.

The Wheel Rotation Monitoring (WRM) system is designed to detect locked wheels and to give

immediate information in this case.

Trains fitted with WSP systems may consist of single vehicles, locomotive and trailing vehicles or may

be high speed trains, multiple units, commuter trains, Light Rail Vehicles (LRV) and Tram Trains of any

track gauge, etc.

Such trains will be equipped with friction brakes and may also be equipped with additional braking

systems, e.g. dynamic brakes, wheel/rail adhesion independent brakes, and may also be fitted with

adhesion improving systems, e.g. sanding.

This European Standard is not intended to be used to determine the stopping performance of a WSP

equipped train under all environmental conditions.
---------------------- Page: 9 ----------------------
SIST EN 15595:2019
EN 15595:2018 (E)
1 Scope

This document specifies the criteria for system acceptance and type approval of a wheel slide

protection (WSP) system. It also specifies criteria for the implementation of WSP to specific vehicle

applications and specific operating conditions, as well as requirements for wheel rotation monitoring

(WRM). This includes the design, testing and quality assessment of the WSP and WRM systems and

their components.

This European Standard does not apply to vehicles on rubber tyred wheels or vehicles equipped with

hydraulic brakes.
2 Normative references
The following doc
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
