prEN 12608-2

Unplasticized polyvinylchloride (PVC-U) profiles for the fabrication of windows and doors - Classification, requirements and test methods - Part 2: Laminated profiles

This European Standard specifies the classifications, requirements and test methods for laminated unplasticized polyvinylchloride (PVC-U) profiles intended to be used for the fabrication of windows and doors.

Profile aus weichmacherfreiem Polyvinylchlorid (PVC-U) zur Herstellung von Fenstern und Türen - Klassifizierung, Anforderungen und Prüfverfahren - Teil 2: PVC-U Profile beschichtet mit Folien, die mit Klebstoffen befestigt sind

Dieses Dokument legt die Klassifizierungen, Anforderungen an und Prüfverfahren für folienkaschierte Profile aus weichmacherfreiem Polyvinylchlorid (PVC-U) zur Herstellung von Fenstern und Türen fest, deren Folie für den Außeneinsatz vorgesehen und mittels Klebstoff aufgebracht ist.
ANMERKUNG 1 Aus redaktionellen Gründen wird in diesem Dokument die Benennung "Fenster" für Fenster/Tür angewendet.
ANMERKUNG 2 Profile aus PVC-U-Werkstoffen mit Verstärkungsstoffen (z. B. Glasfasern) sind nicht durch dieses Dokument abgedeckt.
ANMERKUNG 3 Für die Produktionskontrolle können andere Prüfverfahren als in diesem Dokument festgelegt verwendet werden.

Profilés de poly(chlorure de vinyle) non plastifié (PVC-U) pour la fabrication des fenêtres et des portes - Classification, exigences et méthodes d'essai - Partie 2 : Profilés en PVC-U plaxés avec des films collés

Le présent document spécifie les classifications, les exigences et les méthodes d’essai des profilés de poly(chlorure de vinyle) non plastifié (PVC-U) recouverts de films conçus pour un usage extérieur, collés avec des adhésifs, qui sont destinés à être utilisés pour la fabrication de fenêtres et de portes.
NOTE 1 Pour des raisons éditoriales, dans ce document le terme « fenêtre » est utilisé pour « fenêtre/porte ».
NOTE 2 Les profilés fabriqués à partir de matière PVC-U avec renforts (par exemple des fibres de verre) ne sont pas couverts par le présent document.
NOTE 3 Pour les besoins du contrôle de la production, des méthodes d’essai autres que celles spécifiées dans le présent document peuvent être utilisées.

Profili iz nemehčanega polivinilklorida (PVC-U) za izdelavo oken in vrat - Razvrščanje, zahteve in preskusne metode - 2. del: Profili PVC-U, prevlečeni s folijami, lepljenimi z lepili

General Information

• Status: Not Published
• Publication Date: 05-Aug-2024
• ICS: 83.140.99 - Other rubber and plastics products
• ICS: 91.060.50 - Doors and windows
• Technical Committee: CEN/TC 249 - Plastics
• Drafting Committee: CEN/TC 249/WG 21 - Profiles for windows and doors
• Current Stage: 0098 - Decision to abandon - Definition of new project
• Start Date: 07-Aug-2017
• Completion Date: 14-Apr-2025
• Ref Project: oSIST prEN 12608-2:2022 - Unplasticized poly(vinyl chloride) (PVC-U) profiles for the fabrication of windows and doors - Classification, requirements and test methods - Part 2: PVC-U profiles covered with foils bonded with adhesives

Relations

• Revises: EN 12608:2003 - Unplasticized polyvinylchloride (PVC-U) profiles for the fabrication of windows and doors - Classification, requirements and test methods
• Effective Date: 18-Jan-2023

Overview

prEN 12608-2 (CEN) defines the classification, requirements and test methods for laminated unplasticized polyvinyl chloride (PVC‑U) profiles intended for the fabrication of windows and doors. Part 2 of the EN 12608 series covers PVC‑U profiles that are covered with decorative or protective foils bonded with adhesives for external use. The document sets out how to assess materials, foils and adhesive systems and specifies relevant test methods for durability and performance.

Key topics and technical requirements

• Scope and terminology
  • Defines key terms such as base profile, laminated profile, foil and adhesive system used across lamination processes.
• Classification
  • Classification of main base profiles by external wall thickness and impact resistance.
  • Classification of base profile materials and foils according to resistance to artificial weathering (UV resistance classes).
• Requirements for base profiles
  • Material and appearance requirements, dimensional tolerances, heat reversion and impact resistance considerations (aligned with EN 12608‑1 where applicable).
• Requirements for foils
  • Appearance, resistance to artificial weathering, solar direct reflectance and, where applicable, cross‑cut resistance for lacquered foils.
• Requirements for adhesive systems
  • Adhesion of foils before and after artificial ageing; guidance for primer/glue systems and peel strength assessment.
• Requirements for laminated profiles
  • Visual appearance, straightness, behaviour after heat storage, peel strength, and strength of welded corners and T‑joints.
• Test methods
  • Visual inspection, peel strength determination after artificial ageing, spectral analysis for reflection behaviour (Annex C), and other referenced test standards (e.g., EN ISO 4892‑2 xenon‑arc weathering, EN 17271 peel testing).

Applications and who uses it

This standard is practical for:

• PVC‑U profile manufacturers establishing product specifications for laminated profiles.
• Window and door fabricators selecting durable laminated profiles for external installations.
• Quality control and testing laboratories performing peel, weathering and adhesion tests.
• Specifiers, architects and procurement teams requiring compliance evidence in tenders and technical dossiers.
• Regulators and certification bodies assessing conformity to European practice for laminated PVC‑U fenestration products.

By following prEN 12608‑2, stakeholders can specify, test and validate laminated PVC‑U profiles for outdoor use-helping ensure durability, weather resistance and reliable adhesion of decorative/protective foils.

Related standards

• EN 12608‑1 (Non‑coated PVC‑U profiles)
• EN 17271 (Peel strength of laminated profiles)
• EN ISO 4892‑2 (Xenon‑arc artificial weathering)
• Other referenced EN/ISO methods for impact, heat reversion, colourimetry and joint strength

Keywords: prEN 12608‑2, PVC‑U profiles, laminated profiles, windows and doors standard, adhesive systems, foil lamination, artificial weathering, peel strength, CEN.

Standards Content (Sample)

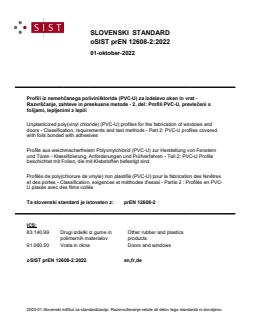

SLOVENSKI STANDARD
01-oktober-2022
Profili iz nemehčanega polivinilklorida (PVC-U) za izdelavo oken in vrat -
Razvrščanje, zahteve in preskusne metode - 2. del: Profili PVC-U, prevlečeni s
folijami, lepljenimi z lepili
Unplasticized poly(vinyl chloride) (PVC-U) profiles for the fabrication of windows and
doors - Classification, requirements and test methods - Part 2: PVC-U profiles covered
with foils bonded with adhesives
Profile aus weichmacherfreiem Polyvinylchlorid (PVC-U) zur Herstellung von Fenstern
und Türen - Klassifizierung, Anforderungen und Prüfverfahren - Teil 2: PVC-U Profile
beschichtet mit Folien, die mit Klebstoffen befestigt sind
Profilés de poly(chlorure de vinyle) non plastifié (PVC-U) pour la fabrication des fenêtres
et des portes - Classification, exigences et méthodes d'essai - Partie 2 : Profilés en PVC-
U plaxés avec des films collés
Ta slovenski standard je istoveten z: prEN 12608-2
ICS:
83.140.99 Drugi izdelki iz gume in Other rubber and plastics
polimernih materialov products
91.060.50 Vrata in okna Doors and windows
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

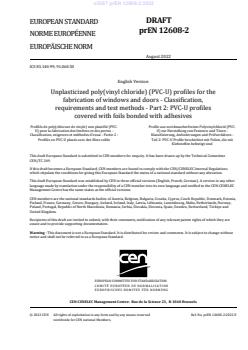

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2022
ICS 83.140.99; 91.060.50
English Version
Unplasticized poly(vinyl chloride) (PVC-U) profiles for the
fabrication of windows and doors - Classification,
requirements and test methods - Part 2: PVC-U profiles
covered with foils bonded with adhesives
Profilés de poly(chlorure de vinyle) non plastifié (PVC- Profile aus weichmacherfreiem Polyvinylchlorid (PVC-
U) pour la fabrication des fenêtres et des portes - U) zur Herstellung von Fenstern und Türen -
Classification, exigences et méthodes d'essai - Partie 2 : Klassifizierung, Anforderungen und Prüfverfahren -
Profilés en PVC-U plaxés avec des films collés Teil 2: PVC-U Profile beschichtet mit Folien, die mit
Klebstoffen befestigt sind
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 249.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 12608-2:2022 E
worldwide for CEN national Members.

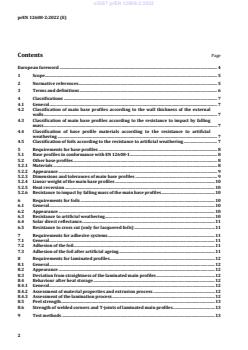

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Classifications . 7
4.1 General. 7
4.2 Classification of main base profiles according to the wall thickness of the external
walls . 7
4.3 Classification of main base profiles according to the resistance to impact by falling
mass . 7
4.4 Classification of base profile materials according to the resistance to artificial
weathering . 7
4.5 Classification of foils according to the resistance to artificial weathering . 7
5 Requirements for base profiles . 8
5.1 Base profiles in conformance with EN 12608-1 . 8
5.2 Other base profiles . 8
5.2.1 Materials . 8
5.2.2 Appearance . 9
5.2.3 Dimensions and tolerances of main base profiles . 9
5.2.4 Linear weight of the main base profiles . 10
5.2.5 Heat reversion . 10
5.2.6 Resistance to impact by falling mass of the main base profiles . 10
6 Requirements for foils . 10
6.1 General. 10
6.2 Appearance . 10
6.3 Resistance to artificial weathering . 10
6.4 Solar direct reflectance . 11
6.5 Resistance to cross cut (only for lacquered foils) . 11
7 Requirements for adhesive systems . 11
7.1 General. 11
7.2 Adhesion of the foil. 11
7.3 Adhesion of the foil after artificial ageing . 11
8 Requirements for laminated profiles . 12
8.1 General. 12
8.2 Appearance . 12
8.3 Deviation from straightness of the laminated main profiles . 12
8.4 Behaviour after heat storage . 12
8.4.1 General. 12
8.4.2 Assessment of material properties and extrusion process . 12
8.4.3 Assessment of the lamination process . 12
8.5 Peel strength . 13
8.6 Strength of welded corners and T-joints of laminated main profiles . 13
9 Test methods . 13
9.1 Visual inspection . 13
9.2 Determination of peel strength after artificial ageing . 13
9.2.1 Principle . 13
9.2.2 Apparatus and materials . 13
9.2.3 Preparation of the test specimens . 14
9.2.4 Storage and reconditioning . 14
9.2.5 Determination of the peel strength . 14
9.2.6 Test report . 14
10 Traceability . 15
Annex A (normative) Requirements for materials of other base profiles than described in
EN 12608-1 . 16
Annex B (informative) Guidance for the selection of a suitable class for the foil according to
4.5 based on the climatic condition at the intended installation site . 19
Annex C (normative) Determination of the reflection behaviour of foils by spectral analysis . 23
Bibliography . 25

European foreword
This document (prEN 12608-2:2022) has been prepared by Technical Committee CEN/TC 249
“Plastics”, the secretariat of which is held by NBN.
This document is currently submitted to the CEN Enquiry.
The EN 12608 series, Unplasticized poly(vinyl chloride) (PVC-U) profiles for the fabrication of windows
and doors — Classification, requirements and test methods, currently consists of the following parts:
— Part 1: Non-coated PVC-U profiles with light coloured surfaces
— Part 2: PVC-U profiles covered with foils bonded with adhesives
— Part 3: PVC-U profiles with lacquered-coating (in preparation)
— Part 4: PVC-U profiles with coextruded coloured top-layer (in preparation)
— Part 5: PVC-U profiles with thermo-laminated foils (in preparation)
1 Scope
This document specifies the classifications, requirements and test methods for unplasticized poly(vinyl
chloride) (PVC-U) profiles covered with foils designed for external uses bonded with adhesives which
are intended to be used for the fabrication of windows and doors.
NOTE 1 For editorial reasons, in this document, the term “window” is used for window/door.
NOTE 2 Profiles made from PVC-U materials with reinforcements (e.g. glass fibres) are not covered by this
document.
NOTE 3 For the purpose of production control, test methods other than those specified in this document can be
used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 410, Glass in building - Determination of luminous and solar characteristics of glazing
EN 478, Plastics - Poly(vinyl chloride) (PVC) based profiles - Determination of the appearance after
exposure at 150 °C
EN 479, Plastics - Poly(vinyl chloride) (PVC) based profiles - Determination of heat reversion
EN 513, Plastics - Poly(vinylchloride) (PVC) based profiles - Determination of the resistance to artificial
weathering
EN 514, Plastics - Poly(vinyl chloride) (PVC) based profiles - Determination of the strength of welded
corners and T-joints
EN 12608-1:2016+A1:2020, Unplasticized poly(vinyl chloride) (PVC-U) profiles for the fabrication of
windows and doors - Classification, requirements and test methods - Part 1: Non-coated PVC-U profiles
with light coloured surfaces
EN 17271, Plastics - Poly(vinyl chloride) (PVC) based profiles - Determination of the peel strength of
profiles laminated with foils
EN 20105-A02, Textiles - Tests for colour fastness - Part A02: Grey scale for assessing change in colour
(ISO 105-A02)
EN 17508, Plastics - Unplasticized poly(vinyl chloride) (PVC-U) profiles for the fabrication of windows and
doors - Terminology of PVC based materials
EN ISO 105-A01:2010, Textiles - Tests for colour fastness - Part A01: General principles of testing
(ISO 105-A01:2010)
EN ISO 178, Plastics - Determination of flexural properties (ISO 178)
EN ISO 179-1, Plastics - Determination of Charpy impact properties - Part 1: Non-instrumented impact
test (ISO 179-1)
EN ISO 306, Plastics - Thermoplastic materials - Determination of Vicat softening temperature (VST)
(ISO 306)
EN ISO 2409, Paints and varnishes - Cross-cut test (ISO 2409)
EN ISO 4892-2:2013, Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
(ISO 4892-2:2013)
EN ISO 8256, Plastics - Determination of tensile-impact strength (ISO 8256)
EN ISO/CIE 11664-4, Colorimetry - Part 4: CIE 1976 L*a*b* colour space (ISO/CIE 11664-4)
EN ISO 21306-2:2019, Plastics - Unplasticized poly(vinyl chloride) (PVC-U) moulding and extrusion
materials - Part 2: Preparation of test specimens and determination of properties (ISO 21306-2:2019)
3 Terms and definitions
For the purposes of this document the terms and definitions given in EN 12608-1 (except for material
definitions), EN 17508 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
base profile
profile without covering foil intended for lamination
3.2
laminated profile
profile covered with foil
3.3
foil
plastics layer for external uses intended to cover surfaces of a base profile
Note 1 to entry: Foil can be lacquered or not.
3.4
adhesive system
material or combination of materials which assures the adhesion of the foil on the base profile
EXAMPLES Primer and glue.
3.5
base layer (of the foil)
layer of the foil with or without further surface treatment which is in contact with the adhesive system
4 Classifications
4.1 General
This document establishes the following classifications:
a) Classification of main base profiles according to the wall thickness of the external walls (see 4.2);
b) Classification of main base profiles according to resistance to impact by falling mass (see 4.3);
c) Classification of base profile materials according to the resistance to artificial weathering (see 4.4);
d) Classification of foils according to the resistance to artificial weathering (see 4.5).
The selection of appropriate classes necessary to fulfil national requirements may be given in the
national foreword of this document.
4.2 Classification of main base profiles according to the wall thickness of the external
walls
For the wall thickness of the external walls, the main base profiles shall be classified according to
EN 12608-1:2016+A1:2020, 4.4 (Figure 2 and Table 3).
4.3 Classification of main base profiles according to the resistance to impact by falling
mass
For the resistance to impact by falling mass, the main base profiles shall be classified according to
EN 12608-1:2016+A1:2020, 4.3.
4.4 Classification of base profile materials according to the resistance to artificial
weathering
Resistance to artificial weathering of base profile materials shall be determined according to Annex A.
There are two possibilities for the classification of base profile materials which are used for the profile’s
surface according to the resistance to artificial weathering:
a) for UV resistant materials (UVM) classification according to climatic zones conforming to
EN 12608-1:2016+A1:2020, 4.2, applies (classes M and S);
b) for reduced-UV resistant materials the class “RUVM” applies.
4.5 Classification of foils according to the resistance to artificial weathering
The resistance to artificial weathering of foils shall be classified according to Table 1 after testing
according to 6.3.
For guidance regarding the selection of the appropriate foil class, see Annex B.
Table 1 — Classification of foils according to the resistance to artificial weathering
Class M 8 M 12 M 20 M 30
Radiant exposure in
2 2 2 2
wavelength range 8 GJ/m 12 GJ/m 20 GJ/m 30 GJ/m
(300 to 800) nm
5 Requirements for base profiles
5.1 Base profiles in conformance with EN 12608-1
If the base profile is in accordance with EN 12608-1, no further requirements for the base profile apply.
5.2 Other base profiles
5.2.1 Materials
All requirements for materials of other base profiles than described in 5.1 are given in Annex A. To fulfil
requirements according to Annex A materials of type rPVC may be re-stabilized and/or enhanced with
additives (e.g. modifiers, pigments, lubricants) before use.
PVC based materials are defined according to EN 17508.
The use of these materials on surfaces of profiles is given in Table 2 and Figure 1.
It is permitted to use a reduced-UV resistant virgin material (RUVM) on the surface when the sight
surfaces of the profiles are covered with foil (see Table 2).
If PVC-U recyclate (rPVC) or non-UV resistant virgin material (NUVM) is used for the base profile the
following shall apply:
a) these materials may be used for the core of a profile, where any visible surfaces are completely
covered by coextrusion with a virgin material (UVM), an UV resistant internally reused material
(IRM) or a reduced-UV resistant virgin material (RUVM); the thickness of the coextruded layer is
determined according to EN 12608-1:2016+A1:2020, 6.4;
b) for sight surfaces, the minimum value of thickness of the coextruded surface layer shall be 0,5 mm;
c) for non-sight visible surfaces, the minimum thickness of the coextruded surface layer shall be
0,2 mm;
d) there is no requirement for minimum thickness of the coextruded surface layer at the inside surface
of grooves with an entry width ≤ 5 mm (see Figure 1).
Table 2 — Use of materials on surfaces of profiles
Non-sight visible Non-visible
Authorized Material Sight surface
surface surface
UV resistant virgin material (UVM) Yes Yes Yes
UV resistant internally reused
Yes Yes Yes
material (IRM)
Reduced-UV resistant virgin
Yes (if covered with foil) Yes Yes
material (RUVM)
Non-UV resistant virgin material
No No Yes
(NUVM)
PVC-U recyclate (rPVC) No No Yes
Dimensions in millimetres
Key
1 frame profile
2 sash/casement profile
3 + 4 sight surfaces
5 non-sight visible surface
6 non-visible surface
NOTE Dimensions of grooves are given as examples only.
Figure 1 — Designation of profile surfaces
5.2.2 Appearance
The colour of the sight-surface of the base profile which is visible after lamination shall have a uniform
colour when viewed in accordance with 9.1.
The surfaces of the base profile shall be smooth and free from pitting, impurities, cavities and other
surface defects when viewed in accordance with 9.1. The appearance of the surface of the foiled profile
shall not be adversely affected by the base profile.
The edges of the base profiles shall be clean and burr-free.
5.2.3 Dimensions and tolerances of main base profiles
Requirements concerning dimensions and tolerances of the main base profile shall be the same as for
main base profiles according to 5.1.
5.2.4 Linear weight of the main base profiles
Requirements concerning the linear weight of the main base profiles shall be the same as for main base
profiles according to 5.1.
5.2.5 Heat reversion
5.2.5.1 Main base profile
Requirements concerning heat reversion for main base profiles shall be the same as for main base
profiles according to 5.1.
5.2.5.2 Auxiliary base profiles
Requirements concerning heat reversion for auxiliary base profiles shall be the same as for auxiliary
base profiles according to 5.1.
In addition, for false-mullion-profiles affecting the air tightness and water tightness of the window, the
heat r
...
