EN 15746-1:2010

Railway applications - Track - Road-rail machines and associated equipment - Part 1: Technical requirements for running and working

1.1   General
This European Standard deals with the technical requirements to minimize the specific railway hazards of self propelled road-rail machines - henceforward referred to as machines - and associated equipment, which can arise during the commissioning, the operation and the maintenance of machines when carried out in accordance with the specification given by the manufacturer or his authorised representative.
Part 1 of EN 15746 defines requirements for approval of the machine by an authorised body; Part 2 defines requirements for the machine to be declared conformant by the manufacturer, except in the case of machines classified under Annex 4 of the Machinery Directive, which require a conformity check in conjunction with a notified body.
Additional requirements can apply for running on infrastructures with narrow gauge or broad gauge lines, lines of tramways, railways utilizing other than adhesion between the rail and rail wheels and underground infrastructures.
This European Standard is also applicable for machines and associated equipment that in working configuration are partly supported on the ballast or the formation.
This European Standard does not apply to the following:
-   the requirements for quality of the work or performance of the machine;
-   the specific requirements established by the machine operator for the use of machines, which will be the subject of negotiation between the manufacturer and the infrastructure manager;
-   running and working whilst not on rails;
-   separate machines temporarily mounted on machines and associated equipment;
-   demountable machines as defined in 3.2;
-   trailers as defined in 3.3, including road-rail trailers.
This European Standard does not establish the additional requirements for the following:
-   operation subject to special rules, e.g. potentially explosive atmospheres;
-   hazards due to natural causes, e.g. earthquake, lightning, flooding;
-   working methods;
(...)

Bahnanwendungen - Oberbau - Zwei-Wege-Maschinen und zugehörige Ausstattung - Teil 1: Technische Anforderungen an das Fahren und den Arbeitseinsatz

Diese Europäische Norm legt die technischen Anforderungen zur Minimierung eisenbahnspezifischer
Gefahren von selbst angetriebenen Zwei-Wege-Maschinen — nachfolgend als Maschine bezeichnet — und
zugehöriger Ausstattung fest, die bei der Inbetriebnahme, dem Betrieb und der Instandhaltung von Maschinen,
den Anweisungen des Herstellers oder seinem berechtigten Vertreter folgend, entstehen können.
Die Prüfung der Übereinstimmung mit den Anforderungen nach Teil 1 von EN 15746 unterliegt der
autorisierten Stelle, die Konformität mit den Anforderungen nach Teil 2 wird vom Hersteller erklärt, mit
Ausnahme von Maschinen, die nach der Maschinen-Richtlinie, Anhang 4 klassifiziert sind und eine
Konformitätsprüfung in Verbindung mit einer notifizierten Stelle benötigen.
Für das Fahren auf Infrastrukturen mit schmalen Spurweiten oder auf Breitspurstrecken, Straßenbahnlinien,
von Eisenbahnen, die eine andere Haftreibung zwischen Schiene und Rad nutzen und Infrastrukturen im
Untergrund können zusätzliche Anforderungen bestehen.
Diese Europäische Norm gilt auch für Maschinen und zugehörige Ausrüstungen, die sich in Arbeitstellung
teilweise auf dem Schotter oder dem Untergrund (Planum) abstützen.
Diese Europäische Norm gilt nicht für
 Anforderungen an die Qualität von Arbeiten oder die Leistung der Maschine;
 spezielle Anforderungen für die Nutzung der Maschinen, festgelegt von dem Maschinenbetreiber, die der
Absprache zwischen Hersteller und Infrastrukturunternehmer unterliegen;
 Fahren und Arbeiten auf anderen Untergründen als auf Schienen;
 gesonderte Maschinen, die vorübergehend an Maschinen angebaut sind und zugehörige Ausrüstungen;
 ausgleisbare Maschinen nach 3.2;
 Anhänger nach 3.3, einschließlich Zwei-Wege-Ahänger.
Diese Europäische Norm legt nicht die zusätzlichen Anforderungen für Folgendes auf:
 Einsätze, die besonderen Regeln unterliegen, z. B. explosionsgefährdete Umgebungen;
 Gefahren aufgrund natürlicher Ursachen, z. B. Erdbeben, Blitzsch

Applications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 1: Prescriptions techniques pour la circulation et le travail

1.1 Généralités
La présente Norme européenne traite des prescriptions techniques pour minimiser les risques de danger
spécifiques au domaine ferroviaire des machines rail-route automotrices (nommées dorénavant comme
«machines») et des équipements associés. Ces risques peuvent se produire lors des opérations de mise en
service, d'exploitation et de maintenance des machines; ces opérations sont réalisées conformément aux
spécifications données par le fabricant ou son mandataire.
La partie 1 de l’EN 15746 définit les prescriptions pour l’agrément d’une machine par un organisme autorisé.
La partie 2 de l’EN 15746 définit les prescriptions relatives à la «déclaration de conformité» d’une machine par
le fabricant, à l’exception des machines classées selon l'Annexe 4 de la Directive Machine qui exige une
vérification de la conformité par un organisme notifié.
Des prescriptions particulières peuvent s’appliquer pour la circulation :
⎯ sur les infrastructures ferroviaires à voies large ou étroite ;
⎯ sur des lignes de tramway ;
⎯ sur des chemins de fer autres que ceux à adhérence rail/roue ;
⎯ sur des infrastructures ferroviaires en souterrain.
La présente norme européenne s'applique aussi aux machines et aux équipements associés qui, en
configuration de travail, prennent partiellement appui sur le ballast ou sur la plate-forme.
La présente norme européenne ne s’applique pas :
⎯ aux conditions relatives à la qualité du travail, aux performances du travail effectué par la machine ;
⎯ aux exigences spécifiques fixées par chaque exploitant de la machine pour l’emploi des machines et qui
font l’objet de négociations entre le fabricant et le gestionnaire de l’infrastructure ;
⎯ à la circulation et au travail hors voies ferrées ;
⎯ aux machines séparées montées pour une durée temporaire sur des machines ou équipements
associés ;

Železniške naprave - Zgornji ustroj - Dvopotna železniška vozila in oprema - 1. del: Tehnične zahteve za vožnjo in delovanje

Ta evropski standard obravnava tehnične zahteve za zmanjšanje nevarnosti, značilnih za železnice, samognanih dvopotnih železniških vozil – v nadaljevanju vozila – in povezane opreme, ki lahko nastanejo med zagonom, obratovanjem in vzdrževanjem vozil, kadar se izvaja v skladu s specifikacijami, ki jih je podal proizvajalec ali njegov pooblaščeni zastopnik. 1. del EN 15746 opredeljuje zahteve, ki jih za vozilo odobri pooblaščeni organ; 2. del opredeljuje zahteve, ki jih mora izpolnjevati vozilo, da ga proizvajalec lahko označi za skladno, razen vozil, ki so razvrščena v skladu z dodatkom 4 Direktive o strojih, ki zahteva preverjanje skladnosti v povezavi s priglašenim organom. Za vožnjo po ozkotirni ali širokotirni infrastrukturi, tramvajske linije, železnice, ki ne uporabljajo oprijema med tiri in kolesi, ter podzemno infrastrukturo lahko veljajo dodatne zahteve. Ta evropski standard velja tudi za vozila in povezano opremo, ki jih v delovnem položaju delno podpira balast ali formacija. Druga vozila za gradnjo in vzdrževanje zgornjega ustroja, ki se uporabljajo na železniških tirnicah, obravnavajo drugi evropski standardi, glej dodatek G.

General Information

• Status: Withdrawn
• Publication Date: 20-Apr-2010
• Withdrawal Date: 11-Oct-2011
• ICS: 93.100 - Construction of railways
• Technical Committee: CEN/TC 256 - Railway applications
• Drafting Committee: CEN/TC 256/SC 1/WG 5 - Track construction and maintenance machines
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 12-Oct-2011
• Completion Date: 12-Oct-2011
• Directive: 2001/16/EC - Directive 2001/16/EC of the European Parliament and of the Council of 19 March 2001 on the interoperability of the trans-European conventional rail system
• Directive: 2008/57/EC - Directive 2008/57/EC of the European Parliament and of the Council of 17 June 2008 on the interoperability of the rail system within the Community (Recast)
• Directive: 93/38/EEC - Procurement procedures of entities operating in the water, energy, transport and telecommunications sectors
• Mandate: M/024 - Mandate to CEN/CENELEC/ETSI for programming and standardization in the field of railway equipment
• Mandate: M/334 - Mandate for programming and standardisation addressed to CEN, CENELEC and ETSI in the field of the Interoperability of the trans-european conventional rail system
• Ref Project: SIST EN 15746-1:2011 - Railway applications - Track - Road-rail machines and associated equipment - Part 1: Technical requirements for running and working

Relations

• Merged Into: EN 15746-1:2010+A1:2011 - Railway applications - Track - Road-rail machines and associated equipment - Part 1: Technical requirements for running and working
• Effective Date: 19-Jan-2023

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Obrbau - Zwei-Wege-Maschinen und zugehörige Ausstattung - Teil 1: Technische Anforderungen an das Fahren und den ArbeitseinsatzApplications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 1 : Prescriptions techniques pour la circulation et le travailRailway applications - Track - Road-rail machines and associated equipment - Part 1: Technical requirements for running and working45.060.01Železniška vozila na splošnoRailway rolling stock in generalICS:Ta slovenski standard je istoveten z:EN 15746-1:2010SIST EN 15746-1:2011en,fr,de01-oktober-2011SIST EN 15746-1:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15746-1
April 2010 ICS 93.100 English Version
Railway applications - Track - Road-rail machines and associated equipment - Part 1: Technical requirements for running and working
Applications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 1: Prescriptions techniques pour la circulation et le travail
Bahnanwendungen - Oberbau - Zwei-Wege Maschinen und zugehörige Ausstattung - Teil 1: Technische Anforderungen an das Fahren und den Arbeitseinsatz This European Standard was approved by CEN on 11 March 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15746-1:2010: ESIST EN 15746-1:2011

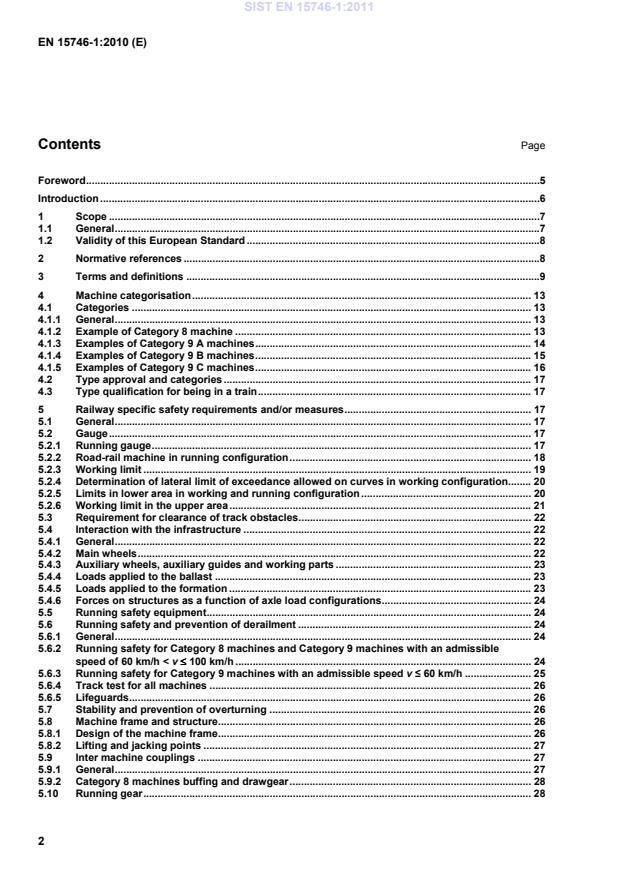

Special national conditions . 52Annex B (normative)
Application of technical requirements to machine categories − Category of machine . 59Annex C (normative)
Check list for conformity . 63Annex D (normative)
Certificates . 68D.1Certificate of type approval to EN 15746-1:2010 . 68D.2Conformance control document for the technical requirements of EN 15746-1:2010 . 69D.2.1Machine identification . 69D.2.2General characteristics . 70Annex E (normative)
Machine numbering structure for Category 9 machines not designed to operate track signalling and control systems . 71E.1General . 71E.2Examples . 73Annex F (normative)
Machine identification plate for Category 9 machines not designed to operate track signalling and control systems . 74Annex G (informative)
Structure of European Standards for track construction and maintenance machines . 75Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2008/57/EC . 76Bibliography . 77 SIST EN 15746-1:2011

Track
Road-rail machines and associated equipment, consists of the following parts:  Part 1: Technical requirements for running and working  Part 2: General safety requirements This European Standard is a type C standard as stated in EN ISO 12100-1:2003 and EN ISO 12100-2:2003. The machinery concerned and the extent to which hazards, hazardous situation and events are covered are indicated in the scope of this European Standard. Road-rail machines as specified in 3.1 form the object of this European Standard. This European Standard deals with railway specific risks of the road-rail machines, defined in Clause 4 when running and working on railway infrastructures. The safety requirements in relation to the Machinery Directive are dealt with in EN 15746-2:2010 of this series of standards. The risks which exist in all mechanical, electrical, hydraulic, pneumatic and other components of machines and which are dealt with in the relevant European Standards are not within the scope of this European Standard. If necessary, references are made to appropriate standards of this type. SIST EN 15746-1:2011

Design calculations
Stability criteria
Construction
Safety
Examinations and tests EN 286-3, Simple unfired pressure vessels designed to contain air or nitrogen
Part 3: Steel pressure vessels designed for air braking equipment and auxiliary pneumatic equipment for railway rolling stock EN 286-4, Simple unfired pressure vessels designed to contain air or nitrogen
Part 4:
Aluminium alloy pressure vessels designed for air braking equipment and auxiliary pneumatic equipment for railway rolling stock EN 791, Drill rigs
Safety EN 12663:2000, Railway applications
Structural requirements of railway vehicle bodies EN 13309, Construction machinery
Electromagnetic compatibility of machines with internal electrical power supply EN 13715, Railway applications
Wheelsets and bogies
Wheels
Wheels tread EN 14033-1:2008, Railway applications
Track
Railbound construction and maintenance machines
Part 1: Technical requirements for running EN 14033-2:2008, Railway applications
Track
Railbound construction and maintenance machines
Part 2: Technical requirements for working EN 14363:2005, Railway applications
Testing for the acceptance of running characteristics of railway vehicles
Testing of running behaviour and stationary tests EN 14601, Railway applications
Straight and angled end cocks for brake pipe and main reservoir pipe EN 15153-1, Railway applications
External visible and audible warning devices for high speed trains
Part 1: Head, marker and tail lamps EN 15153-2, Railway Applications
External visible and audible warning devices for high speed trains
Part 2: Warning horns EN 15273-2:2009, Railway applications
Gauges
Part 2: Rolling stock gauge EN 15437 (all parts), Railway applications
Axlebox condition monitoring
Interface and design requirements EN 15528, Railway applications
Line categories for managing the interface between load limits of vehicles and infrastructure EN 15746-2:2010, Railway applications
Track
Road-rail machines and associated equipment
Part 2: General safety requirements SIST EN 15746-1:2011

Track
Trailers and associated equipment
Part 1: Technical requirements for running and working prEN 15954-2:2009, Railway applications
Track
Trailers and associated equipment
Part 2: General safety requirements EN 50121-3-1:2006, Railway applications
Electromagnetic compatibility
Part 3-1: Rolling stock
Train and complete vehicle EN 50121-3-2:2006, Railway applications
Electromagnetic compatibility
Part 3-2: Rolling stock
Apparatus EN 50122-1, Railway applications
Fixed installations
Part 1: Protective provisions relating to electrical safety and earthing EN 50238:2003, Railway applications
Compatibility between rolling stock and train detection systems EN 60947 (all parts), Low-voltage switchgear and controlgear EN ISO 7731, Ergonomics
Danger signals for public and work areas
Auditory danger signals (ISO 7731:2003) EN ISO 12100-1:2003, Safety of machinery
Basic concepts, general principles for design
Part 1: Basic terminology, methodology (ISO 12100-1:2003) UIC 545, Brakes
Inscriptions, marks and signs 1)
3 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 12100-1:2003 and the following apply. 3.1 road-rail machine self propelled machine that can run on rails and ground NOTE 1 It is normally a road vehicle adapted for running on rail also, but can be a specially designed rail vehicle for running on the ground also.
NOTE 2 It does not imply that the machine is suitable for use on the public road. 3.2 demountable machine machine that can run and work on rail and which is not intended to operate track signalling and control systems NOTE 1 Such a machine is designed to get on and off track by its own means or with other lifting equipment. In the case of demounting by its own means these are not intended for running on the ground. NOTE 2 Such a machine is permitted to work on the railway only under special operating conditions granted by the infrastructure manager and run under special conditions granted by the authorised body and/or the infrastructure manager. 3.3 trailer non-self propelled machine that can be hauled on rail wheels
1) May be purchased from: Railway Technical Publications (ETF), 16 Rue Jean Rey, F-75015 Paris. SIST EN 15746-1:2011

NOTE See 5.2.1. 3.11 working configuration state of machine as soon as any part of the machine or its equipment is away from the running configuration 3.12 on and off tracking configuration configuration of the machine when it is in a state that enables it to be on or off tracked 3.13 running moving the machine in running configuration along the track 3.14 operating track track corresponding to the criteria of the infrastructure manager on which vehicles may run under normal signalling arrangements (with or without a speed limit) SIST EN 15746-1:2011

NOTE The driver and operator can be the same. 3.20 train self-propelled machine or assembly of vehicles/machines attached by couplings conforming to the relevant regulations of the authorised body and/or infrastructure manager NOTE 1 This is only relevant to Category 8 machines. NOTE 2 This does not exclude Category 9 machines from shunting conventional rail vehicles, where permitted by the infrastructure manager. 3.21 special train assembly of vehicles/machines attached by couplings to a Category 9 machine, and conforming to the relevant requirements of the infrastructure manager 3.22 rated load load that the lifting equipment has been designed for normal operation and the manufacturer states can be lifted in any specified position 3.23 authorised body body in a state that, in accordance with the laws and prescriptions in force in that state, is competent to approve rail vehicles for the use in public rail traffic 3.24 type testing examination of the first machine, of a new type, for build conformity to the requirements of this standard SIST EN 15746-1:2011

authorisation given by an infrastructure manager which permits a machine to work on that railway infrastructure 3.31 visual test exam to establish whether all elements on the machine, system or component, e.g. protective devices, visual warning device, marking, are present and that documents and drawings correspond to the requirements 3.32 measurement test test to establish whether the stated measurable parameters have met the requirements of this European Standard, e.g. geometric dimensions, safety distances, insulation resistance of electric circuits, noise, vibration 3.33 functional test test to establish whether, in unloaded working conditions, the machine, including all safety devices, works as intended and all functions comply with the requirements and with the technical documentation 3.34 load test test to establish whether the strength and stability of the equipment under load together with all safety devices and adjustments meets the requirements of this European Standard 3.35 specific verification/measurement verification/measurement to establish whether the stated requirements of this European Standard have been met, e.g. calculations, technical documentation and specific documents of this European Standard SIST EN 15746-1:2011

Category 9 B See 4.1.4 Braking and traction on road wheels, load shared between road and rail wheels.
Category 9 C See 4.1.5 Category 8 machines are designed to operate track signalling and control systems. Category 9 machines in general are not required to operate track signalling and control systems and are only permitted to run and work on the railway under special restrictions defined by the infrastructure manager. Category 9 machines designed to operate track signalling and control systems are permitted to be approved by the authorised body for being used on the national network.
4.1.2 Example of Category 8 machine Capable of incorporation into train. It is permitted to restrict the position of the machine in the train to the front or rear only if required. SIST EN 15746-1:2011

Figure 1 — Example of Category 8 machine 4.1.3 Examples of Category 9 A machines Braking and traction directly on the rail wheels, load entirely on rail wheels.
a) Example of Category 9 A machine
b) Example of Category 9 A machine Figure 2 — Examples of Category 9 A machines SIST EN 15746-1:2011

a) Example of Category 9 B machine
b) Example of Category 9 B machine Figure 3 — Examples of Category 9 B machines SIST EN 15746-1:2011

a) Example of Category 9 C machine
b) Example of Category 9 C machine
c) Example of Category 9 C machine Figure 4 — Examples of Category 9 C machines SIST EN 15746-1:2011

Key A = Rail level B = Exceedance of gauge permitted for road-rail machines C = Additional exceedance of gauge permitted for Category 9 C machines D = Gauge according to EN 15273-2 Figure 5 — Limits in lower area Machines intended to travel on infrastructures with more restrictive gauges shall conform to the specific rules of those infrastructures and the corresponding restrictions shall be indicated on their access permits. 5.2.2 Road-rail machine in running configuration 5.2.2.1 Stowing of moveable machine parts in running configuration When the machine is in the running configuration any movable equipment which has the capacity to go outside the gauge shall be capable of being stowed in a manner which prevents inadvertent or unintended movement out of the gauge. All such moveable parts and assemblies forming part of the machine that are unpacked in order to allow the machine to work in rail and non-rail configuration shall, in their stowed state, be secured by devices capable of resisting the foreseeable forces encountered during running, which shall not rely upon a power source to retain the locking function. Moveable parts shall be held by either:  efficient locks The visible positive locking components in running configuration shall be painted in red. If the locking mechanism is powered, the control of locking should preferably be possible from inside the machine gauge; or  check valves on hydraulic systems, which shall prevent movement and be fail safe. It shall be obvious to anyone checking the machine that these parts of the machine are locked in their stowed position. Furthermore, for locking devices operable from the cab, either a red warning light shall illuminate on the driver's desk to indicate if any moveable part of the machine is not locked, or a green light shall indicate on the driver's desk that all moveable parts of the machine are locked. SIST EN 15746-1:2011
...
