Playground equipment and surfacing - Part 3: Additional specific safety requirements and test methods for slides

This European Standard specifies additional safety requirements for slides intended for permanent installation for use by children. The aim is to provide protection to the user against possible hazards during use. Where the main play function is not sliding, the relevant requirements in this part of EN 1176 may be used, as appropriate.
This document is not applicable to waterslides, rollerways or slide installations where auxiliary equipment such as mats or sledges are used. This document is not applicable to inclined surfaces that do not contain and guide the user, e.g. banister rails (inclined parallel bars).

Spielplatzgeräte und Spielplatzböden - Teil 3: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Rutschen

Diese Europäische Norm legt zusätzliche sicherheitstechnische Anforderungen an Rutschen fest, die dauerhaft installiert für die Benutzung durch Kinder vorgesehen sind. Das Ziel ist, dem Nutzer Schutz gegen mögliche Gefährdungen bei der Nutzung des Gerätes zu bieten. Sofern die Hauptspielfunktion nicht Rutschen ist, dürfen die entsprechenden Anforderungen in diesem Teil der EN 1176, soweit zutreffend, angewendet werden.
Dieses Dokument gilt nicht für Wasserrutschen, Rollenbahnen oder Rutschanlagen, die mit Hilfsgeräten, wie z. B. Matten oder Schlitten, benutzt werden. Dieses Dokument gilt nicht für geneigte Flächen, die den Benutzer nicht umschließen und führen, z. B. Treppengeländer (geneigte parallele Stangen).

Équipement et sols d'aires de jeux - Partie 3: Exigences de sécurité et méthodes d'essai complémentaires spécifiques aux toboggans

La présente Norme européenne spécifie les exigences de sécurité complémentaires pour les toboggans destinés à être installés de façon permanente et utilisés par des enfants. L’objectif est de fournir à l’utilisateur une protection contre les éventuels dangers pendant l’utilisation. Lorsque la principale fonction de jeu n’est pas la glissade, les exigences appropriées définies dans cette partie de l’EN 1176 peuvent être utilisées, selon le cas.
Le présent document ne s’applique pas aux toboggans aquatiques, aux pistes de patins à roulettes ni aux installations à toboggans nécessitant l’utilisation d’équipements auxiliaires, comme par exemple des tapis ou des luges. Le présent document n’est pas applicable aux surfaces inclinées qui ne contiennent pas et ne guident pas l’utilisateur, comme par exemple les rampes de glisse (barres parallèles inclinées).

Oprema in podloge otroških igrišč - 3. del: Dodatne posebne varnostne zahteve in preskusne metode za tobogane

Ta del standarda določa dodatne varnostne zahteve za trajno nameščene tobogane za otroke. Namen je zaščititi uporabnika pred morebitnimi nevarnostmi med uporabo. Ta del standarda se ne uporablja za vodne tobogane, kotalkališča ali drsalne objekte, pri katerih se uporablja dodatna oprema, kot so podloge ali sani. Ta del standarda se ne uporablja za nagnjene površine, ki ne vsebujejo in ne usmerjajo uporabnika, npr. stopniščne ograje.

General Information

Status
Published
Publication Date
17-Oct-2017
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
18-Oct-2017
Completion Date
18-Oct-2017

RELATIONS

Buy Standard

Standard
EN 1176-3:2018
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Spielplatzgeräte und Spielplatzböden - Teil 3: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für RutschenÉquipement et sols d'aires de jeux - Partie 3: Exigences de sécurité et méthodes d'essai complémentaires spécifiques aux toboggansPlayground equipment and surfacing - Part 3: Additional specific safety requirements and test methods for slides97.200.40,JULãþDPlaygroundsICS:Ta slovenski standard je istoveten z:EN 1176-3:2017SIST EN 1176-3:2018en,fr,de01-januar-2018SIST EN 1176-3:2018SLOVENSKI

STANDARDSIST EN 1176-3:20081DGRPHãþD
SIST EN 1176-3:2018
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1176-3
October
t r s y ICS
{ yä t r rä v r Supersedes EN
s s y xæ uã t r r zEnglish Version
Playground equipment and surfacing æ Part

uã Additional specific safety requirements and test methods for slides Équipement et sols d 5aires de jeux æ Partie

uã Exigences de sécurité et méthodes d 5essai complémentaires spécifiques aux toboggans

Spielplatzgeräte und Spielplatzböden æ Teil

uã Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Rutschen This European Standard was approved by CEN on

x August
t r s xä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels

t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s s y xæ uã t r s y ESIST EN 1176-3:2018

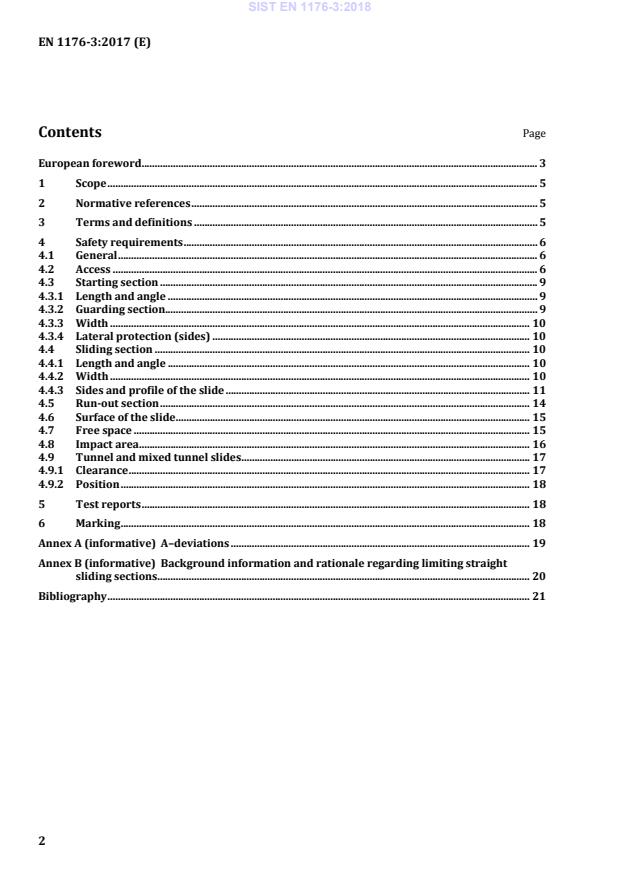

EN 1176-3:2017 (E) 2 Contents Page European foreword ....................................................................................................................................................... 3 1 Scope .................................................................................................................................................................... 5 2 Normative references .................................................................................................................................... 5 3 Terms and definitions ................................................................................................................................... 5 4 Safety requirements ....................................................................................................................................... 6 4.1 General ................................................................................................................................................................ 6 4.2 Access .................................................................................................................................................................. 6 4.3 Starting section ................................................................................................................................................ 9 4.3.1 Length and angle ............................................................................................................................................. 9 4.3.2 Guarding section.............................................................................................................................................. 9 4.3.3 Width ................................................................................................................................................................ 10 4.3.4 Lateral protection (sides) ......................................................................................................................... 10 4.4 Sliding section ............................................................................................................................................... 10 4.4.1 Length and angle .......................................................................................................................................... 10 4.4.2 Width ................................................................................................................................................................ 10 4.4.3 Sides and profile of the slide .................................................................................................................... 11 4.5 Run-out section ............................................................................................................................................. 14 4.6 Surface of the slide ....................................................................................................................................... 15 4.7 Free space ....................................................................................................................................................... 15 4.8 Impact area ..................................................................................................................................................... 16 4.9 Tunnel and mixed tunnel slides .............................................................................................................. 17 4.9.1 Clearance ......................................................................................................................................................... 17 4.9.2 Position ............................................................................................................................................................ 18 5 Test reports .................................................................................................................................................... 18 6 Marking ............................................................................................................................................................ 18 Annex A (informative)

A–deviations .................................................................................................................. 19 Annex B (informative)

Background information and rationale regarding limiting straight sliding sections .............................................................................................................................................. 20 Bibliography ................................................................................................................................................................. 21

SIST EN 1176-3:2018

EN 1176-3:2017 (E) 3 European foreword This document (EN 1176-3:2017) has been prepared by Technical Committee CEN/TC 136 “Sports, playground and other recreational facilities and equipment”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2018, and conflicting national standards shall be withdrawn at the latest by October 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1176-3:2008. The main changes are: a) definition for wave slide deleted; b) revised figure for illustration of the position of the sections of a slide (see Figure 2); c) reduction of free height of fall if starting section is easily accessible unless guarding is provided; d) maximal length of the initial straight sliding section and of the second sliding section after a bend (4.4.1 and Annex B); e) improvement Table 1 – inclination of run-out section for small slides; f) reduction of the impact area for Type 1 if sliding section is max. 1 500 mm; g) Figure 5 – Application of template to curved profile sliding section – amended; h) start of the free space on a slide; i) A-deviation for Romania. This document is part of a series of standards dealing with playground equipment and surfacing which consists of: — Part 1: General safety requirements and test methods; — Part 2: Additional specific safety requirements and test methods for swings; — Part 3: Additional specific safety requirements and test methods for slides; — Part 4: Additional specific safety requirements and test methods for cableways; — Part 5: Additional specific safety requirements and test methods for carousels; — Part 6: Additional specific safety requirements and test methods for rocking equipment; — Part 7: Guidance on installation, inspection, maintenance and operation; — Part 10: Additional specific safety requirements and test methods for fully enclosed play equipment; SIST EN 1176-3:2018

EN 1176-3:2017 (E) 4 — Part 11: Additional specific safety requirements and test methods for spatial network. This part of EN 1176 will be used in conjunction with parts EN 1176-1, EN 1176-7 and EN 1177. For inflatable play equipment see EN 14960, Inflatable play equipment — Safety requirements and test methods. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 1176-3:2018

EN 1176-3:2017 (E) 5 1 Scope This European Standard specifies additional safety requirements for slides intended for permanent installation for use by children. The aim is to provide protection to the user against possible hazards during use. Where the main play function is not sliding, the relevant requirements in this part of EN 1176 may be used, as appropriate. This document is not applicable to waterslides, rollerways or slide installations where auxiliary equipment such as mats or sledges are used. This document is not applicable to inclined surfaces that do not contain and guide the user, e.g. banister rails (inclined parallel bars). 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1176-1:2017, Playground equipment and surfacing — Part 1: General safety requirements and test methods 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 1176-1 and the following apply. 3.1 slide structure with inclined surface(s) that contains and guides the user sliding in a defined track Note 1 to entry: Inclined planes, designed primarily for other purposes, such as roofs, do not constitute slides. 3.2 embankment slide slide in which the majority of the sliding section follows the contour of the land Note 1 to entry: Access to the starting section is usually direct from the mound or via an access ladder or stairs. 3.3 attachment slide slide for which access to the starting section is possible only by passing via other equipment or parts of equipment Note 1 to entry: Such equipment includes climbing nets, bridges, platforms, inclined planes, other climbing devices. 3.4 helical slide slide where the sliding section follows spirals Note 1 to entry: See Figure 4. 3.5 curved slide slide where the sliding section follows curves Note 1 to entry: See Figure 4. SIST EN 1176-3:2018

EN 1176-3:2017 (E) 6 3.6 free-standing slide slide which is separate from any other piece of equipment with its own means of access from the ground directly to the starting section 3.7 tunnel slide slide where the sliding section has an enclosed cross section 3.8 mixed tunnel slide slide for which only the upper section of the sliding section has an enclosed cross section 3.9 multi-track slide slide with several defined tracks separated by dividers 3.10 starting section section on which the user is enabled to get into sliding position Note 1 to entry: The starting section can be a platform or an extension of a platform of playground equipment. 3.11 sliding section section on which the user is undergoing forced movement 3.12 run-out section section on which the user’s speed is reduced to enable a safe departure from the slide 3.13 guarding section additional component of a slide, which serves the function of a barrier, to protect users from falls from the starting section Note 1 to entry: The guarding section can extend into the region of the sliding section. 3.14 lateral protection side of the starting section or sliding section that retains and guides the user 4 Safety requirements 4.1 General Slides shall conform to EN 1176-1 unless otherwise specified in this part of EN 1176. 4.2 Access Access to the starting section shall be by means of an access ladder, stairs, climbing section or device. In the case of embankment slides, access to the starting section may be gained directly from the mound. For free-standing slides, the maximum vertical height that the first stairs can reach without a change in direction or offset, by a minimum width of the means of access, shall be 2 500 mm. SIST EN 1176-3:2018

EN 1176-3:2017 (E) 7 Where the starting section of a slide is easily accessible the free height of fall (h) shall be 1 000 mm maximum unless guarding is provided (see 4.3.2). For all attachment slides with a fall height greater than 1 000 mm, a rail or crossbar across the access opening shall be provided (see Figure 1a)). The rail or crossbar shall be positioned between the platform guard rail or barrier and the start of the sliding section. The height of the rail or crossbar shall be between 600 mm and 900 mm above the starting section. For attachment slides with a starting section or barrier beyond the edge of the platform, the area of the starting section between the rail or crossbar and the platform shall comply with the same requirements as platforms in EN 1176-1. NOTE Such requirements include the height of guard rail or barrier. SIST EN 1176-3:2018

EN 1176-3:2017 (E) 8 Dimensions in millimetres

Key 1 zone representing all the possible positions of a rail or crossbar 2 crossbar a) Example of lateral protection of a starting section for attachment slides over 1 000 mm and zone for the possible position of a rail or crossbar

b) Example of lateral protection of a starting section of a free-standing slide Figure 1 — Examples of lateral protection SIST EN 1176-3:2018

EN 1176-3:2017 (E) 9 4.3 Starting section NOTE The starting section and run-out section are illustrated in Figure 2. 4.3.1 Length and angle Each slide shall have a starting section of at least 350 mm length. The starting section shall have a downward slope tolerance from 0° to 5° in the direction of the sliding section, the measurement being made at the centreline of the starting section. For attachment slides the platform may be used as a startin

...
