EN 848-3:2012

Safety of woodworking machines - One side moulding machines with rotating tool - Part 3: Numerically controlled (NC) boring and routing machines

This European Standard specifies all significant hazards, hazardous situations and events as listed in Clause 4, which are relevant to NC boring machines, NC routing machines and NC combined boring/routing machines (as defined in 3.1) herein after referred to as "machines" designed to cut solid wood, chip board, fibreboard, plywood and also these materials where these are covered with plastic/light alloy laminate or edgings when they are used as intended and under the conditions foreseen by the manufacturer including reasonably foreseeable misuse.
Machines which are designed to work wood based materials may also be used for working hardened plastic materials with similar physical characteristics as wood.
This document also applies to machines fitted with:
-   additional equipment for sawing, sanding, edge banding or assembly units and dowel devices;
-   fixed or movable workpiece support;
-   mechanical, pneumatic, hydraulic or vacuum workpiece clamping;
-   automatic tool change facilities.
This document does not deal with the specific hazards of edge banding equipment fitted to NC boring machines, NC routing machines and NC combined boring/routing machines.
This document is only applicable to NC boring machines, NC routing machines and NC combined boring/routing machines which are designed to use milling tools with a cutting circle diameter below 16 mm or milling tools or saw-blades conforming to EN 847-1:2005+A1:2007 and EN 847-2:2001 and boring tools or sanding wheels.
This document is not applicable to NC boring machines, NC routing machines and NC combined boring/routing machines which are designed to use grinding wheels.
This document is not applicable to single spindle hand fed/integrated fed routing machines.
NOTE   Single spindle hand fed/integrated fed routing machines are dealt with in EN 848-2:2007+A1:2009.
This document does not deal with the specific hazards of ejection through openings on machines where the distance between the work-piece support and the lower edge of the partial enclosure exceeds 400 mm.
This document is not applicable to NC boring machines, NC routing machines and NC combined boring/routing machines which are manufactured before the date of its publication as EN.

Sicherheit von Holzbearbeitungsmaschinen - Fräsmaschinen für einseitige Bearbeitung mit drehendem Werkzeug - Teil 3: NC-Bohr- und Fräsmaschinen

Diese Europäische Norm behandelt alle in Abschnitt 4 aufgeführten signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse, die auf NC-Bohrmaschinen, NC-Fräsmaschinen und kombinierte NC Bohr- und Fräsmaschinen (wie in 3.1 beschrieben) zutreffen — im Folgenden als „Maschinen“ bezeichnet —, die konstruiert sind zum Bearbeiten von Massivholz, Spanplatten, Faserplatten, Sperrholz sowie diesen Werkstoffen, wenn sie kunststoffbeschichtet oder mit Kunststoffkanten versehen sind, wenn sie bestimmungsgemäß und entsprechend den vorhersehbaren Bedingungen des Herstellers einschließlich vernünftigerweise vorhersehbarem Fehlverhalten, verwendet werden.
Maschinen, die zur Bearbeitung von Holzwerkstoffen konstruiert sind, können auch für die Bearbeitung von gehärtetem Kunststoff mit ähnlichen physikalischen Eigenschaften wie Holz verwendet werden.
Dieses Dokument gilt auch für Maschinen, die ausgerüstet sind mit:
   zusätzlicher Ausrüstung zum Sägen, Schleifen, Anleimen von Kanten oder Montage- und Dübeleinheiten;
   feststehender oder beweglicher Werkstückauflage;
   mechanischer, pneumatischer, hydraulischer oder Vakuumspannung des Werkstücks;
   automatischen Werkzeugwechseleinrichtungen.
Dieses Dokument behandelt nicht die spezifischen Gefährdungen, die durch die Ausrüstung von NC Bohrmaschinen, NC-Fräsmaschinen und kombinierten NC-Bohr- und Fräsmaschinen mit Kantenanleim-aggregaten entstehen.
Dieses Dokument gilt nur für NC-Bohrmaschinen, NC-Fräsmaschinen und kombinierte NC-Bohr- und Fräsmaschinen, die zur Verwendung mit Fräswerkzeugen mit einem Schneidenflugkreisdurchmesser von weniger als 16 mm oder Fräswerkzeuge oder Sägeblätter, die der EN 847-1:2005+A1:2007 und EN 847 2:2001 entsprechen, sowie Bohrwerkzeugen und Schleifkörpern konstruiert sind.
Dieses Dokument gilt nicht für NC-Bohrmaschinen, NC-Fräsmaschinen und kombinierte NC-Bohr- und Fräsmaschinen, die zur Verwendung von Schleifscheiben konstruiert sind.
Dieses Dokument gilt nicht für einspindelige Oberfräsmaschinen mit Handvorschub/mechanischem Vorschub.
ANMERKUNG   Einspindelige Oberfräsmaschinen mit Handvorschub/mechanischem Vorschub sind in
EN 848 2:2007+A1:2009 behandelt.
Dieses Dokument behandelt nicht die spezifischen Gefährdungen durch Wegschleudern durch Öffnungen an Maschinen, bei denen der Abstand zwischen Werkstückauflage und der unteren Kante der Teilkapselung 400 mm übersteigt.
Dieses Dokument gilt nicht für NC-Bohrmaschinen, NC-Fräsmaschinen und kombinierte NC-Bohr- und Fräsmaschinen, die vor dem Datum seiner Veröffentlichung als EN hergestellt wurden.

Sécurité des machines pour le travail du bois - Machines à fraiser sur une face à outils rotatifs - Partie 3: Perceuses et défonceuses à commande numérique

Le présent document spécifie tous les phénomènes dangereux, situations et événements dangereux significatifs tels qu’énumérés à l’Article 4, applicables aux perceuses, aux défonceuses et aux perceuses/défonceuses à commande numérique (telles que définies en 3.2.1) désignées ci-après sous le terme «machines», celles-ci sont conçues pour usiner du bois, des panneaux de fibres ou de particules, de contreplaqué ainsi que ces matériaux lorsque leurs surfaces ou leurs chants sont recouverts de plastique/alliage léger ou de plaquage, durant l’utilisation normale et dans les conditions prévues par le fabricant incluant une mauvaise utilisation raisonnablement prévisible
Le présent document est applicable aux machines équipées :
-   d’unités supplémentaires de sciage, de ponçage, de plaquage sur chant ;
-   de support de pièce fixe ou mobile ;
-   de serrage de pièce mécanique, hydraulique, pneumatique ou par dépression ;
-   de dispositifs de changement automatique d’outils.
Le présent document ne traite pas des phénomènes dangereux spécifiques aux unités de plaquage sur chant montées sur les perceuses, les défonceuses et les perceuses/défonceuses à commande numérique.
Le présent document ne s'applique qu’aux perceuses, défonceuses et perceuses/défonceuses à commande numérique conçues pour utiliser des fraises ayant un diamètre de coupe en dessous de 16 mm, ou des fraises ou des lames conformes à l'EN 847-1:2005+A1:2007 et à l’EN 847-2:2001, et des forets ainsi que des roues de ponçage.
Le présent document ne s'applique pas aux perceuses, défonceuses et perceuses/défonceuses à commande numérique conçues pour utiliser des meules.
Le présent document ne s'applique pas aux défonceuses monobroches à avance manuelle ou mécanisée.
NOTE   Les défonceuses monobroches à avance manuelle ou mécanisée sont traitées dans
l’EN 848-2:2007+A1:2009.

Varnost lesnoobdelovalnih strojev - Rezkalni stroji z vrtečim orodjem za enostransko obdelavo - 3. del: Numerično krmiljeni (NC) vrtalni in rezkalni stroji

Ta evropski standard določa vsa večja tveganja, nevarne razmere in dogodke iz točke 4, ki se nanašajo na numerično krmiljene vrtalne in rezalne stroje ter kombinirane numerično krmiljene vrtalne/rezalne stroje (kot je določeno v točki 3.1), v nadaljnjem besedilu »stroji«, ki so namenjeni za rezanje polnega lesa, ivernih plošč, vlaknenih plošč, vezanih plošč in teh materialov, prevlečenih s plastjo ali obrobo iz plastike/lahkih zlitin, ter se uporabljajo v skladu z namenom in pod pogoji, ki jih je predvidel proizvajalec, vključno z razumno predvideno nepravilno uporabo. Stroji, namenjeni za obdelavo materialov na osnovi lesa, se lahko uporabljajo tudi za obdelavo trdih plastičnih materialov, ki imajo podobne fizikalne lastnosti kot les. Ta dokument velja tudi za stroje, opremljene z: – dodatno opremo za žaganje, brušenje, robno lepljenje ali sestavljanje delov in spojne naprave; – pritrjeno ali gibljivo podporo obdelovanca; – mehanskim, pnevmatskim ali vakuumskim vpenjanjem obdelovanca; – funkcijami za samodejno menjavo orodja. Ta dokument ne obravnava določenih nevarnosti opreme za robno lepljenje, pritrjene na numerično krmiljene vrtalne in rezalne stroje ter kombinirane numerično krmiljene vrtalne/rezalne stroje. Ta dokument velja le za numerično krmiljene vrtalne in rezalne stroje ter kombinirane numerično krmiljene vrtalne/rezalne stroje, ki so načrtovani za uporabo orodij za rezkanje s krožnim premerom reza 16 mm oziroma orodij za rezkanje ali rezili, ki ustrezajo standardom EN 847-1:2005+A1:2007 in EN 847-2:2001, in orodij za vrtanje ali ploščami za brušenje. Ta dokument ne velja za numerično krmiljene vrtalne in rezalne stroje ter kombinirane numerično krmiljene vrtalne/rezalne stroje, ki so načrtovani za uporabo brusilnih orodij. Ta dokument ne obravnava določenih nevarnosti izmeta skozi odprtine na strojih, kjer je razdalja med podporo za obdelovanca in spodnjim robom delne ograde velja od 400 mm. Ta dokument ne velja za numerično krmiljene vrtalne in rezalne stroje ter kombinirane numerično krmiljene vrtalne/rezalne stroje, ki so izdelani, preden je bil objavljen kot standard EN. Ta dokument ne velja za enovretenske navpične rezkalne stroje z ročnim/mehanskim podajanjem.

General Information

• Status: Withdrawn
• Publication Date: 23-Oct-2012
• Withdrawal Date: 13-Apr-2025
• ICS: 79.120.10 - Woodworking machines
• Technical Committee: CEN/TC 142 - Woodworking machines - Safety
• Drafting Committee: CEN/TC 142/WG 5 - Spindle moulding, routing machines and machine centres
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 04-Jun-2018
• Completion Date: 04-Jun-2018
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/311 - Standardization mandate awarded to the CEN within the framework of Directive 98/37/EC relating to machinery, with a view to revision of EN standard 848-3:1999 concerning the safety of woodworking machines
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: SIST EN 848-3:2012 - Safety of woodworking machines - One side moulding machines with rotating tools - Part 3: Numerically controlled (NC) boring and routing machines

Relations

• Replaces: EN 848-3:2007+A2:2009 - Safety of woodworking machines - One side moulding machines with rotating tools - Part 3: Numerically controlled (NC) boring and routing machines
• Effective Date: 08-Jun-2022
• Replaced By: EN ISO 19085-3:2017 - Woodworking machines - Safety requirements - Part 3: Numerically controlled (NC) boring and routing machines (ISO 19085-3:2017)
• Effective Date: 17-Jan-2018

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2012
1DGRPHãþD
SIST EN 848-3:2007+A2:2009
9DUQRVWOHVQRREGHORYDOQLKVWURMHY5H]NDOQLVWURML]YUWHþLPRURGMHP]D
HQRVWUDQVNRREGHODYRGHO1XPHULþQRNUPLOMHQL1&YUWDOQLLQUH]NDOQLVWURML
Safety of woodworking machines - One side moulding machines with rotating tools - Part
3: Numerically controlled (NC) boring and routing machines
Sicherheit von Holzbearbeitungsmaschinen - Fräsmaschinen für einseitige Bearbeitung
mit dehendem Werkzeug - Teil 3: NC- Bohr- und Fräsmaschinen
Sécurité des machines pour le travail du bois - Machines à fraiser sur une face à outil
rotatif - Partie 3: Perceuses et défonceuses à commande numérique
Ta slovenski standard je istoveten z: EN 848-3:2012
ICS:
25.040.20 âWHYLOþQRNUPLOMHQLVWURML Numerically controlled
machines
79.120.10 Lesnoobdelovalni stroji Woodworking machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 848-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2012
ICS 79.120.10 Supersedes EN 848-3:2007+A2:2009
English Version
Safety of woodworking machines - One side moulding machines
with rotating tool - Part 3: Numerically controlled (NC) boring and
routing machines
Sécurité des machines pour le travail du bois - Machines à Sicherheit von Holzbearbeitungsmaschinen -
fraiser sur une face à outils rotatifs - Partie 3: Perceuses et Fräsmaschinen für einseitige Bearbeitung mit drehendem
défonceuses à commande numérique Werkzeug - Teil 3: NC-Bohr- und Fräsmaschinen
This European Standard was approved by CEN on 11 August 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 848-3:2012: E
worldwide for CEN national Members.

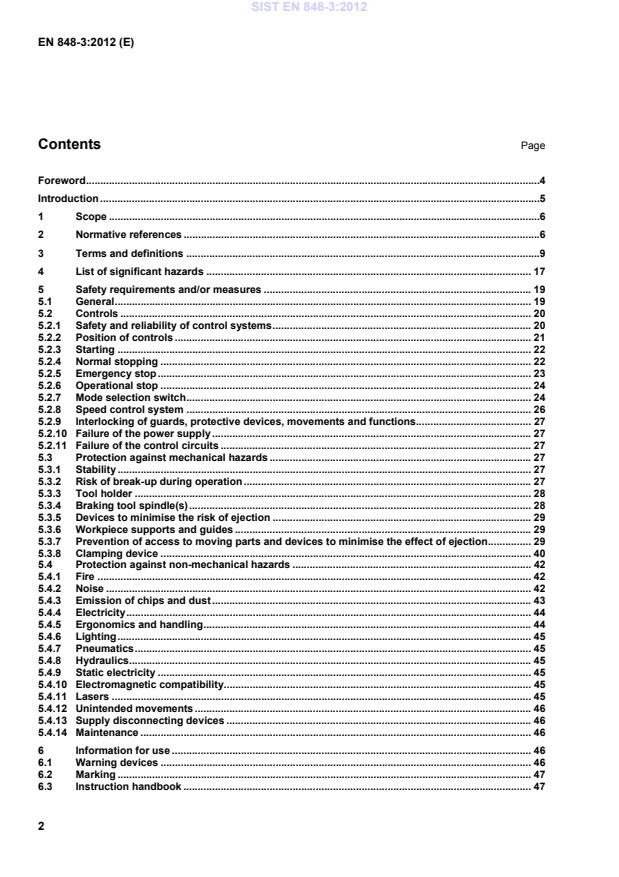

Contents Page
Foreword .4
Introduction .5
1 Scope .6
2 Normative references .6
3 Terms and definitions .9
4 List of significant hazards . 17
5 Safety requirements and/or measures . 19
5.1 General . 19
5.2 Controls . 20
5.2.1 Safety and reliability of control systems . 20
5.2.2 Position of controls . 21
5.2.3 Starting . 22
5.2.4 Normal stopping . 22
5.2.5 Emergency stop . 23
5.2.6 Operational stop . 24
5.2.7 Mode selection switch . 24
5.2.8 Speed control system . 26
5.2.9 Interlocking of guards, protective devices, movements and functions. 27
5.2.10 Failure of the power supply . 27
5.2.11 Failure of the control circuits . 27
5.3 Protection against mechanical hazards . 27
5.3.1 Stability . 27
5.3.2 Risk of break-up during operation . 27
5.3.3 Tool holder . 28
5.3.4 Braking tool spindle(s) . 28
5.3.5 Devices to minimise the risk of ejection . 29
5.3.6 Workpiece supports and guides . 29
5.3.7 Prevention of access to moving parts and devices to minimise the effect of ejection . 29
5.3.8 Clamping device . 40
5.4 Protection against non-mechanical hazards . 42
5.4.1 Fire . 42
5.4.2 Noise . 42
5.4.3 Emission of chips and dust . 43
5.4.4 Electricity . 44
5.4.5 Ergonomics and handling . 44
5.4.6 Lighting . 45
5.4.7 Pneumatics . 45
5.4.8 Hydraulics . 45
5.4.9 Static electricity . 45
5.4.10 Electromagnetic compatibility . 45
5.4.11 Lasers . 45
5.4.12 Unintended movements . 46
5.4.13 Supply disconnecting devices . 46
5.4.14 Maintenance . 46
6 Information for use . 46
6.1 Warning devices . 46
6.2 Marking . 47
6.3 Instruction handbook . 47
Annex A (normative) Operating conditions for noise measurement. 52
A.1 General . 52
A.2 Operating conditions for routing units of NC routing machines and NC combined
boring/routing machines . 52
A.2.1 General . 52
A.2.2 Noise measurements . 53
A.2.3 General data sheet . 55
A.3 Operating conditions for boring units of NC boring machines and NC combined
boring/routing machines . 57
A.3.1 General . 57
A.3.2 Noise measurements . 58
A.3.3 General data sheet . 60
Annex B (normative) Curtains on NC routing and NC combined boring and routing machines –
Impact test method . 63
B.1 General . 63
B.2 Test method . 63
B.2.1 Preliminary remarks . 63
B.2.2 Testing equipment . 63
B.2.3 Test procedure . 64
B.3 Results . 66
B.4 Assessment . 67
B.5 Test report . 67
Annex C (informative) Example of a test equipment for impact test . 69
Annex D (normative) Braking tests . 70
D.1 Conditions for brake tests . 70
D.2 Tests . 70
D.2.1 Un-braked run-down time . 70
D.2.2 Braked run-down time . 70
Annex E (normative) Curtains on NC routing and NC boring and routing machines – Wear test
method . 71
E.1 General . 71
E.2 Test method . 71
E.2.1 Preliminary remarks . 71
E.2.2 Test method . 71
E.3 Results . 76
E.4 Assessment . 76
E.5 Test report . 76
Annex F (normative) Rigid guards on NC routing machines – Impact test method . 77
F.1 General . 77
F.2 Test method . 77
F.2.1 Preliminary remarks . 77
F.2.2 Testing equipment . 77
F.2.3 Test procedure . 78
F.3 Results . 78
F.4 Assessment . 78
F.5 Test report . 79
F.6 Example of test equipment for impact test . 79
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC . 80
Bibliography . 83

Foreword
This document (EN 848-3:2012) has been prepared by Technical Committee CEN/TC 142 “Woodworking
machines - Safety”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2013, and conflicting national standards shall be withdrawn at the
latest by April 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 848-3:2007+A2:2009.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of the Machinery Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
The main modification to the 2009 edition relates to the introduction of performance levels (PL) and curtains
wear test.
Organisations contributing to the preparation of this document include the European Committee of
Woodworking Machinery Manufacturers Association "EUMABOIS".
EN 848 consists of the following parts:
 EN 848-1, Safety of woodworking machines  One side moulding machines with rotating tool  Part 1:
Single spindle vertical moulding machines;
 EN 848-2, Safety of woodworking machines  One side moulding machines with rotating tool  Part 2:
Single spindle hand fed/integrated fed routing machines;
 EN 848-3, Safety of woodworking machines  One side moulding machines with rotating tools  Part 3:
Numerically controlled (NC) boring and routing machines (the present document).
The European Standards produced by CEN/TC 142 are particular to woodworking machines and compliment
the relevant A and B standards on the subject of general safety (see Introduction of EN ISO 12100:2010 for a
description of A, B and C standards).
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Introduction
This document has been prepared to be a harmonised standard to provide one means of conforming to the
essential health and safety requirements of the Machinery Directive and associated EFTA Regulations.
This document is a type C standard as defined in EN ISO 12100:2010.
The machinery concerned and the extent to which hazards, hazardous situations and events covered are
indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of other standards, for machines that
have been designed and built according to the provisions of this type C standard.
The requirements of this document are directed to manufacturers and their authorised representatives of
numerically controlled (NC) boring machines and routing machines. It is also useful for designers.
This also includes examples of information to be provided by the manufacturer to the user.
Common requirements for tooling are given in EN 847-1:2005+A1:2007 and EN 847-2:2001.
1 Scope
This European Standard specifies all significant hazards, hazardous situations and events as listed in
Clause 4, which are relevant to NC boring machines, NC routing machines and NC combined boring/routing
machines (as defined in 3.1) herein after referred to as "machines" designed to cut solid wood, chip board,
fibreboard, plywood and also these materials where these are covered with plastic/light alloy laminate or
edgings when they are used as intended and under the conditions foreseen by the manufacturer including
reasonably foreseeable misuse.
Machines which are designed to work wood based materials may also be used for working hardened plastic
materials with similar physical characteristics as wood.
This document also applies to machines fitted with:
 additional equipment for sawing, sanding, edge banding or assembly units and dowel devices;
 fixed or movable workpiece support;
 mechanical, pneumatic, hydraulic or vacuum workpiece clamping;
 automatic tool change facilities.
This document does not deal with the specific hazards of edge banding equipment fitted to NC boring
machines, NC routing machines and NC combined boring/routing machines.
This document is only applicable to NC boring machines, NC routing machines and NC combined
boring/routing machines which are designed to use milling tools with a cutting circle diameter below 16 mm or
milling tools or saw-blades conforming to EN 847-1:2005+A1:2007 and EN 847-2:2001 and boring tools or
sanding wheels.
This document is not applicable to NC boring machines, NC routing machines and NC combined
boring/routing machines which are designed to use grinding wheels.
This document is not applicable to single spindle hand fed/integrated fed routing machines.
NOTE Single spindle hand fed/integrated fed routing machines are dealt with in EN 848-2:2007+A1:2009.
This document does not deal with the specific hazards of ejection through openings on machines where the
distance between the work-piece support and the lower edge of the partial enclosure exceeds 400 mm.
This document is not applicable to NC boring machines, NC routing machines and NC combined
boring/routing machines which are manufactured before the date of its publication as EN.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 847-1:2005+A1:2007, Tools for woodworking — Safety requirements — Part 1: Milling tools, circular saw
blades
EN 847-2:2001, Tools for woodworking — Safety requirements — Part 2: Requirements for the shank of
shank mounted milling tools
EN 894-1:1997+A1:2008, Safety of machinery — Ergonomics requirements for the design of displays and
control actuators — Part 1: General principles for human interactions with displays and control actuators
EN 894-2:1997+A1:2008, Safety of machinery — Ergonomics requirements for the design of displays and
control actuators — Part 2: Displays
EN 894-3:2000+A1:2008, Safety of machinery — Ergonomics requirements for the design of displays and
control actuators — Part 3: Control actuators
EN 1005-1:2001+A1:2008, Safety of machinery — Human physical performance — Part 1: Terms and
definitions
EN 1005-2:2003+A1:2008, Safety of machinery — Human physical performance — Part 2: Manual handling
of machinery and component parts of machinery
EN 1005-3:2002+A1:2008, Safety of machinery — Human physical performance — Part 3: Recommended
force limits for machinery operation
EN 1005-4:2005+A1:2008, Safety of machinery — Human physical performance — Part 4: Evaluation of
working postures and movements in relation to machinery
EN 1037:1995+A1:2008, Safety of machinery — Prevention of unexpected start-up
EN 1088:1995+A2:2008, Safety of machinery — Interlocking devices associated with guards — Principles for
design and selection
EN 1760-1:1997+A1:2009, Safety of machinery — Pressure sensitive protective devices — Part 1: General
principles for the design and testing of pressure sensitive mats and pressure sensitive floors
EN 1760-3:2004+A1:2009, Safety of machinery — Pressure sensitive protective devices — Part 3: General
principles for the design and testing of pressure sensitive bumpers, plates, wires and similar devices
EN 1837:1999+A1:2009, Safety of machinery — Integral lighting of machines
EN 12779:2004+A1:2009, Safety of woodworking machines — Chip and dust extraction systems with fixed
installation — Safety related performances and safety requirements
EN 50370-1:2005, Electromagnetic compatibility (EMC) — Product family standard for machine tools —
Part 1: Emission
EN 50370-2:2003, Electromagnetic compatibility (EMC) — Product family standard for machine tools —
Part 2: Immunity
EN 60204-1:2006, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
(IEC 60204-1:2005, modified)
1)
EN 60439-1:1999 , Low-voltage switchgear and controlgear assemblies — Part 1: Type-tested and partially
type-tested assemblies (IEC 60439-1:1999)
2)
EN 60529:1991 , Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989)
EN 60825-1:2007, Safety of laser products — Part 1: Equipment classification and requirements
(IEC 60825-1:2007)
1) EN 60439-1:1999 is impacted by EN 60439-1:1999/A1:2004.
2) EN 60529:1991 is impacted by EN 60529:1991/A1:2000.
EN 61496-1:2004, Safety of machinery — Electro-sensitive protective equipment — Part 1: General
requirements and tests (IEC 61496-1:2004, modified)
CLC/TS 61496-2:2006, Safety of machinery — Electro-sensitive protective equipment — Part 2: Particular
requirements for equipment using active opto-electronic protective devices (AOPDs) (IEC 61496-2:2006)
EN 61800-5-2:2007, Adjustable speed electrical power drive systems — Part 5-2: Safety requirements —
Functional (IEC 61800-5-2:2007)
EN ISO 3743-1:2010, Acoustics — Determination of sound power levels and sound energy levels of noise
sources using sound pressure — Engineering methods for small movable sources in reverberant fields —
Part 1: Comparison method for a hard-walled test room (ISO 3743-1:2010)
EN ISO 3743-2:2009, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Engineering methods for small, moveable sources in reverberant fields — Part 2: Methods for
special reverberation test rooms (ISO 3743-2:1994)
EN ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise
sources using sound pressure — Engineering methods for an essentially free field over a reflecting plane
(ISO 3744:2010)
3)
EN ISO 3745:2009 , Acoustics — Determination of sound power levels of noise sources using sound
pressure — Precision methods for anechoic and semi-anechoic rooms (ISO 3745:2003)
EN ISO 3746:2010, Acoustics — Determination of sound power levels and sound energy levels of noise
sources using sound pressure — Survey method using an enveloping measurement surface over a reflecting
plane (ISO 3746:2010)
EN ISO 4413:2010, Hydraulic fluid power — General rules and safety requirements for systems and their
components (ISO 4413:2010)
EN ISO 4414:2010, Pneumatic fluid power — General rules and safety requirements for systems and their
components (ISO 4414:2010)
EN ISO 4871:2009, Acoustics — Declaration and verification of noise emission values of machinery and
equipment (ISO 4871:1996)
EN ISO 9614-1:2009, Acoustics — Determination of sound power levels of noise sources using sound
intensity — Part 1: Measurement at discrete points (ISO 9614-1:1993)
EN ISO 11202:2010, Acoustics — Noise emitted by machinery and equipment — Determination of emission
sound pressure levels at a work station and at other specified positions applying approximate environmental
corrections (ISO 11202:2010)
EN ISO 11204:2010, Acoustics — Noise emitted by machinery and equipment — Determination of emission
sound pressure levels at a work station and at other specified positions applying accurate environmental
corrections (ISO 11204:2010)
EN ISO 11688-1:2009, Acoustics — Recommended practice for the design of low-noise machinery and
equipment — Part 1: Planning (ISO/TR 11688-1:1995)
EN ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk
reduction (ISO 12100:2010)
EN ISO 13849-1:2008, Safety of machinery — Safety-related parts of controls systems — Part 1: General
principles for design (ISO 13849-1:2006)

3) EN ISO 3745:2009 is superseded by EN ISO 3745:2012.
EN ISO 13850:2008, Safety of machinery — Emergency stop — Principles for design (ISO 13850:2006)
EN ISO 13857:2008, Safety of machinery — Safety distances to prevent hazard zones being reached by
upper and lower limbs (ISO 13857:2008)
ISO 7960:1995, Airborne noise emitted by machine tools — Operating conditions for woodworking machines
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100:2010 and the following
apply.
3.1
Numerically Controlled (NC) boring and routing machines
integrated fed machines designed for the machining of workpieces by the use of milling and/or boring tools
having at least two orthogonal axes programmable by the user (e.g. X, Y) for positioning and/or machining,
where the axes operate in accordance with a NC work programme
Note 1 to entry The machine can have:
a) additional equipment for sawing or sanding or assembly units and dowel devices;
b) additional equipment for edge banding;
c) fixed or movable workpiece support;
d) mechanical, pneumatic, hydraulic or vacuum workpiece clamping;
e) automatic tool change facilities.
Examples of different machine design are illustrated in Figures 1 to 9.

Safeguarding devices are not illustrated.
Figure 1 — Example 1 of a C frame machine (fixed table, moveable head)
Safeguarding devices are not illustrated.
Figure 2 — Example 2 of a portal frame machine (fixed portal, fixed table moving head)

Safeguarding devices are not illustrated.
Figure 3 — Example 3 of an overhead router (moving table)
Safeguarding devices are not illustrated.
Figure 4 — Example 4 of an overhead router (moving tables, fixed portal, and moving heads)

Safeguarding devices are not illustrated.
Figure 5 — Example 5 of a machining centre (moving table, fixed portal, moving head)
Safeguarding devices are not illustrated.
Figure 6 — Example 6 of an overhead router (fixed table, moving portal, moving head)

Safeguarding devices are not illustrated.
Figure 7 — Example 7 of a C frame boring machine (moving tables, fixed portal, moving heads)
Safeguarding devices are not illustrated.
Figure 8 — Example 8 of a portal frame boring machine (moving tables, fixed portal, moving heads)

Safeguarding devices are not illustrated.
Figure 9 — Example 9 of a vertical machine (moving support, fixed frame, moving heads)
3.2
boring tools
tools whose feed movement during machining is only in direction of their axis of rotation
3.3
sanding wheel
tool where the active part is made of coated abrasive
3.4
grinding wheel
tool where the active part is made of bounded abrasive
3.5
speed range
range between the lowest and the highest rotational speed for which the tool spindle or tool is designed to
operate
3.6
ejection
uncontrolled movement of the workpiece or parts of it or part of the tool from the machine during processing
3.7
machine actuator
power mechanism used to effect motion of the machine
3.8
machining mode of operation
automatic, programmed, sequential operation of the machine with the facility for manual or automatic
loading/unloading of workpieces
3.9
machine setting mode of operation
setting, programming, fault finding, program verification, testing and manually controlled (under power) non-
sequential operation of the machine
3.10
information of the supplier
statements, sales literature, leaflets or other documents where a manufacturer (supplier) declares either the
compliance of the characteristics of e.g. a material or product or the conformity of a material or a product to a
relevant standard
3.11
Numerical Control (NC) Computerised Numerical Control (CNC)
automatic control of a process by a device that makes use of numerical data introduced while the process is in
progress
3.12
partial enclosure
combination of fixed and moveable guards, safety devices and curtains which encloses the defined machine
danger zone which may or may not have apertures or a ceiling
3.13
peripheral enclosure
combination of fixed and moveable guards which encloses the machine danger zone preventing access to it
and also forms a means of safeguarding against ejected parts (e.g. wood dust and chips) which may or may
not have a ceiling
3.14
integrated feed on NC boring and routing machines
power operated feed mechanism for the work piece, the work piece support and/or the machine element with
incorporated tool which is integrated with the machine
3.15
operational stop
control through which the machine can be brought to a monitored and maintained safe stop but where the
energy supply to the machine actuators need not be cut off when the machine or the dangerous parts of it are
stopped
3.16
bumper
pressure sensitive protective device
Note 1 to entry See EN 1760-3:2004+A1:2009 and 3.26.
Note 2 to entry Pressure sensitive protective device comprise:
a) sensor(s) which generate(s) a signal when pressure is applied to part of its outer surface, where:
1) the cross section throughout the pressure sensitive area may be regular or irregular;
2) the sensor is intended to detect a person or a part of his body (head, arm leg, etc.) when entering the
protected zone;
b) where necessary a control unit, which responds to the signal from the sensor and generates output
signal(s) to the control system of the machine.
Note 3 to entry For some bumpers the sensors generate directly the output signal(s).
3.17
safety related part of a control system
SRP/CS
part or subpart(s) of a control system that responds to input signals and generates safety-related output
signals
Note 1 to entry The combined safety-related parts of a control system start at the point where the safety-related
signals are initiated (including e.g. the actuating cam and the roller of the position switch) and end at the output of the
power control elements (including e.g. the main contacts of the contactor). This also includes monitoring systems
(EN ISO 13849-1:2008, 3.1).
3.18
embedded software
SRESW
software that is part of the system supplied by the control manufacturer and which is not accessible for
modification by the user of the machinery
Note 1 to entry Firmware or system software are examples of embedded software (EN ISO 13849-1:2008, 3.1.37).
Note 2 to entry Manufacturer means manufacturer of the system.
Note 3 to entry For example the operating system of a speed monitoring device.
3.19
application software
SRASW
software specific to the application, implemented by the machine manufacturer, and generally containing logic
sequences, limits and expressions that control the appropriate inputs, outputs, calculations and decisions
necessary to meet the SRP/CS requirements
[SOURCE: EN ISO 13849-1:2008, definition 3.1.36]
3.20
redundancy
application of more than one device or system, or part of a device or a system, with the objective of ensuring
that, in the event of one failing to perform its function, another is available to perform that function
Note 1 to entry: See EN 60204-1:2006, 3.44, and EN ISO 12100:2010, 6.2.12.4.
3.21
monitoring
safety function which ensures that a safety measure is initiated if the ability of a component or an element to
perform its function is diminished, or if the process conditions are changed in such a way that hazards are
generated
3.22
un-braked run-down time
time elapsed from the actuation of the stop control device for stopping until spindle standstill when the brake is
not effective
3.23
braked run-down time
time elapsed from the actuation of the stop control device for stopping until spindle standstill when the brake is
effective
3.24
electro-sensitive protective equipment
ESPE
non-mechanically actuated assembly of devices and/or components working together for protective tripping or
presence-sensing purposes
Note 1 to entry: ESPE comprise as a minimum:
− a sensing function;
− a control / monitoring function;
− one or more output signal switching device(s).
Safety related control systems associated with the ESPE or the ESPE itself may include a secondary switching device,
muting functions, stopping performance monitor, start interlock, re-start interlock, etc.
Note 2 to entry: Examples are light beam, capacitive, active infra-red, ultra-sonic and image monitoring equipment.
3.25
pressure sensitive protective equipment
PSPE
mechanically actuated assembly of devices and/or components working together for protective tripping or
presence-sensing purposes
Note 1 to entry: PSPE comprise as a minimum:
− one or more sensing elements;
− a control unit where necessary;
− one or more output signal switching device(s).
Safety related control system associated with the PSPE or the PSPE itself can further include a secondary switching
device, start interlock, re-start interlock, etc.
Note 2 to entry Examples are pressure sensitive edges, pressure sensitive floors, pressure sensitive mats and
pressure sensitive bars.
3.26
performance level
PL
discrete level used to specify the ability of safety-related parts of control systems to perform a safety function
under foreseeable conditions
[SOURCE: EN ISO 13849-1:2008, definition 3.1.23]
4 List of significant hazards
This clause contains all significant hazards, hazardous situations and events (see EN ISO 12100:2010),
identified by risk assessment as significant for the machines as defined in the scope and which require action
to eliminate or reduce the risk. This document deals with these significant hazards by defining safety
requirements and/or measures or by reference to relevant standards:
These hazards are listed in Table 1.
Table 1 — List of significant hazards
No Hazards, hazardous situations and Relevant
hazardous events clauses of
EN ISO 12100:2010 this
document
1 Mechanical hazards related to machine parts or workpiece due to:
a) shape 6.2.2.1, 6.2.2.2, 6.3 5.3.7, 5.3.8,
5.4.5
b) relative location 5.2.2, 5.2.3,
5.2.5, 5.3.7
c) mass and stability (potential energy 5.2.10,
of elements which may move under the 5.3.3, 5.4.5,
effect of gravity) 5.4.12
d) mass and velocity (kinetic energy of 5.2.7, 5.3.7,
elements in controlled or uncontrolled 5.3.8
motion)
e) mechanical strength 5.3.7.5,
Annex B
- accumulation of energy inside the machinery:
f) liquids or gases under pressure, or 6.2.10, 6.3.5.4 5.2.10,
5.4.7, 5.4.8,
5.4.13
g) vacuum 5.3.8
1.1 Crushing hazard 5.3.4,
5.3.7.2, 6.3
1.2 Shearing hazard 5.3.7.2
1.3 Cutting or severing hazard 5.3.7.1.1,
5.3.7.1.2,
5.3.7.2
1.4 Entanglement hazard 5.3.3, 5.3.7
1.5 Drawing in or trapping hazard 5.3.7
1.6 Impact hazard 5.3.5
1.7 Stabbing or puncture hazard 5.3.7.2
1.8 Friction or abrasion hazard 5.3.7
No Hazards, hazardous situations and Relevant
hazardous events clauses of
this
EN ISO 12100:2010
document
1.9 High pressure fluid injection or ejection 6.2.10 5.3.8
hazard
2 Electrical hazards
2.1 Contact of persons with live parts 6.2.9, 6.3.5.4 5.4.4
(direct contact)
2.2 Contact of persons with parts which 6.2.9 5.4.4
have become live under faulty
conditions (indirect contact)
4 Hazards generated by noise, resulting in:
4.1 Hearing loss (deafness), other 6.2.2.2, 6.3 5.4.2
physiological disorders (loss of balance,
loss or awareness)
4.2 Interference with speech 5.4.2
communication, acoustic signals
6 Hazards generated by radiation
6.1 5.4.10
Low frequency, radio frequency
radiation, micro waves
6.5 Lasers 6.3.4.5 5.4.11
7 Hazards generated by materials and substances (and their constituent elements)
processed, or used by the machinery:
7.1 Hazards from contact with or inhalation 6.2.3, 6.2.4 5.4.3
of harmful fluids and dusts
7.2 Fire hazard 6.2.4 5.4.1, 5.4.9
8 Hazards generated by neglecting ergonomic principles in machine design:
8.1 Unhealthy postures or excessive efforts 6.2.7, 6.2.8, 6.2.11.12, 5.2.2
6.3.5.5, 6.3.5.6
8.2 Hand-arm or foot-leg anatomy 6.2.8 5.4.5
8.4 Local lighting 6.2.8.6 5.4.6, 6.3
8.5 Mental overload and underload, stress 6.2.8.5 5.4.5
8.6 Human error 6.2.8.1, 6.2.11.8, 5.2.7, 6.3
6.2.11.10, 6.3.5.2, 6.4
8.7 Design, location or identification of 6.2.8.7, 6.2.11.8 5.2.2
manual controls
8.8 Design or location of visual display units 6.2.8, 6.4.2 5.2.2
9 Hazard combination 6.3.2.1 5.2.7
10 Unexpected start-up, unexpected overrun/overspeed (or any similar malfunction) from
No Hazards, hazardous situations and Relevant
hazardous events clauses of
this
EN ISO 12100:2010
document
10.1 F
...
