prEN ISO 19085-10
(Main)Woodworking machines - Safety - Part 10: Building site saws (contractor saws) (ISO/DIS 19085-10:2025)
Woodworking machines - Safety - Part 10: Building site saws (contractor saws) (ISO/DIS 19085-10:2025)
ISO 19085-10:2018 gives the safety requirements and measures for displaceable building site saws, designed to cut wood and materials with similar physical characteristics to wood, hereinafter referred to as "machines".
NOTE 1 For the definition of displaceable machine, see ISO 19085‑1:2017, 3.5.
ISO 19085-10:2018 deals with all significant hazards, hazardous situations and events as listed in Clause 4, relevant to the machines, when operated, adjusted and maintained as intended and under the conditions foreseen by the manufacturer including reasonably foreseeable misuse. Also, transport, assembly, dismantling, disabling and scrapping phases have been taken into account.
NOTE 2 For relevant but not significant hazards, e.g. sharp edges of the machine frame, see ISO 12100:2010.
The machine can also be fitted with a device for the saw blade to be manually raised and lowered through the table, whose hazards have been dealt with.
This document does not apply to the following:
a) machines with a maximum saw blade diameter smaller than 350 mm or greater than 500 mm;
b) hand-held woodworking machines, including any adaptation permitting their use in a different mode, i.e. bench mounting;
c) machines with a device to tilt the saw blade for angle cutting, machines with more than one saw blade rotational speed and machines equipped with a sliding table;
NOTE 3 Hand-held motor-operated electric tools are covered by IEC 62841‑1 together with IEC 62841‑2‑5.
NOTE 4 Machines with the device to tilt the saw blade for angle cutting, machines with more than one saw blade rotational speed and machines equipped with a sliding table are considered as table saws, covered by ISO 19085‑9.
ISO 19085-10:2018 is not applicable to machines intended for use in potentially explosive atmospheres or to machines manufactured prior to the date of its publication.
Holzbearbeitungsmaschinen - Sicherheit - Teil 10: Baustellenkreissägemaschinen (ISO/DIS 19085‑10:2025)
Dieses Dokument stellt Sicherheitsanforderungen und Maßnahmen für Baustellenkreissägemaschinen zur Verfügung, die zum Schneiden von Holz und Werkstoffen mit ähnlichen physikalischen Eigenschaften wie Holz konstruiert sind, für den dauerhaften Einsatz in der Produktion geeignet sind und im Folgenden auch als „Maschinen“ bezeichnet werden.
Es behandelt alle im Anhang A aufgeführten signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse, die auf die Maschinen zutreffen, wenn sie bestimmungsgemäß und entsprechend den vorhersehbaren Bedingungen des Herstellers verwendet, eingestellt und gewartet werden, einschließlich der vernünftigerweise vorhersehbaren Fehlanwendung. Ferner wurden Transport, Zusammenbau, Demontage, Rückbau und Verschrottung berücksichtigt.
Die Maschine kann auch mit einer handbetätigten Einrichtung zum Anheben und Absenken des Sägeblatts durch den Tisch, deren Gefährdungen berücksichtigt wurden, ausgerüstet sein.
Dieses Dokument ist nicht anwendbar für:
a) Maschinen mit einem größten Sägeblattdurchmesser von weniger als 350 mm oder mehr als 500 mm;
b) handgehaltene motorbetriebene Elektrowerkzeuge, einschließlich aller Anpassungen, die ihre Verwendung in einer anderen Weise, d. h. in einem Gestell montiert, ermöglichen;
c) transportable motorbetriebene Elektrowerkzeuge;
d) Maschinen mit einer Einrichtung zum Schrägstellen des Sägeblatts für Winkelschnitte, Maschinen mit mehr als einer Sägeblattdrehzahl und Maschinen, die mit einem Schiebetisch ausgerüstet sind;
ANMERKUNG 1 Handgehaltene motorbetriebene Elektrowerkzeuge fallen unter die IEC 62841 1 zusammen mit der IEC 62841 2 5.
ANMERKUNG 2 Transportable motorbetriebene Elektrowerkzeuge fallen unter die IEC 62841 1 zusammen mit der IEC 62841 3 1.
ANMERKUNG 3 Maschinen mit einer Einrichtung zum Schrägstellen des Sägeblatts für Winkelschnitte, Maschinen mit mehr als einer Sägeblattdrehzahl und Maschinen, die mit einem Schiebetisch ausgerüstet sind, werden als Tischkreissägemaschinen betrachtet, die in ISO 19085 9 behandelt werden.
Dieses Dokument ist nicht für Maschinen anwendbar, die zur bestimmungsgemäßen Verwendung in potentiell explosiven Atmosphären vorgesehen sind, oder Maschinen, die vor der Veröffentlichung dieses Dokuments hergestellt wurden.
Machines à bois - Sécurité - Partie 10: Scies de chantier (ISO/DIS 19085-10:2025)
L'ISO 19085-10:2018 donne les exigences et les mesures de sécurité pour les scies de chantier transportables, conçues pour la coupe de bois et de matériau ayant des caractéristiques physiques similaires à celles du bois, ci-après désignées «machines».
NOTE 1 Pour la définition de machine transportable, voir l'ISO 19085‑1:2017, 3.5.
L'ISO 19085-10:2018 traite de tous les phénomènes dangereux, situations et événements dangereux significatifs, tels qu'énumérés à l'Article 4, applicables aux machines lorsqu'elles sont utilisées, réglées et entretenues comme prévu et dans les conditions prévues par le fabricant, incluant une mauvaise utilisation raisonnablement prévisible. Les phases de transport, d'assemblage, de démontage, de mise hors service et de mise au rebut ont également été prises en compte.
NOTE 2 Pour les phénomènes dangereux pertinents mais non significatifs, par exemple, les arêtes vives du bâti de la machine, voir l'ISO 12100:2010.
La machine peut également être munie d'un dispositif pour élever et abaisser manuellement la lame de scie à travers la table, dont les phénomènes dangereux ont été traités.
L'ISO 19085-10:2018 ne s'applique pas à ce qui suit:
a) aux machines avec un diamètre maximal de lame de scie inférieur à 350 mm ou supérieur à 500 mm;
b) aux machines à bois portatives, y compris toute adaptation permettant leur utilisation de manière différente, c'est-à-dire fixées sur un bâti;
c) aux machines équipées d'un dispositif d'inclinaison de la lame de scie pour réaliser une coupe oblique, aux machines ayant plusieurs vitesses de rotation de la lame de scie et aux machines équipées d'une table mobile;
NOTE 3 Les outils électroportatifs à moteur sont couverts par l'IEC 62841‑1 conjointement à l'IEC 62841‑2‑5.
NOTE 4 Les machines équipées d'un dispositif d'inclinaison de la lame de scie pour réaliser une coupe oblique, les machines ayant plusieurs vitesses de rotation de la lame de scie et les machines équipées d'une table mobile sont considérées comme des scies à tables couvertes par l'ISO 19085‑9.
L'ISO 19085-10:2018 n'est pas applicable aux machines prévues pour une utilisation en atmosphères explosibles, ni aux machines fabriquées avant sa date de publication.
Lesnoobdelovalni stroji - Varnost - 10. del: Žage, ki se uporabljajo na gradbišču (ISO/DIS 19085-10:2025)
General Information
Relations
Standards Content (Sample)

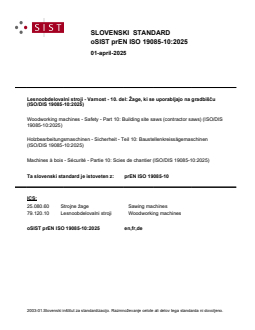

SLOVENSKI STANDARD
01-april-2025
Lesnoobdelovalni stroji - Varnost - 10. del: Žage, ki se uporabljajo na gradbišču
(ISO/DIS 19085-10:2025)
Woodworking machines - Safety - Part 10: Building site saws (contractor saws) (ISO/DIS
19085-10:2025)
Holzbearbeitungsmaschinen - Sicherheit - Teil 10: Baustellenkreissägemaschinen
(ISO/DIS 19085-10:2025)
Machines à bois - Sécurité - Partie 10: Scies de chantier (ISO/DIS 19085-10:2025)
Ta slovenski standard je istoveten z: prEN ISO 19085-10
ICS:
25.080.60 Strojne žage Sawing machines
79.120.10 Lesnoobdelovalni stroji Woodworking machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

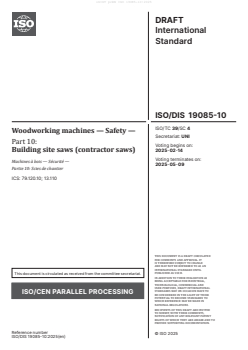

DRAFT
International
Standard
ISO/DIS 19085-10
ISO/TC 39/SC 4
Woodworking machines — Safety —
Secretariat: UNI
Part 10:
Voting begins on:
Building site saws (contractor saws) 2025-02-14
Voting terminates on:
Machines à bois — Sécurité —
2025-05-09
Partie 10: Scies de chantier
ICS: 79.120.10; 13.110
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Reference number
ISO/DIS 19085-10:2025(en)
DRAFT
ISO/DIS 19085-10:2025(en)
International
Standard
ISO/DIS 19085-10
ISO/TC 39/SC 4
Woodworking machines — Safety —
Secretariat: UNI
Part 10:
Voting begins on:
Building site saws (contractor saws)
Voting terminates on:
Machines à bois — Sécurité —
Partie 10: Scies de chantier
ICS: 79.120.10; 13.110
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
© ISO 2025
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
BE CONSIDERED IN THE LIGHT OF THEIR
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
or ISO’s member body in the country of the requester.
NATIONAL REGULATIONS.
ISO copyright office
RECIPIENTS OF THIS DRAFT ARE INVITED
CP 401 • Ch. de Blandonnet 8
TO SUBMIT, WITH THEIR COMMENTS,
CH-1214 Vernier, Geneva
NOTIFICATION OF ANY RELEVANT PATENT
Phone: +41 22 749 01 11
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/DIS 19085-10:2025(en)
ii
ISO/DIS 19085-10:2025(en)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Safety requirements and measures for controls . 3
4.1 Safety and reliability of control systems.3
4.2 Control devices .3
4.3 Start .4
4.3.1 Direct start .4
4.3.2 Start via control power-on .4
4.4 Safe stops .4
4.4.1 General .4
4.4.2 Normal stop .4
4.4.3 Operational stop .4
4.4.4 Emergency stop .4
4.5 Braking function of tools .4
4.6 Mode selection .4
4.7 Tool speed changing .4
4.7.1 Speed changing by shifting the belts on the pulleys .4
4.7.2 Speed changing by incremental speed change motor .4
4.7.3 Infinitely variable speed by frequency inverter .4
4.8 Failure of any power supply .5
4.9 Manual reset control .5
4.10 Standstill detection and monitoring .5
4.11 Machine moving parts speed monitoring.5
4.12 Time delay.5
5 Safety requirements and measures for protection against mechanical hazards . 5
5.1 Stability .5
5.2 Risk of break-up during operation .5
5.3 Tool and tool fixing design .5
5.3.1 General .5
5.3.2 Spindle locking .5
5.3.3 Circular saw blade fixing device .5
5.3.4 Flange dimensions for circular saw blades .6
5.4 Braking .6
5.4.1 Braking of tools .6
5.4.2 Maximum run-down time .6
5.4.3 Brake release .6
5.5 Safeguards .6
5.5.1 Fixed guards .6
5.5.2 Interlocking movable guards .6
5.5.3 Hold-to-run control .6
5.5.4 Two-hand control .6
5.5.5 Electro-sensitive protection equipment (ESPE) .6
5.5.6 Pressure sensitive protection equipment (PSPE) .6
5.5.7 Enabling control .7
5.6 Prevention of access to hazardous moving parts .7
5.6.1 Access to the saw blade above the machine table .7
5.6.2 Slot for the saw blade in the table .10
5.6.3 Access to the saw blade below the machine table .10
5.7 Impact hazard .10
5.8 Clamping devices .10
iii
ISO/DIS 19085-10:2025(en)
5.9 Measures against ejection .10
5.9.1 General .
...
