prEN 1364-1
(Main)Fire resistance tests for non-loadbearing elements - Part 1: Walls
Fire resistance tests for non-loadbearing elements - Part 1: Walls
This document specifies a method for determining the fire resistance of non-loadbearing walls.
This document is used in conjunction with EN 1363-1.
It is applicable to internal non-loadbearing walls (partitions), with and without glazing, non-loadbearing walls consisting almost wholly of glazing (glazed non-loadbearing walls) and other internal and external non-loadbearing walls with and without glazing.
The fire resistance of external non-loadbearing walls can be determined under internal or external exposure conditions. In the latter case the external fire exposure curve given in EN 1363-2 is used.
This document is not applicable to:
a) curtain walls (external non-loadbearing walls suspended in front of the floor slab), unless explicitly permitted under EN 1364-3 or EN 1364-4 which contain details of the methodology to be used;
b) non-loadbearing walls containing door assemblies that are tested according to EN 1634-1.
Specific requirements for testing glazed elements or non-loadbearing walls incorporating glazing are given in Annex A.
Specific requirements relating to the testing of non-loadbearing external and internal walls designed to span horizontally between two independently proven fire resisting vertical structural elements are given in Annex B.
Feuerwiderstandsprüfungen für nichttragende Bauteile - Teil 1: Wände
Dieses Dokument legt ein Verfahren zur Bestimmung der Feuerwiderstandsdauer von nichttragenden Wänden fest.
Dieses Dokument gilt in Verbindung mit EN 1363 1.
Es gilt für nichttragende Innenwände (Trennwände) mit und ohne Verglasung, nahezu vollständig aus Verglasung bestehende nichttragende Wände (nichttragende Glaswände), sowie sonstige nichttragende Innen- und Außenwände mit und ohne Verglasung.
Die Feuerwiderstandsdauer von nichttragenden Außenwänden kann durch Beflammung von innen oder von außen bestimmt werden. Im letzteren Fall wird die in EN 1363 2 aufgeführte Außenbrandkurve angewendet.
Dieses Dokument gilt nicht für:
a) Vorhangfassaden (nichttragende Außenwände, die vor Decken abgehängt werden), sofern dies nicht ausdrücklich nach EN 1364 3 oder EN 1364 4, welche Einzelheiten zur anzuwendenden Vorgehensweise enthalten, zulässig ist.
b) nichttragende Wände mit Türen, die nach EN 1634 1 geprüft werden.
Besondere Anforderungen an die Prüfung von verglasten Bauteilen oder nichttragenden Wänden mit Verglasung sind in Anhang A aufgeführt.
Besondere Anforderungen an die Prüfung nichttragender Außen- und Innenwände, die dafür vorgesehen sind, horizontal gespannt zwischen zwei vertikalen tragenden Bauteilen angeordnet zu sein, für die unabhängig der Feuerwiderstand nachgewiesen wurde, sind in Anhang B aufgeführt.
Essais de résistance au feu des éléments non porteurs - Partie 1 : Murs
Ce document spécifie une méthode pour déterminer la résistance au feu des murs non porteurs.
Ce document est utilisé en conjonction avec la norme EN 1363-1.
Elle s'applique aux murs intérieurs non porteurs (cloisons), avec ou sans vitrage, aux murs non porteurs constitués presque entièrement de vitrage (murs non porteurs vitrés) et aux autres murs intérieurs et extérieurs non porteurs, avec ou sans vitrage.
La résistance au feu des murs extérieurs non porteurs peut être déterminée dans des conditions d'exposition interne ou externe. Dans ce dernier cas, la courbe d'exposition au feu externe donnée dans la norme EN 1363-2 est utilisée.
Ce document n'est pas applicable à :
a) les murs-rideaux (murs extérieurs non porteurs suspendus devant la dalle de plancher), à moins qu'ils ne soient explicitement autorisés par les normes EN 1364-3 ou EN 1364-4, qui contiennent des détails sur la méthodologie à utiliser ;
b) les murs non porteurs contenant des ensembles de portes testés conformément à la norme EN 1634-1.
Les exigences spécifiques pour l'essai des éléments vitrés ou des murs non porteurs comportant des vitrages sont indiquées à l'annexe A.
Les exigences spécifiques relatives à l'essai des murs extérieurs et intérieurs non porteurs conçus pour s'étendre horizontalement entre deux éléments structuraux verticaux résistants au feu dont l'efficacité a été démontrée de manière indépendante sont indiquées à l'annexe B.
Preskusi požarne odpornosti nenosilnih elementov - 1. del: Stene
General Information
Relations
Standards Content (Sample)

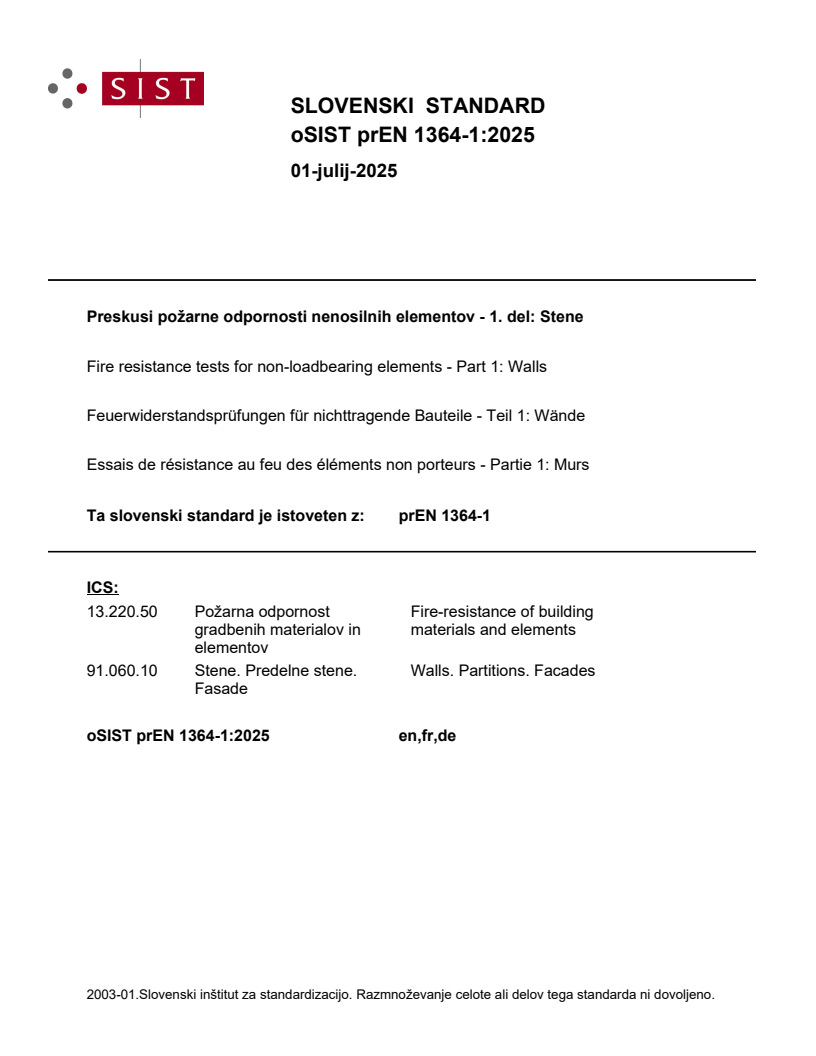

SLOVENSKI STANDARD
01-julij-2025
Preskusi požarne odpornosti nenosilnih elementov - 1. del: Stene
Fire resistance tests for non-loadbearing elements - Part 1: Walls
Feuerwiderstandsprüfungen für nichttragende Bauteile - Teil 1: Wände
Essais de résistance au feu des éléments non porteurs - Partie 1: Murs
Ta slovenski standard je istoveten z: prEN 1364-1
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.060.10 Stene. Predelne stene. Walls. Partitions. Facades
Fasade
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

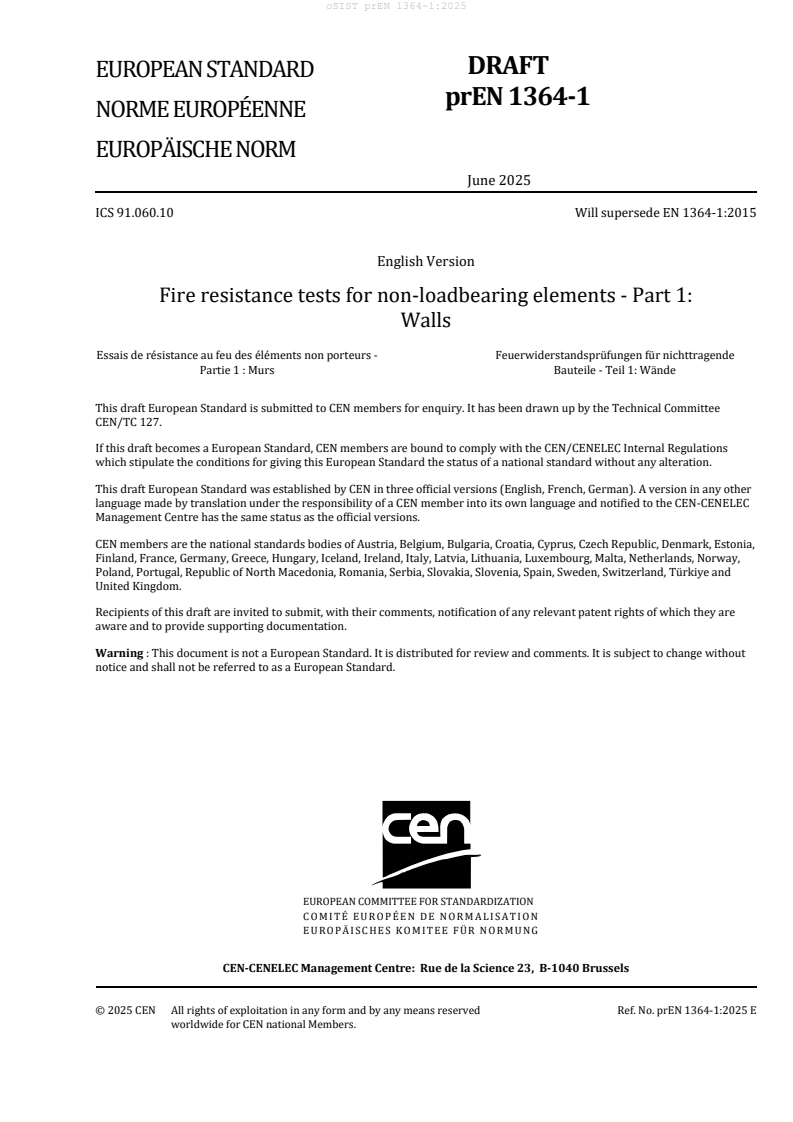

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2025
ICS 91.060.10 Will supersede EN 1364-1:2015
English Version
Fire resistance tests for non-loadbearing elements - Part 1:
Walls
Essais de résistance au feu des éléments non porteurs - Feuerwiderstandsprüfungen für nichttragende
Partie 1 : Murs Bauteile - Teil 1: Wände
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 127.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1364-1:2025 E
worldwide for CEN national Members.

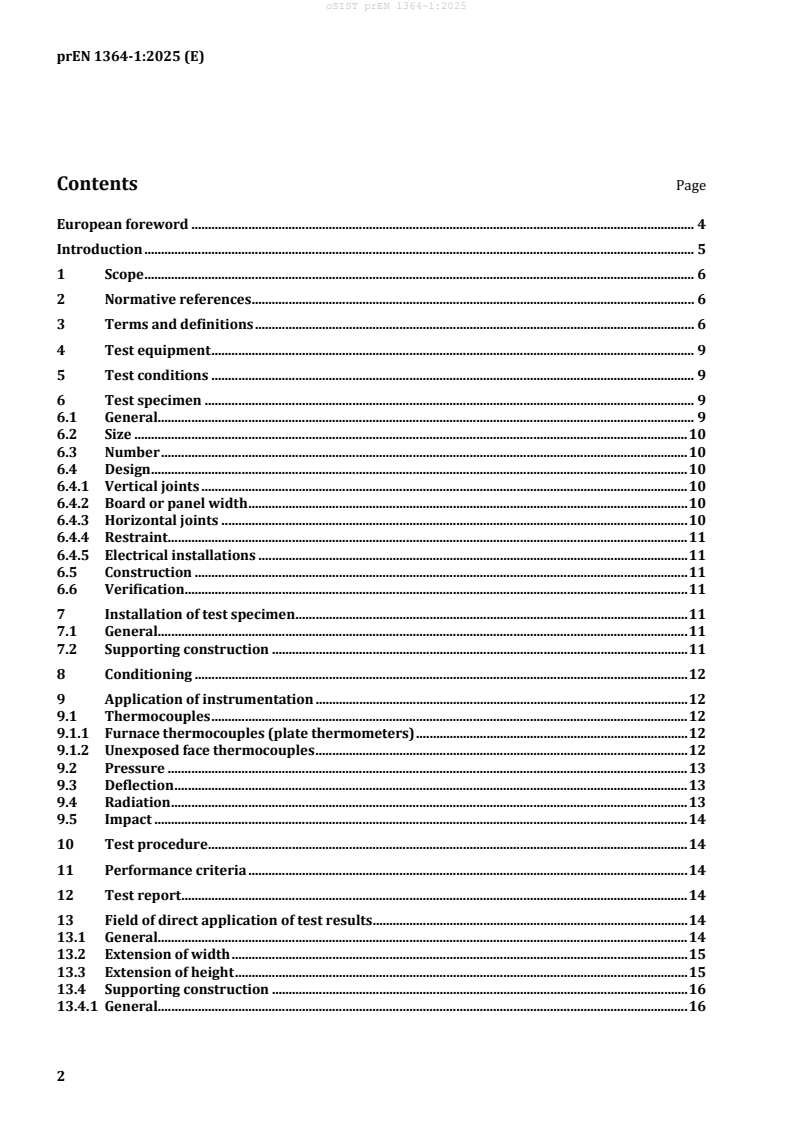

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Test equipment . 9
5 Test conditions . 9
6 Test specimen . 9
6.1 General. 9
6.2 Size . 10
6.3 Number . 10
6.4 Design . 10
6.4.1 Vertical joints . 10
6.4.2 Board or panel width . 10
6.4.3 Horizontal joints . 10
6.4.4 Restraint . 11
6.4.5 Electrical installations . 11
6.5 Construction . 11
6.6 Verification . 11
7 Installation of test specimen . 11
7.1 General. 11
7.2 Supporting construction . 11
8 Conditioning . 12
9 Application of instrumentation . 12
9.1 Thermocouples . 12
9.1.1 Furnace thermocouples (plate thermometers) . 12
9.1.2 Unexposed face thermocouples . 12
9.2 Pressure . 13
9.3 Deflection . 13
9.4 Radiation . 13
9.5 Impact . 14
10 Test procedure . 14
11 Performance criteria . 14
12 Test report . 14
13 Field of direct application of test results . 14
13.1 General. 14
13.2 Extension of width . 15
13.3 Extension of height . 15
13.4 Supporting construction . 16
13.4.1 General. 16
13.4.2 Standard supporting construction . 16
13.4.3 Non-standard supporting constructions . 16
13.5 Field of direct application resulting from a combination of horizontal joints and maximum
board or panel height in one test specimen . 16
Annex A (normative) Specific requirements for testing glazed elements or non-loadbearing walls
incorporating glazing . 46
Annex B (normative) Specific requirements for testing non-loadbearing external and internal
walls designed to span horizontally between two independently proven fire resisting
vertical structural elements . 56
Bibliography . 59
European foreword
This document (prEN 1364-1:2025) has been prepared by Technical Committee CEN/TC 127 “Fire safety
in buildings”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1364-1:2015.
a) Definitions updated and added;
b) Design with board / panels and joints defined, figures added;
c) Direct field of application (DIAP)for glazed constructions (Annex A) updated based on rules given
in EN 15254-4.
The EN 1364 series, Fire resistance tests for non-loadbearing elements consists of the following parts:
— Part 1: Walls;
— Part 2: Ceilings;
— Part 3: Curtain walling - Full configuration (complete assembly);
— Part 4: Curtain walling - Part configuration;
— Part 5: Air transfer grilles.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
Introduction
The purpose of this test is to measure the ability of a representative test specimen of a non-loadbearing
wall to resist the spread of fire from one side to another.
It is applicable to non-loadbearing walls, with and without glazing, non-loadbearing walls consisting
almost wholly of glazing and other non-loadbearing internal and external non-loadbearing walls.
It is not applicable to curtain walls (external non-loadbearing walls suspended in front of the floor slab),
unless explicitly permitted under EN 1364-3 or EN 1364-4 which should contain details of the
methodology to be used.
For external fire exposure to a non-loadbearing external wall, the external fire exposure curve given in
EN 1363-2 is used.
CAUTION — The attention of all persons concerned with managing and carrying out this fire
resistance test is drawn to the fact that fire testing can be hazardous and that there is a possibility
that toxic and/or harmful smoke and gases can be involved during the test. Mechanical and
operational hazards might also arise during the construction of the test elements or structures,
their testing and disposal of test residues.
An assessment of all potential hazards and risks to health should be made and safety precautions
should be identified and provided. Written safety instructions should be issued. Appropriate
training should be given to relevant personnel. Laboratory personnel should ensure that they
follow written safety instructions at all times.
1 Scope
This document specifies a method for determining the fire resistance of non-loadbearing walls.
This document is used in conjunction with EN 1363-1.
It is applicable to internal non-loadbearing walls (partitions), with and without glazing, non-loadbearing
walls consisting almost wholly of glazing (glazed non-loadbearing walls) and other internal and external
non-loadbearing walls with and without glazing.
The fire resistance of external non-loadbearing walls can be determined under internal or external
exposure conditions. In the latter case the external fire exposure curve given in EN 1363-2 is used.
This document is not applicable to:
a) curtain walls (external non-loadbearing walls suspended in front of the floor slab), unless
explicitly permitted under EN 1364-3 or EN 1364-4 which contain details of the methodology to
b
...
