EN 16119:2021
(Main)LPG equipment and accessories - Sealing caps and plugs for LPG cylinder and pressure vessel valves - Specification and testing
LPG equipment and accessories - Sealing caps and plugs for LPG cylinder and pressure vessel valves - Specification and testing
This document specifies the design, testing and marking requirements for caps and plugs used to form a pressure tight seal with liquefied petroleum gas (LPG) cylinder valves and pressure vessel valves. Sealing caps and plugs provide an additional seal for self-closing and manually operated valves.
Protection caps or dust caps and tamper evident seals that do not form an additional seal as part of their design are excluded from the scope of this document.
Cylinder valve caps and plugs can be used with valves for liquid and vapour manufactured in accordance with EN ISO 14245 and EN ISO 15995.
Pressure vessel valve caps and plugs can be used with valves for liquid and vapour manufactured in accordance with EN 13175. Occasional liquid withdrawal valve caps and plugs are excluded from the scope of this document.
Reusable and single use sealing caps and plugs are included in this document.
This document does not exclude the use of other designs that provide an equivalent level of safety.
NOTE The term “pressure vessel” does not include LPG tank vehicles, also called “road tankers”, in CEN/TC 286 standards.
Flüssiggas-Geräte und Ausrüstungsteile - Dichtkappen und Dichtstopfen für Flaschen und Druckbehälter für Flüssiggas (LPG) - Spezifikation und Prüfungen
Dieses Dokument legt die Anforderungen an die Auslegung, Prüfung und Kennzeichnung von Kappen und Stopfen fest, die zur Herstellung einer druckdichten Abdichtung für Ventile für Flaschen und Druckbehälter für Flüssiggas (LPG, en: liquefied petroleum gas) verwendet werden. Dichtkappen und Dichtstopfen stellen eine zusätzliche Abdichtung für selbstschließende und handbetätigte Ventile sicher.
Schutzkappen oder Schmutzkappen und Originalverschlüsse, bei denen die Herstellung einer zusätzlichen Abdichtung nicht Bestandteil ihrer Auslegung ist, fallen nicht in den Anwendungsbereich dieses Dokuments.
Flaschenventilkappen und stopfen können für nach EN ISO 14245 und EN ISO 15995 hergestellte Ventile für die Flüssigphase und Gasphase verwendet werden.
Druckbehälterventilkappen und stopfen können für nach EN 13175 hergestellte Ventile für die Flüssigphase und Gasphase verwendet werden. Kappen und Stopfen für Ventile für die gelegentliche Entnahme aus der Flüssigphase. sind vom Anwendungsbereich des Dokuments ausgeschlossen.
Wiederverwendbare Dichtkappen und Einwegdichtkappen und -stopfen sind im Anwendungsbereich des Dokuments enthalten.
Dieses Dokument schließt die Verwendung anderer Auslegungen, die ein gleichwertiges Sicherheitsniveau sicherstellen, nicht aus.
ANMERKUNG Der Begriff „Druckbehälter“ umfasst keine LPG-Tankfahrzeuge, auch in Normen des CEN/TC 286 „Straßentankwagen“ genannt.
Équipements pour GPL et leurs accessoires - Bouchons et obturateurs d'étanchéité pour robinets de bouteilles et vannes de réservoirs sous pression - Spécifications et essais
Le présent document spécifie les exigences de conception, d'essai et de marquage applicables aux bouchons et obturateurs utilisés pour former un joint étanche à la pression au niveau des robinets de bouteilles et des vannes de réservoirs sous pression de gaz de pétrole liquéfié (GPL). Les bouchons et obturateurs d'étanchéité assurent une étanchéité supplémentaire sur les robinets et vannes à fermeture automatique et manuelle.
Les capuchons protecteurs/bouchons anti-poussière et les garanties d'inviolabilité qui, de par leur conception, ne sont pas étanches n'entrent pas dans le domaine d'application du présent document.
Les bouchons et obturateurs des robinets de bouteilles peuvent être utilisés avec des robinets pour liquides et gaz fabriqués conformément à l'EN ISO 14245 et à l'EN ISO 15995.
Les bouchons et obturateurs des vannes de réservoirs sous pression peuvent être utilisés avec des vannes pour liquides et gaz fabriquées conformément à l'EN 13175. Le présent document ne traite pas des bouchons et obturateurs des clapets de reprise liquide.
Le présent document couvre à la fois les bouchons et obturateurs d'étanchéité réutilisables et à usage unique.
Le présent document n'exclut pas l'utilisation d'autres conceptions assurant un niveau de sécurité équivalent.
NOTE Le terme « réservoir sous pression » n'inclut pas les véhicules-citernes pour GPL, également appelés « camions-citernes » dans les normes du CEN/TC 286.
Oprema in pribor za utekočinjeni naftni plin (UNP) - Tesnilne kape in čepi za ventile jeklenk in tlačnih posod za UNP - Specifikacija in preskušanje
Ta evropski standard določa zahteve za zasnovo, preskušanje in označevanje za kape in pokrove, ki se uporabljajo za tesnjenje pri ventilih jeklenk in tlačnih posod za utekočinjeni naftni plin (UNP). Tesnilne kape in pokrovi zagotavljajo dodatno tesnilo za samozaporne in ročno upravljane ventile.
Kape proti prahu in tesnila, ki jih ni mogoče nedovoljeno odpreti, ki ne zagotavljajo dodatnega tesnila kot del njihove zasnove, ne spadajo na področje uporabe tega evropskega standarda.
Kape in pokrovi ventilov jeklenk se lahko uporabljajo z ventili za tekočine in hlape, proizvedenimi v skladu s standardoma EN ISO 14245 in EN ISO 15995.
Kape in pokrovi ventilov tlačnih posod se lahko uporabljajo z ventili za tekočine in hlape, proizvedenimi v skladu s standardom EN ISO 13175. Kape in pokrovi ventilov za občasen odvzem tekočine ne spadajo na področje uporabe tega evropskega standarda.
Ta evropski standard zajema tesnilne kape in pokrove za večkratno in enkratno uporabo.
Ta evropski standard ne izključuje uporabe drugih vrst kap in pokrovov, ki zagotavljajo enakovredno stopnjo varnosti.
OPOMBA: Izraz »tlačna posoda« ne zajema vozil s posodo za utekočinjeni naftni plin (imenovanih tudi »cestne cisterne«), navedenih v standardih CEN/TC 286.
General Information
Relations
Standards Content (Sample)

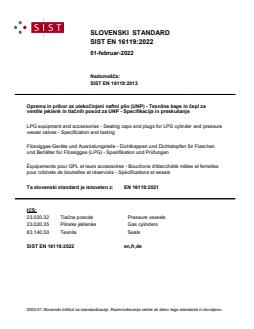

SLOVENSKI STANDARD
01-februar-2022
Nadomešča:
SIST EN 16119:2013
Oprema in pribor za utekočinjeni naftni plin (UNP) - Tesnilne kape in čepi za
ventile jeklenk in tlačnih posod za UNP - Specifikacija in preskušanje
LPG equipment and accessories - Sealing caps and plugs for LPG cylinder and pressure
vessel valves - Specification and testing
Flüssiggas-Geräte und Ausrüstungsteile - Dichtkappen und Dichtstopfen für Flaschen
und Behälter für Flüssiggas (LPG) - Spezifikation und Prüfungen
Équipements pour GPL et leurs accessoires - Bouchons d'étanchéité mâles et femelles
pour robinets de bouteilles et réservoirs - Spécifications et essais
Ta slovenski standard je istoveten z: EN 16119:2021
ICS:
23.020.32 Tlačne posode Pressure vessels
23.020.35 Plinske jeklenke Gas cylinders
83.140.50 Tesnila Seals
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 16119
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2021
EUROPÄISCHE NORM
ICS 23.060.99 Supersedes EN 16119:2013
English Version
LPG equipment and accessories - Sealing caps and plugs
for LPG cylinder and pressure vessel valves - Specification
and testing
Équipements pour GPL et leurs accessoires - Bouchons Flüssiggas-Geräte und Ausrüstungsteile - Dichtkappen
et obturateurs d'étanchéité pour robinets de bouteilles und Dichtstopfen für Flaschen und Druckbehälter für
et vannes de réservoirs sous pression - Spécifications Flüssiggas (LPG) - Spezifikation und Prüfungen
et essais
This European Standard was approved by CEN on 22 November 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16119:2021 E
worldwide for CEN national Members.

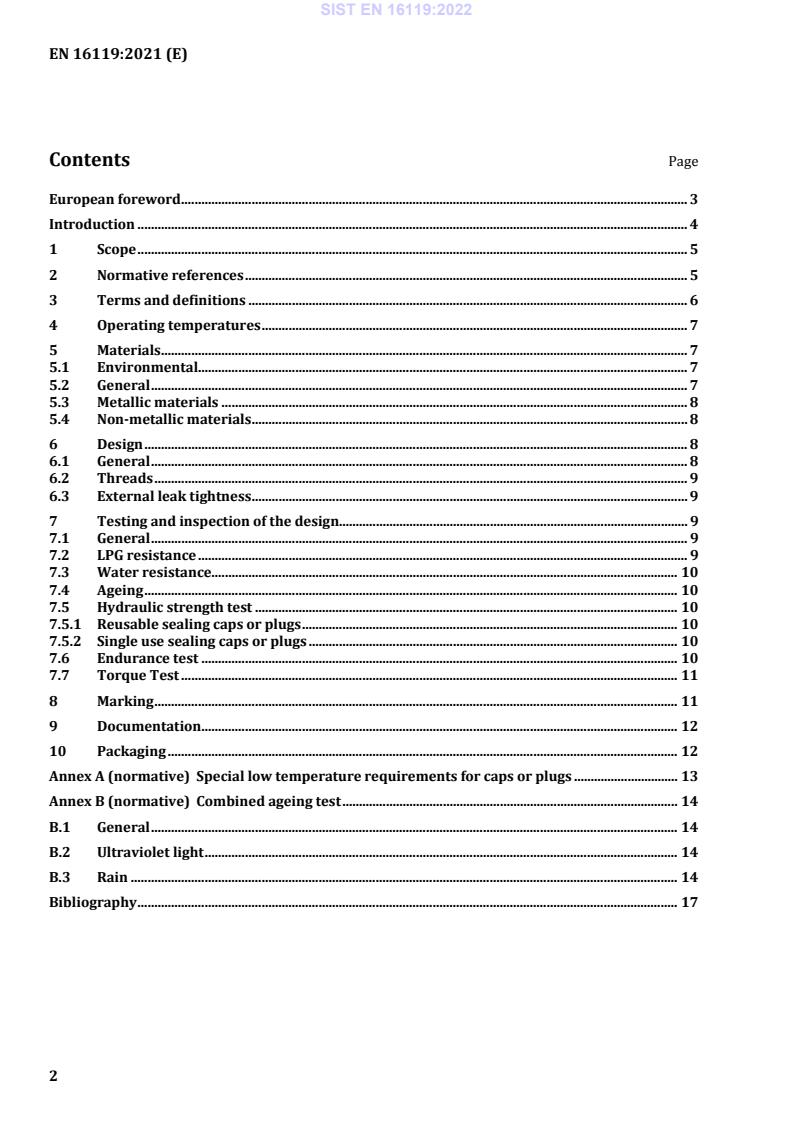

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Operating temperatures . 7
5 Materials . 7
5.1 Environmental. 7
5.2 General . 7
5.3 Metallic materials . 8
5.4 Non-metallic materials . 8
6 Design . 8
6.1 General . 8
6.2 Threads . 9
6.3 External leak tightness . 9
7 Testing and inspection of the design. 9
7.1 General . 9
7.2 LPG resistance . 9
7.3 Water resistance . 10
7.4 Ageing . 10
7.5 Hydraulic strength test . 10
7.5.1 Reusable sealing caps or plugs . 10
7.5.2 Single use sealing caps or plugs . 10
7.6 Endurance test . 10
7.7 Torque Test . 11
8 Marking . 11
9 Documentation . 12
10 Packaging . 12
Annex A (normative) Special low temperature requirements for caps or plugs . 13
Annex B (normative) Combined ageing test . 14
B.1 General . 14
B.2 Ultraviolet light . 14
B.3 Rain . 14
Bibliography . 17
European foreword
This document (EN 16119:2021) has been prepared by Technical Committee CEN/TC 286 “LPG
equipment and accessories”, the secretariat of which is held by NSAI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2022, and conflicting national standards shall be
withdrawn at the latest by June 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16119:2013.
— Addition of external leak tightness term and definition
— Introduction of requirement for UV resistance
— Parameters for LPG resistance have been tightened
— Introduction of pressure test after endurance test
— Environmental checklist deleted
In this document the unit bar is used, due to its universal use in the gas industry. It should, however, be
5 5
noted that bar is not an SI unit, and that the corresponding SI unit for pressure is Pa (1 bar = 10 Pa = 10
N/m ).
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
This document calls for the use of substances and procedures that may be injurious to health and/or the
environment if adequate precautions are not taken. It refers only to technical suitability and does not
absolve the user from legal obligations at any stage.
It is recommended that companies using this document develop an environmental management policy.
For guidance see ISO 14000 series.
Protection of the environment is a key political issue in Europe and elsewhere. For TC 286 this is covered
in CEN/TS 16765 [4] LPG equipment and accessories - Environmental considerations for CEN/TC 286
standards, and this Technical Specification should be read in conjunction with this document. The
Technical Specification provides guidance on the environmental aspects to be considered regarding
equipment and accessories produced for the LPG industry and the following is addressed:
a) design;
b) manufacture;
c) packaging;
d) use and operation; and
e) disposal.
It has been assumed in the drafting of this document that the execution of its provisions is entrusted to
appropriately qualified and experienced people.
All pressures are gauge pressures unless otherwise stated.
This document requires measurement of material properties, dimensions and pressures. All such
measurements are subject to a degree of uncertainty due to tolerances in measuring equipment etc. It
may be beneficial to refer to the leaflet, Measurement uncertainty leaflet SP INFO 2000:27 [3].
1 Scope
This document specifies the design, testing and marking requirements for caps and plugs used to form a
pressure tight seal with liquefied petroleum gas (LPG) cylinder valves and pressure vessel valves. Sealing
caps and plugs provide an additional seal for self-closing and manually operated valves.
Protection caps or dust caps and tamper evident seals that do not form an additional seal as part of their
design are excluded from the scope of this document.
Cylinder valve caps and plugs can be used with valves for liquid and vapour manufactured in accordance
with EN ISO 14245 and EN ISO 15995.
Pressure vessel valve caps and plugs can be used with valves for liquid and vapour manufactured in
accordance with EN 13175. Occasional liquid withdrawal valve caps and plugs are excluded from the
scope of this document.
Reusable and single use sealing caps and plugs are included in this document.
This document does not exclude the use of other designs that provide an equivalent level of safety.
NOTE The term “pressure vessel” does not include LPG tank vehicles, also called “road tankers”, in CEN/TC 286
standards.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 549, Rubber materials for seals and diaphragms for gas appliances and gas equipment
EN 751-1, Sealing materials for metallic threaded joints in contact with 1st, 2nd and 3rd family gases and
hot water - Part 1: Anaerobic jointing compounds
EN 751-2, Sealing materials for metallic threaded joints in contact with 1st, 2nd and 3rd family gases and
hot water - Part 2: Non-hardening jointing compounds
EN 751-3, Sealing materials for metallic threaded joints in contact with 1st, 2nd and 3rd family gases and
hot water - Part 3: Unsintered PTFE tapes
EN 12164, Copper and copper alloys - Rod for free machining purposes
EN 12165, Copper and copper alloys - Wrought and unwrought forging stock
EN 12420, Copper and copper alloys - Forgings
EN 13175, LPG equipment and accessories — Specification and testing for Liquefied Petroleum Gas (LP
...
