Railway applications - Braking - Brake pad holder

This document defines requirements for the brake pad holders with which the heavy rail vehicles and urban rail vehicles are fitted.
This document is applicable to the brake pad holders made from ferrous materials e.g. cast iron, cast steel or forged steel.
This document is not applicable for brake pad holders made of non-ferrous materials.

Bahnanwendungen - Bremse - Bremsbelaghalter

Dieses Dokument legt Anforderungen für Bremsbelaghalter von Vollbahnfahrzeugen und Fahrzeugen Städtischer Schienenbahnen fest.
Dieses Dokument ist für Bremsbelaghalter aus Eisenwerkstoffen, z. B. Gusseisen, Stahlguss oder geschmiedeter Stahl, anwendbar.
Dieses Dokument ist nicht anwendbar für Bremsbelaghalter, die aus Nichteisen-Werkstoffen bestehen.

Applications ferroviaires - Freinage - Porte-garnitures

Le présent document définit les exigences relatives aux porte-garnitures de freins dont sont équipés les véhicules ferroviaires lourds et les véhicules ferroviaires urbains.
Le présent document s’applique aux porte-garnitures de freins fabriqués à partir de matériaux ferreux par exemple en fonte, en acier moulé ou en acier forgé.
Le présent document ne s’applique pas aux porte-garnitures de freins fabriqués à partir de matériaux non ferreux.

Železniške naprave - Zavore - Nosilec zavorne obloge

Ta dokument se uporablja za nosilce zavornih oblog, ki so nameščeni na železniška vozila na glavnih, regionalnih in primestnih progah. Nosilci zavornih oblog v skladu s tem dokumentom morajo biti izdelani iz železnih materialov, na primer železove litine, jeklene litine ali kovanega jekla. Ta dokument ne zajema nosilcev zavornih oblog, izdelanih iz neželeznih materialov.

General Information

Status
Published
Publication Date
09-Apr-2024
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
10-Apr-2024
Due Date
12-Mar-2024
Completion Date
10-Apr-2024

Relations

Buy Standard

Standard
EN 16451:2024
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

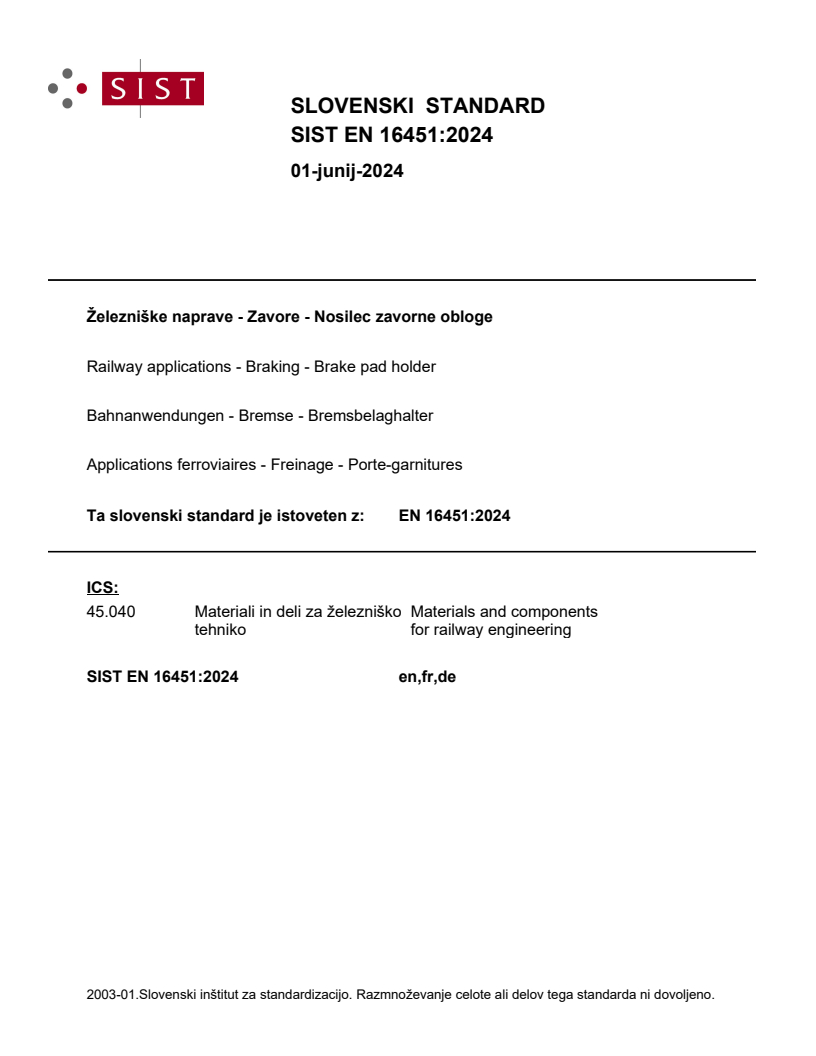

SLOVENSKI STANDARD
01-junij-2024
Železniške naprave - Zavore - Nosilec zavorne obloge
Railway applications - Braking - Brake pad holder
Bahnanwendungen - Bremse - Bremsbelaghalter
Applications ferroviaires - Freinage - Porte-garnitures
Ta slovenski standard je istoveten z: EN 16451:2024
ICS:
45.040 Materiali in deli za železniško Materials and components
tehniko for railway engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 16451
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2024
EUROPÄISCHE NORM
ICS 45.040 Supersedes EN 16451:2015
English Version
Railway applications - Braking - Brake pad holder
Applications ferroviaires - Freinage - Porte-garnitures Bahnanwendungen - Bremse - Bremsbelaghalter
This European Standard was approved by CEN on 22 January 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16451:2024 E
worldwide for CEN national Members.

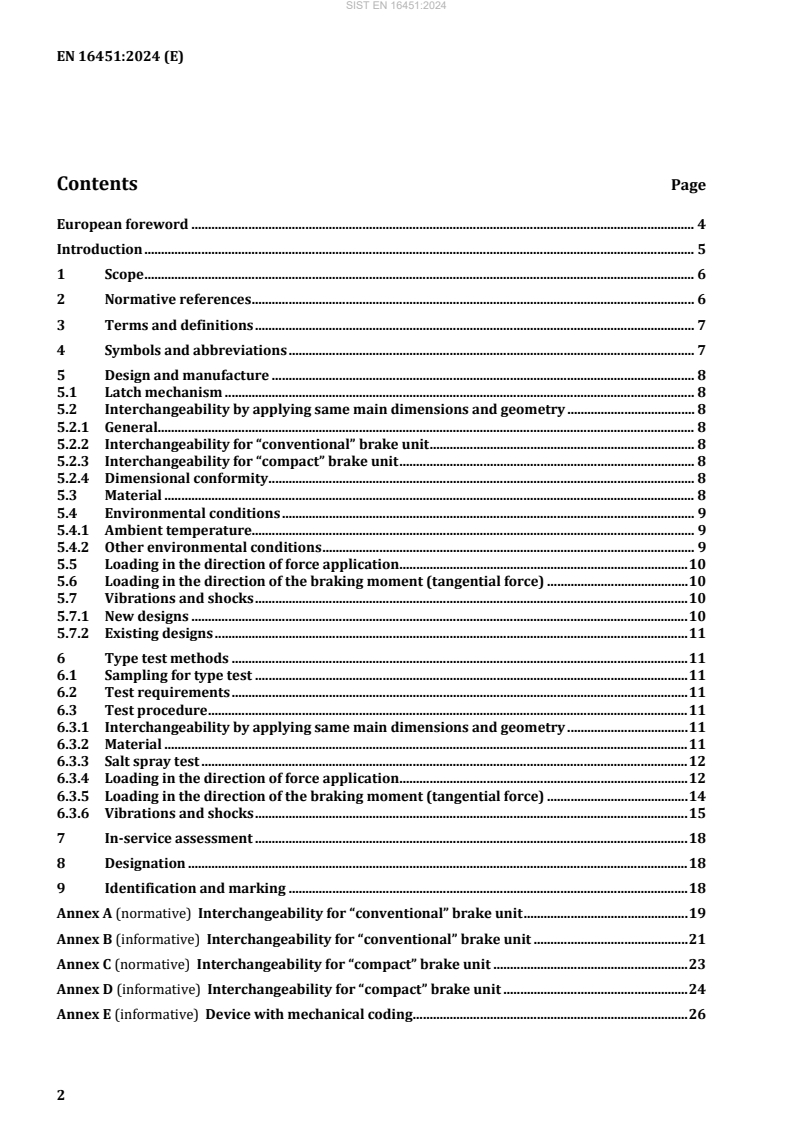

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Symbols and abbreviations . 7
5 Design and manufacture . 8
5.1 Latch mechanism . 8
5.2 Interchangeability by applying same main dimensions and geometry . 8
5.2.1 General. 8
5.2.2 Interchangeability for “conventional” brake unit . 8
5.2.3 Interchangeability for “compact” brake unit . 8
5.2.4 Dimensional conformity . 8
5.3 Material . 8
5.4 Environmental conditions . 9
5.4.1 Ambient temperature. 9
5.4.2 Other environmental conditions . 9
5.5 Loading in the direction of force application . 10
5.6 Loading in the direction of the braking moment (tangential force) . 10
5.7 Vibrations and shocks . 10
5.7.1 New designs . 10
5.7.2 Existing designs . 11
6 Type test methods . 11
6.1 Sampling for type test . 11
6.2 Test requirements . 11
6.3 Test procedure . 11
6.3.1 Interchangeability by applying same main dimensions and geometry . 11
6.3.2 Material . 11
6.3.3 Salt spray test . 12
6.3.4 Loading in the direction of force application . 12
6.3.5 Loading in the direction of the braking moment (tangential force) . 14
6.3.6 Vibrations and shocks . 15
7 In-service assessment . 18
8 Designation . 18
9 Identification and marking . 18
Annex A (normative) Interchangeability for “conventional” brake unit . 19
Annex B (informative) Interchangeability for “conventional” brake unit . 21
Annex C (normative) Interchangeability for “compact” brake unit . 23
Annex D (informative) Interchangeability for “compact” brake unit . 24
Annex E (informative) Device with mechanical coding . 26
Annex F (informative) In-service assessment . 27
F.1 General . 27
F.2 Test set-up and sampling . 27
F.3 Procedure . 27
F.4 Pass/fail criteria . 27
Bibliography . 28

European foreword
This document (EN 16451:2024) has been prepared by Technical Committee CEN/TC 256 “Railway
applications”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2024, and conflicting national standards shall
be withdrawn at the latest by October 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16451:2015.
In comparison with the previous edition EN 16451:2015, the following technical modifications have been
made:
— update of normative and informative references;
— modification of requirements on latch mechanism;
— modification of requirements on loading in the direction of force application and in the direction of
the braking moment;
— modifications to Annex A and Annex B;
— content of Annex C switched to Annex E;
— content of Annex E switched to Annex F;
— informative Annex D “Geometry of standard brake pads” has been deleted and references to
EN 15328 have been added.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
This document gives the requirements to be met for the design, dimensioning, testing and quality
assessment of brake pad holders. These requirements cannot be written in sufficient detail to ensure
good workmanship or proper construction. Each manufacturer is therefore responsible for taking every
necessary step to make sure, that the quality of workmanship and construction is such as to ensure
accordance with good engineering practice.

1 Scope
This document defines requirements for the brake pad holders with which the heavy rail vehicles and
urban rail vehicles are fitted.
This document is applicable to the brake pad holders made from ferrous materials e.g. cast iron, cast steel
or forged steel.
This document is not applicable for brake pad holders made of non-ferrous materials.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 14478:2017, Railway applications — Braking — Generic vocabulary
EN 15328:2020, Railway applications — Braking — Brake pads
EN 50125-1:2014, Railway applications — Environmental conditions for equipment — Part 1: Rolling stock
and on-board equipment
EN 60068-2-6:2008, Environmental testing — Part 2-6: Tests — Test Fc: Vibration (sinusoidal) (IEC 60068-
2-6:2007)
EN 60068-2-47:2005, Environmental testing — Part 2-47: Tests — Mounting of specimens for vibration,
impact and similar dynamic tests (IEC 60068-2-47:2005)
EN 60721-3-5:1997, Classification of environmental conditions — Part 3: Classification of groups of
environmental parameters and their severities — Section 5: Ground vehicle installations (IEC 60721-3-
5:1997)
EN 61373:2010, Railway applications — Rolling stock equipment — Shock and vibration tests (IEC
61373:2010)
EN ISO 6506-1:2014, Metallic materials — Brinell hardness test — Part 1: Test method (ISO 6506-1:2014)
EN ISO 6507-1:2018, Metallic materials — Vickers hardness test — Part 1: Test method (ISO 6507-1:2018)
EN ISO 6508-1:2016, Metallic materials — Rockwell hardness test — Part 1: Test method (ISO 6508-
1:2016)
EN ISO 6892-1:2019, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1:2019)
EN ISO 9227:2022, Corrosion tests in artificial atmospheres — Salt spray tests (ISO 9227:2022)
EN ISO 14284:2022, Steel and iron — Sampling and preparation of samples for the determination of
chemical composition (ISO 14284:2022)
EN ISO 148-1:2016, Metallic materials — Charpy pendulum impact test — Part 1: Test method (IS
...
