(Main)Playground equipment and surfacing - Part 2: Additional specific safety requirements and test methods for swings
Playground equipment and surfacing - Part 2: Additional specific safety requirements and test methods for swings
This European Standard specifies additional safety requirements for swings intended for permanent installation for use by children. Where the main play function is not swinging, the relevant requirements in this part of EN 1176 may be used, as appropriate.
NOTE Recommendations on the design and siting of swings are given in Annex A.
Spielplatzgeräte und Spielplatzböden - Teil 2: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Schaukeln
Diese Europäische Norm legt zusätzliche sicherheitstechnische Anforderungen an Schaukeln fest, die dauerhaft installiert und für die Benutzung durch Kinder vorgesehen sind. Sofern die Hauptspielfunktion nicht Schaukeln ist, dürfen die entsprechenden Anforderungen in diesem Teil der EN 1176, sofern zutreffend, angewendet werden.
ANMERKUNG In Anhang A werden Empfehlungen zur Konstruktion und zum Aufstellungsbereich von Schaukeln gegeben.
Équipement et sols d'aires de jeux - Partie 2: Exigences de sécurité et méthodes d'essai complémentaires spécifiques aux balançoires
La présente Norme européenne spécifie les exigences de sécurité complémentaires pour les balançoires destinées à être installées de façon permanente et utilisées par des enfants. Lorsque la principale fonction de jeu n’est pas de se balancer, les exigences appropriées définies dans cette partie de l’EN 1176 peuvent être utilisées, selon le cas.
NOTE L’Annexe A donne des recommandations relatives à la conception et à l’emplacement des balançoires.
Oprema in podloge otroških igrišč - 2. del: Dodatne posebne varnostne zahteve in preskusne metode za viseče gugalnice
Ta del standarda EN 1176 določa dodatne varnostne zahteve za trajno nameščene viseče gugalnice za otroke. Če glavna igralna funkcija ni guganje, se lahko (če je to primerno) uporabijo ustrezne zahteve v tem delu standarda EN 1176. OPOMBA: Priporočila glede konstrukcije in mesta postavitve gugalnic in so podana v dodatku A.
General Information
- Status
- Withdrawn
- Publication Date
- 17-Oct-2017
- Withdrawal Date
- 13-Apr-2025
- Technical Committee
- CEN/TC 136 - Sports, playground and other recreational equipment
- Drafting Committee
- CEN/TC 136/SC 1 - Playground equipment for children
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 23-Oct-2019
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 23-Oct-2013
- Effective Date
- 16-Jan-2023
Frequently Asked Questions
EN 1176-2:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Playground equipment and surfacing - Part 2: Additional specific safety requirements and test methods for swings". This standard covers: This European Standard specifies additional safety requirements for swings intended for permanent installation for use by children. Where the main play function is not swinging, the relevant requirements in this part of EN 1176 may be used, as appropriate. NOTE Recommendations on the design and siting of swings are given in Annex A.
This European Standard specifies additional safety requirements for swings intended for permanent installation for use by children. Where the main play function is not swinging, the relevant requirements in this part of EN 1176 may be used, as appropriate. NOTE Recommendations on the design and siting of swings are given in Annex A.
EN 1176-2:2017 is classified under the following ICS (International Classification for Standards) categories: 97.200.40 - Playgrounds. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1176-2:2017 has the following relationships with other standards: It is inter standard links to EN 1176-2:2008, EN 1176-2:2017+AC:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 1176-2:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Spielplatzgeräte und Spielplatzböden - Teil 2: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für SchaukelnÉquipement et sols d'aires de jeux - Partie 2: Exigences de sécurité et méthodes d'essai complémentaires spécifiques aux balançoiresPlayground equipment and surfacing - Part 2: Additional specific safety requirements and test methods for swings97.200.40,JULãþDPlaygroundsICS:Ta slovenski standard je istoveten z:EN 1176-2:2017SIST EN 1176-2:2018en,fr,de01-januar-2018SIST EN 1176-2:2018SLOVENSKI
STANDARDSIST EN 1176-2:20081DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1176-2
October
t r s y ICS
{ yä t r rä v r Supersedes EN
s s y xæ tã t r r zEnglish Version
Playground equipment and surfacing æ Part
tã Additional specific safety requirements and test methods for swingsÉquipement et sols d 5aires de jeux æ Partie
tã Exigences de sécurité et méthodes d 5essai complémentaires spécifiques aux balançoires
Spielplatzgeräte und Spielplatzböden æ Teil
tã Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Schaukeln This European Standard was approved by CEN on
x August
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s s y xæ tã t r s y ESIST EN 1176-2:2018
Recommendations for design and siting of swings . 20 Annex B (normative)

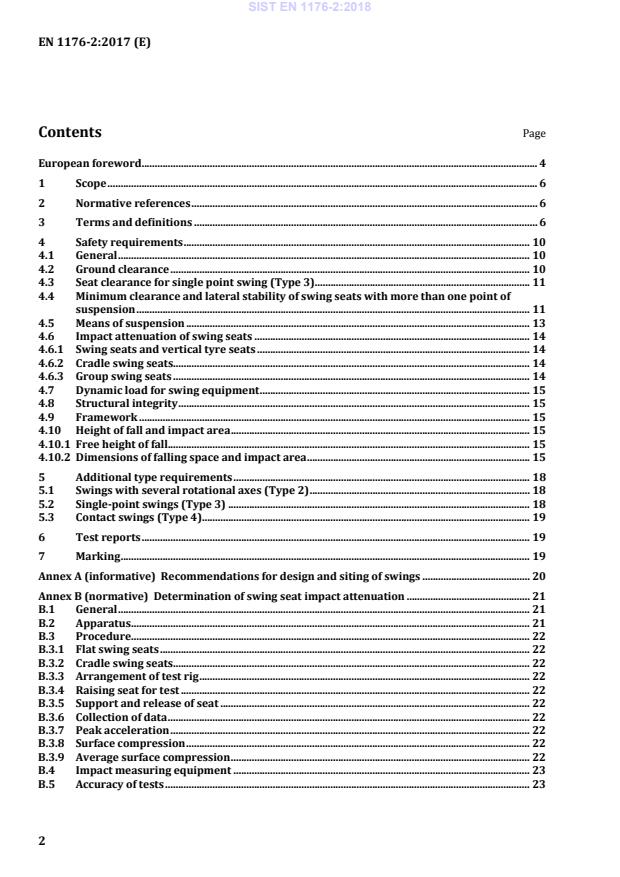

Determination of swing seat impact attenuation . 21 B.1 General . 21 B.2 Apparatus . 21 B.3 Procedure. 22 B.3.1 Flat swing seats . 22 B.3.2 Cradle swing seats . 22 B.3.3 Arrangement of test rig . 22 B.3.4 Raising seat for test . 22 B.3.5 Support and release of seat . 22 B.3.6 Collection of data . 22 B.3.7 Peak acceleration . 22 B.3.8 Surface compression . 22 B.3.9 Average surface compression . 22 B.4 Impact measuring equipment . 23 B.5 Accuracy of tests . 23 SIST EN 1176-2:2018
