EN ISO 3815-1:2005

Zinc and zinc alloys - Part 1: Analysis of solid samples by optical emission spectrometry (ISO 3815-1:2005)

ISO 3815-1:2005 specifies analytical methods for determining the chemical composition of zinc and zinc alloys in accordance with ISO 301 and ISO 752 by optical emission spectrometry.
ISO 3815-1:2005 includes recommendations for preparation of test pieces from zinc and zinc alloys.

Zink und Zinklegierungen - Teil 1: Optische Emissionsspektrometrie an festen Proben (ISO 3815-1:2005)

Dieser Teil der ISO 3815 legt Analysenverfahren mittels optischer Emissionsspektralanalyse zur Bestimmung der chemischen Zusammensetzung von Zink und Zinklegierungen fest, die in ISO 301 und ISO 752 beschrieben werden.
Dieser Teil der ISO 3815 enthält Empfehlungen zur Vorbehandlung von Zink- und Zinklegierungsproben.

Zinc et alliages de zinc - Partie 1: Analyse d'échantillons massifs par spectrométrie d'émission optique (ISO 3815-1:2005)

L'ISO 3815-1:2005 établit une méthode d'analyse par spectrométrie d'émission optique pour la détermination de la composition du zinc et des alliages de zinc comme décrit dans l'ISO 301 et l'ISO 752.
L'ISO 3815-1:2005 inclut des recommandations pour la préparation des échantillons pour essai, en zinc et en alliages de zinc.

Cink in cinkove zlitine – 1. del: Analize trdnih vzorcev z optično emisijsko spektrometrijo (ISO 3815-1:2005)

General Information

• Status: Published
• Publication Date: 30-Apr-2005
• Withdrawal Date: 29-Nov-2005
• ICS: 77.120.60 - Lead, zinc, tin and their alloys
• Technical Committee: CEN/TC 209 - Zinc and zinc alloys
• Drafting Committee: CEN/TC 209/WG 6 - Methods of analysis and testing
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 01-May-2005
• Completion Date: 01-May-2005
• Ref Project: SIST EN ISO 3815-1:2005 - Zinc and zinc alloys - Part 1: Analysis of solid samples by optical emission spectrometry (ISO 3815-1:2005)

Relations

• Replaces: EN 12019:1997 - Zinc and zinc alloys - Optical emission spectrometric analysis
• Effective Date: 22-Dec-2008

Overview

EN ISO 3815-1:2005 - Zinc and zinc alloys: Analysis of solid samples by optical emission spectrometry (OES) is a harmonized CEN/ISO method that specifies how to determine the chemical composition of zinc and zinc alloys using optical emission spectrometry. The standard covers sample preparation recommendations, test procedures, calibration strategy, result expression and reporting, and includes informative annexes with commonly used analytical lines, reproducibility data and limits of detection.

Key topics and requirements

• Scope and applicability
  • Applies to analysis of zinc and zinc alloys in accordance with ISO 301 and ISO 752 using OES on solid test pieces.
• Sampling and preparation
  • Sampling shall follow ISO 20081 (method of sampling).
  • Test pieces must be prepared to suit the spectrometer/sample holder and the apparatus’ operation manual.
• Test procedure
  • Analysis performed on solid samples by optical emission spectrometry (OES).
  • Each test piece is normally tested at least twice; additional tests if heterogeneity or instrument issues are suspected. Producer labs may average multiple test pieces under defined conditions.
• Calibration and reference materials
  • Preferred calibration order: Certified Reference Materials (CRM), then Reference Materials (RM), then Internal Reference Materials (IRM).
  • IRMs must have composition determined per ISO 752:2004.
  • Recalibration at reasonable intervals using reference samples with similar physical/chemical properties.
• Expression and reporting of results
  • Results expressed as mass fraction and calculated as the arithmetic mean of valid single results.
  • Test report must identify the sample, present test sequence results, laboratory name, date, reference to EN ISO 3815-1:2005 and responsible signature.
• Informative performance data
  • Annex A lists common analytical lines (wavelengths) for elements such as Zn, Pb, Cd, Fe, Cu, Sn, Al and Mg.
  • Annex B gives example coefficients of variation (reproducibility) for elements at representative concentrations.
  • Annex C provides example limits of detection (LOD) for spark OES lines (e.g., Cd 228.8 nm LOD ~0.1 µg/g).

Applications and users

• Quality control and incoming inspection in zinc production and zinc-alloy manufacturing
• Metallurgical laboratories performing composition analysis and certification
• Foundries, diecasters and galvanizers monitoring alloying and impurity levels
• Standards organizations and conformity assessment bodies implementing harmonized testing procedures

Related standards

• ISO 3815-2 (Part 2: analysis by ICP-OES)
• ISO 301 (Zinc alloy ingots intended for casting)
• ISO 752 (Zinc ingots)
• ISO 20081 (method of sampling for zinc and zinc alloys)

EN ISO 3815-1:2005 provides a practical, standardized OES framework for reliable chemical analysis of zinc and zinc alloys, enabling consistent quality control and regulatory compliance across laboratories and industry.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2005
1DGRPHãþD
SIST EN 12019:2000
&LQNLQFLQNRYH]OLWLQH±GHO$QDOL]HWUGQLKY]RUFHY]RSWLþQRHPLVLMVNR
VSHNWURPHWULMR,62
Zinc and zinc alloys - Part 1: Analysis of solid samples by optical emission spectrometry
(ISO 3815-1:2005)
Zink und Zinklegierungen - Teil 1: Optische Emissionsspektrometrie an festen Proben
(ISO 3815-1:2005)
Zinc et alliages de zinc - Partie 1: Analyse d'échantillons massifs par spectrométrie
d'émission optique (ISO 3815-1:2005)
Ta slovenski standard je istoveten z: EN ISO 3815-1:2005
ICS:
77.120.60 Svinec, cink, kositer in Lead, zinc, tin and their
njihove zlitine alloys
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 3815-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2005
ICS 77.120.60 Supersedes EN 12019:1997
English version
Zinc and zinc alloys - Part 1: Analysis of solid samples by optical
emission spectrometry (ISO 3815-1:2005)
Zinc et alliages de zinc - Partie 1: Analyse d'échantillons Zink und Zinklegierungen - Teil 1: Optische
massifs par spectrométrie d'émission optique (ISO 3815- Emissionsspektrometrie an festen Proben (ISO 3815-
1:2005) 1:2005)
This European Standard was approved by CEN on 12 April 2005.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 3815-1:2005: E
worldwide for CEN national Members.

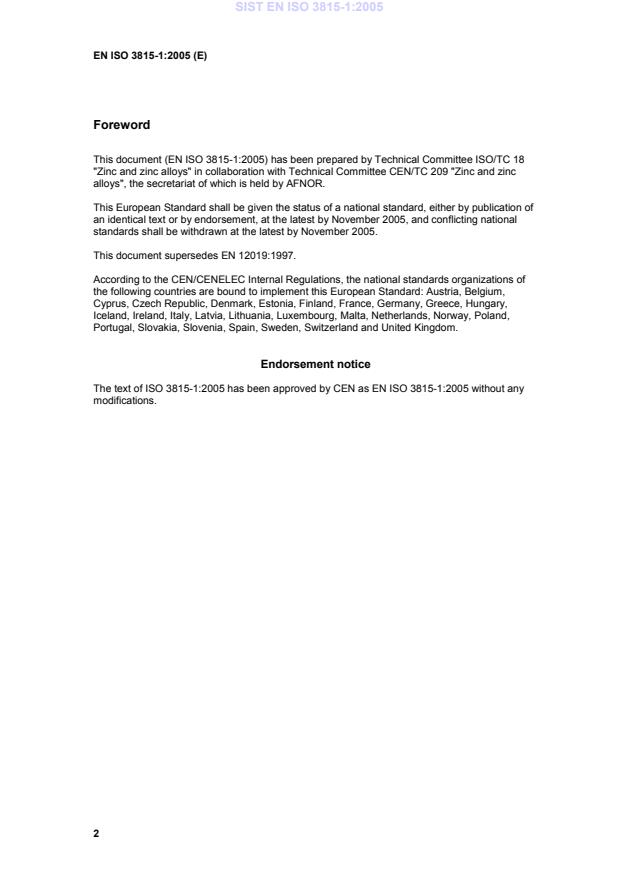

Foreword
This document (EN ISO 3815-1:2005) has been prepared by Technical Committee ISO/TC 18
"Zinc and zinc alloys" in collaboration with Technical Committee CEN/TC 209 "Zinc and zinc
alloys", the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by November 2005, and conflicting national
standards shall be withdrawn at the latest by November 2005.

This document supersedes EN 12019:1997.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 3815-1:2005 has been approved by CEN as EN ISO 3815-1:2005 without any
modifications.
INTERNATIONAL ISO
STANDARD 3815-1
First edition
2005-05-01
Zinc and zinc alloys —
Part 1:
Analysis of solid samples by optical
emission spectrometry
Zinc et alliages de zinc —
Partie 1: Analyse d'échantillons massifs par spectrométrie d'émission
optique
Reference number
ISO 3815-1:2005(E)
©
ISO 2005
ISO 3815-1:2005(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

ISO 3815-1:2005(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsib
...
