FprEN 14782

Self-supporting metal sheet for roofing, external cladding and internal lining - Product specification and requirements

This European Standard specifies the terminology, requirements and test methods for factory made self-supporting metal sheets and tiles (for non-structural applications) delivered in the form of manufactured pieces for roofing and wall cladding and lining.
This standard also covers curved sheets, sheets intended to be used with insulation and membranes, ceiling products (including internal metal sheet) and soffit products  and cassettes (see Figure 1).
This standard covers self-supporting copper, zinc, steel, aluminium and stainless steel sheet with or without coatings, e.g. metallic, organic, inorganic or multi-layer (see Annex A). A moisture retaining layer intended to reduce the fall of droplets coming from condensation may be present on the reverse side of the product.
This standard does not cover products for structural purposes, i.e. it does cover products used in constructions of Class III (according to EN 1993 1 3), it does not cover products used in constructions of Classes I and II (according to EN 1993 1 3] intended to contribute to the global or partial stability of the building structure by providing racking resistance.
Requirements concerning acoustical and thermal insulation properties are not considered in this draft standard.
This standard does not include calculation or design requirements with regards to the works, installation techniques or the performance of the installed products.

Selbsttragende Dachdeckungs- und Wandbekleidungselemente für die Innen- und Außenanwendung aus Metallblech - Produktspezifikation und Anforderungen

Diese Europäische Norm legt die Terminologie, die Anforderungen und Prüfverfahren für werkmäßig hergestellte selbsttragende Metallbleche und -platten (für nichttragende Anwendungsbereiche) fest, die in Form von vorgefertigten Dachdeckungs- und Wandbekleidungselementen geliefert werden.
Diese Norm gilt auch für gebogene Bleche, für Bleche zur Verwendung mit Dämmung und Membranen, für Unterdecken- (einschließlich innen liegender Metallbleche) und Untersichtprodukte sowie für Kassetten (siehe Bild 1).
Diese Norm gilt für selbsttragende Bleche aus Kupfer, Zink, Stahl, Aluminium oder rostfreiem Stahl mit oder ohne Beschichtungen, die z. B. metallisch, organisch, anorganisch oder mehrschichtig sind (siehe Anhang A). Die Rückseite des Bauteils darf mit einer Feuchte abweisenden Schicht versehen sein, die den Niederschlag von Kondensationstropfen verhindern soll.
Diese Norm gilt nicht für Produkte für tragende Zwecke, d. h. sie gilt für Produkte zur Verwendung in Konstruktionen der Klasse III (nach EN 1993 1 3), sie gilt nicht für Produkte zur Verwendung in Konstruktionen der Klassen I und II (nach EN 1993 1 3), die durch Schubfeldwirkung zur Gesamt- oder Teilstabilität des Gebäudes beitragen.
Dieser Norm-Entwurf enthält keine Anforderungen zu den akustischen oder den Wärmedämmeigenschaften.
Diese Norm enthält keine Bemessungs- oder Konstruktionsanforderungen hinsichtlich des Bauwerks, der Einbautechniken oder der Leistungsfähigkeit der eingebauten Produkte.
(...)

Plaques métalliques autoportantes pour couverture, toitures, bardages extérieur et intérieur et cloisons - Spécification de produit et exigences

Cette Norme européenne spécifie la terminologie, les exigences et les méthodes d’essai relatives aux
plaques et tuiles métalliques autoportantes (pour applications non structurelles), fabriquée en usine,
livrées sous la forme d’éléments préfabriqués pour couverture et bardages extérieur et intérieur.
Cette Norme couvre également les plaques cintrées, les plaques destinées aux produits avec isolation et
membranes, les applications en plafond (y compris les plaques métalliques intérieures) et en soffite et
les plateaux (voir Figure 1).
Cette norme couvre les plaques autoportantes en cuivre, zinc, acier, aluminium et acier inoxydable avec
ou sans revêtement, par exemple métallique, organique, inorganique ou multicouche (voir Annexe A).
Une couche retenant l’humidité, destinée à réduire la chute de gouttes provenant de la condensation, peut
être présente sur la face envers du produit.
Cette norme ne couvre pas les produits pour applications structurelles, c'est‐à‐dire qu’elle couvre les
produits destinés aux constructions de classe III (selon l’EN 1993‐1‐3), qu’elle ne couvre pas les produits
destinés aux constructions de classes I et II (selon l’EN 1993‐1‐3) destinés à contribuer à la stabilité
globale ou partielle de la structure du bâtiment ou apportant un contreventement.
Les prescriptions relatives aux caractéristiques acoustiques et d’isolation thermique ne sont pas
considérées dans le présent projet de norme.
Cette norme ne comporte aucune prescription relative au calcul ou à la conception de l’ouvrage, aux
techniques d’exécution ou à la performance des produits mis en oeuvre.

Samonosilna pločevina za pokrivanje streh ter zunanje in notranje obloge - Specifikacija proizvoda in zahteve

General Information

• Status: Not Published
• Publication Date: 08-Feb-2017
• ICS: 77.140.50 - Flat steel products and semi-products
• ICS: 77.150.01 - Products of non-ferrous metals in general
• ICS: 91.060.10 - Walls. Partitions. Facades
• ICS: 91.060.20 - Roofs
• Technical Committee: CEN/TC 128 - Roof covering products for discontinuous laying and products for wall cladding
• Drafting Committee: CEN/TC 128/SC 7 - Roofing products from metal sheet
• Current Stage: 5060 - Closure of Vote - Formal Approval
• Start Date: 12-Oct-2017
• Due Date: 21-Dec-2017
• Completion Date: 12-Oct-2017
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/121 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on internal and external wall and ceiling finishes
• Mandate: M/122 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on roof coverings, rooflights, roof windows and ancillary products
• Ref Project: kSIST FprEN 14782:2024 - Self-supporting metal sheet for roofing, external cladding and internal lining - Product specification and requirements

Relations

• Revises: EN 14782:2006 - Self-supporting metal sheet for roofing, external cladding and internal lining - Product specification and requirements
• Effective Date: 18-Jan-2023

Overview

FprEN 14782 - "Self-supporting metal sheet for roofing, external cladding and internal lining - Product specification and requirements" (CEN) defines the terminology, product requirements and test methods for factory-made, self-supporting metal sheets and tiles intended for non‑structural roofing, wall cladding and internal lining. The standard covers self-supporting copper, zinc, steel, aluminium and stainless steel sheets, with or without metallic, organic, inorganic or multi‑layer coatings, and includes curved sheets, products used with insulation or membranes, ceilings, soffits and cassettes. It also addresses marking, labelling and conformity assessment but does not include structural design, installation methods, or thermal/acoustic insulation performance.

Key topics

• Scope & terminology: Definitions for base materials, liner trays, cassettes and other product types relevant to factory-made sheets.
• Material and coating requirements: Accepts a range of substrates and coatings (metallic, organic, multi‑layer); Annex A covers multilayer coated steel.
• Dimensional requirements: Nominal thickness, dimensional change and dimensional tolerances for manufactured pieces.
• Mechanical resistance: Tests for general mechanical behaviour and specific methods to determine resistance to concentrated forces (see Annex B).
• Water, vapour and air permeability: Requirements and test methods relevant to cladding and lining performance.
• Durability & corrosion testing: Durability criteria and referenced test methods (e.g., salt spray, humidity).
• Fire performance: Rules for external fire exposure classification and reaction to fire testing (EN 13501‑5, EN 13501‑1, EN ISO 11925‑2 and related procedures); Annex C covers mounting/fixing for reaction-to-fire tests.
• Assessment & conformity: Type testing, sampling, Factory Production Control (FPC) and AVCP provisions for CE marking and declaration of performance.
• Marking and designation: Labelling requirements to enable traceability and correct product specification.

Applications and users

FprEN 14782 is applicable to manufacturers, product designers, specifiers, building envelope consultants, fabricators and quality assessors working with metal roofing, external cladding, internal metal lining, soffits and cassette systems. Typical uses:

• Architectural roofing and façade panels for non‑structural applications
• Pre‑formed cassettes and soffit linings
• Lined systems incorporating insulation and membranes (non‑structural)

Specifiers use the standard to verify product conformity, test regimes and labelling; manufacturers use it to set production control and testing programs.

Related standards

Key referenced standards include EN 506, EN 508‑1/2/3 (product specs for specific metals), EN 13501‑1/5 (fire classification), EN ISO 11925‑2 (ignitability), EN ISO 9227 (salt spray), EN ISO 6270‑1 (humidity) and EN ISO 6892‑1 (tensile testing). These provide the detailed test methods and supplementary requirements referenced by FprEN 14782.

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN 14782:2015
01-oktober-2015
6DPRQRVLOQDSORþHYLQD]DSRNULYDQMHVWUHKWHU]XQDQMHLQQRWUDQMHREORJH
6SHFLILNDFLMDSURL]YRGDLQ]DKWHYH
Self-supporting metal sheet for roofing, external cladding and internal lining - Product
specification and requirements
Selbsttragende Dachdeckungs- und Wandbekleidungselemente für die Innen- und
Außenanwendung aus Metallblech - Produktspezifikation und Anforderungen
Ta slovenski standard je istoveten z: prEN 14782
ICS:
77.140.50 3ORãþDWLMHNOHQLL]GHONLLQ Flat steel products and semi-
SROL]GHONL products
91.060.10 Stene. Predelne stene. Walls. Partitions. Facades
Fasade
91.060.20 Strehe Roofs
oSIST prEN 14782:2015 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN 14782:2015
oSIST prEN 14782:2015
EUROPEAN STANDARD
DRAFT
prEN 14782
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2015
ICS 77.140.50; 77.150.01; 91.060.10; 91.060.20 Will supersede EN 14782:2006
English Version
Self-supporting metal sheet for roofing, external cladding and
internal lining - Product specification and requirements

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 128.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 14782:2015 E
worldwide for CEN national Members.

oSIST prEN 14782:2015
prEN 14782:2015 (E)

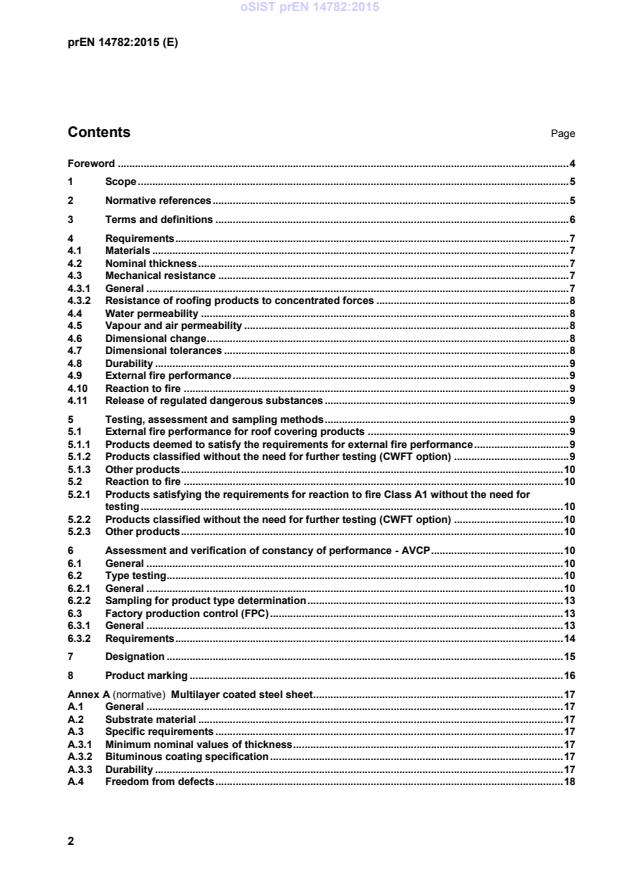

Contents Page
Foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Requirements . 7
4.1 Materials . 7
4.2 Nominal thickness . 7
4.3 Mechanical resistance . 7
4.3.1 General . 7
4.3.2 Resistance of roofing products to concentrated forces . 8
4.4 Water permeability . 8
4.5 Vapour and air permeability . 8
4.6 Dimensional change . 8
4.7 Dimensional tolerances . 8
4.8 Durability . 9
4.9 External fire performance . 9
4.10 Reaction to fire . 9
4.11 Release of regulated dangerous substances . 9
5 Testing, assessment and sampling methods . 9
5.1 External fire performance for roof covering products . 9
5.1.1 Products deemed to satisfy the requirements for external fire performance . 9
5.1.2 Products classified without the need for further testing (CWFT option) . 9
5.1.3 Other products . 10
5.2 Reaction to fire . 10
5.2.1 Products satisfying the requirements for reaction to fire Class A1 without the need for
testing . 10
5.2.2 Products classified without the need for further testing (CWFT option) . 10
5.2.3 Other products . 10
6 Assessment and verification of constancy of performance - AVCP . 10
6.1 General . 10
6.2 Type testing. 10
6.2.1 General . 10
6.2.2 Sampling for product type determination . 13
6.3 Factory production control (FPC) . 13
6.3.1 General . 13
6.3.2 Requirements . 14
7 Designation . 15
8 Product marking . 16
Annex A (normative) Multilayer coated steel sheet . 17
A.1 General . 17
A.2 Substrate material . 17
A.3 Specific requirements . 17
A.3.1 Minimum nominal values of thickness . 17
A.3.2 Bituminous coating specification . 17
A.3.3 Durability . 17
A.4 Freedom from defects . 18
oSIST prEN 14782:2015
prEN 14782:2015 (E)
Annex B (normative) Determination of resistance to concentrated forces . 19
B.1 Principle . 19
B.2 Test spans . 19
B.3 Test sheets . 20
B.4 Test procedure . 20
B.5 Number of tests and analysis of results . 21
B.6 Acceptance criteria . 22
B.7 Test report . 22
Annex C (normative) Mounting and fixing conditions of the test specimen for reaction to fire

testing . 24
C.1 General . 24
C.2 Mounting and fixing conditions . 24
C.2.1 General . 24
C.2.2 General configuration . 24
C.2.3 Securing the overlap vertical joint . 26
C.2.4 Standard assembly – Steel corner flashings. 26
C.2.5 Alternative assembly – Corner flashings and seals . 26
C.2.6 Test arrangement for reaction to fire test according to EN ISO 11925-2 (Ignitability test) . 26
C.3 Direct and extended application of the fire test results according to EN 13823 . 27
C.3.1 General . 27
C.3.2 Direct application: Systems with only one metal sheet (single skin system without

insulation) . 27
C.3.3 Direct application: Systems with two (profiled or flat) coated metal sheets (or one cassette

plus one sheet) with an insulation between the two sheets (double skin system) . 29
C.3.4 Extended application: Other insulated systems – General methodology . 32
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU

Construction Products Regulation . 34
Bibliography . 43

oSIST prEN 14782:2015
prEN 14782:2015 (E)
Foreword
This document (prEN 14782:2015) has been prepared by Technical Committee CEN/TC 128 “Roof covering
products for discontinuous laying and products for wall cladding”, the secretariat of which is held by NBN.
This document is currently submitted to the Enquiry.
This document will supersede EN 14782:2006.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
1 Scope
This draft European Standard specifies the terminology, requirements and test methods for factory made self-
supporting metal sheets and tiles (for non-structural applications) delivered in the form of manufactured pieces
for roofing and wall cladding and lining.
This draft standard also covers curved sheets, sheets intended to be used with insulation and membranes,
ceiling (including internal metal sheet) and soffit applications and cassettes (see Figure 1).
This draft standard covers self-supporting copper, zinc, steel, aluminium and stainless steel sheet with or
without coatings, e.g. metallic, organic, inorganic or multi-layer (see Annex A). A moisture retaining layer
intended to reduce the fall of droplets coming from condensation may be present on the reverse side of the
product.
This draft standard also includes rules for marking, labelling and evaluation of conformity.
This draft standard does not cover products for structural purposes, i.e. it does cover products used in
constructions of Class III (according to EN 1993-1-3), it does not cover products used in constructions of
Classes I and II (according to EN 1993-1-3] intended to contribute to the global or partial stability of the building
structure by providing racking resistance or resistance to permanent static loads (excluding self-weight of the
metal sheet).
Requirements concerning acoustical and thermal insulation properties are not considered in this draft standard.
This draft standard does not include calculation or design requirements with regards to the works, installation
techniques or the performance of the installed products.

Figure 1 — Illustration of a cassette
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 506:2000, Roofing products from metal sheet - Specification for self-supporting products of copper or zinc
sheet
oSIST prEN 14782:2015
prEN 14782:2015 (E)
EN 508-1:2000, Roofing products from metal sheet - Specification for self-supporting products of steel,
aluminium or stainless steel sheet - Part 1: Steel
EN 508-2:2000, Roofing products from metal sheet - Specification for self-supporting products of steel,
aluminium or stainless steel sheet - Part 2: Aluminium
EN 508-3:2000, Roofing products from metal sheet - Specification for self-supporting products of steel,
aluminium or stainless steel sheet - Part 3: Stainless steel
CEN/TS 1187, Test methods for external fire exposure to roofs
EN 1427, Bitumen and bituminous binders - Determination of the softening point - Ring and Ball method
EN 10088-1, Stainless steels - Part 1: List of stainless steels
EN 10204, Metallic products - Types of inspection documents
EN 10346, Continuously hot-dip coated steel flat products - Technical delivery conditions
EN 13162, Thermal insulation products for buildings - Factory made mineral wool (MW) products –
Specification
EN 13501-1, Fire classification of construction products and building elements - Part 1: Classification using data
from reaction to fire tests
EN 13501-5, Fire classification of construction products and building elements - Part 5: Classification using data
from external fire exposure to roofs tests
EN 13823, Reaction to fire tests for building products - Building products excluding floorings exposed to the
thermal attack by a single burning item
EN ISO 6270-1, Paints and varnishes - Determination of resistance to humidity - Part 1: Continuous
condensation (ISO 6270-1)
EN ISO 6892-1, Metallic materials - Tensile testing - Part 1: Method of test at room temperature (ISO 6892-1)
EN ISO 6988, Metallic and other non-organic coatings - Sulfur dioxide test with general condensation of
moisture (ISO 6988)
EN ISO 9001:2000, Quality management systems - Requirements (ISO 9001:2000)
EN ISO 9227, Corrosion tests in artificial atmospheres - Salt spray tests (ISO 9227)
EN ISO 11925-2, Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part
2: Single-flame source test (ISO 11925-2)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 506:2000, EN 508-1:2000,
EN 508-2:2000 and EN 508-3:2000 and the following apply.
3.1
base material
coated or non-coated flat sheet or strip (coil) of metal used for the production of a finished product according to
this draft standard
oSIST prEN 14782:2015
prEN 14782:2015 (E)
3.2
liner tray
profiled sheet with large lipped edge stiffeners, suitable for interlocking with adjacent liner trays to form a plane
of ribbed sheeting that is capable of supporting a parallel plane of profiled sheeting spanning perpendicular to
the span of the liner trays
4 Requirements
4.1 Materials
The materials for the self-supporting metal sheets specified in this draft European Standard shall be in
accordance with the relevant material standards listed in EN 506, EN 508-1, EN 508-2 and EN 508-3.
4.2 Nominal thickness
The nominal thickness of the self-supporting metal sheet (excluding any organic, inorganic or multi-layer
coating), as defined in the relevant material standards listed in EN 506, EN 508-1, EN 508-2 and EN 508-3,
shall be equal to or greater than the values given in Table 1.
Table 1 — Minimum nominal values of thickness of self-supporting metal sheet excluding any organic,
inorganic or multi-layer coating
Specified minimum
Type of metal
a
nominal thickness in mm
0,6 for roofing applications
Aluminium
0,4 for other applications
Copper 0,5
Stainless steel 0,4
Steel 0,4
Zinc 0,6
a
Member States of use may require greater thickness than the value
shown.
4.3 Mechanical resistance
4.3.1 General
The suitability of a sheet for a given application should be determined by calculation or testing according to the
specification applicable in the country of use, including the standards implementing the relevant European
Standards.
The mechanical resistance shall be defined from the following aspects:
a) intended use, i.e. roof, wall, soffit, ceiling;
b) type of metal, i.e. aluminium, copper, stainless steel, steel, zinc;
c) nominal thickness of the metal sheet considering where applicable the class of tolerances as defined in
EN 506, EN 508-1, EN 508-2 or EN 508-3;
d) grade of metal in relation to its mechanical properties;
e) geometry of the product cross-section;
oSIST prEN 14782:2015
prEN 14782:2015 (E)
f) dimensional tolerances (see 4.7);
g) resistance of the roofing products to concentrated forces (see 4.3.2).
4.3.2 Resistance of roofing products to concentrated forces
The resistance of roofing products to concentrated forces shall be evaluated according to Annex B when
subject to regulatory requirements and may be evaluated when not subjected to such requirements.
This requirement does not apply for ceiling and soffit products, internal lining and external cladding and
cassettes.
Products intended for use at a span less than or equal to 400 mm, e.g. some tile profiles, are deemed to satisfy
this requirement without the need for testing.
NOTE In this case, the support structure will determine the resistance to imposed forces.
4.4 Water permeability
As long as these products have no holes (as defects), they are water impermeable.
Where required, the absence of holes shall be checked by visual inspection of the finished product.
4.5 Vapour and air permeability
As long as these products have no holes (as defects), they are air and vapour impermeable.
Where required, the absence of holes shall be checked by visual inspection of the finished product.
4.6 Dimensional change
The thermal expansion shall be taken into account in the change of dimensions of the product, where this
change may have an effect on the performance of the product, by stating the appropriate thermal expansion
coefficient.
The following thermal expansion coefficient shall be used:
−6 –1
— aluminium: 24 × 10 K ;
−6 –1
— copper: 16,8 × 10 K ;
−6 –1 −6 –1
— stainless steel: 10,0 × 10 K – 17,0 × 10 K , depending on the grade, see EN 10088-1;
−6 –1
— steel: 12 × 10 K ;
−6 –1
— zinc: 22 × 10 K ;
unless the manufacturer demonstrates by appropriate means that more accurate values are applicable.
4.7 Dimensional tolerances
The dimensional tolerances specified for roof covering products in the applicable standard from the following:
EN 506, EN 508-1, EN 508-2 and EN 508-3, shall not be exceeded.
For other products, the tolerances declared shall be appropriate, due account being taken of any national
provisions in the country of use.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
4.8 Durability
The manufacturer shall state the type, thickness and grade of metal and, if appropriate, type and thickness (or
mass) and/or category of any coating(s) to enable users to select products which may be expected to provide
the required durability of the product having regard to the expected environment and/or exposure conditions
and feasibility of maintenance.
4.9 External fire performance
Where the manufacturer wishes to make a declaration (e.g. when subject to regulatory requirements), the
external fire performance of the products specified in this draft European Standard shall either be declared
according to the provisions of 5.1 or be declared as Class F .
ROOF
4.10 Reaction to fire
Where the manufacturer wishes to make a declaration (e.g. when subject to regulatory requirements), the
reaction to fire performance of the products specified in this draft European Standard shall either be declared
according to the provisions of 5.2 or be declared as Class F.
4.11 Release of regulated dangerous substances
National regulations on dangerous substances may require verification and declaration on release, and
sometimes content, when construction products covered by this draft standard are placed on those markets.
In the absence of European harmonized test methods, verification and declaration on release/content should be
done taking into account national provisions in the place of use.
NOTE An informative database covering European and national provisions on dangerous substances is available at
the Construction website on EUROPA accessed through: http://ec.europa.eu/enterprise/construction/cpd-ds/.
5 Testing, assessment and sampling methods
5.1 External fire performance for roof covering products
5.1.1 Products deemed to satisfy the requirements for external fire performance
Products covered by this draft European Standard are considered “deemed to satisfy without the need for
testing” in relation to the requirements for external fire performance provided that they meet the definitions
1 )
given in Commission Decision 2000/553/EC [1], i.e. flat or profiled metal sheets of nominal
thickness ≥ 0,4 mm with any external coating which is inorganic or has a gross calorific value, PCS ≤ 4,0 MJ/m
or a mass ≤ 200 g/m .
NOTE Individual Member States may have “deemed to satisfy” lists which go beyond the list given in the Commission
Decision 2000/553/EC.
5.1.2 Products classified without the need for further testing (CWFT option)
The following products are considered to be classified in classes B , B and B without
ROOF(t1) ROOF(t2) ROOF(t3)
further testing in accordance with Commission Decision 2005/403/EC: profiled steel sheets, flat steel sheets or
panels of coil coated galvanized or zinc-aluminium alloy coated steel of metal thickness ≥ 0,40 mm with an
organic external (weather side) coating and, optionally, a reverse (internal) side organic coating. The external
coating is of a liquid-applied Plastisol paint of maximum nominal dry film thickness 0,200 mm, a PCS of not

1) In this standard, the word "profiled" refers to the shape of the product and not the way it is manufactured.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
2 2
greater than 8,0 MJ/m and a maximum dry mass of 330 g/m . The reverse side organic coating (if any) shall
2 2
have a PCS of not greater than 4,0 MJ/m and a maximum dry mass of 200 g/m .
5.1.3 Other products
Products not meeting the definitions as given in 5.1.1 or 5.1.2 shall be tested in accordance with the relevant
method(s) in CEN/TS 1187 and classified in accordance with EN 13501-5.
The products to be tested shall be installed, in addition to the general provisions given in CEN/TS 1187, in a
manner representative of their intended use.
5.2 Reaction to fire
5.2.1 Products satisfying the requirements for reaction to fire Class A1 without the need for testing
Non-organically coated products are considered to satisfy the requirements for performance Class A1 of the
characteristic reaction to fire in accordance with the provisions of EC Decision 96/603, as amended, without the
need for testing.
5.2.2 Products classified without the need for further testing (CWFT option)
Products with a polyester coating having a maximum nominal thickness of 25 μm and a PCS up to 1 MJ/m
(included) and a mass ≤ 70 g/m are considered to satisfy the requirements for reaction to fire performance
Class A1 without further testing in accordance with the EU Decision 2010/737/EU.
Products with a plastisol coating having a maximum nominal thickness of 200 μm, a mass ≤ 300 g/m and a
PCS up to 7 MJ/m (included) are considered to satisfy the requirements for reaction to fire performance Class
C-s3,d0 without further testing in accordance with the EU Decision 2010/737/EU.
5.2.3 Other products
Products not complying with the provisions of 5.2.1 or 5.2.2 shall be tested and classified in accordance with
EN 13501-1.
When testing in accordance with EN 13823 (SBI test), the product shall be mounted according to Annex C.
6 Assessment and verification of constancy of performance - AVCP
6.1 General
The compliance of the products covered by this draft European Standard with the requirements of this draft
standard and with the performances declared by the manufacturer shall be demonstrated by:
— determination of the product type;
— factory production control by the manufacturer, including product assessment.
The manufacturer shall always retain the overall control and shall have the necessary means to take
responisibility for the conformity of the product with its declared performances.
6.2 Type testing
6.2.1 General
Type testing shall be performed to show conformity with this draft standard.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
Tests or assessments previously performed in accordance with the provisions of this draft standard (same
product, same characteristic(s), test method, sampling procedure, system of attestation of conformity, etc.) may
be taken into account to reduce the number of checks. In addition, type testing shall be performed at the
beginning of the production of a new product type (unless a member of the same family) or at the beginning of a
new method of production (where this may affect the stated properties) on the profile machine and/or the
product itself.
Where the finished product manufacturer buys a base material whose characteristics have already been
determined in accordance with the provisions of this draft standard and are declared by the base material
supplier (e.g. following an inspection document conforming to EN 10204), these characteristics need not be
reassessed in order to demonstrate conformity with this draft standard, provided that the production process for
the finished product does not change these characteristics in an unfavourable way. ITT for the characteristics of
the finished product related to the characteristics of the base material itself is given in Table 2 and may be
assessed either by the base material supplier or the roofing/cladding product manufacturer. ITT for the other
product characteristics is given in Table 3.
NOTE The profile process can increase locally the yield strength of the metal. Where the manufacturer uses this fact to
claim a higher yield strength for the finished product, a type test will be required.
For the purposes of assessment, the manufacturer’s products may be grouped into families, where it is
considered that the results for one or more characteristics from any product within the family are representative
for that same characteristics for all products within that same family
Products may be grouped in different families for different characteristics.
In addition, the determination of the product type shall be performed for all characteristics included in the draft
standard for which the manufacturer declares the performance:
— at the beginning of the production of a new or modified self-supporting metal sheet for roofing, external
cladding and internal lining (unless a member of the same product range), or
— at the beginning of a new or modified method of production (where this may affect the stated properties); or
they shall be repeated for the appropriate characteristic(s), whenever a change occurs in the self-supporting
metal sheet for roofing, external cladding and internal lining design, in the raw material or in the supplier of the
components, or in the method of production(subject to the definition of a family), which would affect significantly
one or more of the characterisitcs.
The base material may be presumed to have the performances stated of them by their supplier, although this
does not replace the responsibility on the finished product manufacturer to ensure that only a base material
having the correct values of characteristics to allow the finished roofing or cladding product to meet the
requirements of this draft standard are used.
All characteristics in Clause 4 shall be subject to type testing, with the following exceptions:
— external fire performance when using the CWFT option, in accordance with 5.1.2 or when deemed to
satisfy, in accordance with 5.1.1 (although measurement may be required to ensure that the product meets
the definitions required for CWFT and deemed to satisfy),
— reaction to fire when using the CWFT option (although measurement may be required to ensure that the
product meets the definition required for CWFT), in accordance with 5.2.2, or when deemed to satisfy
Class A1, in accordance with 5.2.1,
— release of regulated substances may be assessed indirectly by controlling the content of the substance
concerned.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
Whenever a change occurs in the product, the base material or supplier of the components, or the production
process (subject to the definition of a family), which could change significantly one or more of the
characteristics, the type tests shall be repeated for the appropriate characteristic(s).
The results of all type tests shall be recorded and held by the manufacturer for at least 10 years after the end of
production of the product to which they apply.
Table 2 — Test methods, number of specimens and conformity criteria for type testing of base material
Minimum number of specimens
Without base
With base
material
Compliance
material
manufacturer's
Requirement criteria and
manufacturer’s
Characteristic Test method
inspection
clause specific
inspection
c
document
conditions
c
document and
and/or
traceability
traceability
e
system
d
system
Quality of the
Manufacturer's
b
4.1 Visual inspection 1
a
declaration
metal
Within the
b
Thickness 4.2 See 4.2 3 manufacturer's
stated tolerance
Mechanical resistance
Manufacturer's
b
4.3.1 EN ISO 6892-1 3
Yield strength/grade of 1
declaration
metal
Manufacturer's
Dimensional change 4.6 – – –
declaration
Declaration or
compliance with
Durability/quality of the
4.8 See 4.8 – - appropriate
coating
national technical
specification
As appropriate
Release of regulated
4.11 – – b when national
dangerous substances
provisions exist
a
This concerns the quality of the base material (no pin-holes, micro holes, pits craters, etc.).
b
In this case, the finished product manufacturer shall verify that the inspection document in accordance with EN 10204
indicates that the base material (e.g. coils, sheets) has the characteristics that he needs to produce the finished product.
c
In accordance with EN 10204.
d
These tests shall be done by the finished product manufacturer.
e
These additional tests shall be done by the finished product manufacturer.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
Table 3 — Test methods, number of specimens and conformity criteria for type testing of the finished
product
Minimum
Requirement Compliance criteria and
Characteristic Test method number of
clause specific conditions
specimens
All test results ≥ manufacturer's
Mechanical resistance
stated value: a span
Resistance to 4.3 Annex B See B.5
compatible with a force of
a
concentrated forces
1,2 kN
Water permeability 4.4 Visual assessment Random Pass
EN 506, EN 508–1,
Less than or equal to defined
EN 508–2 or
Dimensional tolerances 4.7 3
maxima
c
EN 508–3
External fire
Classification in accordance
b
CEN/TS 1187 See EN 13501–5
4.9
a
with EN 13501–5
performance
EN 13501–1 and Classification in accordance
b
Reaction to fire See EN 13501–1
4.10
Annex C with EN 13501–1
a
Applies only to roofing products.
b
For products requiring testing.
c
These standards only apply to roofing products. For other products, refer to 4.7.
6.2.2 Sampling for product type determination
The choice of the method of sampling shall be as defined in a) or b) below, as appropriate.
a) Random sampling:
Whenever practicable, the random sampling method shall be used, in which every base material or finished
product of the same type in a delivery batch has an equal chance of being selected for the sample. The
required numbers of specimens shall be selected from a batch at random, without any consideration given
to the condition or quality of the selected specimens.
b) Representative sampling
When random sampling is impracticable, e.g. when the products form a large stack or stacks with ready
access to only a limited number of products, a representative sampling procedure shall be used.
6.3 Factory production control (FPC)
6.3.1 General
The base material manufacturer shall establish, document and maintain a FPC system to ensure that the
products placed on the market conform to the stated performance characteristics. The FPC system shall consist
of procedures, regular inspections and tests and/or assessments and the use of the results to control base
material and other incoming materials or components, equipment, the production process and the product.
If the finished product manufacturer buys base materials whose characteristics have already been determined
in accordance with the provisions of this draft standard, and are declared by the base material supplier (e.g.
following an inspection document conforming to EN 10204), the finished product manufacturer's system
requires only a document check to ensure that the characteristics meet the product manufacturer's
specifications, provided that the production process for the finished product does not change in an unfavourable
way these characteristics.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
Products whose characteristics have not already been determined and finished products, for which the
production process changes characteristics in an unfavourable way, shall be evaluated in accordance with
Table 4.
Table 4 — Test methods, number of specimens and conformity criteria for FPC of base material
Minimum number of specimens per batch
Compliance
Without base material With base material
Requirement criteria and
manufacturer's manufacturer's
Characteristic Test method
clause specific
inspection document inspection
conditions
c c
and/or traceability document and
system traceability system
Quality of the
Visual Manufacturer's
b
4.1 1
a
assessment declaration
metal
All tests within the
b
Thickness 4.2 See 4.2 2 manufacturer's
stated tolerance
Mechanical
All test
resistance
b
4.3 EN ISO 6892-1 1 results ≥ manufact
Yield strength/grade
urer’s stated value
of metal
Dimensional change 4.6 - – – No testing
Durability/quality of
b
4.8 See 4.8 0 Declaration
the coating
Release of regulated As appropriate
dangerous 4.11 – – – when National
substances provisions exist
a
This concerns the quality of the base material (no pin-holes micro holes, pits, etc.).
b
In this case, the finished product manufacturer shall verify that the inspection document in accordance with EN 10204 indicates that the
base material (e.g. coils, sheets) has the characteristics that he needs to produce the finished product.
c
In accordance with EN 10204.
All the elements, requirements and provisions adopted by the manufacturer shall be documented in a
systematic manner in the form of written policies and procedures. This production control system
documentation shall ensure a common understanding of conformity evaluation and enable the achievement of
the required product characteristics and the effective operation of the production control system to be checked.
6.3.2 Requirements
It is essential that the FPC system fulfils the requirements as described in the following clauses of
EN ISO 9001:2000:
— 4.2 (except 4.2.1 a));
— 5.1 e), 5.5.1, 5.5.2;
— Clause 6;
— 7.1 (except 7.1 a)), 7.2.3 c), 7.4, 7.5, 7.6;
— 8.2.3, 8.2.4, 8.3, 8.5.2.
The FPC system may be part of a Quality Management system, e.g. in accordance with EN ISO 9001.
The FPC system shall:
oSIST prEN 14782:2015
prEN 14782:2015 (E)
— address this draft European Standard; and
— ensure that the components placed on the market conform with the stated performance characteristics;
— comply with the requirements for the characteristics of the finished products related to the characteristics of
the base material itself, as given in Table 4 (also applies to the FPC system of the base material supplier);
— comply with the requirements for the other product characteristics as given in Table 5.
Table 5 — Test methods, number of specimens and conformity criteria for FPC of the finished product
Compliance criteria
Requirement Minimum number of
Characteristic Test method and specific
clause specimens
conditions
Mechanical resistance All test
a
Resistance to concentrated 4.3 Annex B results ≥ manufacturer’s
1 per year
forces stated value
Dimensional tolerances: At each change of
All test results within the
profile or
4.7 See 4.7 manufacturer's
Initial set up of the
b,c,d
tolerances
manufacturing machines material
Dimensional tolerances:
At each change of
All test results within the
Length and other
profile or material and
4.7 See 4.7 manufacturer's
characteristics
c
tolerances
each shift
Checking of the product
Water permeability 4.4 Visual inspections Continuous Pass
To ensure production
e
External fire performance 4.9 – remains representative
–
of ITT samples
To ensure production
e
Reaction to fire 4.10 – remains representative
–
of ITT samples
a
No testing required for a given profile if the physical dimensions of the product are subject to regular checking.
b
The profile shall be checked directly on the machine at the beginning of each production run and/or new shift. The following
geometrical characteristics shall be checked directly on the machine at the beginning of each run: the height of the ribs, the radius of the
profile, the position of the stiffeners, the distance between two consecutives ribs, the height of stiffeners of any flat part, webs, the width
of the flat part and the cut angle of the sheet do not need to be checked.
c
In the case of a profile machine producing the same profile continuously, a minimum of 2 checks per year shall be made.
d
This checking does not apply to the length of the sheet, the contraction or bulging, the deviation from straightness, the profiled edge
or the ripple of the side lap.
e
No direct testing of these characteristics is needed. However, the manufacturer shall check, with a frequency, to be defined in the
FPC manual, sufficient to ensure that ITT results remain applicable to all products. When using CWFT or deemed-to-satisfy, indirect
checks of product parameters may be needed.
The results of inspections, tests or assessments requiring action shall be recorded, as shall any action taken.
The action to be taken when control values or criteria are not met shall be recorded and retained for the period
specified in the manufacturer’s FPC procedures. The results of all FPC tests shall be recorded and held by the
manufacturer for at least 10 years.
7 Designation
The roof covering products shall be designated according to the following standards: EN 506, EN 508-1,
EN 508-2 or EN 508-3, as relevant.
For other products, the provisions in the above mentioned standards may be applied.
oSIST prEN 14782:2015
prEN 14782:2015 (E)
8 Product marking
The roof covering products shall be marked according to the relevant following standards: EN 506, EN 508-1,
EN 508-2 or EN 508-3, as relevant.
For other products, the provisions in the above mentioned sta
...
