prEN ISO 16890-1
(Main)Air filters for general ventilation - Part 1: Technical specifications, requirements and classification system based upon particulate matter efficiency (ePM) (ISO/DIS 16890-1:2025)
Air filters for general ventilation - Part 1: Technical specifications, requirements and classification system based upon particulate matter efficiency (ePM) (ISO/DIS 16890-1:2025)
ISO 16890-1:2016 establishes an efficiency classification system of air filters for general ventilation based upon particulate matter (PM). It also provides an overview of the test procedures, and specifies general requirements for assessing and marking the filters, as well as for documenting the test results. It is intended for use in conjunction with ISO 16890‑2, ISO 16890‑3 and ISO 16890‑4.
The test method described in this part of ISO 16890 is applicable for air flow rates between 0,25 m3/s (900 m3/h, 530 ft3/min) and 1,5 m3/s (5 400 m3/h, 3 178 ft3/min), referring to a test rig with a nominal face area of 610 mm × 610 mm (24 inch × 24 inch).
ISO 16890 (all parts) refers to particulate air filter elements for general ventilation having an ePM1 efficiency less than or equal to 99 % when tested according to the procedures defined within ISO 16890‑1, ISO 16890‑2, ISO 16890‑3 and ISO 16890‑4. Air filter elements with a higher initial efficiency are evaluated by other applicable test methods (see ISO 29463-1, ISO 29463-2, ISO 29463-3, ISO 29463-4 and ISO 29463-5).
Filter elements used in portable room-air cleaners are excluded from the scope of this part of ISO 16890.
The performance results obtained in accordance with ISO 16890 (all parts) cannot by themselves be quantitatively applied to predict performance in service with regard to efficiency and lifetime. Other factors influencing performance to be taken into account are described in Annex A.
Luftfilter für die allgemeine Raumlufttechnik - Teil 1: Technische Bestimmungen, Anforderungen und Effizienzklassifizierungssystem, basierend auf dem Feinstaubabscheidegrad (ePM) (ISO/DIS 16890-1:2025)
Filtres à air de ventilation générale - Partie 1: Spécifications techniques, exigences et système de classification fondé sur l'efficacité des particules en suspension (ePM) (ISO/DIS 16890-1:2025)
Zračni filtri pri splošnem prezračevanju - 1. del: Tehnične specifikacije, zahteve in klasifikacijski sistem učinkovitosti na podlagi drobnih delcev (ePM) (ISO/DIS 16890-1:2025)
General Information
Relations
Standards Content (Sample)

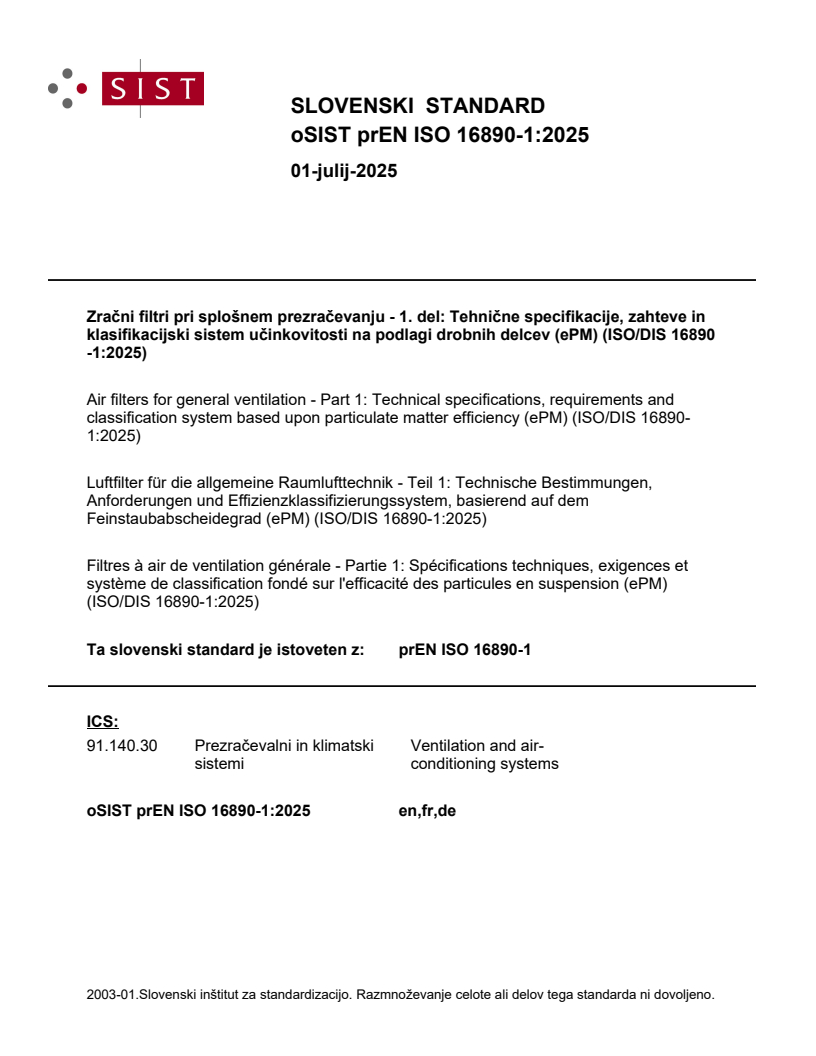

SLOVENSKI STANDARD
01-julij-2025
Zračni filtri pri splošnem prezračevanju - 1. del: Tehnične specifikacije, zahteve in
klasifikacijski sistem učinkovitosti na podlagi drobnih delcev (ePM) (ISO/DIS 16890
-1:2025)
Air filters for general ventilation - Part 1: Technical specifications, requirements and
classification system based upon particulate matter efficiency (ePM) (ISO/DIS 16890-
1:2025)
Luftfilter für die allgemeine Raumlufttechnik - Teil 1: Technische Bestimmungen,
Anforderungen und Effizienzklassifizierungssystem, basierend auf dem
Feinstaubabscheidegrad (ePM) (ISO/DIS 16890-1:2025)
Filtres à air de ventilation générale - Partie 1: Spécifications techniques, exigences et
système de classification fondé sur l'efficacité des particules en suspension (ePM)
(ISO/DIS 16890-1:2025)
Ta slovenski standard je istoveten z: prEN ISO 16890-1
ICS:
91.140.30 Prezračevalni in klimatski Ventilation and air-
sistemi conditioning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

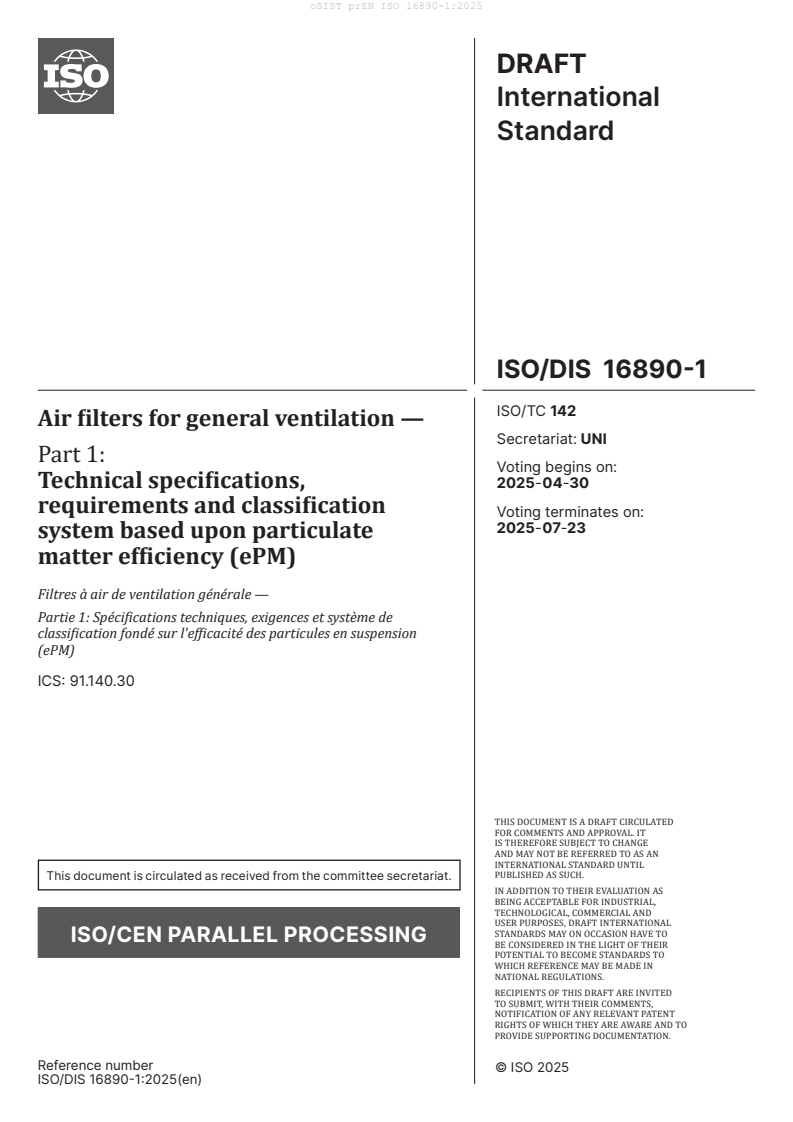

DRAFT
International
Standard
ISO/DIS 16890-1
ISO/TC 142
Air filters for general ventilation —
Secretariat: UNI
Part 1:
Voting begins on:
Technical specifications, 2025-04-30
requirements and classification
Voting terminates on:
2025-07-23
system based upon particulate
matter efficiency (ePM)
Filtres à air de ventilation générale —
Partie 1: Spécifications techniques, exigences et système de
classification fondé sur l'efficacité des particules en suspension
(ePM)
ICS: 91.140.30
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Reference number
ISO/DIS 16890-1:2025(en)
DRAFT
ISO/DIS 16890-1:2025(en)
International
Standard
ISO/DIS 16890-1
ISO/TC 142
Air filters for general ventilation —
Secretariat: UNI
Part 1:
Voting begins on:
Technical specifications,
requirements and classification
Voting terminates on:
system based upon particulate
matter efficiency (ePM)
Filtres à air de ventilation générale —
Partie 1: Spécifications techniques, exigences et système
de classification fondé sur l'efficacité des particules en
suspension (ePM)
ICS: 91.140.30
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
© ISO 2025
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
BE CONSIDERED IN THE LIGHT OF THEIR
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
or ISO’s member body in the country of the requester.
NATIONAL REGULATIONS.
ISO copyright office
RECIPIENTS OF THIS DRAFT ARE INVITED
CP 401 • Ch. de Blandonnet 8
TO SUBMIT, WITH THEIR COMMENTS,
CH-1214 Vernier, Geneva
NOTIFICATION OF ANY RELEVANT PATENT
Phone: +41 22 749 01 11
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/DIS 16890-1:2025(en)
ii
ISO/DIS 16890-1:2025(en)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms. 5
5 Technical specifications and requirements . 5
5.1 General .5
5.2 Material .6
5.3 Nominal air flow rate .6
5.4 Resistance to air flow .6
5.5 Fractional efficiency curves (particle size efficiency spectrum) .6
5.6 Arrestance .6
6 Test methods and procedure . 6
7 Classification system based on particulate matter efficiency (ePM) . 7
7.1 Definition of a standardized particles size distribution of ambient air .7
7.2 Calculation of the particulate matter efficiencies (ePM) .9
7.3 Classification .10
8 Reporting . 10
8.1 General .10
8.2 Interpretation of test reports .11
8.3 Summary .11
Annex A (informative) Shedding from filters . 17
Annex B (informative) Examples . 19
Annex C (informative) Estimation of downstream fine dust concentrations .23
Annex D (informative) Filtration efficiency against biological aerosols .26
Bibliography .27
iii
ISO/DIS 16890-1:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 142, Cleaning equipment for air and other gases,
in collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC
195, Cleaning equipment for air and other gases, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 16890-1:2016), which has been technically
revised.
The main changes are as follows:
— correction of Formula 2 and 3 in Section 7.1;
— addition of Annex D Filtration efficiency against biological aerosols;
— a list of all parts in the ISO 16890 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
ISO/DIS 16890-1:2025(en)
Introduction
The effects of particulate matter (PM) on human health have been extensively studied in the past decades.
The results are that fine dust can be a serious health hazard, contributing to or even causing respiratory
and cardiovascular diseases. For the outdoor environment, the U.S. Environmental Protection Agency (EPA),
the World Health Organization (WHO), the European Union, and other national agencies have established
acceptable air quality standards according to concentrations of particulate matter classified per their
aerodynamic sizes, defined as PM2,5 and PM10, and measured according to strict prescriptive methods and
sampling times.
Since there is growing interest in relating indoor air quality to outdoors, ISO 16890 series of standards
classifies ventilation filters according to their efficiencies measured with an optical diameter between
0,3 µm and x µm and relating the result to historic global average ambient PM concentrations. Although not
exactly equivalent to filter performance at national ambient air quality standards at PM, the classification
scheme presented in the standards will yield a level correspondence to the effectiveness of the filter for
ambient particle concentrations. It is however recognized that the correspondence based on global averages
may not be exactly the same at a specific location s
...
