EN 16896:2016

Petroleum products and related products - Determination of kinematic viscosity - Method by Stabinger type viscosimeter

This European Standard specifies a procedure for the determination of kinematic viscosity (ν) in the range from 2 mm2/s to 6 mm2/s at 40°C by calculation from dynamic viscosity (η) and density (ρ) of middle distillate fuels, fatty acid methyl ester fuels (FAME) and mixtures of these using the Stabinger-type viscosimeter.
The result obtained using the procedure described in this standard depends on the behaviour of the sample. This European Standard should be used predominantly on liquids whose shear stress and shear rate are proportional (Newtonian flow behaviour). However, if the viscosity changes significantly with the shear rate, comparison with other measuring methods is only permissible at similar shear rates.
WARNING - The use of this Standard can involve hazardous materials, operations and equipment. This Standard does not purport to address all of the safety problems associated with its use. It is the responsibility of users of this standard to take appropriate measures to ensure the safety and health of personnel prior to the application of the Standard, and fulfil statutory and regulatory requirements for this purpose.

Mineralölerzeugnisse und verwandte Produkte - Bestimmung der kinematischen Viskosität - Verfahren mit dem Viskosimeter nach dem Stabinger-Prinzip

Diese Europäische Norm legt ein Verfahren zur Bestimmung der kinematischen Viskosität (ν) bei 40 °C im Bereich von 2 mm2/s bis 6 mm2/s mittels Viskosimeter nach dem Stabinger-Prinzip durch Berechnung aus der dynamischen Viskosität (η) und der Dichte (ρ) von Mitteldestillatkraftstoffen und Fettsäuremethylester-Kraftstoffen (en: fatty acid methyl ester, FAME) sowie Gemischen dieser Kraftstoffe fest.
Das unter Anwendung des in dieser Norm beschriebenen Verfahrens erzielte Ergebnis ist vom Verhalten der Probe abhängig. Diese Europäische Norm sollte hauptsächlich auf Flüssigkeiten angewendet werden, deren Schubspannung und Schergeschwindigkeit proportional sind (Newtonsches Fließverhalten). Ändert sich die Viskosität jedoch signifikant mit der Schergeschwindigkeit, ist der Vergleich mit anderen Messverfahren nur bei ähnlichen Schergeschwindigkeiten zulässig.
WARNUNG — Die Anwendung dieser Norm kann die Anwendung gefährlicher Stoffe, Arbeitsgänge und Geräte mit sich bringen. Diese Norm beansprucht nicht, alle damit verbundenen Sicherheitsprobleme zu behandeln. Es liegt in der Verantwortung des Anwenders dieser Norm, vor ihrer Anwendung geeignete Maßnahmen für die Sicherheit und den Gesundheitsschutz des Personals zu ergreifen, und dafür Sorge zu tragen, dass behördliche und gesetzliche Maßnahmen eingehalten werden.

Produits pétroliers et produits connexes — Détermination de la viscosité cinématique — Méthode avec le viscosimètre Stabinger

La présente Norme européenne spécifie une méthode de détermination de la viscosité cinématique (ν) sur
l'intervalle de 2 à 6 mm²/s à 40 °C par calcul à partir de la viscosité dynamique (η) et de la masse volumique
(ρ) de distillats moyens, d'esters méthyliques d'acides gras (EMAG) et de mélanges de ceux-ci à l'aide d'un
viscosimètre de type Stabinger.
Le résultat obtenu en utilisant la méthode décrite dans la présente Norme dépend du comportement de
l'échantillon. Il convient d'appliquer cette Norme européenne principalement sur des liquides dont la contrainte
de cisaillement et le taux de cisaillement sont proportionnels (comportement d'écoulement newtonien).
Cependant, si la viscosité varie de manière significative avec le taux de cisaillement, une comparaison avec
d'autres méthodes de mesure n'est pertinente qu'à des taux de cisaillement similaires.
AVERTISSEMENT - L'utilisation de la présente norme peut impliquer l'intervention de produits,
d'opérations et d'équipements à caractère dangereux. La présente norme n'est pas censée aborder
tous les problèmes de sécurité concernés par son usage. Il est de la responsabilité des utilisateurs de
cette norme de prendre les mesures appropriées pour assurer la sécurité et préserver la santé du
personnel avant son application, et pour répondre aux exigences réglementaires et statutaires à cette
fin.

Naftni in sorodni proizvodi - Določevanje kinematične viskoznosti - Metoda s Stabingerjevim viskozimetrom

Preskusna metoda za ugotavljanje dinamične viskoznosti in gostote ter izračun kinematične viskoznosti srednje destilatnih goriv, goriv z metilnimi estri maščobnih kislin (FAME) in njihovih mešanic z uporabo Stabingerjevega viskozimetra. Viskoznost se izračuna z razmerjem hitrosti.

General Information

• Status: Published
• Publication Date: 15-Nov-2016
• Withdrawal Date: 30-May-2017
• ICS: 75.160.20 - Liquid fuels
• Technical Committee: CEN/TC 19 - Petroleum products, lubricants and related products
• Drafting Committee: CEN/TC 19/JWG 1 - Vegetable fats and oils and their by-products for use in automotive fuels (Joint working group with CEN/TC 307)
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 27-Sep-2022
• Completion Date: 12-Nov-2025
• Ref Project: SIST EN 16896:2017 - Petroleum products and related products - Determination of kinematic viscosity - Method by Stabinger Viscometer

Overview

EN 16896:2016 is a CEN European Standard for determining kinematic viscosity (ν) of petroleum and related liquid fuels using a Stabinger‑type viscosimeter. It specifies a procedure to calculate kinematic viscosity from measured dynamic viscosity (η) and density (ρ) at 40 °C in the range 2 mm2/s to 6 mm2/s. The standard is intended for middle distillate fuels, fatty acid methyl ester fuels (FAME) and their mixtures, and emphasizes use on liquids with Newtonian flow behaviour. EN 16896:2016 also includes requirements for sampling, apparatus preparation, calibration and result expression.

Key topics and technical requirements

• Measurement principle: dynamic viscosity is measured by a Stabinger‑type concentric rotating rotor system (inner rotor speed vs. eddy‑current brake); density is measured by an integrated oscillating U‑tube. Kinematic viscosity is calculated as η / ρ.
• Temperature control: measurements at 40.00 °C with cell block stability typically ±0.005 °C; temperature sensor uncertainty requirement ±0.03 °C.
• Measurement stability: instrument checks for equilibration and limits fluctuations to ±0.07% for dynamic viscosity and ±0.03 kg/m3 for density within 60 s.
• Measuring range: designed for kinematic viscosity values from 2 to 6 mm2/s at 40 °C.
• Fluid behaviour: predominantly for Newtonian fluids; if viscosity varies significantly with shear rate, comparisons are only valid at similar shear rates.
• Calibration & verification:
  • Use certified reference liquids for viscosity and density (EN ISO 3104, EN ISO 12185 referenced).
  • Recommended verification intervals: viscosity & density monthly, temperature yearly.
  • Acceptable deviations for verification: viscosity adjustment if >0.35% from reference; density if >0.001 g/cm3; temperature if >0.03 °C.
• Sampling & handling: follow EN ISO 3170 / EN ISO 3171 and pre‑heat waxy samples to dissolve crystals.
• Safety note: standard warns of hazardous materials and requires appropriate safety measures and compliance with statutory regulations.

Practical applications and users

Who uses EN 16896:2016

• Fuel testing and quality control laboratories
• Petroleum and biodiesel (FAME) producers
• Certification and compliance bodies
• Instrument manufacturers and service engineers

Why it’s used

• To provide reproducible, traceable kinematic viscosity results for middle distillates and FAME blends
• For product specification, batch release and regulatory compliance
• To support formulation, blending and quality control where viscosity and density jointly affect handling and performance

Related standards

• EN ISO 3104 - kinematic viscosity determination (general methods)
• EN ISO 12185 - density by oscillating U‑tube
• EN ISO 3170 / EN ISO 3171 - sampling of petroleum liquids

Keywords: EN 16896:2016, kinematic viscosity, Stabinger viscosimeter, dynamic viscosity, density, middle distillate fuels, FAME, CEN standard, viscosity measurement.

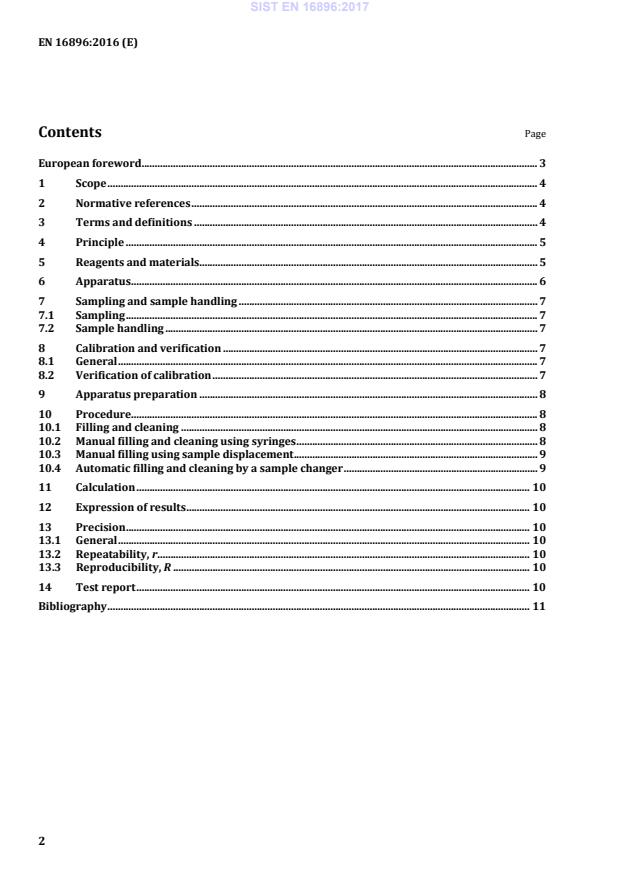

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Mineralölerzeugnisse und verwandte Produkte - Bestimmung der kinematischen Viskosität - Method mit dem Stabinger-ViskosimeterProduits pétroliers et produits relatés - Détermination de la viscosité cinématique - Méthode par Viscometer StabingerPetroleum products and related products - Determination of kinematic viscosity - Method by Stabinger Viscometer75.160.20Liquid fuelsICS:Ta slovenski standard je istoveten z:EN 16896:2016SIST EN 16896:2017en,fr,de01-februar-2017SIST EN 16896:2017SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16896
November
t r s x ICS
y wä s x rä t r English Version
Petroleum products and related products æ Determination of kinematic viscosity æ Method by Stabinger type viscosimeter Produits pétroliers et produits relatés æ Détermination de la viscosité cinématique æ Méthode par Viscometer Stabinger
Mineralölerzeugnisse und verwandte Produkte æ Bestimmung der kinematischen Viskosität æ Verfahren mit dem Viskosimeter nach dem StabingeræPrinzip This European Standard was approved by CEN on
t y August
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x z { xã t r s x ESIST EN 16896:2017

ratio of the applied shear stress to the resulting shear rate of a liquid 3.2 kinematic viscosity
ratio of the dynamic viscosity to the density of a liquid at the same temperature and pressure Note 1 to entry: The kinematic viscosity is a measure of a liquid's resistance to flow under gravity. 3.3 density
mass of a substance divided by its volume at a given temperature SIST EN 16896:2017
...
