prEN 15254-7 (Extended application of results from fire resistance tests - Non-loadbearing ceilings - Part 7: Metal sandwich panel construction) is a CEN draft standard that defines rules, guidance and procedures for extending fire-resistance test results for internal non‑loadbearing ceilings made from double‑skin metal‑faced sandwich panels. It specifically covers panels with an insulating core bonded to both facings (as defined in EN 14509) and applies when panels have been tested in accordance with EN 1364-2 and need a fire classification under EN 13501-2.
Key topics and technical requirements
- Field of extended application: Establishes when and how a reference fire test can be used to predict performance for variations in product properties or end‑use.
- Assumptions: Defines baseline assumptions for extensions (single‑side exposure, supporting construction stability, load transfer after facing delamination, material density and mass calculations, and strength reduction at elevated temperature per EN 1993-1-2).
- Material variations: Rules for acceptable changes in metal facings, adhesives and core materials and how these influence integrity, insulation and overall fire performance.
- Construction variations: Guidance on changes to span length, panel thickness, longitudinal joint details, fixing systems and ceiling dimensions - including limits and when calculation or additional testing is required.
- Interaction of factors: Addresses combined effects when multiple parameters change simultaneously.
- Support structure and fixings: Requirements for assessing support behaviour, fastenings and stitching that transfer dead load and catenary forces during fire exposure.
- Calculation methods & measurements: Use of calculation procedures (including EN 1993-1-2 for steel properties at temperature), additional measurements in the reference test, and Annex C rules for extending span length.
- Reporting: Specifies what to include in an extended application analysis and documentation.
Practical applications & users
- Manufacturers of metal sandwich panels seeking to extend test results to a range of product variants without retesting each configuration.
- Fire safety and structural engineers performing fire-resistance assessments and preparing EXAP analyses to obtain EN 13501-2 classifications.
- Test laboratories and certification bodies applying EN 1364-2 results to real‑world ceiling installations.
- Specifiers, architects and building authorities who need to confirm compliance of non‑loadbearing ceiling constructions with fire‑resistance requirements.
- Enables cost‑effective product development, regulatory compliance and risk‑based design decisions for fire safety in buildings.
Related standards
- EN 1364-2 (fire tests for non‑loadbearing ceilings)
- EN 13501-2 (fire classification)
- EN 14509 / prEN 14509-3 (factory‑made metal faced sandwich panels and test methods)
- EN 15725 (EXAP principles)
- EN 1363-1 / EN 1363-2 (fire resistance test procedures)
- EN 1993-1-2 (structural fire design - steel)
Keywords: fire resistance, metal sandwich panels, non-loadbearing ceilings, EN 1364-2, extended application, EN 13501-2, sandwich panel ceiling, fire classification, support structure, span length.
Frequently Asked Questions
prEN 15254-7 is a draft published by the European Committee for Standardization (CEN). Its full title is "Extended application of results from fire resistance tests - Non-loadbearing ceilings - Part 7: Metal sandwich panel construction". This standard covers: This document defines rules for extended applications, provides guidance, and, where appropriate, specifies procedures, for variations of certain parameters and factors associated with the design of internal non-loadbearing ceilings constructed of metal faced sandwich panels that have been tested in accordance with EN 1364-2, which could generate a classification in accordance with EN 13501-2. This document applies to,double skin metal faced sandwich panels, which have an insulating core bonded to both facings as defined in EN 14509 not stabilizing a whole building or parts of it.
This document defines rules for extended applications, provides guidance, and, where appropriate, specifies procedures, for variations of certain parameters and factors associated with the design of internal non-loadbearing ceilings constructed of metal faced sandwich panels that have been tested in accordance with EN 1364-2, which could generate a classification in accordance with EN 13501-2. This document applies to,double skin metal faced sandwich panels, which have an insulating core bonded to both facings as defined in EN 14509 not stabilizing a whole building or parts of it.
prEN 15254-7 is classified under the following ICS (International Classification for Standards) categories: 13.220.50 - Fire-resistance of building materials and elements; 91.060.30 - Ceilings. Floors. Stairs. The ICS classification helps identify the subject area and facilitates finding related standards.
prEN 15254-7 has the following relationships with other standards: It is inter standard links to EN 15254-7:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
prEN 15254-7 is associated with the following European legislation: EU Directives/Regulations: 305/2011; Standardization Mandates: M/117. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase prEN 15254-7 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2025
Razširjena uporaba rezultatov preskusov požarne odpornosti - Nenosilni stropi - 7.
del: Konstrukcije iz kovinskih sendvič panelov
Extended application of results from fire resistance tests - Non-loadbearing ceilings -
Part 7: Metal sandwich panel construction
Erweiterter Anwendungsbereich der Ergebnisse von Feuerwiderstandsprüfungen -
Nichttragende Unterdecken - Teil 7: Sandwichelemente in Metallbauweise
Application étendue des résultats d'essais de résistance au feu - Plafonds non porteurs -
Partie 7 : Panneaux sandwiches métalliques pour la construction
Ta slovenski standard je istoveten z: prEN 15254-7
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.060.30 Stropi. Tla. Stopnice Ceilings. Floors. Stairs
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2024
ICS 13.220.50; 91.060.30 Will supersede EN 15254-7:2018
English Version
Extended application of results from fire resistance tests -
Non-loadbearing ceilings - Part 7: Metal sandwich panel
construction
Application étendue des résultats d'essais de Erweiterter Anwendungsbereich der Ergebnisse von
résistance au feu - Plafonds non porteurs - Partie 7 : Feuerwiderstandsprüfungen - Nichttragende
Panneaux sandwiches métalliques pour la construction Unterdecken - Teil 7: Sandwichelemente in
Metallbauweise
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 127.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15254-7:2024 E
worldwide for CEN national Members.

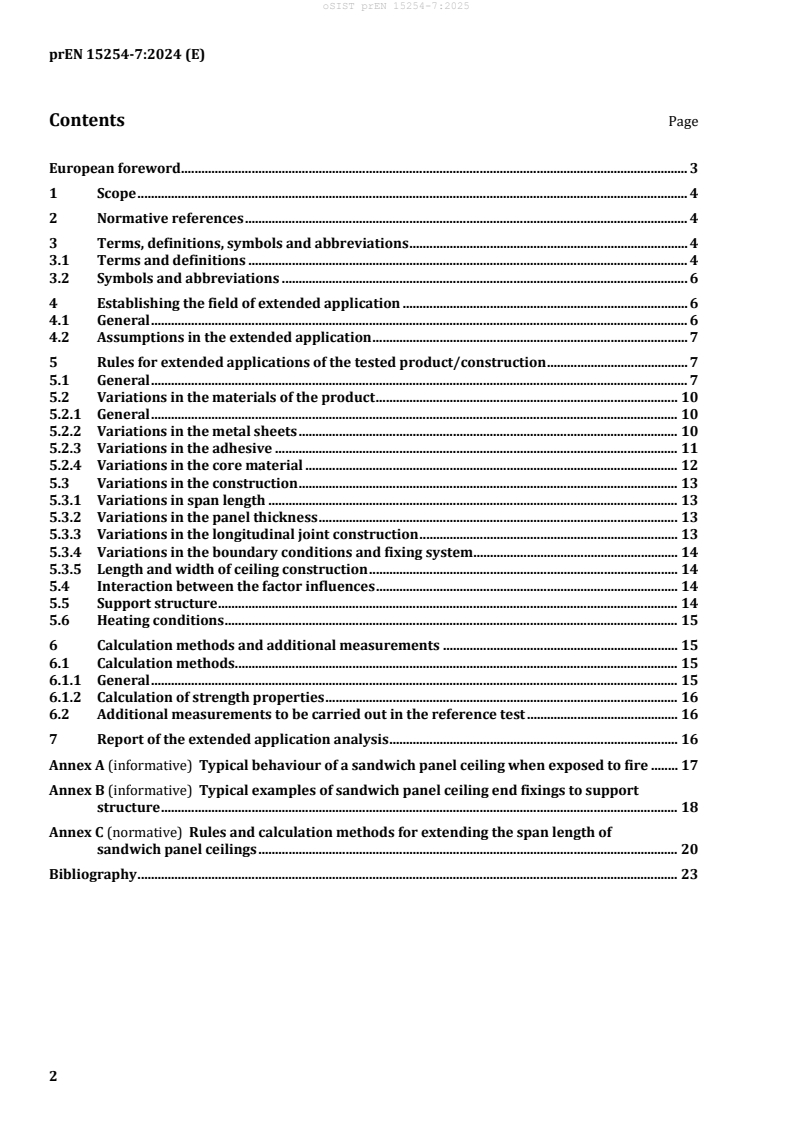

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms, definitions, symbols and abbreviations . 4
3.1 Terms and definitions . 4
3.2 Symbols and abbreviations . 6
4 Establishing the field of extended application . 6
4.1 General . 6
4.2 Assumptions in the extended application . 7
5 Rules for extended applications of the tested product/construction . 7
5.1 General . 7
5.2 Variations in the materials of the product . 10
5.2.1 General . 10
5.2.2 Variations in the metal sheets . 10
5.2.3 Variations in the adhesive . 11
5.2.4 Variations in the core material . 12
5.3 Variations in the construction . 13
5.3.1 Variations in span length . 13
5.3.2 Variations in the panel thickness . 13
5.3.3 Variations in the longitudinal joint construction . 13
5.3.4 Variations in the boundary conditions and fixing system . 14
5.3.5 Length and width of ceiling construction . 14
5.4 Interaction between the factor influences . 14
5.5 Support structure . 14
5.6 Heating conditions . 15
6 Calculation methods and additional measurements . 15
6.1 Calculation methods . 15
6.1.1 General . 15
6.1.2 Calculation of strength properties . 16
6.2 Additional measurements to be carried out in the reference test . 16
7 Report of the extended application analysis . 16
Annex A (informative) Typical behaviour of a sandwich panel ceiling when exposed to fire . 17
Annex B (informative) Typical examples of sandwich panel ceiling end fixings to support
structure . 18
Annex C (normative) Rules and calculation methods for extending the span length of
sandwich panel ceilings . 20
Bibliography . 23
European foreword
This document (prEN 15254-7:2024) has been prepared by Technical Committee CEN/TC 127 “Fire
safety in buildings”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document supersedes EN 15254-7:2018.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
This series is currently composed of the following parts:
— EN 15254-2, Extended application of results from fire resistance tests — Non-loadbearing walls — Part
2: Masonry and Gypsum Blocks
— EN 15254-4, Extended application of results from fire resistance tests — Non-loadbearing walls — Part
4: Glazed constructions
— EN 15254-5, Extended application of results from fire resistance tests — Non-loadbearing walls — Part
5: Metal sandwich panel construction
— EN 15254-6, Extended application of results from fire resistance tests - Non-loadbearing walls — Part
6: Curtain walling
— EN 15254-7, Extended application of results from fire resistance tests — Non-loadbearing walls — Part
7: Non-load bearing sandwich panels — Ceilings
1 Scope
This document defines rules for extended applications, provides guidance, and, where appropriate,
specifies procedures, for variations of certain parameters and factors associated with the design of
internal non-loadbearing ceilings constructed of metal faced sandwich panels that have been tested in
accordance with EN 1364-2, which could generate a classification in accordance with EN 13501-2.
This document applies to,double skin metal faced sandwich panels, which have an insulating core bonded
to both facings as defined in EN 14509 not stabilizing a whole building or parts of it.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1363-1, Fire resistance tests - Part 1: General requirements
EN 1363-2, Fire resistance tests - Part 2: Alternative and additional procedures
EN 1364-2, Fire resistance tests for non-loadbearing elements - Part 2: Ceilings
EN 1993-1-2, Eurocode 3 - Design of steel structures - Part 1-2: Structural fire design
EN 13501-2, Fire classification of construction products and building elements - Part 2: Classification using
data from fire resistance and/or smoke control tests, excluding ventilation services
EN 14509:2013, Self-supporting double skin metal faced insulating panels - Factory made products -
Specifications
prEN 14509-3:2024, Factory-made double skin metal faced insulating sandwich panels - Part 3: Test
methods for determining mechanical strength, building physical behaviour and durability
EN 15725:2023, Extended application on the fire performance of construction products and building
elements: Principle of EXAP standards and EXAP reports
EN ISO 13943, Fire safety - Vocabulary (ISO 13943)
3 Terms, definitions, symbols and abbreviations
3.1 Terms and definitions
For the purpose of this document, the terms and definitions given in EN 14509, EN 15725, EN 1364-2,
EN 1363-1 and EN ISO 13943 the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1.1
direct field of application of test results
outcome of a process (involving the application of defined rules) whereby a test result is deemed to be
equally valid for variations in one or more of the product properties and/or intended end-use
applications
3.1.2
extended field of application of test results
outcome of a process (involving the application of defined rules that may incorporate calculation
procedures) that predicts, for a variation of a product property and/or its intended end-use
application(s), a test result on the basis of one or more test results to the same test standard
3.1.3
factor
variation that can be applied to a parameter, e.g. a change in the core thickness
3.1.4
factor influence
potential cause of a change in the fire resistance when the factor is changed, e.g. an increase in the
loadbearing capacity R as a result of an increase in stiffness
3.1.5
fastening, fixing
component that fastens the panels to a support structure or to the test frame
3.1.6
fixing system
system consisting of fastenings and other possible means used to fasten the panels to a support structure
or to the test frame
3.1.7
length of assembly
length of the ceiling in the span (or panel length) direction in the reference test or in the end use
application
3.1.8
width of assembly
width of the ceiling in the cross direction of the span (or panel length) in the reference test or in the end-
use application
3.1.9
reference test
fire resistance test on which the extended application is based and the results of which are used as the
main source of data for the extended application
Note 1 to entry: The fire resistance test is in accordance with EN 1363-1 and EN 1364-2, and where applicable
EN 1363-2.
3.1.10
stitching
component for fixing panels to panels in the longitudinal joint
3.1.11
span length
centre to centre distance between two consecutive supports to which the sandwich panel is fixed
3.1.12
support structure
construction onto which the panel ceiling is fastened in the end-use application
3.1.13
supporting construction
construction that may be required for the testing of some building elements into which the test specimen
is assembled
3.1.14
test frame
frame containing the test construction for the purpose of mounting onto the furnace
3.2 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
b width of panel
d depth of core
c
F catenary force acting on the fasteners
Ed
F vertical force due to g acting at the fastener
v
F catenary force acting at the fastener at maximum temperature in the test
Ed1
F catenary force acting at the fastener at temperature for the increased span
Ed2
F vertical force due to g acting at the fastener at maximum temperature in the test
v1
F vertical force due to g acting at the fastener at temperature for the increased span
v2
g panel weight per square meter
L span length
n number of fasteners
p relative end movement in the fastener
T temperature
w deflection of the ceiling
α linear coefficient of thermal expansion
4 Establishing the field of extended application
4.1 General
An extended application analysis is required when the application differs in one or more parameters from
the one tested and described in the test report and/or in the classification document, and which is not
(fully) covered by the field of direct application of the classification document.
Extended application is a prediction of the expected fire resistance of fire-resistant metal faced sandwich
panels. It may be based on interpolation between or extrapolation from test data. The fundamental
consideration shall be that the fire-resistant metal faced sandwich panels after extension would achieve
the required fire performance if it were to be tested according to EN 1364-2.
The extended application of test results from metal faced sandwich panels used as a non-loadbearing
ceiling shall be based on the reference fire test results performed according to EN 1364-2 and may be
complemented by one or more additional tests. The general rules in EN 15725 shall be followed.
The necessary information for extrapolation of test results shall be assessed during the sampling and
testing as specified in prEN 14509-3:2024, 13.5.1.
4.2 Assumptions in the extended application
The following assumptions are considered when evaluating extended applications for sandwich panels:
a) the ceiling is required to provide fire resistance and shall be classified according to EN 13501-2;
b) the ceiling is assumed to be exposed on one side (either from above or below) to the standardized
heating conditions given in the EN 1363-1 fire resistance test specification or to alternative and
additional procedures given in the EN 1363-2;
c) the supporting construction to which the ceiling is fixed does not significantly deflect during the fire
exposure period;
d) after delamination of the fire exposed facing, the dead load of the panels is carried by a support
structure to which the ends of the sandwich panels are attached; the forces from the dead load will
be distributed to the support structure by the panel fixings from which loadbearing capacity shall be
evaluated;
e) the support structure has at least the same loadbearing capacity, R, of the fire resistance performance
as the sandwich panel ceiling regarding insulation and integrity, if the support structure is on the fire
exposed side in end use condition;
f) the self-weight of the facing and core is calculated from the volume and density of the materials;
g) the calculation of the reduction in the strength properties of steel at elevated temperature shall be in
accordance with EN 1993-1-2.
5 Rules for extended applications of the tested product/construction
5.1 General
When performing extended applications for a tested ceiling, changes can occur either in the materials
and/or in the construction. Both are dealt with in this document. Table 1 and Table 2 list the changes
which may or may not be made in an extended application assessment. The rules for the changes are
either given in Table 1 or Table 2 or in 5.2 and 5.3.
Table 1 — Material changes relevant to extended application
Parameter Factors Factor influence on Rules
performance
Integrity E Insulation I
Changes in Chemical influence a 5.2.2.1
no influence
metal facings composition of
coating
Change of colour influence influence 5.2.2.1
Change between influence influence 5.2.2.1
coated and non-
coated metal
Sheet thickness influence a Allowed up
no influence
to ± 0,2 mm of
tested thickness
Change from one influence influence 5.2.2.2
metal to another
Change in sheet influence influence 5.2.2.3
geometry
Changes in Amount influence influence 5.2.3
adhesive
Type influence a 5.2.3
no influence
Changes in Type major influence major 5.2.4
core material influence
Change in major influence major 5.2.4.2 to 5.2.4.6
composition influence
a
It is understood that when a change in a factor can influence the integrity of a joint, there is a
possibility that a change in the leakage of hot gases or in joint geometry can also influence the
temperature rise near the joint and therefore influence the insulation rating.
Table 2 — Constructional changes relevant to extended application
Parameter Factors Factor influence on Rules
performance
Integrity E Insulation I
Span length Decrease no influence no influence Allowed
Increase influence a 5.3.1
no influence
Panel width Decrease no influence no influence Allowed
Increase influence a Test results valid
no influence
up to + 20 %
Panel thickness Decrease influence major 5.3.2
e.g. core influence
Increase
thickness
Joint Type major influence major 5.3.3
construction influence
Stitching influence influence Not allowed
decreased
Stitching influence influence 5.3.3
increased
Sealants influence influence 5.3.3
Fixing system Type major influence a 5.3.4
no influence
Amount major influence a 5.3.4
no influence
decreased
Amount increased influence a Allowed
no influence
Protection major influence influence 5.3.4
decreased
Protection influence influence Allowed
increased
Length of Decrease no influence no influence 5.3.5
assembly
Increase influence a 5.3.5
no influence
Width of Decrease no influence no influence 5.3.5
assembly
Increase no influence no influence 5.3.5
Support Changes influence a 5.5
no influence
structure
a
It is understood that when a change in a factor can influence the integrity of a joint, there is a
possibility that a change in the leakage of hot gases or in joint geometry can also influence the
temperature rise near the joint and therefore influence the insulation rating.
5.2 Variations in the materials of the product
5.2.1 General
Metal faced sandwich panels consist of three main materials: facing metal sheets, adhesive and core
material. In the case of auto-adhesively bonded panels, the foamed core material also forms the adhesive
layer during the foaming process.
Changes in the components of a panel can have influences on the fire resistance. The rules in Clause 5
apply to such changes.
5.2.2 Variations in the metal sheets
5.2.2.1 Variations in the coatings
Organic surface coating on fire exposed side has no influence to fire resistance.
Organic surface coating on unexposed side has influence to fire resistance:
— Test results for very light colours are also valid for sandwich panels with light colours and dark
colours (colour definition acc. to EN 14509:2013, Annex E)
— Test results for light metallic colours are also valid for sandwich panels with very light colours, light
colours and dark colours (colour definition acc. to EN 14509:2013, Annex E)
— Test results for light colours are also valid for sandwich panels with dark colours (colour definition
acc. to EN 14509:2013, Annex E)
— Test results achieved with panels with organic coated metal sheet are not valid for panels without
organic coating.
Test results achieved with panels without organic coating are valid for panels with organic coating.
If modifications in the coatings on the unexposed side are made compared to the tested one, the reaction
to fire classification of the product shall be the same or better than the tested one.
5.2.2.2 Variations in the metal material
The following rules are valid for extended applications:
a) when steel is tested the test results are valid for all grades of steel;
b) when stainless steel is tested the test results are valid for all grades of s
...
prEN 15254-7は、金属サンドイッチパネル構造に関する重要な標準であり、内部の非耐荷重天井の設計に関連するパラメータと要因の変動についての指針を提供します。この文書は、EN 1364-2に従って試験を受けた金属面のサンドイッチパネルに適用されるものであり、EN 13501-2に従った分類を生成する可能性があります。 この標準の強みは、その包括的な適用範囲にあります。具体的には、ダブルスキンの金属面サンドイッチパネルに関して、内装工事における柔軟性を確保するための明確なルールを提供しています。これにより、設計者や施工者は安全基準を満たしつつ、プロジェクトのニーズに応じた最適な設計を行うことが可能になります。 また、延長適用に関するガイドラインの規定は、特定のパラメータの調整を容易にし、実際の施工状況に即した適応が可能であることを示しています。これは、金属サンドイッチパネルの利用が進む現代の建築において、非常に重要な要素です。 標準の関連性は、業界内での火災安全性の重要性が増している現状と合致しており、設計および施工の段階でのリスク管理に寄与するものです。内装における金属サンドイッチパネルの利用が拡大する中で、prEN 15254-7はその信頼性を確保し、適用の幅を広げる土台を提供します。
Le document prEN 15254-7 propose une norme essentielle pour la construction de plafonds non porteurs en panneaux sandwich métalliques. Son champ d'application se concentre sur l'application étendue des résultats issus des essais de résistance au feu, en suivant les orientations données par la norme EN 1364-2. Cette standardisation offre des directives précises et des procédures spécifiques concernant les variations possibles de certains paramètres lors de la conception de ces structures. Une des forces majeures de cette norme réside dans sa capacité à traiter des panneaux sandwich à double peau, dotés d'un cœur isolant collé à chaque revêtement, comme défini dans la norme EN 14509. Cela garantit que les matériaux utilisés non seulement respectent des critères de sécurité incendie rigoureux mais aussi s'adaptent à différents scénarios architecturaux sans compromettre la performance thermique ou structurelle. La pertinence de prEN 15254-7 se manifeste par son approche proactive face aux évolutions technologiques et aux besoins variés de l'industrie de la construction. En intégrant des méthodes d'évaluation qui mènent à une classification selon la norme EN 13501-2, le document favorise une harmonisation des pratiques tout en permettant une flexibilité conforme aux exigences locales et aux innovations de design. En résumé, prEN 15254-7 constitue une référence précieuse pour les professionnels travaillant avec des plafonds non porteurs en panneaux sandwich métalliques, assurant non seulement la sécurité incendie mais également une approche standardisée qui répond aux défis contemporains de la construction.
The standard prEN 15254-7 provides comprehensive guidelines for the extended application of results derived from fire resistance tests specifically for non-loadbearing ceilings utilizing metal sandwich panel construction. The scope of this document is well-defined, addressing the critical need for clarity and consistency in the design of internal non-loadbearing ceilings made from double skin metal faced sandwich panels. One of the notable strengths of this standard is its detailed approach to parameter variations and factors influencing the fire resistance classification as per EN 13501-2. By establishing specific rules and providing guidance, prEN 15254-7 effectively reduces uncertainties in the application of fire resistance test results. This contributes significantly to enhancing safety in building design and ensures compliance with fire safety regulations. Furthermore, the inclusion of procedures for variations in designs encourages flexibility while maintaining necessary safety standards. The relevance of this standard is underscored by its focus on materials defined in EN 14509, which supports the use of insulating cores bonded to metal facings, ensuring that industry practices are aligned with current safety expectations. Overall, prEN 15254-7 stands out as a vital document for professionals involved in the design and assessment of non-loadbearing ceilings, offering essential tools to ensure fire safety compliance and best practices in construction.
Das Dokument prEN 15254-7 befasst sich mit der erweiterten Anwendung von Ergebnissen aus Feuerwiderstandstests, speziell für nichttragende Decken, die aus doppelschichtigen, metallbeschichteten Sandwichpaneelen bestehen. Im Einklang mit den Regeln, die in diesem Standard festgelegt sind, wird der Geltungsbereich klar umrissen. In erster Linie konzentriert sich der Standard auf die Verfahren zur Klassifizierung dieser speziellen Konstruktionen, die gemäß EN 1364-2 getestet wurden und eine Klassifizierung gemäß EN 13501-2 erhalten könnten. Ein wesentlicher Stärke des prEN 15254-7 ist die umfassende Anleitung, die den Anwendern zur Verfügung steht. Der Standard beschreibt präzise, wie Abweichungen in bestimmten Parametern und Faktoren bei der Gestaltung von nichttragenden Decken berücksichtigt werden können. Dies fördert nicht nur die Effizienz bei der Planung und Ausführung solcher Bauprojekte, sondern verbessert auch die Sicherheit, indem gewährleistet wird, dass die Konstruktionen die notwendigen Feuerwiderstandsnormen erfüllen. Die Relevanz dieses Dokuments in der Bauindustrie kann nicht genug betont werden. Angesichts der steigenden Anforderungen an Brandschutz und Sicherheit ist die standardisierte Vorgehensweise zu Feuerwiderstandstests in nichttragenden Decken von großer Bedeutung. Die Anwendung von doppelschichtigen, metalldefinierten Sandwichpaneelen in modernen Bauwerken nimmt zu, was die Notwendigkeit eines solchen Standards umso dringlicher macht. prEN 15254-7 stellt sicher, dass diese Materialien korrekt beurteilt werden und trägt somit zu einem höheren Standard in der Brandschutztechnik bei. Darüber hinaus ist die Möglichkeit, spezifische Anpassungen und Variationen in den Dokumenten zu berücksichtigen, ein weiterer positiver Aspekt. Es erlaubt Fachleuten, flexibel auf unterschiedliche Baustellenanforderungen zu reagieren, ohne die Sicherheit zu gefährden. Dies zeigt die Praktikabilität und den visionären Ansatz, den dieser Standard verfolgt. Insgesamt ist prEN 15254-7 ein unverzichtbares Dokument für alle, die im Bereich des Brandschutzes von nichttragenden Decken arbeiten. Es fördert die Sicherheit und Effizienz in der Bauindustrie und stellt sicher, dass alle verwendeten Materialien den höchsten Standards entsprechen.
이 표준 문서 prEN 15254-7은 비구조적 내부 천장에 대해 설명하고 있으며, 금속 샌드위치 패널 구조의 연장 적용을 위한 규칙을 정의합니다. 이 표준의 범위는 EN 1364-2에 따라 시험된 내부 비구조적 천장 디자인에 관련된 특정 매개변수와 요인에 대한 변형을 다루며, 이는 EN 13501-2에 따른 분류를 생성할 수 있습니다. 이 표준의 강점은 비구조적 금속 샌드위치 패널에 대한 명확한 지침을 제공한다는 점입니다. 특히, 두 층의 금속 외장 패널이 절연 코어와 결합되어 있어 구조물 자체를 안정화하지 않는 상황에서도 적용 가능하다는 점에서 매우 유용합니다. 이러한 심화된 적용의 정의는 다양한 건축 디자인과 요구 사항에 맞춰 유연성을 제공합니다. 또한 prEN 15254-7은 금속 샌드위치 패널 상의 화재 저항 테스트 결과를 연장 적용하는 방법을 명시하고 있어, 산업 및 건축 분야에서의 화재 안전성 문제 해결에 현저한 기여를 할 것입니다. 비구조적 천장 설계와 관련된 수많은 변수를 다루며, 각종 실현 가능한 시나리오를 고려함으로써 사용자에게 실질적이고 유용한 정보를 제공합니다. 결론적으로, 이 표준은 특히 금속 샌드위치 패널을 사용한 비구조적 천장 디자인에 매우 중요한 자료가 될 것이며, 해당 분야의 안전성을 높이는 데 기여할 것으로 보입니다.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
