Powered industrial trucks - Visibility - Test methods and verification - Part 9: Order-picking, lateral- and front-stacking trucks with elevating operator position

This document specifies the requirements and test procedures for 360° visibility of self-propelled industrial order-picking, lateral- and front-stacking trucks with elevating operator position in accordance with ISO 5053-1 (herein after referred to as trucks), without a load and it is intended to be used in conjunction with EN 16842-1.
The visibility of trucks driving in very narrow aisles and/or driving with elevated operator (above 500 mm) is not within the scope of this standard.
Where specific requirements in this part are modified from the general requirements in EN 16842-1, the requirements of this part are truck specific and to be used for self-propelled industrial order-picking, lateral- and front-stacking trucks with elevating operator position.
This part of EN 16842 deals with all significant hazards, hazardous situations or hazardous events relevant to the visibility of the operator for applicable machines when used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer.

Kraftbetriebene Flurförderzeuge - Sichtverhältnisse - Prüfverfahren und Verifikation - Teil 9: Kommissionier-Flurförderzeuge und Dreiseitenstapler mit anhebbarer Bedienerposition

Dieses Dokument legt die Anforderungen und Prüfverfahren für die Rundumsicht (360°) von motorkraftbetriebenen Kommissionier- und Dreiseitenflurförderzeugen mit einer anhebbaren Bedienerposition in Übereinstimmung mit ISO 5053 1 (hier als Flurförderzeuge bezeichnet) fest und soll in Verbindung mit EN 16842 1 verwendet werden.
Die Rundumsicht von in sehr engen Gassen und/oder mit angehobener Bedienerposition (über 500 mm) fahrenden Flurförderzeugen fällt nicht in den Anwendungsbereich dieser Norm.
Wenn spezifische Anforderungen in diesem Teil von den allgemeinen Anforderungen in EN 16842 1 abweichen, sind die Anforderungen in diesem Teil für das Flurförderzeug spezifisch und für motorbetriebene Kommissionier  und Dreiseitenflurförderzeuge mit einer anhebbaren Bedienerposition zu verwenden.
Dieser Teil von EN 16842 behandelt alle signifikanten Gefährdungen, Gefährdungssituationen oder Gefährdungsereignisse, die für die Sichtverhältnisse des Bedieners der betreffenden Maschinen relevant sind, wenn sie bestimmungsgemäß und unter Bedingungen, die vom Hersteller als Fehlanwendung vernünftigerweise vorhersehbar sind, verwendet werden.

Chariots de manutention automoteurs - Visibilité ‐ Méthode d'essai et vérification - Partie 9 : Chariots préparateurs de commande, à prise latérale et frontale avec poste de conduite élevable

La présente Norme européenne spécifie les prescriptions et les modes opératoires relatifs à la visibilité
sur 360° des chariots de manutention automoteurs préparateurs de commande à vide, à prise latérale
et frontale avec poste de conduite élevable (ci‐après désignés chariot) conformes à l'ISO 5053‐1 et est
destinée à être utilisée conjointement avec le prEN 16842‐1.
Lorsque des prescriptions spécifiques de la présente partie sont modifiées par rapport aux
prescriptions générales du prEN 16842‐1, les prescriptions de la présente partie sont spécifiques au
chariot et sont à utiliser pour les chariots de manutention automoteurs préparateurs de commande, à
prise latérale et frontale avec poste de conduite élevable.
La présente partie de l'EN 16842 traite de tous les phénomènes dangereux, situations dangereuses ou
événements dangereux significatifs énumérés à l'Annexe ZA, Tableau ZA.1, relatifs à la visibilité de
l’opérateur pour les machines concernées lorsqu'elles sont utilisées comme prévu et dans des
conditions de mauvaise utilisation raisonnablement prévisible par le fabricant.

Vozila za talni transport - Gnana vozila za talni transport - Vidno polje voznika - Preskusna metoda in preverjanje - 9. del: Tovorni in tristrani viličarji z dvižnim položajem upravljavca

Ta standard določa zahteve in preskusne postopke za 360-stopinjsko vidno polje voznika pri tovornih in tristranih viličarjih z dvižnim položajem upravljavca s sedečim ali stoječim upravljavcem v skladu s standardom ISO 5053 -1 ter je predviden za uporabo skupaj s standardom EN 16842-1. Ta standard se ne uporablja za: – vožnjo z dvižnim položajem upravljavca nad 500 mm. Posebne zahteve iz standarda EN 16842-9 imajo prednost pred splošnimi zahtevami iz standarda EN 16842-1.

General Information

Status
Published
Publication Date
12-Feb-2019
Withdrawal Date
30-Aug-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
13-Feb-2019
Due Date
17-Apr-2019
Completion Date
13-Feb-2019

Relations

Buy Standard

Standard
EN 16842-9:2019
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Standard
EN 16842-9:2019
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
prEN 16842-9:2017
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 16842-9:2019
01-julij-2019

Vozila za talni transport - Gnana vozila za talni transport - Vidno polje voznika -

Preskusna metoda in preverjanje - 9. del: Tovorni in tristrani viličarji z dvižnim

položajem upravljavca

Powered industrial trucks - Visibility - Test method and verification - Part 9: Order-picking,

lateral- and front-stacking trucks with elevating operator position

Kraftbetriebene Flurförderzeuge - Sichtverhältnisse - Prüfverfahren und Verifikation - Teil

9: Kommissionier-Flurförderzeuge und Dreiseitenstapler mit anhebbarer
Bedienerposition

Chariots de manutention automoteurs - Visibilité ‐ Méthode d'essai et vérification -

Partie 9 : Chariots préparateurs de commande, à prise latérale et frontale avec poste de

conduite élevable
Ta slovenski standard je istoveten z: EN 16842-9:2019
ICS:
53.060 Industrijski tovornjaki Industrial trucks
SIST EN 16842-9:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 16842-9:2019
---------------------- Page: 2 ----------------------
SIST EN 16842-9:2019
EN 16842-9
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2019
EUROPÄISCHE NORM
ICS 53.060
English Version
Powered industrial trucks - Visibility - Test methods and
verification - Part 9: Order-picking, lateral- and front-
stacking trucks with elevating operator position

Chariots de manutention automoteurs - Visibilité - Kraftbetriebene Flurförderzeuge - Sichtverhältnisse -

Méthode d'essai et vérification - Partie 9 : Chariots Prüfverfahren und Verifikation - Teil 9:

préparateurs de commande, à prise latérale et frontale Kommissionier-Flurförderzeuge und Dreiseitenstapler

avec poste de conduite élevable mit anhebbarer Bedienerposition
This European Standard was approved by CEN on 26 November 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16842-9:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)

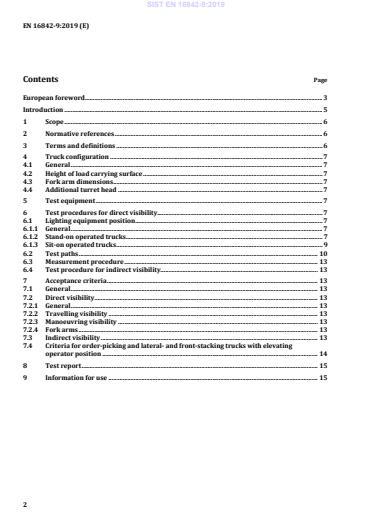

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 5

1 Scope .................................................................................................................................................................... 6

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 6

4 Truck configuration ....................................................................................................................................... 7

4.1 General ................................................................................................................................................................ 7

4.2 Height of load carrying surface .................................................................................................................. 7

4.3 Fork arm dimensions ..................................................................................................................................... 7

4.4 Additional turret head .................................................................................................................................. 7

5 Test equipment ................................................................................................................................................ 7

6 Test procedures for direct visibility......................................................................................................... 7

6.1 Lighting equipment position ....................................................................................................................... 7

6.1.1 General ................................................................................................................................................................ 7

6.1.2 Stand-on operated trucks ............................................................................................................................. 7

6.1.3 Sit-on operated trucks ................................................................................................................................... 9

6.2 Test paths ........................................................................................................................................................ 10

6.3 Measurement procedure ........................................................................................................................... 13

6.4 Test procedure for indirect visibility.................................................................................................... 13

7 Acceptance criteria ...................................................................................................................................... 13

7.1 General ............................................................................................................................................................. 13

7.2 Direct visibility .............................................................................................................................................. 13

7.2.1 General ............................................................................................................................................................. 13

7.2.2 Travelling visibility ..................................................................................................................................... 13

7.2.3 Manoeuvring visibility ............................................................................................................................... 13

7.2.4 Fork arms ........................................................................................................................................................ 13

7.3 Indirect visibility .......................................................................................................................................... 13

7.4 Criteria for order-picking and lateral- and front-stacking trucks with elevating

operator position ......................................................................................................................................... 14

8 Test report ...................................................................................................................................................... 15

9 Information for use ..................................................................................................................................... 15

---------------------- Page: 4 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)
European foreword

This document (EN 16842-9:2019) has been prepared by Technical Committee CEN/TC 150 “Industrial

Trucks - Safety”, the secretariat of which is held by BSI.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by August 2019, and conflicting national standards shall

be withdrawn at the latest by August 2019.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This European Standard is intended to be used in combination with the requirements in EN 16842−1.

The EN 16842 series consists of the following parts under the general title "Powered industrial trucks –

Visibility – Test methods and verification":
— Part 1: General requirements;

— Part 2: Sit-on counterbalance trucks and rough terrain masted trucks up to and including 10 000 kg

capacity;
— Part 3: Reach trucks up to and including 10 000 kg capacity;

— Part 4: Industrial variable reach trucks up to and including 10 000 kg capacity;

— Part 5: Industrial variable reach trucks greater than10 000 kg capacity (under preparation);

— Part 6: Sit-on counterbalance trucks and rough terrain masted trucks greater than 10 000 kg

capacity;

— Part 7: Variable reach and masted container trucks handling freight containers of 6 m (20 ft) length

and longer;

— Part 8: Stand on counterbalance trucks up to and including 10 000 kg capacity (under preparation).

— Part 9: Order-picking, lateral- and front-stacking trucks with elevating operator position;

— Part 10: Towing and pushing tractors and burden carrier.
It is intended to develop the parts related to the following machinery:
— Pallet stacking trucks (rider controlled);
— Single side loader;
— Multi-directional forklift truck;
— Articulated counterbalance lift truck;
— Non-stacking low-lift straddle carrier (as defined in ISO 5053-1:2015, 3.18);
— Stacking high-lift straddle carrier (as defined in ISO 5053-1:2015, 3.19).
---------------------- Page: 5 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 6 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)
Introduction
This document is a type-C standard as stated in EN ISO 12100.

This document is of relevance, in particular, for the following stakeholder groups representing the

market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);

— health and safety bodies (regulators, accident prevention organizations, market surveillance, etc.).

Others can be affected by the level of machinery safety achieved with the means of the document by the

above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);

— machine users/employees (e.g. trade unions, organizations for people with special needs);

— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).

The above-mentioned stakeholder groups have been given the possibility to participate at the drafting

process of this document.

The machinery concerned and the extent to which hazards, hazardous situations or hazardous events

are covered are indicated in the Scope of this document.

When requirements of this type-C standard are different from those which are stated in type-A or type-

B standards, the requirements of this type-C standard take precedence over the requirements of the

other standards for machines that have been designed and built according t
...

SLOVENSKI STANDARD
SIST EN 16842-9:2019
01-julij-2019

Vozila za talni transport - Gnana vozila za talni transport - Vidno polje voznika -

Preskusna metoda za preverjanje - 9. del: Tovorni in tristrani viličarji z dvižnim

položajem upravljavca

Powered industrial trucks - Visibility - Test method for verification - Part 9: Order-picking,

lateral- and front-stacking trucks with elevating operator position

Kraftbetriebene Flurförderzeuge - Sichtverhältnisse - Testmethoden zur Verifikation - Teil

9: Kommissionier-Flurförderzeug und Dreiseitenstapler mit anhebbarer Bedienerposition

Chariots de manutention automoteurs - Visibilité ‐ Méthode d'essai et vérification -

Partie 9 : Chariots préparateurs de commande, à prise latérale et frontale avec poste de

conduite élevable
Ta slovenski standard je istoveten z: EN 16842-9:2019
ICS:
53.060 Industrijski tovornjaki Industrial trucks
SIST EN 16842-9:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 16842-9:2019
---------------------- Page: 2 ----------------------
SIST EN 16842-9:2019
EN 16842-9
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2019
EUROPÄISCHE NORM
ICS 53.060
English Version
Powered industrial trucks - Visibility - Test methods and
verification - Part 9: Order-picking, lateral- and front-
stacking trucks with elevating operator position

Chariots de manutention automoteurs - Visibilité - Kraftbetriebene Flurförderzeuge - Sichtverhältnisse -

Méthode d'essai et vérification - Partie 9 : Chariots Prüfverfahren und Verifikation - Teil 9:

préparateurs de commande, à prise latérale et frontale Kommissionier-Flurförderzeuge und Dreiseitenstapler

avec poste de conduite élevable mit anhebbarer Bedienerposition
This European Standard was approved by CEN on 26 November 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16842-9:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)
Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 5

1 Scope .................................................................................................................................................................... 6

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 6

4 Truck configuration ....................................................................................................................................... 7

4.1 General ................................................................................................................................................................ 7

4.2 Height of load carrying surface .................................................................................................................. 7

4.3 Fork arm dimensions ..................................................................................................................................... 7

4.4 Additional turret head .................................................................................................................................. 7

5 Test equipment ................................................................................................................................................ 7

6 Test procedures for direct visibility......................................................................................................... 7

6.1 Lighting equipment position ....................................................................................................................... 7

6.1.1 General ................................................................................................................................................................ 7

6.1.2 Stand-on operated trucks ............................................................................................................................. 7

6.1.3 Sit-on operated trucks ................................................................................................................................... 9

6.2 Test paths ........................................................................................................................................................ 10

6.3 Measurement procedure ........................................................................................................................... 13

6.4 Test procedure for indirect visibility.................................................................................................... 13

7 Acceptance criteria ...................................................................................................................................... 13

7.1 General ............................................................................................................................................................. 13

7.2 Direct visibility .............................................................................................................................................. 13

7.2.1 General ............................................................................................................................................................. 13

7.2.2 Travelling visibility ..................................................................................................................................... 13

7.2.3 Manoeuvring visibility ............................................................................................................................... 13

7.2.4 Fork arms ........................................................................................................................................................ 13

7.3 Indirect visibility .......................................................................................................................................... 13

7.4 Criteria for order-picking and lateral- and front-stacking trucks with elevating

operator position ......................................................................................................................................... 14

8 Test report ...................................................................................................................................................... 15

9 Information for use ..................................................................................................................................... 15

---------------------- Page: 4 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)
European foreword

This document (EN 16842-9:2019) has been prepared by Technical Committee CEN/TC 150 “Industrial

Trucks - Safety”, the secretariat of which is held by BSI.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by August 2019, and conflicting national standards shall

be withdrawn at the latest by August 2019.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This European Standard is intended to be used in combination with the requirements in EN 16842−1.

The EN 16842 series consists of the following parts under the general title "Powered industrial trucks –

Visibility – Test methods and verification":
— Part 1: General requirements;

— Part 2: Sit-on counterbalance trucks and rough terrain masted trucks up to and including 10 000 kg

capacity;
— Part 3: Reach trucks up to and including 10 000 kg capacity;

— Part 4: Industrial variable reach trucks up to and including 10 000 kg capacity;

— Part 5: Industrial variable reach trucks greater than10 000 kg capacity (under preparation);

— Part 6: Sit-on counterbalance trucks and rough terrain masted trucks greater than 10 000 kg

capacity;

— Part 7: Variable reach and masted container trucks handling freight containers of 6 m (20 ft) length

and longer;

— Part 8: Stand on counterbalance trucks up to and including 10 000 kg capacity (under preparation).

— Part 9: Order-picking, lateral- and front-stacking trucks with elevating operator position;

— Part 10: Towing and pushing tractors and burden carrier.
It is intended to develop the parts related to the following machinery:
— Pallet stacking trucks (rider controlled);
— Single side loader;
— Multi-directional forklift truck;
— Articulated counterbalance lift truck;
— Non-stacking low-lift straddle carrier (as defined in ISO 5053-1:2015, 3.18);
— Stacking high-lift straddle carrier (as defined in ISO 5053-1:2015, 3.19).
---------------------- Page: 5 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 6 ----------------------
SIST EN 16842-9:2019
EN 16842-9:2019 (E)
Introduction
This document is a type-C standard as stated in EN ISO 12100.

This document is of relevance, in particular, for the following stakeholder groups representing the

market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);

— health and safety bodies (regulators, accident prevention organizations, market surveillance, etc.).

Others can be affected by the level of machinery safety achieved with the means of the document by the

above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);

— machine users/employees (e.g. trade unions, organizations for people with special needs);

— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).

The above-mentioned stakeholder groups have been given the possibility to participate at the drafting

process of this document.

The machinery concerned and the extent to which hazards, hazardous situations or hazardous events

are covered are indicated in the Scope of this document.

When requirements of this type-C standard are different from those which are stated in type-A or type-

B standards, the requirements of this type-C standard take precedence over the requirements of the

other standards for machines that have been designed and built according to the
...

SLOVENSKI STANDARD
oSIST prEN 16842-9:2017
01-november-2017

9R]LOD]DWDOQLWUDQVSRUW*QDQDYR]LOD]DWDOQLWUDQVSRUW9LGQRSROMHYR]QLND

3UHVNXVQDPHWRGD]DSUHYHUMDQMHGHO7RYRUQLLQWULVWUDQLYLOLþDUML]GYLåQLP

SRORåDMHPXSUDYOMDYFD

Powered industrial trucks - Visibility - Test method for verification - Part 9: Order-picking,

lateral- and front-stacking trucks with elevating operator position

Kraftbetriebene Flurförderzeuge - Sichtverhältnisse - Testmethoden zur Verifikation - Teil

9: Kommissionier-Flurförderzeug und Dreiseitenstapler mit anhebbarer Bedienerposition

&KDULRWVGHPDQXWHQWLRQDXWRPRWHXUV9LVLELOLWp"0pWKRGHG
HVVDLHWYpULILFDWLRQ

3DUWLH&KDULRWVSUpSDUDWHXUVGHFRPPDQGHjSULVHODWpUDOHHWIURQWDOHDYHFSRVWHGH

FRQGXLWHpOHYDEOH
Ta slovenski standard je istoveten z: prEN 16842-9
ICS:
53.060 Industrijski tovornjaki Industrial trucks
oSIST prEN 16842-9:2017 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 16842-9:2017
---------------------- Page: 2 ----------------------
oSIST prEN 16842-9:2017
DRAFT
EUROPEAN STANDARD
prEN 16842-9
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2017
ICS 53.060
English Version
Powered industrial trucks - Visibility - Test method for
verification - Part 9: Order-picking, lateral- and front-
stacking trucks with elevating operator position

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee

CEN/TC 150.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16842-9:2017 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 16842-9:2017
prEN 16842-9:2017 (E)
Contents Page

European Foreword ...................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Truck configuration ....................................................................................................................................... 5

4.1 General ................................................................................................................................................................ 5

4.2 Height of load carrying surface .................................................................................................................. 5

4.3 Fork arm dimensions ..................................................................................................................................... 6

4.4 Additional turret head .................................................................................................................................. 6

5 Test equipment ................................................................................................................................................ 6

6 Test procedures for direct visibility......................................................................................................... 6

6.1 Light source position ..................................................................................................................................... 6

6.1.1 General ................................................................................................................................................................ 6

6.1.2 Stand-on operated trucks ............................................................................................................................. 6

6.1.3 Sit-on operated trucks ................................................................................................................................... 7

6.1.4 Test paths for order picking, lateral- and front-stacking trucks with elevating

operator position ............................................................................................................................................ 8

6.2 Measurement procedure ........................................................................................................................... 11

6.3 Test procedure for indirect visibility.................................................................................................... 11

7 Acceptance criteria ...................................................................................................................................... 11

7.1 General ............................................................................................................................................................. 11

7.2 Direct visibility .............................................................................................................................................. 11

7.2.1 General ............................................................................................................................................................. 11

7.2.2 Travelling visibility ..................................................................................................................................... 11

7.2.3 Manoeuvring visibility ............................................................................................................................... 11

7.2.4 Fork arms ........................................................................................................................................................ 11

7.3 Indirect visibility .......................................................................................................................................... 11

7.4 Criteria for lateral- and front-stacking trucks with elevating operator position ................. 12

7.5 Criteria for order-picking trucks with elevating operator position .......................................... 13

8 Test report ...................................................................................................................................................... 14

9 Information for use ..................................................................................................................................... 14

Annex ZA (informative) Relationship between this European Standard and the essential

requirements of EU Directive 2006/42/EC aimed to be covered ............................................... 15

Bibliography ................................................................................................................................................................. 16

---------------------- Page: 4 ----------------------
oSIST prEN 16842-9:2017
prEN 16842-9:2017 (E)
European Foreword

This document (prEN 16842-9:2017) has been prepared by Technical Committee CEN/TC 150

“Industrial Trucks - Safety”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association, and supports essential requirements of EU Directive(s).

For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this

document.

This European Standard is intended to be used in combination with the requirements in EN 16842−1.

The EN 16842 series consists of the following parts under the general title "Powered industrial trucks –

Visibility – Test methods and verification":
— Part 1: General requirements;

— Part 2: Sit-on counterbalance trucks and rough terrain masted trucks up to and including 10 000 kg

capacity;

— Part 3: Reach trucks up to and including 10 000 kg capacity (under preparation);

— Part 4: Variable reach industrial trucks up to and including 10 000 kg capacity (under preparation);

— Part 5: Variable reach industrial trucks greater than10 000 kg capacity (under preparation);

— Part 6: Sit-on counterbalance trucks and rough terrain masted trucks greater than 10 000 kg capacity

(under preparation);
— Part 7: Variable reach and masted container handler (under preparation);

— Part 8: Stand on counterbalance trucks up to and including 10 000 kg capacity (under preparation).

— Part 9: VNA trucks;
It is intended to develop the parts related to the following machinery:
— Pallet stacking trucks (rider controlled);
— Burden and personnel carrier;
— Tractor (IND Truck);
— Single side loader;
— Multi-directional forklift truck;
— Articulated counterbalance lift truck;
— Low lift straddle carriers (as defined in ISO 5053-1:2015, Clause 3.18);
— High lift straddle carriers (as defined in ISO 5053-1:2015, Clause 3.19).
---------------------- Page: 5 ----------------------
oSIST prEN 16842-9:2017
prEN 16842-9:2017 (E)
Introduction
This document is a type-C standard as stated in EN ISO 12100.

This document is of relevance, in particular, for the following stakeholder groups representing the

market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);

— health and safety bodies (regulators, accident prevention organizations, market surveillance etc.)

Others can be affected by the level of machinery safety achieved with the means of the document by the

above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);

— machine users/employees (e.g. trade unions, organizations for people with special needs);

— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).

The above-mentioned stakeholder groups have been given the possibility to participate at the drafting

process of this document.

The machinery concerned and the extent to which hazards, hazardous situations or hazardous events

are covered are indicated in the Scope of this document.

When requirements of this type-C standard are different from those which are stated in type-A or type-

B standards, the requirements of this type-C standard take precedence over the requirements of the

other standards for machines that have been designed and built according to the requirements of this

type-C standard.”
---------------------- Page: 6 ----------------------
oSIST prEN 16842-9:2017
prEN 16842-9:2017 (E)
1 Scope

This European Standard specifies the requirements and test procedures for 360° visibility of unladen

self-propelled industrial order-picking, lateral- and front-stacking trucks with elevating operator

position (herein referred to as truck), in accordance with ISO 5053-1 and is intended to be used in

conjunction with prEN 16842-1.

Where specific requirements in this part are modified from the general requirements in prEN 16842-1,

the requirements of this part are truck specific and to be used for self-propelled industrial order-

picking, lateral- and front-stacking trucks with elevating operator position.

This part of EN 16842 deals with all significant hazards, hazardous situations or hazardous events as

listed in Annex ZA Table ZA.1, relevant to the visibility of the operator for applicable machines when

used as intended and under conditions of misuse which are reasonably foreseeable by the

manufacturer.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

prEN 16842-1:2016, Powered industrial trucks - Visibility - Test methods and verification - Part 1: General

requirements

EN ISO 3691-1:2015, Industrial trucks - Safety requirements and verification - Part 1: Self-propelled

industrial trucks, other than driverless trucks, variable-reach trucks and burden-carrier trucks (ISO 3691-

1:2011, including Cor 1:2013)

ISO 5053-1:2015, Industrial trucks — Terminology and classification — Part 1: Types of indust

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
