Laboratory installations - Ventilation systems in laboratories

This document applies for the planning, design, installation and commissioning of ventilation systems in laboratories. It also applies for scientific classrooms in schools when equipped with a ventilation system.
The application of this document depends not on the term laboratory in its narrower sense but this document also applies also for laboratory-related rooms in which work with dangerous or health hazardous substances is performed.

Laboreinrichtungen - Lüftungssysteme in Laboratorien

Dieses Dokument gilt für die Planung, Auslegung, den Einbau und die Inbetriebnahme von Lüftungssystemen in Laboren. Es gilt auch für wissenschaftliche Fachräume in Schulen, soweit diese mit einem Lüftungssystem ausgestattet sind.
Die Anwendung dieses Dokuments ist nicht vom Begriff Labor im engeren Sinn abhängig, sondern es gilt auch für laborähnliche Räume, in denen Tätigkeiten mit Gefahrstoffen oder gesundheitsgefährdenden Stoffen verrichtet werden.

Installations de laboratoire - Systèmes de ventilation pour laboratoires

Le présent document s’applique à la planification, la conception, l’installation et la mise en service des systèmes de ventilation dans les laboratoires. Il s’applique également aux salles de classe scientifiques dans les écoles lorsqu’elles sont équipées d'un système de ventilation.
L’application du présent document ne dépend pas du terme laboratoire dans son sens le plus restreint, mais le présent document s’applique également aux salles associées à des laboratoires dans lesquelles sont réalisés des travaux avec des substances dangereuses ou nocives.

Laboratorijska oprema - Sistemi prezračevanja v laboratorijih

General Information

Status
Published
Publication Date
07-Apr-2020
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
08-Apr-2020
Completion Date
08-Apr-2020

Buy Standard

Technical specification
-TS CEN/TS 17441:2020
English language
24 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Technical specification
-TS FprCEN/TS 17441:2019
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST-TS CEN/TS 17441:2020
01-junij-2020
Laboratorijska oprema - Sistemi prezračevanja v laboratorijih
Laboratory installations - Ventilation systems in laboratories
Laboreinrichtungen - Lufttechnik in Laboratorien
Installations de laboratoire - Systèmes de ventilation pour laboratoires
Ta slovenski standard je istoveten z: CEN/TS 17441:2020
ICS:
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
91.140.30 Prezračevalni in klimatski Ventilation and air-
sistemi conditioning systems
SIST-TS CEN/TS 17441:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TS CEN/TS 17441:2020
---------------------- Page: 2 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
April 2020
TECHNISCHE SPEZIFIKATION
ICS 91.140.30; 71.040.10
English Version
Laboratory installations - Ventilation systems in
laboratories

Installations de laboratoire - Systèmes de ventilation Laboreinrichtungen - Lufttechnik in Laboratorien

pour laboratoires

This Technical Specification (CEN/TS) was approved by CEN on 27 January 2020 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to

submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS

available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in

parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17441:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)

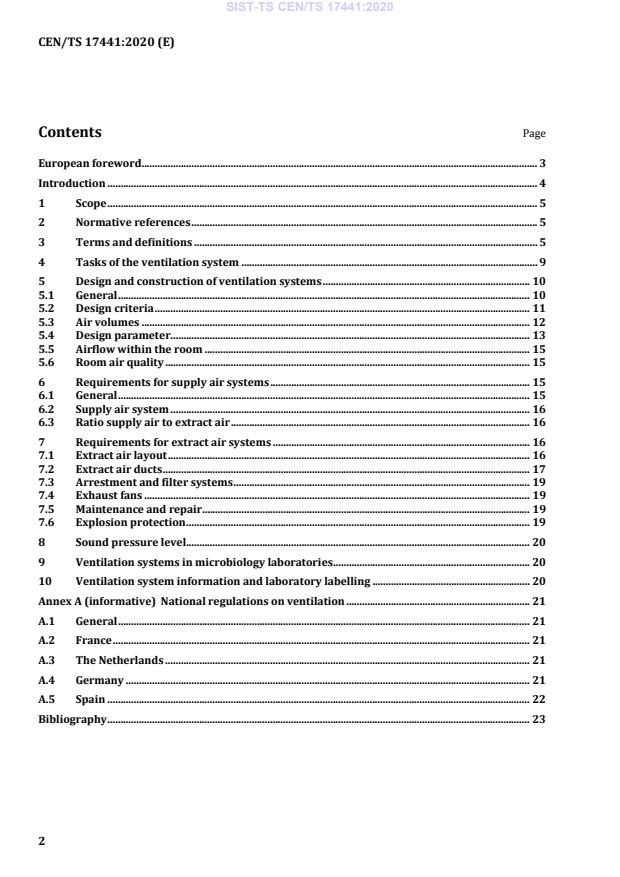

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Tasks of the ventilation system ................................................................................................................. 9

5 Design and construction of ventilation systems ............................................................................... 10

5.1 General ............................................................................................................................................................. 10

5.2 Design criteria ............................................................................................................................................... 11

5.3 Air volumes .................................................................................................................................................... 12

5.4 Design parameter ......................................................................................................................................... 13

5.5 Airflow within the room ............................................................................................................................ 15

5.6 Room air quality ........................................................................................................................................... 15

6 Requirements for supply air systems ................................................................................................... 15

6.1 General ............................................................................................................................................................. 15

6.2 Supply air system ......................................................................................................................................... 16

6.3 Ratio supply air to extract air .................................................................................................................. 16

7 Requirements for extract air systems .................................................................................................. 16

7.1 Extract air layout .......................................................................................................................................... 16

7.2 Extract air ducts ............................................................................................................................................ 17

7.3 Arrestment and filter systems ................................................................................................................. 19

7.4 Exhaust fans ................................................................................................................................................... 19

7.5 Maintenance and repair............................................................................................................................. 19

7.6 Explosion protection ................................................................................................................................... 19

8 Sound pressure level ................................................................................................................................... 20

9 Ventilation systems in microbiology laboratories ........................................................................... 20

10 Ventilation system information and laboratory labelling ............................................................ 20

Annex A (informative) National regulations on ventilation ...................................................................... 21

A.1 General ............................................................................................................................................................. 21

A.2 France ............................................................................................................................................................... 21

A.3 The Netherlands ........................................................................................................................................... 21

A.4 Germany .......................................................................................................................................................... 21

A.5 Spain ................................................................................................................................................................. 22

Bibliography ................................................................................................................................................................. 23

---------------------- Page: 4 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
European foreword

This document (CEN/TS 17441:2020) has been prepared by Technical Committee CEN/TC 332

“Laboratory equipment”, the secretariat of which is held by DIN.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

According to the CEN/CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
Introduction

Operation of ventilation systems in laboratory buildings or in individual laboratory rooms requires

particular care and attention due to its safety relevance. This applies for users of ventilation systems as

well as for operators of laboratory buildings.

This technical specification supports design, planning, execution and maintenance tasks of these

ventilation systems. A special expertise with regard to the operation and function of laboratories and

the effectiveness of technical laboratory equipment is required, particularly because of the many

possible interfaces for extract air equipment relevant to safety.
---------------------- Page: 6 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
1 Scope

This document applies for the planning, design, installation and commissioning of ventilation systems

in laboratories. It also applies for scientific classrooms in schools when equipped with a ventilation

system.

The application of this document depends not on the term laboratory in its narrower sense but this

document also applies also for laboratory-related rooms in which work with dangerous or health

hazardous substances is performed.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 12128:1998, Biotechnology — Laboratories for research, development and analysis — Containment

levels of microbiology laboratories, areas of risk, localities and physical safety requirements

EN 12792:2003, Ventilation for buildings — Symbols, terminology and graphical symbols

EN 14175-2, Fume cupboards — Part 2: Safety and performance requirements

EN 14175-7, Fume cupboards — Part 7: Fume cupboards for high heat and acidic load

EN 14470-1, Fire safety storage cabinets — Part 1: Safety storage cabinets for flammable liquids

EN 14470-2, Fire safety storage cabinets — Part 2: Safety cabinets for pressurised gas cylinders

EN 16798-1, Energy performance of buildings — Ventilation for buildings — Part 1: Indoor environmental

input parameters for design and assessment of energy performance of buildings addressing indoor air

quality, thermal environment, lighting and acoustics — Module M1-6

EN 16798-3:2017, Energy performance of buildings — Ventilation for buildings — Part 3: For non-

residential buildings — Performance requirements for ventilation and room-conditioning systems

(Modules M5-1, M5-4)

CEN/TR 16798-4:2017, Energy performance of buildings — Ventilation for buildings — Part 4:

Interpretation of the requirements in EN 16798-3 — For non-residential buildings — Performance

requirements for ventilation and room-conditioning systems (Modules M5-1, M5-4)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 12792 and the following apply.

For the different types of air in a laboratory or in a laboratory building EN 16798-3:2017, Table 6,

applies.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp/ui
---------------------- Page: 7 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
3.1
laboratory

workspace with associated areas, such as access and support areas, with specific technical

requirements for which ventilation may be required

Note 1 to entry: In a laboratory, tasks are usually carried out during which possible hazards or potential

sources of nuisance, e.g. due to substances or procedures, can be kept under control. A ventilation system is

usually essential for such a task and can also be necessary for environmental control.

3.2
useable laboratory floor space

floor space of a laboratory room or a laboratory area; not included as useable laboratory floor space are

constructionally separated corridors and areas used for writing or analysis of results with a separated

ventilation

Note 1 to entry: Areas for writing or analysis of results can be considered to be separated from the useable

laboratory floor space e.g. by a suitable directed air flow.
3.3
extract air equipment

laboratory equipment that requires specified extract air volumes for its proper function, e.g. fume

cupboards, safety storage cabinets and local extract devices (see 3.9) or safety workbenches with

extract air connection

Note 1 to entry: Extract air equipment may need constant, intermitting or a continuously changing (hereinafter

referred to as “variable”) extracted air. Knowledge of all extract air equipment of a laboratory (see 3.4 to 3.17.) is

important for balancing the air volumes of the ventilation system.
3.4
fume cupboard

protective device to be ventilated by an induced flow of air through an adjustable working opening

— with an enclosure designed to limit the spread of airborne contaminants to operators and other

personnel outside the device,
— offering a degree of mechanical protection, and
— providing for the controlled release of airborne contaminants

Note 1 to entry: A fume cupboard is a ventilated enclosure complying with the requirements specified in

EN 14175-2.
[SOURCE: EN 14175-1:2003, 3.1]
3.5
pressure cascade

process whereby air flows from one area, which is maintained at a higher pressure, to another area at a

lower pressure
3.6
recirculatory filtration fume cupboard

protective device able, by trapping specified pollutants, to exhaust air back to the room

[SOURCE: EN 14175-1:2003, 3.6 modified - “room” was deleted from “room air” in the definition]

---------------------- Page: 8 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
3.7
air-extracted workplace

containment device with the required level of protection established by risk assessment

Note 1 to entry: An air-extracted workplace may be regarded as a form of extract air equipment. At an air-

extracted workplace, not all protective measures of a fume cupboard are achieved, e.g. physical protection against

splashes and splinters cannot be given.
3.8
air-extracted enclosure

extract air equipment for a specific local routing of air that usually meets one of the protective aims

named in 3.4, e.g. dilution of pollutants in the interior to avoid hazardous, explosive atmospheres

3.9
local extract device

extract air equipment for local routing of air, e.g. to extract air around appliances and open bottles or

drums, typically with a flexible hose routing or articulated extract arm
Note 1 to entry: Articulated extract arm is abbreviated often by AEA.
3.10
microbiological safety cabinet
MSC

ventilated enclosure intended to offer protection to the user and the environment from the aerosols

arising from the handling of potentially hazardous and hazardous microorganisms, with air discharged

to the atmosphere being filtered
[SOURCE: EN 12469:2000, 3.3]
3.11
equipment vent lines

pipework in a laboratory, usually under negative pressure (relative to atmosphere), for laboratory

equipment outlets without a significant extract air volume

Note 1 to entry: A relieving pipework (with pump that creates a vacuum) usually is extract air equipment.

3.12
ventilated storage cabinet

ventilated laboratory equipment to store and provide substances that may constitute toxic hazards or

may contribute to the fire load or other hazards

Note 1 to entry: Safety storage cabinets are extract air equipment as soon as they are operated with extract air.

This is the most frequent operating mode. For safety storage cabinets for flammable liquids, see EN 14470-1, for

safety storage cabinets for pressurized gas cylinders see EN 14470-2.

Note 2 to entry: Ventilated storage cabinets should generally comply with EN 14056.

3.13
ventilated animal enclosure

enclosure to house animals and to limit exposure to allergenic substances or to provide containment for

pathogens
Note 1 to entry: Individually ventilated cages (IVCs).
---------------------- Page: 9 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
3.14
ventilated weighing workplace

workplace with directed air routing for weighing toxic substances without affecting the weighing

process with airflows
3.15
bench extraction

extract air equipment for a directed air routing above or on the side of a laboratory bench

Note 1 to entry: A bench extraction usually is executed as a hood to capture ascending gases or vapours, e.g. for

hydrogen or hot exhaust air, from e.g. analytical equipment.
3.16
underbench extraction
extract air equipment for a directed air routing below a laboratory bench

Note 1 to entry: An underbench extraction usually is executed to extract gases or vapours with a higher density

than air and can e.g. be carried out by means of a perforated worktop (downdraught bench).

3.17
floor extraction
extract air equipment where air is extracted at, close to or through a floor

Note 1 to entry: The floor extraction may stand alone in the room, be integrated into laboratory furniture or

embedded in floors or walls.
3.18
ventilation system for laboratories

totality of fix installed technical devices for supply and disposal of air in a laboratory room or

laboratory building

Note 1 to entry: Laboratory ventilation systems usually contain air intakes and outlets, piping and ducts for

ventilation purposes, dampers, valves, control devices, fans, sound attenuators, etc. The interface to the laboratory

furniture usually is at the scheduled ventilation connection of the respective laboratory furniture or in the wall or

ceiling intake and outlet of the laboratory (room).
3.19
air exchange rate

number of times per hour that the total volume of the air movement due to the ventilation system is

exchanged with outdoor air in comparison to the volume of the space
3.20
chemicals storage room
room that is particularly used to store or provide chemicals in closed vessels

Note 1 to entry: Collection rooms in schools are not regarded as chemicals storage rooms.

3.21
solvents room

room with special equipment for storage or provision of organic solvents and other substances with a

low ignition point in closed vessels
---------------------- Page: 10 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
3.22
outdoor air

total volume or proportion of air entering the system or opening from outdoors before any air

treatment

[SOURCE: EN 16798-3:2017, Table 6 modified - “total volume or proportion of” was added in the

beginning]
3.23
supply air

airflow entering the treated room, or air from the system entering the room after any treatment

3.24
extract air
airflow leaving the treated room and entering the air treatment system
[SOURCE: EN 16798-3:2017, Table 6]
3.25
recirculation air

extract air that is returned to the air treatment system and reused as supply air

[SOURCE: EN 16798-3:2017, Table 6]
3.26
exhaust air

airflow leaving the extract air treatment system and discharged to the atmosphere

[SOURCE: EN 16798-3:2017, Table 6]
3.27
secondary air
airflow taken from a room and returned to the same room after any treatment
[SOURCE: EN 16798-3:2017, Table 6, modified - note has been removed]
3.28
separative devices
isolators, glove boxes and similar total containment devices
Note 1 to entry: See EN ISO 14644-7.
4 Tasks of the ventilation system
Ventilation systems in laboratories shall meet following requirements:

a) They shall dilute and remove small amounts of hazardous substances (gases, vapours, dust, and

aerosols) which can be released in laboratories to such an extent that health risks by inhalation are

avoided. Hazardous substances should be captured or contained as close to their point of origin as

possible, e.g. by extract air equipment;

NOTE The room air in the common area, usually from the floor to a room height of 2 m, is regarded as

accessible to breathing.
---------------------- Page: 11 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)

b) The ventilation system of a laboratory shall not only safeguard the room air exchange requirement

but also the spatial and temporary (e.g. in case of a variable air volume of fume cupboards or in

case of pressure variations) requirement of extract and supply air of laboratory equipment and

appliances (extract air equipment, see 3.3);

c) The air exchange requirement of a laboratory (room) may be covered by the air extracted from the

extract air equipment of this laboratory. In that case, additional extract air cannot be required

whilst the equipment is in use;

d) Additional ventilation equipment in a laboratory can also be operated in secondary air mode (see

3.27), for instance for heating or cooling as well as for filtration;

e) The room air quality shall be ensured in accordance with EN 16798-1. This particularly applies for

safeguarding of room air comfort according to the criteria stipulated in EN 16798-1, e.g. for

humidity, turbulences, air velocity and temperature;

f) Pressure cascades shall meet safety requirements against spread of potentially hazardous

substances;

g) If required, the ventilation system shall also meet any clean room standards specified;

h) If required, the ventilation system shall also meet any standards specified for reproducibility of

results.
5 Design and construction of ventilation systems
5.1 General

Requirements for the ventilation system of a laboratory result from the requirements of the laboratory

room, the extract air equipment that is connected to the ventilation system, the ventilation system itself,

the plant rooms in which the ventilation system is located, and possibly also from the shell of the

laboratory building.

When designing laboratory ventilation systems the following requirements shall be taken into account:

a) Safety requirements based on legal regulations that may result from the general utilization of the

laboratory, e.g. to avoid accumulation of small amounts of hazardous substances in the laboratory

room air;

b) Requirements related to the technical function resulting from the positioning, connection and

operation of extract air equipment, e.g. air exchange rate, control characteristics, reliability and

cross-currents;

c) Requirements that result from connecting extract air equipment with the ventilation system, e.g.

fire protection, corrosion resistance (special application fume cupboards), temperature resistance

and leak tightness of ducts, ease of maintenance, cleaning and access;

d) Room air conditioning requirements according to EN 16798-1 in so far as applicable. Meeting

safety relevant regulations may lead to deviations from EN 16798-1 [see 5.1a)]. Furthermore,

deviations may also be necessary due to room ventilation depending on the use, e.g. for cold storage

rooms, solvent storage rooms, clean rooms and laboratories where tolerance to air velocity or close

control may be required;

e) Requirements that result case by case from legal regulations and from design expectance for energy

efficiency of the laboratory building and especially of the ventilation system;
---------------------- Page: 12 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)

f) The air flow velocity in the ducts should be kept low due to energetic and acoustical reasons;

g) Some extract air equipment for special applications may require individual fans and ducts that are

sometimes operated independently, thus affecting the room air balance;

h) The potential toxicity of extract air and subsequent contamination of filter systems and heat

recovery devices and resulting (safety) requirements in respect of maintenance;

i) Requirements for room air conditions, e.g. temperature, relative humidity, air movement and their

stability;
j) Requirements for clean room class.
5.2 Design criteria

When designing ventilation systems, the requirements for ventilation and/or air conditioning of the

laboratory room and of the laboratory user shall be taken into account. This shall include the supply

and extract air volume flows required for fume cupboards and other extract air equipment. The

ventilation system shall be capable to follow temporal and variable extract air equipment within the

scope of their planned utilization. The room air requirements shall be maintained under those

conditions, e.g. differential pressures to the environment of the laboratory rooms being considered.

NOTE 1 Temporarily variable extract air equipment is e.g. fume cupboards with a variable air volume

according to EN 14175-6.

NOTE 2 The ratio of supply air to extract air will have important effects on relative room pressurization and

the control of movement of potentially hazardous substances.

In laboratories with special protection aims additional requirements may apply, e.g. a higher safety

level for genetic engineering laboratories (see Clause 9), isotope laboratories, microbiological

laboratories or animal laboratories.
NOTE 3 Clean environments are described in EN ISO 14644-1.

The above mentioned requirements usually can only be met by a combination of supply air system and

extract air system.

Mechanical supply air systems should only be omitted in situations involving low hazard activities

(such as some school laboratories) or those with intermittent, short-term, or occasional use. In these

situations the following shall be considered:

a) the risk assessment to be made by the laboratory’s operator has shown that no hazardous

concentrations may occur in the room air, and
b) national requirements for air exchange rates are met;
c) supply air is sufficient to feed extract air equipment.
---------------------- Page: 13 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
5.3 Air volumes
5.3.1 General

The ventilation system should be capable of providing variable air volumes for the supply and extract

air in such a way, that reduced air volume flows, e.g. in times beyond the conventional laboratory hours,

are possible. However, the function of permanent extraction points, e.g. safety storage cabinets, shall

not be affected.

NOTE 1 For air exchange in safety storage cabinets, see EN 14470-1 and EN 14470-2.

NOTE 2 For separate extract air systems, see 7.1.2
5.3.2 Extract air flow

An important stage in the planning process of the laboratory ventilation system shall be the

establishment of the supply and extract air volume flows needed for the laboratory room(s) and for

laboratory related rooms such as
— chemicals storage rooms;
— solvent storage rooms;
— rooms for pressurized gas cylinder storage;
— temperature controlled rooms;
— storing positions of cryogenic gases;
as far as applicable.
Other factors may need to be considered such as:
— heat load;
— dilution / fresh air;
— contaminants such as
— chemicals;
— airborne particles;
— allergens.

There is no unique extract air volume flow or air exchange rate which would fit all kinds of laboratories

and the work performed therein. Therefore, following the elaboration of an operating concept and a

risk assessment, the extract air volume has to be calculated in a combined step taking into account:

— national laws, regulations and standards, as well as

— requirements of equipment, extracts of several kinds, air quality in accordance with EN 16798-1

and loads of substances or thermal loads.

The extract air flow then will be calculated on basis of the larger value and optimized by the result of

the operating concept and risk assessment.
---------------------- Page: 14 ----------------------
SIST-TS CEN/TS 17441:2020
CEN/TS 17441:2020 (E)
5.4 Design parameter
5.4.1 Operating concept and risk assessment

Based on operation concept and risk assessment coincidence factors the loads by substances can be

estimated. The extract air flows, as calculated on basis of 5.4.2 and 5.4.3, can be optimized by use of

these factors.

The result may be a reduced extract air flow during permanent operating mode. If the laboratory is

operated with this air flow, this has to be documented clearly and has to be labelled within the

laboratory (see Clause 10).

If operation is considered on basis of operating concept and risk assessment – especially for r

...
