Smoke and heat control systems - Part 7: Smoke duct sections

This European Standard applies to smoke control duct sections, placed on the market and intended to operate as part of a pressure differential system or smoke and heat exhaust system. This standard specifies requirements and gives reference to the test methods defined for smoke control duct sections and their associated components (for example, hangers and other items proven at the time of testing), which are intended to be installed in such systems in buildings. It also provides for the evaluation of conformity of the products to the requirements of this standard. Furthermore, marking and information on installation and maintenance of these products are also given in this European Standard.
To avoid duplication, reference is made to a variety of other standards. To this end, this standard is to be read in conjunction with EN 1366-8, EN 1366-9 and EN 1366-1, for details of the fire resistance testing and EN 13501-4 for corresponding classification.
This standard has not considered in detail the detrimental and/or corrosive effects that may be caused by process chemicals present in the atmosphere, which are drawn through the system intentionally or inadvertently.
This European Standard also governs associated components used together with smoke control duct sections such as turning vanes and silencers, with the exception of natural and powered smoke ventilators and smoke control dampers, which are covered by separate standards.
Ducts for use other than in smoke and heat exhaust/control systems are not covered by this standard.

Rauch- und Wärmefreihaltung - Teil 7: Entrauchungskanalstücke

Diese Europäische Norm gilt für Entrauchungskanalstücke, die in Verkehr gebracht werden, um als
Bestandteil eines Differenzdrucksystems oder einer Rauch- und Wärmeabzugsanlage eingesetzt zu werden.
Diese Norm legt Anforderungen fest und verweist auf die Prüfverfahren für Entrauchungskanalstücke und die
zugehörigen Bauteile (z. B. Abhänger und andere zum Zeitpunkt der Prüfung nachgewiesene Teile), die dafür
vorgesehen sind, in derartige Anlagen in Gebäuden eingebaut zu werden. Sie enthält außerdem Angaben zur
Bewertung der Übereinstimmung dieser Produkte mit den Anforderungen dieser Norm sowie Hinweise zur
Kennzeichnung sowie zur Installation und Wartung dieser Produkte.
Um Doppelungen zu vermeiden, wird auf eine Reihe anderer Normen verwiesen. Dazu ist diese Norm in
Verbindung mit EN 1366-8, EN 1366-9 und EN 1366-1 für Festlegungen zu Feuerwiderstandsprüfungen
sowie in Verbindung mit EN 13501-4 hinsichtlich der entsprechenden Klassifizierung anzuwenden.
Diese Norm berücksichtigt nicht die nachteiligen Auswirkungen und/oder korrosiven Wirkungen in allen Einzelheiten,
die aufgrund von in der Atmosphäre enthaltenen Prozesschemikalien hervorgerufen werden können,
die entweder absichtlich oder versehentlich durch die Anlage gesaugt werden können.
Diese Europäische Norm regelt außerdem die zugehörigen Bauteile, die in Verbindung mit Entrauchungskanalstücken
verwendet werden, wie Leitbleche und Schalldämpfer, mit Ausnahme von natürlichen und
maschinellen Rauchabzügen und Entrauchungsklappen, die in gesonderten Normen behandelt werden.
Leitungen, die nicht für die Verwendung in Rauch- und Wärmeabzugsanlagen/Anlagen zur Ableitung von
Rauch und Wärme vorgesehen sind, sind nicht Gegenstand der vorliegenden Norm.

Systèmes pour le contrôle des fumées et de la chaleur - Partie 7: Tronçons de conduit de désenfumage

La présente Norme européenne s'applique aux tronçons de conduit de désenfumage, mis sur le marché et
destinés à faire partie d'un système à différentiel de pression ou d'un système d'évacuation des fumées et de
la chaleur. La présente norme spécifie les exigences et les méthodes d'essai relatives aux tronçons de
conduit de désenfumage et à leurs composants associés (par exemple, supports et autres éléments éprouvés
au moment des essais), qui sont destinés à être installés dans de tels systèmes dans des bâtiments. Elle
traite également de l'évaluation de la conformité des produits aux exigences de la présente norme. En outre,
les dispositions relatives au marquage et les informations relatives à l'installation et à la maintenance de ces
produits sont également fournies dans la présente Norme européenne.
Pour éviter toute répétition, il est fait référence à un certain nombre d’autres normes. La présente norme doit
donc être lue conjointement avec l'EN 1366-8, l'EN 1366-9 et l'EN 1366-1, pour tous détails concernant les
essais de résistance au feu et l'EN 13501-4 pour le classement correspondant.
La présente norme ne traite pas dans le détail des effets négatifs et/ou corrosifs susceptibles d'être liés à des
produits chimiques présents dans l'atmosphère et pénétrant dans le système, que ce soit par accident ou par
une action volontaire.
La présente Norme européenne traite également des composants associés utilisés avec les tronçons de
conduit de désenfumage, tels que les aubes directrices et les silencieux, à l'exception des exutoires, ouvrants,
ventilateurs et volets de désenfumage, qui font l'objet de normes distinctes.
La présente norme ne traite pas des conduits utilisés ailleurs que dans les systèmes de contrôle/évacuation
des fumées et de la chaleur..

Sistemi za nadzor dima in toplote - 7. del: Kanali za nadzor dima

Ta evropski standard velja za kanale za nadzor dima, dane v promet in primerne za delovanje kot del sistema diferencialnega tlaka ali izpušnega sistema. Ta standard določa zahteve in podaja reference za preskusne metode, določene za kanale za nadzor dima in z njimi povezane komponente (na primer obešalnike in druge obstoječe predmete med preskusom) za vgradnjo v take sisteme v zgradbah. Prav tako zagotavlja ocenjevanje skladnosti proizvodov z zahtevami tega standarda. Poleg tega ta evropski standard podaja tudi označevanje in informacije o vgradnji in vzdrževanju teh proizvodov. Da ne bi prihajalo do podvajanja, je naveden sklic na različne druge standarde. V ta namen se ta standard bere skupaj z EN 1366-8, EN 1366-9 in EN 1366-1 za podrobnosti o preskušanju ognjevarnosti in z EN 13501-4 za odgovarjajočo klasifikacijo. Ta standard ni podrobno obravnaval škodljivih in/ali korozivnih učinkov, ki jih lahko povzročajo procesne kemikalije, prisotne v ozračju, ki so namerno ali nenamerno speljane skozi sistem. Ta evropski standard prav tako ureja povezane komponente, ki se uporabljajo skupaj s kanali za nadzor dima, kot so vetrnice in dušilci zvoka, razen naravnih in gnanih ventilatorjev in dimovodnih loput, zajetih z ločenimi standardi. Kanali, uporabljeni drugače kot v izpušnih/nadzornih sistemih za dim in vročino, niso zajeti v tem standardu.

General Information

Status
Published
Publication Date
03-May-2011
ICS
13.220.99 - Other standards related to protection against fire
Technical Committee
CEN/TC 191 - Fixed firefighting systems
Drafting Committee
CEN/TC 191/SC 1/WG 8 - Smoke ducts and dampers
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
04-Mar-2024
Completion Date
14-Apr-2025
Directive
305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
89/106/EEC - Construction products
Mandate
M/109 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on fire alarm/detection, fixed firefighting, fire and smoke control and explosion suppression products
Ref Project
SIST EN 12101-7:2011 - Smoke and heat control systems - Part 7: Smoke duct sections

Overview

EN 12101-7:2011 is the CEN European Standard that specifies requirements, tests and conformity assessment for smoke duct sections used in smoke and heat control systems and pressure differential systems (SHEVS). It covers smoke control duct sections placed on the market and intended to operate as part of extraction, pressurisation or pressure-relief systems in buildings. The standard also sets requirements for marking, documentation, installation and maintenance information supplied with the products.

Key Topics

  • Scope and applicability
    • Applies only to duct sections intended for smoke/heat control or pressure differential systems; ducts for other uses are excluded.
    • Associated components such as turning vanes and silencers are included; natural/powered ventilators and smoke control dampers are covered by separate standards.
    • Does not address detailed effects of corrosive/process chemicals in the conveyed atmosphere.
  • Performance and construction requirements
    • Defines construction, supports (hangers), and operational characteristics required for smoke control duct sections.
    • Distinguishes single-compartment and multi-compartment duct types with separate fire resistance performance criteria.
  • Testing methods
    • References and requires specific tests including ambient leakage tests, fire resistance tests (integrity, insulation, leakage) and tests for leakage-rated duct sections.
    • Initial Type Testing (ITT) and Factory Production Control (FPC) are defined to evaluate conformity.
  • Conformity and documentation
    • Procedures for evaluation of conformity, modification controls, test sample requirements and test reporting.
    • Requirements for product marking, CE declaration (where relevant), and installation & maintenance documentation.

Applications and Users

  • Typical applications: commercial premises, shopping centres, hospitals, multi-residential buildings and other facilities using SHEVS or pressurisation strategies.
  • Who uses EN 12101-7:2011:
    • Manufacturers of smoke duct sections and associated components
    • Fire engineers and building services designers specifying SHEVS or pressure differential systems
    • Installers and commissioning teams ensuring correct installation and documentation
    • Testing laboratories, certification bodies and compliance officers assessing conformity and CE marking

Related Standards

  • EN 1366-1 - Duct fire resistance tests
  • EN 1366-8 - Fire resistance tests for smoke extraction ducts (multi-compartment)
  • EN 1366-9 - Fire resistance tests for single-compartment smoke ducts
  • EN 13501-4 - Fire classification using smoke-control component test data
  • EN ISO 13943 - Fire safety vocabulary

EN 12101-7:2011 should be read in conjunction with these standards when specifying, testing or certifying smoke duct sections for building smoke and heat control systems.

Frequently Asked Questions

EN 12101-7:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Smoke and heat control systems - Part 7: Smoke duct sections". This standard covers: This European Standard applies to smoke control duct sections, placed on the market and intended to operate as part of a pressure differential system or smoke and heat exhaust system. This standard specifies requirements and gives reference to the test methods defined for smoke control duct sections and their associated components (for example, hangers and other items proven at the time of testing), which are intended to be installed in such systems in buildings. It also provides for the evaluation of conformity of the products to the requirements of this standard. Furthermore, marking and information on installation and maintenance of these products are also given in this European Standard. To avoid duplication, reference is made to a variety of other standards. To this end, this standard is to be read in conjunction with EN 1366-8, EN 1366-9 and EN 1366-1, for details of the fire resistance testing and EN 13501-4 for corresponding classification. This standard has not considered in detail the detrimental and/or corrosive effects that may be caused by process chemicals present in the atmosphere, which are drawn through the system intentionally or inadvertently. This European Standard also governs associated components used together with smoke control duct sections such as turning vanes and silencers, with the exception of natural and powered smoke ventilators and smoke control dampers, which are covered by separate standards. Ducts for use other than in smoke and heat exhaust/control systems are not covered by this standard.

This European Standard applies to smoke control duct sections, placed on the market and intended to operate as part of a pressure differential system or smoke and heat exhaust system. This standard specifies requirements and gives reference to the test methods defined for smoke control duct sections and their associated components (for example, hangers and other items proven at the time of testing), which are intended to be installed in such systems in buildings. It also provides for the evaluation of conformity of the products to the requirements of this standard. Furthermore, marking and information on installation and maintenance of these products are also given in this European Standard. To avoid duplication, reference is made to a variety of other standards. To this end, this standard is to be read in conjunction with EN 1366-8, EN 1366-9 and EN 1366-1, for details of the fire resistance testing and EN 13501-4 for corresponding classification. This standard has not considered in detail the detrimental and/or corrosive effects that may be caused by process chemicals present in the atmosphere, which are drawn through the system intentionally or inadvertently. This European Standard also governs associated components used together with smoke control duct sections such as turning vanes and silencers, with the exception of natural and powered smoke ventilators and smoke control dampers, which are covered by separate standards. Ducts for use other than in smoke and heat exhaust/control systems are not covered by this standard.

EN 12101-7:2011 is classified under the following ICS (International Classification for Standards) categories: 13.220.99 - Other standards related to protection against fire. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 12101-7:2011 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/109. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

You can purchase EN 12101-7:2011 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sistemi za nadzor dima in toplote - 7. del: Kanali za nadzor dimaRauch- und Wärmefreihaltung - Teil 7: EntrauchungsleitungenSystèmes pour le contrôle des fumées et de la chaleur - Partie 7: Tronçons de conduit de désenfumageSmoke and heat control systems - Part 7: Smoke duct sections91.140.30VLVWHPLVentilation and air-conditioning13.220.20Fire protectionICS:Ta slovenski standard je istoveten z:EN 12101-7:2011SIST EN 12101-7:2011en,fr,de01-oktober-2011SIST EN 12101-7:2011SLOVENSKI
STANDARDOSIST prEN 12101-7:20041DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12101-7
May 2011 ICS
English Version
Smoke and heat control systems - Part 7: Smoke duct sections Systèmes pour le contrôle des fumées et de la chaleur - Partie 7: Tronçons de conduit de désenfumage
Rauch- und Wärmefreihaltung - Teil 7: Entrauchungsleitungen This European Standard was approved by CEN on 17 March 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12101-7:2011: ESIST EN 12101-7:2011

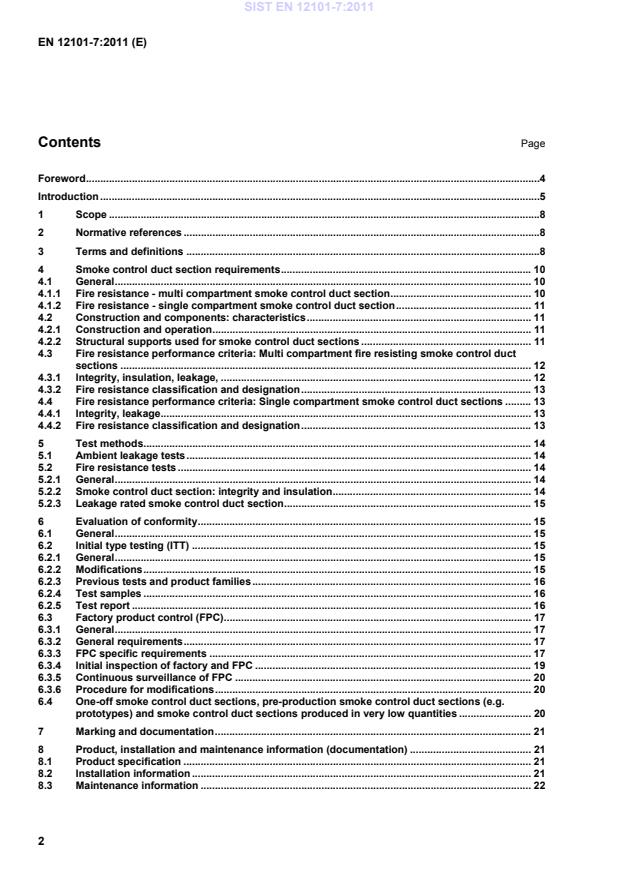

Example of inspection and maintenance procedure . 23Annex B (normative)
