EN 13256:2016
(Main)Geotextiles and geotextile-related products - Characteristics required for use in the construction of tunnels and underground structures
Geotextiles and geotextile-related products - Characteristics required for use in the construction of tunnels and underground structures
This European Standard specifies the relevant characteristics of geotextiles and geotextile-related products used in the construction of tunnels and underground structures, and the appropriate test methods to determine these characteristics.
The intended use of these geotextiles or geotextile-related products is to protect geosynthetic barriers used in tunnels and underground structures.
This European Standard is not applicable to geosynthetic barriers, as defined in EN ISO 10318 1.
This European Standard provides for the assessment and verification of constancy of performance of the product to this European Standard and for factory production control procedures.
Particular application cases may contain requirements regarding additional properties and – preferably standardized – test methods, if they are technically relevant.
This European Standard may be used to derive design values by taking into account factors within the context of the definitions given in EN 1997 1 (Eurocode 7), e.g. factors of safety. The design life of the product should be determined, since its function may be temporary, as a construction expediency, or permanent, for the lifetime of the structure.
Geotextilien und geotextilverwandte Produkte - Geforderte Eigenschaften für die Anwendung im Tunnelbau und in Tiefbauwerken
Diese Europäische Norm legt die wichtigsten Eigenschaften von Geotextilien und geotextilverwandten Produkten, die im Tunnelbau und in Tiefbauwerken verwendet werden, sowie die geeigneten Prüfverfahren zur Bestimmung dieser Eigenschaften fest.
Die vorgesehene Anwendung dieser im Tunnelbau und in Tiefbauwerken verwendeten Geotextilien und geotextilverwandten Produkte ist das Schützen von geosynthetischen Dichtungsbahnen.
Diese Europäische Norm ist nicht auf geosynthetische Dichtungsbahnen anwendbar, wie in EN ISO 10318-1 festgelegt.
Diese Europäische Norm behandelt die Bewertung und Überprüfung der Leistungsbeständigkeit des Produkts nach dieser Europäischen Norm und die Verfahren für die werkseigene Produktionskontrolle.
Besondere Anwendungen können Anforderungen hinsichtlich zusätzlicher Eigenschaften und - vorzugsweise genormte - Prüfverfahren enthalten, wenn diese technisch relevant sind.
Diese Europäische Norm darf zur Festlegung von Bemessungswerten herangezogen werden, in dem die im Zusammenhang mit den in EN 1997-1 (Eurocode 7) angegebenen Definitionen berücksichtigt werden, z. B. Sicherheitsbeiwerte. Für das Produkt sollte die Bemessungsdauer festgelegt werden, weil seine Funktion zeitlich befristet sein darf, als Einbauhilfe, oder dauerhaft, der Lebensdauer des Bauwerks entsprechend.
Géotextiles et produits apparentés - Caractéristiques requises pour l'utilisation dans la construction de tunnels et de structures souterraines
La présente Norme européenne spécifie les caractéristiques pertinentes des géotextiles et produits apparentés utilisés dans la construction de tunnels et de structures souterraines, ainsi que les méthodes d'essai appropriées pour déterminer ces caractéristiques.
L'application de ces géotextiles ou produits apparentés est de protéger les géomembranes et/ou géosynthétiques bentonitiques utilisés dans les tunnels et les structures souterraines.
La présente Norme européenne ne s'applique pas aux géomembranes et géosynthétiques bentonitiques tels que définis dans l'EN ISO 10318 1.
La présente Norme européenne permet d'évaluer et de vérifier la constance des performances du produit à la présente Norme européenne et les procédures de contrôle de la production en usine.
Des cas d'application particuliers peuvent contenir des exigences sur des propriétés supplémentaires et méthodes d'essai – si possible normalisées – si elles sont techniquement pertinentes.
La présente Norme européenne peut être utilisée pour déduire les valeurs de calcul en prenant en compte les facteurs définis dans l'EN 1997 1 (Eurocode 7), par exemple les facteurs de sécurité. Il convient de déterminer la durée de vie prévue du produit, puisque sa fonction peut être provisoire, pour des besoins de construction, ou permanente, pour la durée de vie de la structure.
Geotekstilije in geotekstilijam sorodni izdelki - Značilnosti, ki se zahtevajo pri gradnji tunelov in podzemeljskih delov
Ta evropski standard določa pomembne značilnosti geotekstilij in geotekstilijam sorodnih izdelkov, ki se uporabljajo pri gradnji tunelov in podzemeljskih delov, ter ustrezne preskusne metode za določitev teh značilnosti.
Te geotekstilije in geotekstilijam sorodni izdelki naj bi se uporabljali za zaščito geosintetičnih zapor, ki se uporabljajo pri tunelih in podzemeljskih delih.
Ta evropski standard se ne uporablja za geosintetične zapore, kakor so opredeljene v standardu EN ISO 10318.
Ta evropski standard omogoča ocenjevanje in preverjanje stalnosti funkcionalnosti izdelka v skladu s tem evropskim standardom ter postopke kontrole proizvodnje v obratu.
OPOMBA: Posamezni primeri uporabe lahko vključujejo zahteve glede dodatnih lastnosti in – po možnosti standardiziranih – preskusnih metod, če so tehnično pomembni.
Ta evropski standard se lahko uporablja za izpeljavo projektnih vrednosti ob upoštevanju dejavnikov v okviru definicij iz standarda EN 1997 1 (Evrokod 7), npr. dejavnikov varnosti. Določila naj bi se projektna življenjska doba izdelka, saj je njegova funkcija začasna, kot zagotavljanje primernosti za gradnjo, ali stalna, tj. za življenjsko dobo konstrukcije.
General Information
- Status
- Published
- Publication Date
- 11-Oct-2016
- Withdrawal Date
- 30-Jul-2018
- Technical Committee
- CEN/TC 189 - Geotextiles and geotextile-related products
- Drafting Committee
- CEN/TC 189/WG 1 - ad hoc group Asphalt reinforcement
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Apr-2023
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 08-Jun-2022
Overview
EN 13256:2016 is the CEN European Standard that defines the characteristics and test methods for geotextiles and geotextile-related products used to protect geosynthetic barriers in the construction of tunnels and underground structures. It prescribes how manufacturers should declare product performance, and it specifies procedures for assessment and verification of constancy of performance (AVCP) and factory production control (FPC). This standard is focused on protection products and is explicitly not applicable to geosynthetic barriers themselves (see EN ISO 10318-1).
Key topics and requirements
- Intended function: Protection of geosynthetic barriers in tunnel and underground works; additional functions (drainage, erosion control) are addressed by other standards where integrated.
- Declared characteristics: Manufacturers must provide relevant performance data for characteristics identified in the standard (e.g., tensile and seam strength, puncture resistance, friction, resistance to mechanical damage, resistance to weathering, oxidation and hydrolysis).
- Test methods: Reference to standardized tests (for example, wide‑width tensile test EN ISO 10319, static puncture CBR EN ISO 12236, dynamic perforation EN ISO 13433, weathering EN 12224, hydrolysis EN 12447, friction EN ISO 12957 series) to determine declared values.
- Durability and service life: Guidance on assessing product service life (temporary or permanent use) and repeat testing after durability exposures; Annexes provide detailed durability approaches for different service-life scenarios.
- AVCP and FPC: Procedures for product type determination (PTD), factory production control, initial inspection, continuous surveillance and verification of declared values. Annex A gives an FPC scheme and test frequencies.
- Regulatory linkage: Supports requirements under the EU Construction Products Regulation and provides guidance on Declaration of Performance (DoP) and CE marking (see informative Annex ZA).
- Design integration: Can be used to derive design values in the context of Eurocode 7 (EN 1997-1), taking into account factors of safety.
Applications and users
Who uses EN 13256:2016:
- Geosynthetic and geotextile manufacturers preparing product specifications and Declarations of Performance.
- Tunnel and underground structure designers and specifiers who need to select protective geotextiles with verified performance.
- Contractors and installers assessing suitability and handling requirements to avoid installation damage.
- Testing laboratories performing standardized tests and durability assessments.
- Regulatory bodies and project owners verifying CE marking and AVCP compliance.
Practical applications:
- Protection layers between ground and geosynthetic membranes in tunnel linings, underground containment, or waterproofing systems.
- Specifying materials for temporary construction expedients or permanent barrier protection with defined service life.
Related standards
- EN ISO 10318-1 (terms/definitions for geosynthetics)
- EN ISO 10319 (wide-width tensile)
- EN ISO 12236 (CBR puncture)
- EN ISO 13433 (dynamic perforation)
- EN 12224 (weathering)
- EN 12447 (hydrolysis)
- Eurocode 7 (EN 1997-1) - for deriving design values and safety factors
Keywords: EN 13256:2016, geotextiles, geotextile-related products, tunnels, underground structures, geosynthetic barriers, test methods, durability, factory production control, AVCP, CE marking.
Frequently Asked Questions
EN 13256:2016 is a standard published by the European Committee for Standardization (CEN). Its full title is "Geotextiles and geotextile-related products - Characteristics required for use in the construction of tunnels and underground structures". This standard covers: This European Standard specifies the relevant characteristics of geotextiles and geotextile-related products used in the construction of tunnels and underground structures, and the appropriate test methods to determine these characteristics. The intended use of these geotextiles or geotextile-related products is to protect geosynthetic barriers used in tunnels and underground structures. This European Standard is not applicable to geosynthetic barriers, as defined in EN ISO 10318 1. This European Standard provides for the assessment and verification of constancy of performance of the product to this European Standard and for factory production control procedures. Particular application cases may contain requirements regarding additional properties and – preferably standardized – test methods, if they are technically relevant. This European Standard may be used to derive design values by taking into account factors within the context of the definitions given in EN 1997 1 (Eurocode 7), e.g. factors of safety. The design life of the product should be determined, since its function may be temporary, as a construction expediency, or permanent, for the lifetime of the structure.
This European Standard specifies the relevant characteristics of geotextiles and geotextile-related products used in the construction of tunnels and underground structures, and the appropriate test methods to determine these characteristics. The intended use of these geotextiles or geotextile-related products is to protect geosynthetic barriers used in tunnels and underground structures. This European Standard is not applicable to geosynthetic barriers, as defined in EN ISO 10318 1. This European Standard provides for the assessment and verification of constancy of performance of the product to this European Standard and for factory production control procedures. Particular application cases may contain requirements regarding additional properties and – preferably standardized – test methods, if they are technically relevant. This European Standard may be used to derive design values by taking into account factors within the context of the definitions given in EN 1997 1 (Eurocode 7), e.g. factors of safety. The design life of the product should be determined, since its function may be temporary, as a construction expediency, or permanent, for the lifetime of the structure.
EN 13256:2016 is classified under the following ICS (International Classification for Standards) categories: 59.080.70 - Geotextiles. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13256:2016 has the following relationships with other standards: It is inter standard links to EN 13256:2014+A1:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13256:2016 is associated with the following European legislation: EU Directives/Regulations: 305/2011; Standardization Mandates: M/107, M/386. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 13256:2016 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Geotextilien und geotextilverwandte Produkte - Geforderte Eigenschaften für die Anwendung im Tunnelbau und in TiefbauwerkenGéotextiles et produits apparentés - Caractéristiques requises pour l'utilisation dans la construction de tunnels et de structures souterrainesGeotextiles and geotextile-related products - Characteristics required for use in the construction of tunnels and underground structures93.060Gradnja predorovTunnel construction93.020Zemeljska dela. Izkopavanja. Gradnja temeljev. Dela pod zemljoEarthworks. Excavations. Foundation construction. Underground works59.080.70GeotekstilijeGeotextilesICS:Ta slovenski standard je istoveten z:EN 13256:2016SIST EN 13256:2016en,fr,de01-december-2016SIST EN 13256:2016SLOVENSKI
STANDARDSIST EN 13256:2014+A1:20151DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13256
October
t r s x ICS
w {ä r z rä y r Supersedes EN
s u t w xã t r s v ªA sã t r s wEnglish Version
Geotextiles and geotextileærelated products æ Characteristics required for use in the construction of tunnels and underground structures Géotextiles et produits apparentés æ Caractéristiques requises pour l 5utilisation dans la construction de tunnels et de structures souterraines
Geotextilien und geotextilverwandte Produkte æ Geforderte Eigenschaften für die Anwendung im Tunnelbau und in Tiefbauwerken This European Standard was approved by CEN on
v June
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u t w xã t r s x ESIST EN 13256:2016

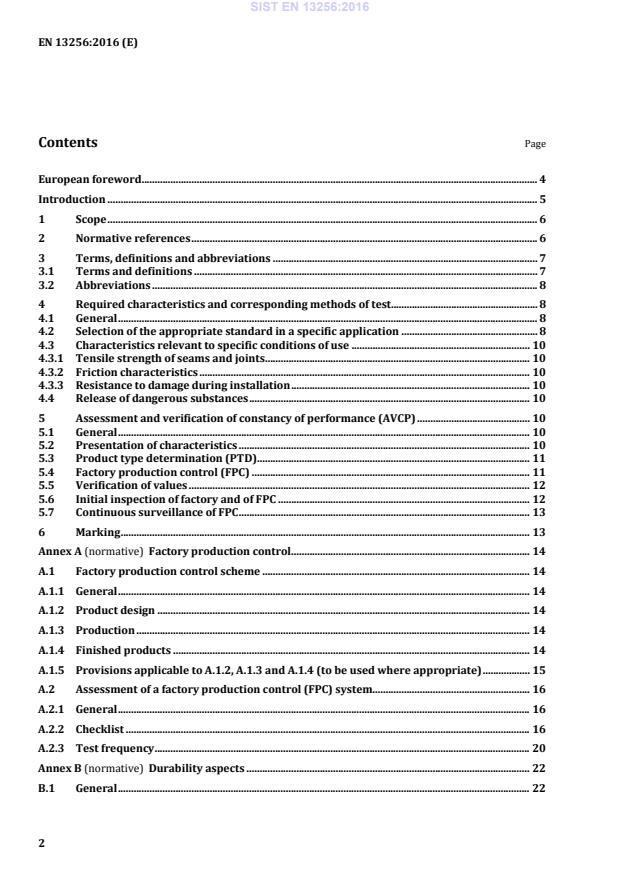

Factory production control . 14 A.1 Factory production control scheme . 14 A.1.1 General . 14 A.1.2 Product design . 14 A.1.3 Production . 14 A.1.4 Finished products . 14 A.1.5 Provisions applicable to A.1.2, A.1.3 and A.1.4 (to be used where appropriate) . 15 A.2 Assessment of a factory production control (FPC) system. 16 A.2.1 General . 16 A.2.2 Checklist . 16 A.2.3 Test frequency . 20 Annex B (normative)
Durability aspects . 22 B.1 General . 22 SIST EN 13256:2016
Guidelines for the selection of the appropriate standard in a specific application . 28 Annex D (informative)
Significant technical changes to superseded editions of this standard. 30 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 31 ZA.1 Scope and relevant characteristics . 31 ZA.2 Procedure for AVCP of Geotextiles and geotextiles-related products for the use in the construction of tunnels and underground structures . 32 ZA.2.1 Systems of AVCP . 32 ZA.2.2 Declaration of performance (DoP) . 34 ZA.3 CE marking and labelling . 40 Bibliography . 41
A: relevant to all conditions of use
S: relevant to specific conditions of use
“–”: indicates that the characteristic is not relevant for that function. a
Static puncture resistance may not be relevant for some types of products, e.g. GGR, GCO-D or GST. b
If the mechanical properties (tensile strength and static puncture) are coded “A” in this Table, the use of only one, either tensile strength or static puncture, is usually sufficient in a project specification. c
The strength of internal structural junctions of geocells shall be tested in accordance with EN ISO 13426-1. d
The strength of internal structural junctions of geocomposites shall be tested in accordance with EN ISO 13426-2. SIST EN 13256:2016
For the durability aspects, see Table 1 and Annex B. The results of PTD tests shall be recorded and be available for inspection. The sample for the PTD tests shall be drawn according to EN ISO 9862 from a normal production run using the same materials and forming processes as used for the full production process. The size of the sample shall be big enough to allow the determination of the characteristics specified in Table 2. Handmade samples, short trial batches and other development prototypes may be tested by the same methods, but shall not be used for establishing characteristic values in PTD tests. 5.4 Factory production control (FPC) A FPC scheme shall be established and documented in a manual prior to a product type being placed on the market. Subsequently, any fundamental changes in raw materials and additives, manufacturing procedures or the control scheme that affect the properties or use of a product shall be recorded in the manual. The manual shall include the FPC procedures relevant to the declared properties, as confirmed by the product type determination. The FPC procedures shall consist of a permanent internal production control system to ensure that such products comply with this European Standard and that the measured values conform to the declared values. SIST EN 13256:2016
Factory production control A.1 Factory production control scheme A.1.1 General The items to be addressed in the factory production control manual relating to the system of control, determined from 5.4, are given in A.1. The single steps of factory production control are addressed in the check-list (A.2). NOTE Manufacturers operating an FPC system, which complies with EN ISO 9001 and which addresses the provisions of this European Standard, are considered to be able to satisfy the FPC requirements of this European Standard. A.1.2 Product design The manufacturer shall describe how product design requirements and criteria are identified, checked, controlled and updated to be unambiguous and relevant to the use of the product and its specification. The manufacturer shall describe the communication of the product design to the internal production departments or to external subcontractors. A.1.3 Production A.1.3.1 Raw or incoming materials The manufacturer shall define the acceptance criteria of raw or incoming materials and the procedures that he operates to ensure that these are met. The manufacturer shall document by analyses and/or certificates from his suppliers that all raw or incoming materials meet the declared performance, including durability performance. A.1.3.2 Production process The relevant features of the plant and production process shall be defined giving the frequency of the inspections, checks and tests, together with the values or criteria required on equipment and on work in process. The actions to be taken when control values or criteria are not obtained shall be recorded. These records shall be available for inspection. A.1.4 Finished products A.1.4.1 Tests on the finished product The size of the samples and the frequency of sampling, together with the results obtained, shall be recorded. These records shall be available for inspection. A.1.4.2 Alternative tests Where alternative tests to the reference tests are used, details of the alternative tests and procedures together with their correlation with the reference tests shall be recorded and shall be made available for inspection. SIST EN 13256:2016
Design 1.1 – Has the manufacturer a description how design requirements and criteria are identified, checked, controlled and updated to be unambiguous and relevant to the use of the product and its specification? To be assessed only if claimed by the manufacturer Refer to the manufacturer's documentation. 1.2 – Has the manufacturer a description of the communication of the design to the internal production departments or to external subcontractors? To be assessed only if claimed by the manufacturer. Refer to the manufacturer's documentation. 2 Product identification and traceability 2.1 – What are the means used for the unique identification of any individual finished product? E Refer to the manufacturer's documentation. 2.2 – Is it possible to identify and check date, place and general manufacturing conditions E Refer to the manufacturer's SIST EN 13256:2016
3 Production process control 3.1 – Are there documents which define the production process parameters which could affect quality? E Refer to the manufacturer's documentation. 3.2 – Are the standards and procedures implemented? E
3.3 – Are the specified requirements concerning process validation, including the associated personnel and equipment, documented? E Refer to the manufacturer's documentation. 4 Inspection and testing on receipt of raw materials 4.1 – Are there specification sheets concerning incoming raw materials? E Refer to the manufacturer's documentation. 4.2 – Are there documents which define what shall be done in case of non-conformance of raw materials? E Refer to the manufacturer's documentation. 4.3 – Are the nature and frequency of the evaluation of incoming raw materials described and followed? E Refer to the manufacturer's documentation. 5 Inspection and testing during manufacturing 5.1 – Are there inspections or tests during the manufacturing process with specific requirement for the results? E Refer to the manufacturer's documentation. 5.2 – Are there documents concerning inspection or testing during the manufacturing process with requirement for the results? E Refer to the manufacturer's documentation. 5.3 – Do they define what shall be done in case of non-conformance of the product with the requirements? E Refer to the manufacturer's documentation. 5.4 – Are non-conforming products isolated from conform products when they are detected during manufacturing? E Refer to the manufacturer's documentation. 5.5 – Is there a procedure for handling non-conforming products? E Refer to the manufacturer's documentation. SIST EN 13256:2016
Refer to the manufacturer's documentation. 10.2 – Are handling, storage and packaging methods and means appropriate to prevent final products from being damaged or deteriorated?
...
The EN 13256:2016 standard provides essential guidelines for geotextiles and geotextile-related products specifically utilized in the construction of tunnels and underground structures. Its scope is meticulously defined to encompass the characteristics required for these materials, along with the corresponding test methods necessary for their evaluation. This focus ensures that the geotextiles meet performance requirements critical for safeguarding geosynthetic barriers used in such environments. One of the key strengths of this standard is its clear demarcation of applicability, explicitly stating that it does not cover geosynthetic barriers as referenced in EN ISO 10318 1. By doing so, it delineates the specific role and requirements of geotextiles within the broader category of geosynthetic materials, preventing confusion and ensuring that stakeholders have a clear understanding of compliance needs. Moreover, EN 13256:2016 emphasizes the assessment and verification of the constancy of performance for products adhering to this standard, along with the establishment of factory production control procedures. This aspect is crucial for manufacturers, as it provides a framework for maintaining quality and consistency in the production of geotextiles, reinforcing reliability and safety in their application in tunnels and underground structures. The standard also recognizes the possibility of additional requirements based on particular application cases, which allows for flexibility and adaptation to specific project needs. This is significant, as it encourages the incorporation of technically relevant properties and standardized test methods that can be vital to the performance of geotextiles in diverse conditions. Furthermore, EN 13256:2016 facilitates the derivation of design values, integrating factors outlined in EN 1997 1 (Eurocode 7). This inclusivity is pivotal for engineering applications, as it allows for comprehensive risk assessment and the planning of safety factors directly related to the design life of the geotextiles, whether for temporary construction expediency or permanent structural integrity. In summary, the EN 13256:2016 standard stands out for its comprehensive approach to the characteristics of geotextiles used in tunnel and underground structure construction. Its detailed guidelines for testing, performance verification, and flexibility for additional requirements make it a vital reference for practitioners in the field, ensuring that safety, quality, and usability are prioritized in the use of these materials.
La norme EN 13256:2016, intitulée "Geotextiles and geotextile-related products - Characteristics required for use in the construction of tunnels and underground structures", se concentre sur les caractéristiques essentielles des géotextiles et des produits apparentés utilisés dans la construction de tunnels et d'ouvrages souterrains. L'une des forces majeures de cette norme est qu'elle définit les méthodes d'essai appropriées pour évaluer ces caractéristiques, assurant ainsi que les matériaux répondent aux exigences spécifiques nécessaires pour protéger les barrières géosynthétiques. Le champ d'application de cette norme est particulièrement pertinent, car elle précise que les géotextiles visés ne s'appliquent pas aux barrières géosynthétiques comme défini dans l'EN ISO 10318-1. Cela garantit une spécialisation et une clarté qui sont indispensables dans le domaine de la construction souterraine, où les conditions d'utilisation peuvent varier considérablement. En incluant des dispositions concernant l'évaluation et la vérification de la constance des performances, la norme renforce la confiance des utilisateurs en la durabilité et l'efficacité des produits. Une autre force de la norme réside dans sa capacité à s'adapter aux exigences particulières des cas d'application, ce qui est essentiel pour les projets variés rencontrés dans le secteur. Cela permet non seulement d'intégrer des propriétés supplémentaires, mais également d'exiger des méthodes d'essai, lorsqu'elles sont techniquement pertinentes, renforçant ainsi le niveau de standardisation tout en permettant une certaine flexibilité. De plus, la capacité à dériver des valeurs de conception à partir de cette norme, tout en tenant compte de facteurs relatifs à la sécurité mentionnés dans l'EN 1997-1 (Eurocode 7), ajoute une couche de sophistication dans la planification et la mise en œuvre des projets de construction souterraine. Le fait que la durée de vie du produit puisse être temporaire ou permanente, selon la fonction requise, souligne également l'importance d'une approche réfléchie à la conception et à l'application des géotextiles. Dans l'ensemble, la norme EN 13256:2016 se révèle être un instrument vital pour les professionnels de la construction souterraine, car elle fournit un cadre robuste pour l'utilisation et le contrôle des performances des géotextiles, tout en tenant compte des exigences techniques spécifiques du secteur.
표준 EN 13256:2016은 터널 및 지하 구조물 건설에 사용되는 지오텍스타일 및 지오텍스타일 관련 제품의 필수 특성을 명확히 규정하고 있습니다. 이 문서는 지오합성물 장벽을 보호하기 위한 지오텍스타일의 적정 사용 기준과 이에 대한 시험 방법을 제공하여, 터널 및 지하 구조물의 안전성을 높이는 데 중요한 역할을 합니다. 이 표준의 강점 중 하나는 다양한 지오텍스타일 제품의 성능을 평가하고 검증할 수 있는 방법을 상세히 설명하고 있다는 점입니다. 이를 통해 제품의 일관된 성능을 보장하며, 공장 생산 관리 절차를 명확히 하고 있습니다. 또한, 특정 응용 사례에 따라 추가 특성 및 기술적으로 관련된 표준화된 시험 방법의 요구 사항을 포함할 수 있는 유연성을 가지고 있습니다. EN 13256:2016은 설계 값을 도출하는 데 필요한 요소들을 고려할 수 있는 기초를 마련합니다. 이 과정에서 EN 1997-1 (유로코드 7)에서 제공하는 정의에 따라 안전 계수 등의 요소를 포함하는 것이 중요합니다. 또한, 지오텍스타일 제품의 설계 수명에 대한 평가도 필요하며, 이는 설계가 일시적일 수도 있고, 구조물의 생애 동안 지속적일 수도 있음을 강조합니다. 결론적으로, EN 13256:2016 표준은 터널 및 지하 구조물에서 사용되는 지오텍스타일의 특성을 명확히 정의하고, 이를 통해 건설 산업의 안전성과 신뢰성을 높이는 데 기여하고 있습니다. 이 표준은 관련 연구 및 개발에 있어 매우 중요한 참고 자료로서 기능하고 있으며, 관련 산업 종사자들에게 꼭 필요한 지침을 제공합니다.
SIST EN 13256:2016は、トンネルや地下構造物の建設に使用される地質繊維および地質繊維関連製品に関する特性を定めた標準です。この欧州標準は、これらの製品がどのように使用されるべきか、またそれに必要な特性を明確に示しています。特に、地質繊維は地盤合成バリアを保護する目的で使用されるため、その特性は非常に重要です。 この標準の強みは、関連する試験方法を明確に定義している点です。これにより、製品の品質と性能を保証し、業界全体で一貫した基準を維持することが可能になります。また、SIST EN 13256:2016は、製品の性能の一貫性を評価および確認する手順を提供し、工場の生産管理プロセスを定めています。これにより、製造業者は高品質な製品を提供し続けることができます。 また、この標準は特定の適用事例において、技術的に関連する場合には追加的な特性や標準化された試験方法の要件を含めることができる柔軟性も持っています。これにより、さまざまなプロジェクトや状況に応じて、適切な基準を適用することが可能です。 さらに、設計値を導出する際にEN 1997 1（ユーロコード7）による要因を考慮することができるため、建設現場での安全性を確保する上でも役立ちます。また、製品の耐用年数についても考慮されており、構造物の一時的な機能や恒久的な機能に応じた適切な判断を促します。 全体として、SIST EN 13256:2016は、トンネルや地下構造物の建設における地質繊維と関連製品に関する標準の中でも、その範囲、強み、および関連性において非常に重要な役割を果たしています。この標準は、業界における品質管理と安全性の向上に寄与しており、建設プロセスを円滑に進める基盤を提供しています。
Die Norm EN 13256:2016 definiert entscheidende Merkmale von Geotextilien und geotextilbezogenen Produkten, die beim Bau von Tunneln und unterirdischen Bauwerken eingesetzt werden. Der Anwendungsbereich dieser europäischen Norm ist sowohl präzise als auch essenziell für die Gewährleistung der strukturellen Integrität dieser Bauprojekte. Die Standardspezifikationen gewährleisten, dass die verwendeten Geotextilien die notwendigen Eigenschaften zum Schutz geosynthetischer Barrieren besitzen, was für die Sicherheit und Langlebigkeit der Tunnelkonstruktionen von großer Bedeutung ist. Ein herausragendes Merkmal dieser Norm ist die umfassende Berücksichtigung geeigneter Prüfmethoden zur Bestimmung der erforderlichen Eigenschaften der Geotextilien. Diese Methodik ermöglicht eine zuverlässige Bewertung und Überprüfung der Leistungsstabilität der Produkte, die gemäß dieser Norm hergestellt werden. Darüber hinaus enthält die Norm Vorgaben für Verfahren zur Werksproduktion, was zusätzliche Sicherheitsmechanismen für die Qualitätssicherung der Produkte schafft. Die Norm bietet zusätzlich die Möglichkeit, spezifische Anforderungen an besondere Anwendungsfälle zu berücksichtigen. Diese Flexibilität ermöglicht es Planern und Ingenieuren, relevante Eigenschaften und potenziell standardisierte Prüfmethoden zu integrieren, die für spezielle Projekte von Bedeutung sind. Dies fördert die Anpassungsfähigkeit der Norm an neue Technologien und Anwendungsbedarfe im Bauwesen. Ebenfalls erwähnenswert ist, dass die Norm zur Ableitung von Entwurfswerten herangezogen werden kann, wobei Faktoren im Kontext der Definitionen aus EN 1997-1 (Eurocode 7) zu berücksichtigen sind. Diese Integration von Sicherheitsfaktoren und die Bestimmung der Lebensdauer der Produkte sind entscheidend, da sie die temporäre oder permanente Nutzung der Geotextilien im Bauprozess reflektieren. Insgesamt erfüllt die EN 13256:2016 eine zentrale Rolle in der Regelung und Standardisierung von Geotextilien im Tunnelbau und trägt maßgeblich dazu bei, die Sicherheit und Effizienz unterirdischer Bauprojekte zu gewährleisten.
