EN 13232-3:2023

Railway applications - Track - Switches and crossings for Vignole rails - Part 3: Requirements for wheel/rail interaction

This document defines the main wheel/track interaction criteria to be taken into account during the geometrical design of railway switches and crossings (S&C) layouts.
It specifies:
—   characterization of wheel and track dimensions;
—   geometric design principles for wheel guidance;
—   design principles for wheel load transfer;
—   whether movable crossings are needed.
These are illustrated by their application to turnout components:
—   switches;
—   crossings;
—   check rails,
but the principles apply equally to more complex units. There are also simplified definitions of the safety and functional dimensions, which can be used in conjunction with the general principles as the basis for more in-depth assessment.

Bahnanwendungen - Oberbau - Weichen und Kreuzungen für Vignolschienen - Teil 3: Anforderungen an das Zusammenspiel Rad/Schiene

Dieses Dokument legt die Hauptkriterien des Zusammenspiels Rad/Schiene fest, die während der Phase des geometrischen Entwurfs von Gleisanlagen mit Eisenbahn-Weichen und Kreuzungen zu berücksichtigen sind.
Es legt Folgendes fest:
—   die Beschreibung der Rad  und Gleisabmessungen;
—   die geometrischen Entwurfsgrundsätze für die Radführung;
—   Entwurfsgrundsätze für die Radlastübertragung;
—   ob Herzstücke mit beweglichen Bauteilen erforderlich sind.
Diese werden entsprechend ihrer Anwendung auf die Weichenbauteile
—   Zungenvorrichtungen;
—   Herzstücke;
—   Radlenker;
dargestellt, jedoch sind die Grundsätze gleichermaßen auch auf umfangreichere Gleiseinheiten anwendbar. Es gibt auch vereinfachte Definitionen der Sicherheits- und Funktionsmaße, die in Verbindung mit den allgemeinen Grundsätzen als Grundlage für eine tiefergehende Bewertung angewendet werden können.

Applications ferroviaires - Voie - Appareils de voie pour rails Vignole - Partie 3 : Exigences pour l'interaction roue/rail

Le présent document définit les principaux critères concernant l'interaction roue/voie à prendre en compte lors de la conception géométrique des appareils de voie ferroviaires.
Il spécifie :
—   la caractérisation des dimensions des roues et des voies ;
—   les principes de conception géométrique pour le guidage des roues ;
—   les principes de conception pour le transfert de la charge à la roue ;
—   la nécessité ou non d'utiliser des cœurs à parties mobiles.
Ces aspects sont représentés en les appliquant aux composants de branchements suivants :
—   aiguillages ;
—   cœurs ;
—   contre-rails.
Toutefois, les principes s'appliquent également aux appareils de voie plus complexes. Des définitions simplifiées relatives aux cotes sécuritaires et fonctionnelles peuvent en outre être utilisées conjointement aux principes généraux, dans le cadre d'une évaluation plus approfondie.

Železniške naprave - Zgornji ustroj proge - Kretnice in križišča za Vignolove tirnice - 3. del: Zahteve na stiku kolo-tirnica

Ta del tega evropskega standarda določa:
– karakterizacijo mer kolesa in tirnice;
– načela geometrijskega projektiranja za usmerjanje koles;
– načela geometrijskega projektiranja za prenos obremenitve koles;
– odločanje o tem, ali so potrebna premična križišča.
To je v tem dokumentu ponazorjeno z uporabo za sestavne dele kretniškega sistema:
– kretnice;
– križišča;
– vodilne tirnice;
vendar se načela prav tako uporabljajo za kompleksnejše postavitve.

General Information

• Status: Published
• Publication Date: 10-Oct-2023
• ICS: 93.100 - Construction of railways
• Technical Committee: CEN/TC 256 - Railway applications
• Drafting Committee: CEN/TC 256/SC 1/WG 18 - Switches and crossings - Performance and acceptance
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 11-Oct-2023
• Due Date: 14-Apr-2021
• Completion Date: 11-Oct-2023
• Directive: 2008/57/EC - Directive 2008/57/EC of the European Parliament and of the Council of 17 June 2008 on the interoperability of the rail system within the Community (Recast)
• Directive: 2016/797/EU - Directive (EU) 2016/797 of the European Parliament and of the Council of 11 May 2016 on the interoperability of the rail system within the European Union (Text with EEA relevance)
• Mandate: M/483 - Mandate for programming and standardisation addressed to the European standardisation bodies under directive 2008/57/EC in the field of the interoperability of the rail system within the European Union
• Mandate: M/591 - Standardisation request to the European Committee for Standardisation and the European Committee for Electrotechnical Standardisation as regards railway products in support of Directive (EU) 2016/797
• Ref Project: SIST EN 13232-3:2023 - Railway applications - Track - Switches and crossings for Vignole rails - Part 3: Requirements for wheel/rail interaction

Relations

• Replaces: EN 13232-3:2003+A1:2011 - Railway applications - Track - Switches and crossings - Part 3: Requirements for wheel/rail interaction
• Effective Date: 18-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2023
Železniške naprave - Zgornji ustroj proge - Kretnice in križišča za Vignolove tirnice
- 3. del: Zahteve na stiku kolo-tirnica
Railway applications - Track - Switches and crossings for Vignole rails - Part 3:
Requirements for wheel/rail interaction
Bahnanwendungen - Oberbau - Weichen und Kreuzungen für Vignolschienen - Teil 3:
Anforderungen an das Zusammenspiel Rad/Schiene
Applications ferroviaires - Infrastructure - Appareils de voie - Partie 3: Exigences pour
l'interaction Roue/Rail
Ta slovenski standard je istoveten z: EN 13232-3:2023
ICS:
45.080 Tračnice in železniški deli Rails and railway
components
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

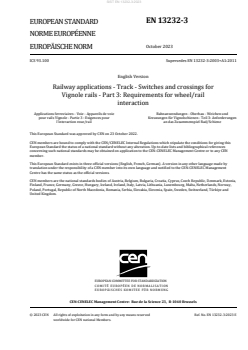

EN 13232-3
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2023
EUROPÄISCHE NORM
ICS 93.100 Supersedes EN 13232-3:2003+A1:2011
English Version
Railway applications - Track - Switches and crossings for
Vignole rails - Part 3: Requirements for wheel/rail
interaction
Applications ferroviaires - Voie - Appareils de voie Bahnanwendungen - Oberbau - Weichen und
pour rails Vignole - Partie 3 : Exigences pour Kreuzungen für Vignolschienen - Teil 3: Anforderungen
l'interaction roue/rail an das Zusammenspiel Rad/Schiene
This European Standard was approved by CEN on 23 October 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13232-3:2023 E
worldwide for CEN national Members.

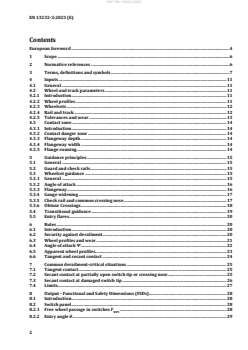

Contents
European foreword .4
1 Scope .6
2 Normative references .6
3 Terms, definitions and symbols .7
4 Inputs . 11
4.1 General . 11
4.2 Wheel and track parameters . 11
4.2.1 Introduction. 11
4.2.2 Wheel profiles . 11
4.2.3 Wheelsets . 12
4.2.4 Rail and track . 12
4.2.5 Tolerances and wear . 13
4.3 Contact zone . 14
4.3.1 Introduction. 14
4.3.2 Contact danger zone . 14
4.3.3 Flangeway depth . 14
4.3.4 Flangeway width . 14
4.3.5 Flange running . 14
5 Guidance principles . 15
5.1 General . 15
5.2 Guard and check rails . 15
5.3 Wheelset guidance . 15
5.3.1 General . 15
5.3.2 Angle of attack . 16
5.3.3 Flangeway . 16
5.3.4 Gauge widening . 17
5.3.5 Check rail and common crossing nose . 17
5.3.6 Obtuse Crossings . 18
5.4 Transitional guidance . 19
5.5 Entry flares . 20
6 Rules . 20
6.1 Introduction. 20
6.2 Security against derailment . 20
6.3 Wheel profiles and wear . 21
6.4 Angle of attack Ψ . 22
6.5 Apparent wheel profiles . 23
6.6 Tangent and secant contact . 24
7 Common derailment-critical situations . 25
7.1 Tangent contact . 25
7.2 Secant contact at partially open switch tip or crossing nose . 25
7.3 Secant contact at damaged switch tip . 26
7.4 Limits. 27
8 Output - Functional and Safety Dimensions (FSDs) . 28
8.1 Introduction. 28
8.2 Switch panel . 28
8.2.1 Free wheel passage in switches F . 28
WPS
8.2.2 Entry angle θ . 29
8.2.3 Switch point relief A2 .30
8.2.4 Lateral point retraction .30
8.2.5 Lateral point machining .32
8.2.6 Track gauge in diverging track – vehicle with 3 axles .32
8.3 Common crossing panel .34
8.3.1 Fixed nose protection N .34
pcf
8.3.2 Free wheel passage in fixed common crossing F .35
wpcf
8.3.3 Free wheel passage at check rail entry F .35
wpcre
8.3.4 Free wheel passage at wing rail entry F .36
wpwre
8.3.5 Minimum flangeway depth h .38
fw
8.3.6 Flangeway width in diverging track .38
8.3.7 Parallel check rail length .40
8.3.8 Check rail and raised check rail .40
8.4 Obtuse crossing panel .41
8.4.1 Free wheel passage F .41
wpof
8.4.2 Unguided length .42
8.4.3 Check rail .44
8.4.4 Free wheel passage at check rail entry .44
8.4.5 Nose protection N .45
pof
8.5 General items (can occur in all zones within or outside S&C) .47
8.5.1 Check rail and wing rail entry flare .47
8.5.2 Flangeway width – Wheel trapping .47
9 Additional requirements .47
9.1 Introduction .47
9.2 Guidance .48
9.3 Wheel load transfer .48
9.3.1 General .
...
