Bright steel products - Technical delivery conditions

This document specifies the technical delivery requirements for bright steel bars in the drawn, peeled/turned or ground condition and they are intended for mechanical purposes, for example for machine parts. The bright bars are subdivided into the following steel types:
a)   non-alloy general engineering steels;
b)   non-alloy free-cutting steels;
c)   non-alloy and alloy case-hardening steels;
d)   non-alloy and alloy steels for quenching and tempering.
This document lists the mechanical characteristics for products up to 100 mm in thickness. For larger dimensions, the manufacturer and purchaser agree on mechanical properties at the time of enquiry and order.
It does not cover cold rolled products and cut lengths produced from strip or sheet by cutting. Bright steel products of stainless steels are to be found in EN 10088 3.
In addition to this document, the general technical delivery requirements of EN 10021 are applicable.

Blankstahlerzeugnisse - Technische Lieferbedingungen

Dieses Dokument legt die technischen Lieferbedingungen für Blankstahlerzeugnisse im gezogenen, geschälten oder geschliffenen Zustand fest, und sie sind vorgesehen für mechanische Anwendungen, zum Beispiel als Maschinenteile. Die Blankstähle werden unterteilt in folgende Stahlsorten:
a)   unlegierte Stähle für allgemeine technische Verwendung;
b)   unlegierte Automatenstähle;
c)   unlegierte und legierte Einsatzstähle;
d)   unlegierte und legierte Stähle zum Vergüten.
In diesem Dokument sind die mechanischen Eigenschaften für Erzeugnisse bis zu 100 mm Dicke angegeben. Für größere Abmessungen sind die mechanischen Eigenschaften zwischen Hersteller und Besteller bei der Anfrage und Bestellung zu vereinbaren.
Diese Norm gilt nicht für kaltgewalzte Erzeugnisse und für aus Band und Blech geschnittene Stäbe. Blankstahlerzeugnisse aus nichtrostenden Stählen sind in EN 10088-3 aufgeführt.
Zusätzlich zu dieser Norm gelten die allgemeinen technischen Lieferbedingungen nach EN 10021.

Produits en acier transformés à froid - Conditions techniques de livraison

Cette norme européenne spécifie les prescriptions techniques de livraison pour les barres en acier transformées à froid à l’état étiré, écroûté ou rectifié et elles sont destinées à des fins mécaniques, par exemple pour des pièces de machines. Les barres en acier transformées à froid sont subdivisées en les types d’acier suivants :
a)   aciers non alliés d’usage général ;
b)   aciers non alliés de décolletage ;
c)   aciers non alliés et alliés pour cémentation ;
d)   aciers non alliés et alliés pour trempe et revenu.
Les produits en aciers transformées à froid inoxydables se trouvent dans la norme EN 10088-3.
Outre les spécifications de la présente Norme, les exigences techniques générales de livraison de l’EN 10021 s’appliquent.

Svetli jekleni izdelki - Tehnični dobavni pogoji

Ta evropski standard določa tehnične dobavne zahteve za svetle jeklene palice v vlečenem ali luščenem/struženem stanju, izdelane za mehanične namene, na primer za dele strojev. Svetle palice se nadalje delijo na naslednje vrste jekla:
a) jekla, ki niso zlitine, za splošne tehnične namene;
b) avtomatna jekla, ki niso zlitine;
c) cementacijska jekla, ki so ali niso zlitine;
d) jekla za poboljšanje, ki so ali niso zlitine.
Svetli jekleni izdelki iz nerjavnega jekla so zajeti v standardu EN 10088-3.
Poleg tega standarda se uporabljajo tudi zahteve splošnih dobavnih pogojev iz standarda EN 10021.

General Information

Status
Published
Publication Date
19-Jun-2018
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
20-Jun-2018
Completion Date
20-Jun-2018

RELATIONS

Buy Standard

Standard
EN 10277:2018
English language
53 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Draft
prEN 10277:2017
English language
60 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Blankstahlerzeugnisse - Technische LieferbedinungenProduits en acier transformés à froid - Conditions techniques de livraisonBright steel products - Technical delivery conditions77.140.01Železni in jekleni izdelki na splošnoIron and steel products in generalICS:Ta slovenski standard je istoveten z:EN 10277:2018SIST EN 10277:2018en,fr,de01-september-2018SIST EN 10277:2018SLOVENSKI

STANDARDSIST EN 10277-4:2008SIST EN 10277-5:2008SIST EN 10277-3:2008SIST EN 10277-1:2008SIST EN 10277-2:20081DGRPHãþD

SIST EN 10277:2018
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10277

June 2018 ICS 77.140.10; 77.140.60 Supersedes EN 10277-1:2008, EN 10277-2:2008, EN 10277-3:2008, EN 10277-4:2008, EN 10277-5:2008

English Version
Bright steel products - Technical delivery conditions
Produits en aciers transformés à froid - Conditions techniques de livraison

Blankstahlerzeugnisse - Technische Lieferbedinungen This European Standard was approved by CEN on 20 February 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,

B-1040 Brussels © 2018 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10277:2018 E SIST EN 10277:2018

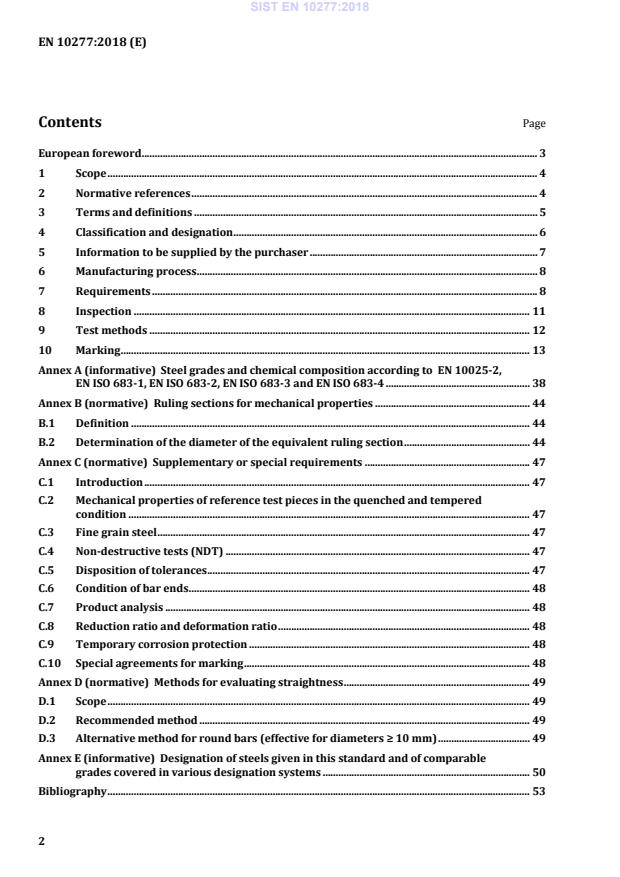

EN 10277:2018 (E) 2 Contents Page European foreword ....................................................................................................................................................... 3 1 Scope .................................................................................................................................................................... 4 2 Normative references .................................................................................................................................... 4 3 Terms and definitions ................................................................................................................................... 5 4 Classification and designation .................................................................................................................... 6 5 Information to be supplied by the purchaser ....................................................................................... 7 6 Manufacturing process .................................................................................................................................. 8 7 Requirements ................................................................................................................................................... 8 8 Inspection ....................................................................................................................................................... 11 9 Test methods ................................................................................................................................................. 12 10 Marking ............................................................................................................................................................ 13 Annex A (informative)

Steel grades and chemical composition according to

EN 10025-2, EN ISO 683-1, EN ISO 683-2, EN ISO 683-3 and EN ISO 683-4 ....................................................... 38 Annex B (normative)

Ruling sections for mechanical properties ........................................................... 44 B.1 Definition ........................................................................................................................................................ 44 B.2 Determination of the diameter of the equivalent ruling section ................................................ 44 Annex C (normative)

Supplementary or special requirements ............................................................... 47 C.1 Introduction ................................................................................................................................................... 47 C.2 Mechanical properties of reference test pieces in the quenched and tempered condition ......................................................................................................................................................... 47 C.3 Fine grain steel .............................................................................................................................................. 47 C.4 Non-destructive tests (NDT) .................................................................................................................... 47 C.5 Disposition of tolerances ........................................................................................................................... 47 C.6 Condition of bar ends .................................................................................................................................. 48 C.7 Product analysis ........................................................................................................................................... 48 C.8 Reduction ratio and deformation ratio ................................................................................................ 48 C.9 Temporary corrosion protection ........................................................................................................... 48 C.10 Special agreements for marking ............................................................................................................. 48 Annex D (normative)

Methods for evaluating straightness ....................................................................... 49 D.1 Scope ................................................................................................................................................................. 49 D.2 Recommended method .............................................................................................................................. 49 D.3 Alternative method for round bars (effective for diameters

10 mm) ................................... 49 Annex E (informative)

Designation of steels given in this standard and of comparable grades covered in various designation systems ............................................................................... 50 Bibliography ................................................................................................................................................................. 53

SIST EN 10277:2018

EN 10277:2018 (E) 3 European foreword This document (EN 10277:2018) has been prepared by Technical Committee ECISS/TC 105 “Steels for heat treatment, alloy steels, free-cutting steels and stainless steels”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by December 2018 and conflicting national standards shall be withdrawn at the latest by December 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 10277-1:2008 to EN 10277-5:2008. The following changes have been made in comparison to the previous edition EN 10277-1:2008 to EN 10277-5:2008: a) the five parts of EN 10277-1 to EN 10277-5 were merged into one part; b) the dimensional requirements for bright steel products were added to this standard; c) for the steels for general engineering use, the steel grades E295GC, E355GC, C10, C15, C16 and C55 were deleted and the grades C25, C30 and C50 were added;

d) for the free cutting steels, the grades 9S20, 17SMn20, 35SMn20 and 35SMnPb20 were added; e) for the case hardening steels, the grades 16MnCrB 5, 15NiCrS4, 15NiCr13 and 17NiCrMoS6-4 were deleted, the grades C10E, C15E, C16E, 16MnCr5, 20Cr4, 20CrS4, 20MnCr5, 24CrMo4, 24CrMoS4, 16NiCr4, 16NiCrS4, 20NiCrMo2-2, 17NiCrMo6-4, 17NiCrMoS6-4 and 18CrNiMo7-6 were added; f) for the steels for quenching and hardening, the grade 39NiCrMo3 was deleted, the grades C25E. C25R. C30E, C30R, 28Mn6, 36Mn6, 42Mn6, 34Cr4, 37Cr4, 37CrS4, 41Cr4, 25CrMo4, 34CrMo4, 34CrMoS4, 42CrMo4, 50CrMo4 36CrNiMo4 and 30CrNiMo8 were added;

g) the standard was editorially revised. This standard is the result of the work on ISO 683-18. Since the bright stainless steel products are to be found in EN 10088-3 for European standardization, they are excluded here. In addition, this standard was adapted to include the European references and some further amendments were made. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 10277:2018

EN 10277:2018 (E) 4 1 Scope This document specifies the technical delivery requirements for bright steel bars in the drawn, peeled/turned or ground condition and they are intended for mechanical purposes, for example for machine parts. The bright bars are subdivided into the following steel types: a) non-alloy general engineering steels; b) non-alloy free-cutting steels; c) non-alloy and alloy case-hardening steels; d) non-alloy and alloy steels for quenching and tempering. This document lists the mechanical characteristics for products up to 100 mm in thickness. For larger dimensions, the manufacturer and purchaser agree on mechanical properties at the time of enquiry and order. It does not cover cold rolled products and cut lengths produced from strip or sheet by cutting. Bright steel products of stainless steels are to be found in EN 10088-3. In addition to this document, the general technical delivery requirements of EN 10021 are applicable. 2 Normative references The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 10020, Definition and classification of grades of steel EN 10021:2006, General technical delivery conditions for steel products EN 10025-2, Hot rolled products of structural steels - Part 2: Technical delivery conditions for non-alloy structural steels EN 10027-1, Designation systems for steels - Part 1: Steel names EN 10027-2, Designation systems for steels - Part 2: Numerical system EN 10079, Definition of steel products EN 10204, Metallic products - Types of inspection documents EN 10247, Micrographic examination of the non-metallic inclusion content of steels using standard pictures CEN/TR 10261, Iron and steel - European standards for the determination of chemical composition EN ISO 148-1, Metallic materials - Charpy pendulum impact test - Part 1: Test method (ISO 148-1) EN ISO 377, Steel and steel products - Location and preparation of samples and test pieces for mechanical testing (ISO 377) EN ISO 643, Steels - Micrographic determination of the apparent grain size (ISO 643) EN ISO 683-1, Heat-treatable steels, alloy steels and free-cutting steels - Part 1: Non-alloy steels for quenching and tempering·(ISO 683-1) SIST EN 10277:2018

EN 10277:2018 (E) 5 EN ISO 683-2, Heat-treatable steels, alloy steels and free-cutting steels - Part 2: Alloy steels for quenching and tempering (ISO 683-2) EN ISO 683-3, Heat-treatable steels, alloy steels and free-cutting steels - Part 3: Case-hardening steels (ISO 683-3) EN ISO 683-4, Heat-treatable steels, alloy steels and free-cutting steels - Part 4: Free-cutting steels (ISO 683-4) EN ISO 3887, Steels - Determination of the depth of decarburization (ISO 3887) EN ISO 4885, Ferrous materials - Heat treatments - Vocabulary (ISO 4885) EN ISO 6506-1, Metallic materials - Brinell hardness test - Part 1: Test method (ISO 6506-1) EN ISO 6892-1, Metallic materials - Tensile testing - Part 1: Method of test at room temperature (ISO 6892-1) EN ISO 14284, Steel and iron - Sampling and preparation of samples for the determination of chemical composition (ISO 14284) ISO 286-2, Geometrical product specifications (GPS) - ISO code system for tolerances on linear sizes - Part 2: Tables of standard tolerance classes and limit deviations for holes and shafts ISO 4967, Steel - Determination of content of non-metallic inclusions - Micrographic method using standard diagrams 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 10020, EN 10027-1, EN 10027-2, EN 10079, EN ISO 377, EN ISO 4885, EN ISO 14284 and the following apply. 3.1 bright steel products drawn or peeled/turned bars with smoother surface quality and better dimensional accuracy in comparison to hot-rolled bars 3.2 drawn products products of various cross-sectional shapes obtained, after descaling, by cold drawing of hot-rolled bars or rod, on a drawing bench (cold formation without removing material) Note 1 to entry: This operation gives the product special features with respect to shape, dimensional accuracy and surface finish. In addition the process causes cold working of the product, which can be eliminated by subsequent heat treatment. Products in lengths are delivered straightened. 3.3 peeled/turned products round bars produced by peeling or turning where the product can be further processed by straightening and polishing Note 1 to entry: This operation gives the bar special features with respect to shape, dimensional accuracy and surface finish. The removal of metal is carried out in such a way that the bright product is generally free from rolling defects and surface decarburization SIST EN 10277:2018

EN 10277:2018 (E) 6 3.4 ground products drawn or peeled/turned round bars given an improved surface quality and dimensional accuracy by grinding or by grinding and polishing 3.5 thickness nominal dimension of the product Note 1 to entry: That means: a) the diameter in the case of rounds; b) the lateral length in the case of squares; c) the width over flats in the case of hexagons; d) the shorter lateral length in the case of flats (rectangular bars) and wide-flats. For special sections, 'thickness' has to be defined at the time of enquiry and order 3.6 ovality difference between the smallest and largest dimension measured across the pairs of opposing points at a common cross-section 3.7 out-of shape any deviation for the nominal section profile 3.8 ruling section section for which the specified mechanical properties shall apply Note 1 to entry: Independent of the actual shape and dimensions of the cross-section of the product, the size of its ruling section is always given by a diameter. This corresponds to the diameter of an “equivalent round bar”. That is a round bar which will show the same cooling rate as the actual ruling section of the product concerned at its position for taking the test pieces, when being cooled from austenitizing temperature. 4 Classification and designation 4.1 Classification The classification of the relevant steel grades is allocated in accordance with EN 10020. The general engineering and the free cutting steels are quality steels. The steels for case hardening and for quenching and tempering are special steels. 4.2 Designation For the steel grades covered by this document, the steel names and numbers given in the relevant tables are allocated in accordance with EN 10027-1 and EN 10027-2. SIST EN 10277:2018

EN 10277:2018 (E) 7 5 Information to be supplied by the purchaser 5.1 Mandatory information The manufacturer shall obtain the following information from the purchaser at the time of enquiry and order: a) quantity (mass, number of bars) to be delivered; b) shape of the product (e.g. round, hexagon, square, flat); c) the dimensions and tolerances of the product, see 7.7 and Tables 2 and 11 to 13; d) reference to this European Standard, i.e. EN 10277; e) the designation of the steel grade and the delivery condition (see Tables 4 to 10); f) standard designation for a test report 2.2 or, if required, any other type of inspection document in accordance with EN 10204. 5.2 Options/Supplementary or special requirements A number of options are specified in this European standard and listed below. If the purchaser does not indicate the wish to implement any of these options, the products will be supplied in accordance with the basic specifications of this standard (see 5.1). a) Reference testing for products used in the quenched and tempered condition (for steels for quenching and tempering only, see Table 1, footnote d and C.2); b) any fine grain requirement and verification of fine grain size (see 7.3 and C.3); c) non-destructive testing (see 7.5 and C.4); d) the disposition of tolerances in accordance with 7.7 and C.5; e) bar end conditions may be specified at the time of enquiry and order in accordance with C.6; f) product analysis (see 7.1.2, Table 16 and C.7); g) for a minimum reduction ratio or minimum thickness deformation (see 6.1 and C.8) h) temporary corrosion protection (see 6.2.1 and C.9); i) any requirement to special marking (see Clauses 10 and C.10) j) any additional requirement concerning the surface condition, i.e. ground surface +G or polished surface +PL for round bars (see 6.2.2 and Table 2); k) surface quality class if another than the standard class is requested (see 7.8 and Table 3); l) verification of the straightness (see 7.7, Table 14 and Annex D); m) any requirement to the hardenability (+H, +HH, +HL), for special steels only (see 7.1.4); n) any requirement for non-metallic inclusions (see 7.4); o) any requirement regarding the permissible depth of decarburization (see 7.6); p) impact test at a temperature lower than room temperature (see 9.2.2). SIST EN 10277:2018

EN 10277:2018 (E) 8 5.3 Ordering examples EXAMPLE

2 t round bars with nominal diameter 20 mm, tolerance h9, stock length 6 000 mm made of steel grade C45 according to this standard in delivery condition +C, surface quality class 1 and a test report 2.2 as specified in EN 10204. 2 t round bars 20 h9 × stock 6000 steel grade EN 10277 —C45+C Inspection document EN 10204 — 2.2 6 Manufacturing process 6.1 General The manufacturing process of the steel and of the products is with the restrictions given by the requirements in 6.2 and 6.3 left to the discretion of the manufacturer. For minimum reduction ratio or minimum thickness deformation ratio of rolled and forged products, see C.8. 6.2 Treatment and surface condition at delivery 6.2.1 Treatment condition The treatment and heat-treatment condition (if any) at the time of delivery must comply with the condition agreed in the order and shall be one of the conditions indicated in Table 1. Bright steel products in cold drawn or peeled/turned condition are coated with a light film of grease from processing, for bright steel products in a finally heat treated condition the manufacturer chooses the rust protection after heat treatment. The usual light application of ordinary grease or oil does not afford positive protection against rusting, particularly in the presence of condensation water. The use of a selected rust inhibitor or a special type of packing shall, if required, be agreed at the time of enquiry and order, see C.9. 6.2.2 Particular surface conditions Table 2 shows the possible surface conditions and tolerance classes according to ISO 286-2 at delivery. 6.3 Traceability of the cast Each product shall be traceable to the cast, see Clause 10. 7 Requirements 7.1 Chemical composition, mechanical properties and hardenability 7.1.1 General Combination of usual treatment conditions at the time of delivery and requirements concerning chemical composition and mechanical properties are shown in Tables 1. SIST EN 10277:2018

EN 10277:2018 (E) 9 7.1.2 Chemical composition The chemical composition of the steels determined by the cast analysis, shall comply to EN 10025-2, EN ISO 683-1, EN ISO 683-2, EN ISO 683-3 and EN ISO 683-4. The grades and the chemical composition of the steels are listed for information in Annex A for EN 10025-2, EN ISO 683-1, EN ISO 683-2, EN ISO 683-3 and EN ISO 683-4. Permissible deviations between the limiting values for cast analysis and the values for product analysis are given in the corresponding tables of EN 10025-2, EN ISO 683-1, EN ISO 683-2, EN ISO 683-3 and EN ISO 683-4. The product analysis shall be carried out when specified at the time of enquiry and order (see C.7). If steels for case hardening or for quenching and tempering are ordered with hardenability requirements according to EN ISO 683-1, EN ISO 683-2 and EN ISO 683-3, such hardenability requirements shall be considered as the governing criteria for acceptance. In such cases, the cast analysis may deviate by the values given in EN ISO 683-1, EN ISO 683-2 and EN ISO 683-3, Table 3, footnote b. WARNING Due to hazardous effects to health and environmental problems of Pb, it is recommended to use instead steels only with sulphur and other innocuous free-cutting element additions. 7.1.3 Mechanical properties For steels ordered in one of the treatment conditions in Tables 1 and 2, the requirements for mechanical properties specified in Tables 4 to 10 apply. The mechanical property values given in Tables 4 to 10 apply to test pieces which have been taken and prepared in accordance with Figure 1. In this case, the normal and narrowed hardenability values given in EN ISO 683-1, EN ISO 683-2 for special steels and the narrowed hardenability values in EN ISO 683-3 for alloy special steels are for guidance purposes only. NOTE In Tables 4 to 10, grades alloyed with further elements for better machinability are not explicitly mentioned, but the mechanical properties are also valid for them (see Tables A.1 to A.4). 7.1.4 Hardenability Unless otherwise agreed for alloy case-hardening steels, the hardenability requirements given in EN ISO 683-3, Table 5 apply. If agreed at the time of enquiry and order, alloy case-hardening steels with restricted hardenability scatterbands given in EN ISO 683-3, Table 6 shall be supplied and these values apply in addition to Table 1, columns 6 and 7. If special steels for quenching and tempering are ordered by using the designations to normal or to narrowed hardenability scatterbands, the values of hardenability given in EN ISO 683-1 or EN ISO 683-2 apply in addition to Table 1, columns 8 and 9. NOTE In Tables 8 to 10, grades alloyed with further elements for better machinability are not explicitly mentioned, but the mechanical properties are also valid for them (see Tables A.3 and A.4). 7.2 Machinability All steels are machinable in the conditions 'soft annealed' (+A) and treated to ferrite/pearlite structure (+FP). Where improved machinability is required the grades with defined ranges of alloying elements, which support the machinability and/or with a specific treatment to improve machinability should be ordered (see also footnote b in Tables A.1, A.3 and A.4). SIST EN 10277:2018

EN 10277:2018 (E) 10 Free-cutting steels with low carbon content have their best machinability in the cold drawn condition. NOTE Non-leaded steels with comparable chemical composition generally have identical mechanical properties but often lower machinability than leaded steels. 7.3 Grain size Unless otherwise agreed at the time of enquiry and order the grain size of the general engineering, free-cutting steels and the non-alloy steels for quenching and tempering shall be left to the discretion of the manufacturer. If a fine grain structure is required for non-alloy steels for quenching and tempering or for case-hardening or quenched and tempered free-cutting steels, Annex C, Option C.3 shall be ordered. If direct hardening treatment is used for free-cutting case-hardening steels, a fine grain structure should be ordered. The case-hardening and the alloy steels for quenching and tempering shall have a fine grain structure with an austenite grain size of 5 or finer, when tested in accordance with EN ISO 643. Only for verification see C.3. 7.4 Non-metallic inclusions 7.4.1 Microscopic inclusions The special steels shall have a certain degree of cleanness, however, verification of the non-metallic inclusion content requires a special agreement. If there is such an agreement at the time of enquiry and order the microscopical non-metallic inclusion content shall be determined to an agreed procedure and within agreed limits (see ISO 4967 or EN 10247). For grades with specified minimum sulphur content, the agreement should only concern the oxides. 7.4.2 Macroscopic inclusions Freedom of macroscopic inclusions cannot be ensured in any steel. This requirement is applicable for the verification of the macroscopic inclusions in special steels. If verification is agreed then the method and acceptance limits shall be agreed at the time of enquiry and order. 7.5 Internal soundness Where appropriate, requirements relating to the internal soundness of the products shall be agreed at the time of enquiry and order (see C.4). 7.6 Decarburization For steels for quenching and tempering, requirements relating to the permissible depth of decarburization may be agreed at the time of enquiry and order. The depth of decarburization shall be determined in accordance with the micrographic method specified in EN ISO 3887. 7.7 Shape, dimensions and tolerances The tolerance class on thickness (and width for flats) shall comply with the requirements agreed at the time of enquiry and order and shall be in accordance with Table 2. If there is no agreement on the tolerance class the bright products are delivered with the standard tolerance class given in Table 2. The tolerance class and the corresponding tolerances are given in Table 11 for rounds, squares and hexagons and in Table 12 for drawn flats. Where specified by the purchaser at the time of enquiry and order the disposition tolerances specified in Table 11 shall be in accordance with C.5. Unless otherwise agreed at the time of enquiry and order, the length and the tolerance on length shall be as specified in Table 13. SIST EN 10277:2018

EN 10277:2018 (E) 11 The maximum admitted ovality shall be not more than half the specified tolerance range, in any case never above the upper limit of the tolerance. Any other requirements concerning out of shape may be agreed at the time of enquiry and order. Where specified at the time of enquiry and order and in cases of dispute, an agreed number of bars shall be evaluated for straightness in accordance with one of the methods specified in Annex D and the tolerances specified in Table 14 shall apply. Non-round bars (i.e. square, hexagon and flat) in widths

¶ 150 mm may have an undefined profile within a distance of 0,2 mm of the hypothetical edge, flats in widths > 150 mm within a distance of 0,5 mm, unless otherwise agreed. For widths > 150 mm, the corner profile may be undefined within a distance of 0,5 mm of the hypothetical edge, unless sharp corners have specifically been ordered. 7.8 Surface quality Bright products shall have a smooth, scale free surface. Bright products in the final heat treated condition shall be free from loose surface scale; their surface might be discoloured or darker. For hexagons, squares, flats and profiles with special cross-sections, one cannot achieve – for manufacturing reasons – the same quality of surface finish as for round cross-sections. Since surface discontinuities (cracks, overlapping, scale, isolated pores, pits, grooves, etc.) cannot be completely avoided during manufacturing (hot and cold forming, heat treatments, handling and storage) and since they are retained after drawing, agreements shall be made regarding surface quality. The surface quality of the products shall be one of the classes according to Table 3. Cold drawn products are normally delivered in class 1, while turned and peeled bars as well as ground round bars are delivered in class 3. Different classes may be agreed at the time of enquiry and order. For flats, squares in sizes greater than 20 mm and hexagons in sizes greater than 50 mm, the maximum possible depth of surface discontinuities shall be agreed at the time of enquiry and order. NOTE Where automatic testing of the surface is applied, 50 mm of each end of the bar is not normally covered. Surface defects cannot be eliminated without removal of material. Products in the 'technically crack

...
