EN 13630-8:2025

Explosives for civil uses - Detonating cords and safety fuses - Part 8: Verification of resistance to water

This document specifies a test method for the verification of the resistance to water of detonating cords and safety fuses.

Explosivstoffe für zivile Zwecke - Sprengschnüre und Sicherheitsanzündschnüre - Teil 8: Überprüfung der Wasserfestigkeit

Dieses Dokument legt ein Prüfverfahren für die Überprüfung der Wasserfestigkeit von Sprengschnüren und Sicherheitsanzündschüren fest.

Explosifs à usage civil - Cordeaux détonants et mèches de sûreté - Partie 8 : Vérification de la résistance à l’eau

Le présent document spécifie une méthode d’essai permettant de vérifier la résistance à l’eau des cordeaux détonants et des mèches de sûreté.

Eksplozivi za civilno uporabo - Detonacijske in počasi goreče vžigalne vrvice - 8. del: Ugotavljanje odpornosti detonacijskih in počasi gorečih vžigalnih vrvic proti vodi

General Information

• Status: Published
• Publication Date: 30-Sep-2025
• ICS: 71.100.30 - Explosives. Pyrotechnics and fireworks
• Technical Committee: CEN/TC 321 - Explosives for civil uses
• Drafting Committee: CEN/TC 321/WG 6 - Explosives and propellants
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 01-Oct-2025
• Due Date: 03-Apr-2022
• Completion Date: 01-Oct-2025
• Directive: 2014/28/EU - Directive 2014/28/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market and supervision of explosives for civil uses
• Mandate: M/055 - Standardization mandate to CEN for explosives for civil uses
• Mandate: M/562 - Standardization Request on Explosives for civil use
• Ref Project: SIST EN 13630-8:2025 - Explosives for civil uses - Detonating cords and safety fuses - Part 8: Determination of resistance to water of detonating cords and safety fuses

Relations

• Replaces: EN 13630-8:2002 - Explosives for civil uses - Detonating cords and safety fuses - Part 8: Determination of resistance to water of detonating cords and safety fuses
• Effective Date: 23-Oct-2019

Overview

EN 13630-8:2025 - published by CEN - specifies a laboratory test method for verification of resistance to water of detonating cords and safety fuses used in civil explosives. The standard defines immersion arrangements, sample preparation, test conditions and the criteria for a pass/fail result. It replaces EN 13630-8:2002 and is intended to verify whether these initiation products maintain performance after water exposure.

Key topics and technical requirements

• Scope: Verification of water resistance for detonating cords and safety fuses (freshwater from the tap).
• Test samples:
  • Detonating cord: 5 samples, (2 000 ± 50) mm each; seal both ends.
  • Safety fuse: 5 samples, (1 500 ± 50) mm each; seal both ends.
• Immersion conditions:
  • Temperature: (23 ± 10) °C (water and ambient).
  • Duration: 24 h immersion for each sample.
  • Immersion depth: test pieces positioned so at least 1 000 mm is below the water surface; bottom part at 500 mm depth.
• Apparatus (examples):
  • Water tank, pulleys (min. Ø100 mm) and a tensile weight arrangement for detonating cords.
  • Weight of (500 ± 50) g for safety fuses to hold midpoint against tank bottom.
  • Means of sealing (non-reactive), length gauge, thermometer, hygrometer.
  • Witness plate (EN AW‑6082 aluminium) and detonators for verifying detonation on cords.
• Post-immersion verification:
  • Detonating cords: test initiation reliability per EN 13630-7:2025.
  • Safety fuses: measure burning duration (unconfined) per EN 13630-12:2025 and calculate time per 1 m.
• Pass/fail criteria: All five samples must pass the respective follow-up tests to be recorded as “pass”; otherwise, “fail”.
• Test report must cite EN 13630-8:2025 and include identification of the explosive, environmental conditions, water temperature, tensile load (for cords), witness method, burning durations (for fuses) and observations.

Practical applications

• Verifying field robustness of detonating cords and safety fuses after water exposure.
• Quality control and product development for manufacturers of initiation systems.
• Pre-qualification testing for suppliers used in mining, quarrying, civil demolition and controlled blasting where wet conditions may occur.
• Regulatory compliance documentation and conformity assessment related to Directive 2014/28/EU (informative Annex ZA).

Who should use this standard

• Explosive manufacturers and R&D labs
• Accredited testing laboratories and quality assurance teams
• Procurement and specification engineers in mining, construction and demolition
• Regulatory bodies and conformity assessors

Related standards

• EN 13630-1:2025 - General requirements
• EN 13630-7:2025 - Verification of initiation reliability (detonating cords)
• EN 13630-12:2025 - Burning duration of safety fuses
• EN 13857-1:2025 - Vocabulary
• EN 573-3:2019+A2:2023 - Aluminium specification (witness plate)

Keywords: EN 13630-8:2025, detonating cords, safety fuses, resistance to water, immersion test, verification, CEN, explosives for civil uses.

Standards Content (Sample)

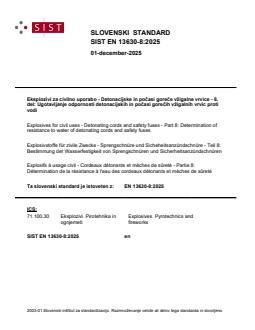

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Detonacijske in počasi goreče vžigalne vrvice - 8.
del: Ugotavljanje odpornosti detonacijskih in počasi gorečih vžigalnih vrvic proti
vodi
Explosives for civil uses - Detonating cords and safety fuses - Part 8: Determination of
resistance to water of detonating cords and safety fuses
Explosivstoffe für zivile Zwecke - Sprengschnüre und Sicheheitsanzündschnüre - Teil 8:
Bestimmung der Wasserfestigkeit von Sprengschnüren und Sicherheitsanzündschnüren
Explosifs à usage civil - Cordeaux détonants et mèches de sûreté - Partie 8:
Détermination de la résistance à l'eau des cordeaux détonants et mèches de sûreté
Ta slovenski standard je istoveten z: EN 13630-8:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

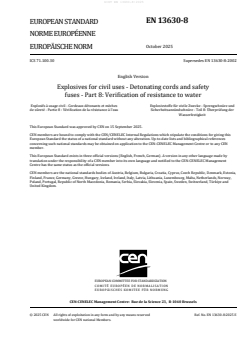

EN 13630-8
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13630-8:2002
English Version
Explosives for civil uses - Detonating cords and safety
fuses - Part 8: Verification of resistance to water
Explosifs à usage civil - Cordeaux détonants et mèches Explosivstoffe für zivile Zwecke - Sprengschnüre und
de sûreté - Partie 8 : Vérification de la résistance à l'eau Sicherheitsanzündschnüre - Teil 8: Überprüfung der
Wasserfestigkeit
This European Standard was approved by CEN on 15 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13630-8:2025 E
worldwide for CEN national Members.

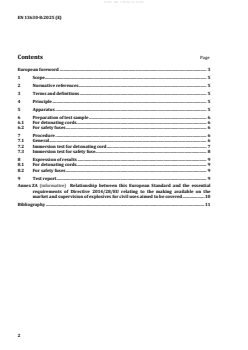

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 5
6 Preparation of test sample . 6
6.1 For detonating cords. 6
6.2 For safety fuses . 6
7 Procedure . 6
7.1 General. 6
7.2 Immersion test for detonating cord . 7
7.3 Immersion test for safety fuse . 8
8 Expression of results . 9
8.1 For detonating cords. 9
8.2 For safety fuses . 9
9 Test report . 9
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the
market and supervision of explosives for civil uses aimed to be covered . 10
Bibliography . 11
European foreword
This document (EN 13630-8:2025) has been prepared by Technical Committee CEN/TC 321 “Explosives
for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026, and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13630-8:2002.
EN 13630-8:2002:
a) the document title has been changed from “Determination of resistance to water of detonating cords”
to “Part 8: Verification of resistance to water”;
b) the Scope has been revised to clarify that the resistance to water is verified;
c) the normative references have been updated;
d) the document has been restructured and is no longer subdivided according to the test methods for
detonating cords and safety fuses – it now contains
— the Clause “Principle” containing the updated specifications from former subclauses 4.1 and 5.1;
— the Clause “Apparatus” containing the updated specifications from former subclauses 4.2 and
5.2;
— the Clause “Preparation of test sample” containing, besides additional apparatus components,
the updated specifications from former subclauses 4.3 and 5.3;
— the Clause “Procedure” containing the updated specifications for testing detonating cords and
safety fuses from former subclauses 4.4 and 5.4 in separate subclauses;
e) the Clause 8 “Expression of results” has been added;
f) the Clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been updated and extended;
g) the Annex A “Range of applicability of the test method” has been removed;
h) the Annex ZA has been updated;
i) the Bibliography has been added and lists, e.g. EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13630 series, published under the general title Explosives for civil uses —
Detonating cords and safety fuses, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a test method for the verification of the resistance to water of detonating cords
and safety fuses.
2 Normative references
The following documents are referred to in t
...
