EN 13443-1:2002+A1:2007

Water conditioning equipment inside buildings - Mechanical filters - Part 1: Particle rating 80 µm to 150 µm - Requirements for performances, safety and testing

Part 1 of this European standard applies to mechanical filters for drinking water installations inside buildings, of nominal size from DN 15 to DN 100, minimum nominal pressure PN10, particle rating of 80 to 150 µm, and minimum design temperature of 30°C. It specifies requirements relating to the construction and mode of operation of filters and describes relevant methods of testing. It only concerns units which are permanently connected to the mains supply at the point of entry into the building.

Anlagen zur Behandlung von Trinkwasser innerhalb von Gebäuden - Mechanisch wirkende Filter - Teil 1: Filterfeinheit 80 µm bis 150 µm - Anforderungen an Ausführung, Sicherheit und Prüfung

Teil 1 dieser Europäischen Norm gilt für mechanisch wirkende Filter in der Trinkwasser-Installation innerhalb von Gebäuden mit einer Nennweite von DN 15 bis DN 100, einem minimalen Nenndruck von PN10, einer Durchlassweite 80 µm bis 150 µm und einer minimalen Auslegungstemperatur von 30 °C. Die Norm spezifiziert Anforderungen in Bezug auf Konstruktion und Funktion von Filtergeräten und beschreibt relevante Prüfverfahren. Sie bezieht sich nur auf fest installierte Geräte am Eintrittspunkt der Anschlussleitung in die Hausinstallation.
Teil 2 dieser Europäischen Norm (prEN 13443-2) ist ein weiteres Dokument und gilt für Filtergeräte mit einer Filterfeinheit geringer als 80 µm.

Appareils de traitement d'eau à l'intérieur des bâtiments - Filtres mécaniques - Partie 1: Particules de dimension comprise entre 80 µm et 150 µm - Exigences de performances et de sécurité, essais

La première partie de la présente Norme européenne s'applique aux filtres mécaniques utilisés dans les installations d'eau potable à l'intérieur des bâtiments, de diamètre nominal compris entre DN 15 et DN 100, de pression nominale PN 10, de seuil de filtration des particules compris entre 80  m et 150  m et de température opérationnelle minimale de 30 °C. Elle spécifie les exigences relatives à la fabrication et au mode de fonctionnement des filtres et décrit les méthodes d'essais adaptées. Elle ne concerne que les éléments raccordés en permanence au point d'entrée du réseau de distribution d'eau dans le bâtiment.
La seconde partie de la présente norme (prEN 13443-2) est un document séparé qui traite des filtres dont le seuil de filtration est limité aux particules de taille inférieure à 80  m.

Oprema, ki se uporablja za pripravo pitne vode v stavbah - Mehanski filtri - 1. del: Filtri za izločitev delcev z velikostjo 80 µm do 150 µm - Zahteve za delovanje, varnost in preskušanje

General Information

• Status: Published
• Publication Date: 18-Sep-2007
• ICS: 13.060.20 - Drinking water
• ICS: 91.140.60 - Water supply systems
• Technical Committee: CEN/TC 164 - Water supply
• Drafting Committee: CEN/TC 164/WG 13 - Water conditioning equipment inside buildings
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Dec-2024
• Completion Date: 02-Dec-2024
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Directive: 98/83/EC - Quality of water intended for human consumption
• Ref Project: SIST EN 13443-1:2003+A1:2007 - Water conditioning equipment inside buildings - Mechanical filters - Part 1: Particle rating 80 µm to 150 µm - Requirements for performances, safety and testing

Relations

• Merged From: EN 13443-1:2002 - Water conditioning equipment inside buildings - Mechanical filters - Part 1: Particle rating 80 µm to 150 µm - Requirements for performances, safety and testing
• Effective Date: 19-Jan-2023

Overview

EN 13443-1:2002+A1:2007 is a CEN European standard for mechanical filters used inside buildings on drinking water installations. It covers filters of nominal size DN 15 to DN 100, minimum nominal pressure PN10, particle rating 80 µm to 150 µm, and a minimum design temperature of 30 °C. The standard specifies construction, operation, performance, safety and testing requirements for units permanently connected to the mains at the building point of entry.

Key topics and technical requirements

• Scope and classification
  • Applies only to permanently connected point-of-entry filters (DN 15–DN 100).
  • Filters are designated by nominal size (DN), end connections, filter type (backwashable or single-use cartridge) and nominal pressure (PN).
• Filter types
  • Backwashable filters: cleaned in situ without tools; must allow uninterrupted filtered supply during backwash and provide a backwash outlet compliant with EN 1717.
  • Single‑use cartridge filters: replaceable elements packaged to avoid contamination; replacement tools (if needed) supplied by manufacturer.
• Materials and hygiene
  • Manufacturers must select materials that do not contaminate drinking water; copper alloys must meet dezincification requirements (refer to EN ISO 6509).
• Hydraulic and performance limits
  • Particle rating: maximum rating 100–150 µm; minimum rating 80–120 µm (as verified by test methods).
  • Pressure drop: with a clean element at nominal flow, pressure drop shall not exceed 50 kPa.
  • Filter surface velocity: ≤ 0.15 m3/(h·cm2) for backwashable, ≤ 0.025 m3/(h·cm2) for cartridge filters.
  • Pressure strength and durability: includes bending strength, hydrostatic pressure tests (at multiple of PN), element differential pressure tests (e.g., 80% of PN for 60 min) and dynamic pressure cycling (e.g., 200,000 cycles).
• Testing conditions
  • Tests generally at room temperature with water 10–30 °C (or higher where design temperature exceeds 30 °C).
• Documentation and marking
  • Manufacturer must provide technical documentation, labelling and instructions for installation, operation and maintenance.

Applications and users

• Practical use: point-of-entry particulate removal for residential, commercial and light‑industrial buildings; protects downstream appliances (meters, valves, water heaters) and improves water clarity.
• Primary users:
  • Filter manufacturers and product designers (for compliance and type testing)
  • Building services engineers and installers (specification and selection)
  • Test laboratories and certification bodies
  • Water utilities and regulators assessing product suitability

Related standards

• EN 13443-2: Part 2 (filters with particle rating < 80 µm)
• EN 1717 (protection against backflow)
• EN 1567 (building valves)
• EN 1333 (flanges / PN selection), EN ISO 6509 (dezincification), EN ISO 3822-3 (acoustic tests)
• EN 15161 (installation, operation, maintenance)

Keywords: EN 13443-1:2002+A1:2007, mechanical filters, drinking water installations, particle rating 80 µm–150 µm, point-of-entry filter, backwashable filter, cartridge filter, DN 15–DN 100, PN10, filter testing.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Water conditioning equipment inside buildings - Mechanical filters - Part 1: Particle rating 80 µm to 150 µm - Requirements for performances, safety and testingAppareils de traitement d'eau a l'intérieur des bâtiments - Filtres mécaniques - Partie 1: Particules de dimension comprise entre 80 µm et 150 µm - Exigences de performances et de sécurité, essaisAnlagen zur Behandlung von Trinkwasser innerhalb von Gebäuden - Mechanisch wirkende Filter - Teil 1: Filterfeinheit 80 µm bis 150 µm - Anforderungen an Ausführung, Sicherheit und PrüfungTa slovenski standard je istoveten z:EN 13443-1:2002+A1:2007SIST EN 13443-1:2003+A1:2007en,fr,de91.140.60Sistemi za oskrbo z vodoWater supply systems13.060.20Pitna vodaDrinking waterICS:SLOVENSKI
STANDARDSIST EN 13443-1:2003+A1:200701-december-2007

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13443-1:2002+A1
September 2007 ICS 13.060.20; 91.140.60 Supersedes EN 13443-1:2002 English Version
Water conditioning equipment inside buildings - Mechanical filters - Part 1: Particle rating 80 µm to 150 µm - Requirements for performances, safety and testing
Appareils de traitement d'eau à l'intérieur des bâtiments - Filtres mécaniques - Partie 1: Particules de dimension comprise entre 80 µm et 150 µm - Exigences de performances et de sécurité, essais
Anlagen zur Behandlung von Trinkwasser innerhalb von Gebäuden - Mechanisch wirkende Filter - Teil 1: Filterfeinheit 80 µm bis 150 µm - Anforderungen an Ausführung, Sicherheit und Prüfung This European Standard was approved by CEN on 23 October 2002 and includes Amendment 1 approved by CEN on 9 August 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2007 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13443-1:2002+A1:2007: E

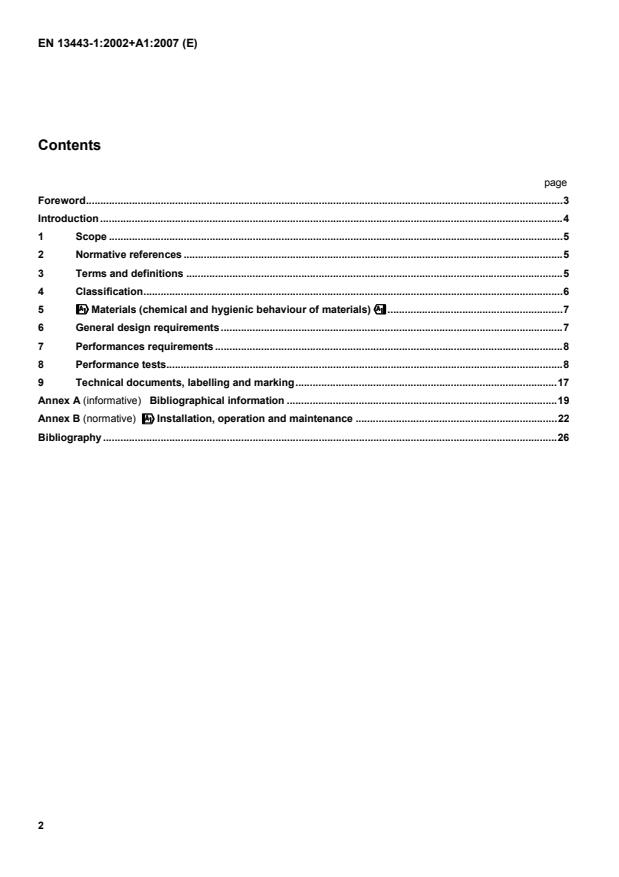

Bibliographical information.19 Annex B (normative)
!!!!Installation, operation and maintenance.22 Bibliography.26

(ISO 6509:1981) !deleted text" ! ISO 2591-1, Test sieving — Part 1: Methods using test sieves of woven wire cloth and perforated metal plate ISO 9276-1, Representation of results of particle size analysis — Part 1: Graphical representation ISO 13320-1, Particle size analysis — Laser diffraction methods — Part 1: General principles" 3 Terms and definitions For the purposes of this European Standard, the following terms and definitions apply. 3.1 !!!!drinking water"""" water intended for human consumption as defined in Directive 98/83/EC !(see Annex A)" 3.2 !!!!mechanical filter"""" !appliance" designed to remove undissolved substances from water, down to a specified particle size 3.3 filter element part of a filter designed to ensure the retention of particles

pressure drop does not exceed a value of 50 kPa (0,5 bar), or the filter surface velocity does not exceed the maximum specified value, whichever is lower 4 Classification 4.1 Principle Mechanical filters shall be designated by:  nominal size DN;  end connections;  filter type;  nominal pressure PN. The designation shall be clearly identified on the manufacturer's rating plate or in the instruction manual. Examples are given in !Annex A". 4.2 Nominal size (DN) The nominal size DN shall correspond to the flow rates in Table 2. The inlet connection of the filter may be DN or one size larger or one size smaller than the nominal size DN. In the case of flange connections the nominal size DN is determined by the DN of the inlet connection. 4.3 !!!!End connections"""" Examples of end connections are shown in !Annex A". Combinations of two kinds of connections are possible. 4.4 !!!!Filter type"""" Filters conforming to this standard shall be presented as one of the following types:  filters requiring single use filter elements;

150 !µm" and the minimum filter rating shall be between 80 !µm" and 120 !µm". 8 Performance tests 8.1 !!!!Test conditions"""" Tests shall be carried out with the filter in the horizontal position, except for special models. Unless otherwise specified tolerances shall be ± 5%. Unless otherwise stated tests shall be carried out at room temperature with water between 10 °C and 30 °C. If the designed water temperature is higher than 30 °C, the designed temperature shall be used for the test. 8.2 !!!!Mechanical performance""""
8.2.1 Bending strength of the body 8.2.1.1 Principle The mechanical bending strength of the body is tested by a bending moment test, in which a force is applied for a predetermined period.

10030+" Table 1 — Nominal size vs. bending moment Nominal size DN
15 20 25 32 40 50 65 80 100 Bending moment Threaded and flanged ends 80 150 300 400 500 600 750 950 1300(Nm) Compression ends 50 85 125 160 200 300 - - -
Figure 1 — Bending moment testing equipment 8.2.2 Static pressure strength and tightness of the filter 8.2.2.1 Principle The pressure strength and water tightness of the filter shall be tested by applying a water pressure of 3 times the nominal pressure PN for a period of 2 010
+min. Those filter components which are subject to hydrostatic pressure shall be designed for a nominal pressure of not less than 1 000 kPa !deleted text". According to EN 1567, the filters combined with pressure regulating valves shall be designed at a nominal pressure of not less than 1 600 kPa !deleted text ". 8.2.2.2 !!!!Test procedure"""" Install the filter in a test rig as shown in Figure 2. Increase the pressure to 3 times the nominal pressure PN. Maintain the pressure for 2 010
+ min.
Key 1
Pressurizing device 2
Stop valve/ Solenoid valve
Drain valve 4
Pressure gauge Figure 2 — Pressure strength and tightness testing equipment 8.2.3 Pressure strength of filter elements and components 8.2.3.1 Principle Filter elements and components which are subject to differential pressure during normal operation shall be capable of withstanding a differential pressure equal to 80 % of the nominal pressure PN for 60 min. 8.2.3.2 !!!!Test procedure"""" Install the filter in a test rig as shown in Figure 2. Prepare the filter elements and components under test so that they are subject to differential pressure. Increase the upstream pressure to 80 % of the nominal pressure PN with an open discharge. Maintain the pressure for !6021+− min". 8.2.4 !!!!Dynamic pressure test"""" 8.2.4.1 Principle The filter shall be capable of withstanding not less than 200 000 load cycles with a pressure cycling between
150 kPa !deleted text " and 1,3 times the nominal pressure PN, at a frequency of !1521+− " times per minute.

Key 1
Time in seconds 2
Pressure in bar Figure 3 — Dynamic pressure test 8.2.4.2 !!!!Test procedure"""" Position the filter in a test rig shown in Figure 2. The duration of the pressure increase and decrease shall be (1 ± 0,2) s. The filter used for the tests 8.2.4.2 shall not be used for subsequent testing. 8.3 Hydraulic requirements 8.3.1 Pressure drop 8.3.1.1 Principle When the filter is new or cleaned, the pressure drop at the specified nominal flow rate shall not exceed 50 kPa !deleted text ". 8.3.1.2 !!!!Test procedure"""" The test assembly is shown in Figure 4. Connect the filter (5) in accordance with the manufacturer’s instructions supplied with the filter. Install the filter between two sensors for pressure measurement (3) connected to adequately sized manometers (4) (error limit 2 kPa !deleted text"). Alternatively, a differential pressure gauge (4) can be used. If the appliance is fitted with a shut off valve, open it fully. Adjust the flow rate by means of the regulating valve (1) installed downstream of the filter. Measure the differential pressure at a range (e.g. 10) of flow rates in order to generate a pressure drop curve (curve A, Figure 5). In order to determine the pressure drop curve for the filter itself, repeat the above procedure with the filter removed (curve B). The filter pressure drop (curve C) is obtained by subtracting curve B from curve A.

Key 1 Regulating valve 2 Flowmeter 3 Sensors for pressure measurement 4 Differential pressure gauge 4’
Alternatively: two pressure gauges gauge 5 Appliance under test Figure 4 — Flow rate/pressure loss testing equipment
Key 1
Flow rate in m3/h 2
Pressure drop in bar Figure 5 — Flow rate as function of pressure drop The nominal flow rates shall not be lower than specified in the following Table 2.
...
