prEN ISO 20500-5

Mobile road construction machinery - Safety - Part 5: Mobile Specific requirements for paver-finishers (ISO/DIS 20500-5:2020)

This part of ISO 20500, together with part 1, deals with all significant hazards for paver-finisher when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see Clause 4).
The requirements of this part are complementary to the common requirements formulated in ISO 20500-1.
This document does not repeat the requirements from ISO 20500-1, but adds or replaces the requirements for application for paver-finisher.

Bewegliche Straßenbaumaschinen - Sicherheit - Teil 5: Besondere Anforderungen an Straßenfertiger (ISO/DIS 20500-5:2020)

Dieser Teil von ISO 20500 behandelt, zusammen mit Teil 1, alle signifikanten Gefährdungen für Straßenfertiger, wenn diese bestimmungsgemäß und unter den vernünftigerweise vom Hersteller vorhersehbaren Fehlbedienungsbedingungen während der gesamten Lebensdauer der Maschine verwendet werden (siehe Anhang D).
Die Anforderungen dieses Teils ergänzen die gemeinsamen Anforderungen, die in ISO 20500 1 formuliert sind.
Dieses Dokument wiederholt nicht die Anforderungen aus ISO 20500 1, sondern ergänzt oder ersetzt die Anforderungen zur Anwendung für Straßenfertiger.
Die folgenden signifikanten und relevanten Gefährdungen werden in diesem Dokument nicht behandelt:
- Blitzeinschlag.

Machines mobiles pour la construction de routes - Sécurité - Partie 5: Prescriptions spécifiques pour finisseurs (ISO/DIS 20500-5:2020)

Premični stroji za gradnjo cest - Varnost - 5. del: Posebne zahteve za finišerje za ceste (ISO/DIS 20500-5:2020)

General Information

• Status: Not Published
• Publication Date: 21-Aug-2023
• ICS: 93.080.10 - Road construction
• Technical Committee: CEN/TC 151 - Construction equipment and building material machines - Safety
• Drafting Committee: CEN/TC 151/WG 5 - Road construction machines - Safety
• Current Stage: 5098 - Decision to abandon - Formal Approval
• Start Date: 20-Aug-2025
• Completion Date: 23-Sep-2025
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: oSIST prEN ISO 20500-5:2020 - Mobile road construction machinery - Safety - Part 5: Mobile Specific requirements for paver-finishers (ISO/DIS 20500-5:2020)

Overview

prEN ISO 20500-5 (ISO/DIS 20500-5:2020) - Mobile road construction machinery - Safety - Part 5: Mobile specific requirements for paver-finishers - defines safety requirements for paver-finishers when used as intended and under reasonably foreseeable misuse throughout the machine’s lifetime. This part complements ISO 20500‑1 (common requirements) by adding or replacing requirements specific to paver-finishers rather than repeating Part 1. The draft standard addresses hazards, verification, and information for use, and includes normative annexes for noise testing and emission reducing device (ERD) performance.

Keywords: prEN ISO 20500-5, ISO 20500-5, paver-finishers, mobile road construction machinery, safety.

Key Topics

• Scope and hazard coverage: Identification of significant hazards for paver-finishers over the whole life cycle.
• Visibility requirements: Performance criteria for operator sightlines and defined rectangular/side boundaries to reduce blind zones.
• Operator’s station and seat: Ergonomics, access, controls and indicators to ensure safe operation.
• Controls, indicators and conveyors: Safe layout, labeling and protection of moving parts.
• Access and protection systems: Safe access to operator stations and maintenance points, guards and barriers.
• Signal devices and EMC: Requirements for audible/visual warnings and electromagnetic compatibility.
• Noise and vibration: Noise test code (Annex A) for determining sound power and operator exposure levels.
• Emission Reducing Device (ERD): Annex B sets performance requirements and test procedures for ERDs fitted to paver-finishers.
• Binder spraying systems: Safety for heating systems, hoses, filler openings and tank breathing.
• Verification and documentation: Procedures for verifying safety measures and required information in the instruction handbook.
• Annexes: Examples of machines, list of significant hazards, and relationship to EU Machinery Directive (Annex ZA).

Applications

This standard is practical for:

• Manufacturers and designers of paver-finishers to specify and validate machine safety features.
• Safety and compliance engineers conducting risk assessments and verification testing (visibility, noise, ERD capture-efficiency).
• Test laboratories performing noise emission and ERD performance tests using the normative procedures.
• Fleet managers and contractors procuring machines or developing safe operating procedures and maintenance regimes.
• Regulators and certification bodies referencing harmonized safety requirements for conformity assessment.

Related Standards

• ISO 20500-1 - Common requirements for mobile road construction machinery (complementary).
• ISO 12100 - General principles for risk assessment and risk reduction (type C standard relationship).
• ISO 20500 Series (Parts 2–7) - Specific requirements for other road construction machines.
• European Machinery Directive 2006/42/EC (see Annex ZA for alignment).

This standard provides targeted, machine-specific safety rules and test methods to reduce operational risk and support regulatory compliance for paver-finishers in road construction.

Standards Content (Sample)

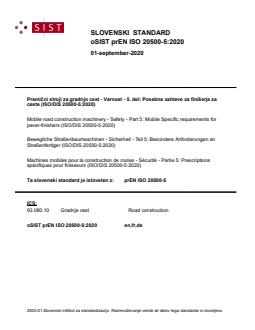

SLOVENSKI STANDARD
01-september-2020
Premični stroji za gradnjo cest - Varnost - 5. del: Posebne zahteve za finišerje za
ceste (ISO/DIS 20500-5:2020)
Mobile road construction machinery - Safety - Part 5: Mobile Specific requirements for
paver-finishers (ISO/DIS 20500-5:2020)
Bewegliche Straßenbaumaschinen - Sicherheit - Teil 5: Besondere Anforderungen an
Straßenfertiger (ISO/DIS 20500-5:2020)
Machines mobiles pour la construction de routes - Sécurité - Partie 5: Prescriptions
spécifiques pour finisseurs (ISO/DIS 20500-5:2020)
Ta slovenski standard je istoveten z: prEN ISO 20500-5
ICS:
93.080.10 Gradnja cest Road construction
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT INTERNATIONAL STANDARD
ISO/DIS 20500-5
ISO/TC 195 Secretariat: SAC
Voting begins on: Voting terminates on:
2020-07-10 2020-10-02
Mobile road construction machinery — Safety —
Part 5:
Mobile Specific requirements for paver-finishers
ICS: 93.080.10
THIS DOCUMENT IS A DRAFT CIRCULATED
This document is circulated as received from the committee secretariat.
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
ISO/CEN PARALLEL PROCESSING
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 20500-5:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020

ISO/DIS 20500-5:2020(E)
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

ISO/DIS 20500-5:2020(E)
Contents Page

Foreword . v
Introduction . vii
1 Scope .1
2 Normative references .1
3 Terms and definitions .2
4 Safety requirements and/or protective/risk reduction measures .3
4.1 General .3
4.2 Visibility .3
4.2.1 Visibility performance criteria .3
4.2.2 Visibility performance criteria for the rectangular boundary RB and side boundary
SB .4
4.3 Operator's station .7
4.4 Operator's seat .7
4.5 Controls and indicators .7
4.6 Conveyors .8
4.7 Access systems to operator's station and to maintenance points.8
4.8 Protection .8
4.9 Signal devices and warning signs.8
4.10 Electro-magnetic compatibility (EMC) .8
4.11 Noise and vibration .9
4.12 Paver finishers with Emission Reducing Device (ERD) .9
4.13 Paver finishers equipped with a binder spraying system .9
4.13.1 Binder heating system .9
4.13.2 Pipes and hoses for hand lances .9
4.13.3 Binder filler openings . 10
4.13.4 Binder tank breathing . 10
5 Verification of the safety requirements and/or protective/risk reduction measures . 10
6 Information for use . 11
6.1 Instruction handbook . 11
Annex A (normative) Noise test code for paver-finishers . 13
A.1 Scope . 13
A.2 Determination of A-weighted sound power level . 13
A.2.1 General . 13
A.2.2 Measurement surface . 13
A.2.3 Size of the measurement surface . 13
A.2.4 Microphone positions on the hemispherical measurement surface . 14
A.2.5 Positioning of the machine . 14
A.2.6 Repetition of the test . 15
A.3 Determination of A-weighted emission sound pressure level at the operator's
position . 15
A.3.1 General . 15
A.3.2 Enclosed operator's positions . 15
A.3.3 Quantities to be determined . 15
iii
ISO/DIS 20500-5:2020(E)
A.3.4 Repetition of the test . 15
A.3.5 Microphone position(s) . 15
A.4 Operation conditions . 15
A.4.1 Fan speed . 15
A.4.2 Operating conditions for working units . 16
A.5 Uncertainty . 17
A.6 Information to be recorded . 17
A.7 Information to be reported . 17
A.8 Declaration and verification of noise emission values . 18
Annex B (normative) Emission reducing device (ERD) – Performance requirements and
test procedures . 19
B.1 Scope . 19
B.2 Terms and definitions . 20
B.2.1 Definitions for ERD description . 20
B.3 Measurement Equipment and devices . 22
B.4 General requirements . 22
B.4.1 Quality measures . 22
B.4.2 Safety precautions . 23
B.4.3 Required test-site and environmental specification . 23
B.5 Installation, qualification and operating conditions of Equipment under test (EUT) . 26
B.5.1 General . 26
B.5.2 EUT settings . 26
B.5.3 Separation Set-up . 26
B.5.4 Smoke-Test . 27
B.6 Performance-Test . 27
B.6.1 General . 27
B.6.2 Methodology and steps of measurement . 28
B.6.3 EUT-Separation-Test Setup . 31
B.6.4 EUT-in-situ-test-Setup . 34
B.7 Determination of capture-efficiency . 36
B.7.1 General . 36
B.7.2 Determination of EUT-Separation-test-Setup capture-efficiency . 37
B.7.3 Determination of EUT-In-situ-test-Setup capture-efficiency . 37
B.7.4 Variance and statistical significance . 37
B.8 Information to be recorded . 39
B.9 Information to be reported . 40
B.10 Declaration and verification of capture-efficiency values . 42
Annex C (informative) Examples of paver-finishers . 43
Annex D (normative) List of significant hazards. 48
For European version only . 52
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 53

iv
ISO/DIS 20500-5:2020(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the World
Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 195, Building construction machinery and
equipment.
ISO 20500 consists of the following parts, under the general title Mobile road construction machinery —
Safety:
— Part 1: Common requirements
— Part 2: Specific requirements for road-milling machines
— Part 3: Specific requirements for soil-stabilising machines and recycling machines
— Part 4: Specific requirements for compaction machines
— Part 5: Specific requirements for paver-finishers
— Part 6: Specific requirements for mobile feeders
— Part 7: Specific requirements for slip form pavers and texture curing machines
A list of all parts in the ISO 20500 series can be found on the ISO website.
v
ISO/DIS 20500-5:2020(E)
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
vi
ISO/DIS 20500-5:2020(E)
Introduction
This International Standard is a type C standard as stated in ISO 12100.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered
are indicated in the scope of this International Standard.
When provisions of this type C standard are different from those which are stated in type A or B
standards, the provisions of this type C standard take precedence over the provisions of the other
standards for machines that have been designed and built according to the provisions of this type C
standard.
vii
DRAFT INTERNATIONAL STANDARD ISO/DIS 20500-5:2020(E)
Mobile road construction machinery — Safety —
Part 5:
Mobile Specific requirements for paver-finishers
1 Scope
This part of ISO 20500, together with part 1, deals with all significant hazards for paver-finisher when
they are used as intended and under the conditions of misuse which are reasonably foreseeable by the
manufacturer associated with the whole life time of the machine (see Annex D).
The requirements of this part are complementary to the common requirements formulated in
ISO 20500-1.
This document does not repeat the requirements from ISO 20500-1, but adds or replaces the
requirements for application for paver-finisher.
The following significant and relevant hazards are not covered in this document:
— Lightning.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
DHHS (NIOSH) Publication Number 97-105:1997, Engineering Control Guidelines for Hot Mix Asphalt
Pavers
EN ISO 13857:2008, Safety of machinery — Safety distances to prevent hazard zones being reached by
upper and lower limbs (ISO 13857:2008)
ISO 2867:2011, Earth-moving machinery — Access systems
ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources
using sound pressure — Engineering methods for an essentially free field over a reflecting plane
ISO 7096:2000, Earth-moving machinery — Laboratory evaluation of operator seat vibration
ISO 11201:2010, Acoustics — Noise emitted by machinery and equipment — Determination of emission
sound pressure levels at a work station and at other specified positions in an essentially free field over a
reflecting plane with negligible environmental corrections
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 15878, Road construction and maintenance equipment — Asphalt pavers — Terminology and
commercial specifications
ISO/DIS 20500-5:2020(E)
ISO 20500-1, Mobile road construction machinery — Safety — Part 1: Common requirements
ISO 29042-4:2009, Safety of machinery — Evaluation of the emission of airborne hazardous substances —
Part 4: Tracer method for the measurement of the capture efficiency of an exhaust system
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
paver-finisher
mobile self-propelled machine (either rubber-tyred or crawler-mounted) specifically designed to receive,
convey, distribute, profile and compact paving material (for example concrete asphalt) using the
floating/self-levelling screed method (see Figures C.1 and C.2)
3.1.1
pre-compaction screed paver-finisher
machine that compacts the paving material by the profile of the front of the screed plate, the angle of
attack of the screed (draft angle) and the weight of the screed. (see Figure C.3)
3.1.2
compaction screed paver-finisher
machine fitted with, in addition to the pre-compacting system, a single additional compaction system
which may consist of vibrators or tamper bars (see Figures C.4 and C.5)
3.1.3
high-compaction screed paver-finisher
machine fitted with, in addition to the pre-compacting system, at least two compaction systems which
may consist of vibrators, tamper bars or pressure bars (see Figures C.6, C.7 and C.8)
3.2
emission reducing device (ERD)
system to extract or reduce emissions from bitumen or other volatile or suspended substances from the
screed area and the paver-operator’s stations of a paver finisher
3.3
ERD Indicating Device
means to visually provide to the operator the information, whether the ERD is operating within the
designed operating-range
3.4
hot mix asphalt (HMA)
asphalt mix produced at temperatures between 140 and 190 °C
Note 1 to entry: European Asphalt Pavement Association, 2015◦”Hot mixes are produced at a temperature
between 150 and 190 °C.” http://www.eapa.org/asphalt.php?c=78
ISO/DIS 20500-5:2020(E)
Note 2 to entry: National Asphalt Pavement Association (NAPA) QIP 125 publication: Warm-Mix Asphalt: Best
Practices 3rd edition (January 2012) Page 5: “Conventional hot-mix asphalt (HMA) is typically produced at
temperatures from 280 °F to 320 °F (140 °C to 160 °C).
3.5
binder spraying system
a rigidly fixed attachment intended to spray automatically a film of binder (bitumen/emulsion) on the
road surface at a predetermined rate before applying road building material
Note to entry: The system may consist of binder storage, pumps and spray bars which are fitted to the paver
finisher. The system may be equipped with a heating system.
3.6
tractor
component of a paver which provides propulsion and can also receive, convey and distribute paving
material
4 Safety requirements and/or protective/risk reduction measures
4.1 General
Paver-finisher shall comply with the safety requirements and/or protective/risk reduction measures of
this clause. In addition, the machines shall be designed according to the principles of EN ISO 12100:2010
for relevant but not significant hazards which are not dealt with by this document.
Paver-finisher shall comply with the requirements of FprEN 474-1:2019, as far as not modified or
replaced by the requirements of this part.
4.2 Visibility
4.2 of ISO 20500-1 applies with the following additions.
4.2.1 Visibility performance criteria
The machine meets the requirements of this International Standard if the measurement results show no
maskings or maskings smaller than or equal to the performance criteria with direct or indirect view as
specified in Table 1.
The first row for each machine type is the allowed eye spacing. The second row is the allowed number
and the width of maskings.
ISO/DIS 20500-5:2020(E)
Table 1 — Visibility performance criteria
Basic width of
A B C D E F RB/SB
tractor, m
≤1,4m 205 205 205 205 205 205 405
-------- -------- -------- -------- -------- -------- ------
1 - 300 1 - 700 1 - 700 300
1 - 700 0 0
205 405
>1,4m 205 205 205 205 205
-------- -------- -------- -------- -------- -------- ------
1 - 700 2 – 300 or 2 – 300 or 2 - 700 or 2 - 700 or 2 - 700 or 300
1 - 700 1 - 700 1 - 1300 1 - 1300 1 - 1300

4.2.2 Visibility performance criteria for the rectangular boundary RB and side boundary SB
The machine meets the requirements of the standard if the measurement results show no maskings or
maskings smaller or equal to the acceptable maskings (300 mm) when evaluated using the eye spacing
specified in Table 2 for the RB and where applicable in addition for the SB, and using the test object height
Z for the SB and Y for each region RB as specified in Table 2.
Table 2 — Vertical test object height by machine width, region of the RB and SB
Basic width of Side boundary SB Region of the RB
tractor
Front side Left hand side Right hand side Rear side
≤1,4 m No side boundary Y = 1,5 m Y = 1,5 m Y = 1,5 m Y = 1,5 m
required
X = 1500 mm
See Figure 2
>1,4 m Y = 1,5 m Y = 1,5 m Y = 1,5 m Y = 1,5 m
Z = 1,2 m X = 1000 mm
with SB = 2000 See Figure 3
mm
See Figure 4
ISO/DIS 20500-5:2020(E)
Key
1 Rectangular boundary
2 Side boundary
A, B, C, D, E, F sectors of vision
Figure 1 — Setup of machines
Dimensions in metres
Key
X Distance between machine and RB to the front
Y  Vertical Test Object Height on the RB
1 FPCP
Figure 2 — Side view of a paver-finisher basic width < 1,4 m
ISO/DIS 20500-5:2020(E)
Dimensions in metres
Key
HH – Screed height
X Distance between machine and RB to the front
Y Vertical Test Object Height on the RB
1 FPCP
Figure 3 — Side view of a paver-finisher basic width > 1,4 m
ISO/DIS 20500-5:2020(E)
Dimensions in metres
Key
X Distance between machine and RB to the front
Y  Vertical Test Object Height on the RB
Z Vertical Test Object Height on the SB
Figure 4 — Front view of a paver-finisher
4.3 Operator's station
4.4 of ISO 20500-1 applies with the following exception:
— 4.4.2 of ISO 20500-1, first paragraph, does not apply for paver-finishers;
— 4.4.3 of ISO 20500-1, first paragraph does not apply for paver-finishers with an operating mass below
7250 kg.
4.4 Operator's seat
4.5.2 of ISO 20500-1 applies with the following addition:
According to ISO 7096, the vibration level at the driver seat is so low that this seat does not require a
suspension for the attenuation of transmitted vibration (see clause 1.4 of ISO 7096).
4.5 Controls and indicators
4.6 of ISO 20500-1 applies with the following addition:
ISO/DIS 20500-5:2020(E)
— the extending or closing of the telescopic screed shall not be simultaneously activated from both the
operator's station and the remote control, if relevant;
— controls for the regulation of the telescopic screeds shall be designed in such a manner as to ensure
that they return to neutral when released (hold-to-run control), see also ISO 20500-1, clause 4.6.2.1.
4.6 Conveyors
4.8 of ISO 20500-1 applies with the following exemption:
Hopper conveyors need not to comply with 4.8 of ISO 20500-1.
4.7 Access systems to operator's station and to maintenance points
4.9 of ISO 20500-1 applies with the following exception and addition:
— the height of the first step (600 mm) for access to the operator's position may be exceeded in
transport position of the machine;
— 4.9 does not apply for access systems leading to service points in the area of the material hopper;
— walkways shall be fitted to cover the operating width of the screed.
NOTE These walkways may be fitted directly to the screed sections or by other means. These means may
include a manually deployed walkway fixed to the screed.
— the screed is considered as an alternative exit according to ISO 2867:2011, paragraph 4.3.
4.8 Protection
4.10 of ISO 20500-1 applies with the following addition:
— spreader augers shall be fitted with means to prevent unintended access to the auger along the width
of the basic machine. These means shall be either rigidly fixed, movable guards, guards with
interlocking system, guardrails or similar guarding systems;
NOTE These guards can be an integral part of other systems in that area, e.g. access-system, etc.)
— where the spreaders augers extend beyond the width of the basic machines, means (e.g. guard rails,
distance guards) shall be provided on the screeds to minimize the risk of inadvertent access.
4.9 Signal devices and warning signs
4.15 of ISO 20500-1 applies with the following addition:
— telescopic screeds fitted on paver-finishers which could form crushing or shearing zones during their
operation shall be fitted with yellow flashing lights. Those flashing lights shall be located close to the
crushing or shearing zones and shall be activated automatically when the screeds are extended or
retracted.
4.10 Electro-magnetic compatibility (EMC)
4.18 of ISO 20500-1 applies with the following addition:
ISO/DIS 20500-5:2020(E)
— the antenna shall be located successively on the left- and right-hand sides of the paver-finisher, with
the antenna parallel to the plane of the longitudinal symmetry of the paver-finisher and in line with
the SIP.
4.11 Noise and vibration
4.19 of ISO 20500-1 applies with the following addition:
— for the determination of the noise emission values, Annex A applies to paver-finishers;
— for paver finishers with an operating mass exceeding 7250 kg, whole body and hand-harm emission
vibration at the driver workplace are generally below respectively 0,5 and 2,5 m/s²;
NOTE When crossing/using the screed walkway, operators may be exposed to high level of vibration due to
the compaction system.
— for paver finishers with an operating mass below 7250 kg, technical solution shall be provided to
isolate the driver from vibration due to the compaction system (see CEN/TR 15172-1).
4.12 Paver finishers with Emission Reducing Device (ERD)
Paver finishers with an operating mass > 7250 kg shall be so designed that an Emission Reducing Device
(ERD) can be fitted, if not already included in the base design of the machine. This system shall meet the
requirements of Annex B. If an ERD is installed, a visual warning device shall be fitted to indicate whether
the ERD is not operating within the designed operating-range.
NOTE 1 National regulations or regional requirements may apply.
NOTE 2 For applications using mixtures of asphalt-compounds it is recommended to install an Emission Reduce
Device (ERD) when using Hot-Mix-Asphalt (HMA) (see 3.4).
4.13 Paver finishers equipped with a binder spraying system
4.13.1 Binder heating system
Heating systems shall be equipped with an automatic device to control the temperature of the road
building material.
The following shall be provided both for direct and for indirect heating:
— temperature gauge for the road building material;
— heat transfer fluid (oil) temperature gauge shall be provided for indirect heating;
— temperature control for the road building material up to a maximum permissible temperature;
— devices which automatically shut down fuel supply on loss of flame.
4.13.2 Pipes and hoses for hand lances
For pipes with an operating pressure of more than 5 MPa (50 bar) and/or a temperature of over 50 °C
used for hand-lances, a protection (e.g. metallic helix) of at least 1 m is necessary. The protection shall be
fitted on the end (hand-lance) of the pipe.
ISO/DIS 20500-5:2020(E)
4.13.3 Binder filler openings
Filler openings having a diameter exceeding 240 mm shall be provided with guard bars which shall be
demountable for maintenance by the use of tools. The permitted maximum spacing of the bars is 180 mm
according to EN ISO 13857:2008, 4.3.
4.13.4 Binder tank breathing
Non-pressure type bitumen tanks shall be provided with at least one permanently open breather vent.
The minimum internal diameter shall be:
— 25 mm for tanks with a capacity less than 300 l and;
— 50 mm for tanks with a capacity equal or above 300 l.
The breather shall be easy to check and located into the hopper such that spillage of bitumen into
environment is minimized in the event of unintended overfilling.
5 Verification of the safety requirements and/or protective/risk reduction
measures
Safety requirements and/or protective/risk reduction measures of Clauses 4 and 6 of this document shall
be verified according to Table 3.
Table 3 sets out verification methods which shall be applied for each safety requirement in this document.
Where X(s) is indicated in the table, the corresponding verification method(s) shall be applied.
Table 3 shall be read in conjunction with the corresponding clauses.
Table 3 includes the following verification methods:
a) calculation: to establish that the requirements of this document have been met;
b) visual verification: to establish that something is present (e.g. a guard, a marking, a document);
c) measurement: to show that the required numerical values have been met (e.g. geometric dimensions,
safety distances, resistance of insulation of the electric circuits, results of physical tests);
d) functional tests: to show that the adequate signals intended to be forwarded to the main control
system of the complete machine are available and comply with the requirements and with the
technical documentation;
e) special verification: by reference to a standard which is mentioned in the corresponding clause.
ISO/DIS 20500-5:2020(E)
Table 3 — Verification of safety requirements and/or protective/risk reduction measures
4 Safety requirements and/or protective/risk reduction measures
4.1 General
4.2 Visibility  X X
4.3 Operator's station
4.4 Operator's seat
4.5 Controls and indicators  X
4.6 Conveyors
4.7 Access systems to operator's station and to maintenance points X X
4.8 Protection X X
4.9 Signal devices and warning signs X X
4.10 Electromagnetic compatibility (EMC)  X
4.11 Noise and vibration  X
4.12 Paver finishers with Emission Reducing Device (ERD)  X X
4.13 Paver finishers equipped with a binder spraying system
4.13.1 Binder heating system X X
4.13.2 Pipes and hoses for hand lances X
4.13.3 Binder filler openings  X
4.13.4 Binder tank breathing  X
6 Information for use
6.1 Instruction handbook X
Annex A Noise test code for paver-finishers  X
Annex B Emission reducing device (ERD) – Performance requirements and test  X
procedures
6 Information for use
6.1 Instruction handbook
6.2 of ISO 20500-1 applies with the following additions:
— information for a safe cleaning of the hopper and auger;
— information for a safe handling of gas bottles (including transportation);
Clause number
Title
a) Calculation
b) Visual verification
c) Measurement
d) Functional test
e) Special verification
ISO/DIS 20500-5:2020(E)
— warning message that it is forbidden to transport dangerous goods (for example gas bottles) in the
hopper;
— instruction to reduce the final envelope of the machines (for example screeds, lateral hopper covers
for stability matters while traveling or transporting;
— instruction how to install rigidly fixed screed extensions with their respective support devices and
augers;
— instructions covering installations of screeds, approved by the manufacturer;
— information about travelling/transportation configuration and locking concerning moveable
attachments, for example screeds, hopper wings;
— information for screeds approved by the manufacturer;
— instruction that it is not permitted to use the hopper for transportation;
— if ERD installed, information on corrective measures to be taken, if the ERD Indication Device shows
improper or undesired function-state of the ERD;
— information on how to periodically maintain the ERD, if installed;
— information about safe use of spray bars and lances, if equipped;
— operators shall be informed that if they stay a long time on the screed walkway, they may be exposed
to harmful vibration.
ISO/DIS 20500-5:2020(E)
Annex A
(informative)
Noise test code for paver-finishers
A.1 Scope
This noise test code specifies all the information necessary to carry out efficiently and under standardized
conditions the determination, declaration and verification of the noise emission characteristics of paver-
finishers.
Noise emission characteristics include emission sound pressure levels at workstations and the sound
power level. The determination of those quantities is necessary for:
— manufacturers to declare the noise emitted;
— comparing the noise emitted by machines in the family concerned;
— purposes of noise control at the source at the design stage.
The use of this noise test code ensures reproducibility of the determination of the noise emission
characteristics within specified limits determined by the grade of accuracy of the basic noise-
measurement method used. Noise-measurement methods allowed by this standard are engineering
methods (grade 2).
A.2 Determination of A-weighted sound power level
A.2.1 General
This annex specifies additional requirements for the determination of A-weighted sound power level
according to ISO 3744.
A.2.2 Measurement surface
A hemispherical test area shall be used for measurement.
A.2.3 Size of the measurement surface
The radius shall be calculated from the basic length L of the machine (Figures A.1 and A.2). The basic
length includes the main body of the machine plus working units, such as screed. The width of the
machine shall be the basic width of the paver-finisher.
ISO/DIS 20500-5:2020(E)
Figure A.1A. Figure A.2
The radius shall be:
— 4 m when the basic length L of the machine to be tested is less than or equal to 1,5 m;
— 10 m when the basic length L of the machine to be tested is greater than 1,5 m but less than or equal
to 4 m;
— 16 m when the basic length L of the machine to be tested is greater than 4 m.
A.2.4 Microphone positions on the hemispherical measurement surface
Six microphone positions (i.e. positions 2, 4, 6, 8, 10 and 12) shall be arranged according to Figure A.3.

Microphone
x/r y/r z
position
2 0,7 0,7 1,5 m
4 - 0,7 0,7 1,5 m
6 - 0,7 - 0,7 1,5 m
8 0,7 - 0,7 1,5 m
10 - 0,27 0,65 0,71 r
12 0,27 - 0,65 0,71 r
Figure A.3 — Microphone positions
A.2.5 Positioning of the machine
The center of the machine shall coincide with the center of the hemisphere, which is the intersecting point
of the x-axis and y-axis (see Figure A.3). The front (direction of travelling) of the machine shall point
towards the microphone positions 2 and 8. For positioning the machine, the middle of the basic length L
shall be regarded as the central point.
ISO/DIS 20500-5:2020(E)
A.2.6 Repetition of the test
The A-weighted sound power level shall be determined at least three times. If at least two of the
determined values do not differ by more than 1 dB, further measurements will not be necessary.
Otherwise the measurements shall be continued until 2 values differing by no more than 1 dB are
obtained. The A-weighted sound power level to be used for calculating the sound power level to be
declared is the arithmetic mean of both highest values that do not differ by more than 1 dB.
The total duration of each measurement at each microphone position shall be at least 15 s.
A.3 Determination of A-weighted emission sound pressure level at the
operator's position
A.3.1 General
This annex specifies additional requirements for the determination of the A-weighted sound pressure
level at the operator's station of paver-finishers according to ISO 11201 for a seating and/or standing
operator. The operator shall be present during the test.
A.3.2 Enclosed operator's positions
When equipped with a cabin, all doors and windows shall be closed during measurement. The operator
station air circulation fan speed shall be set to mid-position.
A.3.3 Quantities to be determined
If more than one operator's station is provided, the emission sound pressure level at the operator's
station is the highest emission value determined at the operator's stations.
A.3.4 Repetition of the test
The sound pressure level shall be measured at least three times at each microphone position. If at least
two of the measured values do not differ by more than 1 dB, further measurements will not be necessary.
Otherwise the measurements shall be continued until 2 values differing by no more than 1 dB are
obtained. The A-weighted emission sound pressure level to be used is the arithmetic mean of the two
highest values that do not differ by more than 1 dB.
The duration of each measurement at each microphone position shall be at least 15 s.
A.3.5 Microphone pos
...
