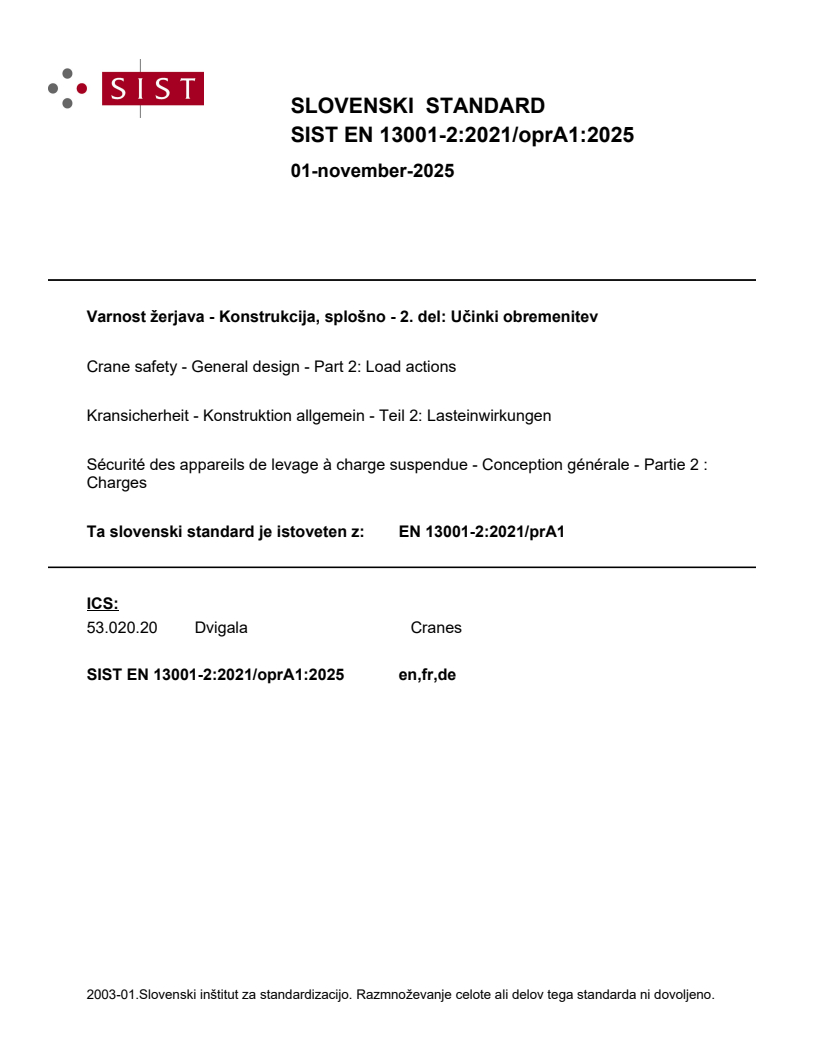

SLOVENSKI STANDARD
01-november-2025
Varnost žerjava - Konstrukcija, splošno - 2. del: Učinki obremenitev
Crane safety - General design - Part 2: Load actions
Kransicherheit - Konstruktion allgemein - Teil 2: Lasteinwirkungen
Sécurité des appareils de levage à charge suspendue - Conception générale - Partie 2 :
Charges
Ta slovenski standard je istoveten z: EN 13001-2:2021/prA1
ICS:
53.020.20 Dvigala Cranes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

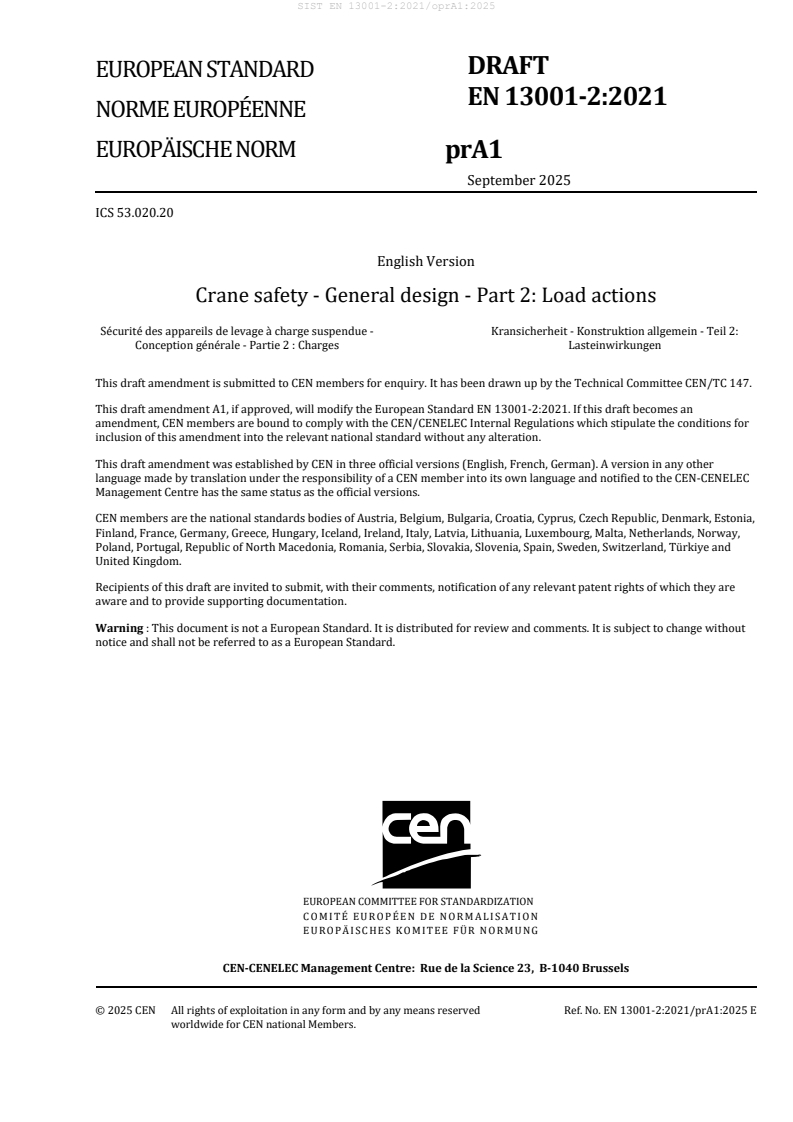

DRAFT
EUROPEAN STANDARD
EN 13001-2:2021
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
September 2025
ICS 53.020.20
English Version
Crane safety - General design - Part 2: Load actions
Sécurité des appareils de levage à charge suspendue - Kransicherheit - Konstruktion allgemein - Teil 2:
Conception générale - Partie 2 : Charges Lasteinwirkungen
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 147.
This draft amendment A1, if approved, will modify the European Standard EN 13001-2:2021. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13001-2:2021/prA1:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
1 Modifications to the European foreword . 4
2 Modifications to the Introduction . 5
3 Modifications to Clause 1, “Scope” . 6
4 Modifications to Clause 2, “Normative references” . 6
5 Modifications to Clause 4, “Safety requirements and/or measures” . 6
6 Modifications to Annex A, “Aerodynamic coefficients” . 12
7 Modifications to Annex C, “Calculation of load factor for indirect lifting force limiter” . 13
8 Modifications to Annex E, “Selection of a suitable set of crane family standards” . 13
9 Modifications to Annex F, “Requirements in Directive 2016/1629/EU” . 16
10 Modifications to Annex G, “List of hazards” . 16
11 Modification to Annex ZA, “Relationship between this European Standard and the
essential requirements of Directive 2006/42/EC aimed to be covered” . 17
European foreword
This document (EN 13001-2:2021/prA1:2025) has been prepared by Technical Committee CEN/TC 147
“Cranes — Safety”, the secretariat of which is held by SFS.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
1 Modifications to the European foreword
Replace the whole clause with the following:
“This document (EN 13001-2:2021/A1:202x) has been prepared by Technical Committee CEN/TC 147
“Cranes — Safety”, the secretariat of which is held by SFS.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by [month year of DOP], and conflicting national standards
shall be withdrawn at the latest by [month year of DOW].
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13001-2:2021.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
The main changes compared with EN 13001-2:2021 are as follows:
— European foreword updated;
— Introduction updated;
— standard references updated in Clause 2 and 4.2.4.13;
— Formula (7) corrected in 4.2.2.5;
— Table 6 replaced in 4.2.3.4;
— text modified in 4.2.1.1, 4.2.1.5, 4.2.2.1, 4.2.2.2.1, 4.2.2.2.2, 4.2.2.4, 4.2.2.5, 4.2.2.7.1, 4.2.3.1, 4.2.3.4,
4.2.4.2, 4.2.4.3, 4.2.4.4, 4.2.4.8, 4.2.4.10, 4.2.4.12, 4.2.4.13, 4.3.1, 4.3.2, 4.3.4, 4.3.5, 4.3.7, 4.3.8;
— Figure A.9 replaced in Annex A;
— Formula corrected in Annex C;
— standard list updated in Annex E;
— text updated in Annex F;
— list of significant hazards updated in Annex G;
— Annex ZA revised.
This document is Part 2 of the EN 13001 series. The other parts are as follows:
— Part 1: General principles and requirements
— Part 3-1: Limit states and proof of competence of steel structures
— Part 3-2: Limit states and proof of competence of wire ropes in reeving systems
— Part 3-3: Limit states and proof of competence of wheel/rail contacts
— Part 3-4: Limit states and proof of competence of machinery — Bearings
— Part 3-5: Limit states and proof of competence of forged hooks and cast hooks
— Part 3-6: Limit states and proof of competence of machinery — Hydraulic cylinders
For the relationship with other European Standards for cranes, see Annex E.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.”
2 Modifications to the Introduction
Replace the whole clause with the following:
“This document has been prepared to be a harmonized standard to provide one means for the mechanical
design and theoretical verification of cranes to conform to the essential health and safety requirements
of the EU Directive 2006/42/EC (Machinery), as mentioned in Annex ZA.
This document is a type-C standard as stated in the EN ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the market
players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance, etc.).
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate in the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations and hazardous events
are covered are indicated in the scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or type-B
standards, the requirements of this type-C standard take precedence over the requirements of the other
standards, for machines that have been designed and built according to the requirements of this type-C
standard.”
3 Modifications to Clause 1, “Scope”
Replace the last sentence with the following:
“This document is not applicable to cranes manufactured before the date of its publication.”
4 Modifications to Clause 2, “Normative references”
Replace “EN 13586:2004+A1:2008” with “EN 13586:2020” in Clause 2 and throughout the text.
5 Modifications to Clause 4, “Safety requirements and/or measures”
In 4.2.1.1, replace the last sentence with the following:
“Internal loads inside mechanisms are mentioned in 4.2.1.5 and shall be considered where relevant.”
nd
In 4.2.1.5, replace the 2 paragraph with the following:
“Consideration shall be given to internal load effects in mechanisms due to exceptional loads given in
4.2.4, such as:
— 4.2.4.4, buffer forces;
— 4.2.4.7, emergency cut-out;
— 4.2.4.8, dynamic cut-off by lifting force limiter;
— 4.2.4.9, dynamic cut-off by lifting moment limiter;
— 4.2.4.11, apprehended failure of duplicated mechanism.”
rd
In 4.2.1.5, replace the 3 paragraph with the following:
“Consideration shall be given to rotating components that might be subjected to fatigue from this internal
loading.”
st
In 4.2.2.1, replace the 1 paragraph with following:
“When lifting the load off the ground or when releasing the load or parts of the load, the crane structure
is under effect of vibration excitation, which shall be taken into account as a load effect. The gravitational
force induced by the mass of the crane or crane part shall be multiplied by the factor ϕ . Dependent upon
the gravitational load effect of the mass and load combination in question, the factor ϕ shall be calculated
in accordance with either Formula (1) or (2). For definitions of unfavourable and favourable load effects
see 4.3.3.”
rd
In 4.2.2.2.1, replace the 3 paragraph with the following:
“The values of ϕ and ϕ shall be either calculated from the Formula (3) applying the specified stiffness
2 2C
and hoist drive classes or determined either experimentally or by dynamic analysis. Where stiffness and
hoist drive classes are not applied, the true characteristics of the drive system and the elastic properties
of the overall load supporting system shall be taken into account.”
st
In 4.2.2.2.2, replace the 1 paragraph with the following:
“For the purposes of this document, cranes shall be assigned to a stiffness class ranging from HC1 to HC4
in accordance with the elastic properties of the crane and its support. The stiffness classes given in
Table 2 shall be selected on the basis of the characteristic vertical load displacement δ.”
st nd
In 4.2.2.2.2, replace the 1 sentence of the 2 paragraph with the following:
“The dynamic factor ϕ (and respectively ϕ for Load combination C1, see 4.2.4.1) shall be calculated
2 2C
with the Formula (3):”
nd
In 4.2.2.4, replace the 2 paragraph with the following:
“The dynamic actions shall be determined in one of the following methods:
— the factor ϕ is calculated using a simple single mass — spring — model for the crane as shown
below. The use of this simplified model is restricted to cranes whose actual dynamic behaviour
corresponds to that of the model.
— dynamic actions are determined by experiments or by calculation. Conditions for the travel surface
(gaps, steps) shall be specified.
— where available, a conventional value for the factor ϕ shall be taken from a European Standard for
the specific crane type, with specified conditions for the travel surface.”
st rd
In 4.2.2.4, replace the 1 sentence of the 3 paragraph with the following:
“The factor ϕ shall be calculated as follows:”
st
In 4.2.2.5, replace the 1 paragraph with the following:
“Loads induced in a crane by accelerations or decelerations caused by drive forces shall be calculated. A
rigid body kinetic model may be used. For this purpose, the hoist load shall be taken to be fixed at the top
of the jib or immediately below the trolley.”
In 4.2.2.5, replace Formula (7) with the following:
ˆ
“ S S+φ∆S ”
i 5
th
In 4.2.2.5, replace the 5 paragraph with the following:
“Drive forces F acting on a crane or a trolley with asymmetrical mass distribution in
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
