EN 15182-1
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2019
EUROPÄISCHE NORM
ICS 13.220.10 Supersedes EN 15182-1:2007+A1:2009
English Version
Portable equipment for projecting extinguishing agents
supplied by firefighting pumps - Hand-held branchpipes
for fire service use - Part 1: Common requirements
Equipement portable de projection d'agents Tragbare Geräte zum Ausbringen von Löschmitteln, die
d'extinction alimenté par des pompes à usage incendie mit Feuerlöschpumpen gefördert werden - Strahlrohre
- Lances à main destinées aux services d'incendie et de für die Brandbekämpfung - Teil 1: Allgemeine
secours - Partie 1 : Prescriptions communes Anforderungen
This European Standard was approved by CEN on 10 June 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15182-1:2019 E
worldwide for CEN national Members.

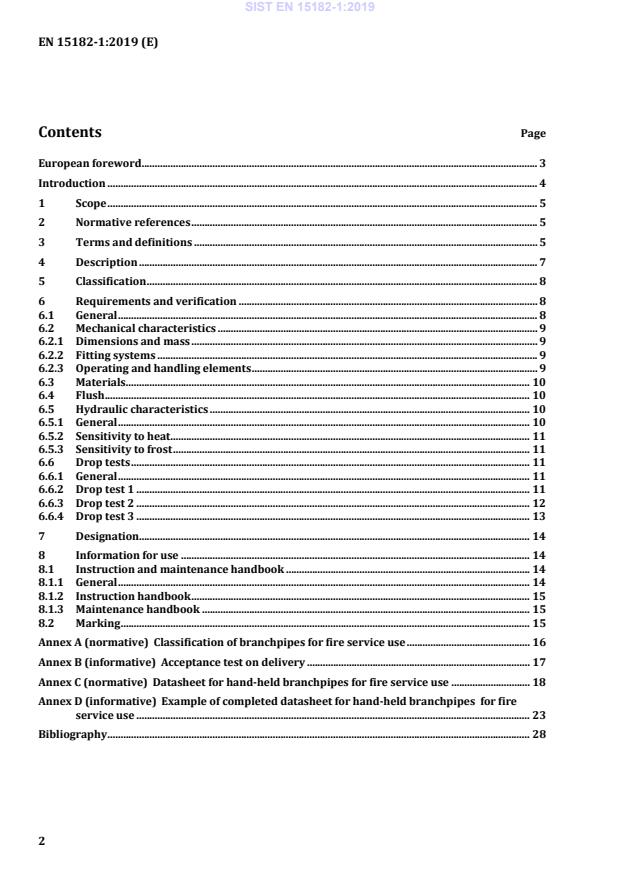

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Description . 7
5 Classification . 8
6 Requirements and verification . 8
6.1 General . 8
6.2 Mechanical characteristics . 9
6.2.1 Dimensions and mass . 9
6.2.2 Fitting systems . 9
6.2.3 Operating and handling elements . 9
6.3 Materials . 10
6.4 Flush . 10
6.5 Hydraulic characteristics . 10
6.5.1 General . 10
6.5.2 Sensitivity to heat . 11
6.5.3 Sensitivity to frost . 11
6.6 Drop tests . 11
6.6.1 General . 11
6.6.2 Drop test 1 . 11
6.6.3 Drop test 2 . 12
6.6.4 Drop test 3 . 13
7 Designation. 14
8 Information for use . 14
8.1 Instruction and maintenance handbook . 14
8.1.1 General . 14
8.1.2 Instruction handbook . 15
8.1.3 Maintenance handbook . 15
8.2 Marking . 15
Annex A (normative) Classification of branchpipes for fire service use . 16
Annex B (informative) Acceptance test on delivery . 17
Annex C (normative) Datasheet for hand-held branchpipes for fire service use . 18
Annex D (informative) Example of completed datasheet for hand-held branchpipes for fire
service use . 23
Bibliography . 28
European foreword
This document (EN 15182-1:2019) has been prepared by Technical Committee CEN/TC 192 “Fire and
rescue service equipment”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2020, and conflicting national standards shall
be withdrawn at the latest by March 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15182-1:2007+A1:2009.
Compared to EN 15182-1:2007+A1:2009 the following changes have been made:
— the definitions have been updated and three new definitions have been added (“closed branchpipe”,
“main shut off valve”, “open breanchpipe”);
— each verification has been placed under the corresponding requirement;
— the values of rated discharge at p (see Table 1) have been updated;
R
— p replaced with p in 6.6.4;
N R
— addition of the designation (new Clause 7);
— the marking (Clause 8) has been updated;
— the classification (see Annex A) has been updated in accordance with EN 15182-2:2019;
— improvement of the wording/editorial changes.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
This document has been created to provide a minimum level of safety and performance criteria.
Its purpose is not to define a specific branchpipe design but to help the user in understanding and
choosing the correct equipment.
1 Scope
This document applies to hand-held branchpipes. It deals with:
— safety requirements;
— performance requirements;
— test methods;
— classification and designation;
— instructions for use and maintenance;
— marking.
It is advised to read this document in conjunction with parts 2, 3 or 4.
This document does not apply to branchpipes covered by EN 671 series, foam branchpipes covered by
EN 16712-3, powder branchpipes, or branchpipes with a maximum working pressure above 40 bar.
NOTE 1 The Working Group has thoroughly addressed and discussed the issue of electrical safety in relation to
using water branchpipes. However, an electrical test is not incorporated into this document as international
experience, as well as research (NFPA handbook, French research, etc) have shown that any “artificial” or
“laboratory style” testing will not take into account poor visibility and other conditions present on any fire ground,
nor the problem of estimating distances under these conditions. When fighting fires in or near electrical
installations, the power is cut off as soon as possible (see the operating instructions, 8.1). Also, it is best practice to
maintain a maximum possible safety distance (at least 1 m up to 1 000 V) and to use a spray jet with a minimum
spray angle of 30 °.
NOTE 2 It is essential to take into account reaction forces before choosing and operating branchpipes.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 15182-2:2019, Portable equipment for projecting extinguishing agents supplied by firefighting
pumps — Hand-held branchpipes for fire service use — Part 2: Combination branchpipes PN 16
EN 15182-3:2019, Portable equipment for projecting extinguishing agents supplied by firefighting
pumps — Hand-held branchpipes for fire service use — Part 3: Smooth bore jet and/or one fixed spray jet
angle branchpipes PN 16
EN 15182-4:2019, Portable equipment for projecting extinguishing agents supplied by firefighting
pumps — Hand-held branchpipes for fire service use — Part 4: High pressure branchpipes PN 40
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
branchpipe
combination of components that connects to a liquid extinguishing agent supply via a hose and coupling
and projects liquid extinguishing agent according to the operators requirements
3.2
closed branchpipe
branchpipe where the main shut off valve is in the closed position
3.3
main shut off valve
valve that is first in the flow line
3.4
open branchpipe
branchpipe where all valves
...
