Railway applications - Track - Acceptance of works - Part 1: Works on ballasted track - Plain line, switches and crossings

This European Standard specifies the minimum technical requirements and the tolerances for the acceptance of works on ballasted track situated on plain line and on switches and crossings and rail expansion devices, as part of the track, for 1 435 mm and wider track gauge railways, concerning construction of new track, track renewal and track maintenance. More particularly, this standard gives the requirements for the documentation of work parameters, for the tolerances for relative track geometry and absolute track position and for the acceptance procedures.
This standard does not deal with contractual and legal aspects and it does not cover either works related to reprofiling the railhead nor the associated measurements, except for some measurements related to safety, since these works are covered by other parts of EN 13231 series.
Related works, e.g. platform reconstruction, formation, drainage, level crossings are not covered by this standard.

Bahnanwendungen - Oberbau - Abnahme von Arbeiten - Teil 1: Arbeiten im Schotteroberbau - Gleise, Weichen und Kreuzungen

Diese Europäische Norm legt die minimalen technischen Anforderungen und die Toleranzen für die Abnahme von Arbeiten im Schotteroberbau für Gleise, Weichen und Kreuzungen und Auszugsvorrichtungen als Teil des Gleises für 1 435 mm und breiteren Spurweiten, der Bau eines neuen Gleises, die Gleiserneuerung und die Gleisinstandhaltung entsprechend, fest. Insbesondere enthält diese Norm die Anforderungen für die Dokumentation der Arbeitsparameter, für die Toleranzen der relativen Gleisgeometrie und absoluten Gleislage und für die Abnahmeverfahren.
Diese Norm behandelt nicht die vertraglichen und gesetzlichen Aspekte und behandelt weder die Arbeiten für die Reprofilierung von Schienenköpfen noch die dazugehörigen Messungen, weil diese Arbeiten in anderen Teilen der Normenreihe EN 13231 behandelt werden.
Ähnliche Arbeiten, z. B. Wiederaufbau von Bahnsteigen und Arbeiten an Planum, Entwässerung und Bahnübergängen werden in dieser Norm nicht behandelt.

Applications ferroviaires - Voie - Réception des travaux - Partie 1: Travaux de voie ballastée - Voie courante et appareils de voie

La présente Norme européenne spécifie les exigences techniques minimales et les tolérances relatives à la réception des travaux de voie courante sur voie ballastée et sur les appareils de voie et les dispositifs de dilatation des rails, faisant partie intégrante de la voie, pour un écartement de rails de 1 435 mm et plus, concernant la pose de voie neuve, le renouvellement et l'entretien des voies. La présente norme spécifie plus particulièrement les exigences relatives à la documentation des paramètres de travail, les tolérances de géométrie relative et de position absolue des voies, et les procédures de réception.
La présente norme ne traite pas des aspects contractuels et légaux et ne couvre ni les travaux liés au reprofilage du champignon de rail ni aux mesures associées, car ces travaux font l'objet d'autres parties de la série EN 13231.
Cette norme ne couvre pas les travaux connexes, par exemple réfection de quai, assainissement, drainage, passages à niveau.

Železniške naprave - Zgornji ustroj - Prevzem del - 1. del: Dela na (zgornjem ustroju) tiru s tirno gredo - Odprta proga, kretnice in križišča

Ta evropski standard določa minimalne tehnične zahteve in odstopanja za prevzem del na (zgornjem ustroju) tiru s tirno gredo na odprti progi in na kretnicah ter križiščih in diletacijskih napravah v okviru zgornjega ustroja s širino proge 1435 mm in z večjo tirno širino v zvezi z izgradnjo novega zgornjega ustroja, njegove obnove in vzdrževanja. Podrobneje, ta standard določa zahteve za dokumentacijo delovnih parametrov, za odstopanja za relativno geometrijo zgornjega ustroja in absolutni položaj zgornjega ustroja ter za postopke za prevzem. Ta standard ne obravnava pogodbenih in pravnih vidikov ter ne zajema del v zvezi z reprofiliranjem ali povezanih meritev, razen nekaterih meritev v zvezi z varnostjo, saj so ta dela obravnavana v drugih delih skupine standardov EN 13231. Povezana dela, npr. obnova ploščadi, formacija, odvodnjavanje in nivojska križišča, niso obravnavana v tem standardu.

General Information

Status
Published
Publication Date
30-Apr-2013
Current Stage
9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
Completion Date
27-May-2020

RELATIONS

Buy Standard

Standard
EN 13231-1:2013
English language
30 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Oberbau - Abnahme von Arbeiten -

Teil 1: Arbeiten im Schotteroberbau - Gleise, Weichen und KreuzungenApplications ferroviaires - Voie - Réception des travaux - Partie 1: Travaux de voie ballastée - Voie courante et appareils de voieRailway applications - Track - Acceptance of works - Part 1: Works on ballasted track - Plain line, switches and crossings45.080Rails and railway componentsICS:Ta slovenski standard je istoveten z:EN 13231-1:2013SIST EN 13231-1:2013en,fr01-junij-2013SIST EN 13231-1:2013SLOVENSKI

STANDARDSIST EN 13231-2:2006SIST EN 13231-1:20061DGRPHãþD
SIST EN 13231-1:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13231-1
May 2013 ICS 93.100 Supersedes EN 13231-1:2006, EN 13231-2:2006English Version

Railway applications - Track - Acceptance of works - Part 1: Works on ballasted track - Plain line, switches and crossings

Applications ferroviaires - Voie - Réception des travaux - Partie 1: Travaux de voie ballastée - Voie courante et appareils de voie

Bahnanwendungen - Oberbau - Abnahme von Arbeiten - Teil 1: Arbeiten im Schotteroberbau - Gleise, Weichen und Kreuzungen This European Standard was approved by CEN on 14 March 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13231-1:2013: ESIST EN 13231-1:2013

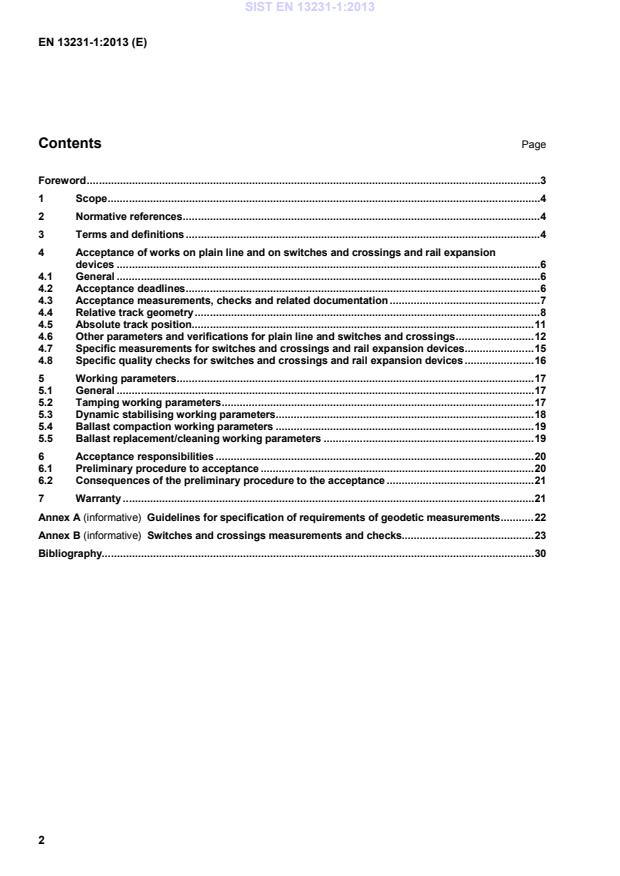

EN 13231-1:2013 (E) 2 Contents Page Foreword ....................................................................................................................................................... 3 1 Scope ................................................................................................................................................ 4 2 Normative references ....................................................................................................................... 4 3 Terms and definitions ...................................................................................................................... 4 4 Acceptance of works on plain line and on switches and crossings and rail expansion devices ............................................................................................................................................. 6 4.1 General ............................................................................................................................................. 6 4.2 Acceptance deadlines ...................................................................................................................... 6 4.3 Acceptance measurements, checks and related documentation .................................................. 7 4.4 Relative track geometry ................................................................................................................... 8 4.5 Absolute track position .................................................................................................................. 11 4.6 Other parameters and verifications for plain line and switches and crossings .......................... 12 4.7 Specific measurements for switches and crossings and rail expansion devices ....................... 15 4.8 Specific quality checks for switches and crossings and rail expansion devices ....................... 16 5 Working parameters ....................................................................................................................... 17 5.1 General ........................................................................................................................................... 17 5.2 Tamping working parameters ........................................................................................................ 17 5.3 Dynamic stabilising working parameters ...................................................................................... 18 5.4 Ballast compaction working parameters ...................................................................................... 19 5.5 Ballast replacement/cleaning working parameters ...................................................................... 19 6 Acceptance responsibilities .......................................................................................................... 20 6.1 Preliminary procedure to acceptance ........................................................................................... 20 6.2 Consequences of the preliminary procedure to the acceptance ................................................. 21 7 Warranty ......................................................................................................................................... 21 Annex A (informative)

Guidelines for specification of requirements of geodetic measurements ........... 22 Annex B (informative)

Switches and crossings measurements and checks ............................................ 23 Bibliography................................................................................................................................................ 30

SIST EN 13231-1:2013

EN 13231-1:2013 (E) 3 Foreword This document (EN 13231-1:2013) has been prepared by Technical Committee CEN/TC 256 “Railway applications”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by November 2013, and conflicting national standards shall be withdrawn at the latest by November 2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13231-1:2006, EN 13231-2:2006. This European Standard is one of the series EN 13231 "Railway applications – Track – Acceptance of works" as listed below:  Part 1: Works on ballasted track — Plain line, switches and crossings (the present document)  Part 3: Acceptance of reprofiling rails in track  Part 4: Acceptance of reprofiling rails in switches and crossings

 Part 5: Procedures for rail reprofiling in plain line, switches, crossings and expansion devices NOTE Part 2 does not exist in this series. The following technical modifications have been introduced during the revision:  merging of EN 13231-1:2006 and EN 13231-2:2006, taking into account the similarities between them;  definition of the absent tolerances for some existing parameters;  revision of the tolerances already set up on the former version;  definition of new parameters and the respective tolerances. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13231-1:2013

EN 13231-1:2013 (E) 4 1 Scope This European Standard specifies the minimum technical requirements and the tolerances for the acceptance of works on ballasted track situated on plain line and on switches and crossings and rail expansion devices, as part of the track, for 1 435 mm and wider track gauge railways, concerning construction of new track, track renewal and track maintenance. More particularly, this standard gives the requirements for the documentation of work parameters, for the tolerances for relative track geometry and absolute track position and for the acceptance procedures. This standard does not deal with contractual and legal aspects and it does not cover either works related to reprofiling the railhead nor the associated measurements, except for some measurements related to safety, since these works are covered by other parts of EN 13231 series. Related works, e.g. platform reconstruction, formation, drainage, level crossings are not covered by this standard. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 13450, Aggregates for railway ballast EN 13848-1, Railway applications — Track — Track geometry quality — Part 1: Characterisation of track geometry EN 13848-2, Railway applications — Track — Track geometry quality — Part 2: Measuring systems — Track recording vehicles EN 13848-3, Railway applications — Track — Track geometry quality — Part 3: Measuring systems — Track construction and maintenance machines EN 13848-4, Railway applications — Track — Track geometry quality — Part 4: Measuring systems — Manual and lightweight devices EN 13848-5, Railway applications — Track — Track geometry quality — Part 5: Geometric quality levels — Plain line EN 14587 (series), Railway applications — Track — Flash butt welding of rails EN 14730 (series), Railway applications — Track — Aluminothermic welding of rails 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 works on ballasted track (including switches and crossings) works on ballasted track cover:  construction of new track;  renewal or partial renewal and maintenance of rails, sleepers, ballast and other components; SIST EN 13231-1:2013

EN 13231-1:2013 (E) 5  removing and relaying existing track because of works on substructure (e.g. bridges, tunnels, earthworks, etc.);  renewal or partial renewal and maintenance of switches and crossings (switch rail/stock rail, crossing, etc.), bearers and ballast;  works to correct track geometry, e.g. track tamping/levelling/lining;  dynamic stabilising;  ballast cleaning;  stressing work;  welding 3.2 plain line any section of ballasted track excluding switches and crossings

3.3 acceptance declaration of the customer to the contractor that the work has been achieved in accordance with the contract 3.4 tolerance permissible deviation from reference or designed value 3.5 relative track geometry group of parameters defining the position of the rails, usually comprising the following: track gauge, alignment, longitudinal level, twist and cross level

Note 1 to entry: These parameters are described in EN 13848 series. 3.6 design track position position of the track defined in the track design process

Note 1 to entry: The design position is defined in the geodetic reference system. Note 2 to entry: The control of the design studies and layouts for new or upgraded tracks according to EN 13803-1 and EN 13803-2 or other regulations is not part of this standard. 3.7 actual track position position of the track when measured from external absolute references

EXAMPLE Network of geodetic reference points. 3.8 deviation from design track position vertical and lateral difference between the design track position and the actual track position 3.9 nominal track gauge single value which identifies the track gauge but may differ from the design track gauge SIST EN 13231-1:2013

EN 13231-1:2013 (E) 6 3.10 design track gauge single value which is obtained when all the components of the track conform precisely to their design dimensions, or their median design dimension, when there is range

Note 1 to entry: It may differ from nominal track gauge. The design track gauge is specified by the customer taking into account the materials, the method of measurement and whether the application is on plain line or in switches and crossings. 3.11 new track new constructed track applying new materials, including formation

3.12 renewal complete replacement of all the components of the track (rails, sleepers, fastenings, switches and crossings, rail expansion devices and ballast) applying new materials, including the formation if necessary 3.13 partial renewal replacement of one or more (but not all) track components in a track section 3.14 maintenance all other works than design track gauge, new track and renewal 3.15 bearer sleeper for switches and crossings 3.16 stagger deviation in longitudinal relative position between the rail joints in the left and the right rails 4 Acceptance of works on plain line and on switches and crossings and rail expansion devices 4.1 General The requirements of this European Standard apply to works as defined in 3.1, to the extent that they are within the scope of the work. An acceptance form shall be prepared for each item of work outlining the results achieved. Acceptance is not given until the work is completed in accordance with the requirements of the contract. 4.2 Acceptance deadlines Acceptance shall not be carried out until the track has been subjected to an appropriate passing tonnage described and defined by the customer. However, acceptance should occur within a period not exceeding six weeks or after the passage of a maximum of 1,500 000 tonnes after the completion of the works, although the customer may extend this timescale to permit any follow-up tamping to be carried out. SIST EN 13231-1:2013

EN 13231-1:2013 (E) 7 4.3 Acceptance measurements, checks and related documentation

Before acceptance, the following measurements or checks shall be carried out when applicable (manually or by automatic means), and shall be documented:  relative track geometry of plain line, switches and crossings as specified in 4.4;  absolute track position of plain line, switches and crossings as specified in 4.5;  sleeper or bearer position, voiding of sleepers or bearers as specified in 4.6.2, 4.6.3, 4.6.4 and 4.6.5;  correct assembly and integrity of the rail fastenings, pads and insulators as specified in 4.6.6;  welds as specified in 4.6.7 (running surface and running edge);  joint gaps, dips and staggers as specified in 4.6.8;  insulated joints as specified in 4.6.9;  ballast cross section as specified in 4.6.10;  stressing work as specified in 4.6.11;  specific measurements or checks for switches and crossings and rail expansion devices as specified in 4.7 and 4.8;  tamping work as specified in 5.2;  dynamic stabilising work as specified in 5.3;  ballast compaction as specified in 5.4;  ballast replacement / cleaning work as specified in 5.5;  damage caused to rails, sleepers, bearers, fastenings, cables and other equipment, or where the work process has displaced the sleepers, the bearers or the rail pads;  all track materials compliance with the customer’s relevant acceptance criteria or specifications, in particular acceptance of associated works as well as approval and acceptance of the material provided by the supplier. The customer may request additional documented measurements or checks if contractually agreed. The customer may also restrict the choice of measuring devices if contractually agreed. Relative track geometry shall be measured by a track recording vehicle or by a track construction and maintenance machine fitted with measuring equipment, both in accordance with series EN 13848. If the measuring equipment fails, or is not available, corresponding light weight or manual devices measurements shall be taken and documented. Other use of light weight or manual devices measurements shall be in accordance with series EN 13848. If track works affect track geometry, measurement of relative track geometry according to series EN 13848 shall be performed before allowing commercial trains to run. For the purpose of acceptance, every section and switch and crossing shall be inspected by the experts as nominated by the customer and the contractor. SIST EN 13231-1:2013

EN 13231-1:2013 (E) 8 The contract shall define who should perform the measurements and how they shall be documented. 4.4 Relative track geometry 4.4.1 Parameters 4.4.1.1 General

Measurements as defined in EN 13848-1. 4.4.1.2 Track gauge and cross level Measurement:  by track recording vehicles according to the requirements of EN 13848-2; or  by track construction and maintenance machines according to the requirements of EN 13848-3; or  by track measuring trolleys or manually operated devices, according to the requirements of EN 13848-4, with a minimum of 10 measurements on successive sleepers, every 100 m. 4.4.1.3 Longitudinal level and alignment Measurements for longitudinal level should preferably be undertaken on both rails. Measurement for alignment should be undertaken on both rails on straight track and shall be undertaken on the outer rail in curves:  by track recording vehicles according to the requirements of EN 13848-2; or  by track construction and maintenance machines according to the requirements of EN 13848-3; or  by track measuring trolleys or manually operated devices, according to the requirements of

EN 13848-4. 4.4.1.4 Twist Measurement:  by track recording vehicles according to the requirements of EN 13848-2; or  by track construction and maintenance machines according to the requirements of EN 13848-3; or  by track measuring trolleys or manually operated devices, according to the requirements of

EN 13848-4, measurements should be performed at least every 3 m. 4.4.2 Tolerances Accepted track shall comply with the tolerances shown in Tables 1 and 2.

The tolerances in Tables 1 and 2 are for loaded track measurements, which are recommended. For unloaded track measurements, the customer shall specify the tolerances for the relative track geometry parameters, which should be stricter. All measurements shall be sampled at constant distance based intervals not larger than 0,5 m. SIST EN 13231-1:2013

EN 13231-1:2013 (E) 9 For track construction and maintenance machines that move non-continuously and measure track geometry whilst working, the sampling interval may be extended up to 1,5 m. For track gauge, values shown in Tables 1 and 2 apply to both isolated defects of track gauge and mean track gauge as defined in EN 13848-1. The track gauge between any two adjacent sleepers shall not vary by more than 1 mm, unless otherwise specified by the customer (only applicable for hand measurements). For measurements made by track recording vehicles, track construction and maintenance machines or track measuring trolleys, the track gauge shall not vary by more than 3 mm per 1,5 m, unless otherwise specified by the customer. Concerning the longitudinal level and alignment for plain line and switches and crossings: a) the customer shall decide if 10 m chord measurement results or D1, D2 or D3 results according to EN 13848-1 should be used; b) the analysis method shall be "mean-to-peak"; Recording vehicles and track construction and maintenance machines delivered prior to the issue of this standard may use the analysis method "peak-to-peak". The values of the tolerances should be set by the customer. For special analysis of track geometry during and after tamping and stabilising work as on short sections with difficult track geometry and on switches and crossings, track construction and maintenance machines may use the analysis method "peak-to-peak". The values of the tolerances should be set by the customer. c) for chord measurements the following applies: 1) At chord measurement results, the sliding mean for each point shall be taken in a length not longer than 40 m considering a symmetric interval. 2) For alignment, the corridor as defined by the mean and the tolerances shall include the design value; if not, the defect shall be taken between the design value and the peak. 3) Chord measurements by recording vehicles or track construction and maintenance machines shall be made by an asymmetrical chord with a ratio of 40 % to 60 %, which should be 10 m long; for measurements by trolleys or manually operated devices a symmetrical chord with 10 m (in curves) and 20 m (in straight tracks) may be allowed. 4) Recording vehicles and track construction and maintenance machines delivered prior to the issue of this standard may use a symmetrical chord as well. 5) For measurements made by a chord system with base lengths other than 10 m, the results shall be converted to 10 m asymmetrical chord (40 % to 60 %) results. The twist base length shall normally be 3 m, and the analysis method shall be "zero-to-peak". In transition curves with design twist, the tolerances shall be considered from the design twist, but not from the zero line, without exceeding the intervention limit values of EN 13848-5. Where a twist base length other than 3 m is used, the customer shall specify the acceptance tolerances. For tracks built with used materials, including switches and crossings, the tolerances for the parameters shall be specified by the customer.

In case of partial renewal, the customer shall specify if Table 1 or Table 2 or a combination of both is applicable.SIST EN 13231-1:2013

EN 13231-1:2013 (E) 10 Table 1 — Acceptance tolerances for loaded track – Renewals and new track (including switches and crossings) Parameters Type class I II III IV V Speed range (km/h) V ≤ 80 80 < V ≤ 120 120 < V ≤ 160 160 < V ≤ 230 230 < V ≤ 360 Track gauge for plain line (mm) (deviation from design value) + 4/- 3 + 4/- 3 + 4/- 2 + 4/- 2 + 3/- 2 Track gauge for switches and crossings (mm) (deviation from design value) + 4/- 3 + 4/- 3 + 4/- 3 + 4/- 3 + 4/- 3 Cross level (mm) (deviation from design value) ± 3 ± 3 ± 3 ± 2 ± 2 10 m chord longitudinal level (mm) (mean-to-peak) ± 6 ± 4 ± 4 ± 3

± 3 D1 Longitudinal level (mm) (mean-to-peak) ± 4 ± 3 ± 3 ± 2 ± 2 D2 Longitudinal level (mm) (mean-to-peak) N/A N/A N/A ± 3 ± 2 D3 Longitudinal level (mm) (mean-to-peak) N/A N/A N/A N/A Reserved 10 m chord alignment (mm) (mean-to-peak) ± 5 ± 3 ± 3 ± 3 ± 3 D1 Alignment (mm)

(mean-to-peak) ± 4 ± 2 ± 2 ± 2 ± 2 D2 Alignment (mm) (mean-to-peak) N/A N/A N/A ± 3 ± 2 D3 Alignment (mm)

(mean-to-peak) N/A N/A N/A N/A Reserved Twist over 3 m (mm) (deviation from design value to peak) ± 4,5 ± 3 ± 3 ± 3 ± 3 SIST EN 13231-1:2013

EN 13231-1:2013 (E) 11 Table 2 — Acceptance tolerances for loaded track – Maintenance (including switches and crossings) Parameters Type class I II III IV V Speed range (km/h) V ≤ 80 80 < V ≤ 120 120 < V ≤ 160 160 < V ≤ 230 230 < V ≤ 360 Track gauge for plain line (mm) (deviation from design value) + 7/- 3 + 5/- 3 + 5/- 2 + 5/- 2 + 4/- 2 Track gauge for switches and crossings (mm) (deviation from design value) + 7/- 3 + 5/- 3 + 5/- 3 + 5/- 3 + 5/- 3 Cross level (mm) (deviation from design value) ± 5 ± 4 ± 4 ± 3 ± 3 10 m chord longitudinal level (mm) (mean-to-peak) ± 7 ± 5

± 5
± 4 ± 4 D1 Longitudinal level (mm) (mean-to-peak) ± 5 ± 4
± 4 ± 3 ± 3 D2 Longitudinal level (mm) (mean-to-peak) N/A N/A N/A ± 4 ± 3

D3 Longitudinal level (mm) (mean-to-peak) N/A N/A N/A N/A Reserved 10 m chord alignment (mm) (mean-to-peak) ± 7 ± 5 ± 5 ± 4 ± 4 D1 Alignment (mm) (mean-to-peak) ± 5 ± 4 ± 4 ± 3 ± 3 D2 Alignment (mm) (mean-to-peak) N/A N/A N/A ± 4 ± 3 D3 Alignment (mm) (mean-to-peak) N/A N/A N/A N/A Reserved Twist over 3 m (mm) (deviation from design value to peak) ± 4,5 a ± 4,5 ± 4,5 ± 3 ± 3 In special constructions, e.g. switches and crossings and rail expansion devices, exceedances of the above mentioned values may occur due to the special design of these devices. a

In jointed track: ± 6.

4.5 Absolute track position 4.5.1 General Requirements and tolerances in 4.5 shall be applied for new track and track renewal (including switches and crossings). It is voluntary for the customer to apply requirements and tolerances in 4.5 for acceptance after maintenance of the track.

When defined by the customer, distance between tracks shall comply with tolerances in Table 3 for the lateral position of the track. SIST EN 13231-1:2013

EN 13231-1:2013 (E) 12 4.5.2 Tolerances Accepted track shall comply with selected classes (AP1 to AP 4) in Table 3. Classes shall be specified by the customer. Table 3 — Tolerances for the deviation from design track position – Renewals and new track Class Vertical position (mm) Lateral position (mm) Longitudinal position of the switches and crossings (mm) AP 1 ± 10 ± 10 ± 10 AP 2 ± 15 ± 15 ± 15 AP 3 ± 20 ± 20 ± 20 AP 4 ± 25 ± 25 ± 25 Combination of classes in Table 3 is permitted, for instance due to requirements for thermal forces, structure gauge, tracks in interaction with platforms and other fixed installations. Class AP 1 tolerances may be reduced in order to allow for restricted structure gauges.

4.5.3 Compliance measurements When requirements and tolerances for the deviation from design track position are applied, following items shall be specified by the customer: a) Compliance measurements shall refer to defined survey point in the track. The survey point defines the absolute track position. The survey point and spacing of control measurements shall be defined by the customer. b) The external reference system, normally a network of geodetic reference points, and geodetic measurements for verification of the absolute track position shall be specified by the customer. Guidelines for specification of requirements for geodetic measurements are given in Annex A. The absolute track position shall be measured from geodetic reference points, e.g: c) total station measurements; d) levelling: 1) satellite measurements; 2) measurement tape or equivalent. 4.6 Other parameters and verifications for plain line and switches and crossings 4.6.1 General Requirements and tolerances in 4.6 apply to new track, renewal and maintenance work. 4.6.2 Sleeper spacing Permissible deviation from the designed sleeper spacing shall be ± 20 mm (except at welds or other justifiable cases) and shall be checked by sampling. Checking shall be made at least every 200 m. SIST EN 13231-1:2013

EN 13231-1:2013 (E) 13 The number of sleepers within 1 000 m shall be within 0,5 % of the designed number. 4.6.3 Bearer spacing Permissible deviation from the designed bearer spacing in individual cases shall be ± 10 mm. 4.6.4 Out of squareness of the sleepers This sub-clause is only applicable on request from the customer. Permissible deviation from squareness of the sleepers shall be ± 10 mm. 4.6.5 Voiding of the sleepers and bearers This sub-clause is only applicable on request from the customer. The quality of the tamping shall be checked by sampling 10 % of the sleepers and bearers.

All sleepers and bearers shall be fully supported under the rails (not voided). When tamping machines are not used, 5 % voided sleepers are permitted, but the following shall apply:  no more than two adjacent voided sleepers shall be permitted;

 voided sleepers shall not be permitted at joints or other sensitive locations;
 the voided sleepers shall be marked;

 voided bearers shall not be permitted. NOTE Experienced personal will identify voided sleepers and bearers by the sound when striking them with a rubber coated iron ball. 4.6.6 Rail fastenings All fastening systems shall be complete and correctly fitted. 4.6.7 Welds The acceptance of welding work in conjunction with track works is covered by EN 14730 series and EN 14587 series. Further non-destructive testing shall be required to verify the integrity of the welds if specified by the customer. 4.6.8 Fishplated joints The acceptance tolerance for the nominal value, set by the customer, of the total sum of gaps for the number of joints corresponding to a section of 100 m of track, is ± 5 mm. Maximum permissible values of dips shall be 0,5 mm on railhead and 0,5 mm on running edge, both measured over 1 m. Maximum permissible staggers, in squared joints, shall be 10 mm. SIST EN 13231-1:2013

EN 13231-1:2013 (E) 14 4.6.9 Insulated joints The customer shall specify the acceptance criteria for installation of insulated joints. Maximum permissible values of dips shall be 0,5 mm, on railhead and 0,5 mm, on running edge, both over 1 m. 4.6.10 Ballast cross section Accepted track ballast cross section shall comply with the tolerances in Table 4. If not specified otherwise by the customer, the upper surface of the ballast shall be at the same level as the upper sleeper surface. No ballast is allowed on top of sleepers. Table 4 — Tolerances for ballast cross section – New track, renewal and maintenance work Parameter Deviation from design value Ballast thickness (BT) a + 15 % / 0 % Distance between the running edge of the rail and the ballast shoulder (RD) + 10 cm / 0 cm Ballast slope inclination (SB) ± 10 % Ballast shoulder over height (OH) + 2 cm / 0 cm a

Minimum distance between the formation surface and the low
...
