General Information
Standards Content (Sample)

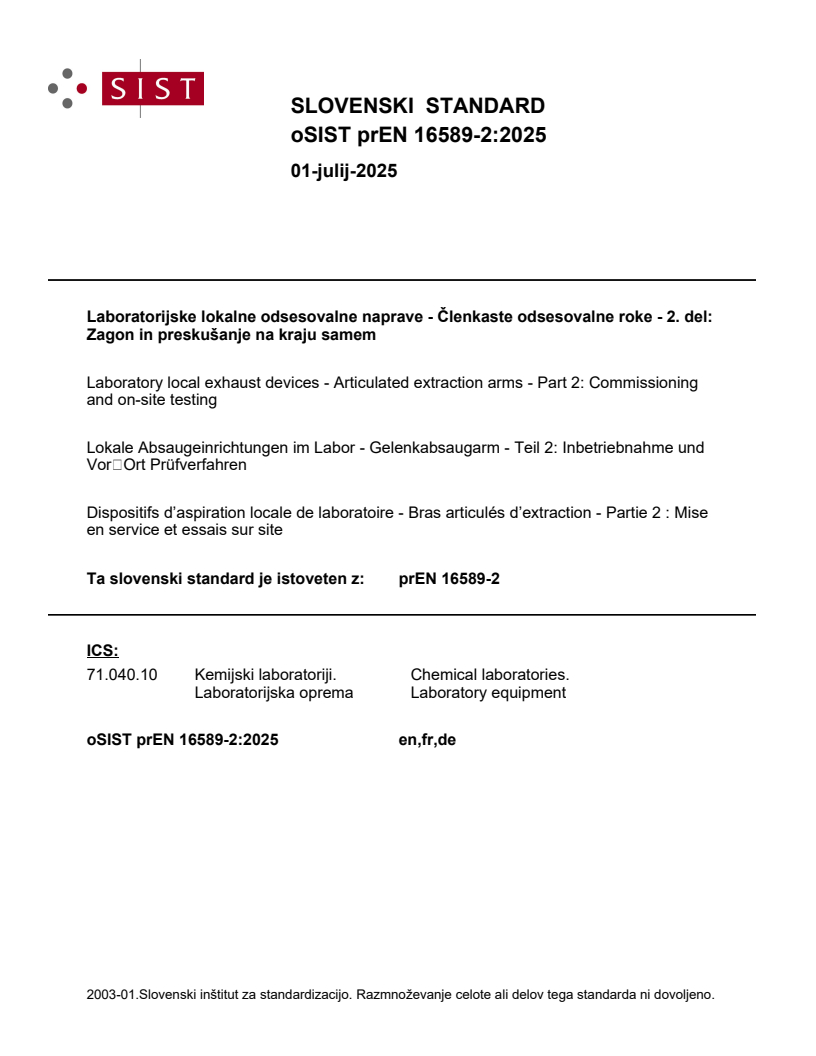

SLOVENSKI STANDARD
01-julij-2025
Laboratorijske lokalne odsesovalne naprave - Členkaste odsesovalne roke - 2. del:
Zagon in preskušanje na kraju samem
Laboratory local exhaust devices - Articulated extraction arms - Part 2: Commissioning
and on-site testing
Lokale Absaugeinrichtungen im Labor - Gelenkabsaugarm - Teil 2: Inbetriebnahme und
Vor‑Ort Prüfverfahren
Dispositifs d’aspiration locale de laboratoire - Bras articulés d’extraction - Partie 2 : Mise
en service et essais sur site
Ta slovenski standard je istoveten z: prEN 16589-2
ICS:
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

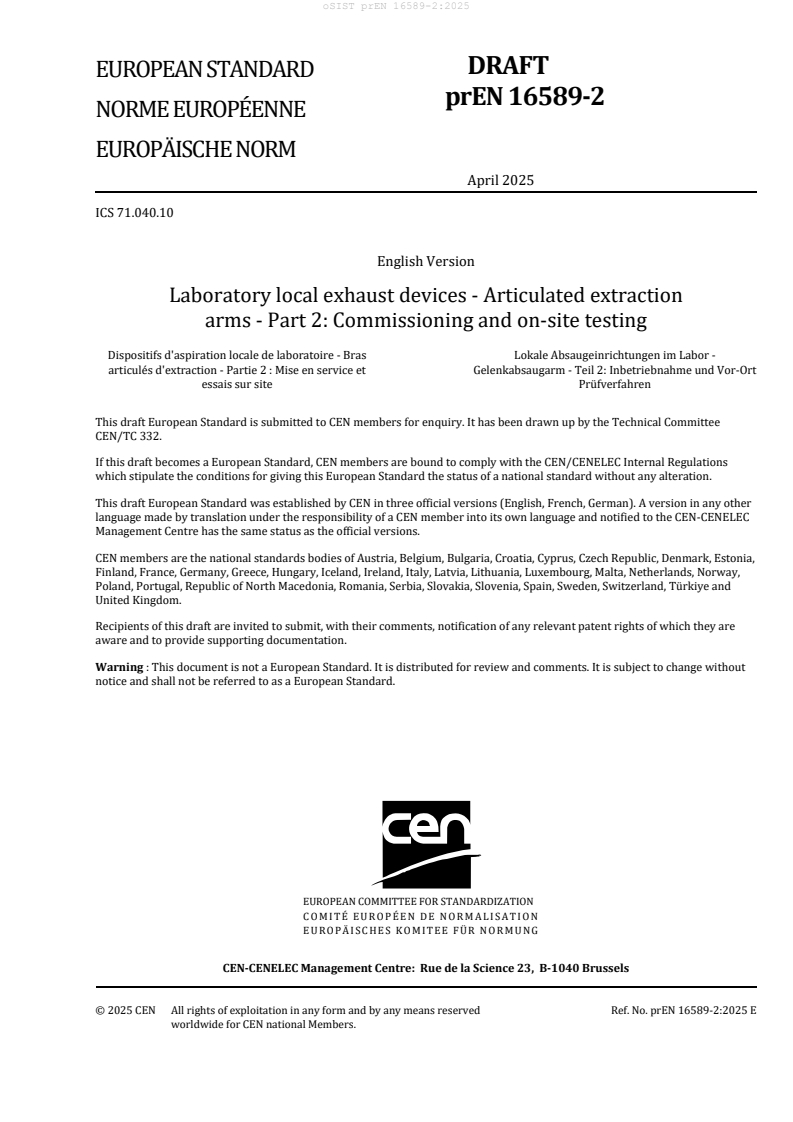

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2025
ICS 71.040.10
English Version
Laboratory local exhaust devices - Articulated extraction
arms - Part 2: Commissioning and on-site testing
Dispositifs d'aspiration locale de laboratoire - Bras Lokale Absaugeinrichtungen im Labor -
articulés d'extraction - Partie 2 : Mise en service et Gelenkabsaugarm - Teil 2: Inbetriebnahme und Vor-Ort
essais sur site Prüfverfahren
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 332.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16589-2:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Commissioning . 8
4.1 General. 8
4.2 Inspections . 8
4.2.1 General. 8
4.2.2 Review of system as installed . 8
4.2.3 Visual inspection . 9
4.2.4 Conformity . 9
4.2.5 Correct mechanical assembly and operation . 9
4.2.6 Alarms and indicators . 9
4.2.7 Capture zone indicator . 9
4.3 Testing . 10
4.3.1 General. 10
4.3.2 Test equipment . 10
4.3.3 Room air condition checks . 10
4.4 Test procedures . 11
4.4.1 General. 11
4.4.2 Smoke visualization . 11
4.4.3 Airflow measurements . 11
4.4.4 Pressure measurements. 13
4.4.5 Sound pressure level . 13
4.5 Test report . 14
5 On-site periodic testing . 14
5.1 General. 14
5.2 Inspections . 14
5.2.1 Visual inspection . 14
5.2.2 Correct mechanical assembly and operation . 14
5.2.3 Alarms and indicators . 15
5.2.4 Capture zone indicator . 15
5.3 Testing . 15
5.3.1 Test equipment . 15
5.3.2 Room air condition check . 15
5.3.3 Smoke visualization . 15
5.3.4 Airflow measurements . 16
5.3.5 Influence of environment on capture distance . 16
5.3.6 Pressure loss . 16
5.4 Test report . 16
Annex A (informative) Additional assessment methods for non-standard applications . 17
Bibliography . 21
European foreword
This document (prEN 16589-2:2025) has been prepared by Technical Committee CEN/TC 332
“Laboratory equipment”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
Introduction
Articulated extraction arms (AEA) are local exhaust devices consisting of capture devices that can be
constructed in a variety of geometric shapes (hoods, nozzles, flat screens etc.) which are connected to or
mounted on extraction arms or arms with flexible joints. They are used for a variety of different
applications in the laboratory where contaminants are encountered. The design of articulated extract
arms for laboratories can differ for different applications.
The ability of capture devices to capture contaminants is subject to a number of factors. These factors are,
extract volume flow, capture velocity, capture hood design, manoeuvrability, position in relation to
emission source, user activity, air speed etc. The capture ability is rapidly decreased with increased
distance to the emission source. Higher air velocity in the opening of the device improves the capture
ability but commonly results in increased noise level and pressure drop of the capture device and extract
arm.
Good information to the user on how to use the device as well as information about the limitations of the
device are essential for safety and health in the laboratories.
Articulated extract arms are useful for very small emission sources or when the emission source is too
large to reasonably be enclosed but has distinct emission points where the pollution might occur like e.g.
a high-performance liquid chromatography (HPLC).
Type test protocols detailed in EN 16589-1 cannot be replicated on site due to the large variances in room
conditions and AEA positioning.
This document therefore provides methods for Commissioning and Testing of AEAs that will provide
practical detail on the function and basic flow characteristics of air at an installed AEA.
The suitability of an AEA to provide effective ventilation at or near a source of contamination is the
responsibility of the customer and will be subject of a risk assessment. Good practice dictates that full
consideration is given to both local regulatory guidance and hygiene practice.
1 Scope
This document applies to test methods designed to be used at the place of installation of the AEA, usually
a laboratory and for various laboratory applications that require local extraction. They are used for
commissioning after installation, for maintenance and for qualification purposes. For certain customer
requirements additional or modified test methods can be necessary.
This document includes product functional performance referring to product standard detailed in
EN 16589-1. Occupational health and safety assessments methods are not included in this document.
This document does not consider performance requirements for the extract air system associated with
the AEA installation and therefore extract system performance is not part of the scope.
This document does not confirm or establish a capture zone of an AEA capture device only the functional
extract capacity and mechanical functions of the AEA.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 16211, Ventilation for buildings - Measurement of air flow rates on site – Methods
EN 16589-1:2022, Laboratory local exhaust devices - Part 1: General requirements and type test methods
for articulated extractions arms
EN ISO 5167-1, Measurement of fluid flow by means of pressure differential devices inserted in circular
cross-section conduits running full – Part 1: General principles and requirements (ISO 5167-1)
EN ISO 11204, Acoustics - Noise emitted by machinery and equipment - Determination of emission sound
pressure levels at a work station and at other specified positions applying accurate environmental
corrections (ISO 11204)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 16589-1 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
capture device
equipment designed to capture or collect air pollutants near their source connected directly to a duct or
mounted on an extraction arm
Note 1 to entry: Examples of capture devices are e.g. hood, flat screen, suction nozzle.
[SOURCE: EN 16589-1:2022, 3.1]
3.2
extraction arm
fixed, flexible or articulated ducting connecting the capture device with the main extract air duct
[SOURCE: EN 16589-1:2022, 3.2]
3.3
articulated extraction arm
AEA
articulated extract ducting assembly including capture device
Note 1 to entry: The articulated extraction arm can be moved and positioned so that the capture zone of the hood
is located at the identified hazard release zone. See examples in Figure 1.
Key
ν schematic capture zone
a centre point of entry plane
b duct of capture device
c duct connecting to main duct
1 main duct
2 articulated extraction arms
3 entry plane
4 capture device
Figure 1 — Example of common designs of capture devices and extraction arms
[SOURCE: EN 16589-1:2022, 3.3]
3.4
capture zone
three-dimensional space in front of the entry surface of a capture device in which the air velocity is
greater than or equal to the minimum air velocity required for effective capture of pollutants
[SOURCE: EN 16589-1:2022, 3.4]
3.5
entry plane
plane touching the outermost parts of the capture device regardless of the shape
Note 1 to entry: A schematic expression of entry plane independent of the shape is given in Figure 1 and Figure 2.
[SOURCE: EN 16589-1:2022, 3.5 – modified: Reference to Figure 2 instead of Figure 3]
3.6
measurement plane
two-dimensional area in front of the capture device and parallel to the entry surface used in type testing
Note 1 to entry: Distance from the measuring position to the entry surface is specified in the air velocity
measurement procedure for type tests. A schematic layout showing position of the measurement plane in relation
to the entry plane is included in Figure 2.
Key
1 Capture device
2 Duct of capture device
3 Entry plane
4 Measurement plane (as used for type test evaluation)
5 Centre line
D Internal diameter of the duct of the capture device
Lmp Measurement plane distance from the capture device entry surface specified in the air velocity measurement
procedure
Figure 2 — Schematic layout showing position of the measurement plane in relation to the entry
plane
[SOURCE: EN 16589-1:2022, 3.5 – modified: Numbering of figure adjusted to document]
3.7
capture velocity
air velocity that is equal to the minimum air velocity required for effective capture of pollutants
3.8
capture distance
distance from the AEA device at which the capture velocity (0,2 m/s or 0,4 m/s) is present
3.9
reachable workspace
three-dimensional workspace in which the positioning of the entry plane is achievable with movement
of an articulated extraction arm
Note 1 to entry: The capture zone extract volume flow can vary with changes in the articulated extraction arm
configuration.
[SOURCE: EN 16589-1:2022, 3.8]
3.10
operational working zone
space where the activity or process generates the contaminant cloud to be removed by the capture device
4 Commissioning
4.1 General
The following test methods are considered to be appropriate for the commissioning test after installation
of an AEA (or multiple AEAs on the same extract system) which has been type tested in accordance with
EN 16589-1 prior to installation. It is the aim of commissioning testing to show the correct supply and
installation of the AEA (or multiple AEA’s on the same extract system) and to check adverse effects of the
AEA location, intended extract position, room airflow, the house extract system and other ventilated
devices on the performance of the installed AEAs connected to the extract system.
Commissioning testing activities shall be carried out using a selection of test methods detailed in this
document.
Consideration should be given to guidance given in CEN/TS 17441 and EN 16589-1:2022, Annex A.
NOTE Consultation between professional parties at system design stage can help to ensure the AEA System
will operate effectively within the environment it is intended. Consultation at commissioning stage can help to
ensure that all parts of the extract air and AEA system work effectively and without impact on other connected
devices when tested as a complete system.
4.2 Inspections
4.2.1 General
The following items, 4.2.2 and 4.2.3, shall be proven by inspection.
4.2.2 Review of system as installed
It is the customers responsibility to ensure that the extract air system is suitable for AEA devices fitted.
Verify that extract air system has been commissioned according to AEA requirements detailed by the AEA
manufacturer.
Check and record design parameters such as:
— transition detail between AEA assembly and house extract;
— pressure requirement;
— design volume flow;
— concurrency / diversity profiles;
— temperature range.
4.2.3 Visual inspection
A visual inspection of the assembly and observance of installation shall be carried out in accordance with
manufacturer’s instructions (such as manual or datasheet supplied with system).
— System labelling (identification and conformity label);
— Manufactures’ identification.
4.2.4 Conformity
Review manufacturer’s documentation to prove conformity to EN 16589-1.
4.2.5 Correct mechanical assembly and operation
Check mechanical assembly and stability of AEA in situ referring to system manual or specification
document.
— Check for system completeness in accordance with manufacturers documentation.
— Identify connection arrangement to extract system and mounting detail.
— Where possible, check fixture to extract air system is secure.
— Check AEA achieves maximum and minimum reach as specified by the manufacturer.
— Check the hold stability at maximum and minimum reach positions – AEA to hold position without
additional support.
— Inspect all movable parts (bends, retention sections such as gas struts and springs).
— Check for damage to any part of the AEA device.
4.2.6 Alarms and indicators
Identify alarm / indicator type (visual indication, pressure or flow) and location.
— Check that indicator of the airflow or the air pressure is installed on the AEA.
— Check alarm associated with this indicator is installed.
— Check function is in accordance with EN 16589-1.
4.2.7 Capture zone indicator
If capture zone indicator is fitted, check indicator works as described in user manual.
4.3 Testing
4.3.1 General
The purpose of the following test protocols is to establish a set of test results that will establish that an
AEA is operating within manufactures specifications in the position or positions in which the AEA will be
used.
Another aim is to obtain reference values for comparison in subsequent routine tests.
Testing shall be carried out under the conditions of the expected configuration and use (single or multiple
AEAs in operation at any one time). For example, where there are multiple AEAs expected to be used at
the same time then testing shall take place with those multiple AEAs in operation.
4.3.2 Test equipment
The following test equipment shall be used:
— Low velocity anemometer, suitable for measuring air velocities in the range 0,05 m/s to 3 m/s with
an accuracy of 0,02 m/s ± 5 % of the reading or better, with a response time less than or equal to 1 s
and having a calibration that is traceable to national standards.
— Flow measuring device, or other suitable device, capable of measuring air flow velocity inside ducts
in accordance with EN 16211 with a maximum uncertainty of ± 5 % and having a calibration that is
trac
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
