Glass in building - Coated glass - Part 3: Requirements and test methods for class C and D coatings

This European Standard specifies requirements and a test method related to resistance to solar radiation for coated glass for use in buildings.
This test is aimed at evaluating if the exposure to solar radiation over an extended period of time produces any appreciable change in light transmittance and solar transmittance of the coated glass as well as a reduction of the infrared reflectance in the case of low emissivity coatings.
This European Standard applies to Class C and D coatings as defined in EN 1096-1 and used in insulating glass units.

Glas im Bauwesen - Beschichtetes Glas - Teil 3: Anforderungen an und Prüfverfahren für Beschichtungen der Klassen C und D

Diese Europäische Norm legt Anforderungen und ein Prüfverfahren für die Beständigkeit gegen Sonnenbestrahlung für Beschichtungen auf Glas für die Anwendung im Bauwesen fest.
Diese Prüfung hilft bei der Beurteilung, ob über einen ausgedehnten Zeitraum die Belastung durch Sonnenbestrahlung zu beträchtlichen Veränderungen des Licht- und Sonnenenergietransmissionsgrades des beschichteten Glases und bei Beschichtungen mit geringem Emissionsvermögen zu einer Verringerung des Infrarotreflexionsgrades führt.
Diese Europäische Norm ist, wie in EN 1096-1 festgelegt, auf Beschichtungen der Klassen C und D anwendbar.

Verre dans la construction - Verre à couche - Partie 3: Exigences et méthodes d'essai pour les couches C et D

La présente Norme européenne spécifie les exigences et une méthode d’essai de la résistance au rayonnement solaire applicables au verre à couche employé dans la construction.
Cet essai a pour objectif d’évaluer si l’exposition prolongée du verre à couche au rayonnement solaire produit un changement sensible quelconque dans les facteurs de transmission lumineuse et de transmission de l’énergie solaire, ainsi qu’une réduction de la réflexion infrarouge dans le cas de couches à basse émissivité.
La présente Norme européenne s’applique aux couches de classes C et D telles que définies dans
l’EN 1096-1 et utilisées dans les vitrages isolants préfabriqués scellés.

Steklo v gradbeništvu - Steklo z nanosi - 3. del: Zahteve in preskusne metode za nanose razredov C in D

Ta evropski standard določa zahteve in preskusne metode v zvezi z odpornostjo na sončno sevanje za steklo z nanosi, ki se uporablja v gradbeništvu. S tem preskusom se določa, ali izpostavljenost sončnemu sevanju skozi daljše časovno obdobje povzroča občutne spremembe v svetlobni in solarni prehodnosti stekla z nanosi ter zmanjšanje infrardečega odboja v primeru nanosov nizke emisivnosti. Ta evropski standard se uporablja za nanose razredov C in D iz standarda EN 1096-1, ki se uporabljajo pri izolacijskih steklih.

General Information

Status
Withdrawn
Publication Date
29-Apr-2012
Withdrawal Date
30-Jul-2012
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Start Date
02-Sep-2017
Completion Date
02-Sep-2017

Relations

Buy Standard

Standard
EN 1096-3:2012
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
FprEN 1096-3:2011
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steklo v gradbeništvu - Steklo z nanosi - 3. del: Zahteve in preskusne metode za nanose razredov C in DGlas im Bauwesen - Beschichtetes Glas - Teil 3: Anforderungen an und Prüfverfahren für Beschichtungen der Klassen C und DVerre dans la construction - Verre à couche - Partie 3: Exigences et méthodes d'essai pour les couches C et DGlass in building - Coated glass - Part 3: Requirements and test methods for class C and D coatings81.040.20Steklo v gradbeništvuGlass in buildingICS:Ta slovenski standard je istoveten z:EN 1096-3:2012SIST EN 1096-3:2012en,fr,de01-marec-2012SIST EN 1096-3:2012SLOVENSKI

STANDARDSIST EN 1096-3:20011DGRPHãþD
SIST EN 1096-3:2012
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1096-3
January 2012 ICS 81.040.20 Supersedes EN 1096-3:2001English Version

Glass in building - Coated glass - Part 3: Requirements and test methods for class C and D coatings

Verre dans la construction - Verre à couche - Partie 3: Exigences et méthodes d'essai pour les couches C et D

Glas im Bauwesen - Beschichtetes Glas - Teil 3: Anforderungen an und Prüfverfahren für Beschichtungen der Klassen C und D This European Standard was approved by CEN on 3 December 2011.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland , Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1096-3:2012: ESIST EN 1096-3:2012

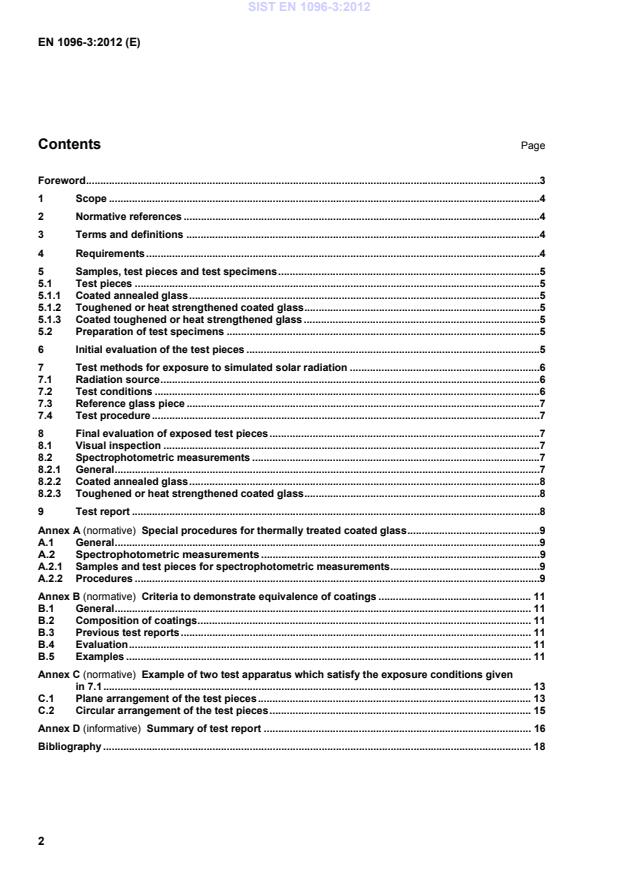

EN 1096-3:2012 (E) 2 Contents Page Foreword ..............................................................................................................................................................31 Scope ......................................................................................................................................................42 Normative references ............................................................................................................................43 Terms and definitions ...........................................................................................................................44 Requirements .........................................................................................................................................45 Samples, test pieces and test specimens ...........................................................................................55.1 Test pieces .............................................................................................................................................55.1.1 Coated annealed glass ..........................................................................................................................55.1.2 Toughened or heat strengthened coated glass ..................................................................................55.1.3 Coated toughened or heat strengthened glass ..................................................................................55.2 Preparation of test specimens .............................................................................................................56 Initial evaluation of the test pieces ......................................................................................................57 Test methods for exposure to simulated solar radiation ..................................................................67.1 Radiation source ....................................................................................................................................67.2 Test conditions ......................................................................................................................................67.3 Reference glass piece ...........................................................................................................................77.4 Test procedure .......................................................................................................................................78 Final evaluation of exposed test pieces ..............................................................................................78.1 Visual inspection ...................................................................................................................................78.2 Spectrophotometric measurements ....................................................................................................78.2.1 General ....................................................................................................................................................78.2.2 Coated annealed glass ..........................................................................................................................88.2.3 Toughened or heat strengthened coated glass ..................................................................................89 Test report ..............................................................................................................................................8Annex A (normative)
