EN 3219:2020

Aerospace series - Heat resisting nickel base alloy (NI-P100HT) - Cold worked and softened - Bar and wire for continuous forging or extrusion for fasteners - 3 mm ≤ D ≤ 30 mm

This document specifies the requirements relating to:
Heat resisting nickel base alloy (NI-P100HT)
Cold worked and softened
Bar and wire for continuous forging or extrusion for fasteners
3 mm ≤ D ≤ 30 mm

Luft- und Raumfahrt - Hochwarmfeste Nickellegierung (NI-P100HT) - Kaltverfestigt und weichgeglüht - Stange und Draht zum kontinuierlichen Verformen oder Strangpressen für Verbindungselemente - 3 mm ≤ D ≤ 30 mm

Dieses Dokument legt die Anforderungen an:
Hochwarmfeste Nickellegierung (NI P100HT)
Kaltverfestigt und weichgeglüht
Stange und Draht zum kontinuierlichen Verformen oder Strangpressen für Verbindungselemente
3 mm ≤ D ≤ 30 mm
für Anwendungen in der Luft  und Raumfahrt fest.

Série aérospatiale - Alliage résistant à chaud base nickel (NI-P100HT) - Écroui et adouci - Barre et fil pour le forgeage ou l'extrusion en continu pour fixations - 3 mm ≤ D ≤ 30 mm

Le présent document spécifie les exigences relatives à :
Alliage résistant à chaud base nickel (NI-P100HT) Écroui et adouci Barre et fil pour le forgeage ou l’extrusion en continu pour fixations 3 mm ≤ D ≤ 30 mm
pour applications aérospatiales.

Aeronavtika - Toplotno odporne zlitine na nikljevi osnovi (Ni-P100HT) - Hladno obdelana in popuščana - Palice in žice za kontinuirno kovanje ali iztiskanje vezalnih elementov - 3 mm ≤ D ≤ 30 mm

Ta standard določa zahteve, ki se navezujejo na: toplotno odporne zlitine na nikljevi osnovi (NI-P100HT), hladno obdelana in popuščana, palice in žice za kontinuirano kovanje ali iztiskanje vezalnih elementov 3 mm ≤ D ≤ 30 mm za uporabo v aeronavtiki.

General Information

• Status: Published
• Publication Date: 14-Jan-2020
• Withdrawal Date: 30-Jul-2020
• ICS: 49.025.99 - Other materials
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4 - Metallic
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 15-Jan-2020
• Completion Date: 15-Jan-2020
• Ref Project: SIST EN 3219:2020 - Aerospace series - Heat resisting nickel base alloy (Ni-P100HT) - Cold worked and softened - Bar and wire for continuous forging or extrusion for fasteners - 3 mm ≤ D ≤ 30 mm

Overview

EN 3219:2020 defines material and delivery requirements for the aerospace series heat-resisting nickel base alloy Ni-P100HT supplied as bars and wire for continuous forging or extrusion of fasteners with diameters 3 mm ≤ D ≤ 30 mm. Prepared by CEN/ASD-STAN and published January 2020, the standard forms part of the EN metallic materials series for aerospace applications.

Key attributes in EN 3219:2020 include the alloy designation (Ni-P100HT), production route (vacuum melted and consumable electrode remelted), cold-worked and softened delivery condition, and dimensional scope for fastener semi-finished products.

Key Topics

• Material: Heat-resisting nickel base alloy (Ni-P100HT).
• Forms: Bar and wire intended for continuous forging or extrusion processes.
• Size range: Applicable diameters from 3 mm to 30 mm.
• Production: Cold worked (typical cold work reduction 10 % to 30 %) and softened by specified heat treatment.
• Heat treatment: Delivery and reference heat treatments are specified (softening and solution/precipitation treatments with defined temperature ranges and cooling/soaking sequences).
• Melting methods: Vacuum melted and consumable electrode remelted to ensure material quality.
• Technical specification references: Conformance to aerospace product technical specifications (EN 4700 series for wrought products) and dimensional standards for bars and wires.

Applications

EN 3219:2020 is focused on components used in high-temperature, high-reliability aerospace environments. Typical applications include:

• Fasteners for engines: nuts, bolts and studs where heat resistance and controlled mechanical properties are critical.
• Forging/extrusion feedstock: bars and wire for continuous forming processes that produce high-integrity fastening components.

Practical benefits of specifying EN 3219:2020 in procurement and design:

• Ensures consistent alloy chemistry and melting practice for high-temperature performance.
• Defines delivery conditions (cold worked and softened) relevant to downstream forming and final properties.
• Supports traceability and production qualification between manufacturer and purchaser.

Related Standards

EN 3219:2020 references and aligns with multiple EN standards in the aerospace materials series. Relevant related standards include:

• EN 2344 - Round bars, machined in heat resisting alloys (dimensions)
• EN 2369 - Wires, heat resisting alloys (dimensions)
• EN 2600 - Designation of metallic semi-finished products
• EN 4700-002 / EN 4700-004 - Technical specifications for wrought heat resisting alloys (bar/section and wire)
• EN 4800-002 / EN 4800-004 - Technical specifications for titanium products (format and cross-references)
• EN 4258 and EN 4500-003 - Organization and drafting rules for aerospace metallic material standards

For manufacturers, purchasers and design engineers, EN 3219:2020 provides a clear specification framework for selecting and qualifying Ni-P100HT bar and wire for aerospace fasteners, ensuring material integrity, process compatibility and traceability.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2020
Aeronavtika - Toplotno odporne zlitine na nikljevi osnovi (Ni-P100HT) - Hladno
obdelana in popuščana - Palice in žice za kontinuirno kovanje ali iztiskanje
vezalnih elementov - 3 mm ≤ D ≤ 30 mm
Aerospace series - Heat resisting nickel base alloy (Ni-P100HT) - Cold worked and
softened - Bar and wire for continuous forging or extrusion for fasteners - 3 mm ≤ D ≤ 30
mm
Luft- und Raumfahrt - Hochwarmfeste Nickellegierung (Ni-P100HT) - Kaltverfestigt und
abgeschreckt - Stangen und Drähte zum kontinuierlichen Verformen oder Strangpressen
für Verbindungselemente - 3 mm ≤ D ≤ 30 mm
Série aérospatiale - Alliage résistant à chaud base nickel (Ni-P100HT) - Écroui et adouci
- Barre et fil pour le forgeage ou l'extrusion en continu pour fixations - 3 mm ≤ D ≤ 30 mm
Ta slovenski standard je istoveten z: EN 3219:2020
ICS:
49.025.99 Drugi materiali Other materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 3219
EUROPEAN STANDARD
NORME EUROPÉENNE
January 2020
EUROPÄISCHE NORM
ICS 49.025.99
English Version
Aerospace series - Heat resisting nickel base alloy (NI-
P100HT) - Cold worked and softened - Bar and wire for
continuous forging or extrusion for fasteners - 3 mm ≤ D ≤
30 mm
Série aérospatiale - Alliage résistant à chaud base Luft- und Raumfahrt - Hochwarmfeste Nickellegierung
nickel (Ni-P100HT) - Écroui et adouci - Barre et fil pour (Ni-P100HT) - Kaltverfestigt und abgeschreckt -
le forgeage ou l'extrusion en continu pour fixations - 3 Stangen und Drähte zum kontinuierlichen Verformen
mm ≤ D ≤ 30 mm oder Strangpressen für Verbindungselemente - 3 mm ≤
D ≤ 30 mm
This European Standard was approved by CEN on 14 January 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3219:2020 E
worldwide for CEN national Members.

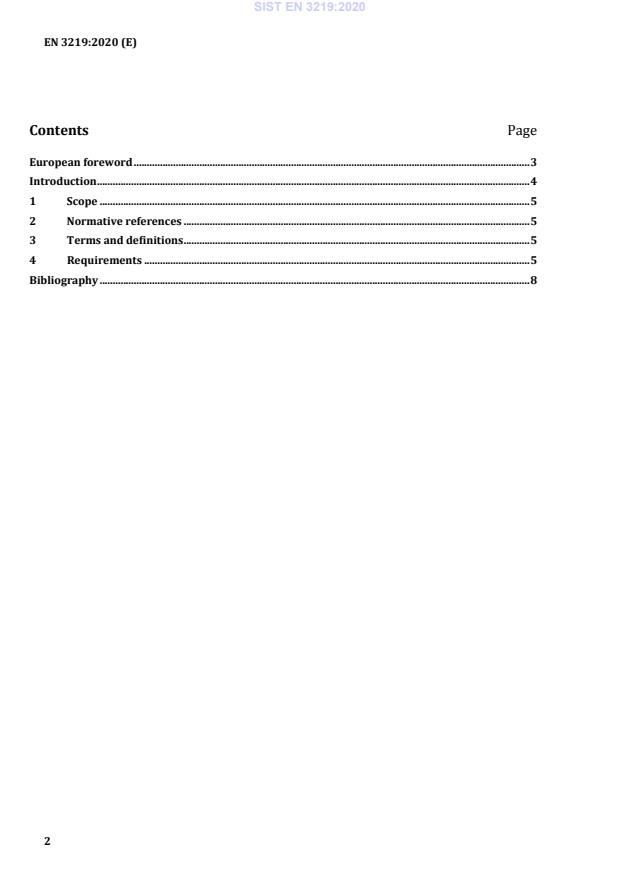

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 8

European foreword
This document (EN 3219:2020) has been prepared by the Aerospace and Defence Industries Association of
Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of ASD,
prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text or by
endorsement, at the latest by July 2020, and conflicting national standards shall be withdrawn at the latest by
July 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North Macedo
...
