EN 1677-1:2000+A1:2008
(Main)Components for slings - Safety - Part 1: Forged steel components, Grade 8
Components for slings - Safety - Part 1: Forged steel components, Grade 8
This Part of EN 1677 specifies general requirements for forged steel components of grade 8 up to 63 t WLL, mainly for use in:
- chain slings according to EN 818-4;
- steel wire rope slings according to prEN 13414-1:1999;
- textile slings according to EN 1492-1:2000, EN 1492-2:2000
intended for lifting objects, materials or goods.
This standard does not apply to hand forged components and welded links, nor to other welded components.
The hazards covered by this Part of EN 1677 are identified in clause 4.
Annex A is informative, and gives the bases for calculation of tabulated values of mechanical properties.
Annex B is informative, and gives an example of a designation system for forged steel lifting components of grade 8.
Annex ZA gives the relationship with EU-Directives.
Einzelteile für Anschlagmittel - Sicherheit - Teil 1: Geschmiedete Einzelteile, Güteklasse 8
Dieser Teil von EN 1677 legt allgemeine Anforderungen für geschmiedete Einzelteile in Güteklasse 8 im Bereich bis 63 t Tragfähigkeit fest, die hauptsächlich Verwendung finden in:
Anschlagketten nach EN 818-4,
Anschlagseilen aus Stahldrahtseilen nach EN 13414-1:1999 und
textilen Anschlagmitteln nach EN 1492-1:2000 und EN 1492-2:2000,
die zum Heben von Gegenständen, Materialien und Gütern vorgesehen sind.
Dieser Teil von EN 1677 gilt weder für handgeschmiedete Einzelteile und geschweißte Einzelglieder noch für andere geschweißte Einzelteile.
Die Gefährdungen, die durch diesen Teil von EN 1677 abgedeckt werden, sind in Abschnitt 4 aufgeführt.
Anhang A ist informativ und enthält Grundlagen für die Berechnung der Tabellenwerte für die mechanischen Eigenschaften.
Anhang B ist informativ und enthält ein Beispiel eines Bezeichnungssystems für geschmiedete Einzelteile der Güteklasse 8.
Die Anhänge ZA und ZB geben den Zusammenhang mit EG-Richtlinien an.
Accessoires pour élingues - Sécurité - Partie 1: Accessoires en acier forgé, Classe 8
La présente partie de l'EN 1677 spécifie les prescriptions générales requises pour les accessoires en acier forgé de
classe 8, de charge maximale d'utilisation inférieure ou égale à 63 t, principalement utilisés avec
— des élingues en chaînes selon l'EN 818-4 ;
— des élingues en câbles d'acier, selon !l’EN 13414-1+A2:2008" ;
— des élingues textiles selon les EN 1492-1:2000 et EN 1492-2:2000.
prévues pour le levage d'objets, de matériels ou de marchandises.
La présente norme européenne ne s'applique pas aux éléments forgés à la main, aux maillons soudés, ni aux autres
composants soudés.
Les risques couverts par la présente partie de l'EN 1677 sont identifiés dans l'article 4.
L'annexe A est informative et indique les bases de calcul des valeurs des propriétés mécaniques données dans
les tableaux.
L'annexe B est informative et donne un exemple de système de désignation des accessoires en acier forgé pour
élingues de classe 8.
!Les Annexes ZA et ZB donnent la relation avec les Directives UE."
Sestavni deli obes - Varnost - 1. del: Kovani jekleni deli, kakovostni razred 8
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sestavni deli obes - Varnost - 1. del: Kovani jekleni deli, kakovostni razred 8Einzelteile für Anschlagmittel - Sicherheit - Teil 1: Geschmiedete Einzelteile, Güteklasse 8Accessoires pour élingues - Sécurité - Partie 1: Accessoires en acier forgé, Classe 8Components for slings - Safety - Part 1: Forged steel components, Grade 853.020.30Pribor za dvigalno opremoAccessories for lifting equipmentICS:Ta slovenski standard je istoveten z:EN 1677-1:2000+A1:2008SIST EN 1677-1:2001+A1:2009en,fr,de01-januar-2009SIST EN 1677-1:2001+A1:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1677-1:2000+A1
November 2008 ICS 53.020.30 Supersedes EN 1677-1:2000 English Version
Components for slings - Safety - Part 1: Forged steel components, Grade 8
Accessoires pour élingues - Sécurité - Partie 1: Accessoires en acier forgé, Classe 8
Einzelteile für Anschlagmittel - Sicherheit - Teil 1: Geschmiedete Einzelteile, Güteklasse 8 This European Standard was approved by CEN on 21 May 2000 and includes Amendment 1 approved by CEN on 9 September 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2008 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1677-1:2000+A1:2008: ESIST EN 1677-1:2001+A1:2009

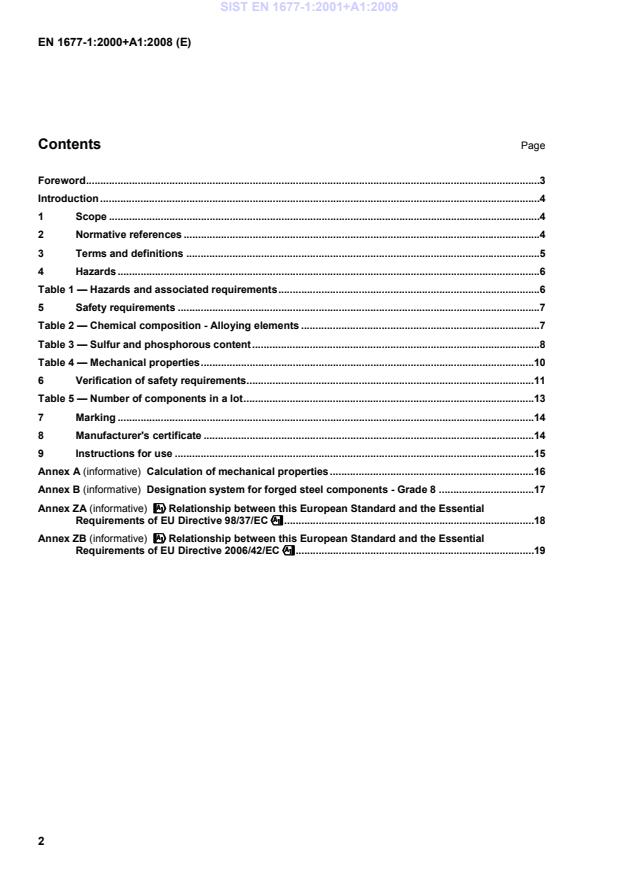

Calculation of mechanical properties.16 Annex B (informative)
Designation system for forged steel components - Grade 8.17 Annex ZA (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC"""".18 Annex ZB (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC"""".19
Annexes A and B of this European standard are informative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
The components covered by this Part of EN 1677 are normally supplied to be part of a sling, but they may also be used for other applications. In such instances it is important that the component design is checked to ensure its fitness for the intended use.
The extent to which hazards are covered is indicated in the scope. In addition, lifting equipment shall conform as appropriate to EN 292 for hazards that are not covered by this standard. 1 Scope This Part of EN 1677 specifies general requirements for forged steel components of grade 8 up to 63 t WLL, mainly for use in:
chain slings according to EN 818-4; steel wire rope slings according to prEN 13414-1:1999; textile slings according to EN 1492-1:2000, EN 1492-2:2000
intended for lifting objects, materials or goods.
This standard does not apply to hand forged components and welded links, nor to other welded components.
The hazards covered by this Part of EN 1677 are identified in clause 4.
Annex A is informative, and gives the bases for calculation of tabulated values of mechanical properties.
Annex B is informative, and gives an example of a designation system for forged steel lifting components of grade 8.
!Annexes ZA and ZB give the relationship with EU-Directives."
2 Normative references This European Standard incorporates, by dated or undated reference, provisions from other publications. These normative references are cited at appropriate places in the text and the publications are listed hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to this European Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the publication referred to applies. EN 292-1, Safety of machinery - Basic concepts - General principles for design – Part 1: Basic terminology, methodology
EN 292-2:1991/A1:1995, Safety of machinery - Basic concepts - General principles for design – Part 2: Technical principles and specifications (Amendment 1:1995)
EN 818-4, Short-link chain for lifting purposes – Safety – Part 4: Chain slings Grade 8 SIST EN 1677-1:2001+A1:2009
EN 1050:1996, Safety of machinery - Principles of risk assessment
EN 1492-1:2000, Textile slings – Safety – Part 1: Flat woven webbing slings made of man-made fibres
EN 1492-2:2000, Textile slings – Safety – Part 2: Round slings made of man-made fibres
prEN 13414-1:1999, Steel wire rope slings – Safety - Part 1:Wire rope slings
EN ISO 9001, Quality systems - Model for quality assurance in design/development, production, installation and servicing
EN ISO 9002:1994, Quality systems - Model for quality assurance in production, installation and servicing
EN 10002-2:1991, Metallic materials - Tensile testing – Part 2: Verification of the force measuring system of the tensile testing machine
EN 10025:1993, Hot rolled products of non-alloy structural steels - Technical delivery conditions
EN 10228-1:1999, Non-destructive testing of steel forgings – Part 1: Magnetic particle inspection
EN 10228-2:1998, Non-destructive testing of steel forgings – Part 2: Penetrant testing
EN 45012, General criteria for certification bodies operating quality system certification
ISO 643, Steels - Micrographic determination of the ferritic or austenitic grain size
3 Terms and definitions For the purpose of this Part of EN 1677 the following definitions apply.
3.1
working load limit (WLL) Maximum mass that a component is authorized to sustain in general lifting service, expressed as a code.
NOTE This term has the same meaning as the term maximum working load used in annex A of
EN 292-2: 1991/A1: 1995. 3.2
manufacturing proof force (MPF) Force applied to the component during the manufacturing proof test.
3.3
breaking force (BF) Maximum force reached during the static tensile test of the component, at which the component fails to retain the load.
3.4
traceability code Series of letters and/or numbers marked on a component that enables its manufacturing history, including the identity of the cast of steel used, to be traced.
competent person Designated person, suitably trained, qualified by knowledge and practical experience, and with the necessary instruction to enable the required test and examination to be carried out.
NOTE Clause 4.18 of EN ISO 9002:1994 gives guidance on training. 3.6
lot Specified number of components from which samples are selected for testing purposes, and that have been manufactured from the same cast of steel and subjected to the same heat treatment process.
4 Hazards Accidental release of a load, or release of a load due to failure of a component puts at risk, either directly or indirectly, the safety or health of those persons within the danger zone.
In order to provide the necessary strength and durability of components this Part of EN 1677 gives requirements for the design, manufacture and testing to ensure the specified levels of performance are met.
Since failure can be caused by the incorrect choice of grade and specification of component, this Part of EN 1677 also gives requirements for marking and the manufacturer’s certificate.
Risk of injury due to sharp edges, sharp angles or rough surfaces when handling is also covered by this Part of EN 1677.
Those aspects of safe use associated with good practice are given in EN 818-6:2000.
Table 1 contains those hazards which require action to reduce risk identified by risk assessment as being specific and significant for forged steel components, Grade 8. Table 1 — Hazards and associated requirements Hazards identified in annex A of EN 1050 : 1996 Relevant clause of annex A of EN 292-2: 1991/A1: 1995 Relevant clause/subclause of this Part of EN 1677 1 Mechanical hazard due to 1.3.2 5
inadequacy of strength 4.1.2.3 5
4.1.2.5 5
4.2.4 5
1.7.3 7
1.7.4 9 1.3 Cutting hazard 1.3.4 5.3 1.8 Friction or 1.3.4 5.3
abrasion hazard
...
