EN 13451-11:2022 (CEN) specifies additional safety requirements and test methods for moveable pool floors and moveable bulkheads installed in public swimming pools. It applies to the design, construction and verification of these devices for classified pools (see EN 15288-1 / EN 15288-2) and addresses significant hazards listed in Annex A. This part of the EN 13451 series takes precedence over EN 13451-1 where requirements differ. It does not cover equipment intended to move people into or out of a pool and only applies to equipment manufactured after the standard’s publication.

Key topics and technical requirements

• Scope and classification
  • Defines moveable pool floors and bulkheads and classifies them (Type 1: buoyancy-bearing; Type 2: drive-supported).
• Design and structural integrity
  • Requirements for load-bearing design, recessed ledges/steps and construction tolerances to meet entrapment limits.
• Prevention of entrapment and pinch points
  • Measures for closure devices and perimeter gaps; testing procedures for flexible closure devices are specified (Clause 6).
• Movement and operational safety
  • Requirements to prevent hazards during movement (abnormal movement, interference with circulation systems); includes the new requirement that no person shall be on the floor or bulkhead while moving.
• Slip resistance and fall prevention
  • Surface friction and edge protection to reduce slip and falling-off hazards.
• Access, maintenance and emergency provisions
  • Minimum hatch sizes for service/cleaning (600 mm; 800 mm if divers with equipment require access), tamper-proof power isolation and securing against inadvertent movement, requirement for at least one survival area or escape opening.
• Information and documentation
  • Manufacturer instructions, user manual and safety information (Clause 7).
• Test methods and verification
  • Test methods for closure devices and other verification methods to demonstrate compliance.

Practical applications and who uses it

• Manufacturers of moveable pool floors and moveable bulkheads use EN 13451-11 to design safe, compliant products for public pools.
• Pool operators and facility designers reference the standard when specifying equipment, planning circulation systems and maintenance access.
• Safety regulators and conformity assessors use it for market surveillance and to verify equipment meets CEN safety requirements.
• Maintenance and service providers use the standard to follow required locking, isolation and inspection procedures.

Keywords: EN 13451-11, moveable pool floors, moveable bulkheads, safety requirements, test methods, public pools, CEN, EN 15288.

Related standards

• EN 13451-1:2020 (general safety requirements)
• EN 15288-1 / EN 15288-2 (design and operation of public swimming pools)
• EN 62061, EN ISO 13849 series (functional safety and control systems)
• ISO 7010 (safety signs)

Standards Content (Sample)

SLOVENSKI STANDARD
01-april-2023
Nadomešča:
SIST EN 13451-11:2014
Oprema za plavalne bazene - 11. del: Dodatne posebne varnostne zahteve in
preskusne metode za premične bazenske pode in premične pregrade, vgrajene v
javne plavalne bazene
Swimming pool equipment - Part 11: Additional specific safety requirements and test
methods for moveable pool floors and moveable bulkheads installed in pools for public
use
Schwimmbadgeräte - Teil 11: Zusätzliche besondere sicherheitstechnische
Anforderungen und Prüfverfahren für höhenverstellbare Zwischenböden und bewegliche
Beckenabtrennungen in öffentlichen Schwimmbädern
Équipement de piscine - Partie 11 : Exigences de sécurité et méthodes d ’essai
complémentaires propres aux fonds de bassins mobiles et cloisons mobiles installés
dans des piscines à usage public
Ta slovenski standard je istoveten z: EN 13451-11:2022
ICS:
97.220.10 Športni objekti Sports facilities
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 13451-11
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2022
EUROPÄISCHE NORM
ICS 97.220.10 Supersedes EN 13451-11:2014
English Version
Swimming pool equipment - Part 11: Additional specific
safety requirements and test methods for moveable pool
floors and moveable bulkheads installed in pools for public
use
Équipement de piscine - Partie 11 : Exigences de Schwimmbadgeräte - Teil 11: Zusätzliche besondere
sécurité et méthodes d'essai complémentaires propres sicherheitstechnische Anforderungen und
aux fonds de bassins mobiles et cloisons mobiles Prüfverfahren für höhenverstellbare Zwischenböden
installés dans des piscines à usage public und bewegliche Beckenabtrennungen
This European Standard was approved by CEN on 28 November 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13451-11:2022 E
worldwide for CEN national Members.

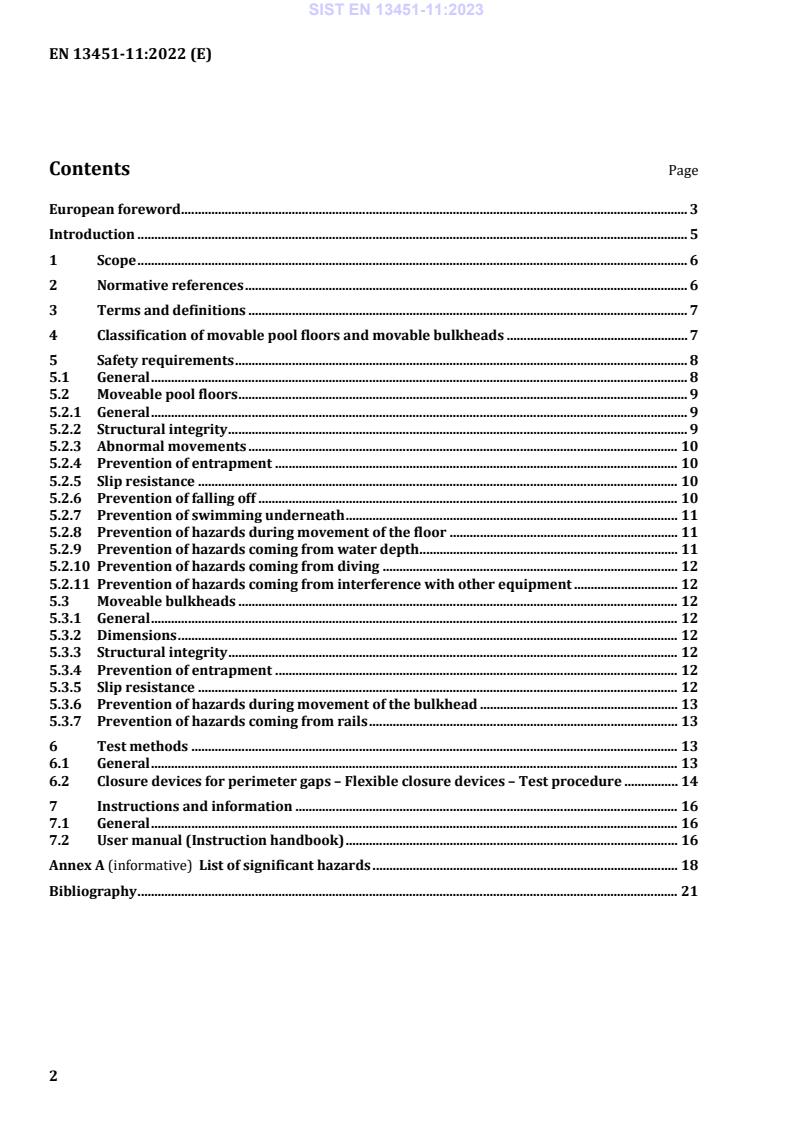

Contents Page

European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Classification of movable pool floors and movable bulkheads . 7
5 Safety requirements . 8
5.1 General . 8
5.2 Moveable pool floors . 9
5.2.1 General . 9
5.2.2 Structural integrity . 9
5.2.3 Abnormal movements . 10
5.2.4 Prevention of entrapment . 10
5.2.5 Slip resistance . 10
5.2.6 Prevention of falling off . 10
5.2.7 Prevention of swimming underneath . 11
5.2.8 Prevention of hazards during movement of the floor . 11
5.2.9 Prevention of hazards coming from water depth . 11
5.2.10 Prevention of hazards coming from diving . 12
5.2.11 Prevention of hazards coming from interference with other equipment . 12
5.3 Moveable bulkheads . 12
5.3.1 General . 12
5.3.2 Dimensions . 12
5.3.3 Structural integrity . 12
5.3.4 Prevention of entrapment . 12
5.3.5 Slip resistance . 12
5.3.6 Prevention of hazards during movement of the bulkhead . 13
5.3.7 Prevention of hazards coming from rails . 13
6 Test methods . 13
6.1 General . 13
6.2 Closure devices for perimeter gaps – Flexible closure devices – Test procedure . 14
7 Instructions and information . 16
7.1 General . 16
7.2 User manual (Instruction handbook) . 16
Annex A (informative) List of significant hazards . 18
Bibliography . 21

European foreword
This document (EN 13451-11:2022) has been prepared by Technical Committee CEN/TC 136 “Sports,
playground and other recreational facilities and equipment”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2023, and conflicting national standards shall be
withdrawn at the latest by June 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13451-11:2014.
EN 13451-11:2014:
— normative references have been updated;
— requirements for the recessed ledges and steps have been modified;
— safety requirements for the prevention of interference with the circulation system have been added;
— requirement that no person shall be on the movable floor or bulkhead when moving has been added;
— new Annex A of all thinkable hazards has been added.
The EN 13451 series, under the general title “Swimming pool equipment”, consists of the following parts:
— Part 1: General safety requirements and test methods for equipment installed in pools for public use;
— Part 2: Additional specific safety requirements and test methods for ladders, stepladders and handle
bends;
— Part 3: Additional specific safety requirements and test methods for inlets and outlets and water/air
based water leisure features installed in pools for public use;
— Part 4: Additional specific safety requirements and test methods for starting platforms;
— Part 5: Additional specific safety requirements and test methods for lane lines and dividing line;
— Part 6: Additional specific safety requirements and test methods for turning boards;
— Part 7: Additional specific safety requirements and test methods for water polo goals;
— Part 10: Additional specific safety requirements and test methods for diving platforms, diving
springboards and associated equipment;
— Part 11: Additional specific safety requirements and test methods for moveable pool floors and
moveable bulkheads installed in pools for public use.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
This document is of relevance, in particular, for the following stakeholder groups representing the market
players:
— manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance etc.).
Others can be affected by the level of safety achieved with the means of the document by the above-
mentioned stakeholder groups:
— operators/employers (small, medium and large enterprises);
— service providers, e.g. for maintenance (small, medium and large enterprises).
NOTE Due to the huge variety of individual drive systems, this document cannot provide specific requirements
for each system. A risk assessment based on EN 15288-2 is recommended.
1 Scope
This document specifies the safety requirements and the means of their verification for the design and
construction of moveable pool floors and moveable bulkheads for use in classified swimming pools as
specified in EN 15288-1 and EN 15288-2.
This document deals with all significant hazards, hazardous situations and events, as listed in Annex A,
relevant to this equipment when used as intended and under the conditions of misuse reasonably
foreseeable by the manufacturer during normal operation and service.
NOTE When requirements of this part of EN 13451 series are different from those which are stated in
EN 13451-1, the requirements of this part of EN 13451 series take precedence over the requirements of EN 13451-1
for moveable floors and moveable bulkheads that have been designed and built according to the requirements of
this part of EN 13451 series.
This document does not apply to installations or equipment intended to move people into or out of a pool
tank.
This document is not applicable to equipment which is manufactured before the date of its publication as
a European standard.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13451-1:2020, Swimming pool equipment — Part 1: General safety requirements and test methods for
equipment installed in pools for public use
EN 13451-4, Swimming pool equipment — Part 4: Additional specific safety requirements and test methods
for starting platforms
EN 13451-5, Swimming pool equipment — Part 5: Additional specific safety requirements and test methods
for lane lines and dividing line
EN 13451-6, Swimming pool equipment — Part 6: Additional specific safety requirements and test methods
for turning boards
EN 15288-1:2018, Swimming pools for public use — Part 1: Safety requirements for design
EN 15288-2, Swimming pools for public use — Part 2: Safety requirements for operation
EN 62061, Safety of machinery — Functional safety of safety-related electrical, electronic and
programmable electronic control systems
EN ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General principles
for design (ISO 13849-1)
EN ISO 13850, Safety of machinery — Emergency stop function — Principles for design (ISO 13850)
EN ISO 13857, Safety of machinery — Safety distances to prevent hazard zones being reached by upper and
lower limbs (ISO 13857)
ISO 7010:2019, Graphical symbols — Safety colours and safety signs — Registered safety signs
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13451-1:2020,
EN 15288-1:2018 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at https://www.electropedia.org/
3.1
moveable pool floor
adjustable floor located in a pool basin designed to change the water depth of the pool
Note 1 to entry: See Table 1.
3.2
open side of a moveable pool floor
open side of a moveable floor not moving alongside a pool wall
3.3
water depth
usable depth measured between water surface and the upper surface of a moveable floor
3.4
moveable bulkhead
moveable structure located in a pool basin, providing a solid partition to divide a pool into sections
Note 1 to entry: See Table 1.
3.5
closure device
flexible device used to close gaps between the moveable floor/bulkhead and pool wall/floor
Note 1 to entry: For example, flexible lips, rubber gaskets, etc. can be used.
4 Classification of movable pool floors and movable bulkheads
For the classification, see Table 1.
Table 1 — Classification
Moveable pool floors Moveable bulkheads
Type 1 Moveable floors bearing loads by buoyancy Moveable bulkheads bearing loads by
only. buoyancy only.
Type 2 Moveable floors bearing loads by drive Moveable bulkheads bearing loads by drive
systems supported by the pool structure. systems supported by the pool structure.
5 Safety requirements
5.1 General
Moveable floors and moveable bulkheads shall comply with the safety requirements of this clause.
Hatches for service or cleaning in the moveable pool floor or the moveable bulkhead shall have a
minimum diameter of 600 mm. If divers with their equipment need access, a minimum diameter of
800 mm is required. Square and rectangular shaped hatches are allowed, as long the main dimensions
are considered.
NOTE 1 The minimum number of hatches can depend on the pools size.
The pool design shall ensure good water treatment throughout the pool with the moveable floor and or
the moveable bulkhead. The design of water circulation shall take into account the need of equal flow in
different pool areas when only a part of the complete pool is to be fitted with a moveable floor or
bulkhead.
NOTE 2 It can be necessary to tighten the construction tolerances of the structure and finishes within the basin
in order to meet the entrapment requirements according to this document.
During maintenance and inspection works performed in the area underneath the equipment:
a) the operation of the equipment shall be prevented by tamper proof systems (power isolator lockable
in the “off” position with a removable key);
b) the equipment shall be secured against inadvertent movements.
The drive system shall only be accessible for maintenance and inspection. In all other cases, the
accessibility shall be prevented. The access to the drive system shall only be possible for qualified
persons, based on the manufacturer's risk assessment.
When applicable, the regulations for underwater working shall be complied with.
At least one survival area or one escape opening shall be provided in case the securing system fails.
NOTE 3 When the pool is fitted with a perimeter corridor, it is advisable to install an underwater window to
allow visual control of the area underneath the equipment.
Where the manufacturer requires a specific supporting system to support the equipment in case the pool
is empty:
c) it shall always be used in accordance with manufacturer’s instructions;
d) if the system is designed to bear only the dead load of the equipment, access to its surface shall always
be prevented.
Control systems of moveable floors and bulkheads shall be designed and constructed in such a way as to
prevent hazardous situations while moving the moveable floor or bulkhead. They shall be designed and
constructed in such a way that:
e) a fault in the hardware or the software of the control system causes an emergency stop of the
movement;
f) the moveable floor or bulkhead does not start unexpectedly;
g) a stop command leeds reliably to a stop of the movement.
For cable-less control, an automatic stop shall be activated when correct control signals are not received.
Control devices shall be:
h) clearly visible and identifiable;
i) positioned in such a way as to be safely operated without hesitation or loss of time and without
ambiguity, and give full view of the pool with the moveable floor or bulkhead;
j) designed in such a way that the movement of the control device is consistent with its effect.
Where there is more than one control position, the control system shall be designed in such a way that
the use of one of them precludes the use of the others, except for stop controls and emergency stops.
When movable floor or bulkhead has two or more control devices, each control device shall be equipped
with all the required control functions.
If a movable floor stops in a water depth not specified by the manufacturer (e.g. by a power supply
failure), the pool shall be closed for public use and a warning shall be given to the operator.
Moveable floors and bulkheads shall be designed and constructed in such a way that hazardous materials
and substan
...
