Extensions for Financial Services (XFS) interface specification Release 3.50 - Part 18: Item Processing Module Device Class Interface - Programmer's Reference

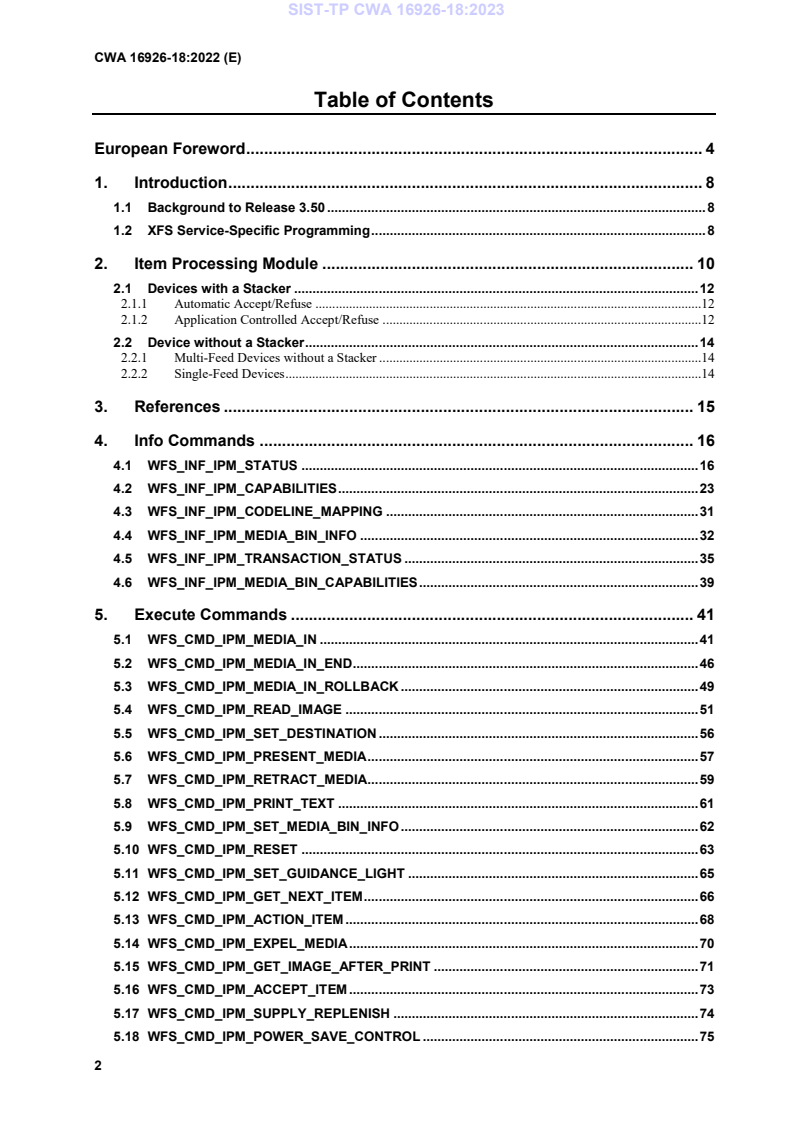

This specification describes the XFS service class for Item Processing Modules (IPM). The specification of this service class includes definitions of the service-specific commands that can be issued, using the WFSAsyncExecute, WFSExecute, WFSGetInfo and WFSAsyncGetInfo functions.
This service class is currently defined only for self service devices.
In the U.S., checks are always encoded in magnetic ink for reading by Magnetic Ink Character Recognition (MICR), and a single font is always used. In Europe some countries use MICR and some use Optical Character Recognition (OCR) character sets, with different fonts, for their checks.
Item Processing Modules accept one or more media items (Checks, Giros, etc.) and process these items according to application requirements. The IPM class supports devices that can handle a single item as well as those devices that can handle bunches of items. The following are the three principal device types:
• Single Item: can accept and process a single item at a time.
• Multi-Item Feed with no stacker (known as an escrow in some environments): can accept a bunch of media from the customer but each item has to be processed fully (i.e. deposited in a bin or returned) before the next item can be processed.
• Multi-Item Feed with a stacker: can accept a bunch of media from the customer and all items can be processed together.
The IPM class provides applications with an interface to control the following functions (depending on the capabilities of the specific underlying device):
• Capture an image of the front of an item in multiple formats and bit depths.
• Capture an image of the back of an item in multiple formats and bit depths.
• Read the code line of an item using MICR reader.
• Read the code line of an item using OCR.
• Endorse (print text) on an item.
• Stamp an item.
• Return an item to the customer.
• Deposit an item in a bin.
• Retract items left by the customer.
The IPM device class uses the concept of a Media-In transaction to track and control a customer’s interaction with the device. A Media-In transaction consists of one or more WFS_CMD_IPM_MEDIA_IN commands. The transaction is initiated by the first WFS_CMD_IPM_MEDIA_IN command and remains active until the transaction is either confirmed through WFS_CMD_IPM_MEDIA_IN_END, or terminated by WFS_CMD_IPM_MEDIA_IN_ROLLBACK, WFS_CMD_IPM_RETRACT_MEDIA or WFS_CMD_IPM_RESET. While a transaction is active the WFS_INF_IPM_TRANSACTION_STATUS command reports the status of the current transaction. When a transaction is not active the WFS_INF_IPM_TRANSACTION_STATUS command reports the status of the last transaction as well as some current status values.
There are primarily two types of devices supported by the IPM, those devices with a stacker and those without.
In this the specification the terms “long edge” and “short edge” are used to describe the orientation of a check and length of its edges. The diagram below illustrates these definitions.
Specifikacija vmesnika razširitev za finančne storitve (XFS), izdaja 3.50 - 18. del: Vmesnik razreda naprave modula za obdelavo elementov - Referenca za programerje
Ta specifikacija opisuje razred storitve razširitev za finančne storitve (XFS) za module za obdelavo elementov (IPM). Specifikacija tega razreda storitve vključuje definicije ukazov, značilnih za določeno storitev, ki jih je mogoče izdati s funkcijami WFSAsyncExecute, WFSExecute, WFSGetInfo in WFSAsyncGetInfo.
Ta razred storitve je trenutno opredeljen samo za samopostrežne naprave.
V ZDA so čeki vedno kodirani v magnetnem črnilu – za branje se uporablja prepoznavanje znakov, zapisanih z magnetnim črnilom (MICR), in vselej je uporabljena enaka velikost črk. V Evropi nekatere države za čeke uporabljajo prepoznavanje znakov, zapisanih z magnetnim črnilom, nekatere pa nabore znakov s prepoznavanjem optičnih znakov (OCR) z različnimi velikostmi črk.
Moduli za obdelavo elementov sprejmejo enega ali več sredstev (čekov, žiro čekov itd.) in jih obdelajo v skladu z zahtevami aplikacije. Razred modula za obdelavo elementov podpira tako naprave, ki lahko obravnavajo en element, kot tiste, ki lahko obravnavajo več elementov. Obstajajo tri glavne vrste naprav:
• Za posamezne elemente: naenkrat lahko sprejme in obdela en element.
• Za več elementov brez zlagalnika (v nekaterih okoljih se imenuje hramba): lahko sprejme več sredstev stranke, vendar mora biti vsak element v celoti obdelan (npr. odložen v vsebnik ali vrnjen), šele nato je mogoče obdelati naslednji element.
• Za več elementov z zlagalnikom: lahko sprejme več sredstev stranke, pri čemer je mogoče vse elemente obdelati skupaj.
Razred modula za obdelavo elementov zagotavlja aplikacije z vmesnikom za upravljanje naslednjih funkcij (odvisno od zmogljivosti določene osnovne naprave):
• zajem slike sprednjega dela elementa v več oblikah zapisa in z različno bitno globino;
• zajem slike zadnjega dela elementa v več oblikah zapisa in z različno bitno globino;
• branje vrstice kode elementa z napravo za prepoznavanje znakov, zapisanih z magnetnim črnilom;
• branje vrstice kode elementa z napravo za prepoznavanje optičnih znakov;
• označevanje elementa (tiskanje besedila);
• žigosanje elementa;
• vrnitev elementa stranki;
• odložitev elementa v vsebnik;
• vrnitev elementov, ki jih stranka ne vzame.
Razred naprave modula za obdelavo elementov uporablja koncept transakcije sredstev za sledenje in nadzor interakcije stranke z napravo. Transakcija sredstev zajema enega ali več ukazov WFS_CMD_IPM_MEDIA_IN. Transakcija se začne s prvim ukazom WFS_CMD_IPM_MEDIA_IN in ostane aktivna, dokler ni potrjena z ukazom WFS_CMD_IPM_MEDIA_IN_END ali preklicana z ukazom WFS_CMD_IPM_MEDIA_IN_ROLLBACK, WFS_CMD_IPM_RETRACT_MEDIA ali WFS_CMD_IPM_RESET. Ko je transakcija aktivna, ukaz WFS_INF_IPM_TRANSACTION_STATUS sporoči status trenutne transakcije. Kadar transakcija ni aktivna, ukaz WFS_INF_IPM_TRANSACTION_STATUS sporoči status zadnje transakcije in nekaj vrednosti trenutnega statusa.
Modul za obdelavo elementov podpira zlasti dve vrsti naprav – z zlagalnikom in brez njega.
V tej specifikaciji se izraza »dolga stranica« in »kratka stranica« uporabljata za opis usmerjenosti čeka in dolžine njegovih stranic. Ti definiciji sta prikazani na spodnjem diagramu.
