EN 534:2006+A1:2010
(Main)Corrugated bitumen sheets - Product specification and test methods
Corrugated bitumen sheets - Product specification and test methods
This European Standard specifies the technical properties and establishes the test and inspection methods for finished corrugated bitumen sheets on leaving the factory. It also provides for the evaluation of conformity of products with the requirements of this standard.
Bitumen-Wellplatten - Produktfestlegungen und Prüfverfahren
Diese Europäische Norm legt die technischen Eigenschaften von fertig gestellten Bitumen-Wellplatten bei Ver¬lassen des Werks sowie die für sie geltenden Prüf- und Überwachungsverfahren fest. Sie dient auch der Bewertung der Übereinstimmung der Produkte mit den Anforderungen der vorliegenden Norm.
Plaques ondulées bitumées - Spécifications des produits et méthodes d'essai
La présente Norme européenne spécifie les propriétés techniques ainsi que les méthodes d’essai et de contrôle portant sur le produit fini sorti d’usine. Elle prévoit également l’évaluation de la conformité des produits avec les exigences de la présente norme.
Valovite bitumenske plošče - Specifikacije in preskusne metode
Ta evropski standard opredeljuje tehnične značilnosti in vzpostavlja preskusne in nadzorne metode za dokončane valovite bitumenske plošče preden zapustijo tovarno. Prav tako zagotavlja ocenjevanje skladnosti proizvodov z zahtevami tega standarda.
General Information
- Status
- Published
- Publication Date
- 16-Mar-2010
- Withdrawal Date
- 29-Sep-2010
- Technical Committee
- CEN/TC 128 - Roof covering products for discontinuous laying and products for wall cladding
- Drafting Committee
- CEN/TC 128/SC 6 - Bitumen shingles and corrugated sheets for roofing
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 17-Mar-2010
- Completion Date
- 17-Mar-2010
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 19-Jan-2023
- Effective Date
- 18-Jan-2023
- Effective Date
- 18-Jan-2023
Overview - EN 534:2006+A1:2010 (CEN)
EN 534:2006+A1:2010 is the European product specification and test-method standard for corrugated bitumen sheets, published by CEN. It defines the technical properties to be verified at factory exit, details sampling and test procedures, and sets out procedures for evaluation of conformity (including factory production control and marking). The standard covers composition, geometry, mechanical and physical performance, durability and fire behaviour for finished corrugated bitumen roofing and cladding sheets.
Key topics and technical requirements
The standard addresses the following principal areas:
Material and construction
- Corrugated bitumen sheets produced from a homogeneous mix of organic/inorganic fibres and bitumen.
- Options: spun-dyed sheets, coloured/colourless surface coatings, granule or flake coverings, mono‑ or multi‑layer constructions.
Geometrical properties (expressed tolerances when tested)
- Length: +1.0 % / −0.2 %
- Width: ±2 %
- Thickness: ±10 % (measured including surface relief)
- Corrugation height: ±6 %
- Corrugation pitch: ±3 %
- Squareness (specified measurement methods)
Mechanical properties
- Bending under downward load
- Impact strength
- Tearing strength
- Classification into category R and category S depending on mechanical performance (R suitable for most roofing climates; S may need special installation).
Physical and durability properties
- Water impermeability, water absorption, mass, homogeneity, proportion of bitumen, slip resistance, load-bearing capacity.
- Durability checks including tearing strength and water impermeability after freeze/thaw ageing, and thermal coefficient testing.
Fire performance
- Reaction to fire and external fire exposure tests (references to EN 13501 series and ENV 1187).
Conformity and factory production control
- Initial type testing, FPC requirements, testing frequencies (Annex A), and provisions relating to the EU Construction Products Directive (Annex ZA) including CE marking.
Applications and who uses EN 534
- Manufacturers of corrugated bitumen sheets - product specification, production control and marking.
- Test laboratories and QA personnel - standardized test methods for geometry, mechanical, physical and durability properties.
- Architects, specifiers and roof/cladding contractors - selecting appropriate sheet category (R or S) and ensuring correct installation guidance is followed.
- Regulators, procurement officers and certification bodies - conformity assessment, CE marking and compliance with EU construction product requirements.
Related standards
- EN 13501-1 / EN 13501-5 - fire classification
- ENV 1187 - external roof fire exposure tests
- EN ISO 9001 - quality management
- ISO 7892 - impact resistance test procedures
EN 534 is essential for anyone specifying, producing or testing corrugated bitumen roofing and cladding products in the European market.
Frequently Asked Questions
EN 534:2006+A1:2010 is a standard published by the European Committee for Standardization (CEN). Its full title is "Corrugated bitumen sheets - Product specification and test methods". This standard covers: This European Standard specifies the technical properties and establishes the test and inspection methods for finished corrugated bitumen sheets on leaving the factory. It also provides for the evaluation of conformity of products with the requirements of this standard.
This European Standard specifies the technical properties and establishes the test and inspection methods for finished corrugated bitumen sheets on leaving the factory. It also provides for the evaluation of conformity of products with the requirements of this standard.
EN 534:2006+A1:2010 is classified under the following ICS (International Classification for Standards) categories: 91.100.50 - Binders. Sealing materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 534:2006+A1:2010 has the following relationships with other standards: It is inter standard links to EN 534:2006/FprA1, EN 534:2006, prEN 534. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 534:2006+A1:2010 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/121, M/122. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 534:2006+A1:2010 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bitumen Wellplatten - Produktfestlegungen und PrüfverfahrenPlaques ondulées bitumées - Spécifications des produits et méthodes d'essaiCorrugated bitumen sheets - Product specification and test methods91.060.20StreheRoofs75.140Voski, bitumni in drugi naftni proizvodiWaxes, bituminous materials and other petroleum productsICS:Ta slovenski standard je istoveten z:EN 534:2006+A1:2010SIST EN 534:2006+A1:2010en,fr,de01-julij-2010SIST EN 534:2006+A1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 534:2006+A1
March 2010 ICS 91.100.50 Supersedes EN 534:2006English Version
Corrugated bitumen sheets - Product specification and test methods
Plaques ondulées bitumées - Spécifications des produits et méthodes d'essai
Bitumen Wellplatten - Produktfestlegungen und Prüfverfahren This European Standard was approved by CEN on 3 May 2006 and includes Amendment 1 approved by CEN on 9 February 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 534:2006+A1:2010: ESIST EN 534:2006+A1:2010

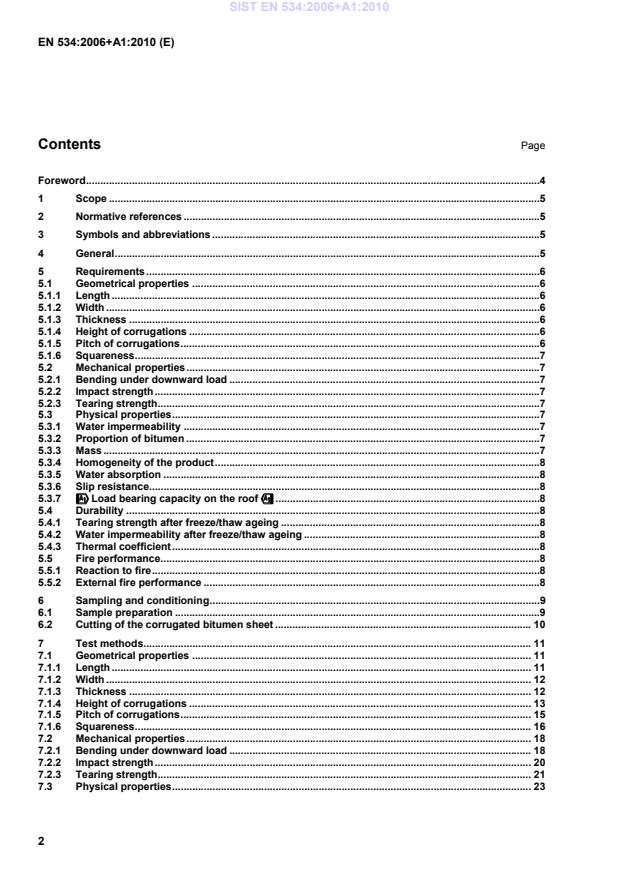

Frequencies of testing for factory production control . 31Annex ZA (informative)
Clause of this European Standard addressing the provisions of the EU Construction Products Directive (89/106/EEC) . 32ZA.1Scope and relevant clauses . 32ZA.2Procedure for the attestation of conformity of corrugated bitumen sheets . 34ZA.2.1Systems of attestation of conformity . 34ZA.2.2EC Certificate and Declaration of conformity . 37ZA.3CE marking . 39SIST EN 534:2006+A1:2010
When tested according to 7.3.2, the bitumen content shall be equal to or greater than 40 %. The properties are measured without any covering of granules or fine flakes. 5.3.3 Mass When tested according to 7.3.3, the tolerance on the declared mass (expressed in kg/m2) shall be ± 10 %. SIST EN 534:2006+A1:2010
Number of samples Width of samples Length of samples Conditioning Cutting of the sheet 7.1 Geometrical properties 7.1.1 Length 3 Entire sheet Entire sheet Required Aa No 7.1.2 Width No 7.1.3 Thickness 1 Entire sheet Entire sheet Required Aa Only if necessary 7.1.4 Height of corrugation No 7.1.5 Pitch of corrugation Only if necessary 7.1.6 Squareness No 7.2 Mechanical properties 7.2.1 Bending under downward load 5 Entire sheet
Required B No 7.2.2 Impact strength 5 Entire sheet
Required B No 7.2.3 Tearing strength 5 3 corrug.b 150 mm Required B See Figure 1 7.3 Physical properties 7.3.1 Water impermeability 1 3 corrugb 150 mm Required Aa See Figure 2 7.3.2 Proportion of bitumen 3 50 mm 100 mm Required Aa See Figure 2 7.3.3 Mass 3 Entire sheet
Required Ba No 7.3.4 Homogeneity of the product 12 ½
corrugb 200 mm Required Aa See Figure 2 7.3.5 Water absorption 3 2 corrugb 200 mm Required Ba See Figure 2 7.4 Durability 7.4.1 Tearing strength after freeze/thaw ageing 5 3 corrugb 150 mm Required Aa See Figure 1 7.4.2 Water impermeability after freeze/thaw ageing 1 3 corrugb 150 mm Required Aa See Figure 1 7.4.3 Thermal coefficient 2 1 corrug. 250 mm Required Ba See Figure 1 a In case of testing during production, the corrugated bitumen sheet may be tested without conditioning (A or B). If the test cannot be performed immediately, the corrugated bitumen sheet shall be stored right away at laboratory conditions. b If the corrugated bitumen sheet has a flat part, this shall be considered as one corrugation. A The test pieces shall be stored at laboratory conditions for at least 7 days.
B The test pieces shall be conditioned at (23 ± 2) °C and (50 ± 10) % relative humidity for at least 7 days. SIST EN 534:2006+A1:2010
Figure 1 — Positions from which samples are taken SIST EN 534:2006+A1:2010
Figure 2 — Positions from which samples are taken 7 Test methods 7.1 Geometrical properties 7.1.1 Length 7.1.1.1 Equipment The test equipment is shown in Figure 3 and consists of a precision ruler with 0,5 mm divisions and a stable flat plane. 7.1.1.2 Procedure
The measurement shall be taken while the sheet is supported on a stable flat plane. The length shall be measured either at the crown of the corrugation or in the valley of the corrugation on the second and penultimate corrugations. The test is carried out on 3 different corrugated bitumen sheets. 7.1.1.3 Results The result is the mean of the three mean values of the two measured values of each corrugated bitumen sheet. SIST EN 534:2006+A1:2010
Key 1 test piece Figure 4 — Thickness measurement 7.1.4 Height of corrugations 7.1.4.1 Equipment The test equipment is shown in Figure 5 and consists of a precision measuring device with 0,1 mm divisions, a flat bar with a length longer than the corrugation pitch and a stable flat plane. SIST EN 534:2006+A1:2010
Key 1 test piece 2 stable flat plane 3 measuring device 4 flat bar Figure 5 — Height of corrugation measurement SIST EN 534:2006+A1:2010
Key 1 test piece 2 metal tube Figure 6 — Examples of pitch and period of corrugations SIST EN 534:2006+A1:2010
The result is expressed to the nearest 1 mm.
Key 1 test piece 2 stable flat plane 3 tube Figure 7 — Squareness measurement SIST EN 534:2006+A1:2010
7.2 Mechanical properties 7.2.1 Bending under downward load 7.2.1.1 Equipment The equipment is shown in Figure 8. It consists of: strong horizontal bench larger than the corrugated bitumen sheet; four square tubes MSH 60 / 60 / 5 mm with a minimum length 10 % longer than the width of the sheet; six channels 40 / 35 / 5 mm, with a length 10 % longer than the width of the sheet; three supports; three square bars 20 / 20 mm x 40 mm; I-beam HEA 140 x 1 500 mm; hydraulic or electro-mechanical cylinder capable of supplying a force of 10 kN; force receiver, mounted between I-beam and the cylinder; one electronic elongation device accurate to 0,01 mm with a fixed disk of 20 mm on the top; precision metal ruler with 0,5 mm divisions. 7.2.1.2 Procedure
7.2.1.2.1 Set up With reference to Figure 8, the four square tubes are placed on the bench, adjusted to the span of 620 mm and properly fixed to the bench. The corrugated bitumen sheet is placed on the square tubes and adjusted centrally under the cylinder. In the case of an irregular profile, the nearest bottom of a corrugation is always at the centre of the cylinder. The six channels with the three supports are placed loose on the sheet and adjusted. In the middle of each support a square bar is placed as a joint for the I-beam.
The total mass of the preload shall be equal to (60 ± 5) kg. The elongation device is mounted rigid and vertical underneath the test piece. The position shall be exactly in the middle between the two square tubes and at the bottom of a corrugation directly central under the cylinder. After applying the six channels, three supports, I-beam, the force receiver and the elongation device, ensure that there is no gap between the corrugated bitumen sheet and the two central square tubes. If a gap exists, the corrugated bitumen sheet is not suitable for this test and shall be changed. Once this check has been made, the electronic elongation device is set to zero. SIST EN 534:2006+A1:2010
Key 1 test piece 5 three supports 9 force receiver 2 four square tubes 6 three square bars 10 elongation device 3 horizontal bench 7 I-beam 11 check 4 six channels 8 cylinder
Figure 8 — Bending under downward load 7.2.1.2.3 Test execution The speed of the cylinder shall be between 1 to 3 mm/min. Force and elongation shall be recorded simultaneously, until the deflection is greater than 4,0 mm. The test is carried out on five different corrugated bitumen sheets. SIST EN 534:2006+A1:2010
Key 1 test piece 5 eight clamps 2 four metal support 6 sphero-conical bag 3 horizontal bench 7 release hook 4 four wooden supports H height of fall Figure 9 — Impact strength test 7.2.3 Tearing strength 7.2.3.1 Equipment The test equipment is shown in Figure 10 and consists of: tensile machine with a speed of 50 mm/min; counter plate with a hole of 50 mm in the centre; two clamps, to prevent the test piece from moving; spacer to prevent the test piece from moving; steel disk with a diameter of 13 mm and a thickness of 6 mm minimum; one nail with a diameter of 3 mm. SIST EN 534:2006+A1:2010
Key 1 tensile machine 2 counter plate 3 two clamps 4 spacer 5 disk 6 nail Figure 10 — Tearing strength test SIST EN 534:2006+A1:2010
NOTE Three corrugations when the product includes a flat area. Key 1 test piece 2 three corrugations 3 frame 4 demineralised water 5 seal Figure 11 — Water impermeability test SIST EN 534:2006+A1:2010
Each test piece shall be peeled by hand (or with the help of a cutter) so as to reveal the largest possible torn surface (see Figure 12). Each surface shall be checked to see if there is any area without bitumen larger than 1 cm2. The test is carried out on twelve samples. 7.3.4.3 Results The test is passed if, for all twelve samples, no surface contains any area without bitumen larger than 1 cm2.
Figure 12 — Homogeneity of the product 7.3.5 Water absorption 7.3.5.1 Equipment The equipment consists of a water bath, a drying cabinet and a balance. Demineralised water is also required. 7.3.5.2 Procedure The test pieces shall be put into the drying cabinet for at least 48 h at 70 °C until their mass becomes constant. The test pieces are then weighed to the nearest 0,01 g, this being the mass before absorption. The test pieces shall then be placed horizontally in a container of demineralised water, without protection of the cut surfaces. The temperature of the water shall be (23 ± 2) °C and its level shall be 100 mm above the crown of the corrugations. The test pieces shall not touch each other. SIST EN 534:2006+A1:2010
Results The water absorption is calculated using: absorption = [(mass after absorption – mass before absorption)/mass before absorption] x 100 [%]. The test is passed when all three tested samples meet the requirement. 7.4 Durability 7.4.1 Tearing strength after freeze/thaw ageing 7.4.1.1 Procedure First the frost resistance conditioning procedure (7.4.4) shall be performed on each test piece. After the last cycle, the test pieces shall be stored for 24 h at laboratory conditions and then the tearing strength test (7.2.3) shall be performed. The test is carried out on five samples. 7.4.1.2 Results The result is the mean of the five measurements, expressed to the nearest Newton. 7.4.2 Water impermeability after freeze/thaw ageing 7.4.2.1 Procedure First the frost resistance conditioning procedure (7.4.4) shall be performed on the test piece. After the last cycle, the test pieces shall be stored for at least 24 h at laboratory conditions and then the water impermeability test (7.3.1) shall be performed. After (48 ± 2) h the underside of the test piece shall be examined to see if there is any water penetration. The test is carried out on one sample. 7.4.2.2 Results The test shall be judged to have been passed or failed using visual assessment. 7.4.3 Thermal coefficient 7.4.3.1 Equipment The equipment consists of two small needles, a heating chamber and a slide gauge. 7.4.3.2 Procedure The two needles shall be affixed on the side of the test piece 200 mm apart. The distance between the needles shall be measured with the slide gauge to an accuracy of ± 0,1 mm. SIST EN 534:2006+A1:2010
...
