(Main)Safety of woodworking machines - Chip and dust extraction systems for indoor installation - Safety requirements
Safety of woodworking machines - Chip and dust extraction systems for indoor installation - Safety requirements
This document deals with all significant hazards, hazardous situations and events as listed in Clause 4, relevant for chip and dust extraction systems for indoor use designated to be connected to woodworking machines, when they are used as intended and under the conditions foreseen by the manufacturer, including reasonably foreseeable misuse.
This document does not apply to:
a) extraction systems with a nominal volume flow rate above 8 000 m3 h−1 and/or a volume of the dust loaded part of the dust extractor above 3,5 m3;
b) vacuum cleaners according to EN 60335-2-69;
c) extraction systems with fans installed in the dust loaded part;
d) extraction equipment (e.g. extraction hoods, ducts) within a woodworking machine, i.e. up to and including the outlet to which the extraction system is connected;
e) extraction systems designed for dust with KST values above 200 bar ms−1, minimum ignition energy below 10 mJ and/or lower explosion level below 30 g m−3;
f) extraction systems designed for aspiration of explosive atmospheres, e.g. dust load > 50 % lower explosion level;
g) systems designed for extraction of machines with a higher risk of causing ignition sources.
This document is not applicable to machines which are manufactured before the date of its publication as a European Standard.
Sicherheit von Holzbearbeitungsmaschinen - Absauganlagen für Holzstaub und Späne für Innenaufstellung - Sicherheitstechnische Anforderungen
Sécurité des machines pour le travail du bois - Systèmes d'extraction de copeaux et de poussières pour installation en intérieur - Prescriptions de sécurité
Le présent document traite de tous les phénomènes dangereux, situations et événements dangereux significatifs, tels qu'énumérés dans l'Article 4, applicables aux systèmes d'extraction de copeaux et poussières utilisés en intérieur, conçus pour être raccordés aux machines à bois, lorsqu’ils sont utilisés comme prévu et dans les conditions prévues par le fabricant, incluant une mauvaise utilisation raisonnablement prévisible.
Le présent document ne s’applique pas aux :
a) systèmes d'extraction ayant un débit volumique nominal supérieur à 8 000 m³ h-1 et/ou un volume de la partie chargée en poussières de l'extracteur de poussières supérieur à 3,5 m³ ;
b) aspirateurs conformes à l'EN 60335-2-69 ;
c) systèmes d'extraction dont les ventilateurs sont installés dans la partie chargée en poussières ;
d) équipements d'extraction (par exemple, buses de captage, conduits) situés dans une machine à bois, c'est-à-dire jusqu’à et y compris la sortie à laquelle le système d'extraction est raccordé ;
e) systèmes d'extraction conçus pour les poussières d’indice KST supérieur à 200 bar m s-1, une énergie minimale d'inflammation inférieure à 10 mJ et/ou un niveau inférieur d'explosivité inférieur à 30 g m−³ ;
f) systèmes d'extraction conçus pour l'aspiration des atmosphères explosives, par exemple, une charge de poussière > 50 % au niveau inférieur d'explosivité ;
g) systèmes conçus pour l'extraction des machines présentant un risque plus important de génération de sources d'inflammation.
Le présent document n’est pas applicable aux machines qui ont été fabriquées avant sa date de publication comme Norme européenne.
Varnost lesnoobdelovalnih strojev - Odsesovalni sistemi za lesne odrezke in prah za notranjo inštalacijo - Varnostne zahteve
Ta dokument obravnava vse pomembne nevarnosti, nevarne okoliščine ter dogodke iz točke 4 v zvezi z odsesovalnimi sistemi za lesne odrezke in prah za notranjo uporabo, ki so predvideni za priključitev na stroje, zasnovane za rezanje masivnega lesa (vključno s trdim lesom), lesnih materialov ter lesu podobnih materialov, kadar se uporabljajo v skladu s predvidenim namenom in v pogojih, ki jih predvidi proizvajalec, vključno z razumno pričakovano nepravilno uporabo.
Ta evropski standard se ne uporablja za:
a) odsesovalne sisteme z nazivnim pretokom nad 8000 m³/h in/ali prostornino s prahom obremenjenega predela izločevalnika prahu nad 3,5 m³;
b) sesalnike v skladu s standardom EN 60335-2-69/A2:2013;
c) odsesovalne sisteme z ventilatorji, nameščenimi v predelu, obremenjenem s prahom;
d) odsesovalno opremo (npr. odsesovalni pokrovi, vodi) v notranjosti lesnoobdelovalnega stroja, tj. do in vključno z odvodom, na katerega je priključen odsesovalni sistem;
e) odsesovalne sisteme, zasnovane za prah z vrednostmi KST nad 200 bar ms-1, najmanjšo vžigno energijo pod 10 mJ in/ali nižjo stopnjo eksplozivnosti pod 30 g/m³;
f) odsesovalne sisteme, zasnovane za aspiracijo eksplozivnih atmosfer, npr. obremenitev prahu > 50 % nižje stopnje eksplozivnosti;
g) sisteme, zasnovane za izločanje iz strojev z večjim tveganjem povzročitve virov vžiga;
h) silose.
Ta evropski standard se ne uporablja za stroje, ki so bili proizvedeni pred objavo tega dokumenta kot standarda EN.
General Information
- Status
- Published
- Publication Date
- 18-Sep-2018
- Withdrawal Date
- 30-Mar-2019
- Technical Committee
- CEN/TC 142 - Woodworking machines - Safety
- Drafting Committee
- CEN/TC 142/WG 10 - Chip and dust extraction systems
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 03-Mar-2024
- Completion Date
- 03-Mar-2024
Overview
EN 16770:2018 - Safety of woodworking machines: Chip and dust extraction systems for indoor installation - Safety requirements. This CEN standard specifies safety requirements for chip and dust extraction systems intended to be connected to woodworking machines for indoor use (recirculating air). It addresses all significant hazards listed in Clause 4 when systems are used as intended and under reasonably foreseeable misuse. The standard supports the EU Machinery Directive (2006/42/EC) and is intended for manufacturers, installers and safety assessors.
Key exclusions (important to note)
- Systems with nominal flow > 8 000 m3/h or dust-volume > 3.5 m3
- Vacuum cleaners per EN 60335-2-69
- Systems with fans located in the dust-loaded part
- Extraction equipment integral to a woodworking machine (up to the machine outlet)
- Systems for highly reactive or explosive dusts (e.g., KST > 200 bar·m/s, MIE < 10 mJ, LEL < 30 g/m3)
- Systems for extraction of explosive atmospheres or from machines with higher ignition risk
- Machines manufactured before the standard’s publication date
Key Topics
EN 16770:2018 covers technical and safety aspects including:
- Risk assessment and control systems: Requirements for reliable control logic, emergency stop, fan start/stop behaviour and safety-related parts of control systems (ref. EN ISO 13849-1, EN ISO 12100).
- Mechanical protection: Guards, prevention of drawing-in, shearing and crushing hazards.
- Fire and explosion prevention: Measures to avoid ignition sources, prevent material accumulation in ducting, and limit fire spread. Annexes include active ignition detection/suppression and fire suppression systems.
- Dust and hazardous-substance control: Separation performance, emission limits and performance indication (see EN 1093 parts). Measurement procedures (vacuum, cleaning interval, residual dust) are specified.
- Noise and ergonomics: Design-stage noise reduction, measurement and declaration (EN ISO 4871, EN ISO 11201) and ergonomic considerations for safe operation and maintenance.
- Electrical, pneumatic and stability requirements: Safe cabling, IP protection, pneumatic safety (EN ISO 4414) and structural stability.
- Information for use: Marking, installation, operation and maintenance instructions required from the manufacturer.
Applications
- Design and manufacture of fixed indoor chip and dust extraction systems for woodworking shops
- Safety assessment and conformity demonstration for CE marking under the Machinery Directive
- Specification and procurement of extraction systems by woodworking businesses, integrators and system installers
- Development of maintenance and cleaning regimes to reduce fire and dust risks
Who should use this standard
- Extraction system manufacturers and designers
- Woodworking machine builders and integrators
- Health & safety managers, plant engineers and maintenance teams
- Notified bodies, regulators and conformity assessment bodies
Related standards
- EN 12779 (fixed installation extraction systems)
- EN 1093-6 / EN 1093-7 (separation efficiency)
- EN ISO 12100, EN ISO 13849-1, EN ISO 11201 (risk, control systems, noise)
- EN 1127-1, EN 14460, EN 14491 (explosion/fire protection)
Keywords: EN 16770:2018, chip and dust extraction systems, woodworking machine safety, dust extraction safety requirements, indoor extraction systems, fire prevention, noise reduction, separation efficiency.
Frequently Asked Questions
EN 16770:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Safety of woodworking machines - Chip and dust extraction systems for indoor installation - Safety requirements". This standard covers: This document deals with all significant hazards, hazardous situations and events as listed in Clause 4, relevant for chip and dust extraction systems for indoor use designated to be connected to woodworking machines, when they are used as intended and under the conditions foreseen by the manufacturer, including reasonably foreseeable misuse. This document does not apply to: a) extraction systems with a nominal volume flow rate above 8 000 m3 h−1 and/or a volume of the dust loaded part of the dust extractor above 3,5 m3; b) vacuum cleaners according to EN 60335-2-69; c) extraction systems with fans installed in the dust loaded part; d) extraction equipment (e.g. extraction hoods, ducts) within a woodworking machine, i.e. up to and including the outlet to which the extraction system is connected; e) extraction systems designed for dust with KST values above 200 bar ms−1, minimum ignition energy below 10 mJ and/or lower explosion level below 30 g m−3; f) extraction systems designed for aspiration of explosive atmospheres, e.g. dust load > 50 % lower explosion level; g) systems designed for extraction of machines with a higher risk of causing ignition sources. This document is not applicable to machines which are manufactured before the date of its publication as a European Standard.
This document deals with all significant hazards, hazardous situations and events as listed in Clause 4, relevant for chip and dust extraction systems for indoor use designated to be connected to woodworking machines, when they are used as intended and under the conditions foreseen by the manufacturer, including reasonably foreseeable misuse. This document does not apply to: a) extraction systems with a nominal volume flow rate above 8 000 m3 h−1 and/or a volume of the dust loaded part of the dust extractor above 3,5 m3; b) vacuum cleaners according to EN 60335-2-69; c) extraction systems with fans installed in the dust loaded part; d) extraction equipment (e.g. extraction hoods, ducts) within a woodworking machine, i.e. up to and including the outlet to which the extraction system is connected; e) extraction systems designed for dust with KST values above 200 bar ms−1, minimum ignition energy below 10 mJ and/or lower explosion level below 30 g m−3; f) extraction systems designed for aspiration of explosive atmospheres, e.g. dust load > 50 % lower explosion level; g) systems designed for extraction of machines with a higher risk of causing ignition sources. This document is not applicable to machines which are manufactured before the date of its publication as a European Standard.
EN 16770:2018 is classified under the following ICS (International Classification for Standards) categories: 79.120.10 - Woodworking machines. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16770:2018 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC; Standardization Mandates: M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 16770:2018 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Varnost lesnoobdelovalnih strojev - Odsesovalni sistemi za lesne odrezke in prah za notranjo inštalacijo - Varnostne zahteveSicherheit von Holzbearbeitungsmaschinen - Absauganlagen für Holzstaub und Späne für Innenaufstellung - Sicherheitstechnische AnforderungenSécurité des machines pour le travail du bois - Installations d'extraction de copeaux et de poussières - Prescriptions de sécuritéSafety of woodworking machines - Chip and dust extraction systems for indoor installation - Safety requirements79.120.10Lesnoobdelovalni strojiWoodworking machinesICS:Ta slovenski standard je istoveten z:EN 16770:2018SIST EN 16770:2018en,fr,de01-december-2018SIST EN 16770:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16770
September
t r s z ICS
y {ä s t rä s r English Version
Safety of woodworking machines æ Chip and dust extraction systems for indoor installation æ Safety requirements Sécurité des machines pour le travail du bois æ Systèmes d 5extraction de copeaux et de poussières pour installation en intérieur æ Prescriptions de sécurité
Sicherheit von Holzbearbeitungsmaschinen æ Absauganlagen für Holzstaub und Späne für Innenaufstellung æ Sicherheitstechnische Anforderungen This European Standard was approved by CEN on
{ April
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x y y rã t r s z ESIST EN 16770:2018

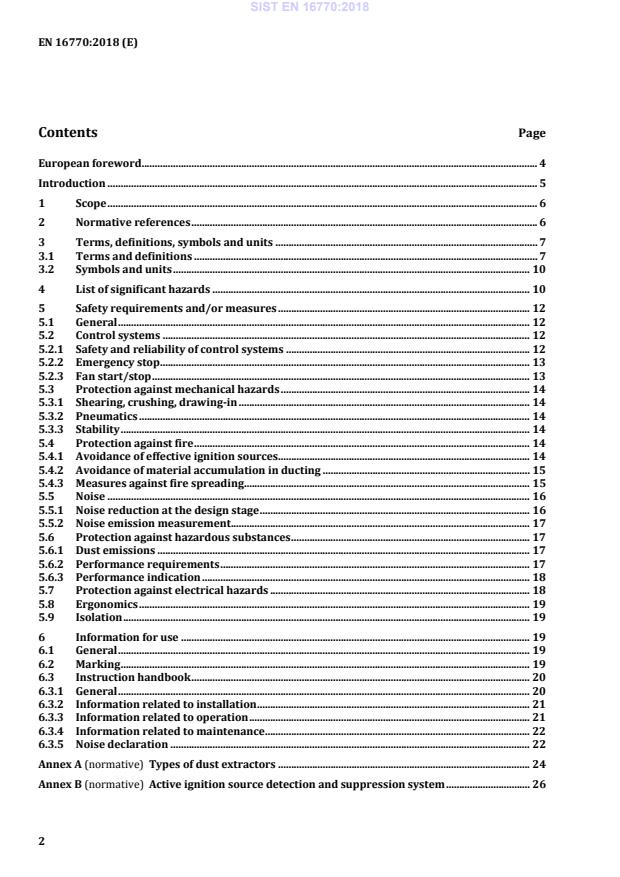

Types of dust extractors . 24 Annex B (normative)
