Secure storage units - Classification and methods of test for resistance to fire - Part 2: Data rooms and data container

This Part of the European Standard EN 1047 specifies requirements for data rooms and data containers. It includes a method of test for the determination of the ability of data rooms and data containers to protect temperature and humidity sensitive data media (see 3.5) and hardware systems (see 3.6) from the effects of fire. A test method for measuring the resistance to mechanical stress (impact test) provided by data rooms type B and data containers is also specified.
Requirements are also specified for test specimens, the technical documentation of the test specimens, materials specimens, physical fittings, the correlation of test specimens with the technical documentation and the preparation for type testing as well as test procedures.
In addition, a scheme to classify data rooms and data containers from the test results is given (see Table 2).
As well as providing protection against fire, correctly installed data rooms and data containers offer protection against impacts caused by failure during fire of components and objects external to the data room or data container.
Data rooms and data containers having the same design, protection and construction features (type and thickness of construction and protective materials, rebate geometry, lockings, doors, etc.) will only be given the same protection classification as that of the test specimen if the tolerances are within the ranges specified in Table 1.
NOTE   This European Standard does not regulate the use of data rooms in the meaning of the building laws of the respective countries. In the construction of data rooms, the respective national requirements should be considered.

Wertbehältnisse - Klassifizierung und Methoden zur Prüfung des Widerstandes gegen Brand - Teil 2: Datensicherungsräume und Datensicherungscontainer

Dieser Teil der Europäischen Norm EN 1047 legt Anforderungen an Datensicherungsräume und Datensicherungscontainer
fest. Er umfasst eine Prüfmethode zur Ermittlung der Widerstandsfähigkeit von
Datensicherungsräumen und Datensicherungscontainern zum Schutz von temperatur- und feuchtigkeitsempfindlichen
Datenträgern (siehe 3.5) und Hardwaresystemen (siehe 3.6) vor Brandeinwirkung. Ferner wird
eine Prüfmethode zur Messung des Widerstandes gegen mechanische Beanspruchung (Stoßprüfung) auf
Datensicherungsräume Typ B und Datensicherungscontainer festgelegt.
Außerdem sind Anforderungen für die Probekörper, Technische Dokumentation der Probekörper,
Materialproben, Einbauten, Übereinstimmung von Probekörpern mit der Technischen Dokumentation und die
Vorbereitung der Typprüfung sowie die Prüfverfahren definiert.
Ferner wird ein Schema zur Klassifizierung von Datensicherungsräumen und Datensicherungscontainern
entsprechend ihrem Prüfergebnis gegeben (siehe Tabelle 2).
Neben dem Schutz vor Bränden bieten sachgemäß installierte Datensicherungsräume und Datensicherungscontainer
zusätzlich Schutz gegen Stöße aufgrund eines brandbedingten Versagens von Bauteilen und
Objekten, die sich außerhalb des Datensicherungsraumes oder Datensicherungscontainers befinden.
Datensicherungsräume und Datensicherungscontainer, die über dieselbe Konstruktion, denselben Schutz und
Aufbau (Art und Dicke der Konstruktions- und Schutzmaterialien, Anordnung der Falze, Verschlüsse, Türen
usw.) verfügen, können nur dann in die Güteklasse wie der Probekörper eingestuft werden, wenn die
Toleranzen nach Tabelle 1 eingehalten sind.
ANMERKUNG Diese Europäische Norm regelt nicht die Verwendung des Datensicherungsraumes im Sinne des
Baurechts der jeweiligen Länder. Bei der Errichtung von Datensicherungsräumen sollten die jeweiligen nationalen
Anforderungen zu berücksichtigt werden.

Unités de stockage en lieu sûr - Classification et méthodes d'essai de résistance au feu - Partie 2: Conteneurs et chambres réfractaires

La présente partie de la norme européenne EN 1047 spécifie les exigences relatives aux conteneurs et chambres réfractaires. Elle présente une méthode d'essai permettant de déterminer la capacité des chambres et conteneurs réfractaires à protéger des supports d’informations (voir 3.5) sensibles à la température et à l'humidité, ainsi que les systèmes matériels (voir 3.6), contre les effets d'un incendie. Une méthode d’essai est également proposée pour mesurer la résistance à une force mécanique (essai de résistance à l’impact) des chambres réfractaires de type B et des conteneurs réfractaires.
De plus, des exigences sont spécifiées pour les spécimens d’essai, la documentation technique devant accompagner les spécimens d’essai, les échantillons de matériels, les équipements matériels, la corrélation des spécimens d’essai avec la documentation technique, ainsi que la préparation des essais de type et les procédures d'essai.
Un plan est également présenté (voir Tableau 2) permettant une classification des chambres et conteneurs réfractaires à partir des résultats des essais.
Les chambres et les conteneurs réfractaires correctement installés assurent une protection contre les impacts dus à des incidents, au cours de l’incendie, de composants et d’objets externes.
Les chambres et conteneurs réfractaires ayant les mêmes caractéristiques de conception, de protection et de construction (types et épaisseurs des matériaux de construction et de protection, géométrie des feuillures, verrouillages, portes, etc.) appartiennent seulement à la même classification de protection que celle du spécimen d'essai si les tolérances se trouvent dans les fourchettes spécifiées dans le Tableau 1.
NOTE   La présente norme européenne ne réglemente pas l’utilisation des chambres réfractaires par le moyen de lois sur la construction, applicables dans les pays respectifs.

Varnostne shranjevalne enote - Klasifikacija in metode preskušanja odpornosti proti ognju - 2. del: Prostori in vsebniki za shranjevanje podatkov

General Information

Status
Withdrawn
Publication Date
25-Aug-2009
Withdrawal Date
12-Feb-2013
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
13-Feb-2013
Completion Date
13-Feb-2013

Relations

Buy Standard

Standard
EN 1047-2:2009
English language
34 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Varnostne shranjevalne enote - Klasifikacija in metode preskušanja odpornosti proti ognju - 2. del: Prostori in vsebniki za shranjevanje podatkovWertbehältnisse - Klassifizierung und Methoden zur Prüfung des Widerstandes gegen Brand - Teil 2: Datensicherungsräume und DatensicherungscontainerUnités de stockage en lieu sûr - Classification et méthodes d'essai de résistance au feu - Partie 2: Conteneurs et chambres réfractairesSecure storage units - Classification and methods of test for resistance to fire - Part 2: Data rooms and data container35.220.99Druge naprave za shranjevanje podatkovOther data storage devices13.310Varstvo pred kriminalomProtection against crime13.220.40Sposobnost vžiga in obnašanje materialov in proizvodov pri gorenjuIgnitability and burning behaviour of materials and productsICS:Ta slovenski standard je istoveten z:EN 1047-2:2009SIST EN 1047-2:2009en,fr01-november-2009SIST EN 1047-2:2009SLOVENSKI
STANDARDSIST EN 1047-2:20001DGRPHãþD



SIST EN 1047-2:2009



EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1047-2August 2009ICS 13.220.40; 13.310; 35.020Supersedes EN 1047-2:1999
English VersionSecure storage units - Classification and methods of test forresistance to fire - Part 2: Data rooms and data containerUnités de stockage en lieu sûr - Classification et méthodesd'essai de résistance au feu - Partie 2: Conteneurs etchambres réfractairesWertbehältnisse - Klassifizierung und Methoden zurPrüfung des Widerstandes gegen Brand - Teil 2:Datensicherungsräume und DatensicherungscontainerThis European Standard was approved by CEN on 23 July 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1047-2:2009: ESIST EN 1047-2:2009

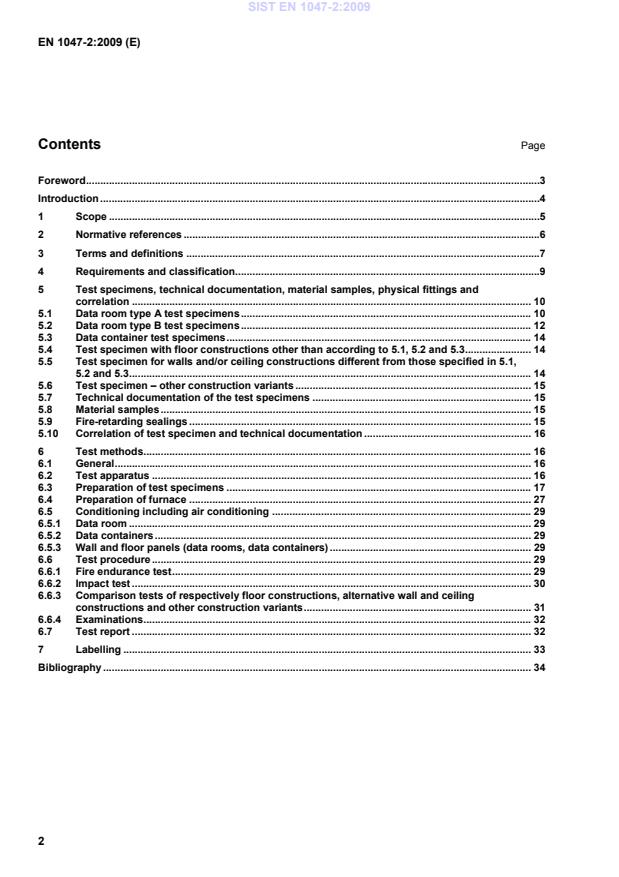

EN 1047-2:2009 (E) 2 Contents Page Foreword .3Introduction .41Scope .52Normative references .63Terms and definitions .74Requirements and classification.95Test specimens, technical documentation, material samples, physical fittings and correlation . 105.1Data room type A test specimens . 105.2Data room type B test specimens . 125.3Data container test specimens . 145.4Test specimen with floor constructions other than according to 5.1, 5.2 and 5.3 . 145.5Test specimen for walls and/or ceiling constructions different from those specified in 5.1, 5.2 and 5.3 . 145.6Test specimen – other construc
...
