prEN 3545-001

Aerospace series - Connectors, electrical, rectangular, with sealed and non-sealed rear, plastic housing, locking device, operating temperatures -55 °C to 175 °C - Part 001: Technical specification

This document specifies the technical requirements of rectangular connectors with sealed and non-sealed rear, plastic housing, locking device, for operating temperatures from -55 °C to 175 °C.

Luft- und Raumfahrt - Elektrische Rechtecksteckverbinder mit und ohne hintere Abdichtung, Plastikgehäuse, Verriegelungssystem, Betriebstemperaturen von -55 °C bis 175 °C - Teil 001: Technische Lieferbedingungen

Dieses Dokument legt die technischen Anforderungen an Rechtecksteckverbinder mit und ohne hintere Abdichtung, mit Plastikgehäuse und Verriegelung, für Betriebstemperaturen von −55 °C bis 175 °C fest.

Série aérospatiale - Connecteurs électriques, rectangulaires, étanches et non étanches à l'arrière, à boîtier en plastique, à verrouillage, températures d'utilisation -55 °C à 175 °C - Partie 001 : Spécification technique

This document specifies the technical requirements of rectangular connectors with sealed and non-sealed rear, plastic housing, locking device, for operating temperatures from -55 °C to 175 °C.

Aeronavtika - Konektorji, električni, pravokotni, s tesnilno kapo ali brez nje, plastično ohišje, zaporni mehanizem, delovna temperatura med –55 °C in 175 °C - 001. del: Tehnična specifikacija

General Information

• Status: Not Published
• Publication Date: 04-Oct-2026
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 2/S 3 - Elements of Connection (Connectors, Contacts, rear accessories, crimping tools
• Current Stage: 4060 - Closure of enquiry - Enquiry
• Start Date: 26-Jun-2025
• Completion Date: 26-Jun-2025
• Ref Project: oSIST prEN 3545-001:2025 - Aerospace series - Connectors, electrical, rectangular, with sealed and non-sealed rear, plastic housing, locking device, operating temperatures -55 °C to 175 °C - Part 001: Technical specification

Relations

• Revises: EN 3545-001:2008 - Aerospace series - Connectors, electrical, rectangular, with sealed and non-sealed rear, plastic housing, locking device, operating temperatures - 55 °C to 175 °C - Part 001: Technical specification
• Effective Date: 01-May-2024

Overview

The prEN 3545-001:2025 standard, titled Aerospace series - Connectors, electrical, rectangular, with sealed and non-sealed rear, plastic housing, locking device, operating temperatures -55 °C to 175 °C - Part 001: Technical specification, is a key technical document developed by CEN (European Committee for Standardization) under the ASD-STAN technical committee. This standard specifies the comprehensive technical requirements for rectangular aerospace electrical connectors, designed with both sealed and non-sealed rear options, plastic housings, and integrated locking devices. It ensures reliable operation in extreme temperatures ranging from -55 °C to 175 °C.

This document supersedes the previous EN 3545-001:2008 and incorporates significant technical updates, including new mechanical endurance tests and compatibility assessments for zinc-nickel components. prEN 3545-001:2025 provides a definitive reference for aerospace connector designers, manufacturers, and quality assurance professionals who require durable, high-performance connectors suitable for demanding aerospace environments.

Key Topics

• Connector Types: Defines rectangular connectors with options for sealed or non-sealed rear enclosures to provide flexibility depending on application requirements.
• Materials and Construction: Specifies the use of plastic housings combined with locking devices to enhance durability and secure connections.
• Operating Temperature Range: Covers a broad thermal range from -55 °C up to 175 °C, ensuring performance in harsh aerospace conditions.
• Contact Arrangements: Details various contact configurations (from arrangement 02 to 16), supporting diverse aerospace wiring needs.
• Design and Dimensions: Provides specifications on connector dimensions, mass, and structural features like polarizing and attachment mechanisms.
• Test Methods: Incorporates extensive test protocols based on EN 2591 series test methods including mechanical endurance, temperature cycling, electrical continuity, climatic resistance, and chemical exposure.
• Quality Assurance: Outlines initial qualification, acceptance testing, periodic checks, and quality control processes to maintain standards in manufacturing and performance.
• Marking and Identification: Details naming and marking conventions for traceability and compliance in aerospace applications.
• Packaging and Storage: Specifies conditions to ensure maintenance of connector integrity from production to installation.

Applications

The prEN 3545-001:2025 standard applies primarily to aerospace electrical systems requiring reliable, durable rectangular connectors. Typical applications include:

• Aircraft Wiring and Electrical Systems: Used in critical onboard electronics and electrical harnesses where secure, sealed electrical connections are vital.
• Spacecraft and Satellite Systems: Suitable for harsh space environments that demand extreme temperature resilience and high mechanical endurance.
• Defense Aerospace Applications: Reliable connectors for military aircraft and systems that must withstand vibration, temperature extremes, and environmental stresses.
• Industrial and Avionics Equipment: Applicable for various aerospace-related industrial systems requiring ruggedized electrical connectors.

By adhering to this standard, manufacturers and users are assured of compatibility, performance, and safety in aerospace electrical integration.

Related Standards

prEN 3545-001:2025 references and aligns with numerous aerospace connection and test standards to ensure thorough validation and compatibility:

• EN 2591 Series - Extensive test methods covering visual inspection, contact resistance, electrical and mechanical endurance, climatic and environmental resistance.
• EN 2266-002 – Aerospace electrical cables operating under similar environmental temperature ranges.
• EN 3545 Series – Former versions and related parts of rectangular connector specifications.
• Related aerospace standards for plug-and-socket devices and electrical equipment within the 49.060 ICS classification.

These standards collectively support stringent requirements for aerospace electrical connectors, contributing to system reliability and safety.

---

By implementing prEN 3545-001:2025, aerospace industry stakeholders can ensure high-quality, durable connector solutions that meet current demands for environmental resistance, mechanical reliability, and operational integrity under extreme temperature conditions. This results in enhanced safety, performance, and interoperability across aerospace electrical systems.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2025
Aeronavtika - Konektorji, električni, pravokotni, s tesnilno kapo ali brez nje,
plastično ohišje, zaporni mehanizem, delovna temperatura med –55 °C in 175 °C -
001. del: Tehnična specifikacija
Aerospace series - Connectors, electrical, rectangular, with sealed and non-sealed rear,
plastic housing, locking device, operating temperatures -55 °C to 175 °C - Part 001:
Technical specification
Luft- und Raumfahrt - Elektrische Rechtecksteckverbinder mit und ohne hintere
Abdichtung, Plastikgehäuse, Verriegelungssystem, Betriebstemperaturen von -55 °C bis
175 °C - Teil 001: Technische Lieferbedingungen
Série aérospatiale - Connecteurs électriques, rectangulaires, étanches et non étanches
à l'arrière, à boîtier en plastique, à verrouillage, températures d'utilisation -55 °C à 175
°C - Partie 001 : Spécification technique
Ta slovenski standard je istoveten z: prEN 3545-001
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2025
ICS 49.060 Will supersede EN 3545-001:2008
English Version
Aerospace series - Connectors, electrical, rectangular, with
sealed and non-sealed rear, plastic housing, locking device,
operating temperatures -55 °C to 175 °C - Part 001:
Technical specification
Série aérospatiale - Connecteurs électriques, Luft- und Raumfahrt - Elektrische
rectangulaires, étanches et non étanches à l'arrière, à Rechtecksteckverbinder mit und ohne hintere
boîtier en plastique, à verrouillage, températures Abdichtung, Plastikgehäuse, Verriegelungssystem,
d'utilisation -55 °C à 175 °C - Partie 001 : Spécification Betriebstemperaturen von -55 °C bis 175 °C - Teil 001:
technique Technische Lieferbedingungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 3545-001:2025 E
worldwide for CEN national Members.

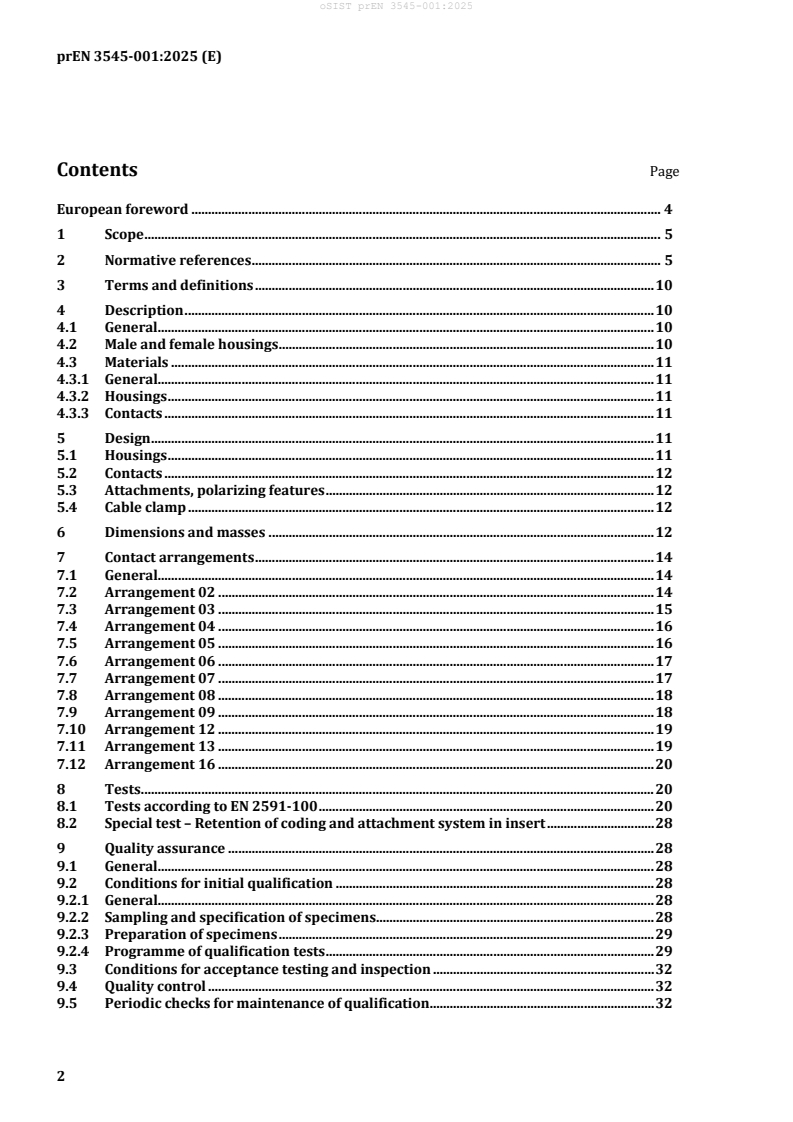

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 10
4 Description . 10
4.1 General. 10
4.2 Male and female housings . 10
4.3 Materials . 11
4.3.1 General. 11
4.3.2 Housings . 11
4.3.3 Contacts . 11
5 Design . 11
5.1 Housings . 11
5.2 Contacts . 12
5.3 Attachments, polarizing features . 12
5.4 Cable clamp . 12
6 Dimensions and masses . 12
7 Contact arrangements . 14
7.1 General. 14
7.2 Arrangement 02 . 14
7.3 Arrangement 03 . 15
7.4 Arrangement 04 . 16
7.5 Arrangement 05 . 16
7.6 Arrangement 06 . 17
7.7 Arrangement 07 . 17
7.8 Arrangement 08 . 18
7.9 Arrangement 09 . 18
7.10 Arrangement 12 . 19
7.11 Arrangement 13 . 19
7.12 Arrangement 16 . 20
8 Tests . 20
8.1 Tests according to EN 2591-100 . 20
8.2 Special test – Retention of coding and attachment system in insert . 28
9 Quality assurance . 28
9.1 General. 28
9.2 Conditions for initial qualification . 28
9.2.1 General. 28
9.2.2 Sampling and specification of specimens. 28
9.2.3 Preparation of specimens . 29
9.2.4 Programme of qualification tests . 29
9.3 Conditions for acceptance testing and inspection . 32
9.4 Quality control . 32
9.5 Periodic checks for maintenance of qualification . 32
10 Designation and marking . 34
10.1 Designation . 34
10.2 Marking . 34
11 Delivery conditions . 34
12 Packaging . 34
13 Storage . 34
Bibliography . 35

European foreword
This document (prEN 3545-001:2025) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 3545-001:2008.
EN 3545-001:2008:
— Test 2591-406 Mechanical endurance details added;
— Qualification tests (Table 6): Group 7 compatibility test for zinc-nickel components added.
1 Scope
This document specifies the technical requirements of rectangular connectors with sealed and non-
sealed rear, plastic housing, locking device, for operating temperatures from –55 °C to 175 °C.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2266-002, Aerospace series — Cables, electrical, for general purpose — Operating temperatures
between - 55 °C and 200 °C — Part 002: General
EN 2591-100, Aerospace series — Elements of electrical and optical connection — Test methods — Part
100: General
EN 2591-101, Aerospace series — Elements of electrical and optical connection — Test methods — Part
101: Visual examination
EN 2591-102, Aerospace series — Elements of electrical and optical connection — Test methods — Part
102: Examination of dimensions and mass
EN 2591-201, Aerospace series — Elements of electrical and optical connection — Test methods — Part
201: Contact resistance — Low level
EN 2591-202, Aerospace series — Elements of electrical and optical connection — Test methods — Part
202: Contact resistance at rated current
EN 2591-203, Aerospace series — Elements of electrical and optical connection — Test methods — Part
203: Electrical continuity at microvolt level
EN 2591-204, Aerospace series — Elements of electrical and optical connection — Test methods — Part
204: Discontinuity of contacts in the microsecond range
EN 2591-205, Aerospace series — Elements of electrical and optical connection — Test methods — Part
205: Housing (shell) electrical continuity
EN 2591-206, Aerospace series — Elements of electrical and optical connection — Test methods — Part
206: Measurement of insulation resistance
EN 2591-207, Aerospace series — Elements of electrical and optical connection — Test methods — Part
207: Voltage proof test
EN 2591-208, Aerospace series — Elements of electrical and optical connection — Test methods — Part
208: Temperature rise due to rated current
EN 2591-209, Aerospace series — Elements of electrical and optical connection — Test methods — Part
209: Current temperature derating
EN 2591-210, Aerospace series — Elements of electrical and optical connection — Test methods — Part
210: Electrical overload
EN 2591-213, Aeropsace series — Elements of electrical and optical connection — Test methods — Part
213: Shielding effectiveness from 100 MHz to 1 GHz
EN 2591-216, Aerospace series — Elements of electrical and optical connection — Test methods — Part
216: Engagement depth of contacts
EN 2591-301, Aerospace series — Elements of electrical and optical connection — Test methods — Part
301: Endurance at temperature
EN 2591-302, Aerospace series — Elements of electrical and optical connection — Test methods — Part
302: Climatic sequence
EN 2591-304, Aerospace series — Elements of electrical and optical connection — Test methods — Part
304: Damp heat steady state
EN 2591-305, Aerospace series — Elements of electrical and optical connection — Test methods — Part
305: Rapid change of temperature
EN 2591-306, Aerospace series — Elements of electrical and optical connection — Test methods — Part
306: Mould growth
EN 2591-307, Aerospace series — Elements of electrical and optical connection — Test methods — Part
307: Salt mist
EN 2591-308, Aerospace series — Elements of electrical and optical connection — Test methods — Part
308: Sand and dust
EN 2591-309, Aerospace series — Elements of electrical and optical connection — Test methods — Part
309: Dry heat
EN 2591-310, Aerospace series — Elements of electrical and optical connection — Test methods — Part
310: Cold
EN 2591-311, Aerospace series — Elements of electrical and optical connection — Test methods — Part
311: Low air pressure
EN 2591-312, Aerospace series — Elements of electrical and optical connection — Test methods — Part
312: Air leakage
EN 2591-313, Aerospace series — Elements of electrical and optical connection — Test methods — Part
313: Artificial rain
EN 2591-314, Aerospace series — Elements of electrical and optical connection — Test methods — Part
314: Immersion at low air pressure
EN 2591-315, Aerospace series — Elements of electrical and optical connection — Test methods — Part
315: Fluid resistance
EN 2591-316, Aerospace series — Elements of electrical and optical connection — Test methods — Part
316: Ozone resistance
EN 2591-317, Aerospace series — Elements of electrical and optical connection — Test methods — Part
317: Flammability
EN 2591-318, Aerospace series — Elements of electrical and optical connection — Test methods — Part
318: Fire-resistance
EN 2591-319, Aerospace series — Elements of electrical and optical connection — Test methods — Part
319: Gastightness of solderless wrapped connections
EN 2591-320, Aerospace series — Elements of electrical and optical connection — Test methods — Part
320: Simulated solar radiation at ground level
EN 2591-321, Aerospace series — Elements of electrical and optical connection — Test methods — Part
321: Damp heat, cyclic test
EN 2591-322, Aerospace series — Elements of electrical and optical connection — Test methods — Part
322: Hermeticity
EN 2591-323, Aerospace series — Elements of electrical and optical connection — Test methods — Part
323: Thermal shock
EN 2591-324, Aerospace series — Elements of electrical and optical connection — Test methods — Part
324: Interfacial sealing
EN 2591-401, Aerospace series — Elements of electrical and optical connection — Test methods — Part
401: Acceleration, steady state
EN 2591-402, Aerospace series — Elements of electrical and optical connection — Test methods — Part
402: Shock
EN 2591-403, Aerospace series — Elements of electrical and optical connection — Test methods — Part
403: Sinusoidal and random vibration
EN 2591-404, Aerospace series — Elements of electrical and optical connection — Test methods — Part
404: Transverse load
EN 2591-405, Aerospace series — Elements of electrical and optical connection — Test methods — Part
405: Axial load
EN 2591-406, Aerospace series — Elements of electrical and optical connection — Test methods — Part
406: Mechanical endurance
EN 2591-407, Aerospace series — Elements of electrical and optical connection — Test methods — Part
407: Durability of contact retention system and seals
EN 2591-408, Aerospace series — Elements of electrical and optical connection — Test methods — Part
408: Mating and unmating forces
EN 2591-409, Aerospace series — Elements of electrical and optical connection — Test methods — Part
409: Contact retention in insert
EN 2591-410, Aerospace series — Elements of electrical and optical connection — Test methods — Part
410: Insert retention in housing (axial)
EN 2591-411, Aerospace series — Elements of electrical and optical connection — Test methods — Part
411: Insert retention in housing (torsional)
EN 2591-412, Aerospace series — Elements of electrical and optical connection — Test methods — Part
412: Contact insertion and extraction forces
EN 2591-413, Aerospace series — Elements of electrical and optical connection — Test methods — Part
413: Holding force of grounding spring system
EN 2591-414, Aerospace series — Elements of electrical and optical connection — Test methods — Part
414: Unmating of lanyard release connectors
EN 2591-415, Aerospace series — Elements of electrical and optical connection — Test methods — Part
415: Test probe damage (female contacts)
EN 2591-416, Aerospace series — Elements of electrical and optical connection — Test methods — Part
416: Contact bending strength
EN 2591-417, Aerospace series — Elements of electrical and optical connection — Test methods — Part
417: Tensile strength (crimped connection)
EN 2591-418, Aerospace series — Elements of electrical and optical connection — Test methods — Part
418: Gauge insertion/extraction forces (female contacts)
EN 2591-419, Aerospace series — Elements of electrical and optical connection — Test methods — Part
419: Stability of male contacts in insert
EN 2591-420, Aerospace series — Elements of electrical and optical connection — Test methods — Part
420: Mechanical strength of rear accessories
EN 2591-421, Aerospace series — Elements of electrical and optical connection — Test methods — Part
421: Free fall
EN 2591-424, Aerospace series — Elements of electrical and optical connection — Test methods — Part
424: Stripping force, solderless wrapped connections
EN 2591-425, Aerospace series — Elements of electrical and optical connection — Test methods — Part
425: Unwrapping capability, solderless wrapped connections
EN 2591-426, Aerospace series — Elements of electrical and optical connection — Test methods — Part
426: Contact retention system effectiveness
EN 2591-427, Aerospace series — Elements of electrical and optical connection — Test methods — Part
427: Robustness of protective cover attachment
EN 2591-502, Aerospace series — Elements of electrical and optical connection — Test methods — Part
502: Restricted entry
EN 2591-503, Aerospace series — Elements of electrical and optical connection — Test methods — Part
503: Contact deformation after crimping
EN 2591-505, Aerospace series — Elements of electrical and optical connection — Test methods — Part
505: Contact protection effectiveness (scoop-proof)
EN 2591-506, Aerospace series — Elements of electrical and optical connection — Test methods — Part
506: Use of tools
EN 2591-513, Aerospace series — Elements of electrical and optical connection — Test methods — Part
513: Magnetic permeability
EN 3155-001, Aerospace series — Electrical contacts used in elements of connection — Part 001:
Technical specification
EN 3155-003, Aerospace series — Electrical contacts used in elements of connection — Part 003: Contacts,
electrical, female, type A, crimp, class S — Product standard
EN 3155-008, Aerospace series — Electrical contacts used in elements of connection — Part 008: Contacts,
electrical, male, type A, crimp, class S — Product standard
EN 3155-070, Aerospace series — Electrical contacts used in elements of connection — Part 070: Contacts,
electrical, male, type A, crimp, class S — Product standard
EN 3155-071, Aerospace series — Electrical contacts used in elements of connection — Part 071: Contacts,
electrical, female, type A, crimp, class S — Product standard
EN 3197, Aerospace series — Design and installation of aircraft electrical and optical interconnection
systems
EN 3545-002, Aerospace series — Connectors, electrical, rectangular, with sealed and non-sealed rear,
plastic housing, locking device, operating temperatures - 55 °C to 175 °C — Part 002: Specification of
performance and contact arrangements
EN 4529-002, Aerospace series — Elements of electrical and optical connection — Sealing plugs — Part
002: Index of product standards
EN 9133, Aerospace series — Quality Management Systems — Qualification Procedure for Aerospace
Standard Products
AS 1241C, Fire resistant phosphate ester hydraulic fluid for aircraft
SAE AMS 1424G, Deicing/anti-icing fluid, aircraft, SAE type I
MIL-PRF-7870C, Lubricating oil, general purpose, low temperature
MIL-PRF-23699F, Lubricating oil, aircraft turbine engine, synthetic base — NATO code number O-156
MIL-PRF-87937D, Cleaning compounds, aerospace equipment
FED-STD-H28A, Screw-thread standards for federal services

Published as ASD-STAN prEN at the date of publication of this document, available at: https://www.asd-stan.org/.
Published by Society of Automotive Engineers (SAE), available at: https://www.sae.org/.
Published by Department of Defense (DOD), available at: https://assist.dla.mil/online/start/.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 2591-100 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
4 Description
4.1 General
A pair of connectors comprises:
— a male housing fitted with female crimp contacts (code F);
— a female housing fitted with male crimp contacts and having an interfacial seal which provides sealing
at each contact when the connectors are mated (code M).
These housings are fitted with polarizing systems permitting 36 combinations.
They are able to take a cable clamp and comprise a locking device at each end.
There are two types of connectors:
— sealed, grommet provided for sealing of cables at the rear (code E);
— non-sealed, grommet provided for non abrasion of cables at the rear (code D).
4.2 Male and female housings
There is one size of housing and twelve contact arrangements as shown in Table 1.
According to also Figures 2 to Figure 13.
Table 1 — Contact arrangement and housing size
Number of contacts
Arrangement
number
a b
Size 22 Size 22 Size 20 Size 16 Size 12 Size 10 Size 8
01 0 0 50 0 0 0 0
02 78 0 0 0 0 0 0
03 39 0 0 10 0 0 0
04 0 0 0 21 0 0 0
05 0 0 0 0 13 0 0
06 0 0 0 0 0 7 0
07 0 0 0 0 0 0 5
08 0 0 18 0 0 0 3
09 0 0 25 12 0 0 0
12 78 78 0 0 0 0 0
13 39 39 0 10 0 0 0
16 0 0 0 0 0 7 0
a
Contacts size 22 according to EN 3155-003 and EN 3155-008.
b
Contacts size 22 according to EN 3155-003 and EN 3155-008 or EN 3155-070 and EN 3155-071.
4.3 Materials
4.3.1 General
The materials which are not specified or are not specially described, shall be as light as possible for the
required application.
Materials are chosen according to safety criteria as specified by the authority of certification.
When dissimilar metals are in close contact, adequate protection against corrosion shall be provided such
that the electromotive force of the galvanic couple shall not exceed 0,25 V.
4.3.2 Housings
These are made of rigid material with high dielectric qualities which will not deteriorate under normal
conditions of operation and ageing.
4.3.3 Contacts
Contacts shall comply with the requirements of EN 3155-001.
5 Design
5.1 Housings
In the sealed and non-sealed types, the grommet shall be attached to the housing.
Identification of the various positions used for coding by the position indicator which appears on the
attachments is given in EN 3545-002.
Identificati
...
