EN 14655:2005+A1:2010

Food processing machinery - Baguette slicers - Safety and hygiene requirements

This European Standard specifies safety and hygiene requirements for the design and manufacture of baguette slicers used in catering by adults, taking account of installation, cleaning, operating, maintenance and decommissioning.
The intended use of these machines is to cut baguette and similar types of long bread sticks, into slices.
This European Standard covers requirements for the safe operation of the machine including: loading, cutting, unloading, cleaning, crumb removal and maintenance.
These machines have a crescent blade fixed to a shaft, with a rotating movement and vertical manual loading.
These machines are intended to be installed on a table, a specific support or an integral stand.
The following machines are excluded from the scope of this European Standard:
-   frame cutter machines with multiple blades );
-   machines with rotary crescent (sickle) or circular blade fixed to a shaft with oscillating movement and horizontal manual loading1);
-   experimental and testing machines under development by the manufacturer;
-   domestic appliances.
   This European Standard deals with all significant hazards, hazardous situations and events relevant to baguette slicers, when they are used as intended and under the conditions foreseen by the manufacturer (see Clause 4).
   Noise is not considered to be a significant hazard. A noise test code is given in Annex A. This European Standard does not deal with noise reduction.
This European Standard is not applicable to baguette slicers which are manufactured before the date of publication of this European Standard by CEN.

Nahrungsmittelmaschinen - Baguette-Schneidemaschinen - Sicherheits- und Hygieneanforderungen

Diese Europäische Norm spezifiziert die Sicherheits- und Hygieneanforderungen für die Konstruktion und Herstellung von Baguetteschneidemaschinen, die in Großküchen eingesetzt und von Erwachsenen genutzt werden, und berücksichtigt dabei die Installation, die Reinigung, den Betrieb, die Wartung und das Entleeren.
Die bestimmungsgemäße Verwendung dieser Maschinen ist das Schneiden von Baguette und ähnlichen Arten von langen Brotstangen in Schreiben.
Diese Europäische Norm enthält sicherheitstechnische Anforderungen an die Benutzung der Maschine beim Beschicken, Schneiden, Entnehmen, Reinigungsprozess, bei der Krumenentsorgung und der Wartung.
Diese Maschinen, bei denen die Baguette von oben eingeführt werden, haben ein sichelförmiges Messerblatt, das an einer Antriebswelle befestigt ist, die eine rotierende Bewegung ausführt.
Diese Maschinen sind dafür vorgesehen, auf einem Tisch, einem extra Untergestell oder einem angebauten Unterbau aufgestellt zu werden.
Folgende Maschinen fallen nicht in den Geltungsbereich dieser Europäischen Norm:
-   Gattermaschinen mit mehreren Schneiden 1);
-   Maschinen mit an einer Welle befestigtem sichelförmigem Messer oder Rundmesser mit oszillierender Bewegung und horizontaler manueller Brotzufuhr1);
-   Versuchs- und Testmaschinen, die sich beim Hersteller in der Entwicklung befinden;
-   Haushaltsgeräte.
Diese Europäische Norm berücksichtigt alle signifikanten Gefährdungen, Gefahrensituationen und Ereignisse von Baguetteschneidemaschinen, die relevant für den bestimmungsgemäßen Gebrauch unter den vom Hersteller vorhersehbaren Bedingungen sind (siehe Abschnitt 4).
Lärm wird nicht als signifikante Gefährdung angesehen. Ein Geräuschtestverfahren wird in Anhang A behandelt. Diese Europäische Norm befasst sich nicht mit der Reduzierung von Lärm.
Diese Europäische Norm ist nicht für Baguetteschneidemaschinen anwendbar, die vor dem Publikations-datum dieser Europäischen Norm durch CEN hergestellt wurden.

Machines pour les produits alimentaires - Machines à couper les baguettes - Prescriptions relatives à la sécurité et à l'hygiène

La présente Norme européenne spécifie les prescriptions de sécurité et d'hygiène pour la conception et la fabrication
des machines à couper les baguettes utilisées dans la restauration par des adultes, en tenant compte de l'installation,
du nettoyage, du fonctionnement, de la maintenance et du démontage.
Ces machines ont pour fonction de couper en tranches les baguettes et autres types de pains longs.
La présente Norme européenne couvre les prescriptions relatives à un fonctionnement sûr de la machine, incluant :
le chargement, la coupe, le déchargement, le nettoyage, l’enlevage des miettes et la maintenance.
Ces machines possèdent une lame courbe effectuant un mouvement rotatif autour d’un axe, le chargement
s’effectuant verticalement et manuellement.
Ces machines sont destinées à être installées sur une table, sur un support spécifique ou posséder un support
intégral.
Les machines suivantes sont exclues du domaine d’application de la présente Norme européenne :
- les machines à couper multi-lames 1) ;
- les machines à lame rotative courbe (en forme de faucille) ou circulaire effectuant un mouvement d’oscillation
par rapport à un axe, le chargement s’effectuant horizontalement et manuellement 1) ;
- les machines d’expérimentation ou d’essai en cours d’élaboration chez le fabricant ;
- les appareils et machines à usage domestique.
La présente Norme européenne traite de l'ensemble des phénomènes dangereux significatifs, des situations et
évènements dangereux associés aux machines à couper les baguettes, lorsque celles-ci sont utilisées dans le cadre
de l'utilisation normale et dans les conditions prévues par le fabricant (voir Article 4).
Le bruit n’est pas considéré comme un phénomène dangereux significatif. Un code d’essai acoustique est fourni
en Annexe A. La présente Norme européenne ne traite pas de la réduction des émissions sonores.

Stroji za predelavo hrane - Rezalniki francoskih štruc (baget) - Varnostne in higienske zahteve (vključno z dopolnilom A1)

Ta evropski standard določa varnostne in higienske zahteve za načrtovanje in izdelavo rezalnikov francoskih štruc, ki ji uporabljajo odrasle osebe v gostinstvu, ob upoštevanju postavitve, čiščenja, delovanja, vzdrževanja in izločitve iz uporabe. Namenjena uporaba za te naprave je rezanje francoskih štruc in podobnih vrst daljših kruhov v obliki palic, v rezine. Ta evropski standard zajema zahteve za varno delovanje naprave vključno s: polnjenjem, rezanjem, praznjenjem, čiščenjem, odstranjevanjem drobtin in vzdrževanjem. Te naprave imajo rezilo v obliki polmeseca, pritrjeno na držalo, z rotirajočim gibanjem in navpičnim ročnim polnjenjem. Te naprave so namenjene za vgradnjo na mizo, posebno podporo ali stojalo. Iz obsega uporabe tega evropskega standarda so izvzete naslednje naprave: naprave za rezanje v okvirju z več rezili1); naprave z rotirajočimi rezili v obliki polmeseca ali krožnimi rezili, ki so pritrjena na držalo z nihajočim gibanjem in vodoravnim ročnim polnjenjem; poskusne in preskusne naprave ki jih razvija proizvajalec; gospodinjski aparati. Ta evropski standard obravnava vse velike nevarnosti, nevarne situacije in primere, ki se nanašajo na rezalnike francoskih štruc, kadar se uporabljajo v skladu z namembnostjo in pod pogoji, kot jih je predvidel proizvajalec (glej Klavzulo 4). Hrup ne šteje kot velika nevarnost. Koda preskusa hrupa je podana v Dodatku A. Ta evropski standard se ne ukvarja z zmanjšanjem hrupa. Ta evropski standard ne velja za rezalnike francoskih štruc, ki so proizvedeni pred datumom, ko je CEN objavil ta evropski standard.

General Information

• Status: Published
• Publication Date: 16-Mar-2010
• Withdrawal Date: 29-Sep-2010
• ICS: 67.260 - Plants and equipment for the food industry
• Technical Committee: CEN/TC 153 - Food processing machinery - Safety and hygiene specifications
• Drafting Committee: CEN/TC 153/WG 1 - Bakery equipment
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Dec-2017
• Completion Date: 02-Dec-2017
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 98/37/EC - Machinery
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: SIST EN 14655:2005+A1:2010 - Food processing machinery - Baguette slicers - Safety and hygiene requirements

Relations

• Merged From: EN 14655:2005 - Food processing machinery - Baguette slicers - Safety and hygiene requirements
• Effective Date: 18-Jan-2023

Overview

EN 14655:2005+A1:2010 is a CEN European Standard for food processing machinery that specifies safety and hygiene requirements for baguette slicers used in catering by adults. It covers the design and manufacture of machines whose intended use is to cut baguettes and similar long bread sticks into slices, taking into account installation, cleaning, operation, maintenance and decommissioning. The standard addresses all significant hazards when machines are used as intended and foreseen by the manufacturer.

Key topics and requirements

• Scope and exclusions
  • Applies to crescent-blade baguette slicers with a rotating shaft and vertical manual loading, intended for table or stand installation.
  • Excludes frame cutter machines with multiple blades, machines with oscillating or horizontally loaded blades, domestic appliances, experimental/testing prototypes and machines produced before the standard’s publication.
• Hazard identification
  • Lists mechanical, electrical, hygiene and ergonomic hazards relevant to loading, cutting, unloading, cleaning, crumb removal and maintenance.
• Safety measures
  • Requirements for guards, interlocks, safe distances and danger-zone definition (figures and safety dimensions are provided).
  • Electrical safety and equipment requirements consistent with machine safety best practice.
• Hygiene and cleanability
  • Principles of hygienic design, materials of construction and cleanability guidance are set out (Annex B provides normative design principles to ensure cleanability).
• Verification and testing
  • Procedures for verification of safety and hygiene measures and for information supplied with the machine (instruction handbook and marking).
• Noise
  • Noise is not treated as a significant hazard, but a noise test code is included in Annex A (normative) for emission measurement and declaration.
• Documentation
  • Requirements for instruction manuals, safety marking and information for use to support safe operation and maintenance.

Practical applications - who uses this standard

• Manufacturers and designers of baguette slicers and food processing machinery - to design compliant, safe and hygienic machines.
• Safety and compliance engineers - for risk assessment, CE marking support and verification against Machinery Directive requirements.
• Foodservice operators, procurement and maintenance teams - to specify, install, clean and maintain equipment according to best practice.
• Test laboratories and notified bodies - for conformity testing and verification.

Related standards

EN 14655 references and aligns with several machine safety and hygiene standards, for example:

• EN 1672-2 (hygiene requirements for food processing machinery)
• EN 60204-1 (electrical equipment of machines)
• EN 953 (guards) and EN 1088 (interlocks)
• EN ISO 11201 / EN ISO 3744 (acoustics/noise measurement)

Using EN 14655 helps ensure baguette slicers meet European safety and hygiene expectations, reduce operational risks and support regulatory compliance in the foodservice sector.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Nahrungsmittelmaschinen - Baguette-Schneidemaschinen - Sicherheits- und HygieneanforderungenMachines pour les produits alimentaires - Machines à couper les baguettes - Prescriptions relatives à la sécurité et à l'hygièneFood processing machinery - Baguette slicers - Safety and hygiene requirements67.260Tovarne in oprema za živilsko industrijoPlants and equipment for the food industryICS:Ta slovenski standard je istoveten z:EN 14655:2005+A1:2010SIST EN 14655:2005+A1:2010en,fr01-junij-2010SIST EN 14655:2005+A1:2010SLOVENSKI
STANDARDSIST EN 14655:20051DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14655:2005+A1
March 2010 ICS 67.260 Supersedes EN 14655:2005English Version
Food processing machinery - Baguette slicers - Safety and hygiene requirements
Machines pour les produits alimentaires - Machines à couper les baguettes - Prescriptions relatives à la sécurité et à l'hygiène
Nahrungsmittelmaschinen - Baguette-Schneidemaschinen -Sicherheits- und Hygieneanforderungen This European Standard was approved by CEN on 19 May 2005 and includes Amendment 1 approved by CEN on 7 February 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14655:2005+A1:2010: ESIST EN 14655:2005+A1:2010

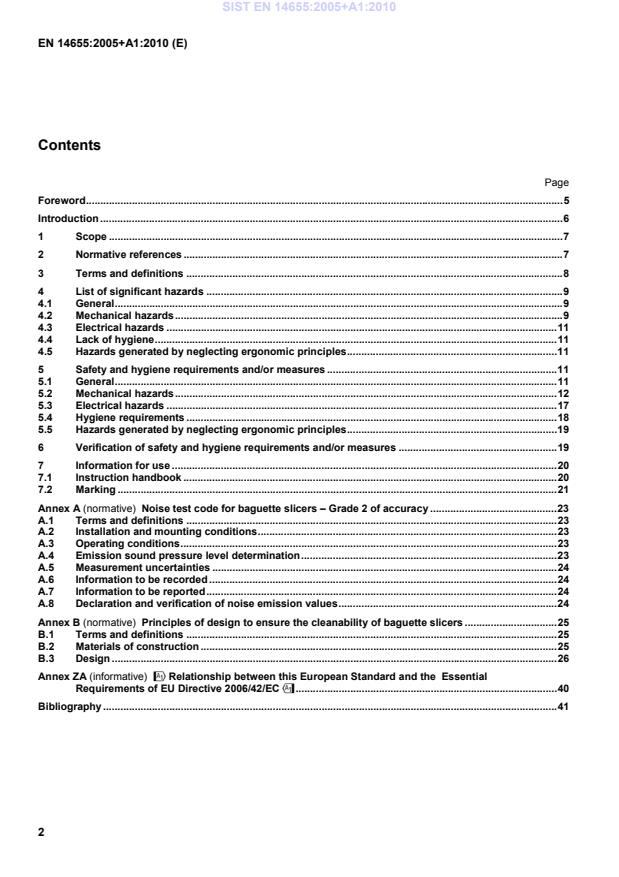

Noise test code for baguette slicers – Grade 2 of accuracy . 23A.1Terms and definitions . 23A.2Installation and mounting conditions . 23A.3Operating conditions . 23A.4Emission sound pressure level determination . 23A.5Measurement uncertainties . 24A.6Information to be recorded . 24A.7Information to be reported . 24A.8Declaration and verification of noise emission values . 24Annex B (normative)
Principles of design to ensure the cleanability of baguette slicers . 25B.1Terms and definitions . 25B.2Materials of construction . 25B.3Design . 26Annex ZA (informative)
!Relationship between this European Standard and the
Essential Requirements of EU Directive 2006/42/EC" . 40Bibliography . 41 SIST EN 14655:2005+A1:2010

Figures Figure 1 — Example of baguette slicer . 9Figure 2 — Danger zones of a baguette slicer . 11Figure 3 — Dimension of the cross-section of the chute opening . 12Figure 4 — Safety dimensions. 13Figure 5 — Example of warning sign . 13Figure 6 — Example of machine with hinged infeed chute not in working position . 13Figure 7 — Discharge area. 14Figure 8 — Example of a baguette slicer
with a light barrier . 14Figure 10 — Example of removal of the crumb tray . 16!Figure 11 — Safety signs" . 17Figure 12 — Hygiene areas . 19Figure B.1 . 27Figure B.2 . 27Figure B.3 . 28Figure B.4 . 29Figure B.5 . 29Figure B.6 . 30Figure B.7 . 30Figure B.8 . 31Figure B.9 . 31Figure B.10 . 31Figure B.11 . 32Figure B.12 . 32Figure B.13 . 33Figure B.14 . 33Figure B.15 . 34Figure B.16 . 35Figure B.17 . 36SIST EN 14655:2005+A1:2010

1 Scope This European Standard specifies safety and hygiene requirements for the design and manufacture of baguette slicers used in catering by adults, taking account of installation, cleaning, operating, maintenance and decommissioning. The intended use of these machines is to cut baguette and similar types of long bread sticks, into slices. This European Standard covers requirements for the safe operation of the machine including: loading, cutting, unloading, cleaning, crumb removal and maintenance. These machines have a crescent blade fixed to a shaft, with a rotating movement and vertical manual loading. These machines are intended to be installed on a table, a specific support or an integral stand. The following machines are excluded from the scope of this European Standard:  frame cutter machines with multiple blades1);  machines with rotary crescent (sickle) or circular blade fixed to a shaft with oscillating movement and horizontal manual loading1);  experimental and testing machines under development by the manufacturer;  domestic appliances. This European Standard deals with all significant hazards, hazardous situations and events relevant to baguette slicers, when they are used as intended and under the conditions foreseen by the manufacturer (see Clause 4). Noise is not considered to be a significant hazard. A noise test code is given in Annex A. This European Standard does not deal with noise reduction. This European Standard is not applicable to baguette slicers which are manufactured before the date of publication of this European Standard by CEN. 2 Normative references The following referenced documents are indispensable for the application of this European Standard. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. !EN 614-1:2006, Safety of machinery — Ergonomic design principles — Part 1: Terminology and general principles EN 953, Safety of machinery — Guards — General requirements for design and construction of fixed and movable guards EN 1088:1995, Safety of machinery — Interlocking devices associated with guards — Principles for design and selection EN 1672-2:2005, Food processing machinery — Basic concepts — Part 2: Hygiene requirements
1) See prEN 13954. SIST EN 14655:2005+A1:2010

6 drive mechanisms 7 electrical controls 8 crumb tray 9 ramp 10 cover of the discharge area Figure 1 — Example of baguette slicer 4 List of significant hazards 4.1 General This clause contains all the significant hazards, hazardous situations and events, as far as they are dealt with in this European Standard, identified by a risk assessment as significant for baguette slicers and which require action to eliminate or reduce the risk. Before using this European Standard, it is important to carry out a risk assessment of the baguette slicer to check that its significant hazards are identified in this clause. 4.2 Mechanical hazards The significant mechanical hazards are:  cutting hazard;  severing hazard;  drawing in hazard; SIST EN 14655:2005+A1:2010

Hazards of cutting or severing. Zone 2: Access to cutting side of blade and other moving parts of the machine through discharge area and crumb tray.
Hazards of cutting or severing, drawing in and shearing. Zone 3: Access to all moving parts (e.g. drive mechanisms) through other sides of the machine.
Hazards of shearing, drawing in. SIST EN 14655:2005+A1:2010

zone 1 2
zone 2 3
zone 3 Figure 2 — Danger zones of a baguette slicer
4.3 Electrical hazards Hazard of electric shock from direct or indirect contact with live components. Hazard of external influences on electrical equipment (e.g. cleaning and dust generated by slicing the bread). 4.4 Lack of hygiene Lack of hygiene creates hazards to human health and unacceptable alteration of foodstuff e.g. contamination by microbial growth or foreign materials. 4.5 Hazards generated by neglecting ergonomic principles Risk of injury or chronic damage to the body resulting from harmful body postures during operation, cleaning and maintenance. 5 Safety and hygiene requirements and/or measures 5.1 General Machinery shall comply with the safety requirements and/or measures of this clause. In addition, the machine shall be designed according to the principles of EN ISO 12100 for hazards relevant but not significant which are not dealt with by this European Standard. SIST EN 14655:2005+A1:2010

Figure 3 — Dimension of the cross-section of the chute opening 5.2.1.1.2 Safeguarding by distance If the distance between the edge of the infeed chute and the blade is < 850 mm, then the following requirements apply: SIST EN 14655:2005+A1:2010

Figure 4 — Safety dimensions Figure 5 — Example of warning sign 5.2.1.1.3 Safeguarding of hinged or removable chute Where the chute is hinged or removable and not in working position:  either it shall be impossible to introduce the hand in the infeed area (see Figure 6); or  an interlocking device shall prevent the movement of the blade.
Figure 6 — Example of machine with hinged infeed chute not in working position SIST EN 14655:2005+A1:2010

EN 61496-1:2004 and the safety related devices and their interface with the control systems shall comply with least performance level c and meet at least category 1 as defined in EN ISO 13849-1:2008. The position of the light barrier shall be as close as possible to the lower edged of the discharge device (see Figure 8)." The dimensions of the aperture at the discharge area shall be less than 250 mm x 120 mm (see Figure 9). Dimensions in millimetres Key 1 ramp 2 closed cover 3 opened cover in the actuating position 4 blade Key1 light barrier NOTE The upper part of the machine is not represented. Figure 7 — Discharge area Figure 8 — Example of a baguette slicer
with a light barrier
...
