EN 4264:2020

Aerospace series - Heat resisting alloy X4NiCrMoTi43-13 - As forged - Forging stock - a or D ≤ 200 mm

This document specifies the requirements relating to:
Heat resisting alloy X4NiCrMoTi43-13
As forged
Forging stock
a or D ≤ 200 mm
for aerospace applications.
ASD-STAN designation: FE-PA2501.

Luft- und Raumfahrt - Hochwarmfeste Legierung X4NiCrMoTi43-13 - Schmiedezustand - Schmiedevormaterial - a oder D ≤ 200 mm

Dieses Dokument legt die Anforderungen an:
Hochwarmfeste Legierung X4NiCrMoTi43 13
Schmiedezustand
Schmiedevormaterial
a oder D ≤ 200 mm
für Anwendungen in der Luft  und Raumfahrt fest.
ASD STAN Bezeichnung: FE PA2501.

Série aérospatiale - Alliage résistant à chaud X4NiCrMoTi43-13 - Brut de forge - Produits destinés à la forge - a ou D ≤ 200 mm

Le présent document spécifie les exigences relatives à :
Alliage résistant à chaud X4NiCrMoTi43-13
Brut de forge
Produits destinés à la forge
a ou D ≤ 200 mm
pour applications aérospatiales.
Désignation ASD-STAN : FE-PA2501.

Aeronavtika - Toplotno odporna zlitina X4NiCrMoTi43-13 - Toplotno neobdelana (nekovana) - Kovni material - a ali D ≤ 200 mm

General Information

• Status: Published
• Publication Date: 25-Feb-2020
• Withdrawal Date: 30-Aug-2020
• ICS: 49.025.05 - Ferrous alloys in general
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4/S 3 - Steels & Heat Resisting Alloys
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 26-Feb-2020
• Completion Date: 26-Feb-2020
• Ref Project: SIST EN 4264:2020 - Aerospace series - Heat resisting alloy X4NiCrMoTi43-13 - As forged - Forging stock - a or D ≤ 200 mm

Overview

EN 4264:2020 is a European standard developed by CEN that specifies requirements for the heat resisting alloy X4NiCrMoTi43-13 used in aerospace applications. This standard covers the material in its as forged condition and applies to forging stock with dimensions a or D ≤ 200 mm. The alloy is designed for high-temperature resistance, making it suitable for critical aerospace components subjected to demanding thermal environments. The standard ensures that manufacturers and suppliers provide material meeting stringent quality and chemical composition criteria, supporting safety, reliability, and performance in aerospace engineering.

The standard is part of the Aerospace series coordinated by ASD-STAN, aligning with other metallic material standards to support consistency and traceability in aerospace materials.

Key Topics

• Material Specification:
  EN 4264:2020 defines the composition of the X4NiCrMoTi43-13 alloy, requiring a precise balance of elements including nickel, chromium, molybdenum, and titanium to ensure heat resistance. Key chemical composition ranges include:
  • Carbon (C): 0.020–0.060%
  • Chromium (Cr): 11.0–14.0%
  • Molybdenum (Mo): 5.00–6.50%
  • Titanium (Ti): 2.80–3.10%
  • Nickel + Cobalt combined: 40.0–45.0%
• Form and Dimensions:
  The standard applies exclusively to forging stock in the as forged condition, where the thickness or diameter (a or D) does not exceed 200 mm, ensuring suitability for specific aerospace component sizes.
• Manufacturing Method:
  The alloy must be produced by consumable electrode remelting to achieve required purity and structural properties.
• Mechanical Properties:
  Minimum mechanical performance characteristics include:
  • Proof stress (Rp0.2): ≥ 820 MPa
  • Tensile strength (Rm): ≥ 1140 MPa
  • Elongation: ≥ 10%
  • Reduction of area: ≥ 15%
  • Hardness: ≥ 341 HB
• Delivery Condition:
  The alloy is delivered in the as forged state (no additional heat treatment is applied before delivery).
• Inspection and Testing:
  Visual and ultrasonic inspections are mandatory to detect external and internal imperfections, with limits specified for discontinuities.
  Test samples must be prepared according to EN 2957 methods.
• Reference Heat Treatment:
  While delivered as forged, a reference heat treatment cycle is provided to guide post-delivery heat treatment if needed for specific applications.

Applications

EN 4264:2020 applies to the aerospace industry where materials must withstand high temperatures while maintaining mechanical integrity. Its primary use includes:

• Aerospace components requiring heat resistance such as turbine blades, exhaust systems, and high stress structural parts.
• Forging stock supply for manufacturing processes involving high-performance aircraft and engine parts where dimensional precision and material properties are critical.
• Selection of the X4NiCrMoTi43-13 alloy benefits engineers seeking materials with proven resistance to oxidation and thermal degradation in extreme operational environments.

Related Standards

EN 4264:2020 interacts with several other key aerospace and metallurgical standards to ensure comprehensive material quality and traceability:

• EN 2043: General requirements for semi-finished aerospace product qualification (excluding forgings and castings).
• EN 2860-2: Technical specification covering heat resisting alloys for forging stock and forgings in aerospace.
• EN 2957: Method of preparation for forged sample testing ensuring consistency in mechanical property evaluation.
• EN 4258: General organization of aerospace metallic materials standards detailing links and classification across EN standards.
• EN 4500-003: Rules for drafting heat resisting alloy material standards to maintain clarity and uniformity.

---

Keywords: EN 4264:2020, heat resisting alloy, aerospace forging stock, X4NiCrMoTi43-13, as forged alloy, aerospace materials standard, forging stock dimensions, consumable electrode remelted alloy, mechanical properties aerospace, aerospace heat resistant alloys, aerospace industry standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2020
Aeronavtika - Toplotno odporna zlitina X4NiCrMoTi43-13 - Toplotno neobdelana
(nekovana) - Kovni material - a ali D ≤ 200 mm
Aerospace series - Heat resisting alloy X4NiCrMoTi43-13 - As forged - Forging stock - a
or D ≤ 200 mm
Luft- und Raumfahrt - Hochwarmfeste Legierung X4NiCrMoTi43-13 - Nicht
wärmebehandelt - Schmiedevormaterial - a oder D ≤ 200 mm
Série aérospatiale - Alliage résistant à chaud X4NiCrMoTi43-13 - Brut de forge - Produits
destinés à la forge - a ou D ≤ 200 mm
Ta slovenski standard je istoveten z: EN 4264:2020
ICS:
49.025.05 Železove zlitine na splošno Ferrous alloys in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 4264
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2020
EUROPÄISCHE NORM
ICS 49.025.05
English Version
Aerospace series - Heat resisting alloy X4NiCrMoTi43-13 -
As forged - Forging stock - a or D ≤ 200 mm
Série aérospatiale - Alliage résistant à chaud Luft- und Raumfahrt - Hochwarmfeste Legierung
X4NiCrMoTi43-13 - Brut de forge - Produits destinés à X4NiCrMoTi43-13 - Nicht wärmebehandelt -
la forge - a ou D ≤ 200 mm Schmiedevormaterial - a oder D ≤ 200 mm
This European Standard was approved by CEN on 8 December 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4264:2020 E
worldwide for CEN national Members.

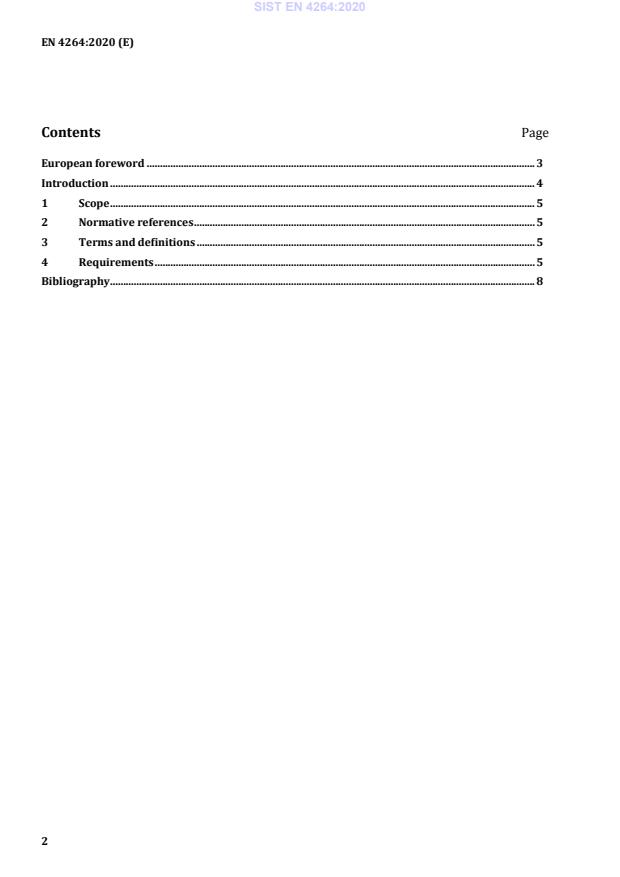

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 8

European foreword
This document (EN 4264:2020) has been prepared by the Aerospace and Defence Industries Association
of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2020, and conflicting national standards shall be
withdrawn at the latest by August 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, t
...
