CEN

EN 17002:2018

(Main)

Thermal spraying - Components with thermally sprayed coatings - Thermal spray procedure specification

Thermal spraying - Components with thermally sprayed coatings - Thermal spray procedure specification

The thermal spray procedure specification (TSPS) is a critically important quality assurance document in the production workflow when producing a thermally sprayed coating.
This document defines the minimum requirements to be followed for the content of a thermal spray procedure specification. When using the thermal spray procedure specification, the requirements of the coating specification are intended to be met. To ensure traceability, the thermal spray procedure specification is intended to be documented and component-related.
Tests and test scopes are intended to be defined by the manufacturer of the coating in a separate test plan according to the requirements of the coating specification.

Thermisches Spritzen - Bauteile mit thermisch gespritzten Schichten - Spritzanweisung

Die thermische Spritzanweisung (TSPS) ist ein besonders wichtiges Qualitätssicherungsdokument im Arbeits-fluss der Produktion, wenn eine thermisch gespritzte Schicht produziert wird.
Dieses Dokument definiert die Mindestanforderungen, die für den Inhalt einer thermischen Spritzanweisung zu befolgen sind. Wenn die thermische Spritzanweisung gilt, ist beabsichtigt, dass die Anforderungen der Schichtspezifikation erfüllt werden. Um die Rückverfolgbarkeit sicherzustellen, ist beabsichtigt, dass die thermische Spritzanweisung dokumentiert wird und bauteilbezogen ist.
Es ist beabsichtigt, dass die Prüfungen und der Prüfumfang vom Hersteller der Schicht in einem separaten Prüfplan nach den Anforderungen der Schichtspezifikation definiert werden.

Projection thermique - Eléments traités par projection thermique - Spécification de mode opératoire de projection thermique

La spécification de mode opératoire de projection thermique (SMOPT) est un document d’assurance qualité crucial lors du processus de production d’un revêtement obtenu par projection thermique.
Le présent document définit les exigences minimales que la spécification de mode opératoire de projection thermique doit respecter. Lors de l’utilisation de la spécification de mode opératoire de projection thermique, les exigences de la spécification de revêtement doivent être satisfaites. Pour assurer la traçabilité, la spécification de mode opératoire de projection thermique doit être documentée
et associée à un élément.
Les essais et la portée des essais doivent être définis par le fabricant du revêtement dans un plan d’essai séparé selon les exigences de la spécification de revêtement.

Vroče brizganje - Sestavni deli s premazi, nanesenimi z vročim brizganjem - Specifikacija postopka vročega brizganja

Specifikacija postopka vročega brizganja je ključen dokument za zagotavljanje kakovosti pri proizvodnji premazov, nanesenih z vročim brizganjem.
Ta evropski standard določa minimalne zahteve, ki naj bi se upoštevale glede vsebine specifikacije postopka vročega brizganja. Ob uporabi specifikacije postopka vročega brizganja je treba izpolniti zahteve specifikacije premazov. Specifikacija postopka vročega brizganja se mora dokumentirati in mora biti povezana s sestavnim delom, da se zagotovi sledljivost.
Preskuse in njihova področja uporabe mora določiti proizvajalec premaza v ločenem načrtu preskusov v skladu z zahtevami specifikacije premazov.

General Information

Status
Published
Publication Date
07-Aug-2018
Withdrawal Date
27-Feb-2019
ICS
25.220.20 - Surface treatment
Technical Committee
CEN/TC 240 - Thermal spraying and thermally spraying coatings
Drafting Committee
CEN/TC 240 - Thermal spraying and thermally spraying coatings
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Start Date
03-Mar-2024
Completion Date
03-Mar-2024
Ref Project
SIST EN 17002:2018 - Thermal spraying - Components with thermally sprayed coatings - Thermal spray procedure specification

Buy Standard

EN 17002:2018EN 17002:2018
PreviousNext
Standard
EN 17002:2018
English language
12 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermisches Spritzen - Bauteile mit thermisch gespritzten Schichten - SpritzanweisungProjection thermique - Éléments traités par projection thermique - Spécification de mode opératoire de projection thermiqueThermal spraying - Components with thermally sprayed coatings - Thermal spray procedure specification25.220.20Površinska obdelavaSurface treatmentICS:Ta slovenski standard je istoveten z:EN 17002:2018SIST EN 17002:2018en,fr,de01-december-2018SIST EN 17002:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 17002
August
t r s z ICS
t wä t t rä t r English Version
Thermal spraying æ Components with thermally sprayed coatings æ Thermal spray procedure specification Projection thermique æ Éléments traités par projection thermique æ Spécification de mode opératoire de projection thermique
Thermisches Spritzen æ Bauteile mit thermisch gespritzten Schichten æ Spritzanweisung This European Standard was approved by CEN on
{ April
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s y r r tã t r s z ESIST EN 17002:2018

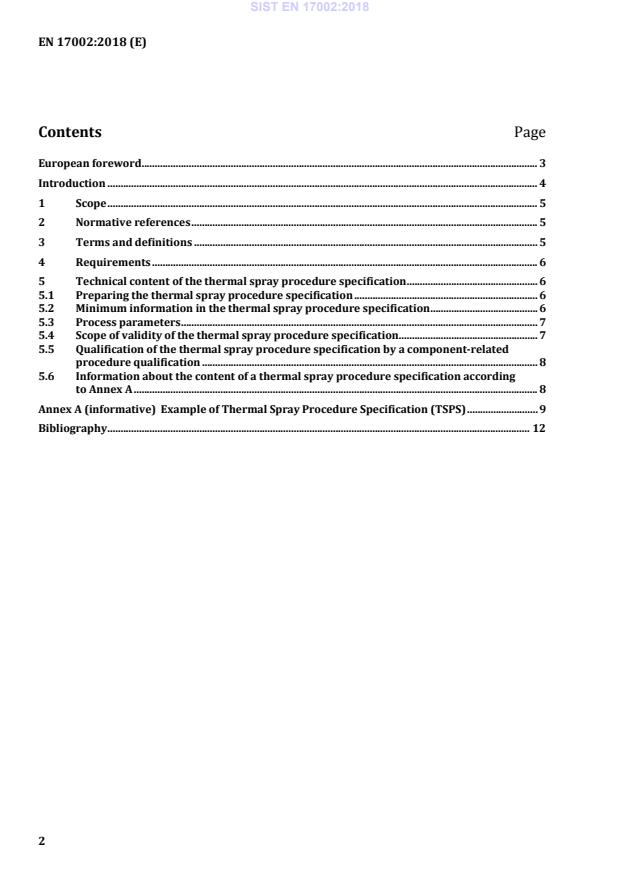

Example of Thermal Spray Procedure Specification (TSPS) . 9 Bibliography . 12 SIST EN 17002:2018

IEC Electropedia: available at http://www.electropedia.org/
ISO Online browsing platform: available at http://www.iso.org/obp 3.1 thermal spray procedure specification TSPS procedure specification that contains the parameters required for the component-related application of the thermal spraying process SIST EN 17002:2018

E.g. according to EN 15648. 4 Requirements A thermal procedure specification should be documented for each spray application. This should contain all the production steps necessary for the entire spray process and the applicable required parameters. The manufacturer of the thermally sprayed coating is responsible for the presence of a valid thermal spray procedure specification for the component and its execution. 5 Technical content of the thermal spray procedure specification 5.1 Preparing the thermal spray procedure specification The procedure specification shall refer to the coating specification and the design documents, the parts lists, the material data of the base material and spray consumables, the drawings and the test instructions for the component. If different sprayed coatings are to be applied to the same component, the specific parameters shall be listed for each sprayed coating or-separate thermal spray procedure specifications shall be prepared for each case. If the manufacturer has not prepared a separate test plan, the thermal spray procedure specification shall contain all the necessary tests. In either case this shall take into account the quality assurance systems according to EN ISO 14922-1 to EN ISO 14922-4, and the tests required in the coating specification and the technical supply conditions according to EN ISO 12670. 5.2 Minimum information in the thermal spray procedure specification — Manufacturer; — drawing references; — workpiece designation; — substrate material; — designation of the coating specification (requirements); — thermal spraying process (according to EN ISO 14917); — designation of the individual sprayed coatings (e.g. bond coat and top coat); — designation of the spray consumables (e.g. EN ISO 14919); — spray equipment to be used; — designation of the spray devices, if required; — surface preparation, information about the necessary surface cleanliness and roughness; SIST EN 17002:2018
...
