Railway applications - Track - Rail - Part 2: Switch and crossing rails used in conjunction with Vignole railway rails 46 kg/m and above

This document specifies switch and crossing rails that carry railway wheels. These are used in conjunction with Vignole railway rails.
This document is not applicable for the check rails that do not carry railway wheels.
Nine pearlitic steel grades are specified covering a hardness range of 200 HBW to 410 HBW and include non-heat treated non-alloy steels, non-heat treated alloy steels, heat treated non-alloy steels, heat treated low alloy steels and heat treated alloy steels.
There are 33 rail profiles specified in this standard, but they may not all be available in all steel grades.
Rails specified in EN 13674-1 can also be used as switch and crossing rails and if so used they will comply with the requirements of EN 13674-1.

Bahnanwendungen - Oberbau - Schienen - Teil 2: Schienen für Weichen und Kreuzungen, die in Verbindung mit Vignolschienen ab 46 kg/m verwendet werden

Dieser Teil dieses Dokuments enthält Festlegungen für radtragende Schienen für Weichen und Kreuzungen, die in Verbindung mit Vignolschienen eingesetzt werden.
Dieser Teil dieses Dokuments gilt nicht für Radlenkerschienen, die nicht von Eisenbahnrädern befahren werden.
Neun perlitische Stahlsorten in einem Härtebereich zwischen 200 HBW und 410 HBW sind festgelegt für Schienen aus nicht wärmebehandeltem unlegiertem Stahl, nicht wärmebehandeltem legiertem Stahl, wärmebehandeltem unlegiertem Stahl, wärmebehandeltem niedrig legiertem Stahl und wärmebehandeltem legiertem Stahl.
In dieser Norm sind 33 Schienenprofile festgelegt, aber nicht alle Profile müssen in jeder Stahlsorte verfügbar sein.
Die in EN 13674-1 festgelegten Schienen können auch als Schienen für Weichen und Kreuzungen verwendet werden und werden dann die Anforderungen nach EN 13674-1 erfüllen.

Applications ferroviaires - Voie - Rails - Partie 2 : Rails pour appareils de voie utilisés avec des rails Vignole de masse supérieure ou égale à 46 kg/m

Le présent document spécifie les rails d'appareils de voie qui supportent les roues du train. Ceux-ci sont utilisés en association avec les rails Vignole.
Ce document n'est pas applicable pour les contre-rails qui ne supportent pas les roues.
9 nuances d'acier perlitique sont spécifiées représentant une fourchette de dureté comprise entre 200 HBW et 410 HBW. Ces nuances d'acier comprennent : les aciers non alliés non traités thermiquement, les aciers alliés non traités thermiquement, les aciers non alliés traités thermiquement, les aciers faiblement alliés traités thermiquement et les aciers alliés traités thermiquement.
33 profils de rails sont spécifiés dans la présente norme, mais ils peuvent ne pas être disponibles dans toutes les nuances d'acier.
Les rails spécifiés dans l'EN 13674-1 peuvent aussi être utilisés pour les appareils de voie et, dans le cas d'une telle utilisation, ils doivent être conformes aux exigences de l'EN 13674-1.

Železniške naprave - Zgornji ustroj proge - Tirnice - 2. del: Tirnice za kretnice in križišča, ki se uporabljajo skupaj z Vignolovo tirnico z maso 46 kg/m ali več

Ta del standarda EN 13674 določa tirnice za kretnice in križišča, ki nosijo železniška kolesa. Uporabljajo se skupaj z Vignolovo tirnico. Ta del tega standarda se ne uporablja za kontrolne tirnice, ki ne nosijo železniških koles. Določenih je osem perlitnih razredov jekla z razponom trdote od 200 do 390 HBW, ki vključujejo nelegirana jekla, ki niso toplotno obdelana, legirana jekla, ki niso toplotno obdelana, toplotno obdelana nelegirana jekla in toplotno obdelana nizko legirana jekla. V tem standardu je opredeljenih »34 profilov tirnic«, vendar morda vsi niso na voljo v vseh razredih jekla. Tirnice, določene v standardu EN 13674-1, se prav tako lahko uporabljajo kot kretnice in križišča in morajo biti v tem primeru v skladu z zahtevami standarda EN 13674-1.

General Information

Status
Published
Publication Date
01-Oct-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
02-Oct-2019
Completion Date
02-Oct-2019

RELATIONS

Buy Standard

Standard
EN 13674-2:2019
English language
111 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 13674-2:2019
01-december-2019
Nadomešča:
SIST EN 13674-2:2006+A1:2010

Železniške naprave - Zgornji ustroj proge - Tirnice - 2. del: Tirnice za kretnice in

križišča, ki se uporabljajo skupaj z Vignolovo tirnico z maso 46 kg/m ali več

Railway applications - Track - Rail - Part 2: Switch and crossing rails used in conjunction

with Vignole railway rails 46 kg/m and above
Bahnanwendungen - Oberbau - Schienen - Teil 2: Schienen für Weichen und
Kreuzungen, die in Verbindung mit Vignolschienen ab 46 kg/m verwendet werden

Applications ferroviaires - Voie - Rails - Partie 2 : Rails pour appareils de voie utilisés

avec des rails Vignole de masse supérieure ou égale à 46 kg/m
Ta slovenski standard je istoveten z: EN 13674-2:2019
ICS:
45.080 Tračnice in železniški deli Rails and railway
components
SIST EN 13674-2:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13674-2:2019
---------------------- Page: 2 ----------------------
SIST EN 13674-2:2019
EN 13674-2
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2019
EUROPÄISCHE NORM
ICS 93.100 Supersedes EN 13674-2:2006+A1:2010
English Version
Railway applications - Track - Rail - Part 2: Switch and
crossing rails used in conjunction with Vignole railway
rails 46 kg/m and above

Applications ferroviaires - Voie - Rails - Partie 2 : Rails Bahnanwendungen - Oberbau - Schienen - Teil 2:

pour appareils de voie utilisés avec des rails Vignole de Schienen für Weichen und Kreuzungen, die in

masse supérieure ou égale à 46 kg/m Verbindung mit Vignolschienen ab 46 kg/m verwendet

werden
This European Standard was approved by CEN on 2 January 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13674-2:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)

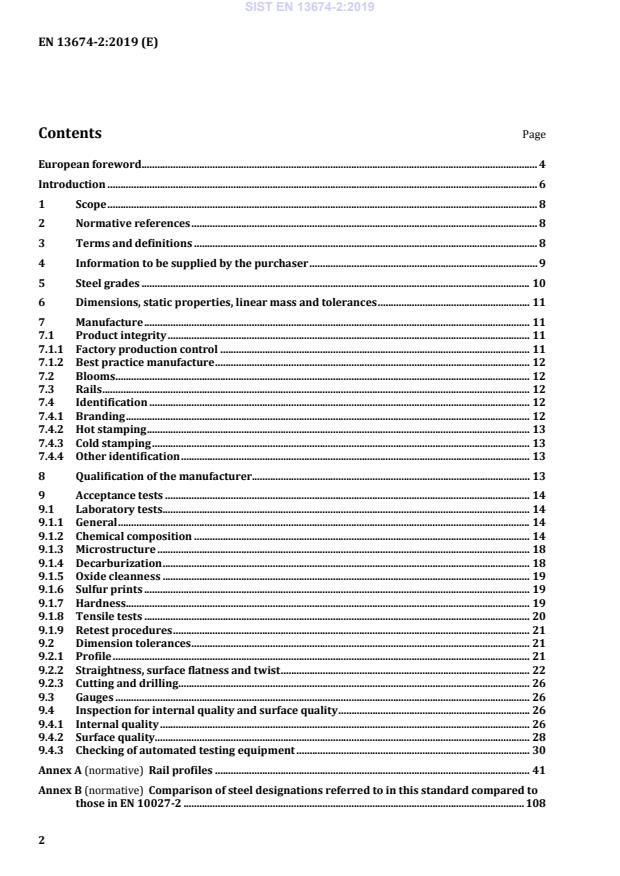

Contents Page

European foreword ....................................................................................................................................................... 4

Introduction .................................................................................................................................................................... 6

1 Scope .................................................................................................................................................................... 8

2 Normative references .................................................................................................................................... 8

3 Terms and definitions ................................................................................................................................... 8

4 Information to be supplied by the purchaser ....................................................................................... 9

5 Steel grades .................................................................................................................................................... 10

6 Dimensions, static properties, linear mass and tolerances .......................................................... 11

7 Manufacture ................................................................................................................................................... 11

7.1 Product integrity .......................................................................................................................................... 11

7.1.1 Factory production control ...................................................................................................................... 11

7.1.2 Best practice manufacture ........................................................................................................................ 12

7.2 Blooms .............................................................................................................................................................. 12

7.3 Rails ................................................................................................................................................................... 12

7.4 Identification ................................................................................................................................................. 12

7.4.1 Branding .......................................................................................................................................................... 12

7.4.2 Hot stamping .................................................................................................................................................. 13

7.4.3 Cold stamping ................................................................................................................................................ 13

7.4.4 Other identification ..................................................................................................................................... 13

8 Qualification of the manufacturer.......................................................................................................... 13

9 Acceptance tests ........................................................................................................................................... 14

9.1 Laboratory tests ............................................................................................................................................ 14

9.1.1 General ............................................................................................................................................................. 14

9.1.2 Chemical composition ................................................................................................................................ 14

9.1.3 Microstructure .............................................................................................................................................. 18

9.1.4 Decarburization ............................................................................................................................................ 18

9.1.5 Oxide cleanness ............................................................................................................................................ 19

9.1.6 Sulfur prints ................................................................................................................................................... 19

9.1.7 Hardness .......................................................................................................................................................... 19

9.1.8 Tensile tests ................................................................................................................................................... 20

9.1.9 Retest procedures ........................................................................................................................................ 21

9.2 Dimension tolerances ................................................................................................................................. 21

9.2.1 Profile ............................................................................................................................................................... 21

9.2.2 Straightness, surface flatness and twist ............................................................................................... 22

9.2.3 Cutting and drilling ...................................................................................................................................... 26

9.3 Gauges .............................................................................................................................................................. 26

9.4 Inspection for internal quality and surface quality ......................................................................... 26

9.4.1 Internal quality ............................................................................................................................................. 26

9.4.2 Surface quality............................................................................................................................................... 28

9.4.3 Checking of automated testing equipment ......................................................................................... 30

Annex A (normative) Rail profiles ........................................................................................................................ 41

Annex B (normative) Comparison of steel designations referred to in this standard compared to

those in EN 10027-2 .................................................................................................................................. 108

---------------------- Page: 4 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)

Annex ZA (informative) Relationship between this European Standard and the Essential

Requirements of EU Directive 2008/57/EC aimed to be covered ........................................... 109

Bibliography .............................................................................................................................................................. 111

---------------------- Page: 5 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)
European foreword

This document (EN 13674-2:2019) has been prepared by Technical Committee CEN/TC 256 “Railway

applications”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an identical

text or by endorsement, at the latest by April 2020, and conflicting national standards shall be withdrawn at

the latest by April 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 13674-2:2006+A1:2010.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association, and supports essential requirements of EU Directive 2008/57/EC.

For relationship with EU Directive 2008/57/EC, see informative Annex ZA, which is an integral part of this

document.

The most significant change which was made in this new edition are the following ones:

1) suppression of Profile 60E2A3 as Figure A.20 in Table A.1, and update of numbering of Tables A.1 and

A.2 accordingly;

2) introduction of Grade R370CrHT in Table 3, and modifications of the relevant clauses and tables;

3) modification of the calculation formula for hardness in 9.1.7;
4) clean up of figures and editorial errors.

This part of EN 13674 is the second of the EN 13674 series, Railway applications – Track – Rail, which

consists of the following parts:
— Part 1: Vignole railway rails 46 kg/m and above;

— Part 2: Switch and crossing rails used in conjunction with Vignole railway rails 46 kg/m and above;

— Part 3: Check rails;
— Part 4: Vignole railway rails from 27 kg/m to, but excluding 46 kg/m.
Other published standards include the following:

— EN 14587-1, Railway applications - Infrastructure - Flash butt welding of new rails - Part 1: R220, R260,

R260Mn, R320Cr, R350HT, R350LHT, R370CrHT and R400HT grade rails in a fixed plant;

— EN 14587-2, Railway applications – Track - Flash butt welding of rails – Part 2: New R220, R260, R260Mn

and R350HT grade rails by mobile welding machines at sites other than a fixed plant;

— EN 14587-3, Railway applications – Track - Flash butt welding of rails – Part 3: Welding in association

with crossing construction;
---------------------- Page: 6 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)

— EN 14730-1, Railway applications – Track - Aluminothermic welding of rails – Part 1: Approval of welding

processes;

— EN 14730-2, Railway applications – Track - Aluminothermic welding of rails – Part 2: Qualification of

aluminothermic welders, approval of contractors and acceptance of welds;

— EN 14811, Railway applications – Track – Special purpose rail – Grooved rails and associated construction

profiles;

— EN 15594, Railway applications – Track – Restoration of rails by electric arc welding;

— EN 16273, Railway applications – Track – Forged rail transitions.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North Macedonia,

Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

---------------------- Page: 7 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)
Introduction

This Introduction provides an explanation of the concepts and reasoning used in the drafting of this

document. Its inclusion also ensures that during future revisions, restrictions are removed where technology

progresses and held where it does not, thus ensuring continued safety as new manufacturers, products and

technologies are introduced.

The most commonly used standards of the world for the supply of railway rails have been reviewed during

the preparation of this document. However, modern rail production technology within the European Union

has demanded a completely new look at the philosophy and content of this part of EN 13674.

Whenever possible this part of EN 13674 is performance based, recognizes the European Quality System

standard EN ISO 9001 and requires manufacturers to offer the latest proven technology to consistently

satisfy the demanding quality of the required product.
Rail grading is based on hardness rather than tensile strength.

The acceptance tests have been designed to control those characteristics of the rail steel and rail that are of

relevance to the production of high quality rails and the demands of the railway.

The steel grades covered by this part of EN 13674 reflect trends in railway usage and heat-treated rails are

included. This document includes rail profiles for switch and crossing rails used in conjunction with Vignole

rails having a linear mass 46 kg/m and above.

To ensure the supply of high quality rails, some restrictions on production processes have been imposed.

This document supersedes other standards covered by the scope. In addition CEN required, where possible,

a performance based standard, taking into account safety implications and at the same time addressing

modern production technology. It was recognized that there would be few opportunities (and these would

have to be for transparent safety considerations) for derogation from this document to operate between the

user and the manufacturer.

This document reflects this change in philosophy from the traditional content of rail standards. A review was

undertaken of the most commonly used rail standards of the world. All relevant aspects important to both

user and manufacturer were considered with the aim of ensuring that all of the content had specific

usefulness and relevance. For example rail grading and much of this European Standard has been based on

hardness rather than tensile strength. While the two are directly related, hardness is very quick and cheap to

carry out and provides more relevant guidance to the user particularly where properties vary in different

parts of the profile.

Since many rail manufacturers would not have previously carried out proving trials, the document includes a

prerequisite for all manufacturers to prove conformity against a set of qualifying test criteria at the time of

tendering. The qualifying tests include all “normal” acceptance test results plus new ‘type-casting’ features

such as fracture toughness, fatigue and residual stress (see EN 13674-1). To provide users with the

necessary confidence, acceptance limits have been based on results from rail known to have performed well

in demanding track installations.

One aspect of this document, which is a complete break from tradition, is the inclusion of quality assurance

and inspection clause as part of product integrity.

So that quality management systems are consistent across all manufacturers and that users have the best

assurance for the consistency of required product quality on this safety critical component of the track, the

rail standard requires that the manufacturers’ quality assurance systems are at least equivalent to the

requirements of a quality management standard such as EN ISO 9001. The inclusion of this requirement also

reduces the need to incorporate detailed method and calibration descriptions on items such as normal

chemical composition determination and the need to define more extensive testing.

Ideally, manufacturing techniques should not be referenced in a product standard. However, some rail

attributes are either not known in an exact manner or are not measurable with satisfactory statistical

significance. In such cases best practice manufacturing techniques have been included as a last resort. The

---------------------- Page: 8 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)

equipment specified is that which gives the best probability of achieving the required product for use in

track. In the future new technology can add to, but preferably will reduce or delete such items.

Examples of areas where the technological state of the art renders the standard less than complete include:

— oxide/oxygen relationships;
— hydrogen test techniques;
— roller straightening effects on residual stresses;
— roller straightening effects on contact scrub;
— measurement and effect of residual stresses throughout the rail.
---------------------- Page: 9 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)
1 Scope

This document specifies switch and crossing rails that carry railway wheels. These are used in conjunction

with Vignole railway rails.

This document is not applicable for the check rails that do not carry railway wheels.

Nine pearlitic steel grades are specified covering a hardness range of 200 HBW to 410 HBW and include non-

heat-treated non-alloy steels, non-heat-treated alloy steels, heat-treated non-alloy steels, heat-treated low

alloy steels and heat-treated alloy steels.

There are 33 rail profiles specified in this standard, but they may not all be available in all steel grades.

Rails specified in EN 13674-1 can also be used as switch and crossing rails and if so used they will comply

with the requirements of EN 13674-1.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes

requirements of this document. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

EN 10027-1, Designation systems for steels – Part 1: Steel names
EN 10027-2, Designation systems for steels – Part 2: Numerical system

EN 10163-1, Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections –

Part 1: General requirements

EN 10276-1, Chemical analysis of ferrous materials – Determination of oxygen in steel and iron – Part 1:

Sampling and preparation of steel samples for oxygen determination

EN 13674-1:2011+A1:2017, Railway applications – Track – Rail – Part 1: Vignole railway rails 46 kg/m and

above

EN ISO 6506-1, Metallic materials – Brinell hardness test – Part 1: Test method (ISO 6506-1)

EN ISO 6892-1, Metallic materials – Tensile testing – Part 1: Method of test at room temperature (ISO 6892-1)

ISO 4968, Steel – Macrographic examination by sulfur print (Baumann method)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
heat

one liquid steel melt tapped out of a converter or electric arc furnace which includes after continuous casting

a given number of blooms relating to the weight of the heat and the extension of the mixing zone

Note 1 to entry: In the case of sequence casting the blooms belonging to the mixing zone should be clearly defined.

---------------------- Page: 10 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)
3.2
sequence

number of heats, of the same steel grade, which undergo continuous casting in tundishes

Note 1 to entry: Tundishes may be used in parallel if the caster has many strands.

3.3
heat-treated rail

rail that has undergone accelerated cooling from austenitizing temperature during the metallurgical

transformation period
3.4
re-heated rail
rolled rail that has undergone re-austenitization for heat treatment purposes
3.5
mill heat-treated rail
heat-treated rail that has not undergone re-austenitization after rolling
3.6
rolling process

process between the blooms leaving the heating furnace and exiting the finishing pass

3.7
isothermal treatment process

process whereby blooms are held for a period of time at an elevated temperature for diminishing the

hydrogen content

Note 1 to entry: For maximum efficiency this is as near to (but below) the pearlite to austenite transformation

temperature as is practically possible.

Note 2 to entry: This process is sometimes referred to as sub-critical diffusion annealing.

3.8
qualifying tests

special tests and criteria which are relevant to some aspects of the service performance of rails

Note 1 to entry: Acceptance tests also form part of the qualifying tests.
3.9
acceptance tests

tests carried out as part of the process and product control system, normally on a heat, sequence or tonnage

basis
3.10
rail running surface

curved surface of the rail head, and area between both gauge corners (transition points of the head

inclination and the first head radius)
4 Information to be supplied by the purchaser

The purchaser shall provide the supplier with the following information when inviting tenders to supply:

a) rail profiles (see Annex A);
b) steel grades (see Table 1);
---------------------- Page: 11 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)
c) length (or lengths) of rail (see 9.2.3 and Table 8);
d) paint code requirements (see 7.4.4);

e) undrilled or drilled rail ends to take fish plate bolts, and the location and dimensions of holes when

required (see 9.2.3 and Table 8);

f) any special treatments to be applied and corresponding tolerances for bolt holes (see 9.2.3);

g) cold stamping on the cut surface, if applicable (see 7.4.3).
5 Steel grades

The applicable steel grades are given in Table 1. The hardness ranges of the steel grades shall conform to

those given in Table 1.

The steel grade designations referred to in this standard are compared to those in EN 10027-1 and

EN 10027-2 in Annex B.
---------------------- Page: 12 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)
Table 1 — Steel grades
Grade Hardness range (HBW) Description Branding lines
R200 200 to 240 Non-alloy (C-Mn)
No branding lines
R220 220 to 260 Non-alloy (C-Mn)
______
___
R260 260 to 300 Non-alloy (C-Mn)
______
______
R260Mn 260 to 300 Non-alloy (C-Mn)
______
___
R260Cr 260 to 300 Alloy (0,5 % Cr) ______
______
______
R320Cr 320 to 360 Alloy (1 % Cr) ______
______
___
R350HT 350 to 390 Non-alloy (C-Mn) heat-treated
______ ______
___
R350LHT 350 to 390 Non-alloy (C-Mn) heat-treated ______ ______
___
R370CrHT 370 to 410 Alloy (C-Mn) heat-treated ___
______ ______
______
See Table 3 for chemical composition/mechanical properties.
See Table 5 for hardness requirements.
6 Dimensions, static properties, linear mass and tolerances

Rail profiles, dimensions, static properties and linear masses shall be in accordance with Annex A. The

tolerances of certain dimensions shall be given in Table 6. All other quantities are informative only.

NOTE Linear masses have been calculated based on the density of steel of 7,85 g/cm .

7 Manufacture
7.1 Product integrity
7.1.1 Factory production control

Rails shall be produced under a comprehensive system of factory production control, which shall ensure

confidence in the conformity of the finished product. The system shall address this European Standard to

---------------------- Page: 13 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)

ensure that the finished products consistently comply with requirements to achieve the product integrity

necessary to provide assurance of product safety in track.

Manufacturers shall demonstrate continuing compliance, including documented evidence, with the factory

production control system required.

NOTE Manufacturers having a factory production control system, such as EN ISO 9001, are recognized as satisfying

the minimum requirements specified by this clause.
7.1.2 Best practice manufacture
The product shall be manufactured to the best practices as defined in 7.1.1.

NOTE This is to ensure that the rail attributes, described in the Introduction, which are not known in an exact

manner or are not practically measurable, achieve the required high level of product integrity in track.

7.2 Blooms

Blooms made from basic oxygen steel or electric arc furnace steel that has been secondary ladle arc refined,

vacuum degassed and continuously cast, shall be used for the manufacture of rails.

7.3 Rails

The manufacturer shall operate a procedure for the effective removal of scale during the rolling and

straightening processes.

The cross-sectional area of the rail shall not exceed one seventh that of the bloom from which the rail is

rolled, except for full web rails (Figures A.27 to A.33), where this value shall not exceed one fifth.

Rail straightening shall be by a two stage roller straightening process which straightens the rail about its xx

and yy axes as defined in the rail profiles shown in Annex A. End deviations or a localized deviation on the

rail may be corrected using pressing.

NOTE Other mandatory processes are described in the relevant clauses within the standard.

7.4 Identification
7.4.1 Branding

Brand marks shall be rolled in relief on one side and in the middle of the web (see Annex A) of each rail at

least once every 4 m. The brand marks on the rails shall be clearly legible and shall be 15 mm to 25 mm high,

raised between 0,6 mm and 1,3 mm. For asymmetric rails, except 50E6A2, the brand shall be on the gauge

side of the rail profile. For 50E6A2 rail the brand shall be on the non-gauge side.

The branding line(s) to denote grade shall be 50 mm in length for the long branding line and 25 mm in

length for the short branding line.
The brand marks shall include:
a) identification of the mill;
b) steel grade as shown in Table 1;
c) last two figures of the year of manufacture;
d) rail profile identification as shown in Annex A.
---------------------- Page: 14 ----------------------
SIST EN 13674-2:2019
EN 13674-2:2019 (E)
EXAMPLES
ROLLING MILL 99 60 E1A5
______
(60 E1A5 profile rail rolled 1999, non-alloy rail steel grade R260)
__ ______
ROLLING MILL 99 60 E1T2
______

(60 E1T2 profile rail rolled 1999, non-alloy heat-treated rail steel grade R350HT).

7.4.2 Hot stamping

In addition to the branding requirements of 7.4.1 each rail shall be identified by a numerical and/or

alphabetical code system hot stamped on the non-branded side of the rail web by machine, except 50E6A2,

and each rail shall be hot stamped at least once every 5 m. If for asymmetric rails hot stamping every 5 m is

not practical, the identification of the rail shall be secured by hot stamping or rotary burr near one end of the

rail.

NOTE 1 A rail can display different indications of position of the rail in the blooms (A,B…Y) along its length.

NOTE 2 Subsequent cutting could result in more than one rail length having the same identity.

The figu
...
