EN ISO 19085-15:2025
(Main)Woodworking machines - Safety - Part 15: Presses (ISO 19085-15:2025)
Woodworking machines - Safety - Part 15: Presses (ISO 19085-15:2025)
1.1 This document specifies the safety requirements and measures for
— cold presses,
— hot presses,
— bending presses,
— edge/face gluing presses,
— membrane presses, and
— embossing presses,
where the pressing force is applied by hydraulic, pneumatic or electrical actuators pushing two flat or shaped surfaces against each other, capable of continuous production use, altogether referred to as “machines”.
This document deals with all significant hazards, hazardous situations and events as listed in Annex A, relevant to machines, when operated, adjusted and maintained as intended and under the conditions foreseen by the manufacturer, including reasonably foreseeable misuse. Also, transport, assembly, dismantling, disabling and scrapping phases are taken into account.
1.2 This document is applicable to machines fitted with one or more of the following devices or additional working units, whose hazards have been dealt with:
a) a device for hot gluing;
b) a device for high-frequency gluing in the frequency range from 1 MHz to 400 MHz;
c) a device for high-frequency shaping in the frequency range from 1 MHz to 400 MHz;
d) an automatic workpiece loading and unloading system;
e) an intermediate additional platen;
f) a workpiece extractor;
g) a horizontal pressing system;
h) split moveable platens.
1.3 The machines are designed to process workpieces consisting of:
a) solid wood;
b) materials with similar characteristics to wood (see ISO 19085-1:2021, 3.2), except those with light alloy laminates/edges/profiles for high-frequency presses;
c) wood-based material such as chipboard, fibreboard and plywood composed/laminated with steel sheets/edges/profiles, except for high-frequency presses;
d) honeycomb board;
e) composite boards made from the materials listed above.
1.4 This document does not deal with any hazards related to:
— specific devices that differ from the list above;
— hot fluid heating systems internal to the machine other than electrical;
— any hot fluid heating systems external to the machine;
— operation of taking intermediate platens out and in again;
— the combination of a single machine being used with any other machine (as part of a line).
1.5 This document is not applicable to:
— frame presses;
— membrane presses where the pressing force is applied by vacuum only;
— presses for producing chipboard, fibreboard, OSB;
— machines intended for use in potentially explosive atmosphere;
— machines manufactured before the date of publication of this document.
Holzbearbeitungsmaschinen - Sicherheit - Teil 15: Pressen (ISO 19085-15:2025)
Dieses Dokument stellt Sicherheitsanforderungen und Maßnahmen zur Verfügung für stationäre
— Kaltpressen;
— Heißpressen;
— Biegepressen;
— Kanten-/Flächenverleimpressen;
— Membranpressen;
— Prägepressen;
mit Handbeschickung und Handentnahme, bei denen die Presskraft durch hydraulische Antriebe aufgebracht wird, die zwei ebene oder geformte Flächen gegeneinander drücken, nachfolgend als „Maschinen“ bezeichnet.
Es behandelt alle im Abschnitt 4 aufgeführten signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse, die auf die Maschinen zutreffen, wenn sie bestimmungsgemäß und entsprechend den vom Hersteller vorhergesehenen Bedingungen verwendet, eingestellt und gewartet werden, einschließlich der vernünftigerweise vorhersehbaren Fehlanwendung. Ferner werden die Phasen Transport, Montage, Demontage, Rückbau und Verschrottung berücksichtigt.
ANMERKUNG Hinsichtlich zutreffender aber nicht signifikanter Gefährdungen, z. B. scharfe Kanten des Maschinengestells, siehe ISO 12100:2010.
Es gilt auch für Maschinen, die mit einer oder mehreren der folgenden Einrichtungen/zusätzlichen Arbeitsaggregate ausgerüstet sind, deren Gefährdungen behandelt wurden:
a) Einrichtung zum Heißverleimen;
b) Einrichtung zum Hochfrequenzverleimen;
c) Einrichtung zum Hochfrequenzformen;
d) automatisches Be- und Entladesystem für Werkstücke;
e) zusätzliche Zwischenplatten;
f) Werkstück-Auszieher;
g) Werkstück-Spanndruckbalken;
h) geteilte bewegliche Platten.
Die Maschinen sind gestaltet für die Bearbeitung von Werkstücken aus:
1) Massivholz;
2) Werkstoffen mit ähnlichen Eigenschaften wie Holz (siehe ISO 19085-1:2017, 3.2);
3) Wabenplatten.
Dieses Dokument behandelt keine Gefährdungen im Zusammenhang mit:
— spezifischen Einrichtungen, die von der obigen Liste abweichen;
— Heizsystemen für heiße Flüssigkeiten innerhalb der Maschine, die nicht elektrisch betrieben werden;
— Heizsystemen für heiße Flüssigkeiten außerhalb der Maschine;
— dem Vorgang der Entnahme und des Wiedereinsetzens von Zwischenplatten;
— der Kombination einer einzelnen Maschine, die mit einer beliebigen anderen Maschine (als Teil einer Linie) verwendet wird.
Es gilt nicht für:
— Rahmenpressen;
— Membranpressen, bei denen die Presskraft nur durch Vakuum aufgebracht wird;
— Pressen zur Herstellung von Spanplatten, Faserplatten, OSB;
— Maschinen, die zur bestimmungsgemäßen Verwendung in potentiell explosiven Atmosphären vorgesehen sind;
— Maschinen, die vor dem Datum seiner Veröffentlichung als Internationale Norm hergestellt wurden.
Machines à bois - Sécurité - Partie 15: Presses (ISO 19085-15:2025)
1.1 Le présent document spécifie les exigences et mesures de sécurité pour:
— les presses à froid,
— les presses à chaud,
— les presses à cintrer,
— les presses de collage sur chant/face,
— les presses à membrane,
— les presses à estamper,
dans lesquelles la force de pressage est appliquée par des actionneurs hydrauliques, pneumatiques ou électriques poussant deux surfaces planes ou façonnées l’une contre l’autre, capables d’une utilisation en production continue, ci-après également désignées «machines».
Le présent document traite de tous les phénomènes dangereux, situations et événements dangereux significatifs, tels qu'énumérés à l'Annexe A, applicables aux machines lorsqu'elles sont utilisées, réglées et entretenues comme prévu et dans les conditions prévues par le fabricant, incluant une mauvaise utilisation raisonnablement prévisible. Les phases de transport, d'assemblage, de démontage, de mise hors service et de mise au rebut sont également prises en compte.
1.2 Le présent document est applicable aux machines équipées d'un ou plusieurs des dispositifs/unités de travail supplémentaires suivants, dont les phénomènes dangereux ont été traités:
a) dispositif de collage à chaud;
b) dispositif de collage à haute fréquence dans la gamme de fréquences de 1 MHz à 400 MHz;
c) dispositif de façonnage à haute fréquence dans la gamme de fréquences de 1 MHz à 400 MHz;
d) système de chargement et déchargement automatiques de la pièce;
e) plateaux intermédiaires supplémentaires;
f) extracteur de pièce;
g) système de pressage horizontal;
h) plateaux mobiles séparés.
1.3 Les machines sont conçues pour usiner des pièces constituées de:
a) bois massif;
b) matériau présentant des caractéristiques similaires à celles du bois (voir l'ISO 19085-1:2021, 3.2) à l’exception de ceux qui comportent des laminés/chants/profilés en alliage léger pour les presses à haute fréquence;
c) matériaux à base de bois tels que les panneaux d’aggloméré, panneaux de fibres et contreplaqués composés de/laminés avec des tôles/chants/profilés en acier, à l’exception des presses à haute fréquence;
d) plaque alvéolaire;
e) plaques composites fabriquées à partir des matériaux énumérés ci-dessus.
1.4 Le présent document ne traite pas des phénomènes dangereux relatifs à:
— des dispositifs spécifiques qui diffèrent de la liste ci-dessus;
— des systèmes de chauffage par fluide chaud internes à la machine, autres qu’électriques;
— tous les systèmes de chauffage par fluide chaud externe à la machine;
— l’opération d’extraction et de réinsertion des plateaux intermédiaires;
— la combinaison d’une machine simple utilisée avec toute autre machine (comme une partie d’une ligne).
1.5 Le présent document ne s’applique pas aux:
— presses à cadre;
— presses à membrane dans lesquelles la force de pressage est appliquée uniquement par dépression;
— presses pour la production de panneaux de particules, de panneaux de fibres, d’OSB;
— machines prévues pour une utilisation en atmosphère explosible;
— machines fabriquées avant la date de publication du présent document.
Lesnoobdelovalni stroji - Varnost - 15. del: Stiskalnice (ISO/FDIS 19085 15:2024)
General Information
Relations
Standards Content (Sample)

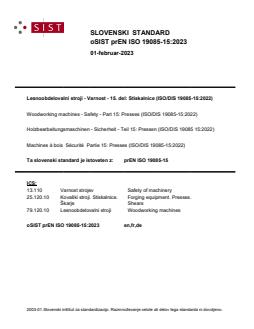

SLOVENSKI STANDARD
oSIST prEN ISO 19085-15:2023
01-februar-2023
Lesnoobdelovalni stroji - Varnost - 15. del: Stiskalnice (ISO/DIS 19085-15:2022)
Woodworking machines - Safety - Part 15: Presses (ISO/DIS 19085-15:2022)
Holzbearbeitungsmaschinen - Sicherheit - Teil 15: Pressen (ISO/DIS 19085 15:2022)
Machines à bois Sécurité Partie 15: Presses (ISO/DIS 19085-15:2022)
Ta slovenski standard je istoveten z: prEN ISO 19085-15
ICS:
13.110 Varnost strojev Safety of machinery
25.120.10 Kovaški stroji. Stiskalnice. Forging equipment. Presses.
Škarje Shears
79.120.10 Lesnoobdelovalni stroji Woodworking machines
oSIST prEN ISO 19085-15:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
oSIST prEN ISO 19085-15:2023
oSIST prEN ISO 19085-15:2023

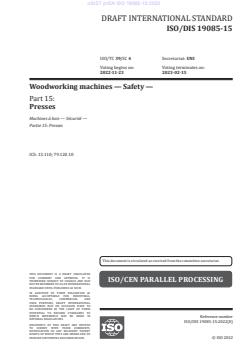

DRAFT INTERNATIONAL STANDARD
ISO/DIS 19085-15
ISO/TC 39/SC 4 Secretariat: UNI
Voting begins on: Voting terminates on:
2022-11-23 2023-02-15
Woodworking machines — Safety —
Part 15:
Presses
Machines à bois — Sécurité —
Partie 15: Presses
ICS: 13.110; 79.120.10
This document is circulated as received from the committee secretariat.
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
ISO/CEN PARALLEL PROCESSING
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 19085-15:2022(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. © ISO 2022
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
DRAFT INTERNATIONAL STANDARD
ISO/DIS 19085-15
ISO/TC 39/SC 4 Secretariat: UNI
Voting begins on: Voting terminates on:
Woodworking machines — Safety —
Part 15:
Presses
Machines à bois — Sécurité —
Partie 15: Presses
ICS: 13.110; 79.120.10
This document is circulated as received from the committee secretariat.
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
© ISO 2022
ISO/CEN PARALLEL PROCESSING
THEREFORE SUBJECT TO CHANGE AND MAY
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
NOT BE REFERRED TO AS AN INTERNATIONAL
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on STANDARD UNTIL PUBLISHED AS SUCH.
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
IN ADDITION TO THEIR EVALUATION AS
or ISO’s member body in the country of the requester. BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
ISO copyright office
USER PURPOSES, DRAFT INTERNATIONAL
CP 401 • Ch. de Blandonnet 8
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
CH-1214 Vernier, Geneva
POTENTIAL TO BECOME STANDARDS TO
Phone: +41 22 749 01 11
WHICH REFERENCE MAY BE MADE IN
Reference number
Email: copyright@iso.org
NATIONAL REGULATIONS.
Website: www.iso.org ISO/DIS 19085-15:2022(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
Published in Switzerland
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
ii
PROVIDE SUPPORTING DOCUMENTATION. © ISO 2022
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
Contents Page
Foreword .v
Introduction . vi
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Safety requirements and measures for controls .12
4.1 Safety and reliability of control systems.12
4.2 Control devices .12
4.3 Start . 13
4.3.1 Direct start .13
4.3.2 Start via control power-on . 13
4.4 Safe stops . 13
4.4.1 General .13
4.4.2 Normal stop .13
4.4.3 Operational stop . 14
4.4.4 Emergency stop . 14
4.5 Braking function of tools . 14
4.6 Mode selection . 14
4.7 Tool speed changing . 14
4.7.1 Speed changing by shifting the belts on the pulleys . 14
4.7.2 Speed changing by incremental speed change motor . 14
4.7.3 Infinitely variable speed by frequency inverter . 14
4.8 Failure of any power supply . 14
4.9 Manual reset control . 15
4.10 Standstill detection and monitoring . 15
4.11 Machine moving parts speed monitoring. 15
4.12 Time delay. 15
4.13 Teleservice . 15
5 Safety requirements and measures for protection against mechanical hazards .15
5.1 Stability . 15
5.2 Risk of break-up during operation . 16
5.3 Tool holder and tool design . 16
5.3.1 General . 16
5.3.2 Spindle locking . 16
5.3.3 Circular saw blade fixing devices . 16
5.3.4 Flange dimensions for circular saw blades . 16
5.4 Braking . 16
5.4.1 Braking of tool spindles . 16
5.4.2 Maximum run-down time . 16
5.4.3 Brake release . 16
5.5 Safeguards . 17
5.5.1 Fixed guards . 17
5.5.2 Interlocking moveable guards . 17
5.5.3 Hold-to-run control . 17
5.5.4 Two hand control . 17
5.5.5 Electro-sensitive protective equipment (ESPE) . 17
5.5.6 Pressure sensitive protective equipment (PSPE) . 17
5.5.7 Enabling control . 17
5.6 Prevention of access to hazardous moving parts . 17
5.6.1 Guarding of racks . 17
5.6.2 Safeguarding machines with manual loading and unloading . 18
5.6.3 Safeguarding machines with high-frequency system . 19
iii
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
5.6.4 Safeguarding machines with automatic workpiece loading/unloading
systems type 1, type 2 and type 3 . 20
5.6.5 Safeguarding machines with automatic workpiece loading/unloading
system type 4 . 20
5.6.6 Safeguarding machines with automatic workpiece loading/unloading
system type 5 . 21
5.6.7 Safeguarding machines with automatic workpiece loading/unloading
system type 6 . 21
5.7 Impact hazard . 22
5.8 Clamping devices .23
5.9 Measures against ejection . 23
5.9.1 General .23
5.9.2 Guards materials and characteristics . 23
5.10 Workpiece support and guides .23
6 Safety requirements and measures for protection against other hazards .23
6.1 Fire . 23
6.2 Noise . 24
6.2.1 Noise reduction at the design stage . 24
6.2.2 Noise emission measurement and declaration . 24
6.3 Emission of chips and dust . 24
6.4 Electricity . 24
6.5 Ergonomics and handling . 25
6.6 Lighting . 25
6.7 Pneumatics . 26
6.8 Hydraulics . 26
6.9 Electromagnetic compatibility. 26
6.10 Laser . 26
6.11 Static electricity. 26
6.12 Errors of fitting . 26
6.13 Isolation . 26
6.14 Maintenance . 26
6.15 Relevant but not significant hazards . 26
6.16 Extreme temperatures .26
7 Information for use .26
7.1 Warning devices . 26
7.2 Marking . 27
7.2.1 General . 27
7.2.2 Additional markings . 27
7.3 Instruction handbook. 27
7.3.1 General . 27
7.3.2 Additional information . 27
Annex A (informative) List of significant hazards .29
Annex B (informative) Performance level required .31
Annex C (normative) Stability test .32
Annex D (normative) Test for braking function .33
Annex E (normative) Impact test for guards .34
Annex F (normative) Noise test code .35
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered .39
iv
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 39, Machine tools, Subcommittee SC 4,
Woodworking machines, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 142, Woodworking machines - Safety, in accordance with the Agreement
on technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 19085-15:2021), which has been
technically revised. The main changes compared to the previous edition are as follows:
— the Scope now specifies that machines are intended for continuous production use;
— the list of significant hazards has been moved to new Annex A;
— the structure has been simplified and modified, in particular in 5.6;
— Subclause 6.2 has been updated and the noise test code has been moved to Annex F.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
A list of all parts in the ISO 19085 series can be found on the ISO website.
v
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
Introduction
The ISO 19085 series of International Standards provides technical safety requirements for the
design and construction of woodworking machinery. It concerns designers, manufacturers, suppliers
and importers of the machines specified in the Scope. It also includes a list of informative items to be
provided the user by the manufacturer.
This document is a type-C standard as stated in ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the
market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organisations, market surveillance etc.)
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e. g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events
are covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or
type-B standards, the requirements of this type-C standard take precedence over the requirements of
the other standards for machines that have been designed and built according to the requirements of
this type-C standard.
The full set of requirements for a particular type of woodworking machine are those given in the part
of ISO 19085 applicable to that type, together with the relevant requirements from ISO 19085-1, to the
extent specified in the Scope of the applicable part of ISO 19085.
As far as possible, the safety requirements of parts of the ISO 19085 series refer to the relevant
subclauses of ISO 19085-1. Each part contains replacements and additions to the common requirements
given in ISO 19085-1.
Clauses 1 to 3 are specific to each part and, therefore, replace ISO/FDIS 19085-1:2021, Clauses 1 to 3.
For Clauses 4 to 7 and the annexes, ISO/FDIS 19085-1:2020, Clauses 4 to 7 and Annexes, each subclause
can be:
— confirmed as a whole;
— confirmed with additions;
— excluded in total; or
— replaced with specific text.
This is indicated by one of the following possible statements:
— “ISO 19085-1:2021, [subclause/Annex], applies”;
vi
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
— “ISO 19085-1:2021, [subclause/Annex], applies with the following additions.” or “ISO 19085-1:2021,
[subclause/Annex], applies with the following additions, subdivided into further specific subclauses.”;
— “ISO 19085-1:2021, [subclause/Annex], does not apply.”;
— “ISO 19085-1:2021, [subclause/Annex], is replaced by the following text.” or “ISO 19085-1:2021,
[subclause/Annex], is replaced by the following text, subdivided into further specific subclauses.”.
Other subclauses and annexes specific to this document are indicated by the introductory sentence:
“Subclause/Annex specific to this document.”.
vii
oSIST prEN ISO 19085-15:2023
oSIST prEN ISO 19085-15:2023
DRAFT INTERNATIONAL STANDARD ISO/DIS 19085-15:2022(E)
Woodworking machines — Safety —
Part 15:
Presses
1 Scope
This document gives the safety requirements and measures for stationary:
— cold presses;
— hot presses;
— bending presses;
— edge/face gluing presses;
— membrane presses;
— embossing presses;
where the pressing force is applied by hydraulic actuators pushing two flat or shaped surfaces against
each other, capable of continuous production use, hereinafter referred to as "machines".
It deals with all significant hazards, hazardous situations and events as listed in Annex A, relevant to
machines, when operated, adjusted and maintained as intended and under the conditions foreseen by
the manufacturer, including reasonably foreseeable misuse. Also, transport, assembly, dismantling,
disabling and scrapping phases are taken into account.
It is also applicable to machines fitted with one or more of the following devices/additional working
units, whose hazards have been dealt with:
a) device for hot gluing;
b) device for high-frequency gluing;
c) device for high-frequency shaping;
d) automatic workpiece loading and unloading system;
e) intermediate additional platens;
f) workpiece extractor;
g) workpiece clamping pressure beam;
h) split moveable platens.
The machines are designed to process workpieces consisting of:
1) solid wood;
2) materials with similar characteristics to wood (see ISO 19085 1:2021, 3.2);
3) honeycomb board.
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
This document does not deal with any hazards related to:
— specific devices that differ from the list above;
— hot fluid heating systems internal to the machine other than electrical;
— any hot fluid heating systems external to the machine;
— operation of taking intermediate platens out and in again;
— the combination of a single machine being used with any other machine (as part of a line).
It is not applicable to:
— frame presses;
— membrane presses where the pressing force is applied by vacuum only;
— presses for producing chipboard, fibreboard, OSB;
— machines intended for use in potentially explosive atmosphere;
— machines manufactured before the date of its publication as an international standard.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 13849-1:2015, Safety of machinery — Safety-related parts of control systems — Part 1: General
principles for design
ISO 19085-1:2021, Woodworking machines — Safety — Part 1: Common requirements
IEC 60204-1:2016, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
IEC 61310-1:2007, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for
visual, acoustic and tactile signals
IEC 61800-5-2:2016, Adjustable speed electrical power drive systems — Part 5-2: Safety requirements —
Functional
ISO 7010:2019, Graphical symbols — Safety colours and safety signs — Registered safety signs
E N 12198 -1:2000 +A 1: 2008 , Safety of machinery — Assessment and reduction of risks arising from
radiation emitted by machinery — Part 1: General principles
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100:2010, ISO 13849-1:2015,
ISO 19085-1:2021, and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
3.1
cold press
machine used to laminate and/or join together flat panels, in which the pressing force is applied by
hydraulic actuators pushing two cold flat platens against each other
Note 1 to entry: The moveable platen can be the top or the bottom one or both. Examples of different machine
designs are illustrated in Figures 1 and 2 (safeguarding devices are not fully illustrated).
Note 2 to entry: The following devices can be provided:
— automatic panel loading and unloading;
— split moveable platens (see Figure 14).
3.2
hot press
machine used to laminate and/or join together flat panels, in which the pressing force is applied by
hydraulic actuators pushing two hot flat platens against each other
Note 1 to entry: The moveable platen can be the top or the bottom one or both. Examples of different machine
designs are illustrated in Figures 1 and 2 (safeguarding devices are not fully illustrated).
Note 2 to entry: The following devices can be provided:
— automatic panel loading and unloading;
— intermediate additional platens (see Figure 3).
Note 3 to entry: Platens heating systems can be by electrical resistance or hot fluid (e.g. diathermic oil, water).
Fluid heating system can be internal to the machine or external.
3.3
bending press
machine with manual loading and/or unloading used to assembly and/or shape flat panels, in which the
pressing force is applied by hydraulic actuators pushing two shaped surfaces against each other, and
hot gluing process is by hot dies or high-frequency system
Note 1 to entry: An example of a bending press is illustrated in Figure 4 (safeguarding devices are not fully
illustrated).
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
Figure 1 — Example of cold or hot press with bottom actuators
Figure 2 — Example of cold or hot press with top actuators
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
Figure 3 — Example of hot press with intermediate platens
Figure 4 — Example of a bending press with top actuators
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
3.4
edge/face gluing press
machine used to join together solid wood bars, in which the pressing force is applied by hydraulic
actuators vertically pushing two flat platens against each other, and horizontally pushing elements
against each other, and hot gluing process is by hot platens or high-frequency system
Note 1 to entry: The following devices can be provided:
— workpieces extractor;
— automatic panel loading and unloading system;
— workpiece clamping pressure beam (3.5).
Note 2 to entry: An example of edge/face gluing press is illustrated in Figure 5 (safeguarding devices are not fully
illustrated).
Figure 5 — Example of edge/face gluing press
3.5
membrane press
machine used to laminate or veneer flat or shaped workpieces, in which the pressing force is applied
through a membrane pushed onto the workpiece by compressed air from above and by vacuum from
below, hermetically enclosed by two shells, of which the upper one is heated, pushed against each other
by hydraulic actuators
Note 1 to entry: Automatic panel loading and unloading devices can be provided.
Note 2 to entry: Upper shell heating systems can be by electrical resistance or hot fluid (e.g. diathermic oil,
water). Fluid heating system can be internal to the machine or external.
Note 3 to entry: An example of membrane press is illustrated in Figure 6 (safeguarding devices are not fully
illustrated).
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
Figure 6 — Example of membrane press
3.6
embossing press
machine used to emboss workpieces by a special mould/die fixed to the upper plate, in which the
pressing force is applied by hydraulic actuators pushing two hot flat platens against each other
Note 1 to entry: The moveable platen can be the top or the bottom one or both. Examples of different machine
designs are illustrated in Figures 1 and 2 (safeguarding devices are not fully illustrated).
Note 2 to entry: Automatic panel loading and unloading devices can be provided.
Note 3 to entry: Platens heating systems can be by electrical resistance or hot fluid (e.g. diathermic oil, water).
Fluid heating system can be internal to the machine or external.
3.7
daylight
compartment between two consecutive pressing platens
3.8
automatic workpiece loading/unloading system
system for automatic feed of workpieces into/out of the machine, whereby the workpiece is manually
loaded/unloaded into/out of the system itself
Note 1 to entry: Six usual types of automatic workpiece loading/unloading systems are considered in this
document.
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
3.9
automatic workpiece loading/unloading system type 1
system consisting of an automatic belt/chain/roller conveyor for loading of workpieces into the daylight
(3.7), a feeding belt/chain/roller device applied to the bottom platen and idle roller conveyor or an
automatic belt/chain/roller conveyor for unloading of workpieces
Note 1 to entry: For an example, see Figure 7 (safeguarding devices are not fully illustrated).
Key
1 automatic belt conveyor for loading 3 idle roller conveyor for unloading
2 feeding belt device applied to the bottom platen 4 feed direction
Figure 7 — Example of automatic workpiece loading/unloading system type 1
3.10
automatic workpiece loading/unloading system type 2
system similar to automatic workpiece loading/unloading system type 1 (3.9) but with an automatic
hybrid chain and belt feeding device applied to the platens
Note 1 to entry: For an example, see Figure 8 (safeguarding devices are not fully illustrated).
Key
1 hybrid chain and belt feeding device
2 feed direction
Figure 8 — Example of hybrid chain and belt device
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
3.11
automatic workpiece loading/unloading system type 3
system consisting of an automatic pusher for loading the of workpieces into the daylight (3.7)
Note 1 to entry: Loading a workpiece into the daylight pushes out the workpiece already in the daylight.
Note 2 to entry: Unloading support can be either inclined idle roller conveyor or horizontal table.
Note 3 to entry: For an example with unloading inclined idle roller conveyor, see Figure 9 (safeguarding devices
are not fully illustrated).
Key
1 automatic pusher
2 feed direction
3 platens
Figure 9 — Example of automatic workpiece loading/unloading system type 3
3.12
automatic workpiece loading/unloading system type 4
system consisting of an automatic sliding belt conveyor for loading of workpieces into the daylight (3.7)
Note 1 to entry: When the sliding belt conveyor loads a workpiece into the daylight, at the same time it pushes out
any workpiece already in the daylight.
Note 2 to entry: For an example, see Figure 10.
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
Key
1 sliding belt conveyor
2 loaded workpiece
3 unloaded workpiece
4 platens
Figure 10 — Example of automatic workpiece loading/unloading system type 4
3.13
automatic workpiece loading/unloading system type 5
system consisting of an automatic sliding belt conveyor for loading of workpieces in the daylight (3.7) in
combination with a vacuum system for unloading workpieces onto a roller conveyor
Note 1 to entry: For an example, see Figure 11.
Key
1 sliding belt conveyor
2 loaded workpiece
3 unloaded workpiece
4 platens
5 vacuum system for unloading
6 unloading roller conveyor
Figure 11 — Example of automatic workpiece loading/unloading system type 5
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
3.14
automatic workpiece loading/unloading system type 6
system consisting of an automatic belt/roller multi-conveyor for loading of workpieces in a multi-
daylight machine, a feeding belt/chain/roller device applied to the platens and an automatic belt/roller
multi-conveyor for unloading of workpieces
Note 1 to entry: Each conveyor of the multi-conveyor can move up and down in order to align with daylights (3.7).
Note 2 to entry: Multi-conveyors are loaded/unloaded by single automatic belt/roller conveyors.
Note 3 to entry: For an example, see Figure 12 (safeguarding devices are not fully illustrated).
Key
1 single load belt conveyor 5 automatic belt multi-conveyor for unloading
2 automatic belt multi-conveyor for loading 6 roller conveyor for unloading
3 multi-daylight machine 7 feed direction
4 feeding belt devices applied to the platens
Figure 12 — Example of automatic workpiece loading/unloading system type 6
3.15
workpiece clamping pressure beam
beam to clamp the workpiece in position before the platens close, from the top and/or from the sides/
edges
Note 1 to entry: For an example, see Figure 13.
Figure 13 — Examples of automatic workpiece clamping pressure beam
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
3.16
split movable platen
platen, covering the whole working area, divided into sections that move independently, to process
smaller workpieces of different heights at the same time
Note 1 to entry: The split platen can be top or bottom.
Note 2 to entry: For an example, see Figure 14 (safeguarding devices are not fully illustrated).
Figure 14 — Example of cold press with split moveable platen
3.17
jog control
control device for momentary activation of a function or a movement
4 Safety requirements and measures for controls
4.1 Safety and reliability of control systems
ISO 19085 1:2021, 4.1, applies with the following additions.
Table B.1 replaces ISO 19085-1:2021, Table B.1.
4.2 Control devices
ISO 19085 1:2021, 4.2, applies with the following additions.
oSIST prEN ISO 19085-15:2023
ISO/DIS 19085-15:2022(E)
The main electrical control devices of the machine for control power-on, jog, normal stop, two-hand
control and integrated feed shall be located together on the main control panel in a position from where
the loading position can be seen.
Additional control devices for automatic movements, i.e. start (not including reset function), jog, normal
stop and two-hand control may be duplicated/provided on additional control panels or hand-held
control sets with cable connection, taking into account the requirements of 5.4.4 for emergency stop.
Control devices for reset function and control power-on shall not be fitted on hand-held control sets.
Where an additional two-hand control device is provided, a key selector shall be provided to enable
only one two-hand control device at a time. The SRP/CS for selection of the active two-hand control
device shall achieve PL = c.
r
Emergency stop control devices shall be provided at the following positions:
a) at the main control panel and any auxiliary control panel;
b) at hand-held control set;
c) adjacent to all hold-to-run control devices;
d) at workpiece manual load
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
