EN 12094-4:2004
(Main)Fixed firefighting systems - Components for gas extinguishing systems - Part 4: Requirements and test methods for container valve assemblies and their actuators
Fixed firefighting systems - Components for gas extinguishing systems - Part 4: Requirements and test methods for container valve assemblies and their actuators
This document specifies requirements and describes test methods for container valve assemblies for CO2-high-pressure-, Inert Gas- or Halocarbon Gas-fire extinguishing systems, which include a container valve, an actuator and possibly a diptube.
This document specifies requirements and describes test methods for features of the component relevant only for its use in fire extinguishing installations.
Diptubes not assembled to the container valves are not covered by this standard.
NOTE Valve assemblies can be equipped with additional components (e.g. gauges and switches).
Ortsfeste Brandbekämpfungsanlagen - Bauteile für Löschanlagen mit gasförmigen Löschmitteln - Teil 4: Anforderungen und Prüfverfahren für Behälterventilbaugruppen und zugehörige Auslöseeinrichtungen
Dieses Dokument legt Anforderungen fest und beschreibt und Prüfverfahren für Behälterventilbaugruppen für CO2-Hochdruck-, Inertgas- und Feuerlöschanlagen mit halogenierten Kohlenwasserstoffen fest, die aus Behälterventil, Auslöseeinrichtung und, wenn anwendbar, Tauchrohr bestehen.
Dieses Dokument legt Anforderungen fest und beschreibt Prüfverfahren nur für die Eigenschaften des Bauteils, die für dessen Einsatz in Feuerlöschanlagen wichtig sind.
Nicht in der Behälterventilbaugruppe integrierte Tauchrohre werden in dieser Norm nicht behandelt.
ANMERKUNG Behälterventilbaugruppen können mit zusätzlichen Bauteilen ausgerüstet sein (z. B. mit Messgeräten und Schaltern).
Installations fixes de lutte contre l'incendie - Eléments constitutifs pour installations d'extinction à gaz - Partie 4: Exigences et méthodes d'essai pour les vannes de réservoir et leurs déclencheurs
La présente Norme européenne spécifie les exigences et décrit les méthodes d'essai applicables aux vannes de réservoirs pour les systèmes d'extinction d'incendie à CO2 haute pression, à gaz inerte ou à gaz halogéné, comprenant une vanne de réservoir, un déclencheur et, le cas échéant, un tube plongeur.
La présente Norme européenne spécifie les exigences et décrit les méthodes d'essai uniquement pour les caractéristiques de l'élément constitutif qui sont importantes pour son emploi dans des systèmes d'extinction d'incendie.
Les tubes plongeurs non assemblés aux vannes de réservoirs ne sont pas couverts par la présente norme.
NOTE Les vannes peuvent être équipées d'éléments supplémentaires (ex. manomètres et pressostats).
Vgrajeni gasilni sistemi – Sestavni deli sistemov za gašenje s plinom – 4. del: Zahteve in preskusne metode za ventile in prožilne naprave na visokotlačnih rezervoarjih
General Information
- Status
- Published
- Publication Date
- 20-Jul-2004
- Technical Committee
- CEN/TC 191 - Fixed firefighting systems
- Drafting Committee
- CEN/TC 191/WG 6 - Gas extinguishing Systems and components
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 04-Mar-2024
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
Overview
EN 12094-4:2004 is a CEN European standard for fixed firefighting systems that defines requirements and test methods for container valve assemblies and their actuators used in gas extinguishing systems. It covers assemblies for CO2 (high-pressure), Inert Gas and Halocarbon Gas fire suppression installations. The standard applies to a complete container valve assembly (container valve, actuator and, where fitted, diptube) and addresses only features relevant to fire extinguishing installations. Diptubes supplied separately (not assembled to valves) are excluded.
Key topics and technical requirements
- Scope and definitions: classification of valve types (e.g., valves with or without pressure relief) and terminology specific to gas extinguishing components (CO2 high/low pressure, Inert Gas, Halocarbon Gas, diptube, fill ratio).
- Design and materials: metallic valve bodies and internal parts; corrosion-resistant materials (stainless steel, copper, copper alloys or protected steel) for durability in fire protection applications.
- Working pressure: components must be specified by the manufacturer for appropriate working pressures (example: CO2 high-pressure container valves tested at 140 bar).
- Performance requirements: functional operation across ambient/operational temperatures, flow characteristics and resistance coefficients, specified minimum flow area.
- Safety features: pressure relief device classifications and warnings about release into protected zones.
- Mechanical integrity: strength, resistance to internal pressure, leakage limits, vibration resistance, stress-corrosion considerations.
- Operational reliability: actuator performance (manual, pneumatic, etc.), operating force, functional testing and lifecycle checks.
- Diptube requirements: material, attachment method, geometry and installation orientation details when supplied as part of the assembly.
- Testing methods: prescribed tests for function, internal pressure, strength, leakage, flow characteristics, corrosion, vibration, temperature and operational reliability (see clauses 5.x).
- Marking, documentation and conformity: manufacturer data, marking, initial type testing, factory production control and conformity evaluation procedures.
Applications and who uses this standard
- Manufacturers of container valve assemblies, actuators and diptubes - use EN 12094-4 to design, test and declare conformity of components for gas extinguishing systems.
- System designers and specifying engineers for CO2, Inert Gas and Halocarbon gas fire suppression installations - to select compliant components and verify performance.
- Testing laboratories and certification bodies - to perform type testing, factory production control and conformity assessment.
- Installers, maintenance personnel and safety managers - to ensure correct installation, safe operation and ongoing reliability of container valve assemblies.
Related standards
- Other parts of the EN 12094 series covering gas extinguishing system components (control devices, selector valves, nozzles, gauges, etc.) and referenced standards such as EN 849 (cylinder valves), EN ISO 9001 and relevant ISO thread/pressure standards. Use EN 12094-4 alongside the broader EN 12094 family for comprehensive compliance.
Keywords: EN 12094-4:2004, container valve assemblies, gas extinguishing systems, CO2 valve, inert gas, halocarbon gas, actuator testing, diptube, fire suppression standard.
Frequently Asked Questions
EN 12094-4:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Fixed firefighting systems - Components for gas extinguishing systems - Part 4: Requirements and test methods for container valve assemblies and their actuators". This standard covers: This document specifies requirements and describes test methods for container valve assemblies for CO2-high-pressure-, Inert Gas- or Halocarbon Gas-fire extinguishing systems, which include a container valve, an actuator and possibly a diptube. This document specifies requirements and describes test methods for features of the component relevant only for its use in fire extinguishing installations. Diptubes not assembled to the container valves are not covered by this standard. NOTE Valve assemblies can be equipped with additional components (e.g. gauges and switches).
This document specifies requirements and describes test methods for container valve assemblies for CO2-high-pressure-, Inert Gas- or Halocarbon Gas-fire extinguishing systems, which include a container valve, an actuator and possibly a diptube. This document specifies requirements and describes test methods for features of the component relevant only for its use in fire extinguishing installations. Diptubes not assembled to the container valves are not covered by this standard. NOTE Valve assemblies can be equipped with additional components (e.g. gauges and switches).
EN 12094-4:2004 is classified under the following ICS (International Classification for Standards) categories: 13.220.20 - Fire protection. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12094-4:2004 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/109. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 12094-4:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RNRWODþQLKUH]HUYRDUMLKOrtsfeste Brandbekämpfungsanlagen - Bauteile für Löschanlagen mit gasförmigen Löschmitteln - Teil 4: Anforderungen und Prüfverfahren für Behälterventilbaugruppen und zugehörige AuslöseeinrichtungenInstallations fixes de lutte contre l'incendie - Eléments constitutifs pour installations d'extinction a gaz - Partie 4: Exigences et méthodes d'essai pour les vannes de réservoir et leurs déclencheursFixed firefighting systems - Components for gas extinguishing systems - Part 4: Requirements and test methods for container valve assemblies and their actuators13.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 12094-4:2004SIST EN 12094-4:2004en,fr,de01-oktober-2004SIST EN 12094-4:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12094-4July 2004ICS 13.220.20English versionFixed firefighting systems - Components for gas extinguishingsystems - Part 4: Requirements and test methods for containervalve assemblies and their actuatorsInstallations fixes de lutte contre l'incendie - Elémentsconstitutifs pour installations d'extinction à gaz - Partie 4:Exigences et méthodes d'essai pour les vannes deréservoir et leurs déclencheursOrtsfeste Brandbekämpfungsanlagen - Bauteile fürLöschanlagen mit gasförmigen Löschmitteln - Teil 4:Anforderungen und Prüfverfahren fürBehälterventilbaugruppen und zugehörigeAuslöseeinrichtungenThis European Standard was approved by CEN on 6 May 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12094-4:2004: ESIST EN 12094-4:2004

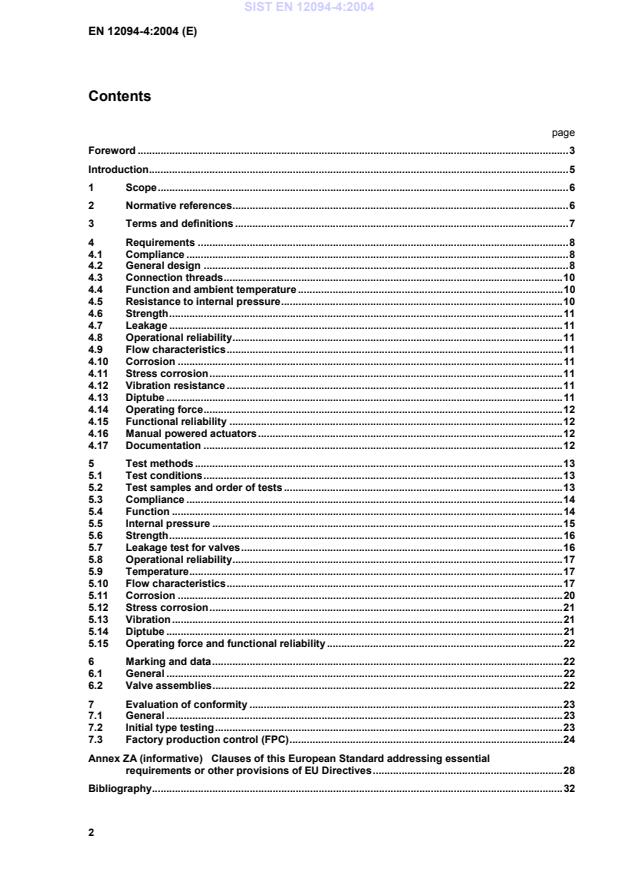

Clauses of this European Standard addressing essential requirements or other provisions of EU Directives.28 Bibliography.32
1) Under preparation. SIST EN 12094-4:2004
1) Under preparation.
1 Scope This document specifies requirements and describes test methods for container valve assemblies for CO2-high-pressure-, Inert Gas- or Halocarbon Gas-fire extinguishing systems, which include a container valve, an actuator and possibly a diptube. This document specifies requirements and describes test methods for features of the component relevant only for its use in fire extinguishing installations. Diptubes not assembled to the container valves are not covered by this standard. NOTE Valve assemblies can be equipped with additional components (e.g. gauges and switches). 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 849, Transportable gas cylinders - Cylinder valves - Specification and type testing. EN 60529, Degrees of protection provided by enclosures (IP-Codes) (IEC 60529:1989). EN 60068-2-6, Environmental testing- Part 2: Tests - Test Fc: Vibration (sinusoidal) (IEC 60068-2-6:1995 + Corrigendum 1995). EN ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads - Part 1: Dimensions, tolerances and designation (ISO 228-1:2000). EN ISO 4126-2, Safety devices for protection against excessive pressure - Part 2: Bursting disc safety devices (ISO 4126-2:2003). EN ISO 9001:2000, Quality management systems – Requirements (ISO 9001:2000). ISO 7-1, Pipe threads where pressure-tight joints are made on the threads - Part 1: Dimensions, tolerances and designation. SIST EN 12094-4:2004
4.2.3 The manufacturer shall specify the free cross-sectional area of the minimum flow way of the valve. In addition the manufacturer may specify the flow characteristics of the component either as an equivalent length or as a flow resistance coefficient. 4.2.4 The manufacturer shall specify the smallest container, the related minimum and maximum fill ratio and, if applicable, the related superpressurization the component shall be used for. 4.2.5 Where the component is assembled with a diptube, the diptube shall be made of metal, rigid or flexible, and shall be fixed to the container valve by mechanical means, e.g. a threaded connection. The geometry of the inlet of the diptube and the length of the diptube related to the container shall be specified SIST EN 12094-4:2004
5.3 Compliance A visual and measurement check shall be made to determine whether the test samples correspond to the description in the technical literature (drawings, parts lists, description of functions, operating and installation instructions). 5.4 Function 5.4.1 General NOTE This test relates to the requirements of 4.2.15 and 4.4.1. 5.4.2 Mount the container valve in the attitude specified by the manufacturer or, if not given, in the attitude where maximum force is required. Verify compliance with the requirements of 4.4.1 by one of the two following methods. Method 1: Connect the inlet of the sample to a suitable gas supply and install a pressure measuring device at the inlet of the sample. Actuate the valve and start gas flow through the sample increasing the pressure until the valve is fully open. Decrease the pressure at the inlet of the sample to 3 bar. Check that the sample remains in its fully open position. SIST EN 12094-4:2004
pressure (010+) %. Maintain this pressure for a time period of (5 01+) min. At the end of this period release the hydraulic pressure. For pyrotechnic powered actuators the test procedure shall be set up with data provided by the manufacturer of the pyrotechnic elements to meet the three times working pressure strength requirement. 5.7 Leakage test for valves NOTE This test relates to the requirements of 4.7. Components for non-liquefied extinguishants (e.g. Inert gases) and for liquefied extinguishants without superpressurization (e.g. CO2) shall be tested in conjunction with the smallest container for which the valve is designed. The container sample shall be charged to the maximum specified fill ratio. Components for liquefied extinguishants with superpressurization shall be tested in conjunction with the smallest container for which the valve is designed. One of the specified container samples shall be charged to the minimum fill ratio and the other to the maximum fill ratio. Both containers shall be superpressurized to the superpressurization pressure. Measure and record the charge mass to an accuracy of ± 0,1 %. For superpressurized liquefied extinguishants additionally measure and record the charge pressure to an accuracy of ± 0,1 %. Expose the assembly to changes of temperature in air: a) lower temperature shall be (- 20 20-) °C, or the manufacturer's recommended minimum service temperature (02−) °C, whichever is the lower; b) higher temperature shall be (5002+) °C, or the manufacturer's recommended maximum service temperature (02+) °C, whichever is the higher; SIST EN 12094-4:2004
manufacturer (02+) °C whichever is the higher, for (2 ± 0,5) h. Carry out five test cycles as described in 5.4.3 a) to d) at test temperature. 5.10 Flow characteristics 5.10.1 General NOTE This test relates to the requirements of 4.9. The flow characteristics of the container valve is determined in combination with the diptube, if applicable. SIST EN 12094-4:2004
Key 1 Supply container 6 Container valve 2 Check valve 7 Container mass 3 Diptube 8 Pressure in the container (p1) 4 Flexible connector 9 Pressure downstream of the sample (p3) 5 Nozzle Figure 1 — Test set-up 1 for measuring resistance coefficient or equivalent length
Key 1 Supply container 7 Container valve 2 Check valve 8 Container mass 3 Diptube 9 Pressure in the container (p1) 4 Flexible connector 10 Pressure upstream of the test pipe (p2) 5 Nozzle 11 Pressure downstream of the test pipe (p3) 6 Test pipe Figure 2 — Test set-up 2 for measuring resistance coefficient or equivalent length SIST EN 12094-4:2004
...
SIST EN 12094-4:2004は、ガス消火システムのための容器バルブアセンブリおよびそのアクチュエーターに関する要求事項と試験方法を詳述した標準です。この文書は、CO2高圧、無害ガス、またはハロカーボンガス消火システム向けの容器バルブアセンブリの機能に特有の要件を規定しており、消火設備における正確で安全な運用が求められる場面において、非常に重要な役割を果たします。 この標準の強みは、詳細な試験方法を記載している点にあります。これにより、コンポーネントの性能が保証され、使用環境において求められる基準を満たすことができます。特に、容器バルブやアクチュエーターに対する厳格な要求が設けられているため、消防システム全体の信頼性と効率が向上します。また、バルブアセンブリに追加できる部品（圧力計やスイッチなど）の柔軟性により、さまざまな設置条件に対応できる点も特色です。 さらに、この標準は消防設備に特有の要素に焦点を当てており、特にバルブアセンブリの機能性を最大限に引き出すために設計されています。これは不完全な装置の使用を防止し、消火システムの安全性を一層向上させる結果となります。逆に、文書では、容器バルブに組み込まれていないディプチューブについてはカバーされておらず、その点を明確に区別していることも評価できます。 EN 12094-4:2004は、ガス消火システムの導入や保守に関わる業界において、その関連性が高い標準であり、消防の分野における信頼性の確保に寄与する価値ある資料です。
The EN 12094-4:2004 standard provides a comprehensive framework for assessing and ensuring the safety and efficacy of container valve assemblies utilized in fixed firefighting systems, specifically those that utilize carbon dioxide (CO2), inert gases, and halocarbon gases. This document is critical as it details both the requirements and test methods necessary for validating the functionality and reliability of these essential components within fire extinguishing installations. One of the significant strengths of this standard is its specificity; it focuses solely on the elements directly related to the operation of container valve assemblies, which consist of the valve itself, the actuator, and potential diptubes. This targeted approach ensures that manufacturers and users can clearly understand what is necessary for compliance and performance excellence. By outlining the relevant performance features, the standard aids in mitigating risks associated with fire hazards, making it a vital reference for the industry. Moreover, EN 12094-4:2004's provision for additional components like gauges and switches reflects its adaptability and relevance in modern firefighting technology. This inclusion allows for a comprehensive evaluation of the valve assembly's operational parameters, ensuring that each component works in harmony to enhance the overall effectiveness of the fixed firefighting systems. The focus on testing methods within the standard is particularly noteworthy, as these protocols not only establish a benchmark for quality but also promote consistency in manufacturing practices. This is essential in maintaining safety standards across different jurisdictions and applications, reinforcing the document's value to stakeholders in the firefighting sector. In summary, the EN 12094-4:2004 standard is an essential tool for the industry, providing clear requirements and robust test methodologies that contribute to the reliability and safety of container valve assemblies in fixed firefighting systems. Its relevance in an increasingly safety-conscious environment cannot be overstated, as it helps ensure that fire extinguishing systems perform optimally when required.
SIST EN 12094-4:2004 표준은 고압 CO2, 비활성 가스 또는 할로카본 가스를 사용하는 고정 소화 시스템의 일환으로, 컨테이너 밸브 조립체 및 그 작동 장치에 대한 요구 사항과 시험 방법을 명확하게 규정하고 있습니다. 이 표준의 주요 초점은 소화 설비 내에서의 사용에만 관련된 구성 요소의 특성을 자세히 설명하는 것입니다. 이 표준은 컨테이너 밸브와 작동 장치, 그리고 필요 시 디프튜브를 포함하는 컨테이너 밸브 조립체의 요구 사항을 설정하여 소화 시스템의 신뢰성과 안전성을 높이는 데 기여합니다. 특히 소화 시스템의 설치 및 작동에서 중추적인 역할을 하는 구성 요소에 대한 명확한 기준을 제시함으로써 설계 및 설치 과정에서의 품질 보증을 달성할 수 있습니다. SIST EN 12094-4:2004의 강점 중 하나는 테스트 방법의 표준화입니다. 이는 사용자가 동일한 기준에 따라 시험을 수행할 수 있도록 하여, 제품의 일관성과 안전성을 확보할 수 있는 기반을 제공합니다. 게다가, 추가 부품(예: 게이지 및 스위치)으로 장착할 수 있는 밸브 조립체의 유연성은 다양한 소화 시스템의 요구에 맞춰 쉽게 맞춤화할 수 있는 장점을 제공합니다. 따라서, 이 표준은 고정 소화 시스템 기술 분야에서 필수적으로 요구되는 문서로서, 해당 분야의 전문가와 기업들이 소화 장비의 효율성과 안전성을 보장하는 데 중요한 역할을 합니다. 소화 시스템의 구성 요소가 안전하고 효과적으로 작동할 수 있도록 돕는 SIST EN 12094-4:2004는 현재 및 미래의 소화 시스템 설계 및 설치의 중요한 토대입니다.
