Gas-fired overhead luminous radiant heaters for non-domestic use - Safety and energy efficiency

This European Standard specifies the requirements and test methods for the construction, safety, rational use of energy, classification and marking of non-domestic gas-fired overhead luminous radiant heaters for environmental comfort, referred to in the body of the text as "appliances".
This European Standard is applicable to Type A1 and Type A3 appliances only (see 4.2.2) intended for use in other than residential dwellings:
a)   low gas pressure appliances operating at pressures up to and including 50 mbar;
b)   medium gas pressure appliances operating at pressures above 50 mbar and up to 2 bar.
This European Standard is not applicable to:
-   appliances designed for use in domestic dwellings;
-   outdoor appliances;
-   appliances of heat input in excess of 120 kW (based on the net calorific value of the appropriate reference gas);
This standard is applicable to appliances which are intended to be type tested.

Gasbefeuerte Hellstrahlerheizgeräte für gewerbliche und industrielle Anwendungen - Sicherheit und Energieeffizienz

Dieses Dokument legt die Anforderungen und Prüfverfahren im Hinblick auf die Konstruktion, Sicherheit, rationelle Energienutzung, Klassifizierung und Kennzeichnung gasbefeuerter Hellstrahler für gewerbliche und industrielle Anwendung (im folgenden Text als „Geräte“ bezeichnet) fest.
Dieses Dokument gilt nur für Geräte der Typen A1 und A3 (siehe 4.2.2) für die Anwendung in Räumlichkeiten, die keine Wohnungen sind:
a) Niederdruckgeräte mit Betriebsdrücken bis einschließlich 50 mbar;
b) für Mitteldruckgeräte mit Betriebsdrücken über 50 mbar bis zu 2 bar.
Dieses Dokument gilt nicht für:
- Geräte, die für eine Verwendung in Wohnungen gedacht sind;
- Geräte, die für eine Verwendung im Freien gedacht sind;
- Geräte mit einer Wärmebelastung über 120 kW (bezogen auf den Heizwert des jeweiligen Normprüfgases).
Dieses Dokument ist anwendbar für Geräte, die für eine Typprüfung vorgesehen sind.

Appareils surélevés de chauffage à rayonnement lumineux au gaz à usage non domestique - Sécurité et efficacité énergétique

La présente Norme européenne définit les exigences et les techniques d’essai relatives à la construction, la sécurité, l’utilisation rationnelle de l’énergie, la classification et le marquage des appareils surélevés de chauffage à rayonnement lumineux au gaz à usage non domestique pour le confort ambiant, appelés ci-après « appareils ».
La présente Norme européenne s’applique aux appareils de type A1 et de type A3 (voir 4.2.2) destinés à être utilisés ailleurs que dans les locaux résidentiels :
a)   appareils à gaz basse pression fonctionnant à des pressions inférieures ou égales à 50 mbar ;
b)   appareils à gaz moyenne pression fonctionnant à des pressions comprises entre 50 mbar et 2 bar.
La présente Norme européenne ne s’applique pas :
-   aux appareils conçus pour des locaux domestiques ;
-   aux appareils utilisés en plein air ;
-   aux appareils dont le débit calorifique dépasse 120 kW (sur le pouvoir calorifique inférieur du gaz de référence approprié).
La présente norme s’applique aux appareils qui sont destinés à subir des essais de type.

Stropna plinska sevala z zgorevanjem na površini za gretje nestanovanjskih prostorov - Varnost in energijska učinkovitost

Ta evropski standard določa zahteve in preskusne metode za izdelavo, varnost, racionalno rabo energije, razvrščanje in označevanje stropnih plinskih seval z zgorevanjem na površini za gretje nestanovanjskih prostorov (v telesu besedila imenovanih »aparati«).
Ta evropski standard se uporablja samo za aparate tipa A1 in tipa A3 (glej 4.2.2), ki so namenjeni za uporabo v nestanovanjskih prostorih:
a) aparate z nizkim tlakom plina, ki delujejo pri tlakih do vključno 50 mbar;
b) aparate s srednjim tlakom plina, ki delujejo pri tlakih nad 50 mbar do vključno 2 mbar.
Ta evropski standard se ne uporablja za:
– aparate, zasnovane za uporabo v stanovanjskih prostorih;
– aparate za uporabo na prostem;
– aparate, pri katerih nazivna moč presega 120 kW (na podlagi neto kalorične vrednosti ustreznega referenčnega preskusnega plina).
Ta standard se uporablja za aparate, predvidene za tipski preskus.

General Information

Status
Published
Publication Date
15-Oct-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
16-Oct-2019
Completion Date
16-Oct-2019

RELATIONS

Buy Standard

Standard
EN 419:2020
English language
114 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 419:2020
01-januar-2020
Nadomešča:
SIST EN 419-1:2009
SIST EN 419-2:2006
Stropna plinska sevala z zgorevanjem na površini za gretje nestanovanjskih
prostorov - Varnost in energijska učinkovitost

Gas-fired overhead luminous radiant heaters for non-domestic use - Safety and energy

efficiency
Sicherheit und Energieeffizienz gasbefeuerter Hellstrahlungsheizgeräte für
nichthäusliche Einsatzbereiche
Appareils surélevés de chauffage à rayonnement lumineux au gaz à usage non
domestique - Sécurité et efficacité énergétique
Ta slovenski standard je istoveten z: EN 419:2019
ICS:
97.100.20 Plinski grelniki Gas heaters
SIST EN 419:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 419:2020
---------------------- Page: 2 ----------------------
SIST EN 419:2020
EN 419
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2019
EUROPÄISCHE NORM
ICS 97.100.20 Supersedes EN 419-1:2009, EN 419-2:2006
English Version
Gas-fired overhead luminous radiant heaters for non-
domestic use - Safety and energy efficiency

Appareils surélevés de chauffage à rayonnement Gasbefeuerte Hellstrahlerheizgeräte für gewerbliche

lumineux au gaz à usage non domestique - Sécurité et und industrielle Anwendungen - Sicherheit und

efficacité énergétique Energieeffizienz
This European Standard was approved by CEN on 26 August 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 419:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 419:2020
EN 419:2019 (E)

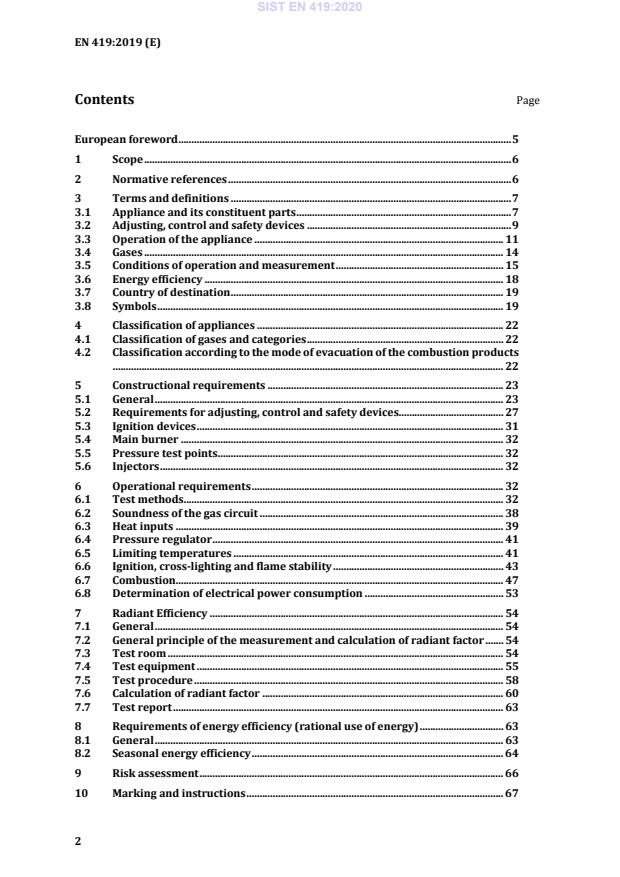

Contents Page

European foreword ............................................................................................................................... 5

1 Scope ............................................................................................................................................ 6

2 Normative references ............................................................................................................ 6

3 Terms and definitions ........................................................................................................... 7

3.1 Appliance and its constituent parts .................................................................................. 7

3.2 Adjusting, control and safety devices .............................................................................. 9

3.3 Operation of the appliance ............................................................................................... 11

3.4 Gases ......................................................................................................................................... 14

3.5 Conditions of operation and measurement ................................................................ 15

3.6 Energy efficiency .................................................................................................................. 18

3.7 Country of destination ........................................................................................................ 19

3.8 Symbols .................................................................................................................................... 19

4 Classification of appliances .............................................................................................. 22

4.1 Classification of gases and categories ........................................................................... 22

4.2 Classification according to the mode of evacuation of the combustion products

..................................................................................................................................................... 22

5 Constructional requirements .......................................................................................... 23

5.1 General ..................................................................................................................................... 23

5.2 Requirements for adjusting, control and safety devices........................................ 27

5.3 Ignition devices ..................................................................................................................... 31

5.4 Main burner ........................................................................................................................... 32

5.5 Pressure test points ............................................................................................................. 32

5.6 Injectors ................................................................................................................................... 32

6 Operational requirements ................................................................................................ 32

6.1 Test methods.......................................................................................................................... 32

6.2 Soundness of the gas circuit ............................................................................................. 38

6.3 Heat inputs ............................................................................................................................. 39

6.4 Pressure regulator ............................................................................................................... 41

6.5 Limiting temperatures ....................................................................................................... 41

6.6 Ignition, cross-lighting and flame stability ................................................................. 43

6.7 Combustion............................................................................................................................. 47

6.8 Determination of electrical power consumption ..................................................... 53

7 Radiant Efficiency ................................................................................................................ 54

7.1 General ..................................................................................................................................... 54

7.2 General principle of the measurement and calculation of radiant factor ....... 54

7.3 Test room ................................................................................................................................ 54

7.4 Test equipment ..................................................................................................................... 55

7.5 Test procedure ...................................................................................................................... 58

7.6 Calculation of radiant factor ............................................................................................ 60

7.7 Test report .............................................................................................................................. 63

8 Requirements of energy efficiency (rational use of energy) ................................ 63

8.1 General ..................................................................................................................................... 63

8.2 Seasonal energy efficiency ................................................................................................ 64

9 Risk assessment .................................................................................................................... 66

10 Marking and instructions .................................................................................................. 67

---------------------- Page: 4 ----------------------
SIST EN 419:2020
EN 419:2019 (E)

10.1 Marking of the appliance and the packaging ............................................................. 67

10.2 Instructions ............................................................................................................................ 69

10.3 Presentation ........................................................................................................................... 73

10.4 Information Requirements of Local Space Heaters ................................................. 73

Annex A (informative) National situations ................................................................................ 74

A.1 General ..................................................................................................................................... 74

A.2 Gas rate adjusters, aeration adjusters and regulators ........................................... 74

A.3 Conversion to different gases .......................................................................................... 74

A.4 Gas connections in the various countries .................................................................... 74

Annex B (informative) Equivalence rules ................................................................................... 76

B.1 Conversion to categories within a restricted Wobbe index range ..................... 76

B.2 Conversion to categories within an identical Wobbe index range ..................... 76

B.3 Conversion to categories within a wider Wobbe index range ............................. 77

Annex C (informative) Identification of the types of gas in use in the various countries

..................................................................................................................................................... 78

Annex D (normative) Special national conditions .................................................................. 80

Annex E (normative) Calculation of conversions of NO ....................................................... 81

E.1 NO emission conversion factors .................................................................................... 81

E.2 NO conversion calculation ............................................................................................... 82

Annex F (informative) National situations of countries whose national bodies are CEN

associate members .............................................................................................................. 84

Annex G (informative) Radiometer design ................................................................................ 85

G.1 Principle radiometer design features ........................................................................... 85

G.2 Radiometer technical design ........................................................................................... 86

G.3 Pyro-electric detector ......................................................................................................... 86

G.4 Ulbricht Sphere ..................................................................................................................... 86

Annex H (informative) Radiometer calibration ....................................................................... 89

H.1 Radiometer calibration procedure ................................................................................ 89

H.2 Black body calibration equipment and procedure .................................................. 89

H.2.1 General ..................................................................................................................................... 89

H.2.2 Temperature calibration at reference condition ..................................................... 90

H.2.3 Temperature calibration at higher temperatures ................................................... 91

H.2.4 Calibration calculation ....................................................................................................... 92

H.3 Calibration procedure in detail, presented as a worked example ..................... 93

H.3.1 Calibration Measurements ............................................................................................... 93

H.3.2 Selecting the average readings ........................................................................................ 94

H.3.3 Determination of the 1/S sensitivity per temperature .......................................... 94

H.3.4 Determining the 1/S sensitivity of the radiometer .................................................. 95

---------------------- Page: 5 ----------------------
SIST EN 419:2020
EN 419:2019 (E)

H.3.5 Documentation of calibration results ........................................................................... 95

Annex I (normative) Correction of measured radiant output for absorption by H O

and CO ..................................................................................................................................... 99

I.1 General ..................................................................................................................................... 99

I.2 Calculation method ............................................................................................................101

Annex J (informative) Radiant heat output data - Recording of results ........................102

J.1 General information to be recorded ...........................................................................102

J.1.1 Test and appliance data ...................................................................................................102

J.1.2 Radiometer technical data ..............................................................................................102

J.1.3 Measuring plane technical data ....................................................................................102

J.1.4 Measurement results ........................................................................................................103

J.1.5 Test information .................................................................................................................103

J.1.6 Test ambient conditions ..................................................................................................103

J.1.7 Gas/heat input data ...........................................................................................................103

J.1.8 Flue gas data .........................................................................................................................104

J.1.9 Absorption of water vapour and CO ..........................................................................104

J.1.10 Irradiation measurement data ......................................................................................104

Annex K (informative) Worked example ..................................................................................105

K.1 General information ..........................................................................................................105

K.2 Radiometer technical data ..............................................................................................105

K.3 Measuring plane technical data ....................................................................................105

K.4 Measurement results ........................................................................................................106

K.4.1 Test information .................................................................................................................106

K.4.2 Test ambient conditions ..................................................................................................106

K.4.3 Gas/heat input data ...........................................................................................................106

K.4.4 Flue gas data .........................................................................................................................107

K.4.5 Absorption of water vapour and CO data .................................................................107

K.4.6 Irradiation measurement data ......................................................................................107

Annex L (normative) Product information required ...........................................................108

Annex M (normative) Accepted heat input deviation ..........................................................109

M.1 General ...................................................................................................................................109

Annex N (normative) Uncertainty of measurements ...........................................................110

Annex O (informative) Different types of heat input control ............................................112

Annex ZA (informative) Relationship between this European Standard and the
ecodesign requirements of Commission Regulation (EU) No 2015/1188 aimed

to be covered ........................................................................................................................113

Bibliography .......................................................................................................................................114

---------------------- Page: 6 ----------------------
SIST EN 419:2020
EN 419:2019 (E)
European foreword
This document (EN 419:2019) has been prepared by Technical Committee CEN/TC 180
“Decentralized gas heating”, the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of

an identical text or by endorsement, at the latest by April 2020, and conflicting national standards

shall be withdrawn at the latest by April 2020.

Attention is drawn to the possibility that some of the elements of this document may be the

subject of patent rights. CEN shall not be held responsible for identifying any or all such patent

rights.
This document supersedes EN 419-1:2009 and EN 419-2:2006.

Aspects of safety and energy efficiency of appliances are brought together. Significant changes of

the new document compared to the earlier standards are: incorporation recent state of the art of

luminous heaters, incorporation of medium gas pressure appliances for industrial use, unique

and more detailed description of method to determine radiant factor, incorporating terms and

calculation scheme of Ecodesign Regulation (EU) No. 2015/1188.

The test gases, test pressures and appliance categories given in this European Standard are in

accordance with those specified in EN 437:2018.

This document has been prepared under a mandate given to CEN by the European Commission

and the European Free Trade Association, and supports essential requirements of
EC Directive(s).

For relationship with EC Directive(s), see informative Annex ZA, which is an integral part of this

document.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,

Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,

Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
---------------------- Page: 7 ----------------------
SIST EN 419:2020
EN 419:2019 (E)
1 Scope

This document specifies the requirements and test methods for the construction, safety, rational

use of energy, classification and marking of non-domestic gas-fired overhead luminous radiant

heaters for environmental comfort, referred to in the body of the text as “appliances”.

This document is applicable to Type A and Type A appliances only (see 4.2.2) intended for use

1 3
in other than residential dwellings:

a) low gas pressure appliances operating at pressures up to and including 50 mbar;

b) medium gas pressure appliances operating at pressures above 50 mbar and up to 2 bar.

This document is not applicable to:
— appliances designed for use in domestic dwellings;
— outdoor appliances;

— appliances of heat input in excess of 120 kW (based on the net calorific value of the

appropriate reference gas);
This document is applicable to appliances which are intended to be type tested.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

EN 88-1:2011+A1:2016, Pressure regulators and associated safety devices for gas appliances - Part

1: Pressure regulators for inlet pressures up to and including 50 kPa

EN 88-2:2007, Pressure regulators and associated safety devices for gas appliances - Part 2:

Pressure regulators for inlet pressures above 500 mbar up to and including 5 bar

EN 125:2010+A1:2015, Flame supervision devices for gas burning appliances - Thermoelectric

flame supervision devices
EN 126:2012, Multifunctional controls for gas burning appliances

EN 161:2011+A3:2013, Automatic shut-off valves for gas burners and gas appliances

EN 298:2012, Automatic burner control systems for burners and appliances burning gaseous or

liquid fuels
EN 437:2018, Test gases - Test pressures - Appliance categories

EN 1057:2006+A1:2010, Copper and copper alloys - Seamless, round copper tubes for water and

gas in sanitary and heating applications
EN 1106:2010, Manually operated taps for gas burning appliances

EN 10226-1:2004, Pipe threads where pressure tight joints are made on the threads - Part 1: Taper

external threads and parallel internal threads - Dimensions, tolerances and designation

---------------------- Page: 8 ----------------------
SIST EN 419:2020
EN 419:2019 (E)

EN 10226-2:2005, Pipe threads where pressure tight joints are made on the threads - Part 2: Taper

external threads and taper internal threads - Dimensions, tolerances and designation

EN 12067-2:2004, Gas/air ratio controls for gas burners and gas burning appliances - Part 2:

Electronic types

EN 13410:2001, Gas-fired overhead radiant heaters - Ventilation requirements for non-domestic

premises

EN 13611:2019, Safety and control devices for burners and appliances burning gaseous and/or

liquid fuels - General requirements

EN 14459:2015, Safety and control devices for burners and appliances burning gaseous or liquid

fuels - Control functions in electronic systems - Methods for classification and assessment

EN 14800:2007, Corrugated safety metal hose assemblies for the connection of domestic appliances

using gaseous fuels

EN 60335-1:2012, Household and similar electrical appliances - Safety - Part 1: General

requirements

EN 60335-2-102:2016, Household and similar electrical appliances - Safety - Part 2-102: Particular

requirements for gas, oil and solid-fuel burning appliances having electrical connections

EN 60529:1991, Degrees of protection provided by enclosures (IP Code)

ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads — Part 1:

Dimensions, tolerances and designation

EN ISO 228-1:2003, Pipe threads where pressure-tight joints are not made on the threads - Part 1:

Dimensions, tolerances and designation (ISO 228-1:2000)

EN ISO 3166-1:2014, Codes for the representation of names of countries and their subdivisions -

Part 1: Country codes (ISO 3166-1:2013)

EN ISO/IEC 17025:2005, General requirements for the competence of testing and calibration

laboratories (ISO/IEC 17025:2005)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Appliance and its constituent parts
3.1.1
overhead luminous radiant heater

gas-fired appliance intended for installation at a height above head level, which is designed to

heat the space beneath by radiation and in which the heat is produced by means of burning the

---------------------- Page: 9 ----------------------
SIST EN 419:2020
EN 419:2019 (E)

fuel at or near the outer surface of a material such as a ceramic plaque or gauze, or by means of a

burner heating a gauze or similar material
3.1.2
atmospheric burner

aerated burner in which the air for combustion is entrained at atmospheric pressure

3.1.3
inlet connection
part of the appliance intended to be connected to the gas supply
3.1.4
mechanical joint

means of ensuring the soundness of an assembly of several (generally metallic) parts without the

use of liquids, pastes, tapes, etc
Note 1 to entry: For example the following:
a) metal to metal joints;
b) conical joints;
c) toroidal sealing rings (“O” rings);
d) flat joints.
3.1.5
gas circuit

part of the appliance that conveys or contains the gas between the appliance gas inlet connection

and the burner(s)
3.1.6
restrictor

device with an orifice, which is placed in the gas circuit so as to create a pressure drop and thus

reduce the gas pressure at the burner to a predetermined value for a given supply pressure and

rate
3.1.7
gas rate adjuster

component allowing to set the gas rate of the burner to a predetermined value according to the

supply conditions

Note 1 to entry: Adjustment can be progressive (screw adjuster) or in discrete steps (by changing

restrictors).

Note 2 to entry: The adjusting screw of an adjustable regulator is regarded as a gas rate adjuster.

Note 3 to entry: The action of adjusting this device is called “adjusting the gas rate”.

Note 4 to entry: A factory sealed gas rate adjuster is considered to be non-existent.

Note 5 to entry: Immobilizing a gas rate adjuster by means as e.g. a screw is called “setting an adjuster”.

Note 6 to entry: Arrangement in respect of the adjuster such that any attempt to change the adjustment

breaks the sealing device or sealing material and makes this interference apparent is called “sealing an

adjuster”.
---------------------- Page: 10 ----------------------
SIST EN 419:2020
EN 419:2019 (E)

Note 7 to entry: A gas rate adjuster is considered to be non-existent if it has been factory sealed in a

position such that it is not operational in the range of supply pressures corresponding to the appliance

category.

Note 8 to entry: Putting an adjuster or a control (of temperature, pressure, etc.) out of action and sealing

it in this position is called “putting an adjuster or a control out of service”; the appliance functions as if the

adjuster or control had been removed.
3.1.8
injector
component that admits the gas into a burner
3.1.9
main burner
burner that is intended to ensure the thermal function of the appliance
Note 1 to entry: Main burner is generally called “the burner”
3.1.10
ignition burner
burner whose flame is intended to ignite another burner
3.1.11
ignition device

means (e.g. flame, electrical ignition device or other device) used to ignite the gas at the ignition

burner or at the main burner
3.1.12
primary aeration adjuster

device enabling the primary air to be set at the necessary value according to the supply conditions

3.1.13
low gas pressure appliance
appliance operating at gas pressures up to and including 50 mbar
3.1.14
medium gas pressure appliance
appliance operating at gas pressures above 50 mbar and up to 2 bar
3.2 Adjusting, control and safety devices
3.2.1
automatic burner control system

system comprising a programming unit and all the elements of a flame detector device

Note 1 to entry: The various functions of an automatic burner control system may be in one or more

housings.
---------------------- Page: 11 ----------------------
SIST EN 419:2020
EN 419:2019 (E)
3.2.2
programming unit

device which executes the programme reacting to signals from control and safety devices, gives

control commands, controls the start-up sequence, supervises the burner operation and causes

controlled shut-down, and, if necessary, safety shut-down and lock-out

Note 1 to entry: The programming unit follows a predetermined sequence of actions and always

operates in conjunction with a flame detector. Such a sequence of operations involving switching on,

starting up, supervising and switching off the burner is called “programme”.
3.2.3
flame detector
device by which the pre
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
