Health and safety in welding and allied processes - Laboratory method for sampling fume and gases - Part 2: Determination of the emission rates of carbon monoxide (CO), carbon dioxide (CO2), nitrogen monoxide (NO) and nitrogen dioxide (NO2) during arc welding, cutting and gouging (ISO 15011-2:2009)

ISO 15011-2:2009 defines laboratory methods for measuring the emission rates of carbon monoxide (CO), carbon dioxide (CO2), nitrogen monoxide (NO) and nitrogen dioxide (NO2) generated during arc welding, cutting and gouging, using a hood technique. The methodology is suitable for use with all open arc welding processes, cutting and gouging, but different designs of hood are used depending on the process and whether or not it can be conducted automatically.

Arbeits- und Gesundheitsschutz beim Schweißen und bei verwandten Verfahren - Laborverfahren zum Sammeln von Rauch und Gasen - Teil 2: Bestimmung der Emissionsraten von Kohlenmonoxid (CO), Kohlendioxid (CO2), Stickstoffmonoxid (NO) und Stickstoffdioxid (NO2) beim Lichtbogenschweißen, Schneiden und Fugenhobeln (ISO 15011-2:2009)

Dieser Teil der ISO 15011 legt Laborverfahren zum Messen der Emissionsraten von Kohlenmonoxid (CO), Kohlendioxid (CO2), Stickstoffmonoxid (NO) und Stickstoffdioxid (NO2) beim Lichtbogenschweißen, Schneiden und Fugenhobeln mit Hilfe der Haubentechnik fest. Die beschriebenen Methoden sind geeignet für alle Schwei߬verfahren mit offenem Lichtbogen, für das Schneiden und Fugenhobeln, es werden allerdings unterschiedliche Haubenbauarten verwendet, abhängig vom Verfahren und davon, ob Automatikschweißen durchgeführt werden kann oder nicht.
Das Verfahren kann zur Bewertung der Auswirkungen von Schweißdrähten, Schweißparametern, Verfahren, Schutzgasen, Zusammensetzung des Prüfstücks und der Oberflächenbeschaffenheit des Prüfstücks auf die Emissionsrate verwendet werden.

Hygiène et sécurité en soudage et techniques connexes - Méthode de laboratoire d'échantillonnage des fumées et des gaz - Partie 2: Détermination des débits d'émission du monoxyde de carbone (CO), du dioxyde de carbone (CO2), du monoxyde d'azote (NO) et du dioxyde d'azote (NO2) lors du soudage à l'arc, du coupage et du gougeage (ISO 15011-2:2009)

L'ISO 15011-2:2009 définit des méthodes de laboratoire permettant de mesurer les débits d'émission du monoxyde de carbone (CO), du dioxyde de carbone (CO2), du monoxyde d'azote (NO) et du dioxyde d'azote (NO2) qui peuvent être générés lors du soudage à l'arc, du coupage et du gougeage, en utilisant la technique de la hotte d'aspiration. La méthodologie est adaptée à une utilisation avec tous les procédés de soudage à l'arc à l'air libre, au coupage et au gougeage, mais différents modèles de hotte sont utilisés selon le procédé et selon que ce dernier peut ou non être conduit automatiquement.

Zdravje in varnost pri varjenju in sorodnih postopkih - Laboratorijski postopek za vzorčenje dima in plinov - 2. del: Določevanje ogljikovega monoksida (CO), ogljikovega dioksida (CO2), dušikovega monoksida (NO) in dušikovega dioksida (NO2) (ISO 15011-2:2009)

Ta del ISO 15011 določa laboratorijske metode za merjenje emisij ogljikovega monoksida (CO), ogljikovega dioksida (CO2), dušikovega monoksida (NO) in dušikovega dioksida (NO2), ki nastajajo med obločnim varjenjem, rezanjem in žlebljenjem z uporabo tehnike z varovalnim okrovom. Ta metodologija je primerna za uporabo pri vseh postopkih varjenja z odprtim oblokom, rezanja in žlebljenja, vendar se glede na postopek in avtomatsko ali neavtomatsko izvedbo uporabljajo različni modeli varovalnega okrova. Metoda se lahko uporablja za vrednotenje učinkov žic za varjenje, varilnih parametrov, postopkov, zaščitnih plinov, sestave preskusnih kosov in stanja površine preskusnega kosa na emisijo.

General Information

Status
Published
Publication Date
14-Oct-2009
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
15-Oct-2009
Completion Date
15-Oct-2009

RELATIONS

Buy Standard

Standard
EN ISO 15011-2:2010
English language
26 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Arbeits- und Gesundheitsschutz beim Schweißen und bei verwandten Verfahren - Laborverfahren zum Sammeln von Rauch und Gasen - Teil 2: Bestimmung der Emissionsraten von Kohlenmonoxid (CO), Kohlendioxid (CO2), Stickstoffmonoxid (NO) und Stickstoffdioxid (NO2) beim Lichtbogenschweißen, Schneiden und Fugenhobeln (ISO 15011-2:2009)Health and safety in welding and allied processes - Laboratory method for sampling fume and gases - Part 2: Determination of the emission rates of carbon monoxide (CO), carbon dioxide (CO2), nitrogen monoxide (NO) and nitrogen dioxide (NO2) during arc welding, cutting and gouging (ISO 15011-2:2009)01-april-2010SIST EN ISO 15011-2:2010SLOVENSKI

STANDARDSIST EN ISO 15011-2:20031DGRPHãþD

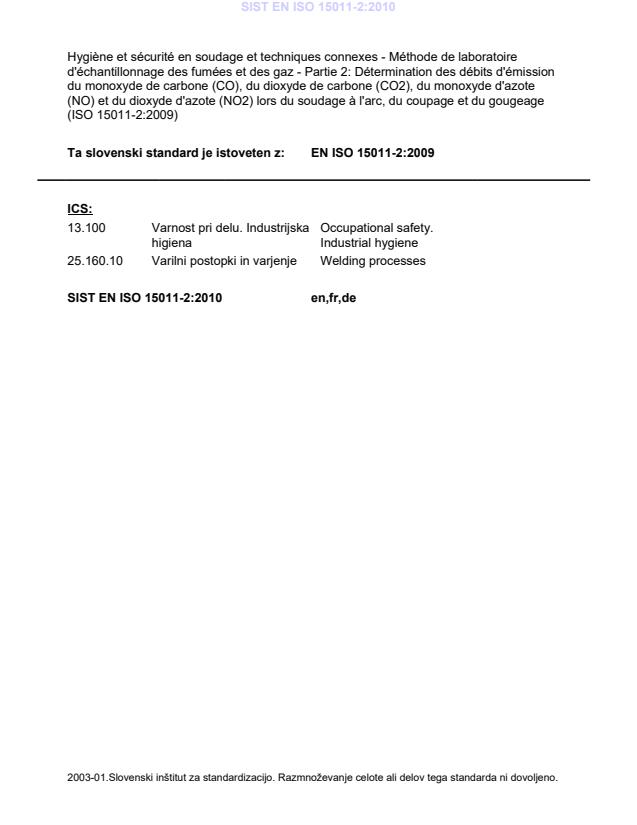

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hygiène et sécurité en soudage et techniques connexes - Méthode de laboratoire d'échantillonnage des fumées et des gaz - Partie 2: Détermination des débits d'émission du monoxyde de carbone (CO), du dioxyde de carbone (CO2), du monoxyde d'azote (NO) et du dioxyde d'azote (NO2) lors du soudage à l'arc, du coupage et du gougeage (ISO 15011-2:2009)25.160.10Varilni postopki in varjenjeWelding processes13.100Varnost pri delu. Industrijska higienaOccupational safety. Industrial hygieneICS:SIST EN ISO 15011-2:2010en,fr,deTa slovenski standard je istoveten z:EN ISO 15011-2:2009SIST EN ISO 15011-2:2010
