EN 15594:2026
(Main)Railway applications - Infrastructure - Restoration of rails by electric arc welding
- Abstract
This document specifies restoration by electric arc welding and is limited to the head of the rails only.
This document describes the approval systems for consumables and procedures used in manual metal arc and flux cored metal deposit rail repair welding. This document includes the quality-related tasks and responsibilities of personnel involved in the electric arc repair welding of rails. This document applies to plain rail and switches and crossings manufactured from new Vignole railway rails R200, R220, R260, R260Mn, and R350HT grades rails of 27 kg/m and above as contained in EN 13674-1, EN 13674-2 and EN 13674-4.
The permitted welding processes are limited to Electric Arc (EA) in accordance with EN ISO 4063 and are by description Process No 111: SMAW (Shielded Metal Arc Welding) and Process No 114: FCAW (Flux Cored Arc Welding).
This document can be applied in situ, at line side or at out of track locations. The flash welded leg ends of austenitic manganese steel crossings are included in this document, except when located within 500 mm of manganese crossings. Where repairs are required within 500 mm, refer to EN 16725.
- Status
- Published
- Publication Date
- 20-Oct-2026
- Technical Committee
- CEN/TC 256 - Railway applications
- Drafting Committee
- CEN/TC 256/SC 1/WG 4 - Rails
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 21-Oct-2026
- Due Date
- 13-Sep-2024
- Completion Date
- 21-Oct-2026
EN 15594:2026 is a CEN standard for railway applications covering restoration of rail heads by electric arc welding. It specifies how consumables, welding procedures, contractors, welders, and track trials are approved for repair welding on listed Vignole rail grades. In practice, it tells railway authorities and contractors what must be checked before a rail repair weld is accepted for service.
What does EN 15594:2026 specify?
EN 15594:2026 applies to restoration by electric arc welding of the rail head only. It covers approval systems for consumables and procedures used in manual metal arc welding and flux cored arc welding, and it can be used in situ, at line side, or off track. The scope also includes the flash welded leg ends of austenitic manganese steel crossings, except where repairs are within 500 mm of manganese crossings, where EN 16725 applies.

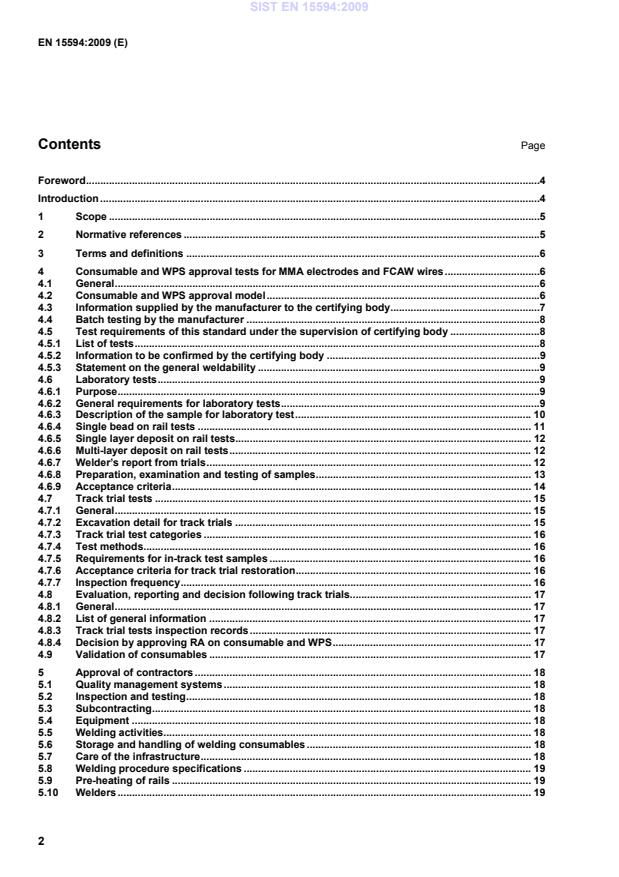

The document is organized into clauses on scope, normative references, terms, consumable and WPS approval, contractor approval, personnel and qualification requirements, and repair applications.
| Annex | What it covers |
|---|---|
| Annex A | Supplementary information for track trials |
| Annex B | Example Welding Procedure Specification (WPS) |
| Annex C | Example diploma in electric arc restoration welding of rails |
| Annex D | Permit to restore rail by electric arc welding |
| Annex E | Track component names |
| Annex ZA | Relationship with EU Directive (EU) 2016/797 |
What are the key requirements of EN 15594:2026?
EN 15594:2026 is built around four controls: approval of consumables and WPS, approval of contractors, qualification of people, and limits on the repairs that may be carried out. The practical point is that a repair weld is only acceptable when the process, the materials, the people, and the site conditions are all under RA control.
Consumable and WPS approval
Clause 4 requires consumable and WPS approval to follow EN ISO 15613, using a pre-production test approach. The approving RA issues the approval certificate after a successful track trial, and it may require extra tests for special operating conditions. That means the consumable and the procedure are not just selected from a catalogue - they must be proven on rail.
Clause 4 also requires laboratory and track trial checks on single bead, single layer, and multi-layer deposits. These checks cover bead shape, spatter, cratering, porosity, cracks, hardness, weld integrity, and welding parameters, with MT or PT inspection and, for some samples, macro and micro examination. In practice, the standard is checking whether a consumable can make sound rail deposits before it is used in service.
Acceptance of weld deposits
EN 15594:2026 sets acceptance criteria by rail grade and deposit type. Table 1 gives separate hardness limits for R200, R220, R260, R260Mn, and R350HT, and multi-layer deposits also have a sub-surface hardness limit. Table 2 rejects cracks, lack of fusion, shrinkage, linear porosity, elongated cavities or wormholes, and un-tempered martensite at the specified magnification.
This matters because rail welding failures are service-critical and cyclic loading is severe. If the deposit does not meet the hardness and defect limits, it is not suitable for track use.
Track trials
Clause 4.7 and Annex A require track trials under RA requirements, using the approved WPS. The trials check surface cracking, flatness over 1 m, rail head profile compliance with EN 13674-1 or EN 13674-4, and weld integrity, with visual, MT or PT, straightedge or electronic straightedge, and UT methods as specified. Trials run for 12 months with inspections after 1 day, 1 month, 6 months, and 12 months.
For a user, this means the process must work not only in the workshop but also in real track conditions. The approving RA records the site, welds, conditions, and inspection results before deciding whether the consumable and WPS are accepted.
Contractor control and site practice
Clause 5 requires a quality management system in accordance with EN ISO 3834-2. It also requires compatible equipment, approved subcontracting arrangements, controlled storage and handling of consumables, protection of the infrastructure, traceability for each weld, audits, training, and documentation. Clause 4.1 also requires welding fumes to be removed by local exhaust ventilation, or, if that is not possible, approved respiratory protective equipment.
In practice, the contractor must be able to show who did the work, with what equipment, under which WPS, and with what records. That is what supports traceability when a weld later has to be investigated.
Personnel, diploma, and permit
Clause 6 requires training and qualification in a training establishment approved by the RA, and welder approval follows EN ISO 9606-1. A welder first receives a Diploma in Electric Arc Welding of Rails, then applies for a Permit to restore rails by electric arc welding; the permit can have a maximum validity of 4 years. The RA controls issue, renewal, withdrawal, and the approved processes, line categories, and components.
Repair applications
Clause 7 applies the standard to repair welding for wheel burns, squats, headwear, sidewear, welding-zone defects, and rail damage, on plain rail and switch and crossing components. The RA defines the permitted repair types, excavation limits, repair dimensions, and special conditions. That means the standard gives the method, while the railway authority sets the local repair policy.
What terms does EN 15594:2026 define?
- RA - the railway authority, meaning the regulator, the infrastructure owner, or a custodian with delegated responsibility.
- Contractor - a company approved by the RA to carry out rail restoration by electric arc welding.
- SMAW - shielded metal arc welding, one of the permitted Electric Arc processes.
- FCAW - flux cored arc welding, the other permitted Electric Arc process.
- Pwps - a preliminary welding procedure specification, used for trial welding before approval.
- WPS - a welding procedure specification approved to European standards and agreed by the RA.
- Training establishment - an RA-approved training organization or centre for welders.
Who uses EN 15594:2026?
Railway authorities use EN 15594:2026 to approve processes, set repair limits, and issue or withdraw permits. Contractors and welding supervisors use it to prepare WPSs, organize work, control consumables, and keep weld traceability. Welders, training establishments, inspection bodies, and quality managers use it for qualification, testing, records, and acceptance of repair welds in track.
What changed in EN 15594:2026 from the previous edition?
EN 15594:2026 supersedes EN 15594:2009. The stated technical changes are updated normative references, inclusion of additional rail steel grades, updated microstructure and macrostructure requirements, and the addition of Annex ZA.
