prEN 12514-1

Parts for supply systems for consuming units with liquid fuels - Part 1: Safety requirements and tests - Terminology, general requirements

This European Standard applies to all parts of supply systems for the automatic supply of liquid fuel to one or more consuming units from one or more tanks. It applies to all parts from the tank connection(s) to the connection to the burner or the consuming units, respectively, including the direct series-connected shut-off devices.

Bauelemente für Versorgungsanlagen für Verbrauchsstellen mit flüssigen Brennstoffen - Teil 1: Sicherheitstechnische Anforderungen und Prüfungen - Terminologie, Allgemeine Anforderungen

Composants des systèmes d'alimentation pour unités de consommation de combustibles liquides - Partie 1: Prescriptions de sécurité et essais - Terminologie, prescriptions générales

Sestavni deli sistemov za dovod tekočega goriva oljnim aparatom - 1. del: Varnostne zahteve in preskušanje - Terminologija, splošne zahteve

General Information

• Status: Not Published
• Publication Date: 25-Dec-2011
• ICS: 27.060.10 - Liquid and solid fuel burners
• ICS: 75.200 - Petroleum products and natural gas handling equipment
• Technical Committee: CEN/TC 47 - Atomizing oil burners and their components - Function - Safety - Testing
• Drafting Committee: CEN/TC 47/WG 4 - Oil supply systems
• Current Stage: 4098 - Decision to abandon - Enquiry
• Start Date: 06-May-2011
• Completion Date: 06-May-2011
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/131 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on pipes, tanks and ancillaries, not in contact with water intended for human consumption
• Ref Project: oSIST prEN 12514-1:2009 - Parts for supply systems for consuming units with liquid fuels - Part 1: Safety requirements and tests - Terminology, general requirements

Relations

• Revises: EN 12514-1:2000 - Installations for oil supply systems for oil burners - Part 1: Safety requirements and tests - Parts, oil feed pumps, control and safety devices, supply tanks
• Effective Date: 19-Jan-2023
• Revises: EN 12514-2:2000 - Installations for oil supply systems for oil burners - Part 2: Safety requirements and tests - Parts, valves, pipes, filters, oil de-aerators, meters
• Effective Date: 18-Jan-2023

Overview

The prEN 12514-1 standard, developed by the European Committee for Standardization (CEN), sets forth crucial safety requirements, testing protocols, and terminology for parts used in supply systems for consuming units that utilize liquid fuels. This European Standard applies specifically to the automatic supply systems responsible for transferring liquid fuel from one or more tanks to one or more consuming units, covering all components between the tank connections and the burner or consumer units, including directly series-connected shut-off devices.

This standard is essential in ensuring safety, reliability, and regulatory compliance for liquid fuel supply systems across diverse industrial and commercial applications. It supersedes previous editions and aligns with EU regulations such as the Construction Product Directive (CPD), Measuring Instruments Directive (MID), and Machinery Directive (MD).

Key Topics

• Terminology and Definitions: Comprehensive clarification of terms related to parts, pipelines, feed pump control and safety devices, pressure, temperature, flow, and other relevant aspects of liquid fuel supply systems.

• General Requirements: Specifies material and construction quality, pressure strength, temperature tolerances, fuel compatibility, nominal lifespan, fireproof and flood-proof components, and electrical safety standards.

• Marking, Packaging, and Instructions: Guidelines on proper marking for traceability and safety, packaging standards to prevent damage during transport and storage, and instructions for installation, maintenance, and operation ensuring user safety.

• Testing Procedures:

  • Pressure strength and vacuum tests to validate endurance and leak prevention.
  • External leak-tightness tests to ensure containment integrity.
  • Visual and dimensional inspections for manufacturing accuracy.
  • Fireproof and flood-proof part testing to enhance resilience.

• Material Standards: Annexes provide detailed normative specifications for metallic and thermoplastic materials used in supply system parts, including type testing and factory production control measures.

• Conformity Evaluation System: Protocols for initial and periodic type testing, factory inspections, quality control, and certification methods to ensure ongoing compliance with standard requirements.

Applications

The prEN 12514-1 standard is pivotal to manufacturers, installers, and safety inspectors involved in:

• Designing and producing automatic liquid fuel supply systems for residential, commercial, and industrial burners.
• Assessing and certifying safety compliance of fuel supply components, including valves, pumps, pipelines, and shut-off devices.
• Implementing maintenance programs that safeguard against material fatigue, corrosion, and failure under operational pressure and temperature ranges.
• Meeting European regulatory requirements to enable market access across EEA countries while ensuring sustainable and safe fuel supply infrastructure.
• Providing a unified terminology and testing framework for engineers and technicians working on liquid fuel burner installations and fuel handling systems.

Related Standards

• prEN 12514-2: Safety requirements and tests for feed pumps, control and safety devices, and service vessels relevant to liquid fuel supply systems.
• prEN 12514-3: Safety requirements and tests for valves and meters used within liquid fuel supply circuitry.
• prEN 12514-4: Safety requirements and tests for pipelines and associated parts within fuel supply networks.
• Construction Product Directive (89/106/EEC): Addresses safety and performance essential requirements linked to construction products including fuel supply components.
• Measuring Instruments Directive (2004/22/EC): Regulations relating to accuracy and reliability of instruments such as meters in fuel systems.
• Machinery Directive (2006/42/EC): Covers safety requirements for machinery components, including fuel supply equipment.

Adherence to prEN 12514-1 ensures liquid fuel supply systems' parts are designed, tested, and certified to meet rigorous safety and functional standards, providing confidence to manufacturers, service providers, and end-users alike. This facilitates safe operation, environmental protection, and conformity with EU legal frameworks within the fuel supply industry.

---

Keywords: prEN 12514-1, liquid fuel supply systems, safety requirements, fuel system parts, automatic fuel supply, burner connections, European Standard, conformity testing, construction product directive, feed pump safety, pipeline components, fireproof fuel parts, floodproof fuel systems.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2009
6HVWDYQLGHOLVLVWHPRY]DGRYRGWHNRþHJDJRULYDROMQLPDSDUDWRPGHO
9DUQRVWQH]DKWHYHLQSUHVNXãDQMH7HUPLQRORJLMDVSORãQH]DKWHYH
Parts for supply systems for consuming units with liquid fuels - Part 1: Safety
requirements and tests - Terminology, general requirements
Bauelemente für Versorgungsanlagen für Verbrauchsstellen mit flüssigen Brennstoffen -
Teil 1: Sicherheitstechnische Anforderungen und Prüfungen - Terminologie, Allgemeine
Anforderungen
Appareils et éléments de construction pour le transfert au consommateur de liquide
combustible - Partie 1: Prescriptions de sécurité et essais - Terminologie, prescritions
générales
Ta slovenski standard je istoveten z: prEN 12514-1
ICS:
27.060.10 *RULOQLNLQDWHNRþHLQWUGR Liquid and solid fuel burners
JRULYR
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2009
ICS 27.060.10 Will supersede EN 12514-1:2000, EN 12514-2:2000
English Version
Parts for supply systems for consuming units with liquid fuels -
Part 1: Safety requirements and tests - Terminology, general
requirements
Appareils et éléments de construction pour le transfert au Bauelemente für Versorgungsanlagen für
consommateur de liquide combustible - Partie 1: Verbrauchsstellen mit flüssigen Brennstoffen - Teil 1:
Prescriptions de sécurité et essais - Terminologie, Sicherheitstechnische Anforderungen und Prüfungen -
prescritions générales Terminologie, Allgemeine Anforderungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 47.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 12514-1:2009: E
worldwide for CEN national Members.

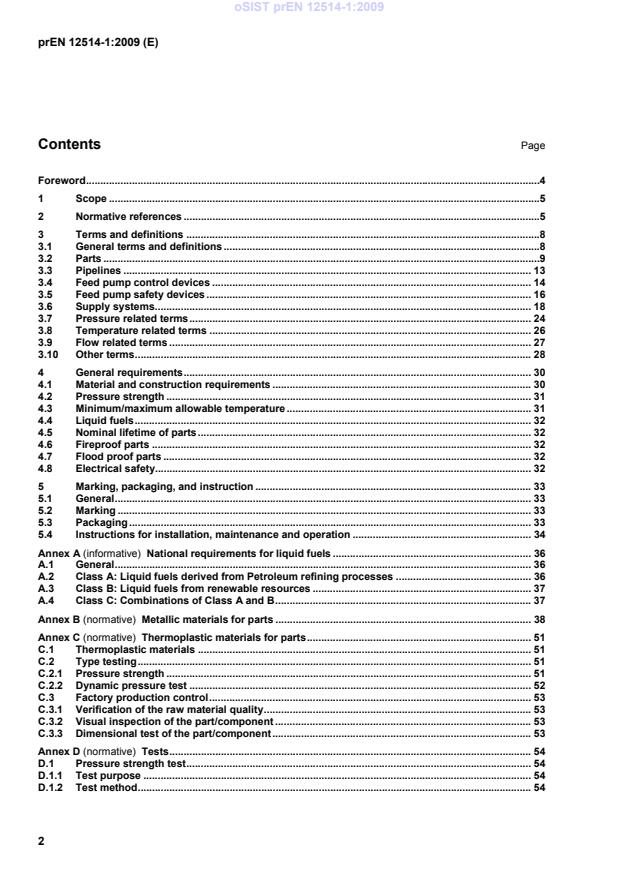

Contents Page
Foreword .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .8
3.1 General terms and definitions .8
3.2 Parts .9
3.3 Pipelines . 13
3.4 Feed pump control devices . 14
3.5 Feed pump safety devices . 16
3.6 Supply systems. 18
3.7 Pressure related terms . 24
3.8 Temperature related terms . 26
3.9 Flow related terms . 27
3.10 Other terms . 28
4 General requirements . 30
4.1 Material and construction requirements . 30
4.2 Pressure strength . 31
4.3 Minimum/maximum allowable temperature . 31
4.4 Liquid fuels . 32
4.5 Nominal lifetime of parts . 32
4.6 Fireproof parts . 32
4.7 Flood proof parts . 32
4.8 Electrical safety. 32
5 Marking, packaging, and instruction . 33
5.1 General . 33
5.2 Marking . 33
5.3 Packaging . 33
5.4 Instructions for installation, maintenance and operation . 34
Annex A (informative) National requirements for liquid fuels . 36
A.1 General . 36
A.2 Class A: Liquid fuels derived from Petroleum refining processes . 36
A.3 Class B: Liquid fuels from renewable resources . 37
A.4 Class C: Combinations of Class A and B . 37
Annex B (normative) Metallic materials for parts . 38
Annex C (normative) Thermoplastic materials for parts . 51
C.1 Thermoplastic materials . 51
C.2 Type testing . 51
C.2.1 Pressure strength . 51
C.2.2 Dynamic pressure test . 52
C.3 Factory production control . 53
C.3.1 Verification of the raw material quality . 53
C.3.2 Visual inspection of the part/component . 53
C.3.3 Dimensional test of the part/component . 53
Annex D (normative) Tests . 54
D.1 Pressure strength test . 54
D.1.1 Test purpose . 54
D.1.2 Test method . 54
D.2 External leak-tightness test . 55
D.2.1 Test purpose . 55
D.2.2 Test method . 55
D.3 Visual inspection and dimensional test . 56
D.3.1 Visual inspection . 56
D.3.2 Dimensional test . 56
D.4 Testing of fireproof parts . 56
D.4.1 Test purpose . 56
D.4.2 Test method . 56
D.5 Testing of flood proof parts. 56
D.5.1 Test purpose . 56
D.5.2 Test method . 57
D.6 Vacuum test . 57
D.6.1 Test purpose . 57
D.6.2 Test method . 57
Annex E (normative) System of conformity evaluation . 59
E.1 General . 59
E.2 Type testing . 59
E.2.1 Initial type test . 59
E.2.2 Retesting . 60
E.2.3 Type testing of parts . 62
E.3 Factory production control. 72
E.3.1 General . 72
E.3.2 Materials and components . 72
E.3.3 Check of the inspection, measurement and test equipment . 72
E.3.4 Production . 72
E.3.5 Process control . 72
E.3.6 Process inspection . 72
E.3.7 Periodical inspection . 73
Annex F (normative) Requirements for the additional testing of parts at a temperature range
between 0 °C and –20 °C . 74
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of the Construction Products Directive 89/106/EEC (CPD) . 75
ZA.1 Scope and relevant characteristics . 75
ZA.2 Procedure(s) for attestation of conformity . 78
ZA.2.1 System(s) of attestation of conformity . 78
ZA.2.2 EC certificate and declaration of conformity . 82
ZA.3 CE marking and labelling. 83
Annex ZB (informative) Relationship between this European Standard and the essential
requirements of EU Directive 2004/22/EC . 85
Annex ZC (informative) Relationship between this European Standard and the essential
requirements of the Machinery Directive 2006/42/EC . 86
ZC.1 Scope and relevant characteristics . 86
ZC.2 Procedure(s) for attestation of conformity . 88
ZC.3 CE marking and labelling. 88
Bibliography . 89

Foreword
This document (prEN 12514-1:2009) has been prepared by Technical Committee CEN/TC 47 “Atomizing oil
burners and their components - Function - Safety - Testing”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 12514-1:2000, EN 12514-2:2000.
According to editions 2000 the following fundamental changes are given:
 standards new structured;
 new parts for supply systems included;
 technical requirements revised;
 updating of the terms and definitions;
 merging of parts to series;
 fuels classified and new fuels added;
 nominal life time defined;
 requirements for flood proof parts included;
 selections of materials;
 marking, packing and instructions revised;
 harmonization of the standard to the Construction Product Directive (CPD) 89/106/EEC, Measuring
Instruments Directive (MID) 2004/22/EC and Machinery Directive (MD) 2006/42/EC.
This document has been prepared under mandate M/131 "Pipes, tanks and ancillaries not in contact with
water intended for human consumption" given to CEN by the European Commission and the European Free
Trade Association, and supports essential requirements of EC Directives.
For relationship with the Construction Products Directive (89/106/EEC), see informative Annex ZA, which is an
integral part of this document.
For relationship with other EC Directives, see informative Annex ZB and ZC, which is an integral part of this
document.
This standard consists of 4 Parts:
Parts for supply systems for consuming units with liquid fuels
Part 1: Safety requirements and tests — Terminology, general requirements
Part 2: Safety requirements and tests — Feed pumps, control and safety devices, service vessels
Part 3: Safety requirements and tests — Valves and meters
Part 4: Safety requirements and tests — Pipings and parts within pipelines
1 Scope
This European Standard applies to all parts of supply systems for the automatic supply of liquid fuel to one or
more consuming units from one or more tanks. It applies to all parts from the tank connection(s) to the
connection to the burner or the consuming units, respectively, including the direct series-connected shut-off
devices.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 472, Pressure gauges — Vocabulary
EN 590:2004, Automotive fuels — Diesel — Requirements and test methods
EN 682, Elastomeric seals — Material requirements for seals used in pipes and fittings carrying gas and
hydrocarbon fluids
EN 736-1, Valves - Terminology - Part 1: Definition of types of valves
EN 837-1, Pressure gauges - Part 1: Bourdon tube pressure gauges - Dimensions, metrology, requirements
and testing
EN 837-3, Pressure gauges - Part 3: Diaphragm and capsule pressure gauges - Dimensions, metrology,
requirements and testing
EN 1503-1, Valves — Materials for bodies, bonnets and covers — Part 1: Steels specified in European
standards
EN 1503-2, Valves — Materials for bodies, bonnets and covers — Part 2: Steels other than those specified in
European standards
EN 1503-3, Valves — Materials for bodies, bonnets and covers — Part 3: Cast irons specified in European
standards
EN 1503-4, Valves — Materials for bodies, bonnets and covers — Part 4: Copper alloys specified in European
Standards
EN 10079, Definition of steel products
EN 10151, Stainless steel strip for springs — Technical delivery conditions
EN 10204, Metallic products - Types of inspection documents
EN 10270-3, Steel wire for mechanical springs — Part 3: Stainless spring steel wire
EN 12170, Heating systems in buildings — Procedure for the preparation of documents for operation,
maintenance and use — Heating systems requiring a trained operator
EN 12171, Heating systems in buildings — Procedure for the preparation of documents for operation,
maintenance and use — Heating systems not requiring a trained operator
EN 12266-1:2003, Industrial valves — Testing of valves — Part 1: Pressure tests, test procedures and
acceptance criteria — Mandatory requirements
EN 12266-2:2002, Industrial valves — Testing of valves — Part 2: Tests, test procedures and acceptance
criteria; Supplementary requirements;
prEN 12514-2:2009, Installations for oil supply systems for oil burners — Part 2: Safety requirements and
tests — Parts, valves, pipes, filters, oil de-aerators, meters
prEN 12514-3:2009, Parts for supply systems for consuming units with liquid fuel — Part 3: Safety
requirements and tests — Valves and meters
prEN 12514-4:2009, Parts for supply systems for consuming units with liquid fuel — Part 4: Safety
requirements and tests — Pipework and parts within pipes
EN 12639, Liquid pumps and pump units - Noise test code - Grade 2 and grade 3 of accuracy
EN 12954, Cathodic protection of buried or immersed metallic structures — General principles and application
for pipelines
EN 13160-1, Leak detection systems - Part 1: General principles
EN 13636, Cathodic protection of buried metallic tanks and related piping
EN 13906-1, Cylindrical helical springs made from round wire and bar — Calculation and design — Part 1:
Compression springs
EN 13906-2, Cylindrical helical springs made from round wire and bar — Calculation and design — Part 2:
Extension springs
EN 14213, Heating fuels — Fatty acid methyl esters (FAME) — Requirements and test methods
EN 14291, Foam producing solutions for leak detection on gas installations
EN 14585-1, Corrugated metal hose assemblies for pressure applications — Part 1: Requirements
EN 50156-1, Electrical equipment for furnaces and ancillary equipment — Part 1: Requirements for
application design and installation
EN 60335-1, Household and similar electrical appliances — Safety — Part 1: General requirements (IEC
60335-1:2001, modified + Corrigendum 1 (ed. 4.0):2002 + A1:2004 + Corrigendum 1 (ed. 4.1):2005 + A2:2006
+ Corrigendum 1 (A2):2006)
EN 60335-2-102, Household and similar electrical appliances — Safety — Part 2-102: Particular requirements
for gas, oil and solide-fuel burning appliances having electrical connections (IEC 60335-2-102:2004, modified)
EN 60529, Degrees of protection provided by enclosures (IP code) (IEC 60529:1989 + A1:1999)
EN 60730-1:2005, Automatic electrical controls for household and similar use — Part 1: General requirements
(IEC 60730-1:1999, modified + A1:2003, modified);
EN 62079, Preparation of instructions — Structuring, content and presentation (IEC 62079:2001)
EN ISO 2719, Determination of flash point — Pensky-Martens closed cup method (ISO 2719:2002)
EN ISO 6806, Rubber hoses and hose assemblies for use in oil burners — Specification (ISO 6806:1992)
EN ISO 9606-2, Qualification test of welders — Fusion welding — Part 2: Aluminium and aluminium alloys
(ISO 9606-2:2004)
EN ISO 9606-3, Approval testing of welders — Fusion welding — Part 3: Copper and copper alloys
(ISO 9606-3:1999)
EN ISO 9606-4, Approval testing of welders — Fusion welding — Part 4: Nickel and nickel alloys
(ISO 9606-4:1999)
EN ISO 9606-5, Approval testing of welders — Fusion welding — Part 5: Titanium and titanium alloys,
zirconium and zirconium alloys (ISO 9606-5:2000)
EN ISO 10497, Testing of valves — Fire type testing requirements (ISO 10497:2004)
EN ISO 14731, Welding coordination — Tasks and responsibilities (ISO 14731:2006)
EN ISO 15609-1, Specification and qualification of welding procedures for metallic materials — Welding
procedure specification — Part 1: Arc welding (ISO 15609-1:2004)
EN ISO 15609-2, Specification and qualification of welding procedures for metallic materials — Welding
procedure specification — Part 2: Gas welding (ISO 15609-2:2001)
EN ISO 15609-3, Specification and qualification of welding procedures for metallic materials — Welding
procedure specification — Part 3: Electron beam welding (ISO 15609-3:2004)
EN ISO 15609-4, Specification and qualification of welding procedures for metallic materials — Welding
procedure specification — Part 4: Laser beam welding (ISO 15609-4:2004)
EN ISO 15609-5, Specification and qualification of welding procedures for metallic materials — Welding
procedure specification — Part 5: Resistance welding (ISO 15609-5:2004)
EN ISO 15612, Specification and qualification of welding procedures for metallic materials — Qualification by
adoption of a standard welding procedure (ISO 15612:2004)
EN ISO 15614-7, Specification and qualification of welding procedures for metallic materials — Welding
procedure test — Part 7: Overlay welding (ISO 15614-7:2007)
EN ISO 15614-11, Specification and qualification of welding procedures for metallic materials — Welding
procedure test — Part 11: Electron and laser beam welding (ISO 15614-11:2002)
EN ISO 19879:2005, Metallic tube connections for fluid power and general use - Test methods for hydraulic
fluid power connections (ISO 19879:2005)
ISO 1817, Rubber, vulcanized — Determination of the effect of liquids
ISO 2859-1, Sampling procedures for inspection by attributes — Part 1: Sampling schemes indexed by
acceptance quality limit (AQL) for lot-by-lot inspection
ISO 2859-2, Sampling procedures for inspection by attributes — Part 2: Sampling plans indexed by limiting
quality (LQ) for isolated lot inspection
ISO 2859-3, Sampling procedures for inspection by attributes — Part 3: Skip-lot sampling procedures
ISO 2859-4, Sampling procedures for inspection by attributes — Part 4: Procedures for assessment of
declared quality levels
ISO 2859-5, Sampling procedures for inspection by attributes — Part 5: System of sequential sampling plans
indexed by acceptance quality limit (AQL) for lot-by-lot inspection
ISO 2859-10, Sampling procedures for inspection by attributes — Part 10: Introduction to the ISO 2859 series
of standards for sampling for inspection by attributes
ISO 23551-1, Safety and control devices for gas burners and gas-burning appliances - Particular
requirements — Part 1: Automatic valves
ISO 23553-1, Safety and control devices for oil burners and oil-burning appliances - Particular
requirements — Part 1: Shut-off devices for oil burners
ISO 3864-1, Graphical symbols - Safety colours and safety signs — Part 1: Design principles for safety signs
in workplaces and public areas
ISO 3864-2, Graphical symbols — Safety colours and safety signs — Part 2: Design principles for product
safety labels
ISO 7000, Graphical symbols for use on equipment — Index and synopsis
CLC/TR 50404, Electrostatics — Code of practice for the avoidance of hazards due to static electricity
OIML R 117-1:2007, Dynamic measuring systems for liquids other than water
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1 General terms and definitions
3.1.1
part
component of a supply system
3.1.2
part with shut-off function
part which shuts off the flow in pipelines
3.1.3
supply system
installation for the processing and supply of liquid fuels from the tank to the consuming unit
3.1.4
consuming unit
device in which liquid fuels are converted into thermal and/or mechanical energy
NOTE Consuming units, for instance, are specified by the following standards EN 1, EN 267, EN 13842, EN 15034,
EN 15035.
3.1.5
liquid fuel
according to 4.4
3.1.6
tank
a hollow body (container) for the storage of liquid fuels subject only to the fluid hydrostatic head and freely
vented to atmosphere, including branches up to the first pipeline connection [EN 13121-3]
3.1.7
vessel
closed hollow body (container) subject to applied pressure or vacuum, with or without hydrostatic head,
including branches up to the first flanged connection [EN 13121-3]
3.1.8
piping
pipes and fasteners for the conveyance of fluids through pipelines
NOTE For the purposes of this standard, the used fluid is liquid fuel, see 4.4.
3.1.9
series
parts with the same types of constructional and functional characteristics distinguished by
 different nominal sizes and/or
 different components.
NOTE 1 The assignment of nominal sizes to a series is specified by the manufacturer. Within one series, the maximum
allowable pressures (PS) may vary with the nominal sizes. The parts of one series may have different pipeline connections
or consist of different components.
NOTE 2 The term "series" complies with for instance the term "basic type" in EN 736-1.
NOTE 3 For assessment see annex E.
3.1.10
nominal lifetime
duration for which the part will very likely remain operational. This indication of the nominal lifetime is based
on the assumption that the part is used according to the manufacturer's instructions for installation,
maintenance and operation.
NOTE The parts may have to be submitted to regular service and maintenance procedures carried out by authorised
personnel according to the manufacturer's instructions.
3.1.11
safety ancillaries
in the senses of mandate M/131 "Pipes, tanks and ancillaries not in contact with water intended for human
consumption", annex 2 these are:
 safety shut-off device, pressure compensating device, discharge valve, pressure reducer, filter, anti-
siphon safety device and insulation device; as well as
 feed pump control devices
3.2 Parts
3.2.1
feed pump
device for feeding liquid fuels from the tank or vessel to other tanks, vessels or consuming units connected to
the supply system
3.2.2
service tank
tank with control and safety device(s), see Figure 1
Key
1 liquid fuel
2 overflow pipeline
3 high limit controller
4 low limit controller
h filling height (level) at opening of fuel supply
h filling height (level) at closing of fuel supply
Figure 1 — Example of service tank
3.2.3
service vessel
vessel within a supply system with or without control device and high and/or low limit controller for the
intermediate storage of liquid fuel, see Figure 2
Key
1 liquid fuel
2 gas (e. g. nitrogen, air)
3 low limit controller
4 low limit controller or high limit controller
p operating pressure at opening of liquid fuel supply
o,1
p operating pressure at closing of liquid fuel supply
o,2
Figure 2 — Example of service vessel
3.2.4
isolating valve
device for shut-off and re-opening of flow in pipelines
NOTE 1 For basic types and examples, see EN 736-1.
NOTE 2 Designation of the valve components according to EN 736-2.
3.2.5
quick-acting valve
device for opening and closing the flow in pipelines operated manually or automatically by short travel or a
rotating movement of maximum 90 °
NOTE 1 For basic types and examples, see EN 736-1.
NOTE 2 Designation of the valve components according to EN 736-2.
3.2.6
safety shut-off device
according to ISO 23553-1
3.2.7
switch-over valve
device in pipelines for the single shut-off or re-opening of several flow inlets to one flow outlet
NOTE 1 For basic types and examples, see EN 736-1.
NOTE 2 Designation of the valve components according to EN 736-2.
3.2.8
forced switch-over valve
device in pipelines with several feed inlets and associated return outlets and with one or more feed outlets and
associated return inlets
NOTE Designation of the valve components according to EN 736-2.
3.2.9
check valve
device which releases the flow in pipelines in the feed direction and shuts off automatically in the opposite
direction
NOTE 1 For basic types and examples, see EN 736-1.
NOTE 2 Designation of the valve components according to EN 736-2.
3.2.10
pressure compensating device
device for the limitation of pressure build-up in closed sections of pipelines due to temperature related volume
changes of the liquid fuel
NOTE Designation of the valve components according to EN 736-2.
3.2.11
discharge valve
device for maintaining the upper pressure limit
NOTE Designation of the valve components according to EN 736-2.
3.2.12
pressure reducer
device for maintaining the outlet pressure constant irrespective of inlet pressure variations and/or changes of
flow and/or temperature within specified limits
NOTE 1 A difference is made between the basic types of pre-set pressure reducers and adjustable pressure reducers.
NOTE 2 The nominal outlet pressure of a pre-set pressure reducer is set inadjustably by the manufacturer.
NOTE 3 The outlet pressure of an adjustable pressure reducer can be varied by the user between minimum and
maximum nominal outlet pressure.
3.2.13
filter
device which retains solid matter exceeding a specified particle size from the liquid fuel
3.2.14
meter
device for the continuous measurement, recording and indication of the volumetric flow rate of liquid fuel in a
closed, completely filled piping
NOTE 1 This term corresponds to the term "meter" according to Annex MI-005 in Directive 2004/22/EC.
NOTE 2 Meters may be part of measurement systems according to Annex MI-005 in Directive 2004/22/EC.
3.2.15
de-aerator
device in pipelines for the automatic venting of gas and air
3.2.16
anti-siphon safety device
device which in the pipeline prevents siphoning of a tank or service tank
NOTE 1 Siphoning designates a condition when the maximum filling level in the tank or service tank lies above the
lowest point of the suction pipeline, which could lead to leakage of liquid fuel due to the weight pressure of the liquid
column.
NOTE 2 For basic types and examples, see EN 736-1.
NOTE 3 Designation of the valve components according to EN 736-2.
3.2.17
pressure retaining device
valve for maintaining the pressure in a pressure pipeline approximately constant
NOTE Designation of the valve components according to EN 736-2.
3.2.18
insulation device
insulating parts, isolating flanges according to EN 12954 and EN 13636
3.2.19
pressure gauge
according to EN 472
NOTE For basic types and examples, see EN 837-1 and EN 837-3.
3.2.20
vapour/air separator
device used for continuously separating or removing of air or gases contained in the fuel
[EN 13617-1]
3.2.21
pressure control path
device consisting of several parts which controls the operating pressure in the pressure pipeline within limits
specified for the consuming unit (e. g. see Figure 9)
3.2.22
fastener
device with integrated pipeline connections for connecting pipes and/or parts
NOTE The fastener can be of different designs and be provided with other pipeline connections.
3.2.23
combined part
part consisting of several parts
3.2.24
other part
part falling into the scope of clause 1 and not covered by 3.2
3.3 Pipelines
3.3.1
suction pipeline
pipeline subject to vacuum under operating conditions
3.3.2
pressure pipeline
pipeline subject to static and/or dynamic pressure
3.3.3
return pipeline
pressure pipeline for the return of excess liquid fuel
NOTE See Figure 12 and Figure 13.
3.3.4
overflow pipeline
pipeline to return excess liquid fuel from the service tank
NOTE See Figure 1
3.3.5
pipe
according to EN 10079
3.3.6
rigid pipe
pipe made of rigid material(s) with consistent form
3.3.7
flexible pipe
flexible pipe which may vary its shape and position as intended
3.3.8
pipeline connection
fastener integrated in parts
3.3.9
buried pipeline
pipeline completely or partially covered with soil or sand
NOTE This includes pipelines in buildings which are installed completely or partially concealed.
3.3.10
aboveground pipeline
pipeline installed in or outside buildings without being covered with soil or sand
NOTE This includes pipelines which are installed in trenches or ducts that have not been filled in.
3.4 Feed pump control devices
3.4.1
pressure control device
device for opening or closing the liquid fuel supply to the service vessel or the supply system depending on
the operating pressure, see Figure 3
Key
1 liquid fuel
2 gas or spring-loaded piston (e. g. nitrogen, air)
p operating pressure at opening of the fuel supply
o,1
p operating pressure at closing of the fuel supply
o,2
Figure 3 — Operational range of the pressure control device
3.4.2
level control device
device for opening or closing the liquid fuel supply to the service tank or the supply system depending on the
filling height (level), see Figure 4
Key
1 liquid fuel
h filling height (level) at opening of the fuel supply
h filling height (level) at closing of the fuel supply
Figure 4 — Operational range of the level control device
3.5 Feed pump safety devices
3.5.1
low limit controller
device which closes the liquid fuel supply when the pre-set minimum or maximum values are exceeded and
which opens only after manual re-set, for examples, see Figures 5 and Figure 6
Key
a operating pressure p or filling height h at opening of the liquid fuel supply
o,1 1
b operating pressure p or filling height h at closing of the liquid fuel supply
o,2 2
c maximum allowable pressure p or maximum filling height h
s max
d operating pressure or filling height at safety shut-down
∆d at least 10 % of the maximum allowable pressure p or maximum filling height h
s max
Figure 5 — Operational range of the low limit controller
after exceeding the maximum pre-set values with pressure or level control device

Key
a operating pressure, p , or filling height, h , at opening of the liquid fuel supply
o,1 1
b operating pressure, p , or filling height, h , at closing of the liquid fuel supply
o,2 2
d operating pressure or filling height at safety shut-down
Figure 6 — Operational range of the low limit controller
after falling short of the minimum pre-set values with pressure or level control device
3.5.2
high limit controller
device which closes the liquid fuel supply when the pre-set minimum or maximum values (shut-down criteria)
of the pressure or level control are exceeded and which opens automatically when the shut-down criterion is
no longer present
3.6 Supply systems
3.6.1
single-pipe system
supply system in which the liquid fuels are supplied through a suction pipeline or a pressure pipeline from (a)
tank(s) or vessel(s) to the consuming unit
NOTE Examples for suction pipelines see Figure 7 to Figure 9 and for pressure pipelines see Figure 10 and
Figure 11.
Key
1 tank
2 isolating valve
3 anti-siphon safety device
4 isolating valve
5 filter
7 flexible pipe as suction pipeline
10 consuming unit
Figure 7 — Single-pipe supply system
Key
1 tank
2 isolating valve
3 anti-siphon safety device
4 isolating valve
5 filter
6 de-aerator
7 flexible pipe as suction pipeline
8 flexible pipe as return pipeline
10 consuming unit
NOTE For position 4, 5 and 6, a combined part may be used.
Figure 8 — Single-pipe supply system with return pipeline
Key
1 tank
2 isolating valve
5 filter
7 flexible pipe as suction pipeline
8 flexible pipe as return pipeline
9 feed pump with pressure vessel
10 consuming unit
11 isolating valve
12 pressure reducer
13 leak detection system – in this case, Class 3 according to EN 13160-1
14 isolating valve – in this case, electromagnetic shut-off device according to ISO 23551-1
controlled by the consuming unit
15 pressure gauge with insulating valve
16 pressure compensating device
17 isolating valve – in this case, for manual venting
18 service vessel
19 pressure control path – position 5, 11, 12, 14, 15, 16, 17, 18 as combined part
NOTE For position 5 and 11, a combined part may be used.
Figure 9 — Single-pipe supply system with feed pump with service vessel
Key
1 tank
2 isolating valve
3 anti-siphon safety device
5 filter
7 flexible pipe as suction pipeline
9 feed pump with service tank
10 consuming unit
11 isolating valve
13 leak detection system – in this case, Class 3 according to EN 13160-1
Figure 10 — Single-pipe supply system with feed pump with service tank
Key
1 tank
4 isolating valve
5 filter
7 flexible pipe as suction pipeline
8 flexible pipe as return pipeline
9 feed pump
10 consuming unit
11 isolating valve
12 pressure reducer
13 leak detection system – in this case, Class 3 according to EN 13160-1
14 isolating valve – in this case, electromagnetic shut-off device according to ISO 23551-1
controlled by the consuming unit
15 pressure gauge
16 pressure compensating device
17 isolating valve – in this case, for manual venting
18 service vessel
19 pressure control path – position 5, 11, 12, 14, 15, 16, 17, 18 as combined part
21 return pipeline
Figure 11 — Single-pipe supply system with feed pump and pressure control path
3.6.2
two-pipe system
supply system in which the feed pump sucks the liquid fuel from (a) tank(s) or vessel(s) by means of a suction
pipeline and feeds it to the consuming unit. Any excess liquid fuel taken is returned to the tank through a
return pipeline.
NOTE 1 Examples see Figure 12 and Figure 13
NOTE 2 Combinations of single-pipe and two-pipe systems are possible.

Key
1 tank
2 isolating valve
3 anti-siphon safety device
4 isolating valve
5 filter
7 flexible pipe as suction pipeline
8 flexible pipe as return pipeline
10 consuming unit
16 pressure compensating device
20 check valve
21 return pipeline
NOTE For position 4, 5 and 20
...
