EN 10218-2:2012

Steel wire and wire products - General - Part 2: Wire dimensions and tolerances

This European Standard specifies the tolerances on diameter of round wire and, where applicable, on the length of round wire cut to length, for bright steel wire, (i.e. uncoated), metallic coated steel wire and non-metallic coated steel wire.
This European Standard should not be applied where other requirements for dimensions and tolerances are specified in a particular product standard.

Stahldraht und Drahterzeugnisse - Allgemeines - Teil 2: Drahtmaße und Toleranzen

Diese Europäische Norm legt die Grenzabmaße fest für den Durchmesser von rundem Draht und, soweit zutreffend, für die Länge von zu Stäben geschnittenem runden Draht, und zwar für blanken Stahldraht (d. h. ohne Überzug), für Stahldraht mit metallischem Überzug und für Stahldraht mit nichtmetallischem Überzug.
Diese Europäische Norm sollte nicht angewendet werden, wenn in einer be¬sonderen Erzeugnisnorm andere Anforderungen für Maße und Grenz¬abmaße festgelegt sind.

Fils et produits tréfilés en acier - Généralités - Partie 2 : Dimensions et tolérances des fils

Cette Norme européenne spécifie les tolérances de diamètre des fils de section circulaire et, le cas échéant, les tolérances de longueur des fils de section circulaire coupés à longueur pour les fils en acier blanc (c'est-à-dire non revêtus), les fils en acier à revêtement métallique et les fils en acier à revêtement non métallique.
Cette Norme européenne n'est pas applicable lorsqu'une norme de produit spécifique définit d'autres exigences relatives aux dimensions et aux tolérances.

Jeklena žica in žični izdelki - Splošno - 2. del: Mere žic in tolerance

Ta evropski standard določa tolerance za premer okrogle žice in po potrebi dolžino odrezane okrogle žice za svetlo jekleno žico (tj. neprevlečeno), kovinsko prevlečeno jekleno žico in nekovinsko prevlečeno jekleno žico. Ta evropski standard se ne bi smel uporabljati, kadar so v posameznem standardu za izdelek določene druge zahteve v zvezi z merami in tolerancami.

General Information

• Status: Published
• Publication Date: 10-Jan-2012
• Withdrawal Date: 30-Jul-2012
• ICS: 77.140.65 - Steel wire, wire ropes and link chains
• Technical Committee: ECISS/TC 106 - Wire rod and wires
• Drafting Committee: ECISS/TC 106 - Wire rod and wires
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 06-Feb-2025
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 10218-2:2012 - Steel wire and wire products - General - Part 2: Wire dimensions and tolerances

Relations

• Replaces: EN 10218-2:1996 - Steel wire and wire products - General - Part 2: Wire dimensions and tolerances
• Effective Date: 22-Dec-2008

Overview

EN 10218-2:2012 is a crucial European Standard developed by CEN that defines the wire dimensions and tolerances for steel wire and wire products. This standard specifically addresses the tolerances on the diameter and length of round steel wire, including bright (uncoated), metallic coated, and non-metallic coated steel wire. It is designed to ensure precision and consistency in steel wire manufacturing, helping producers and users maintain reliable quality and dimensional accuracy. However, it is not applicable if other product-specific standards specify different dimension and tolerance requirements.

Key Topics

• Wire Diameter Tolerances

  • Specifies strict tolerances for the wire diameter, accounting for both uncoated and coated wire.
  • Includes tolerance classes (T1 to T5), with tolerance values adjusted according to wire diameter and coating type.
  • Provides details on out-of-roundness (ovality), ensuring the wire cross-section remains within defined geometric limits.

• Coated Wire Dimensions

  • Defines tolerances for wires coated with metallic layers (e.g., zinc) and organic coatings (extruded or sintered).
  • Sets minimum coating thickness and concentricity percentages to maintain uniform coating quality.

• Cut Length Tolerances

  • Describes permissible variations in wire lengths when cut-to-length by specifying three tolerance classes.
  • Includes detailed straightness tolerances and rolling tests to ensure physical shape and performance standards are met.

• Measurement and Testing Methods

  • Provides methods to measure wire diameter at cross-sections and to evaluate straightness by quantifying out-of-straightness.
  • Guidelines for calculating wire coil length based on size, density, and coil weight.

Applications

• Manufacturing Quality Control
  EN 10218-2:2012 supports wire manufacturers in defining consistent diameter tolerances, which are critical for downstream processes such as wire forming, drawing, and coating.
• Construction and Engineering
  Precise wire dimensions ensure structural integrity and compliance in applications like prestressed concrete, wire ropes, and fastening systems.
• Automotive and Machinery
  Accurate wire dimensions and coatings meet the demanding requirements for springs, cables, and reinforcement components.
• Electrical and Industrial Use
  Wire diameter and coating tolerances affect conductivity, corrosion resistance, and mechanical performance in wiring and cable manufacturing.

Related Standards

• EN 10218-1: Steel wire and wire products – Test methods – Complements Part 2 by specifying how wire dimensions and tolerances should be tested and verified.
• EN 10079: Defines terminology related to steel products, ensuring a common understanding across standards.
• Product-Specific Standards: As noted, where different or additional dimension/tolerance rules apply, those standards take precedence over EN 10218-2.

---

Keywords: EN 10218-2:2012, steel wire dimensions, wire diameter tolerance, coated steel wire standards, wire length tolerance, wire straightness, European wire standards, metallic coated wire, organic coated wire, cut length wire tolerances, steel wire manufacturing standards, CEN wire product specifications.

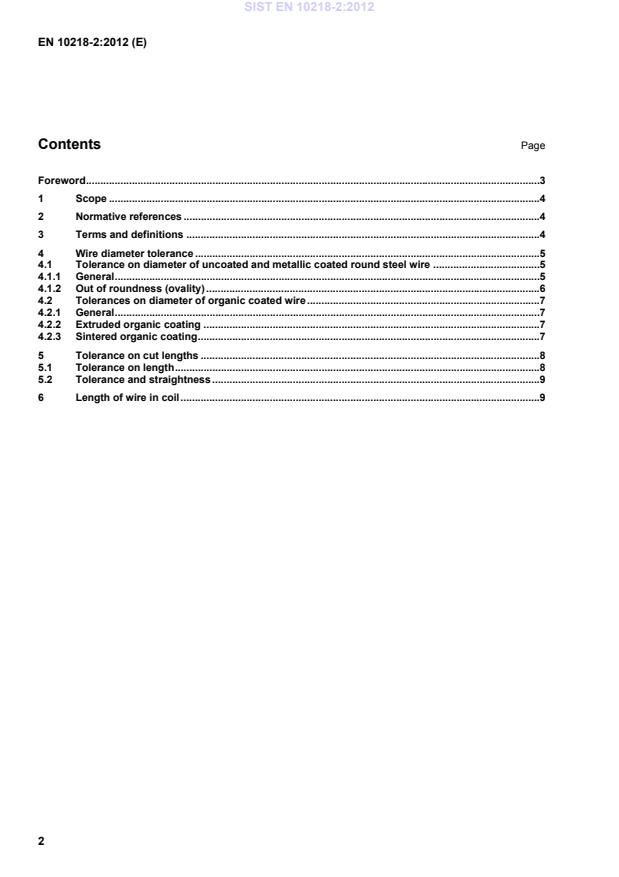

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.HUDQFHStahldraht und Drahterzeugnisse - Allgemeines - Teil 2: Drahtmaße und ToleranzenFils et produits tréfilés en acier - Généralités - Partie 2: Dimensions et tolérances des filsSteel wire and wire products - General - Part 2: Wire dimensions and tolerances77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chainsICS:Ta slovenski standard je istoveten z:EN 10218-2:2012SIST EN 10218-2:2012en,fr,de01-marec-2012SIST EN 10218-2:2012SLOVENSKI
STANDARDSIST EN 10218-2:19971DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10218-2
January 2012 ICS 77.140.65 Supersedes EN 10218-2:1996English Version
Steel wire and wire products - General - Part 2: Wire dimensions and tolerances
Fils et produits tréfilés en acier - Généralités - Partie 2 : Dimensions et tolérances des fils
Stahldraht und Drahterzeugnisse - Allgemeines - Teil 2: Drahtmaße und Toleranzen This European Standard was approved by CEN on 3 September 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10218-2:2012: ESIST EN 10218-2:2012

The cross section is generally round, though sometimes oval, rectangular, square, hexagonal, octagonal or other convex section. NOTE 2
The manufacturing processes give close control of geometric (size, surface condition) and mechanical properties. Wire may be supplied uncoated (as drawn, annealed) or coated (e.g. wi
...
