prEN ISO 20770-3

Drilling and foundation equipment - Safety - Part 3: Foundation equipment (ISO/DIS 20770-3:2025)

See attached draft

Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 4: Geräte für Gründungsarbeiten (ISO/DIS 20770-3:2025)

Dieses Dokument behandelt zusammen mit ISO 20770 1:____ alle signifikanten Gefährdungen für Geräte für Gründungsarbeiten, wenn sie bestimmungsgemäß und unter den Bedingungen der Fehlanwendung, die vernünftigerweise vom Hersteller vorhersehbar sind und mit der gesamten Lebensdauer der Maschine in Verbindung stehen, verwendet werden (siehe Anhang B).
Die Anforderungen in diesem Teil gelten zusätzlich zu den in ISO 20770 1:____ gestellten gemeinsamen Anforderungen.
Das vorliegende Dokument wiederholt nicht die Anforderungen vonISO 20770 1:____, sondern ergänzt oder ersetzt die Anforderungen für die Anwendung von Geräten für Gründungsarbeiten.
In diesem Dokument umfasst der allgemeine Begriff „Gerät für Gründungsarbeiten“ verschiedene Maschinenarten, die zur Installation und/oder Ziehen von Rammelementen durch Bohren (Maschinen mit einem Drehmoment über 35 kNm), Rammen, Pfahlrammen, Vibrieren, Einbringen, Ziehen oder einer Kombination von Techniken oder auf andere Weise verwendet werden für:
   längliche Gründungselemente wie Betonpfähle, Stahlträger, Rohre und Spundwände;
   Injektionsbauteile wie Rohre und Schlauchleitungen;
   Verrohrungen für Ortbeton;
und verwendet werden zur:
   Erdreichverbesserung durch Vibrieren und Erdreichmischtechniken;
   vertikale Entwässerung.
ANMERKUNG   Einige Geräte für Gründungsarbeiten können einen zusätzlichen Drehkopf mit einem geringeren Drehmoment als 35 kNm für Vorbohrarbeiten haben; diese Geräte sind von dieser Norm erfasst.
Maschinen mit einem oder mehreren der folgenden Eigenschaften sind von dieser Norm nicht erfasst, jedoch von ISO 20770 2:____, darunter:
   Maschinen mit einem Drehmoment des Hauptdrehkopfs von weniger als 35 kNm;
   Maschinen mit Möglichkeit zum Bohren in mehreren Richtungen;
   Maschinen, bei denen beim Installations-/Ziehvorgang weitere Maßnahmen erforderlich sind (z. B. Hinzufügen und Entnehmen von Bohrgestängen, Bohr- und Grabungswerkzeugen).

Machines de forage et de fondation - Sécurité - Partie 3: Machines de fondation (ISO/DIS 20770-3:2025)

Oprema za vrtanje in temeljenje - Varnost - 3. del: Oprema za temeljenje (ISO/DIS 20770-3:2025)

General Information

• Status: Not Published
• Publication Date: 13-Sep-2026
• ICS: 53.100 - Earth-moving machinery
• Technical Committee: CEN/TC 151 - Construction equipment and building material machines - Safety
• Drafting Committee: CEN/TC 151/WG 3 - Drilling equipment - Safety
• Current Stage: 4060 - Closure of enquiry - Enquiry
• Start Date: 08-May-2025
• Due Date: 15-Feb-2025
• Completion Date: 08-May-2025
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 2023/1230 - Regulation (EU) 2023/1230 of the European Parliament and of the Council of 14 June 2023 on machinery and repealing Directive 2006/42/EC of the European Parliament and of the Council and Council Directive 73/361/EEC (Text with EEA relevance)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/605 - COMMISSION IMPLEMENTING DECISION of 20.1.2025 on a standardisation request to the European Committee for Standardization and to the European Committee for Electrotechnical Standardization as regards machinery and related products in support of Regulation (EU) 2023/1230 of the European Parliament and of the Council
• Ref Project: oSIST prEN ISO 20770-3:2025 - Drilling and foundation equipment - Safety - Part 3: Foundation equipment (ISO/DIS 20770-3:2025)

Relations

• Revises: EN 16228-4:2014+A1:2021 - Drilling and foundation equipment - Safety - Part 4: Foundation equipment
• Effective Date: 04-Oct-2023

Overview

The draft international standard prEN ISO 20770-3:2025 addresses safety requirements specific to foundation equipment used in drilling and foundation construction. As part 3 of the ISO 20770 series, this document complements the general requirements outlined in ISO 20770-1 by focusing on foundation equipment-machines that install or extract foundation elements through techniques such as piling, vibrating, pushing, and drilling.

This standard is relevant for manufacturers, operators, and safety professionals involved in foundation equipment design, operation, and compliance. It covers significant hazards throughout the machinery’s lifecycle under reasonably foreseeable conditions of use and misuse.

Key Topics

• Scope and Equipment Types
  The document applies to foundation equipment fitted to carrier machines, including impact piling rigs, rotary piling rigs, and vibration piling rigs. Foundation equipment typically handles longitudinal foundation elements (e.g., concrete piles, steel beams, tubes), injection elements, casings for cast in situ, soil improvement, and vertical drainage applications.

• Safety Requirements
  Safety rules address machine stability, operator safety, moving parts, noise limits, and auxiliary equipment. Foundation rigs must comply both with ISO 20770-1 general safety requirements and specific provisions for foundation machines outlined in this part.

• Carrier Machine Compatibility
  Carrier machines such as cranes, cable excavators, or hydraulic excavators must meet relevant standards like EN 13000, EN 474-12, or EN 474-5, respectively, and be fully compatible in strength, stability, and hydraulic pressure with the foundation equipment.

• Stability and Risk Reduction
  The standard specifies conditions to ensure rigid body stability, including detailed testing of stability angles and ground support considerations (use of timber or steel plates), to avoid tipping or unintended displacements during operation.

• Noise Control
  Annex A provides a noise test code to assess noise levels produced by foundation equipment, supporting operators' health and compliance with regulatory limits.

• User Information and Documentation
  Clear operator manuals and safety instructions are emphasized to ensure proper use and maintenance of drilling and foundation machines.

Applications

• Foundation Construction and Earthworks
  This standard is crucial for enhancing safety in foundation construction projects, including piling, soil improvement, and vertical drainage operations, where foundation rigs are extensively used.

• Manufacturing and Design
  Manufacturers designing foundation equipment can use this standard to integrate safety measures that meet international regulatory and technical requirements.

• Occupational Safety
  Site safety managers and equipment operators benefit by adopting the standard guidelines to reduce hazards and manage risks during foundation machine operation.

• Compliance and Certification
  National standards bodies and regulatory agencies may reference prEN ISO 20770-3 during machine certification or workplace inspections, ensuring machines meet safety requirements for industrial use.

Related Standards

• ISO 20770-1 – Drilling and foundation equipment - Safety - Part 1: Common requirements, establishing general safety principles.
• ISO 20770-2 – Safety guidelines for mobile drill rigs with rotary head torque less than 35 kNm and multidirectional drilling capability.
• EN 13000 – Mobile crane safety requirements, relevant when cranes serve as carrier machines.
• EN 474-5 / EN 474-12 – Safety requirements for hydraulic and cable excavators used as carrier machines.
• ISO 12100 – General principles for design and risk assessment of machinery safety.

This collaborative framework between ISO and CEN ensures that foundation equipment safety is harmonized internationally, reflecting best practices in earth-moving machinery to protect workers and optimize operational reliability.

---

By implementing prEN ISO 20770-3:2025, stakeholders in drilling and foundation industries can enhance machine safety, improve operational performance, and meet evolving regulatory challenges globally.

Standards Content (Sample)

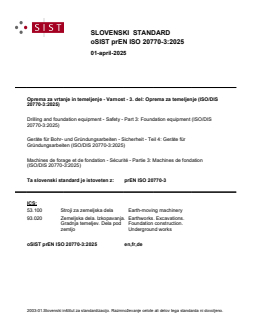

SLOVENSKI STANDARD
01-april-2025
Oprema za vrtanje in temeljenje - Varnost - 3. del: Oprema za temeljenje (ISO/DIS
20770-3:2025)
Drilling and foundation equipment - Safety - Part 3: Foundation equipment (ISO/DIS
20770-3:2025)
Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 4: Geräte für
Gründungsarbeiten (ISO/DIS 20770-3:2025)
Machines de forage et de fondation - Sécurité - Partie 3: Machines de fondation
(ISO/DIS 20770-3:2025)
Ta slovenski standard je istoveten z: prEN ISO 20770-3
ICS:
53.100 Stroji za zemeljska dela Earth-moving machinery
93.020 Zemeljska dela. Izkopavanja. Earthworks. Excavations.
Gradnja temeljev. Dela pod Foundation construction.
zemljo Underground works
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

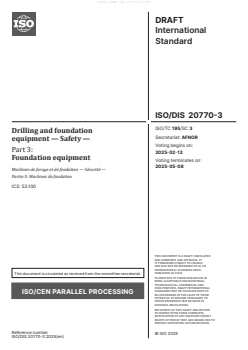

DRAFT
International
Standard
ISO/DIS 20770-3
ISO/TC 195/SC 3
Drilling and foundation
Secretariat: AFNOR
equipment — Safety —
Voting begins on:
Part 3:
2025-02-13
Foundation equipment
Voting terminates on:
2025-05-08
Machines de forage et de fondation — Sécurité —
Partie 3: Machines de fondation
ICS: 53.100
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Reference number
ISO/DIS 20770-3:2025(en)
DRAFT
ISO/DIS 20770-3:2025(en)
International
Standard
ISO/DIS 20770-3
ISO/TC 195/SC 3
Drilling and foundation
Secretariat: AFNOR
equipment — Safety —
Voting begins on:
Part 3:
Foundation equipment
Voting terminates on:
Machines de forage et de fondation — Sécurité —
Partie 3: Machines de fondation
ICS: 53.100
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
© ISO 2025
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
BE CONSIDERED IN THE LIGHT OF THEIR
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
or ISO’s member body in the country of the requester.
NATIONAL REGULATIONS.
ISO copyright office
RECIPIENTS OF THIS DRAFT ARE INVITED
CP 401 • Ch. de Blandonnet 8
TO SUBMIT, WITH THEIR COMMENTS,
CH-1214 Vernier, Geneva
NOTIFICATION OF ANY RELEVANT PATENT
Phone: [phone]
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ISO/DIS 20770-3:2025(en)
ii
ISO/DIS 20770-3:2025(en)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Safety requirements and/or protective/risk reduction measures . 3
4.1 General .3
4.1.1 Foundation equipment .3
4.1.2 Carrier machine .3
4.2 Rigid body stability .3
4.3 Winches and pulleys .4
4.4 Operating positions .4
4.5 Moving parts involved in the process .4
4.5.1 General .4
4.5.2 Exemptions .4
4.6 Inclination of the carrier .4
4.7 Auxiliary equipment for piling rig .5
4.8 Noise .5
5 Verification of the safety requirements and/or protective/risk reduction measures . 5
6 Information for use – operator's manual . 6
Annex A (normative) Noise test code . 7
Annex B (informative) List of additional significant hazards . 8
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive2006/42/EC aimed to be covered . 9
Annex ZB (informative) Relationship between this European Standard and the essential
requirements of Regulation UE 2023/1230 aimed to be covered . 14
Bibliography .20

iii
ISO/DIS 20770-3:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO [had/had not] received notice of
(a) patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 195, Building construction machinery and
equipment, Subcommittee SC 3, Drilling and foundation machinery and equipment.
A list of all parts in the ISO 20770 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
ISO/DIS 20770-3:2025(en)
Introduction
This document is a type C standard as stated in ISO 12100:2010.
The machinery concerned and the extent to which hazards are covered are indicated in the scope of this
standard.
When requirements of this type C standard are different from those which are stated in type A or B standards,
the requirements of this type C standard take precedence over the requirements of the other standards, for
drilling and foundation equipment that have been designed and built according to the requirements of this
type C standard.
v
DRAFT International Standard ISO/DIS 20770-3:2025(en)
Drilling and foundation equipment — Safety —
Part 3:
Foundation equipment
1 Scope
This document, together with ISO 20770-1:____, deals with all significant hazards for foundation equipment
when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the
manufacturer associated with the whole life time of the machine (see Annex B).
The requirements of this part are complementary to the common requirements formulated in
ISO 20770-1:____.
This document does not repeat the requirements from ISO 20770-1:____ but adds or replaces the requirements
for application for foundation equipment.
In this document the general term “foundation equipment” covers several different types of machines used
for installation and/or extracting by drilling (machines with a rotary torque greater than 35 kNm), driving,
piling, vibrating, pushing, pulling or a combination of techniques, or any other way, of:
— longitudinal foundation elements, such as concrete piles, steel beams, tubes and sheet piles;
— injection elements as tubes and hoses;
— casings for cast in situ;
and used for:
— soil improvement by vibrating and soil mixing techniques;
— vertical drainage.
NOTE Some foundation equipment may have an additional rotary head with a torque less than 35 kNm for pre-
drilling applications; this equipment is covered by this standard.
Machines with one or more of the following characteristics are not covered by this standard, but are covered
by ISO 20770-2:____, including:
— machines that have a main rotary head torque of less than 35 kNm;
— machines that have multi-directional drilling capability;
— machines require additional measures during the installation/extraction process (for example, adding
or removing such as rods, digging tools, drilling tools).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 474-5:2022, Earth-moving machinery — Safety — Part 5: Requirements for hydraulic excavators
EN 474-12:2022, Earth-moving machinery — Safety — Part 12: Requirements for cable excavators

ISO/DIS 20770-3:2025(en)
EN 13000:2010+A1:2014, Cranes — Mobile cranes
1)
ISO 11886, ____, , Drilling and foundation machinery — Soil or soil and rock mixture drilling and foundation
machines — Commercial specifications
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 12117-2:2008, Earth-moving machinery — Laboratory tests and performance requirements for protective
structures of excavators — Part 2: Roll-over protective structures (ROPS) for excavators of over 6 t
2)
ISO 20770-1, ____, , Drilling and foundation equipment — Safety — Part 1: Common requirements
3)
ISO 20770-2, ____, , Drilling and foundation equipment — Safety — Part 2: Mobile drill rigs for civil and
geotechnical engineering in soil or soil and rock mixture
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100:2010, ISO 11886:____ and
the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
foundation equipment
equipment fitted to a carrier machine in order to perform piling and foundation operations
3.2
impact piling rig
carrier machine fitted with a mast or leader on which a hammer is mounted
Note 1 to entry: Hammers can be powered or free-fall drop weights.
3.3
rotary piling rig
carrier machine fitted with a mast or leader to which a rotary drive is attached
Note 1 to entry: Drilling or digging tools such as an auger or bucket are connected to the rotary drive by a coupling.
Couplings between the rotary drive and tools and between sections of tools are non-threaded.
3.4
vibration piling rig
carrier machine fitted with a mast or leader, on which a vibrating tool is attached
Note 1 to entry: A range of vibrating tools are available for purposes such as pile driving, sheet piling or ground
improvement.
3.5
ground reference plane
GRP
plane on which the machine is placed for measurements: in the case for base machine, a hard level surface;
in the case of equipment and attachments, either a hard, level surface or compacted earth
[SOURCE: ISO 6746-1:2003, 3.2 modified – Removed Note 1 to entry]
1) At the stage of preparation : ISO/DIS 11886:2023
2) Currently, at the stage of CD
3) Currently, at the stage of CD

ISO/DIS 20770-3:2025(en)
4 Safety requirements and/or protective/risk reduction measures
4.1 General
4.1.1 Foundation equipment
Foundation equipment shall comply with the requirements of ISO 20770-1:____ except as modified or
replaced by the requirements of this part of the standard.
4.1.2 Carrier machine
When the carrier machine of a piling rig is a:
— crane it shall also comply with EN 13000:2010+A1:2014 series of standards; or
— cable excavator it shall also comply with EN 474-12:2022; or
— hydraulic excavator it shall also comply with EN 474-5:2022.
The requirements of ISO 20770-1:____ and ISO 20770-3:20XX shall take precedence over the standards for
the carrier machine.
The carrier machine shall be compatible (e.g., strength, stability, fluid pressure) with the piling equipment.
4.2 Rigid body stability
ISO 20770-1:____, 4.2.3 applies with the following additions:
Normal condition (NC) required stability angles shall be used and indicated in the instructions for use for
any application.
In addition to NC values, special conditions (SC) required stability angles can be used, if the following
conditions are fulfilled:
a) The ground shall support the machine and can reliably withstand the supporting forces, without
significant unintended displacements or taking into account their affect on stability (support by
e.g. timber plates, steel plates and/or improved ground surface can be required). There shall not be
unintended displacements or risks of instability if supports (those not causing rigid body movement)
become unloaded and thus cause maximum forces at other supports. See ISO 20770-1:____, 4.2.3.6 and
Figure 2.
b) Masses of relevant parts of the machine shall be evaluated by weighing with an accuracy of ±2,5 %.
c) When using tipping line 1 as defined in ISO 20770-1:____, Figure 1 then the required tipping angle shall
be increased by β.
The calculated stability angle shall be equal or greater than the required stability angles as stated in Table 1
below in each situation:
Table 1 — Required stability angle, dynamic influences included
Stability class NC Stability class SC
(normal conditions) (special conditions)
Travelling 8 degrees 5 degrees + β (see below)
a
Operating and tramming 5 degrees 1,5 degrees + β (see below)
Out of service 5 degrees 5 degrees
a
An additional calculation with a static stability angle of 5 degrees + β (see c) above) without dynamic accelerations is also
required.
ISO/DIS 20770-3:2025(en)
4.3 Winches and pulleys
ISO 20770-1:____, 4.8.2 applies with the following addition:
To allow a suspended hammer to follow and maintain contact with the pile, either the winch supporting the
hammer shall be capable of releasing the supporting cable or the hammer shall be completely disconnected
from the winch cable.
4.4 Operating positions
ISO 20770-1:____, 4.14.1 applies with the following change:
On machines having a mass less than or equal to 50 t fitted with a a roll-over protective structure (ROPS),
the ROPS shall comply with ISO 12117-2:2008.
4.5 Moving parts involved in the process
4.5.1 General
ISO 20770-1:____, 4.23.2 applies with the following additional requirements:
For guards (fixed and moveable):
— the distance from the bottom edge of the guard to the ground reference plane (GRP) shall be no more
than 750 mm;
— the distance from the upper level of the guard to the ground reference plane (GRP) shall not be less than
1 600 mm;
4.5.2 Exemptions
Rotary piling rigs are exempted from the requirement of guards and protective devices as in 4.5.1 if equipped
with at least one of the following devices or components:
— a kelly bar;
— a soil mixing attachment;
— a soil displacement attachment;
— a casing oscillator (e.g. ISO 11886:2023____, Table C.1 – row 42);
— rotating auger cleaners (e.g. ISO 11886:2023____, Table C.1 – row 41);
NOTE 1 Rotating auger cleaners are dealt with in ISO 20770-1:____, 4.24.
— guides at the lower end of the leader to guide the auger or drill stem, having the same dimensions as
indicated in 4.5.1 for the guards;
NOTE 2 Guides can be opened to allow the drilling head to move to ground level.
— casings or rotating drill stem, having a rotation speed of no greater than 30 rpm.
NOTE 3 Casings usually have a smooth surface and are moving with a low rotation speed.
4.6 Inclination of the carrier
ISO 20770-1:____, 4.10.2 applies with the following addition:
Systems for measuring the inclination of the carrier shall be accurate within ±0,2°.

ISO/DIS 20770-3:2025(en)
4.7 Auxiliary equipment for piling rig
Piling leaders used with rope driven free-fall drop hammers shall be provided with a mechanical end stop to
block the hammer at its lowest position.
4.8 Noise
ISO 20770-1:____, 4.27.2 applies with the addition of specific test code specified in Annex A.
5 Verification of the safety requirements and/or protective/risk reduction measures
Verification of the safety requirements and/or protective/risk reduction measures of Clauses 4 and 6 of this
document shall be verified according to Table 2 below. It includes the following types of verification:
a) design check: the result of which being to establish that the design documents comply with the
requirements of this Document;
b) calculation: the results of which being to establish that the requirements of this Document have been met;
c) visual verification: the result of which only being to establish that something is present (e.g. a guard, a
marking, a document);
d) measurement: the result of which shows that the required numerical values have been met (e.g. geometric
dimensions, safety distances, resistance of insulation of the electric circuits, noise, vibrations);
e) functional tests: the result of which shows that the adequate signals intended to be forwarded to the
main control system of the complete machine are available and comply with the requirements and with
the technical documentation;
f) special verification: the procedure being given or in the referred clause.
Table 2 — Verification of safety requirements and/or protective measures
4 Safety requirements and/or protective/risk reduction measures
4.1 General x 1
4.1.1 Foundation equipment x x 1
4.1.2 Carrier machine x x 1
4.2 Rigid body stability x x 1
4.3 Winches and pulleys x x x
4.4 Operating positions x x 1
4.5 Moving parts involved in the process x x
4.5.1 General x
4.5.2 Exemptions x 1
4.6 Inclination of the carrier x x
1 Verification by reference to standard which is mentioned in the corresponding clause.

Clause number
Title
a) Design check
b) Calculation
c) Visual verification
d)  Measurement
e)  Functional test
f) Special verification
(See at the end of this
table)
