SLOVENSKI STANDARD
SIST EN 17333-1:2020
01-junij-2020
Karakterizacija enokomponentnih pen - 1. del: Značilnosti izkoristka pene
Characterization of One Component Foam - Part 1: Foam yield characteristics
Charakterisierung von Einkomponentenschäumen - Teil 1: Ausbeute
Caractérisation des mousses monocomposants - Partie 1 : Rendement
Ta slovenski standard je istoveten z: EN 17333-1:2020
ICS:
83.180 Lepila Adhesives
SIST EN 17333-1:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17333-1:2020
---------------------- Page: 2 ----------------------
SIST EN 17333-1:2020
EN 17333-1
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2020
EUROPÄISCHE NORM
ICS 83.180
English Version
Characterisation of one component foam - Part 1: Foam
yield characteristics

Caractérisation des mousses monocomposants - Partie Charakterisierung von Einkomponentenschäumen -

1 : Caractéristiques de rendement des mousses Teil 1: Schaumausbeute
This European Standard was approved by CEN on 1 December 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17333-1:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17333-1:2020
EN 17333-1:2020 (E)

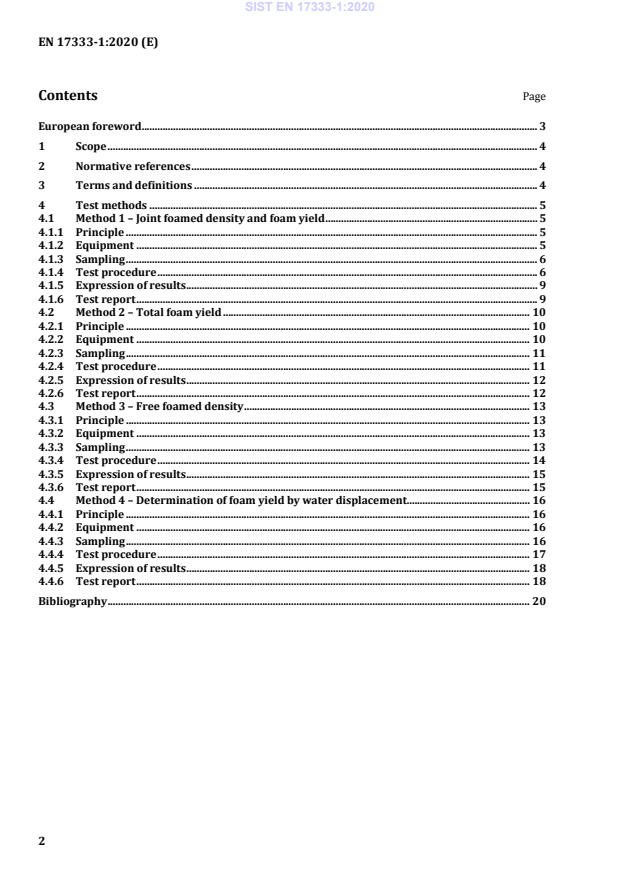

Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Test methods .................................................................................................................................................... 5

4.1 Method 1 – Joint foamed density and foam yield ................................................................................. 5

4.1.1 Principle ............................................................................................................................................................. 5

4.1.2 Equipment ......................................................................................................................................................... 5

4.1.3 Sampling ............................................................................................................................................................. 6

4.1.4 Test procedure ................................................................................................................................................. 6

4.1.5 Expression of results ...................................................................................................................................... 9

4.1.6 Test report ......................................................................................................................................................... 9

4.2 Method 2 – Total foam yield ..................................................................................................................... 10

4.2.1 Principle .......................................................................................................................................................... 10

4.2.2 Equipment ...................................................................................................................................................... 10

4.2.3 Sampling .......................................................................................................................................................... 11

4.2.4 Test procedure .............................................................................................................................................. 11

4.2.5 Expression of results ................................................................................................................................... 12

4.2.6 Test report ...................................................................................................................................................... 12

4.3 Method 3 – Free foamed density ............................................................................................................. 13

4.3.1 Principle .......................................................................................................................................................... 13

4.3.2 Equipment ...................................................................................................................................................... 13

4.3.3 Sampling .......................................................................................................................................................... 13

4.3.4 Test procedure .............................................................................................................................................. 14

4.3.5 Expression of results ................................................................................................................................... 15

4.3.6 Test report ...................................................................................................................................................... 15

4.4 Method 4 – Determination of foam yield by water displacement............................................... 16

4.4.1 Principle .......................................................................................................................................................... 16

4.4.2 Equipment ...................................................................................................................................................... 16

4.4.3 Sampling .......................................................................................................................................................... 16

4.4.4 Test procedure .............................................................................................................................................. 17

4.4.5 Expression of results ................................................................................................................................... 18

4.4.6 Test report ...................................................................................................................................................... 18

Bibliography ................................................................................................................................................................. 20

---------------------- Page: 4 ----------------------
SIST EN 17333-1:2020
EN 17333-1:2020 (E)
European foreword

This document (EN 17333-1:2020) has been prepared by Technical Committee CEN/TC 193

“Adhesives”, the secretariat of which is held by UNE.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by September 2020, and conflicting national standards

shall be withdrawn at the latest by September 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document is one of the product European Standards within the framework series of EN 17333 on

Characterization of one component foam, as follows:
— Part 1: Foam yield characteristics (this document);
— Part 2: Expansion characteristics;
— Part 3: Application;
— Part 4: Mechanical strength;
— Part 5: Insulation.

This document is one of a series of standards which specify test methods for determining the properties

of one component foams (OCFs).

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 17333-1:2020
EN 17333-1:2020 (E)
1 Scope

This document specifies test methods for the evaluation of the foam yield characteristics for moisture

curing, self-curing activatable or water drying foams dispensed from single pressurized foam

containers.

This document does not purport to address all of the safety concerns, if any, associated with its use. It is

the responsibility of the user of this document to establish appropriate safety and health practices and

determine the applicability of regulatory requirements prior to use.
The following test methods are described:

— Method 1 – Determination of the apparent density of an OCF extruded in a joint and calculation of

the theoretical foam yield in running meters of the whole can.

— Method 2 – Determination of the real yield of cured foam, respecting eventual cavities inside the

foam structure.

— Method 3 – Determination of the free foamed density of a cured OCF for identification purposes

only.

— Method 4 – Determination of the total foam yield for the whole OCF container for moisture and self-

curing foam that can be measured by water displacement.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 923, Adhesives - Terms and definitions

EN 15006, Metal aerosol containers - Aluminium containers - Dimensions of the 25,4 mm aperture

EN 14847, Aerosol containers - Tinplate containers - Dimensions of the 25,4 mm aperture

3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 923 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp/ui
— IEC Electropedia: available at http://www.electropedia.org/
3.1
one component foam
(OCF)

moisture curing or water drying foam as well as self-curing activatable foam dispensed from a single

pressurised foam container
3.2
free foamed density
density of cured foam after expanding without physical constraints
---------------------- Page: 6 ----------------------
SIST EN 17333-1:2020
EN 17333-1:2020 (E)
3.3
joint foamed density
mass per unit volume of cured foam after expanding in a joint
3.4
joint
void into which froth is dispensed
3.5
joint foam yield

length of a joint with pre-defined dimensions, that may be filled by the froth extruded from single

pressurized foam container
3.6
pressurised foam container
pressurised can according to EN 14847 and EN 15006
3.7
test container
pressurised can according to EN 14847 and EN 15006 used for testing purposes
3.8
self-curing activatable foam
one component foam with internal cartridge containing reactive components
3.9
fully cured or dried foam

cross-linked foam which reaches its serviceable properties as claimed by the manufacturer

3.10
straw foam
one component or two component foam for the extrusion with an adapter tube
3.11
gun foam
one component foam for the extrusion with a foam application gun
4 Test methods
4.1 Method 1 – Joint foamed density and foam yield
4.1.1 Principle

The foam is dispensed into a joint with fixed dimensions. The joint foamed density of the cured foam is

calculated using the weight and volume of the foam. The theoretical joint foam yield is calculated by

measuring the amount sprayed.

NOTE Joint density can differ from the free foamed density determined by Method 3 in 4.3.

4.1.2 Equipment
For each joint:
4.1.2.1 2 gypsum boards, with dimensions 420 mm × 100 mm × 12,5 mm.
---------------------- Page: 7 ----------------------
SIST EN 17333-1:2020
EN 17333-1:2020 (E)
4.1.2.2 2 spacers, not water absorbing, not adherent (e.g. polyethylene (PE),

polytetrafluoroethylene (PTFE), on which polyurethane (PU) does not adhere), dimensions:

100 mm × 30 mm × 30 mm.
4.1.2.3 Joint mould of inner dimensions 360 mm × 100 mm × 30 mm.
4.1.2.4 Uncoated paper, recommended A3 typewriter
Additional tools:
4.1.2.5 Weighing scale with an accuracy of ±0,1 g.
4.1.2.6 Sharp and clean knife blade.

4.1.2.7 Conditioning chamber capable of being controlled at (23 ± 2) °C and (50 ± 5) % RH.

4.1.3 Sampling
4.1.3.1 Conditioning

The test conditions shall be (23 ± 2) °C and (50 ± 5) % relative humidity unless indicated otherwise.

Bring the test container, gypsum board and paper to the test conditions for at least 24 h.

4.1.3.2 Test pieces

A minimum of three samples shall be subjected to the tests given in this section to obtain accurate

measurements of material properties.
4.1.4 Test procedure

a) Build three horizontal joints using the gypsum boards and spacers (see Figures 1 to 3). The inner

dimensions of each joint shall be minimum 360 mm × 100 mm × 30 mm.
b) Weigh the paper w and insert the sheets in the joints.

c) Mount the dispenser tool on the test container and note the initial test container mass with the

dispenser tool (m ).
d) Do not pre-moisten the joint.

e) Shake an unused test container vigorously 20 times and discard the first (40 ± 10) g of foam. Weigh

the test container with the dispenser tool again and note the mass m .

f) Fill the first joint according to manufacturer’s instruction whilst avoiding overexpansion. Typical

filling levels are (80 ± 10) % of joint height for g
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
